1993 CHEVROLET TRACKER Owners Manual

Maintenance Schedule
Section C: Periodic Maintenance Inspections
Listed below are inspections and services which should be
performed at least twice a year (for instance, each spring or
fall). You should let your
GM dealer’s service department or
other qualified service center do these
jobs. Make sure
any necessary repairs are completed at once.
CHECK
I OR SERVICE WHAT TO DO
Steering, Suspension,
and Front-Wheel-Drive
Axle Boot and Seal
Inspection
Exhaust System
Inspection
Throttle Linkage
Inspection
Rear Axle (All) and
Front Axle
(Four-wheel Drive)
Service ~ Inspect front and rear suspension and steering system for damaged, loose or missing parts, signs
of wear or lack of lubrication. On vehicles equipped with power steering, inspect power steering,
lines and hoses for proper hookup, binding, leaks, cracks, chafing, etc. On vehicles equipped
with manual steering, check
for seal leakage. Clean and then inspect drive axle boot seals for
damage, tears or leakage. Replace seals
if necessary.
Inspect the complete exhaust system. Inspect the body near the exhaust system. Look for broken,
damaged, missing,
or out-of-position parts as well as open seams, holes, loose connections, or
other conditions which could cause a heat build-up in the floor pan or could let exhaust fumes
into the vehicle. See “Engine Exhaust’’
in the Index.
Inspect the throttle linkage for interference or binding, and for damaged or missing parts.
Replace parts as needed. Check accelerator pedal for smooth operation and even pedal effort.
Check the gear lubricant level and add if needed. See “Rear Axle’’ and ‘‘Four-wheel Drive’’
in
the Index. A fluid loss may indicate a problem. Check the system(s), and repair the system(s) if
needed. Refer to “Scheduled Maintenance Services,” earlier in this part, to determine when to
change
the lubricant.
ProCarManuals.com

Maintenance Schedule
Section C: Periodic Maintenance Inspections (Cont.)
CHECK
OR SERVICE
Brake System
Inspection
Clutch System Service
~
WHAT TO DO
Inspect the complete system. Inspect brake lines and hoses for proper hookup, binding, leaks,
cracks, chafing, etc. Inspect disc brake pads for wear and rotors for surface condition.
Also
inspect drum brake linings for wear and cracks. Inspect other brake parts, including drums,
wheel cylinders, calipers, parking brake, etc. Check parking brake adjustment.
You may need to
have your brakes inspected more often if your driving habits or conditions result in frequent
braking.
NOTE: A low fluid brake level can indicate worn disc brake pads which may need to be
serviced. Also,
if the brake system warning light stays on or comes on at any time something
may be wrong with either the regular or rear wheel anti-lock brake system, or both systems. See
“Brake Svstem Warning Light” in the Index.
Check clutch pedal free travel and adjust as necessary. See “Clutch Adjustment”
in the Index.
ProCarManuals.com

Maintenance Schedule
Section D: Recommended Fluids and Lubricants
Note: Fluids and lubricants identified below by name, part number or specification may be obtained from your GM dealer.
USAGE
Engine Oil
Engine Coolant
Hydraulic Brake
System
Parking Brake Guides
Power Steering System
Automatic Transmission
Wheel Bearings
FLUID/LUBRICANT
GM Goodwrench Motor Oil or equivalent for API service SG Energy Conserving I1 oils of the
recommended viscosity. The SG designation may be shown alone or in combination with others,
such as
SG/CC, SG/CD, or SF, SG, CC, etc. To determine proper viscosity for your vehicle’s
engine, see
‘ ‘Engine Oil” in the Index.
50/50 mixture of water (preferably distilled) and good quality ethylene glycol base antifreeze
(GM Part
No. 1052753) conforming to GM Specification 6038M or approved recycled coolant
conforming to GM Specification 6038M.
Delco-Supreme 1
l@ Brake Fluid (GM Part No. 1052535) or equivalent DOT-3 brake fluid.
~~
Chassis lubricant meeting requirements of NLGI Grade 2, Category LB or GC-LB (GM Part No.
1052497 or equivalent).
DEXRONB-I1 Automatic Transmission Fluid (GM Part
No. 1051855) or equivalent.
DEXRON*-I1 Automatic Transmission Fluid (GM Part
No. 1051855) or equivalent.
3.
-
-
305 9 -
Wheel bearing grease meeting requirements of NLGI Grade 2, Category GC or GC-LB (GM Part
No. 105 1344 or equivalent).
ProCarManuals.com

Maintenance Schedule
Section D: Recommended Fluids and Lubricants (Cont.)
USAGE FLUID/LUBRICANT
I Manual Transmission I SAE 75W-90 GL-4 (GM Part No. 12345871 Castrol@ Syntorq GL-4 or equivalent). I
Manual Transmission Chassis lubricant meeting requirements of NLGT Grade 2, Category LB or GC-LB (GM Part No.
Shift Linkage 1052497 or equivalent).
Key Lock Cylinders Lubricate with Multi-Purpose Lubricant (GM Part
No. 12345120) or synthetic SAE 5W-30 engine oil
or silicone lubricant (GM Part No. 1052276 or 1052277).
Automatic Transmission Engine oil.
Shift Linkage
Clutch Linkage Pivot Lithium base grease.
Points
Floor Shift Linkage Engine oil.
~~ ~ ~ ~~~
Chassis Lubrication Chassis lubricant meeting requirements of NLGI Grade 2, Category LB or GC-LB (GM Part No.
Windshield Washer Sol- GM Optikleen@ Washer Solvent (GM Part No. 1051515) or equivalent.
vent
Rear Axle (All)
SAE 75W-90 GL-5 Hypoid Gear Lubricant (GM Part No. 12345977).
Front Axle (Four-wheel
Drive) 1052497
or equivalent).
ProCarManuals.com

USAGE
Transfer Case (Four-wheel Drive)
Hood Latch Assembly
a. Pivots and Spring
b. Release Pawl
Anchor
Hood, Door,
and
Liftgate Hinges, Rear Folding Seat,
Fuel Door
Hinge, Rear Compart-
ment Lid Hinges
Weatherstrips Constant Velocity
Universal Joint
FLUID/LUBRICANT
SAE 75W-90, GL-4 gear lubricant (GM Part No. 12345871).
a. Engine oil.
b. Chassis lubricant meeting requirements
of NLGI Grade 2, Category LB or GC-LB
(GM Part No.
1052497 or equivalent).
Engine oil.
Dielectric Silicone Grease (GM Part
No. 12345579) or equivalent.
Chassis lubricant meeting requirements
of NLGI Grade 2, Category LB or GC-LB (GM Part No.
1052497 or equivalent).
See “Replacement Parts” in the Index for recommended replacement filters, valves and spark plugs.
307
ProCarManuals.com

Maintenance Schedule
Section E: Maintenance Record
After the scheduled services are performed, record the date, or
Schedule I1 maintenance charts which correspond to the
odometer reading, and who performed
the service in the maintenance
performed. Also, you should retain all
columns indicated, When completing the Maintenance maintenance
receipts. Your owner information portfolio is
a
Performed column, insert the numbers from the Schedule I convenient place to store them.
SERVICED BY MAINTENANCE PERFORMED
... 308
ProCarManuals.com

DATE ODOMETER
READING SERVICED BY MAINTENANCE PERFORMED
ProCarManuals.com

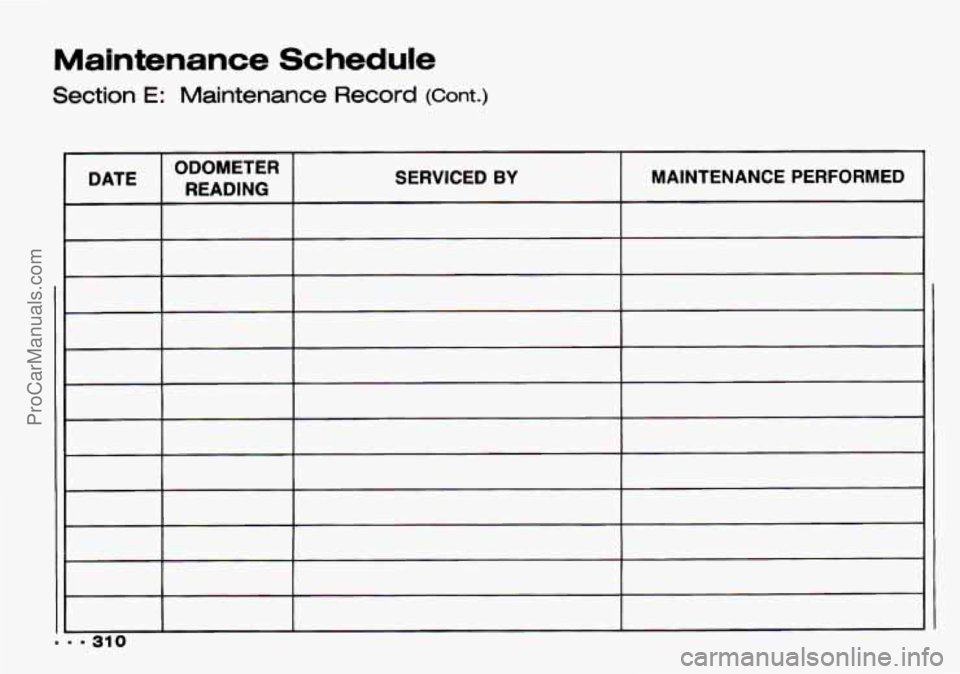

Maintenance Schedule
Section E: Maintenance Record (Cont.)
ProCarManuals.com
