1986 TOYOTA CAMRY V20 condition

Check that there is voltage between ECU terminal BATT and
body ground.
Check wiring between ECU terminal El and body
ground. No voltage between ECU terminals BATT and E1.
Check wiring between ECU
terminal and battery.Check fuse and fusible link.
Repair or replace.Repair or replace.
Try another ECU.STD voltage
No voltageCondition
Terminals
Replace. Trouble
BAD
BADBAD No.
± EFI SYSTEMTroubleshooting with Volt OhmmeterFI±35

Check that there is voltage between ECU terminal + B or + B1 and body
ground. (IG SW ON) No voltage between ECU terminal 1D1. or PSW and E1.
(IG SW ON)
Check wiring between ECU terminal El and body
ground.
Check wiring between ECU and
throttle position sensor. Check throttle position sensor.
(See page FI±106)
Replace or repair throttle
position sensor. Refer to No. 1.
(See page FI±34) Throttle valve fully closedThrottle valve open
Repair or replace.
Repair or replace.
Try another ECU.STD voltage
No voltageIG SW ONCondition
TerminalsTrouble
BAD
BAD
BAD
BAD No.
± EFI SYSTEMTroubleshooting with Volt OhmmeterFI±36

Check that there is voltage between ECU terminal +B or +B1 and body
ground. (IG SW 4111)
Check wiring between ECU terminal El and body
ground. No voltage between ECU terminals IDL and E2.
OG SW ON) (Throttle valve open)
Check wiring between ECU and
throttle position sensor. Check throttle position sensor.
(See page FI±110)
Repair or replace throttle
position sensor.Refer to No. 1.
(See page FI±34) Throttle valve fully closed
Throttle valve fully open
Try another ECU. Throttle valve open
Repair or replace.Repair or replace.
wIDL ± E2
STD voltage
No voltage
IG SW ON
Condition Terminals Trouble
BAD
BAD
BAD
BAD
No.
± EFI SYSTEMTroubleshooting with Volt OhmmeterFI±37

Check that there is voltage between ECU terminal +B or +B1 and body

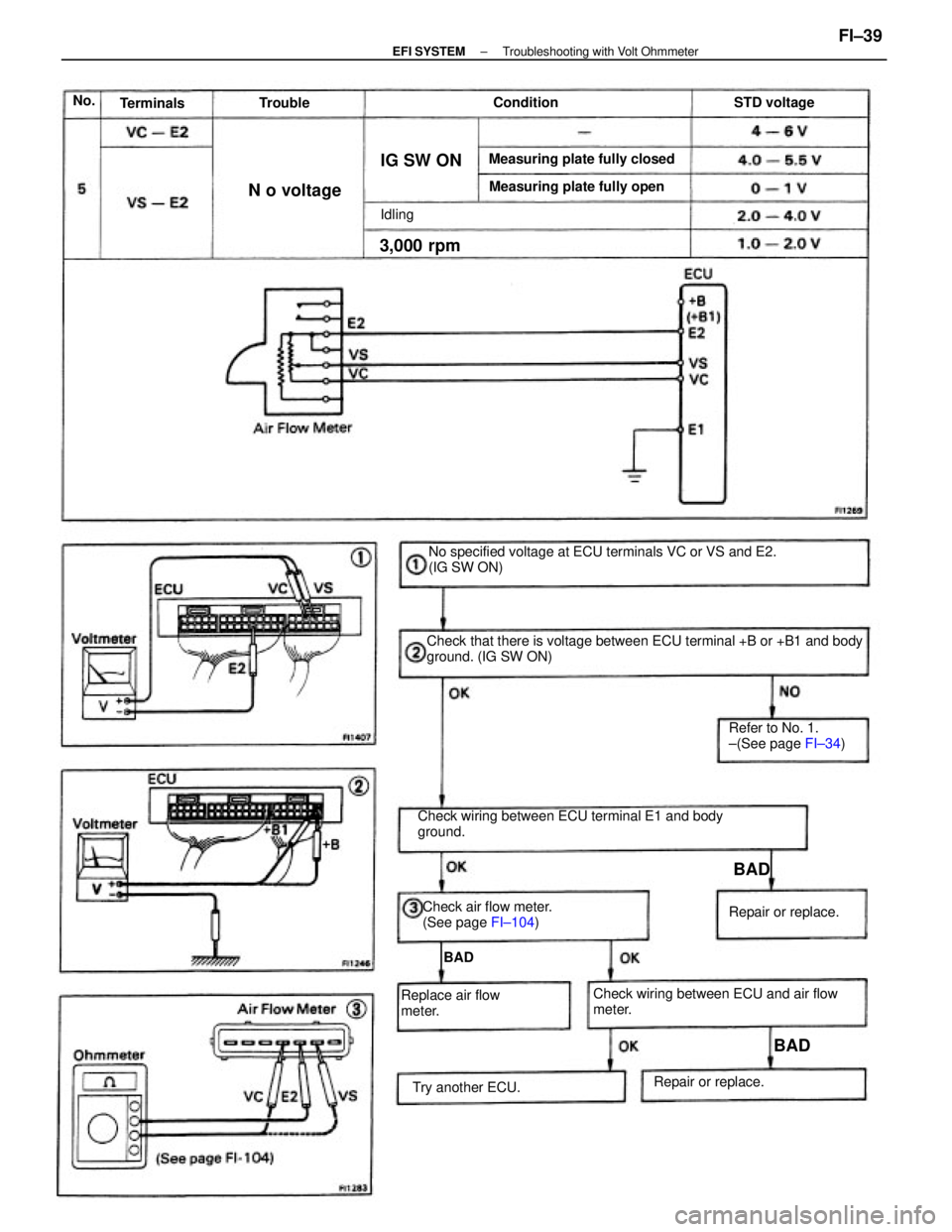

ground. (IG SW ON)No specified voltage at ECU terminals VC or VS and E2.
(IG SW ON)
Check wiring between ECU terminal E1 and body
ground.
Check wiring between ECU and air flow
meter. Check air flow meter.
(See page FI±104) Measuring plate fully closed
Refer to No. 1.
±(See page FI±34) Measuring plate fully open
Replace air flow
meter.
Repair or replace.Repair or replace.
Try another ECU.STD voltage
BAD 3,000 rpm N o voltageIG SW ON
TerminalsCondition
Trouble
Idling
BAD
BAD
No.
± EFI SYSTEMTroubleshooting with Volt OhmmeterFI±39

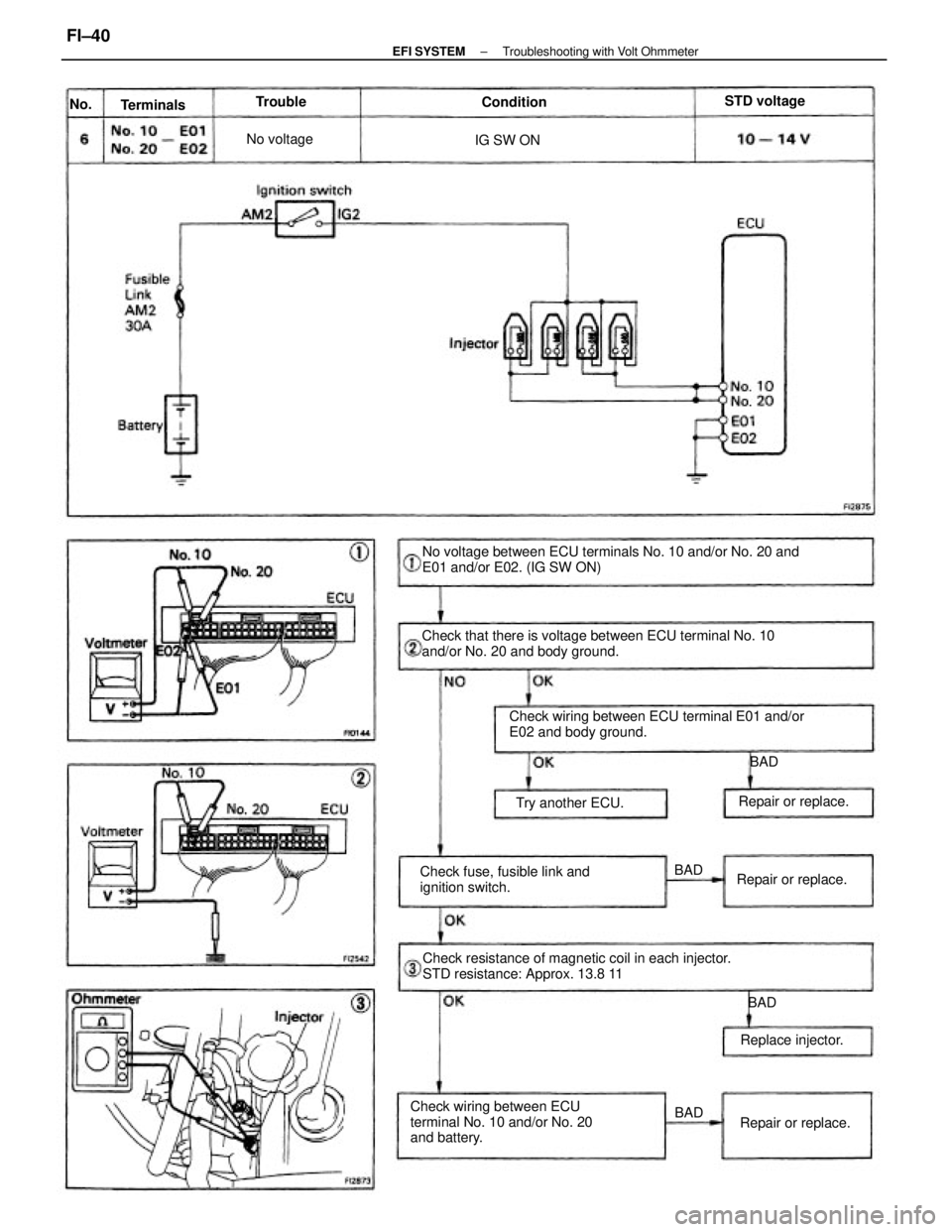

No voltage between ECU terminals No. 10 and/or No. 20 and
E01 and/or E02. (IG SW ON)
Check that there is voltage between ECU terminal No. 10
and/or No. 20 and body ground.
Check resistance of magnetic coil in each injector.
STD resistance: Approx. 13.8 11Check wiring between ECU terminal E01 and/or
E02 and body ground.
Check wiring between ECU
terminal No. 10 and/or No. 20
and battery.Check fuse, fusible link and
ignition switch.
Repair or replace. Repair or replace.
Repair or replace. Try another ECU.
Replace injector. STD voltage
No voltage
IG SW ONCondition
TerminalsTrouble
BAD BAD
BADBAD No.
± EFI SYSTEMTroubleshooting with Volt OhmmeterFI±40

Check that there is voltage between ECU terminal +B or +B1 and
body ground. (IG SW 4N)
Check wiring between ECU terminal E1 and body
ground.No voltage between ECU terminals THA and E2.
(IG SW ON)Intake air temperature 20°C
(68°F)
Check wiring between ECU and air
temp. sensor. Check air temp. sensor.
(See page FI±104)Refer to No. 1.
(See page FI±34)
Replace air
flow meter.Repair or replace.
Repair or replace.
Try another ECU.STD voltage
No voltageIG SW ONCondition Terminals
Trouble
BAD
BAD BAD
No.
± EFI SYSTEMTroubleshooting with Volt OhmmeterFI±41

Check that there is voltage between ECU terminal +B or +131 and
body ground. (IG SW ON)
No voltage between ECU terminals THW
and E2.
(IG SW ON)
Check wiring between ECU terminal El and body
ground.
Check wiring between ECU and water
temp. sensor. Check water temp. sensor.
(See page FI± 1 Z5)Coolant temperature 8O° (176°F)
Refer to NO. 1.
(See page FI±34)
Replace water
temp. sensor.Repair or replace.
Repair or replace.
Try another ECU.STD voltage
No voltage
IG SW ON Terminals
Condition Trouble
BAD
BAD
BAD
No.
± EFI SYSTEMTroubleshooting with Volt OhmmeterFI±42

Check that there is voltage at STA (50) terminal of starter.
(IG SW START) STD voltage: 6 ± 14 v Check fusible link, battery, wiring, ignition
switch clutch start switch, starter relay and
neutral start switch..Check wiring between ECU terminal E1 and body
ground. No voltage between ECU terminals STA and E1.
OG SW START)
Check wiring between ignition switch
terminal ST1 and starter terminal STA (50).Check wiring between ECU terminal STA
and ignition switch terminal ST1.
Check starter
operation.
Repair or replace.
Repair or replace.Repair or replace.
Try another ECU.STD voltage
Check starter.
No voltage
Cranking
Terminals ConditionTrouble
BAD
BADBAD BAD No.
± EFI SYSTEMTroubleshooting with Volt OhmmeterFI±43
