OPERATION
Power from the engine transmitted to the input shaft via the torque converter is then trans-
mitted to the planetary gears by the operation of the clutch.
By operation of the brake and one±way clutch, either the planetary carrier or the planetary sun
gear are immobilized, altering the speed of revolution of the. planetary gear unit.
Shift change is carried out by altering the combination of clutch and brake operation.
Each clutch and brake operates by hydraulic pressure; gear position is decided according to
the throttle opening angle and vehicle speed, and shift change automatically occurs.

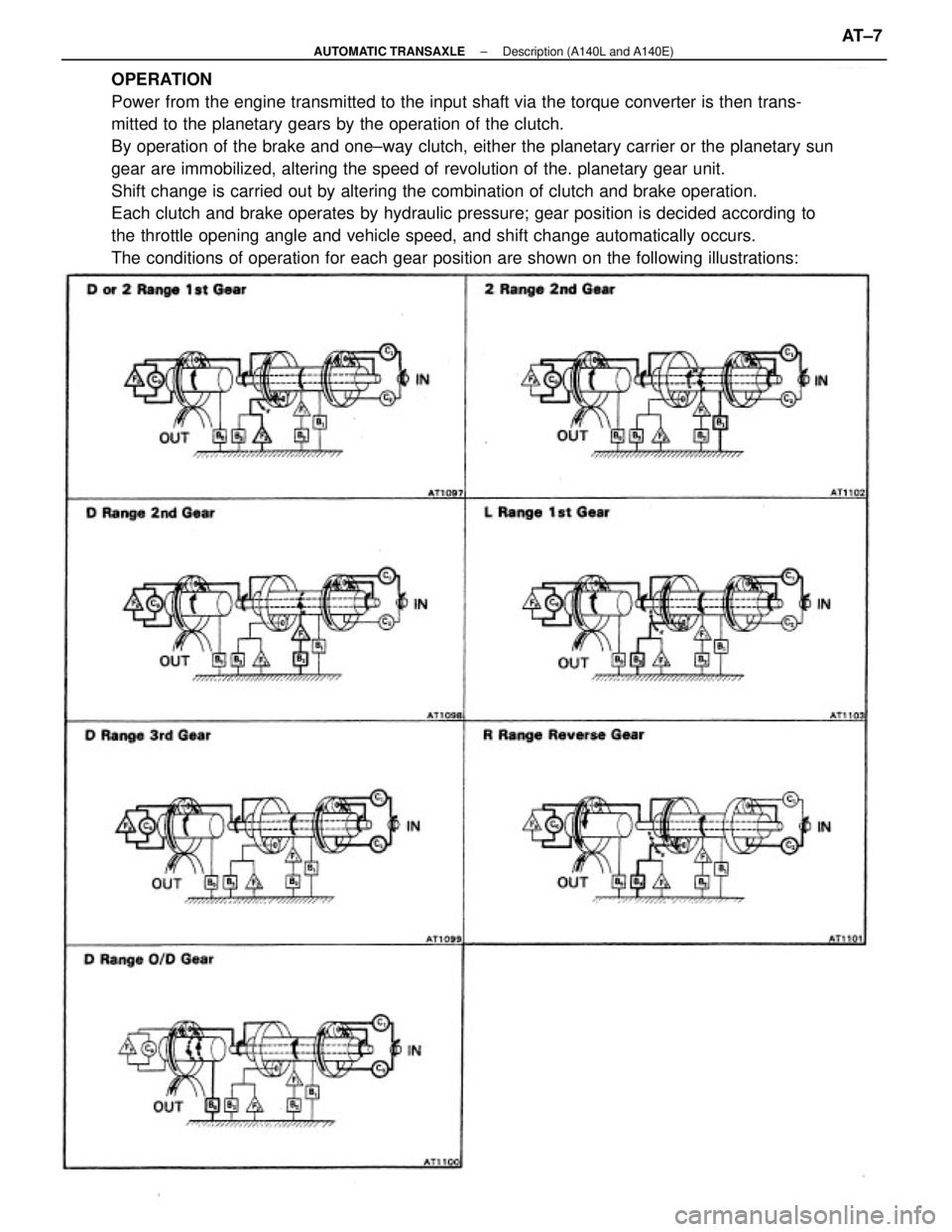

The conditions of operation for each gear position are shown on the following illustrations:
± AUTOMATIC TRANSAXLEDescription (A140L and A140E)AT±7

Shift cable out of adjustment
Valve body or primary regulator
faulty
Parking lock pawl faulty
Torque converter faulty
Converter drive plate broken
Oil pump intake screen blocked
Transaxle faulty
Shift cable out of adjustment
Throttle cable out of adjustment
Valve body faulty
Solenoid valve faulty
Transaxle faulty Throttle cable out of adjustment
Valve body or primary regulator faulty
Accumulator pistons faulty
Transaxle faultyInspect parking lock pawl
Replace torque converter
Replace drive plate
Clean screen
Disassemble and inspect
transaxle
Adjust shift cable
Adjust throttle cable
Inspect valve body
Inspect solenoid valve
Disassemble and inspect
transaxle
General Troubleshooting
Delayed 1±2, 2±3 or
3±O/D up±shift, or
down±shifts from
O/D±3 or 3±2 and
shifts back to O/D or 3Replace fluid
Replace torque converter
Disassemble and inspect
transaxle
Adjust shift cable
Inspect valve body
Disassemble and inspect
transaxle
Adjust shift cable
Inspect valve body
Disassemble and inspect
transaxle Shift cable out of adjustment
Manual valve and lever faulty
Transaxle faulty
Shift cable out of adjustment
Valve body faulty
Transaxle faultyInspect electronic control
Inspect valve body
Inspect solenoid valve Inspect accumulator pistons
Disassemble and inspect
transaxle
Electronic control faulty
Valve body faulty
Solenoid valve faulty Fluid contaminated
Torque converter faulty
Transaxle faulty
Slips on 1±2, 2±3
or 3±O/D up±shift,
or slips or shudders
on acceleration Vehicle does not
move in any forward
range or reverse
Drag, binding or tieup on
1±2, 2±3 or
3±4/D up±shift Harsh engagement into
any drive range
AT±22
AT±22
AT±133
AT±56 Adjust throttle cable
Inspect valve body
AT±121
AT±33 Adjust shift cable
Inspect valve body
Shift lever position
incorrect Fluid discolored or
smells burntAT±21
AT±156
AT±56
AT±22
AT±133
AT±56 AT±22
AT±133
AT±56
AT±24
AT±121
AT±33 AT±36
AT±133 AT±177
AT±56AT±121
AT±121 AT±22
AT±133
AT±22
AT±133 AT±72
AT±156 Possible cause
AT±121
AT±121 Problem
Remedy
A140E
A140LPage
AT±56
± AUTOMATIC TRANSAXLETroubleshooting (General Troubleshooting) (A140L. and
A140E)AT±12

5. INSPECT AND ADJUST SHIFT CABLE
When shifting the shift lever from the N position to oth-
er positions, check that the lever can be shifted
smoothly and accurately to each position and that the
position indicator correctly indicates the position.
If the indicator is not aligned with the correct position,
carry out the following adjustment procedures.
(a) Loosen the swivel nut on manual shift lever.
(b) Push the manual lever fully toward the right side of the
vehicle.
(c) Return the lever two notches to NEUTRAL position.
(d) Set the shift lever to N.
(e) While holding the lever lightly toward the R range
side, tighten the swivel nut.
6. ADJUST NEUTRAL START SWITCH
If the engine will start with the shift selector in any
range other than N or P range, adjustment is required.
(a) Loosen the neutral start switch bolts and set the shift
selector to the N range.
(b) Align the groove and neutral basic line.
(c) Hold in position and tighten the bolts.
Torque: 55 kg±cm (48 in.±Ib, 5.4 N±m)
7. INSPECT IDLE SPEED (N RANGE)
Idle speed: 700 rpm 4. INSPECT AND ADJUST THROTTLE CABLE
(a) Depress the accelerator pedal all the way and check that the
throttle valve opens fully.
HINT: If the valve does not open fully, adjust the accelerator
link.
(b) Fully depress the accelerator pedal.
(c) Loosen the adjustment nuts.
(d) Adjust the outer cable so that the distance between the end
of the boot and stopper on the cable is the standard.
Standard boot and cable stopper distance:
0± 1 mm 10±0.04 in.)
(e) Tighten the adjusting nuts.
(f ) Recheck the adjustments.
± AUTOMATIC TRANSAXLETroubleshooting (Preliminary Check) (A144L and A140E)AT±22

ROAD TEST (A140E)
NOTICE: Perform the test at normal operating fluid
temperature (122 ± 176°F or 50 ± 84°C). .
1. D RANGE TEST IN NORM AND PWR PATTERN
RANGES
Shift into the D range and hold the accelerator pedal
constant at the full throttle valve opening position.
Check the following:
(a) 1±2, 2±3 and 3±O/D up±shifts should take place, and
shift points should conform to those shown in the au-
tomatic shift schedule. (See page AT±49)
Conduct a test under both Normal and Power patterns.
HINT:
There is no O/D up±shift when coolant temperature is
below 122
°F (50°C).
There is no lock±up when the vehicle speed is 10 km/h (6
mph) less than the set cruise control speed.
EVALUATION
(1) If there is no 1 ± 2 up±shift:
wNo. 2 solenoid is stuck
w1±2 shift valve is stuck
(2) If there is no 2 ± 3 up±shift:
w No. 1 solenoid is stuck
w2±3 shift valve is stuck
(3) If there is no 3 ± O/D up±shift:
w3±O/D shift valve is stuck
(4) If the shift point is defective:
wThrottle valve, 1±2 shift valve, 2±3 .shift valve, 3±
wO/D shift valve etc., are defective
(5) If the lock±up is defective:
wLock±up solenoid is stuck
wLock±up relay valve is stuck
(b) In the same manner, check the shock and slip at the 1
±2, 2 ± 3 and 3 ± O/D up±shifts.
EVALUATION
If the shock is excessive:
wLine pressure is too high
wAccumulator is defective
wCheck ball is defective
(c) Run at the D range lock±up or O/D gear and check for
abnormal noise and vibration.
HINT: The check for the cause of abnormal noise and
vibration must be make with extreme care as it could
also be due to loss of balance in the drive shaft, tire,
torque converter, etc.
± AUTOMATIC TRANSAXLETroubleshooting (Mechanical System Tests) (A140L and
A140E)AT±43

ROAD TEST (A140L)
NOTICE: Perform the test at norrnal operating fluid tem-
perature (122 ± 176°F or 50 ± 80°C).
1. D RANGE TEST
Shift into the D range and hold the accelerator pedal
constant at the full throttle valve opening position.
Check the following:
(a) 1±2, 2±3 and 3±0ID up±shifts should take place, and
shift points should conform to those shown in the au-
tomatic shift schedule. (See page AT±49)
EVALUATION
(1) If there is no 1 ±2 up±shift:
wGovernor valve is defective
w 1±2 shift valve is stuck
(2) if there is no 2 ±3 up±shift:
w 2±3 shift valve is stuck .
(3) If there is no 3 ± O/D up±shift:
w3±O/D shift valve is stuck
wO/D solenoid is defective
(4) If the shift point is defective:
wThrottle cable is out±of±adjustment
wThrottle valve, 1±2 shift valve, 2±3 shift valve, 3±
O/D shift valve etc., are defective
(b) In the same manner, check the shock and slip at the
1± 2, 2 ± 3 and 3 ± O/D up±shifts.
EVALUATION
If the shock is excessive:
wLine pressure is too high
Accumulator is defective
wCheck ball is defective
(c) Run at the D range lock±up or O/D gear and check for
abnormal noise and vibration.
HINT: The check for the cause of abnormal noise and
vibration must be make with extreme care as it could
also be due to loss of balance in the drive shaft, tire,
torque converter, etc.
± AUTOMATIC TRANSAXLETroubleshooting (Mechanical System Tests) (A140L and
A140E)AT±46

INSPECTION OF SPEED SENSOR
INSPECT SPEED SENSOR
Connect an ohmmeter to the speed sensor and check
that the meter deflects when the sensor is repeatedly
brought close to a magnet and removed from it.
INSTALLATION OF SPEED SENSOR
7. INSTALL SPEED SENSOR AND O±RING
2. INSTALL BRACKET
Torque: 130 kg±cm (9 ft±Ib. 13 N±m)
3. CONNECT SPEED SENSOR CONNECTOR
4. INSTALL TRANSAXLE CASE PROTECTOR
± AUTOMATIC TRANSAXLEOn±Vehicle Repair (A140E)AT±53

2. CHECK TORQUE CONVERTER INSTALLATION
Using calipers and a straight edge, measure from the
installed surface to the front surface of the transaxle
housing.
Correct distance: 13 mm (0.51 in.)
REMOVAL AND INSTALLATION OF TRANSAXLE (Cont'd)
(MAIN POINT OF INSTALLATION)
1. INSTALL TORQUE CONVERTER IN TRANSAXLE
± AUTOMATIC TRANSAXLERemoval and Installation of Transaxle (A140L and
A140E)AT±55

6. INSTALL TWO OIL SEAL RINGS ON OIL PUMP
Spread the rings apart and install them into the groove.
NOTICE: Do not spread the ring ends too much.
HINT: After installing the oil seal rings, check that they
move smoothly. 3. INSTALL STATOR SHAFT ONTO PUMP BODY
Align the stator shaft with each bolt hole.
4. TIGHTEN ELEVEN BOLTS
Torque: 100 kg±cm (7 ft±lb, 10 N±m)
5. INSTALL THRUST WASHER
(a) Coat the thrust washer with petroleum jelly.
(b) Align the tab of the washer with the hollow of the pump
body.
7. CHECK PUMP DRIVE GEAR ROTATION
Turn the drive gear with screwdrivers and make sure that
it rotates smoothly.
NOTICE: Be careful not to damage the oil seal lip.
± AUTOMATIC TRANSAXLEComponent Parts (Oil Pump) (A140L and A140E)AT±85
