2023 TOYOTA PRIUS Owners Manual

127
2
2. Instrument cluster
Instrument cluster
PRIUS_OM_OM47F32E_(EE)

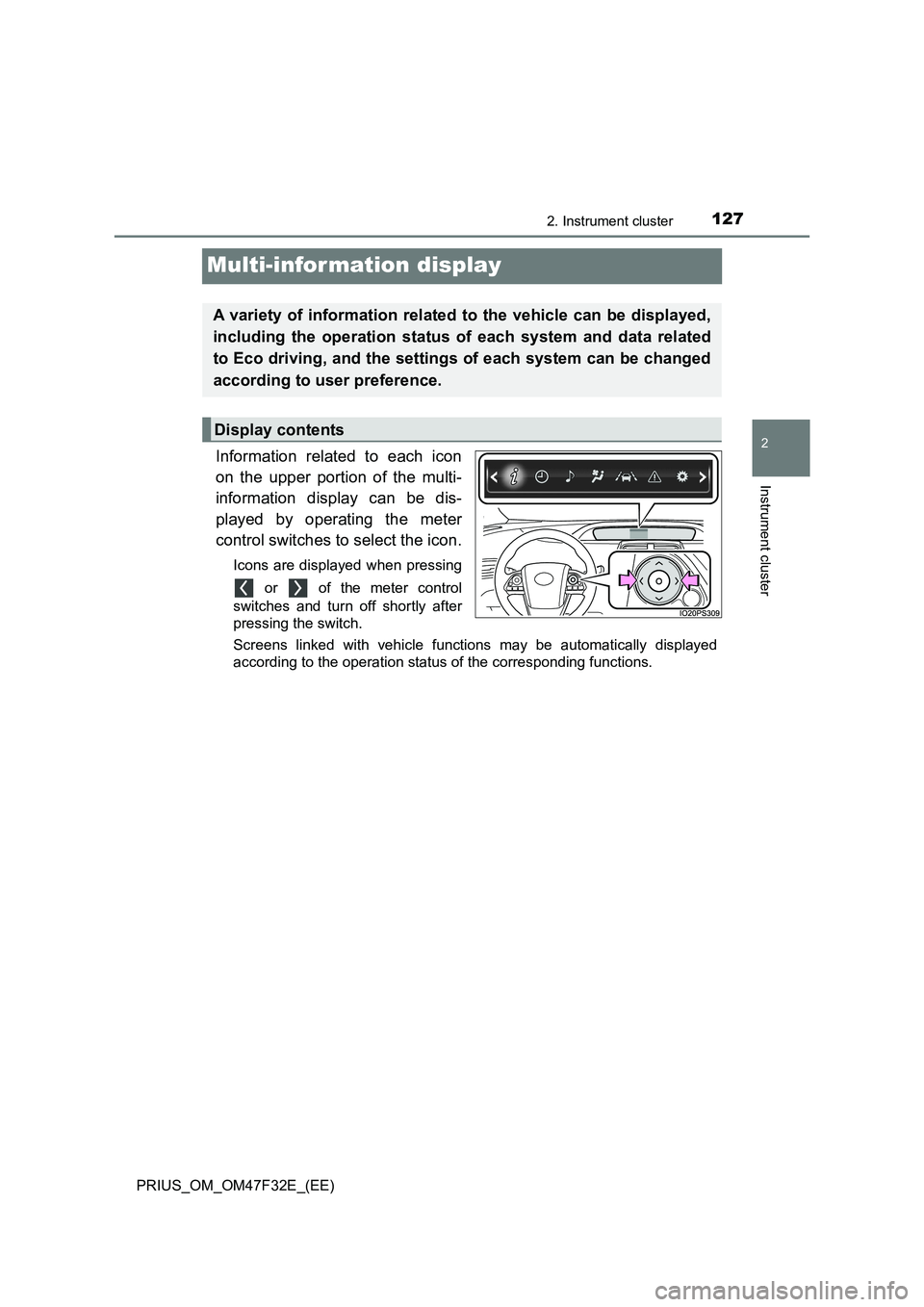

Multi-information display
Information related to each icon
on the upper portion of the multi-
information display can be dis-
played by operating the meter
control switches to select the icon.
Icons are displayed when pressing
or of the meter control
switches and turn off shortly after
pressing the switch.
Screens linked with vehicle functions may be automatically displayed
according to the operation status of the corresponding functions.
A variety of information related to the vehicle can be displayed,
including the operation status of each system and data related
to Eco driving, and the settings of each system can be changed
according to user preference.
Display contents

1282. Instrument cluster
PRIUS_OM_OM47F32E_(EE)
*1: If equipped
*2: When there is a warning message that can be displayed, the color of
changes to amber.
Menu iconsContentsPages
Drive information
The energy monitor that shows the operation
status of the hybrid system, or other informa-
tion such as fuel consumption is displayed.P. 129
Clock setting display
The clock settings can be changed.P. 147
Audio system-linked display
The audio system settings can be changed.P. 147
Air conditioning system settings screen
The air conditioning system settings can be
changed.
P. 148
Driving assist system information
The information related to driving assist sys-
tems such as the LTA (Lane Tracing Assist)
*1
and dynamic radar cruise control with full-
speed range
*1 is displayed.
P. 152
Warning message display*2
The warning messages are displayed.P. 152
Settings display
The settings of the vehicle functions, meter
display, etc. can be changed.
P. 153

1292. Instrument cluster
2
Instrument cluster
PRIUS_OM_OM47F32E_(EE)

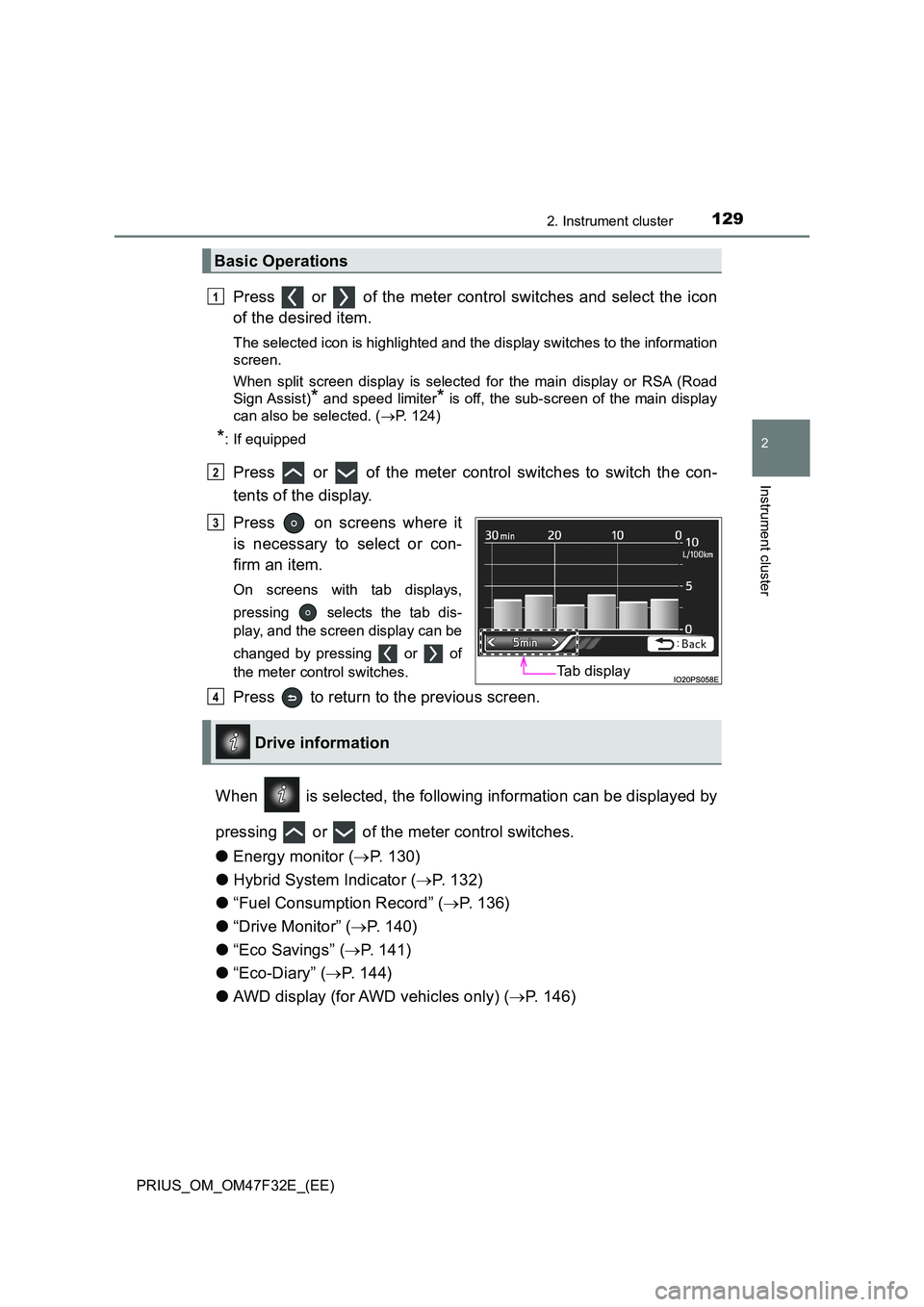

Press or of the meter control switches and select the icon
of the desired item.
The selected icon is highlighted and the display switches to the information
screen.
When split screen display is selected for the main display or RSA (Road
Sign Assist)* and speed limiter* is off, the sub-screen of the main display
can also be selected. ( P. 124)
*: If equipped
Press or of the meter control switches to switch the con-
tents of the display.
Press on screens where it
is necessary to select or con-
firm an item.
On screens with tab displays,
pressing selects the tab dis-
play, and the screen display can be
changed by pressing or of
the meter control switches.
Press to return to the previous screen.
When is selected, the following information can be displayed by
pressing or of the meter control switches.
● Energy monitor (P. 130)
● Hybrid System Indicator (P. 132)
● “Fuel Consumption Record” (P. 136)
● “Drive Monitor” (P. 140)
● “Eco Savings” (P. 141)
● “Eco-Diary” (P. 144)
● AWD display (for AWD vehicles only) (P. 146)
Basic Operations
1
2
Tab display
3
Drive information
4

1302. Instrument cluster
PRIUS_OM_OM47F32E_(EE)
◆Energy monitor
The energy monitor can be used to check the vehicle drive status,
hybrid system operation status and energy regeneration status.
When energy is flowing, an arrow appears and a bright point of light
moves to show the direction of the flow of energy. When energy is
not flowing, the bright point of light is not displayed.
Gasoline engine
Electric motor
(traction motor)
Hybrid battery
(traction battery)
Tire
Bright point of light showing
the flow of energy
As an example, all arrows are shown in the illustration, but the actual con-
tents of the display will differ.
(Display example)
●When the hybrid battery (traction battery) is being charged, the
bright point of light moves towards .
●During driving, the bright point of light moves from or (or
both depending on the situation) towards .
*
●During driving, the image of the tires rotates.
*: The display may differ depending on the driving status.
1
2
3
4
5
3
12
4

1312. Instrument cluster
2
Instrument cluster
PRIUS_OM_OM47F32E_(EE)
■Hybrid battery (traction battery) status
●The display changes in 8 levels according to the remaining charge amount
of the hybrid battery (traction battery).
●The hybrid battery (traction battery) status is also displayed on the following
screen, but the contents of the display are the same.
• Sub-screen of the main display (P. 125)
• Hybrid System Indicator (P. 132)
• Head-up display (if equipped) (P. 161)
●The charge amount of the hybrid battery (traction battery) is automatically
controlled by the hybrid system. For this reason, even if electricity is recov-
ered via the regenerative braking, or electricity is generated via the gasoline
engine, the displayed hybrid battery (traction battery) charge amount may
not reach the highest level (level 8). However, this does not indicate a mal-
function.
■Remaining charge amount warning of hybrid battery (traction battery)
●The buzzer sounds intermittently when the hybrid battery (traction battery)
remains without charging while the shift position is in N, or the remaining
charge amount drops below a certain level.
If the remaining charge amount drops further, the buzzer sounds continu-
ously.
●When a warning message is shown on the multi-information display and the
buzzer sounds, follow the instructions displayed on the screen to perform
troubleshooting.Low
High
1
2

1322. Instrument cluster
PRIUS_OM_OM47F32E_(EE)

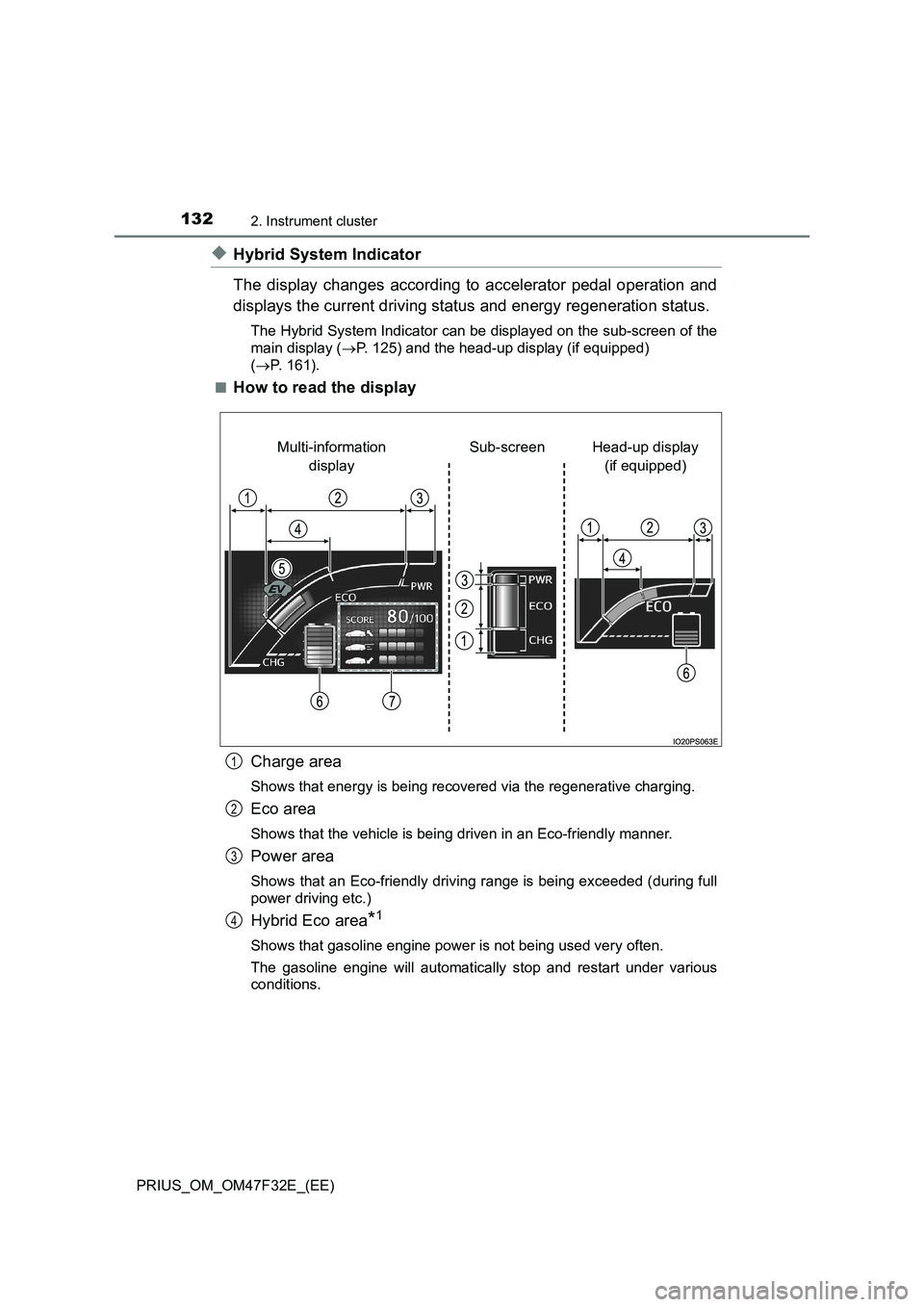

◆Hybrid System Indicator
The display changes according to accelerator pedal operation and
displays the current driving status and energy regeneration status.
The Hybrid System Indicator can be displayed on the sub-screen of the
main display (P. 125) and the head-up display (if equipped)
(P. 161).
■
How to read the display
Charge area
Shows that energy is being recovered via the regenerative charging.
Eco area
Shows that the vehicle is being driven in an Eco-friendly manner.
Power area
Shows that an Eco-friendly driving range is being exceeded (during full
power driving etc.)
Hybrid Eco area*1
Shows that gasoline engine power is not being used very often.
The gasoline engine will automatically stop and restart under various
conditions.
Head-up display
(if equipped) Sub-screen Multi-information
display
1
2
3
4

1332. Instrument cluster
2
Instrument cluster
PRIUS_OM_OM47F32E_(EE)

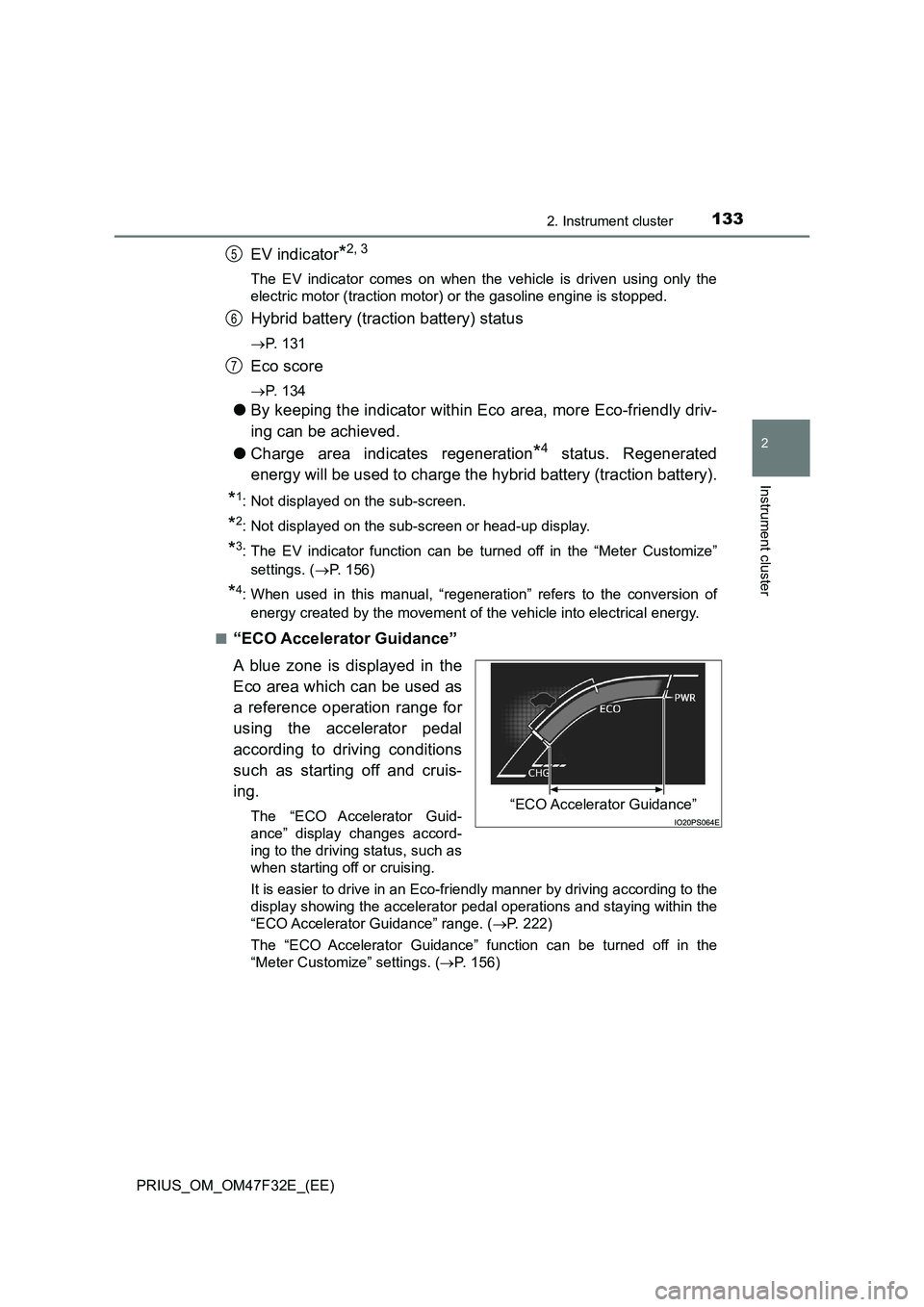

EV indicator*2, 3
The EV indicator comes on when the vehicle is driven using only the
electric motor (traction motor) or the gasoline engine is stopped.
Hybrid battery (traction battery) status
P. 1 3 1
Eco score
P. 1 3 4
●By keeping the indicator within Eco area, more Eco-friendly driv-
ing can be achieved.
●Charge area indicates regeneration
*4 status. Regenerated
energy will be used to charge the hybrid battery (traction battery).
*1: Not displayed on the sub-screen.
*2: Not displayed on the sub-screen or head-up display.
*3: The EV indicator function can be turned off in the “Meter Customize”
settings. (P. 156)
*4: When used in this manual, “regeneration” refers to the conversion of
energy created by the movement of the vehicle into electrical energy.
■
“ECO Accelerator Guidance”
A blue zone is displayed in the
Eco area which can be used as
a reference operation range for
using the accelerator pedal
according to driving conditions
such as starting off and cruis-
ing.
The “ECO Accelerator Guid-
ance” display changes accord-
ing to the driving status, such as
when starting off or cruising.
It is easier to drive in an Eco-friendly manner by driving according to the
display showing the accelerator pedal operations and staying within the
“ECO Accelerator Guidance” range. (P. 222)
The “ECO Accelerator Guidance” function can be turned off in the
“Meter Customize” settings. (P. 156)
5
6
7
“ECO Accelerator Guidance”

1342. Instrument cluster
PRIUS_OM_OM47F32E_(EE)■
Eco score
The driving status for the following 3 situations are evaluated in 5
levels: Smooth start-off acceleration (“Eco-Start”), driving without
sudden acceleration (“Eco-Cruise”) and smooth stopping (“Eco-
Stop”). Each time the vehicle is stopped, a score result is displayed
out of a perfect score of 100 points.
Score result
“Eco-Start” status
“Eco-Cruise” status
“Eco-Stop” status
How to read the bar display:
*: For items not currently evaluated, the display reads 0.
●The Eco score is reset each time the vehicle starts off to start a new
evaluation.
●When the shift position is P, only the Eco score display area is
enlarged and displayed. When the shift position is shifted from P,
the display returns to normal.
●When the hybrid system stops, the current total score result and
advice on how to increase the score are displayed. (P. 105)
1
2
3
4
ScoreLow*High
Bar display
