2023 TOYOTA PRIUS Owners Manual

6558-1. Specifications
PRIUS_OM_OM47F32E_(EE)
8

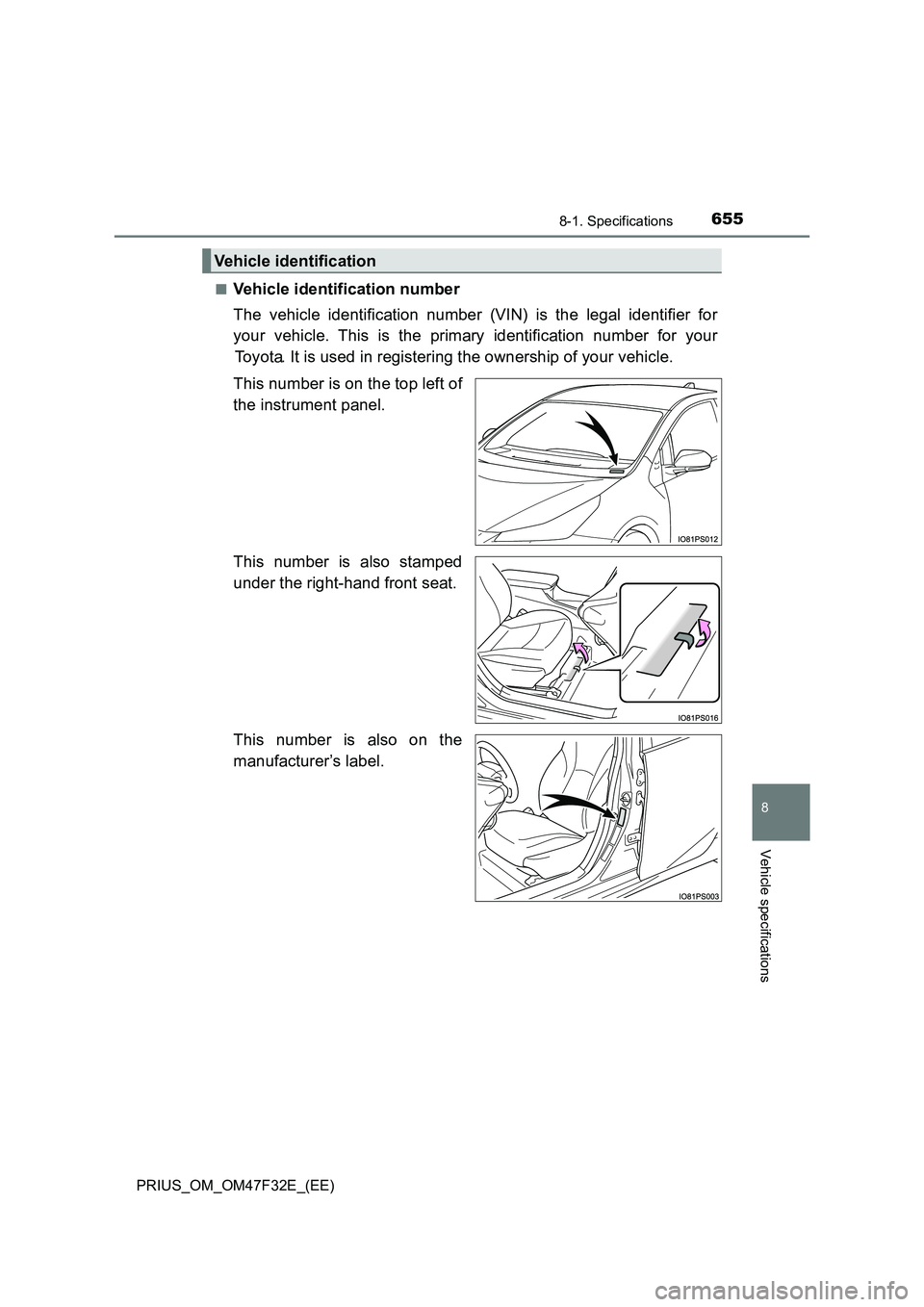

Vehicle specifications
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is on the top left of
the instrument panel.
This number is also stamped
under the right-hand front seat.
This number is also on the
manufacturer’s label.
Vehicle identification

6568-1. Specifications
PRIUS_OM_OM47F32E_(EE)

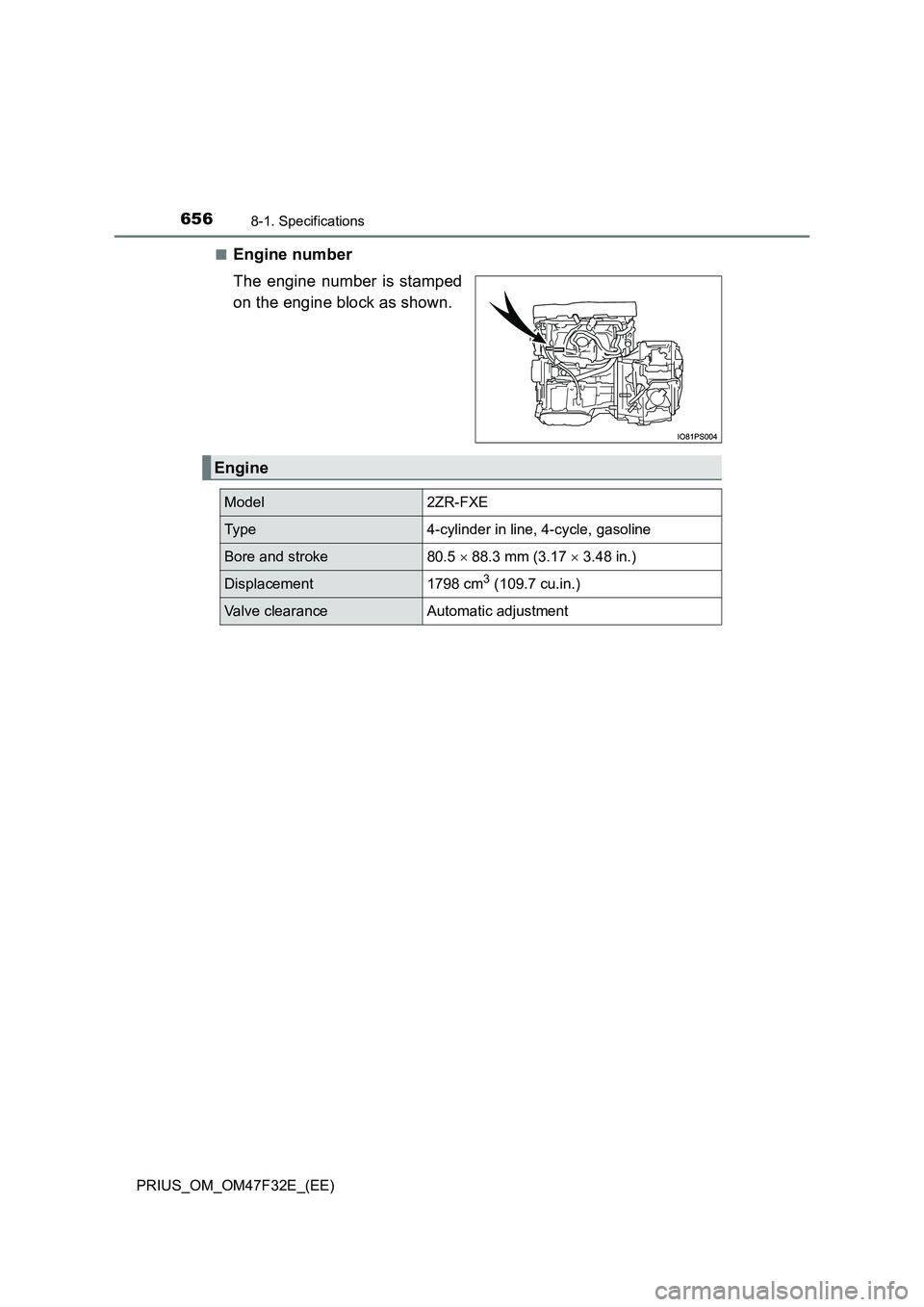

■Engine number
The engine number is stamped
on the engine block as shown.
Engine
Model2ZR-FXE
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke80.5  88.3 mm (3.17  3.48 in.)
Displacement1798 cm3 (109.7 cu.in.)
Valve clearanceAutomatic adjustment

6578-1. Specifications
PRIUS_OM_OM47F32E_(EE)
8
Vehicle specifications
Fuel
Fuel type
When you find these types of fuel label at
the gas station, use only the fuel with one of
the following labels.

EU area:
Unleaded gasoline conforming to European
standard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane Number
EU area:
95 or higher
Except EU area:
95 or higher
Russia only:
91 or higher
Fuel tank capacity
(Reference)43 L (11.4 gal., 9.5 lmp.gal.)
Electric motor (traction motor)
FrontRear (AWD models)
Ty p ePermanent magnet
synchronous motorPermanent induc-
tion motor
Maximum output53 kW5.3 kW
Maximum torque163 N•m (16.6 kgf•m,
120.2 ft•lbf)55 N•m (5.6 kgf•m,
40.6 ft•lbf)
Hybrid battery (traction battery)
Ty p eNickel-Metal hydride battery
Voltage7.2 V/module
Capacity6.5 Ah (3HR)
Quantity28 modules
Nominal voltage201.6 V

6588-1. Specifications
PRIUS_OM_OM47F32E_(EE)■
Oil capacity (Drain and refill [Reference*])
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Park the vehicle on level ground. After warming up the
engine and turning off the hybrid system, wait more than 5 minutes, and
check the oil level on the dipstick.
■
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade:
0W-16:
API grade SN “Resource-Conserving”, SN PLUS “Resource-Con-
serving” or SP “Resource-Conserving”; or ILSAC GF-6B multigrade
engine oil
0W-20 and 5W-30:
API grade SM “Energy-Conserving”, SN “Resource-Conserving”,
SN PLUS “Resource-Conserving” or SP “Resource-Conserving”; or
ILSAC GF-6A multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-16 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-16 oil is not avail-
able, SAE 0W-20 oil may be
used. However, it should be
replaced with SAE 0W-16 at the
next oil change.
Lubrication system (except for Georgia, New Caledonia and Rus-
sia)
With filter4.2 L (4.4 qt., 3.7 Imp.qt.)
Without filter3.9 L (4.1 qt., 3.4 Imp.qt.)
Temperature range anticipated
before next oil change
Preferred

6598-1. Specifications
PRIUS_OM_OM47F32E_(EE)
8
Vehicle specifications

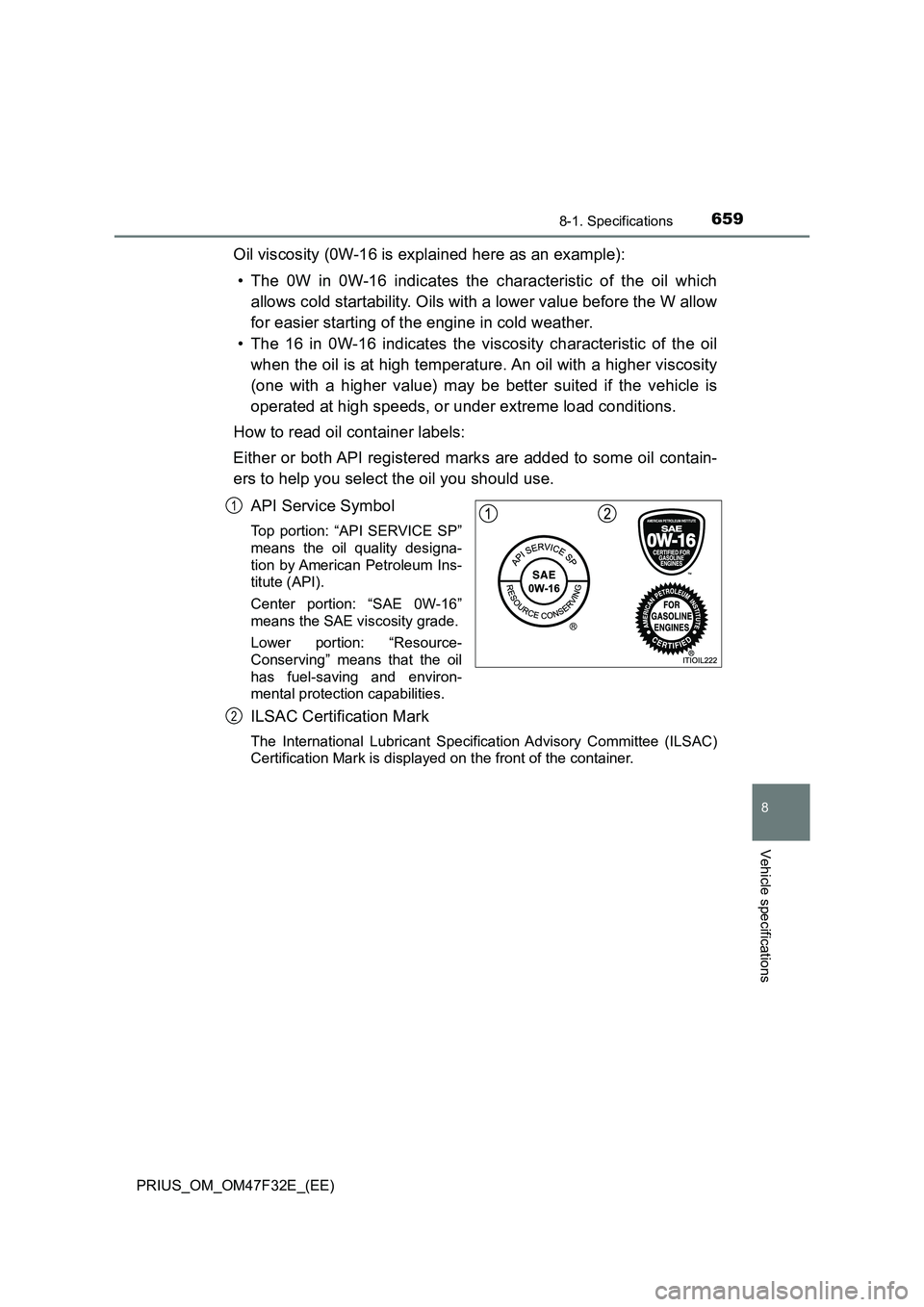

Oil viscosity (0W-16 is explained here as an example):
• The 0W in 0W-16 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 16 in 0W-16 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SP”
means the oil quality designa-
tion by American Petroleum Ins-
titute (API).
Center portion: “SAE 0W-16”
means the SAE viscosity grade.
Lower portion: “Resource-
Conserving” means that the oil
has fuel-saving and environ-
mental protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
1
2

6608-1. Specifications
PRIUS_OM_OM47F32E_(EE)■
Oil capacity (Drain and refill [Reference*])
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Park the vehicle on level ground. After warming up the
engine and turning off the hybrid system, wait more than 5 minutes, and
check the oil level on the dipstick.
■
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving”, SN
“Resource-Conserving”, SN PLUS “Resource-Conserving” or SP
“Resource-Conserving”; or ILSAC GF-6A multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 0W-20, 5W-20
or 5W-30 engine oil is recom-
mended.
Lubrication system (for Georgia, New Caledonia and Russia)
With filter4.2 L (4.4 qt., 3.7 Imp.qt.)
Without filter3.9 L (4.1 qt., 3.4 Imp.qt.)
Temperature range anticipated
before next oil change
Preferred

6618-1. Specifications
PRIUS_OM_OM47F32E_(EE)
8
Vehicle specifications

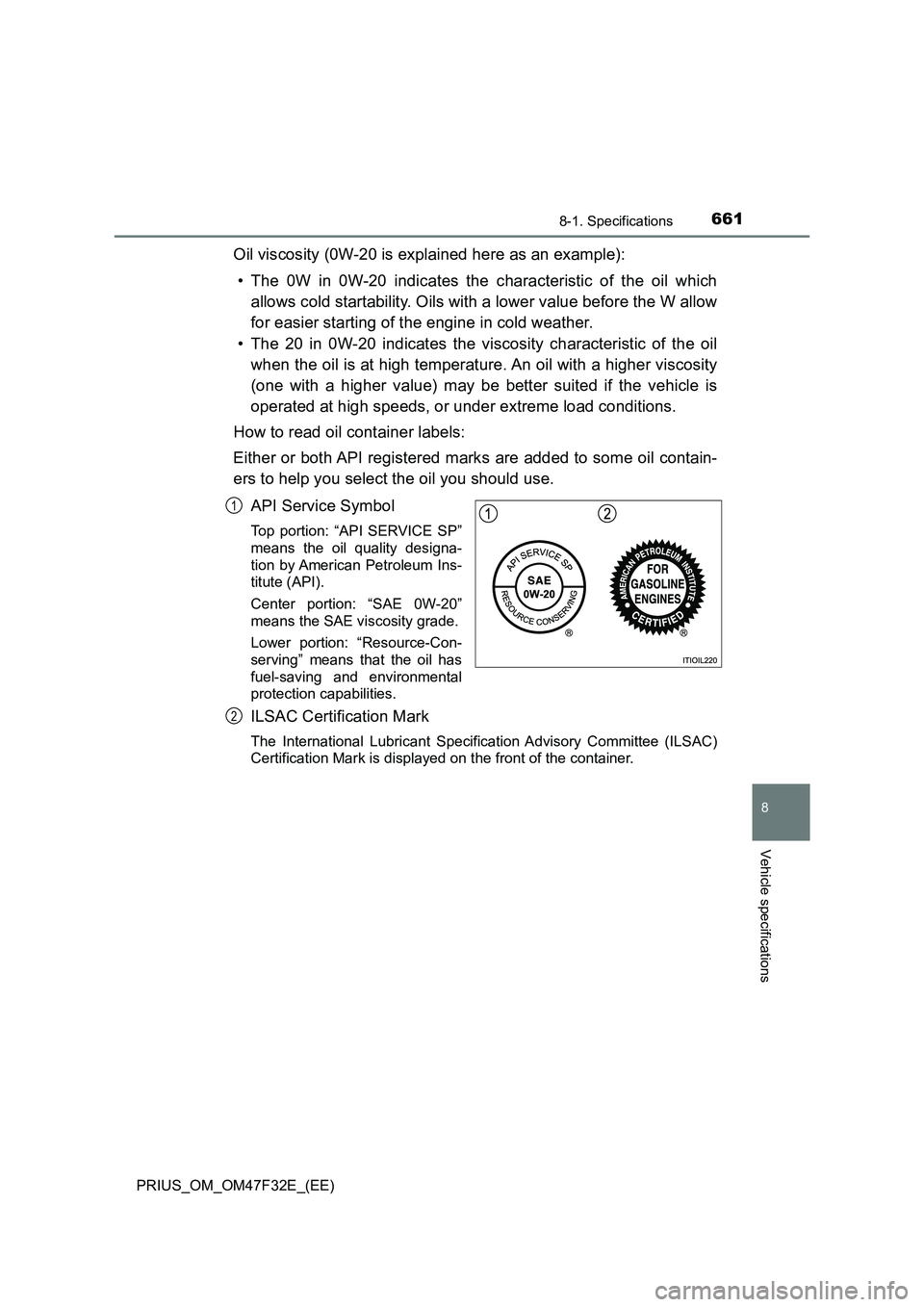

Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SP”
means the oil quality designa-
tion by American Petroleum Ins-
titute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
1
2

6628-1. Specifications
PRIUS_OM_OM47F32E_(EE)
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
Cooling system
Capacity*
Gasoline
engine
Without exhaust heat recirculator system
5.6 L (5.9 qt., 4.9 Imp.qt.)
With exhaust heat recirculator system
6.2 L (6.6 qt., 5.5 Imp.qt.)
Power
control unit1.4 L (1.5 qt., 1.2 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
Ignition system (spark plug)
MakeDENSO FC16HR-CY9
Gap0.9 mm (0.035 in.)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
