2023 TOYOTA PRIUS headlights

15Pictorial index
PRIUS_OM_OM47F32E_(EE)Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 271
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 452
Precautions against car wash (vehicles with rain-sensing
windshield wipers) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 498
Replacing the wiper insert . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 550
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 277
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 277
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 657
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 528
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 665
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 452
Checking/rotation/tire pressure warning system
*1 . . . . . . . . . P. 528
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 598, 618
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 511
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 511
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 658
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 645
Headlights/front position lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 261
Front fog lights/rear fog light
*2 . . . . . . . . . . . . . . . . . . . . . . P. 270
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 259
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 261
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 261
Back-up light
*2
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 253
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 561, Watts: P. 667)
*1: If equipped
*2: They may be located on the opposite side depending on the target region.
8
9
10
11
12
13

17Pictorial index
PRIUS_OM_OM47F32E_(EE)Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 127
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 127
Energy monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 130
When the warning messages are displayed . . . . . . . . . . . . . . P. 589
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 260
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 260
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 452
Warning buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 260
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 259
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 261
Headlights/front position lights/tail lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 261
Front fog lights/rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . . P. 270
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . P. 271
Rear window wiper and washer switch . . . . . . . . . . . . . . . . P. 275
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 271, 275
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 526
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 568
Fuel filler door opener. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 279
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 511
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 203
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 458
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 458
Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 463
Audio system
*
*
: Refer to “Navigation and multimedia system Owner’s manual”.
5
6
7
8
9
10
11
12
13
14

23Pictorial index
PRIUS_OM_OM47F32E_(EE)Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 127
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 127
Energy monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 130
When the warning messages are displayed . . . . . . . . . . . . . . P. 589
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 260
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 260
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 452
Warning buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 260
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 259
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 261
Headlights/front position lights/tail lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 261
Front fog lights/rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . . P. 270
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . P. 271
Rear window wiper and washer switch . . . . . . . . . . . . . . . . P. 275
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 271, 275
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 526
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 568
Fuel filler door opener. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 279
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 511
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 203
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 458
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 458
Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 463
Audio system
*
*
: Refer to “Navigation and multimedia system Owner’s manual”.
5
6
7
8
9
10
11
12
13
14

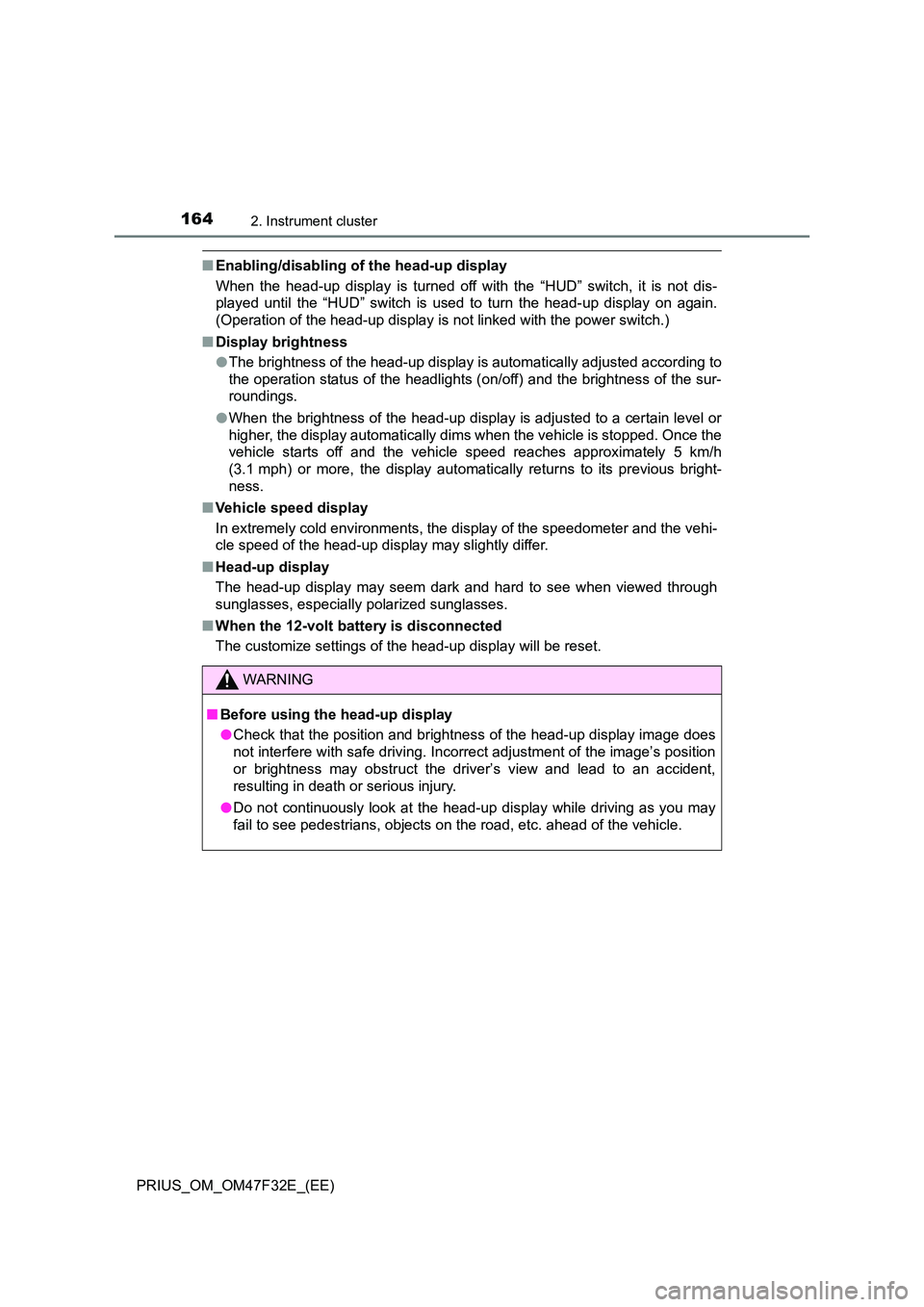

1642. Instrument cluster
PRIUS_OM_OM47F32E_(EE)
■Enabling/disabling of the head-up display
When the head-up display is turned off with the “HUD” switch, it is not dis-
played until the “HUD” switch is used to turn the head-up display on again.
(Operation of the head-up display is not linked with the power switch.)
■ Display brightness
● The brightness of the head-up display is automatically adjusted according to
the operation status of the headlights (on/off) and the brightness of the sur-
roundings.
● When the brightness of the head-up display is adjusted to a certain level or
higher, the display automatically dims when the vehicle is stopped. Once the
vehicle starts off and the vehicle speed reaches approximately 5 km/h
(3.1 mph) or more, the display automatically returns to its previous bright-
ness.
■ Vehicle speed display
In extremely cold environments, the display of the speedometer and the vehi-
cle speed of the head-up display may slightly differ.
■ Head-up display
The head-up display may seem dark and hard to see when viewed through
sunglasses, especially polarized sunglasses.
■ When the 12-volt battery is disconnected
The customize settings of the head-up display will be reset.
WARNING
■ Before using the head-up display
● Check that the position and brightness of the head-up display image does
not interfere with safe driving. Incorrect adjustment of the image’s position
or brightness may obstruct the driver’s view and lead to an accident,
resulting in death or serious injury.
● Do not continuously look at the head-up display while driving as you may
fail to see pedestrians, objects on the road, etc. ahead of the vehicle.

205
3
3-4. Adjusting the steering wheel and mirrors
Operation of each component
PRIUS_OM_OM47F32E_(EE)
Inside rear view mirror
The height of the rear view mirror can be adjusted to suit your driving
posture.
Adjust the height of the rear view
mirror by moving it up and down.
Manual anti-glare inside rear view mirror
Reflected light from the headlights of vehicles behind can be reduced
by operating the lever.
Normal position
Anti-glare position
The rear view mirror’s position can be adjusted to enable suffi-
cient confirmation of the rear view.
Adjusting the height of rear view mirror
Anti-glare function
1
2

2063-4. Adjusting the steering wheel and mirrors
PRIUS_OM_OM47F32E_(EE)
Auto anti-glare inside rear view mirror
Responding to the level of brightness of the headlights of vehicles
behind, the reflected light is automatically reduced.
Changing automatic anti-glare
function mode
On/off
When the automatic anti-glare
function is in ON mode, the indica-
tor illuminates.
The function will set to ON mode
each time the power switch is
turned to ON mode.
Pressing the button turns the func-
tion to OFF mode. (The indicator
also turns off.)
■ To prevent sensor error (vehicles with auto anti-glare inside rear view
mirror)
Indicator
To ensure that the sensors operate prop-
erly, do not touch or cover them.
WARNING
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.

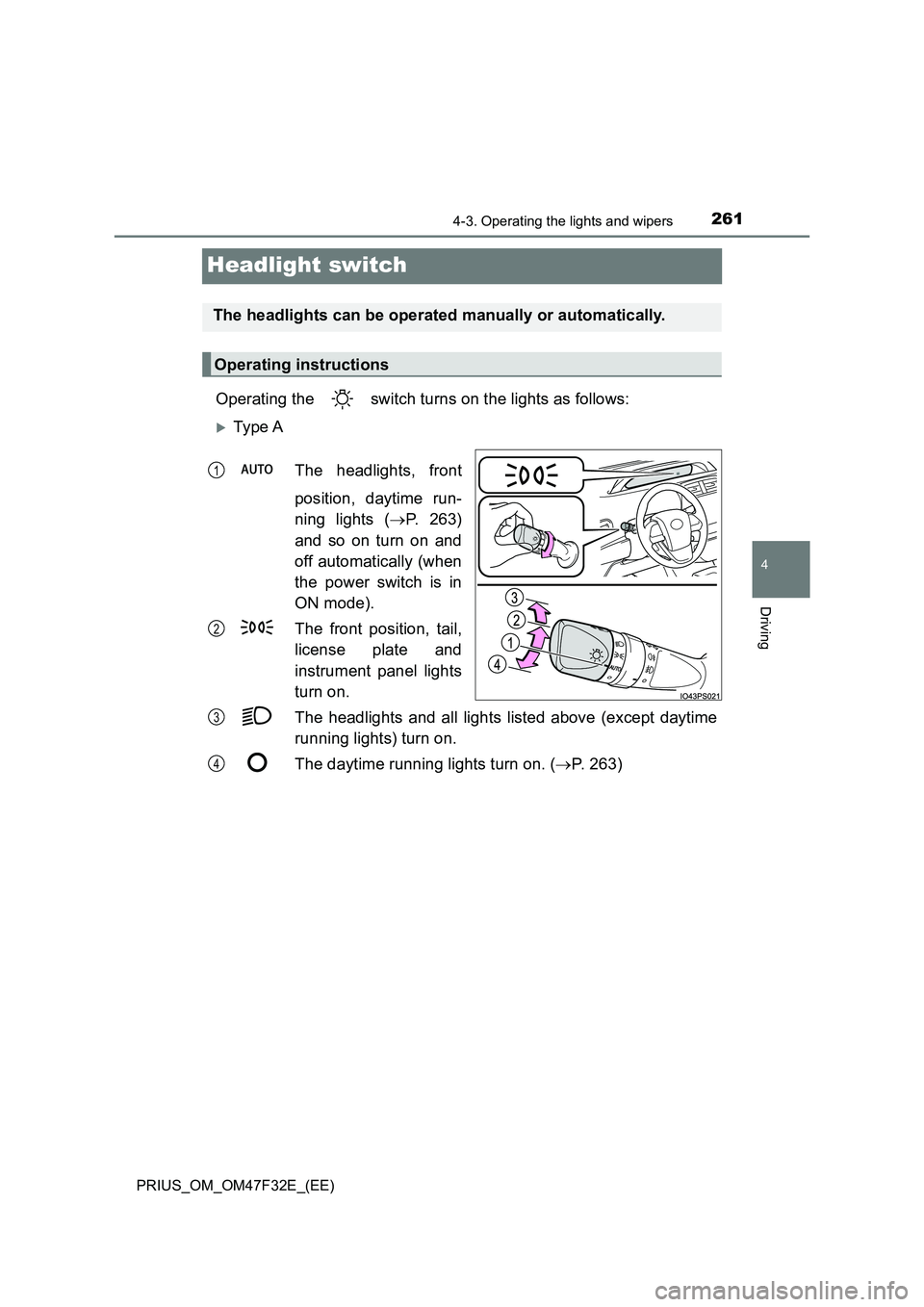

261
4
4-3. Operating the lights and wipers
Driving
PRIUS_OM_OM47F32E_(EE)
Headlight switch
Operating the switch turns on the lights as follows:
Ty pe A
The headlights, front
position, daytime run-
ning lights ( P. 263)
and so on turn on and
off automatically (when
the power switch is in
ON mode).
The front position, tail,
license plate and
instrument panel lights
turn on.
The headlights and all lights listed above (except daytime
running lights) turn on.
The daytime running lights turn on. ( P. 263)
The headlights can be operated manually or automatically.
Operating instructions
1
2
3
4

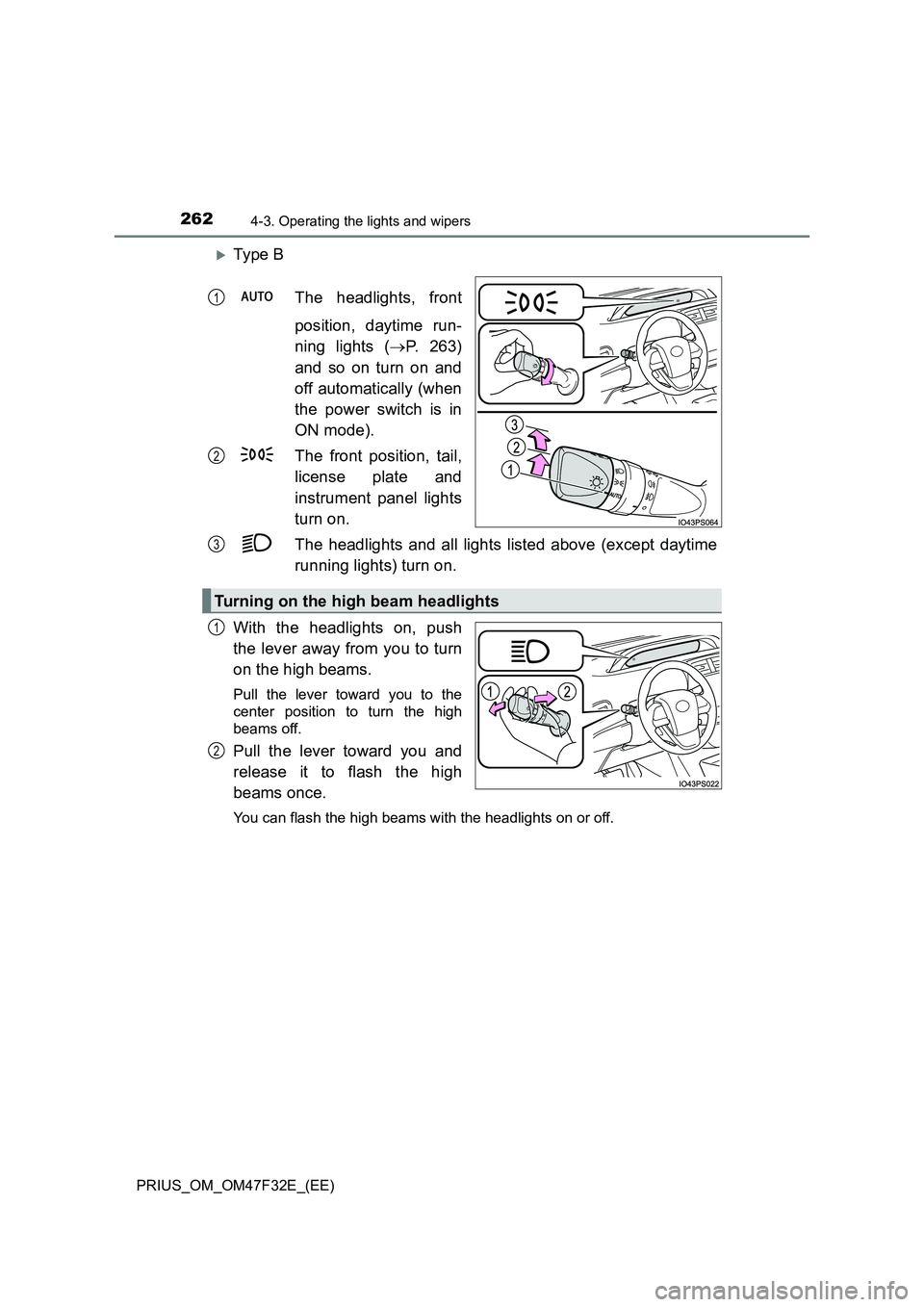

2624-3. Operating the lights and wipers
PRIUS_OM_OM47F32E_(EE)
Ty pe B
The headlights, front
position, daytime run-
ning lights ( P. 263)
and so on turn on and
off automatically (when
the power switch is in
ON mode).
The front position, tail,
license plate and
instrument panel lights
turn on.
The headlights and all lights listed above (except daytime
running lights) turn on.
With the headlights on, push
the lever away from you to turn
on the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams wi th the headlights on or off.
1
2
Turning on the high beam headlights
3
1
2
