2023 TOYOTA PRIUS Owners Manual

1432. Instrument cluster
2
Instrument cluster
PRIUS_OM_OM47F32E_(EE)■

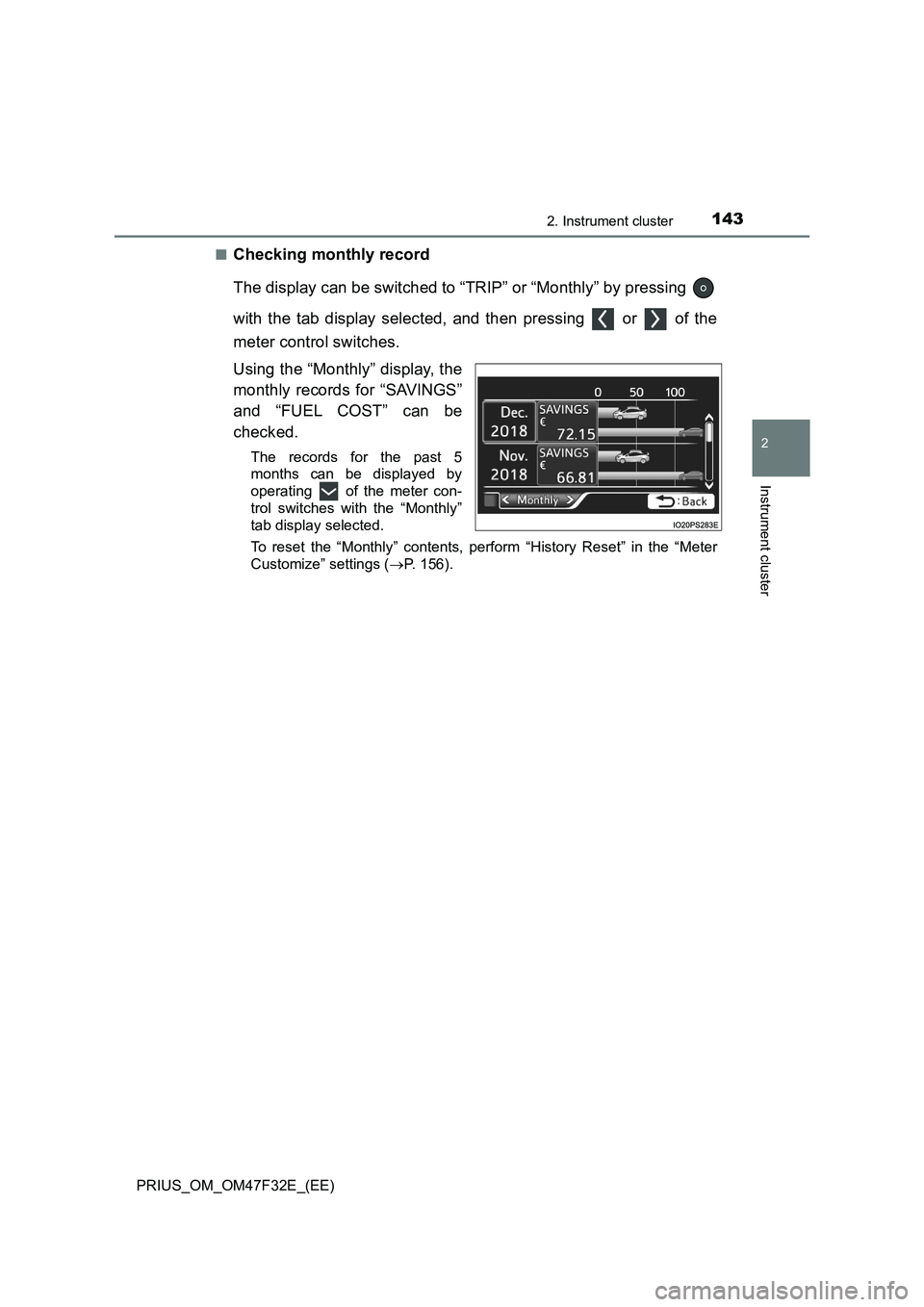

Checking monthly record
The display can be switched to “TRIP” or “Monthly” by pressing
with the tab display selected, and then pressing or of the
meter control switches.
Using the “Monthly” display, the
monthly records for “SAVINGS”
and “FUEL COST” can be
checked.
The records for the past 5
months can be displayed by
operating of the meter con-
trol switches with the “Monthly”
tab display selected.
To reset the “Monthly” contents, perform “History Reset” in the “Meter
Customize” settings (P. 156).

1442. Instrument cluster
PRIUS_OM_OM47F32E_(EE)

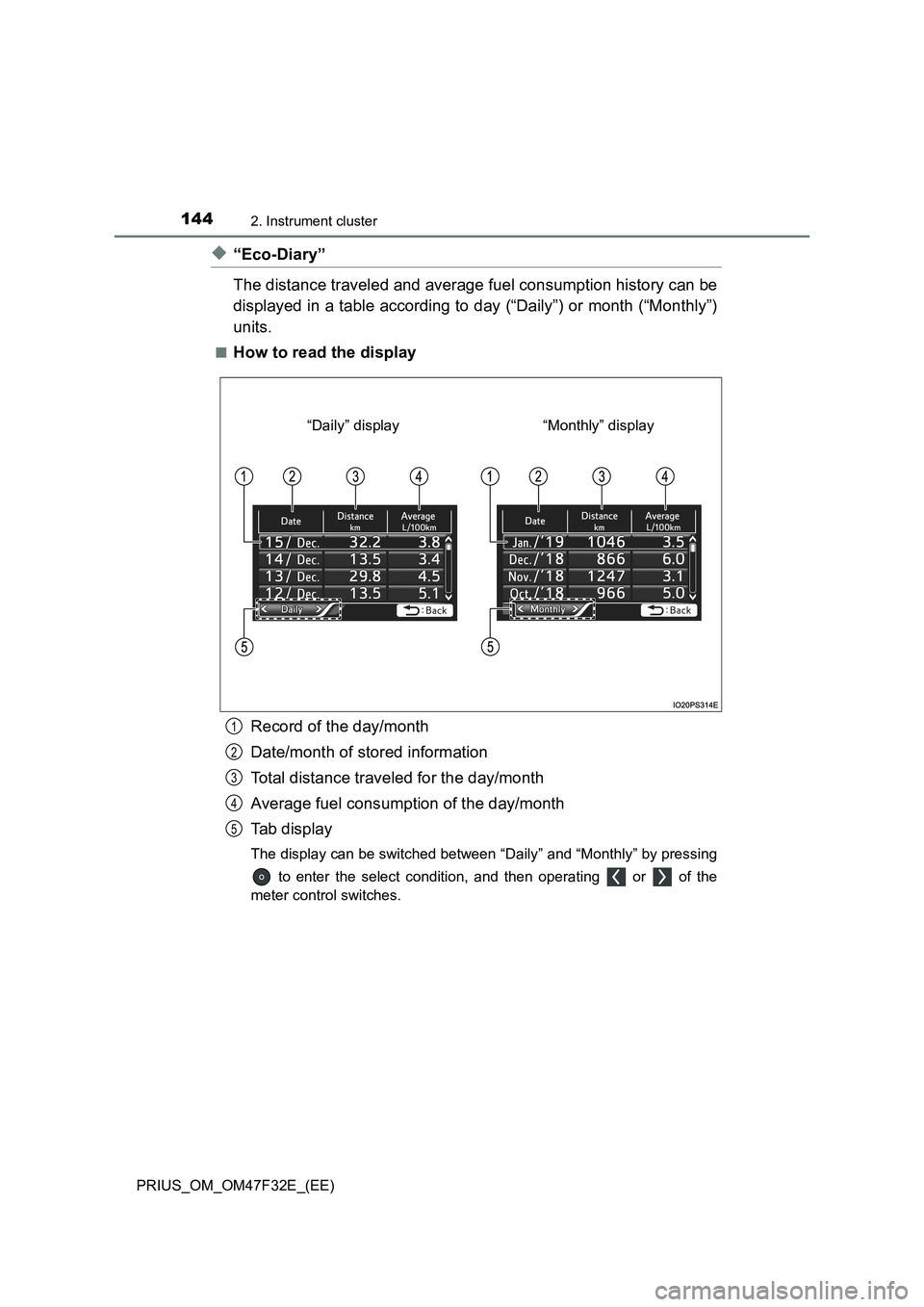

◆“Eco-Diary”
The distance traveled and average fuel consumption history can be
displayed in a table according to day (“Daily”) or month (“Monthly”)
units.
■How to read the display
Record of the day/month
Date/month of stored information
Total distance traveled for the day/month
Average fuel consumption of the day/month
Tab display
The display can be switched between “Daily” and “Monthly” by pressing
to enter the select condition, and then operating or of the
meter control switches.
“Monthly” display “Daily” display
1
2
3
4
5

1452. Instrument cluster
2
Instrument cluster
PRIUS_OM_OM47F32E_(EE)■

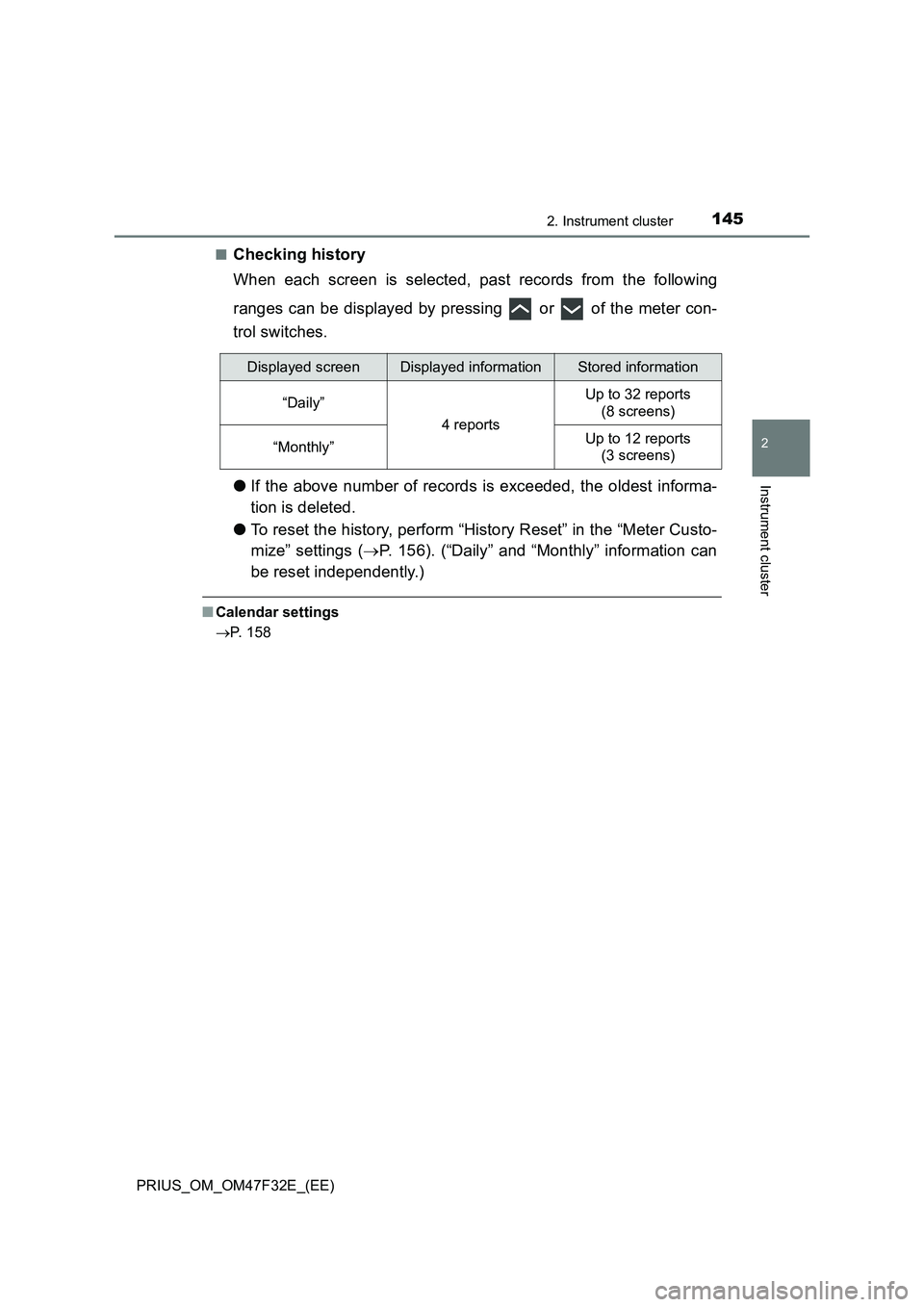

Checking history
When each screen is selected, past records from the following
ranges can be displayed by pressing or of the meter con-
trol switches.
●If the above number of records is exceeded, the oldest informa-
tion is deleted.
●To reset the history, perform “History Reset” in the “Meter Custo-
mize” settings (P. 156). (“Daily” and “Monthly” information can
be reset independently.)
■Calendar settings
P. 158
Displayed screenDisplayed informationStored information
“Daily”
4 reports
Up to 32 reports
(8 screens)
“Monthly”Up to 12 reports
(3 screens)

1462. Instrument cluster
PRIUS_OM_OM47F32E_(EE)

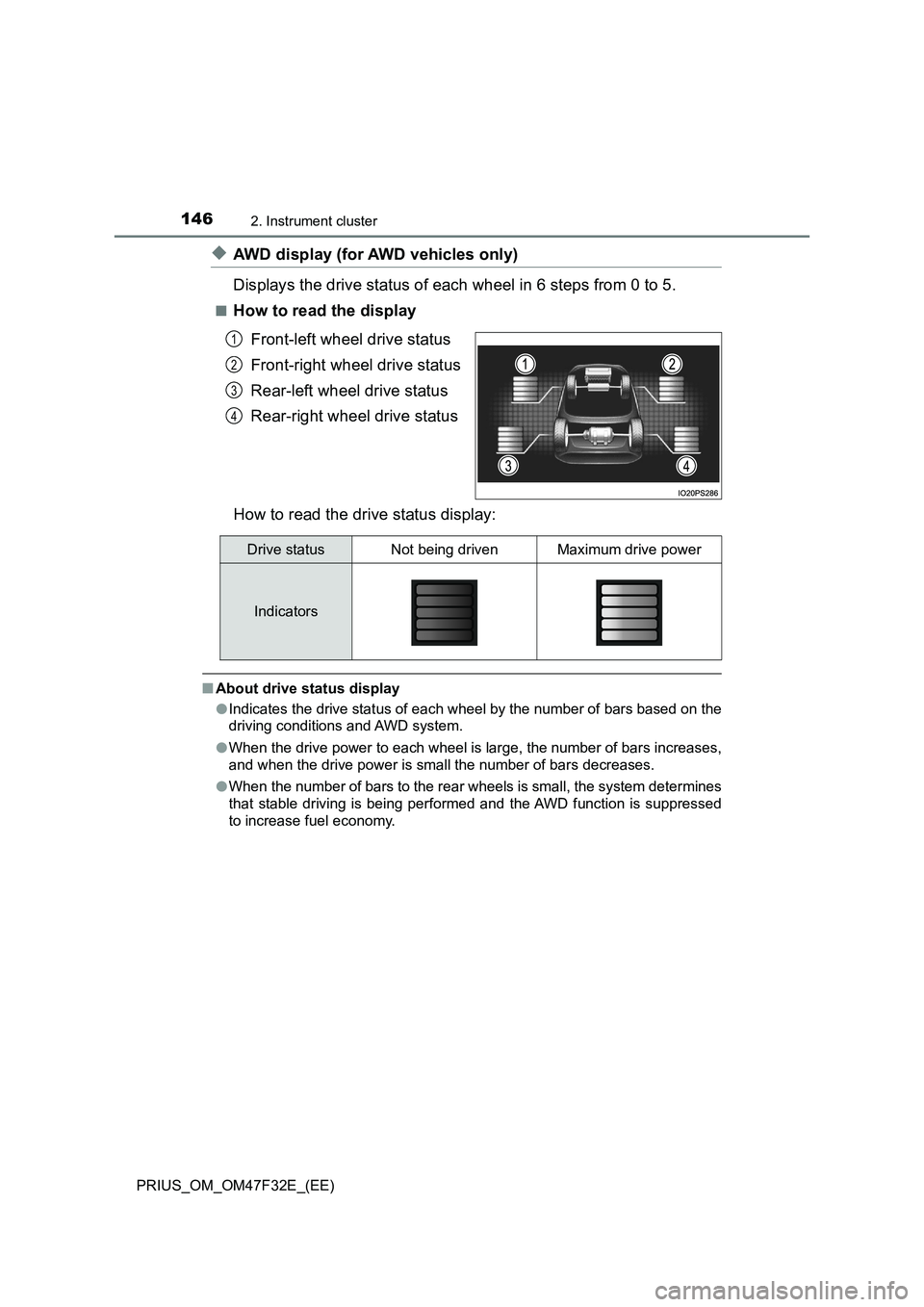

◆AWD display (for AWD vehicles only)
Displays the drive status of each wheel in 6 steps from 0 to 5.
■How to read the display
Front-left wheel drive status
Front-right wheel drive status
Rear-left wheel drive status
Rear-right wheel drive status
How to read the drive status display:
■About drive status display
●Indicates the drive status of each wheel by the number of bars based on the
driving conditions and AWD system.
●When the drive power to each wheel is large, the number of bars increases,
and when the drive power is small the number of bars decreases.
●When the number of bars to the rear wheels is small, the system determines
that stable driving is being performed and the AWD function is suppressed
to increase fuel economy.
1
2
3
4
Drive statusNot being drivenMaximum drive power
Indicators

1472. Instrument cluster
2
Instrument cluster
PRIUS_OM_OM47F32E_(EE)
The clock settings can be
changed.
The information about the cur-
rently selected audio source is
displayed.
The illustration is only an example
and may differ from the actual
screen.
To switch the audio source, press
to display the audio source
selection screen, press or
of the meter control switches and
select the desired audio source,
and then press .
To stop audio source selection, press on the audio source selection
screen.
Clock setting display
ItemSetting result
Adjusts the clock.
(P. 106)
Sets the minutes to
“00”. (P. 107)
Audio system-linked display

1482. Instrument cluster
PRIUS_OM_OM47F32E_(EE)

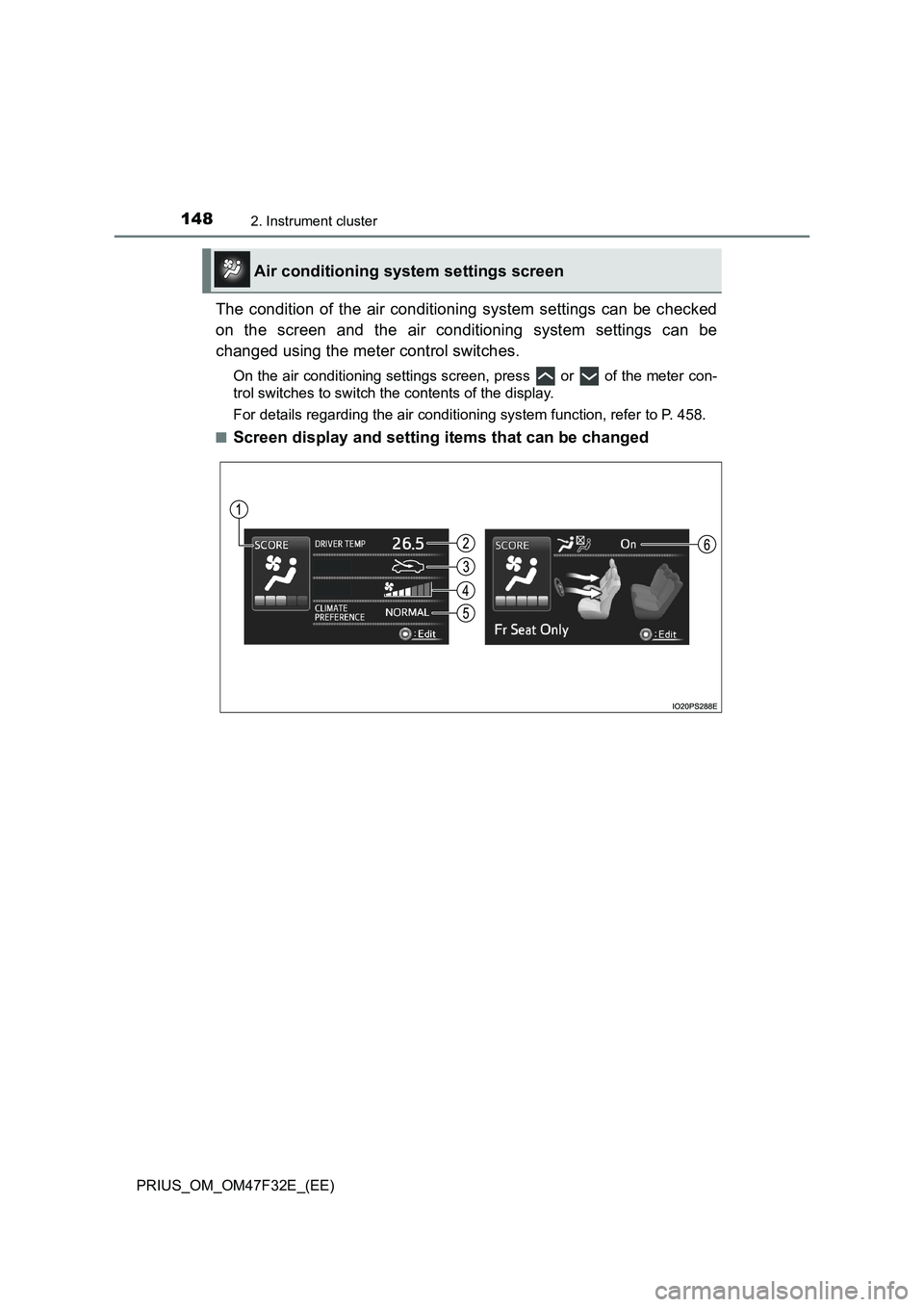

The condition of the air conditioning system settings can be checked
on the screen and the air conditioning system settings can be
changed using the meter control switches.
On the air conditioning settings screen, press or of the meter con-
trol switches to switch the contents of the display.
For details regarding the air conditioning system function, refer to P. 458.
■
Screen display and setting items that can be changed
Air conditioning system settings screen

1492. Instrument cluster
2
Instrument cluster
PRIUS_OM_OM47F32E_(EE)

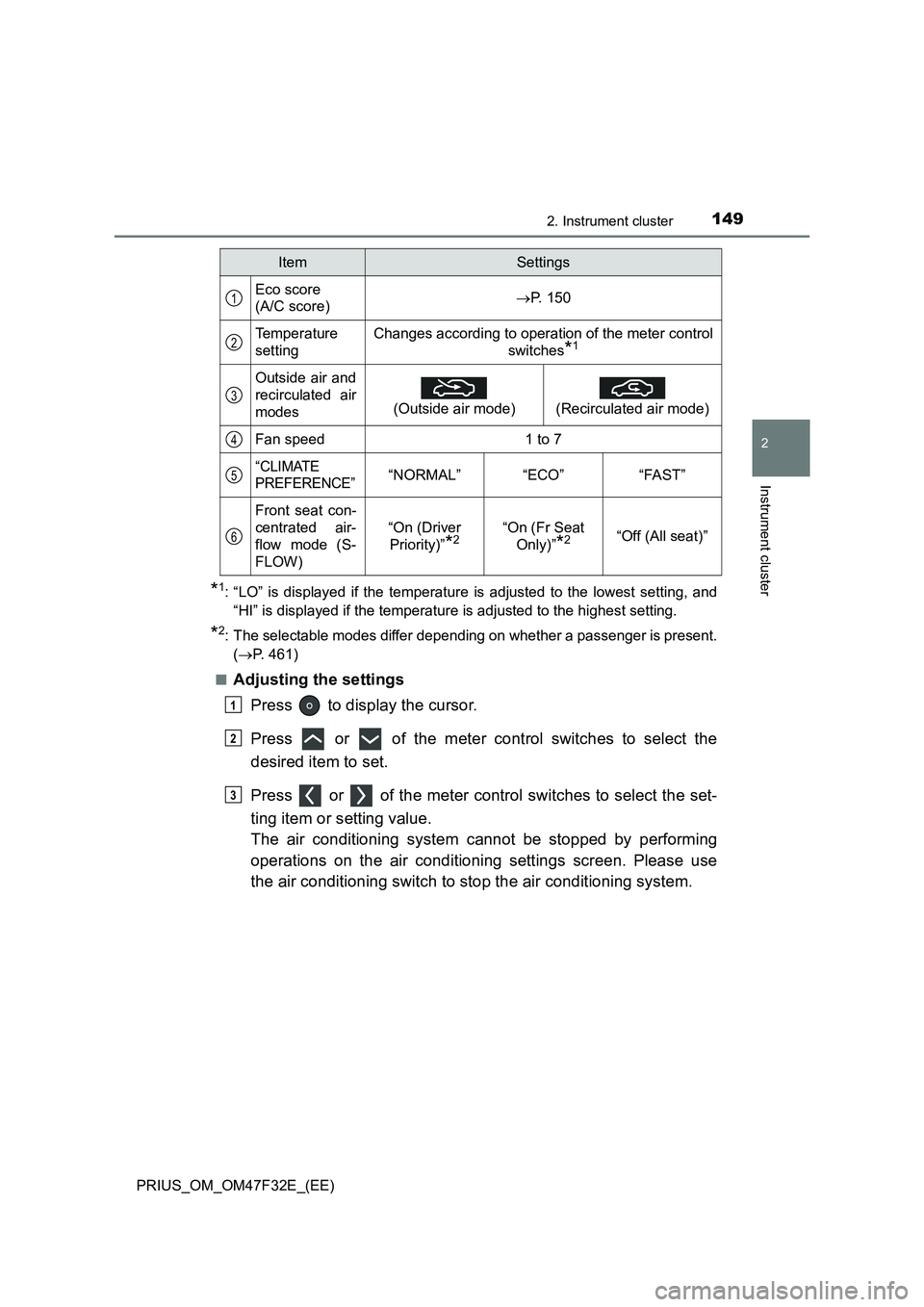

*1: “LO” is displayed if the temperature is adjusted to the lowest setting, and
“HI” is displayed if the temperature is adjusted to the highest setting.
*2: The selectable modes differ depending on whether a passenger is present.
(P. 461)
■
Adjusting the settings
Press to display the cursor.
Press or of the meter control switches to select the
desired item to set.
Press or of the meter control switches to select the set-
ting item or setting value.
The air conditioning system cannot be stopped by performing
operations on the air conditioning settings screen. Please use
the air conditioning switch to stop the air conditioning system.
ItemSettings
Eco score
(A/C score)P. 150
Temperature
settingChanges according to operation of the meter control
switches
*1
Outside air and
recirculated air
modes
(Outside air mode)
(Recirculated air mode)
Fan speed1 to 7
“CLIMATE
PREFERENCE”“NORMAL”“ECO”“FAST”
Front seat con-
centrated air-
flow mode (S-
FLOW)
“On (Driver
Priority)”
*2“On (Fr Seat
Only)”
*2“Off (All seat)”
1
2
3
4
5
6
1
2
3

1502. Instrument cluster
PRIUS_OM_OM47F32E_(EE)■

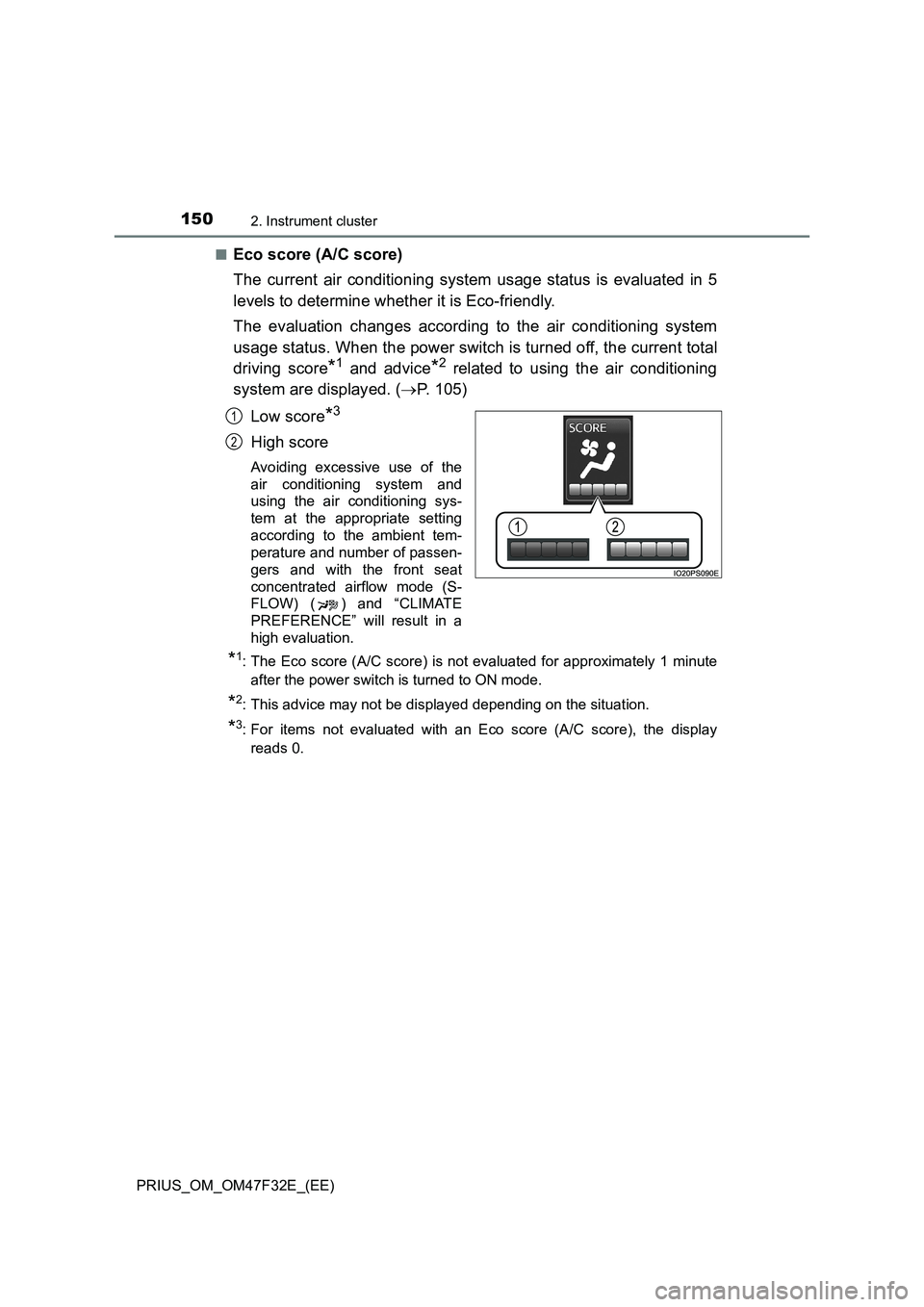

Eco score (A/C score)
The current air conditioning system usage status is evaluated in 5
levels to determine whether it is Eco-friendly.
The evaluation changes according to the air conditioning system
usage status. When the power switch is turned off, the current total
driving score
*1 and advice*2 related to using the air conditioning
system are displayed. (P. 105)
Low score
*3
High score
Avoiding excessive use of the
air conditioning system and
using the air conditioning sys-
tem at the appropriate setting
according to the ambient tem-
perature and number of passen-
gers and with the front seat
concentrated airflow mode (S-
FLOW) ( ) and “CLIMATE
PREFERENCE” will result in a
high evaluation.
*1: The Eco score (A/C score) is not evaluated for approximately 1 minute
after the power switch is turned to ON mode.
*2: This advice may not be displayed depending on the situation.
*3: For items not evaluated with an Eco score (A/C score), the display
reads 0.
1
2
