2023 TOYOTA PRIUS Owners Manual

6638-1. Specifications
PRIUS_OM_OM47F32E_(EE)
8
Vehicle specifications
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
Electrical system (12-volt battery)
Specific gravity
reading at 20 C (68F):
1.25 or higher
If the specific gravity is lower than the
standard value, charge the battery.
Charging ratesQuick charge15 A max.
Slow charge5 A max.
Transmission
Fluid capacity*3.6 L (3.8 qt., 3.2 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■ Transmission fluid type
Using transmission fluid other than the above type may cause abnormal
noise or vibration, or ultimately damage the transmission of your vehicle.
Rear differential (rear electric motor) (AWD models)
Fluid capacity*1.2 L (1.3 qt., 1.1 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■Transmission fluid type
Using transmission fluid other than the above type may cause abnormal
noise or vibration, or ultimately damage the transmission of your vehicle.

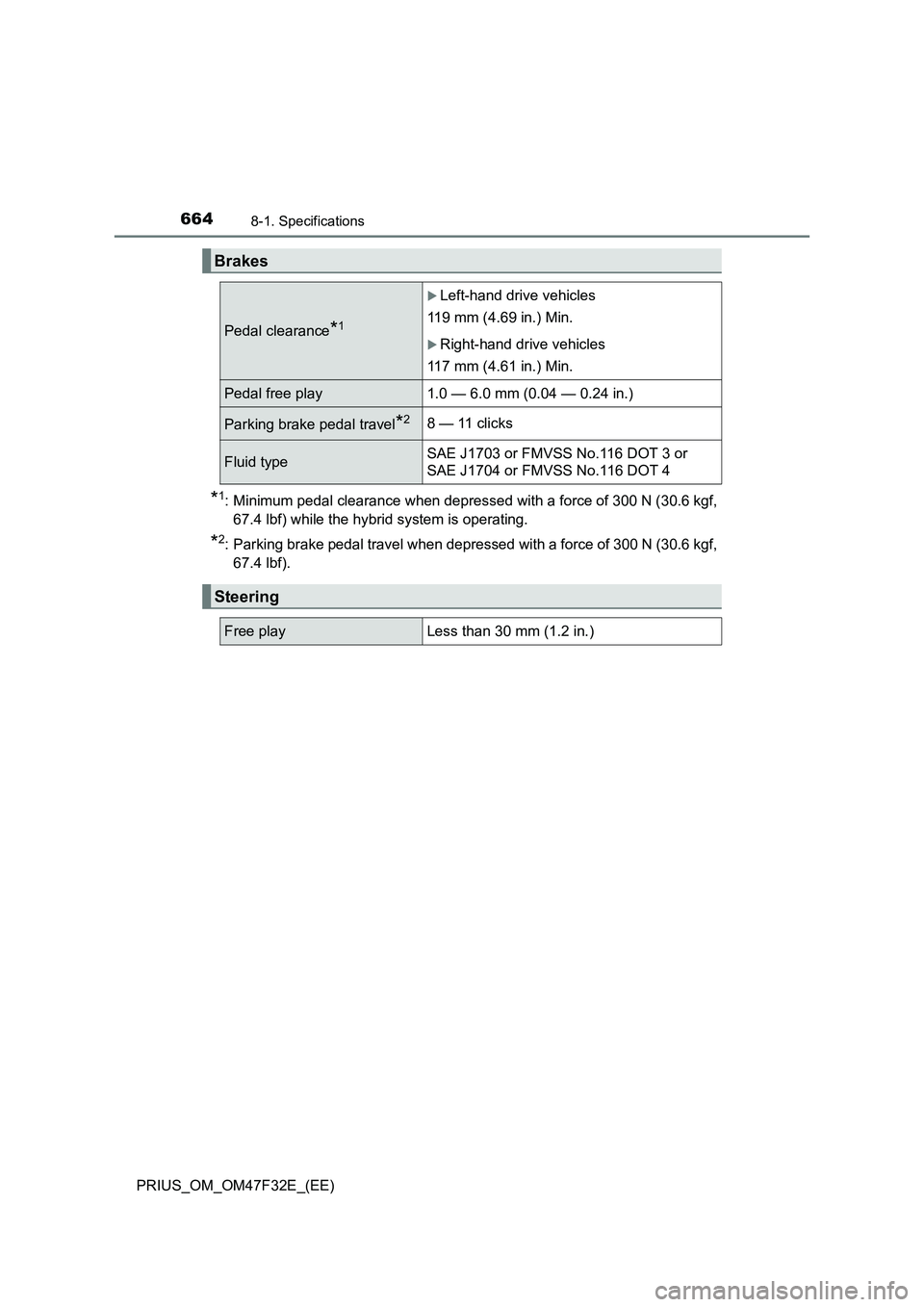

6648-1. Specifications
PRIUS_OM_OM47F32E_(EE)
*1: Minimum pedal clearance when depressed with a force of 300 N (30.6 kgf,
67.4 lbf) while the hybrid system is operating.
*2: Parking brake pedal travel when depressed with a force of 300 N (30.6 kgf,
67.4 lbf).
Brakes
Pedal clearance*1
Left-hand drive vehicles
119 mm (4.69 in.) Min.
Right-hand drive vehicles
117 mm (4.61 in.) Min.
Pedal free play1.0 — 6.0 mm (0.04 — 0.24 in.)
Parking brake pedal travel*28 —11 clicks
Fluid typeSAE J1703 or FMVSS No.116 DOT 3 or
SAE J1704 or FMVSS No.116 DOT 4
Steering
Free playLess than 30 mm (1.2 in.)

6658-1. Specifications
PRIUS_OM_OM47F32E_(EE)
8
Vehicle specifications
15-inch tires (vehicles without full-size spare tire)
15-inch tires (vehicles with full-size spare tire)
17-inch tires
Tires and wheels
Tire size195/65R15 91H
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front250 kPa (2.5 kgf/cm2 or bar, 36 psi)
Rear240 kPa (2.4 kgf/cm2 or bar, 35 psi)
Wheel size15  6 1/2J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size195/65R15 91H
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front
220 kPa (2.2 kgf/cm2 or bar, 32 psi)
Rear
Wheel size15  6 1/2J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size215/45R17 87W
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front220 kPa (2.2 kgf/cm2 or bar, 32 psi)
Rear210 kPa (2.1 kgf/cm2 or bar, 30 psi)
Wheel size17  7J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)

6668-1. Specifications
PRIUS_OM_OM47F32E_(EE)
Compact spare tire (if equipped)
■When towing a trailer*
Add 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) to the recommended tire inflation
pressure and drive at speeds below 100 km/h (62 mph).
*: Vehicles that can tow a trailer. (P. 233)
Tire sizeT125/70D17 98M
Tire inflation pressure
(Recommended cold tire
inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size17  4T
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)

6678-1. Specifications
PRIUS_OM_OM47F32E_(EE)
8
Vehicle specifications
Light bulbs
Light bulbsWTyp e
ExteriorRear turn signal lights21A
Back-up light16B
Interior
Vanity lights8B
Front interior/personal lights5B
Rear interior light8C
Door courtesy lights5B
Luggage compartment light5B
A: Wedge base bulbs (amber)
B: Wedge base bulbs (clear)
C: Double end bulbs

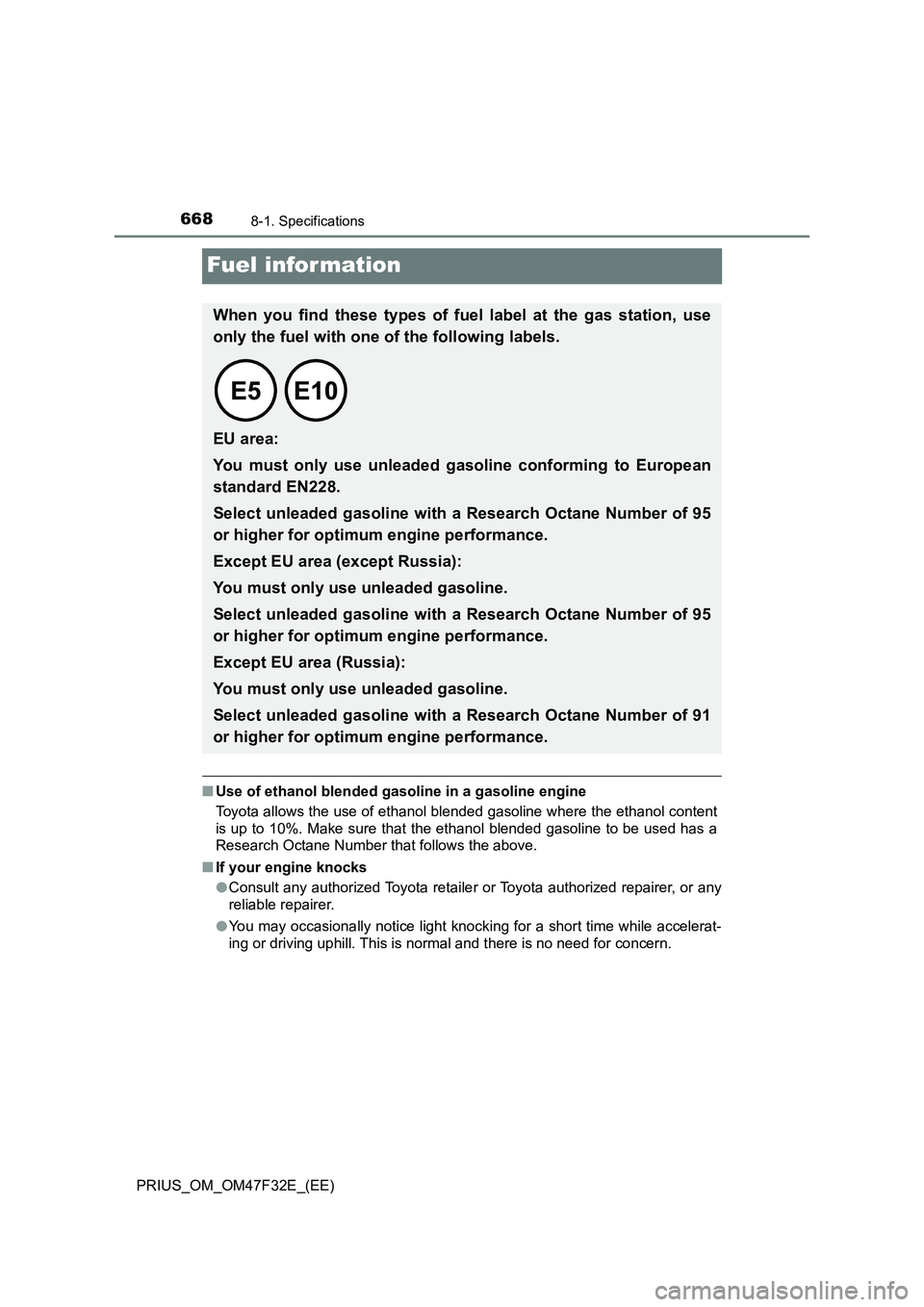

6688-1. Specifications
PRIUS_OM_OM47F32E_(EE)
Fuel infor mation
■Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
■If your engine knocks
●Consult any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
●You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
When you find these types of fuel label at the gas station, use
only the fuel with one of the following labels.

EU area:
You must only use unleaded gasoline conforming to European
standard EN228.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.
Except EU area (except Russia):
You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.
Except EU area (Russia):
You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 91
or higher for optimum engine performance.

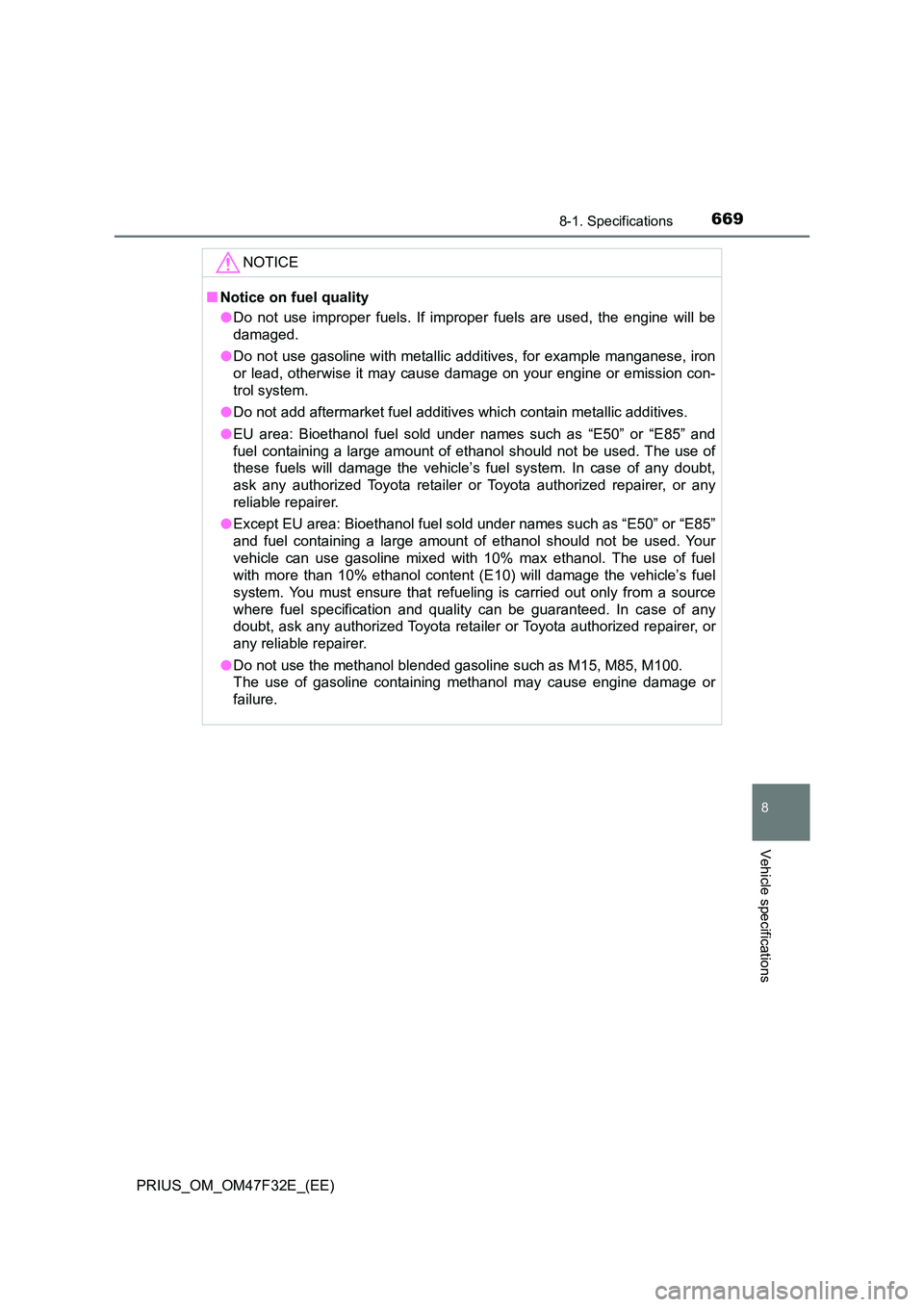

6698-1. Specifications
PRIUS_OM_OM47F32E_(EE)
8
Vehicle specifications
NOTICE
■Notice on fuel quality
● Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
● Do not use gasoline with metallic additives, for example manganese, iron
or lead, otherwise it may cause damage on your engine or emission con-
trol system.
● Do not add aftermarket fuel additives which contain metallic additives.
● EU area: Bioethanol fuel sold under names such as “E50” or “E85” and
fuel containing a large amount of ethanol should not be used. The use of
these fuels will damage the vehicle’s fuel system. In case of any doubt,
ask any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
● Except EU area: Bioethanol fuel sold under names such as “E50” or “E85”
and fuel containing a large amount of ethanol should not be used. Your
vehicle can use gasoline mixed with 10% max ethanol. The use of fuel
with more than 10% ethanol content (E10) will damage the vehicle’s fuel
system. You must ensure that refueling is carried out only from a source
where fuel specification and quality can be guaranteed. In case of any
doubt, ask any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer.
● Do not use the methanol blended gasoline such as M15, M85, M100.
The use of gasoline containing methanol may cause engine damage or
failure.

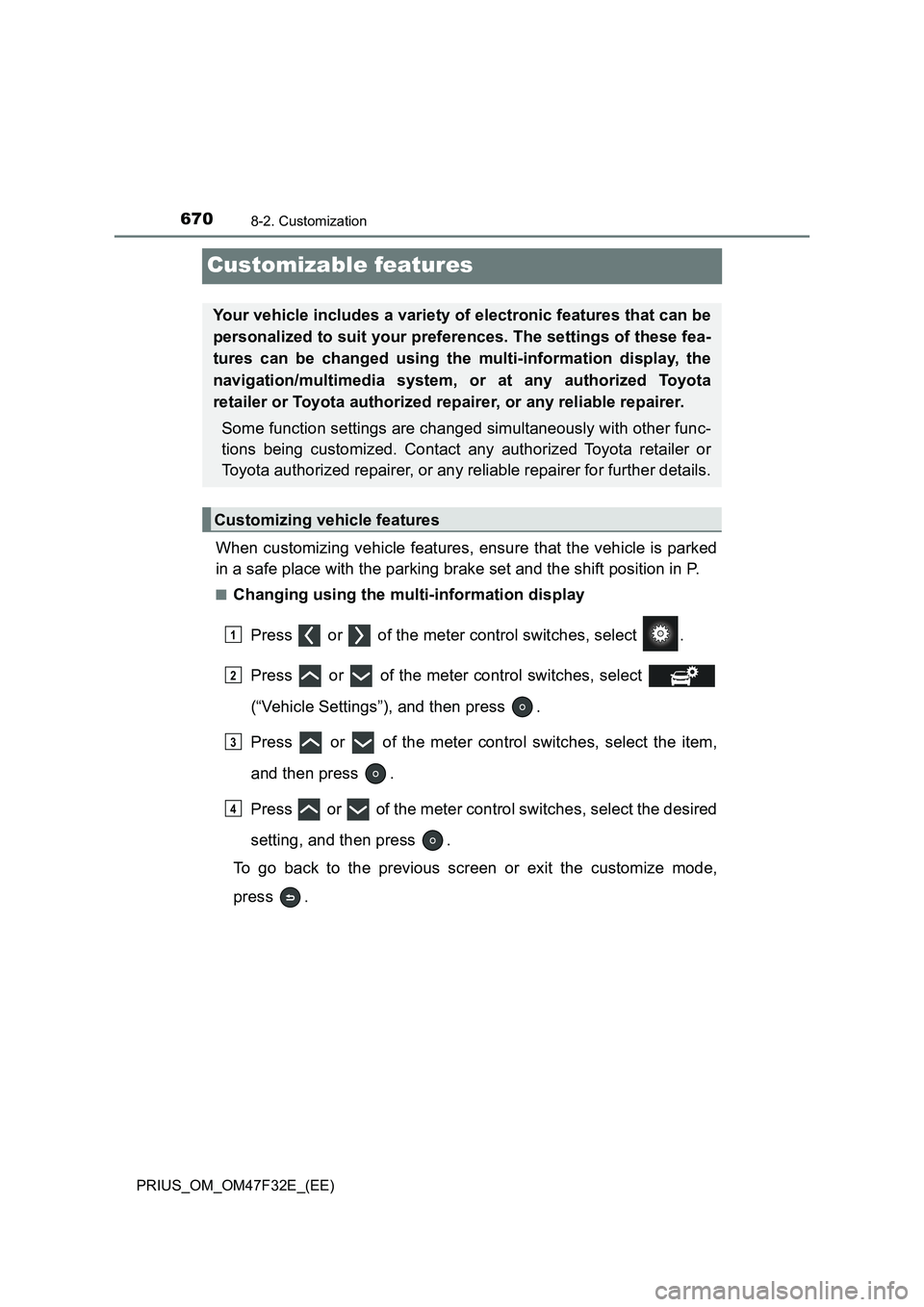

6708-2. Customization
PRIUS_OM_OM47F32E_(EE)
Customizable features
When customizing vehicle features, ensure that the vehicle is parked
in a safe place with the parking brake set and the shift position in P.
■Changing using the multi-information display
Press or of the meter control switches, select .
Press or of the meter control switches, select
(“Vehicle Settings”), and then press .
Press or of the meter control switches, select the item,
and then press .
Press or of the meter control switches, select the desired
setting, and then press .
To go back to the previous screen or exit the customize mode,
press .
Your vehicle includes a variety of electronic features that can be
personalized to suit your preferences. The settings of these fea-
tures can be changed using the multi-information display, the
navigation/multimedia system, or at any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
Some function settings are changed simultaneously with other func-
tions being customized. Contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer for further details.
Customizing vehicle features
1
2
3
4
