2023 TOYOTA PRIUS Owners Manual

5997-2. Steps to take in an emergency
PRIUS_OM_OM47F32E_(EE)
7
When trouble arises
●Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift position to P.
● Stop the hybrid system.
● Turn on the emergency flashers.
● Check the degree of the tire damage.
A tire should only be repaired
with the emergency tire punc-
ture repair kit if the damage is
caused by a nail or screw pass-
ing through the tire tread.
• Do not remove the nail or
screw from the tire. Remov-
ing the object may widen the
opening and make emer-
gency repair with the repair
kit impossible.
• To avoid sealant leakage, move the vehicle until the area of the
puncture, if known, is positioned at the top of the tire.
■ A flat tire that cannot be repaired with the emergency tire puncture repair
kit
In the following cases, the tire c annot be repaired with the emergency tire
puncture repair kit. Contact any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.
● When the tire is damaged due to driving without sufficient air pressure
● When there are any cracks or damage at any location on the tire, such as on
the side wall, except the tread
● When the tire is visibly separated from the wheel
● When the cut or damage to the tread is 4 mm (0.16 in.) long or more
● When the wheel is damaged
● When two or more tires have been punctured
● When more than one sharp objects such as nails or screws have passed
through the tread on a single tire
● When the sealant has expired
Before repairing the tire

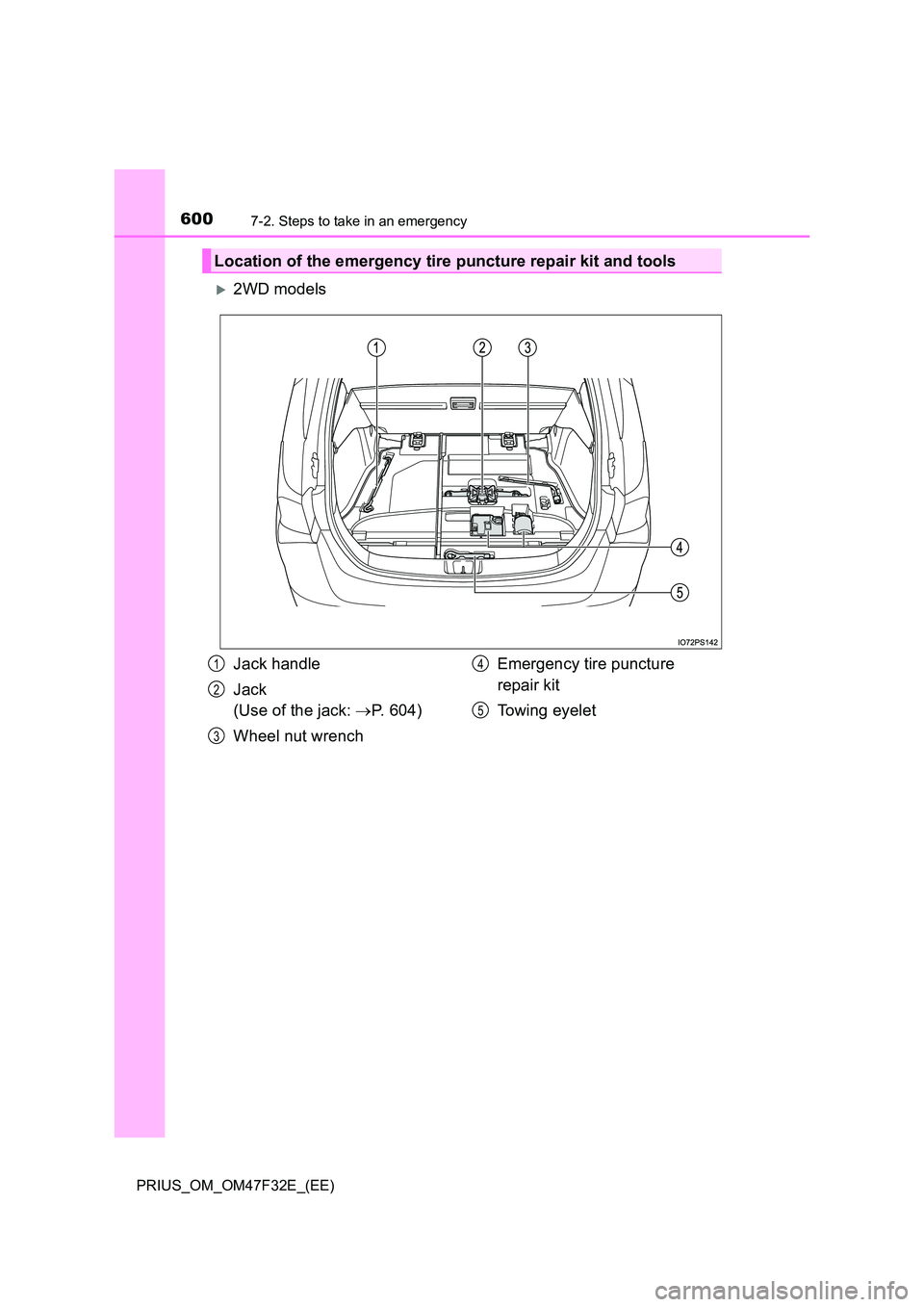

6007-2. Steps to take in an emergency
PRIUS_OM_OM47F32E_(EE)
2WD models
Location of the emergency tire puncture repair kit and tools
Jack handle
Jack
(Use of the jack: P. 604)
Wheel nut wrench
Emergency tire puncture
repair kit
Towing eyelet
1
2
3
4
5

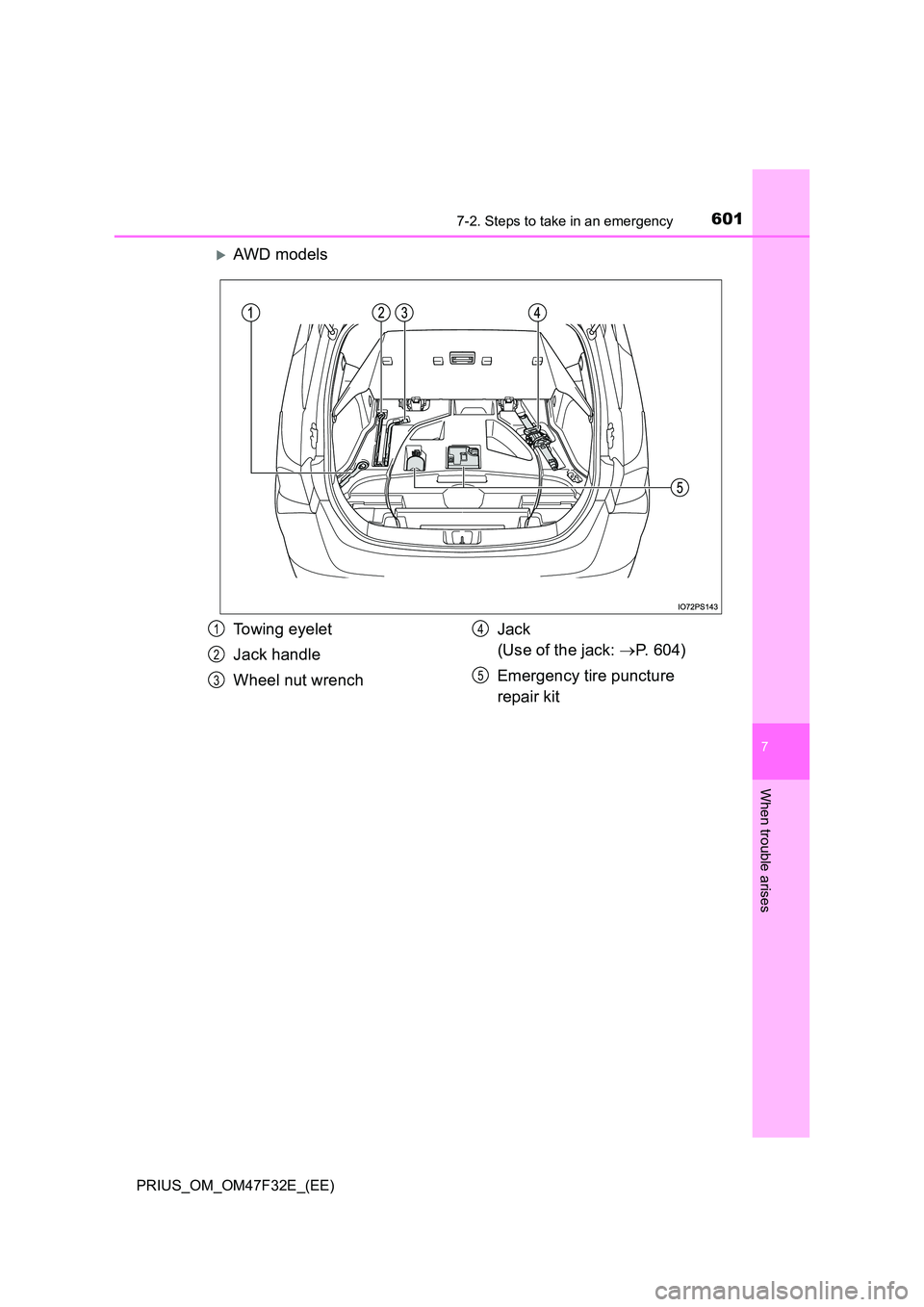

6017-2. Steps to take in an emergency
PRIUS_OM_OM47F32E_(EE)
7
When trouble arises
AWD models
Towing eyelet
Jack handle
Wheel nut wrench
Jack
(Use of the jack: P. 604)
Emergency tire puncture
repair kit
1
2
3
4
5

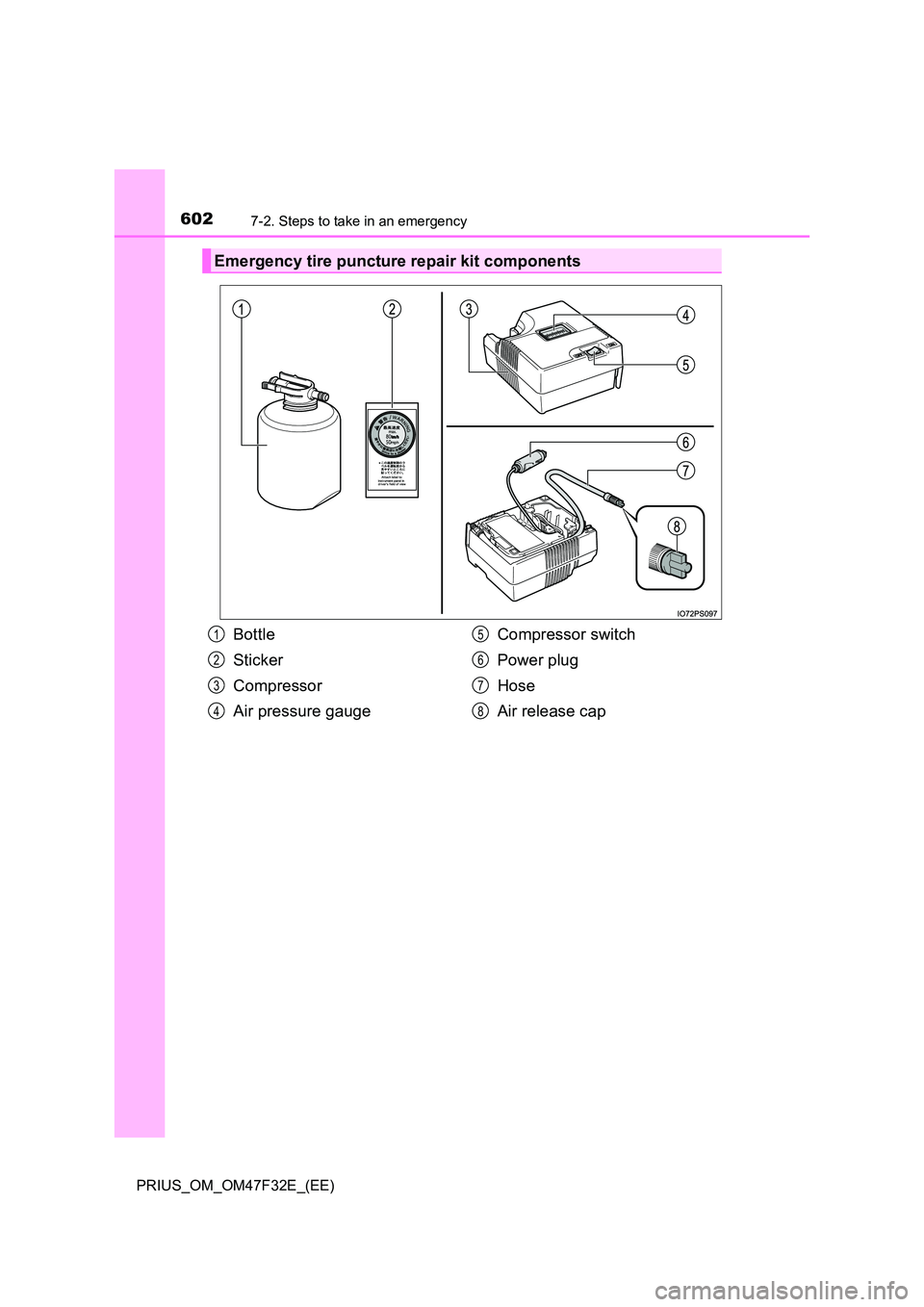

6027-2. Steps to take in an emergency
PRIUS_OM_OM47F32E_(EE)
Emergency tire puncture repair kit components
Bottle
Sticker
Compressor
Air pressure gauge
Compressor switch
Power plug
Hose
Air release cap
1
2
3
4
5
6
7
8

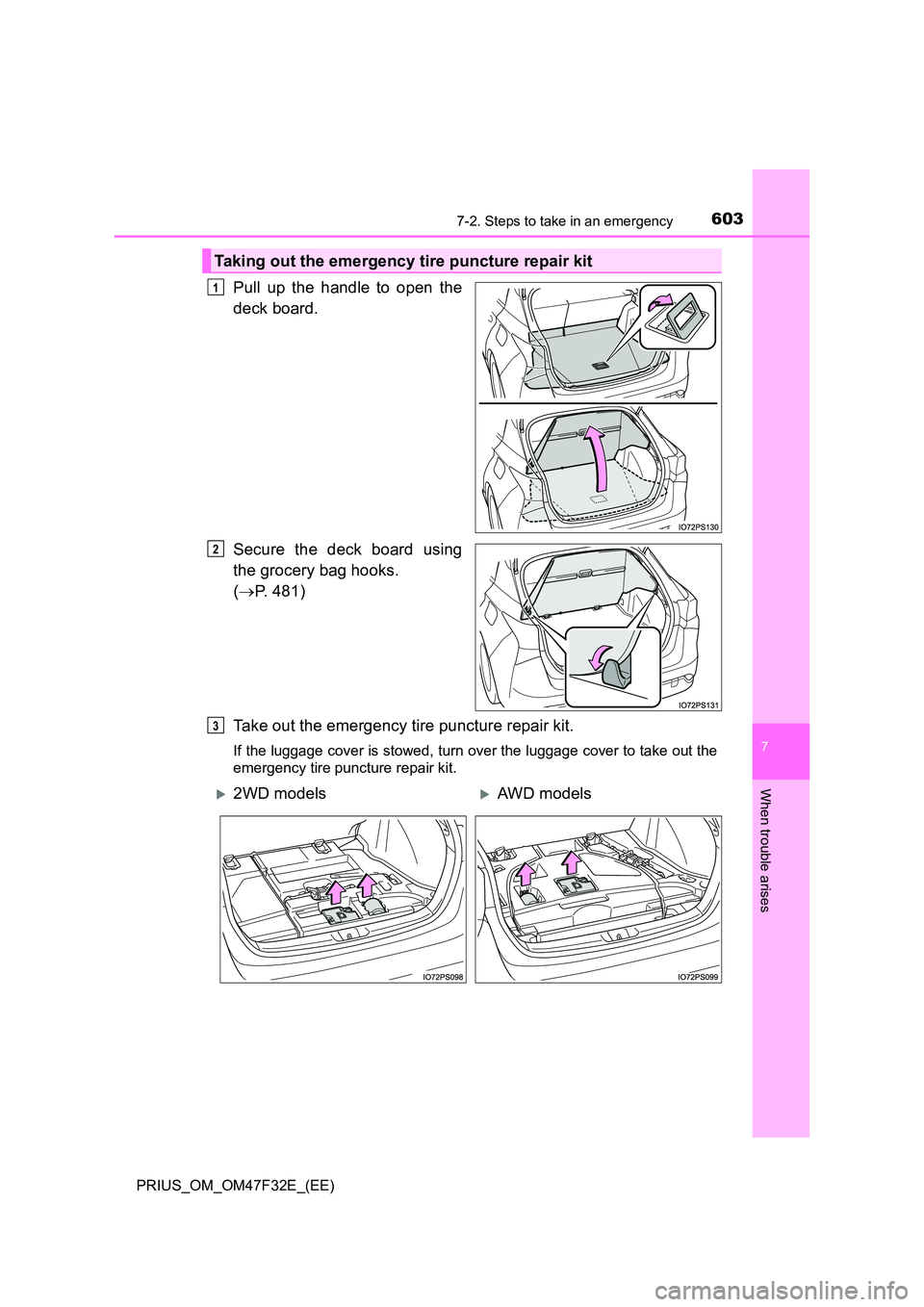

6037-2. Steps to take in an emergency
PRIUS_OM_OM47F32E_(EE)
7
When trouble arises
Pull up the handle to open the
deck board.
Secure the deck board using
the grocery bag hooks.
( P. 481)
Take out the emergency tire puncture repair kit.
If the luggage cover is stowed, turn over the luggage cover to take out the
emergency tire puncture repair kit.
Taking out the emergency tire puncture repair kit
1
2
3
2WD modelsAWD models

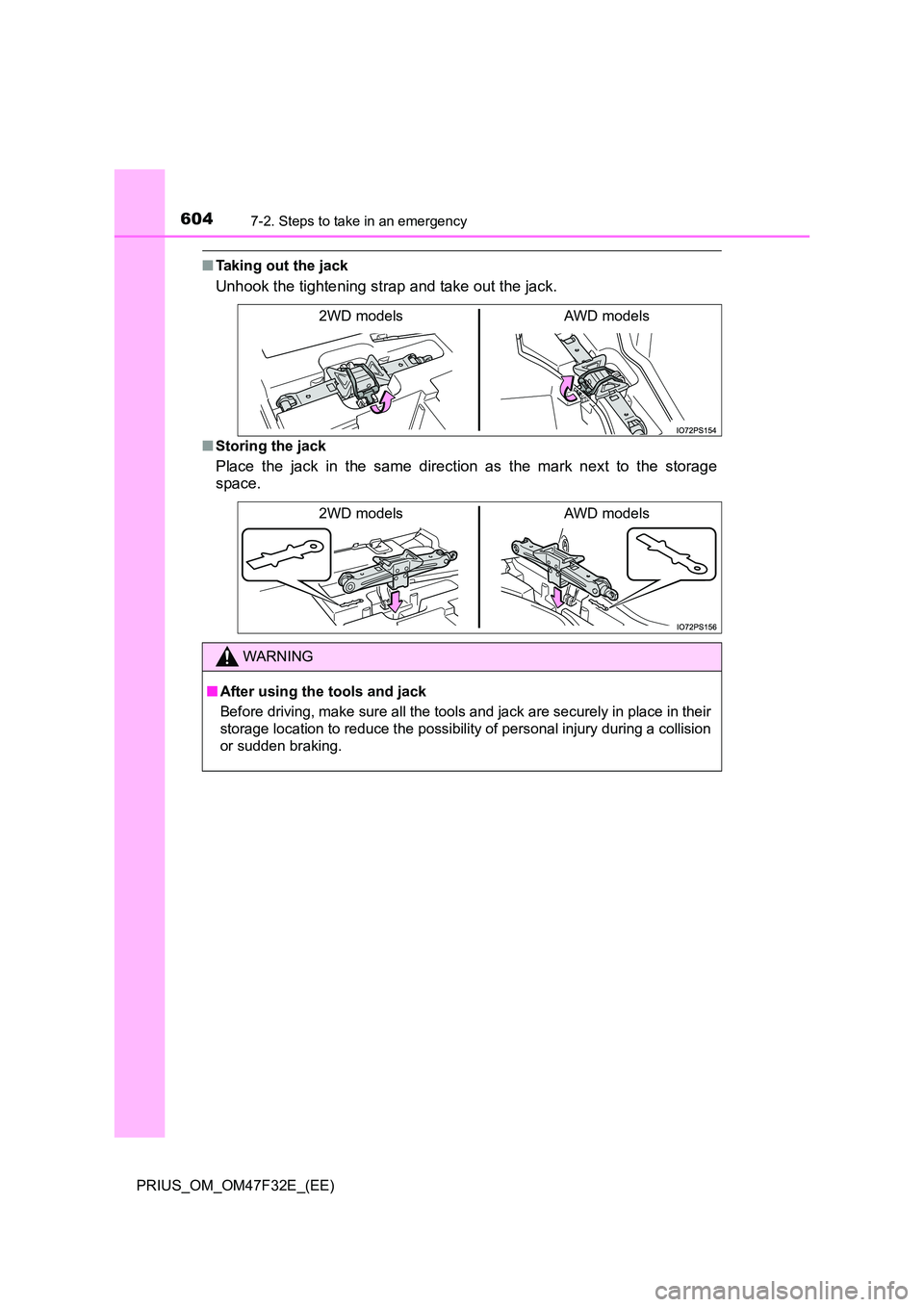

6047-2. Steps to take in an emergency
PRIUS_OM_OM47F32E_(EE)
■Taking out the jack
Unhook the tightening strap and take out the jack.
■Storing the jack
Place the jack in the same direction as the mark next to the storage
space.
2WD models AWD models
2WD models AWD models
WARNING
■ After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their
storage location to reduce the possibility of personal injury during a collision
or sudden braking.

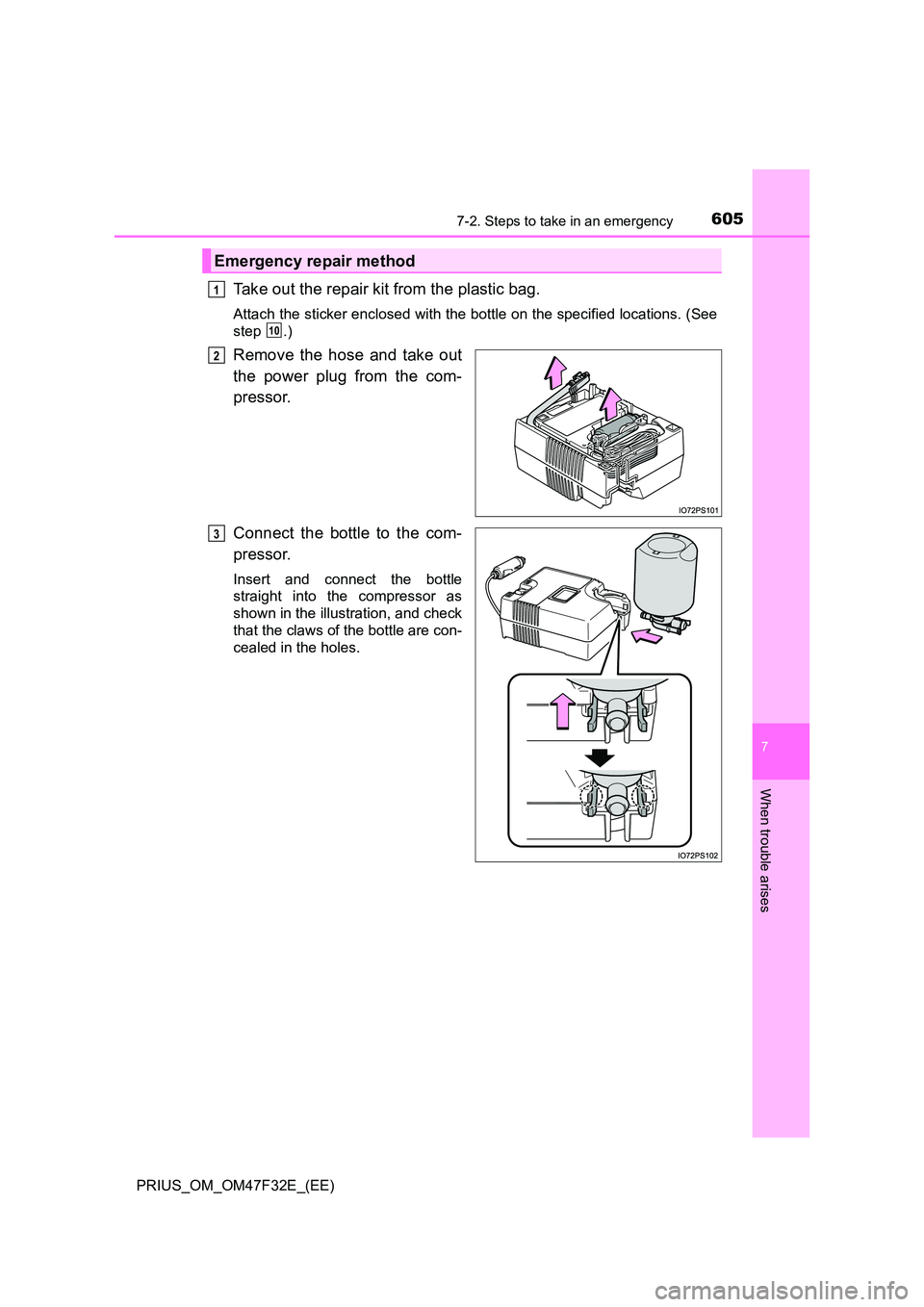

6057-2. Steps to take in an emergency
PRIUS_OM_OM47F32E_(EE)
7
When trouble arises
Take out the repair kit from the plastic bag.
Attach the sticker enclosed with the bottle on the specified locations. (See
step .)
Remove the hose and take out
the power plug from the com-
pressor.
Connect the bottle to the com-
pressor.
Insert and connect the bottle
straight into the compressor as
shown in the illustration, and check
that the claws of the bottle are con-
cealed in the holes.
Emergency repair method
1
10
2
3

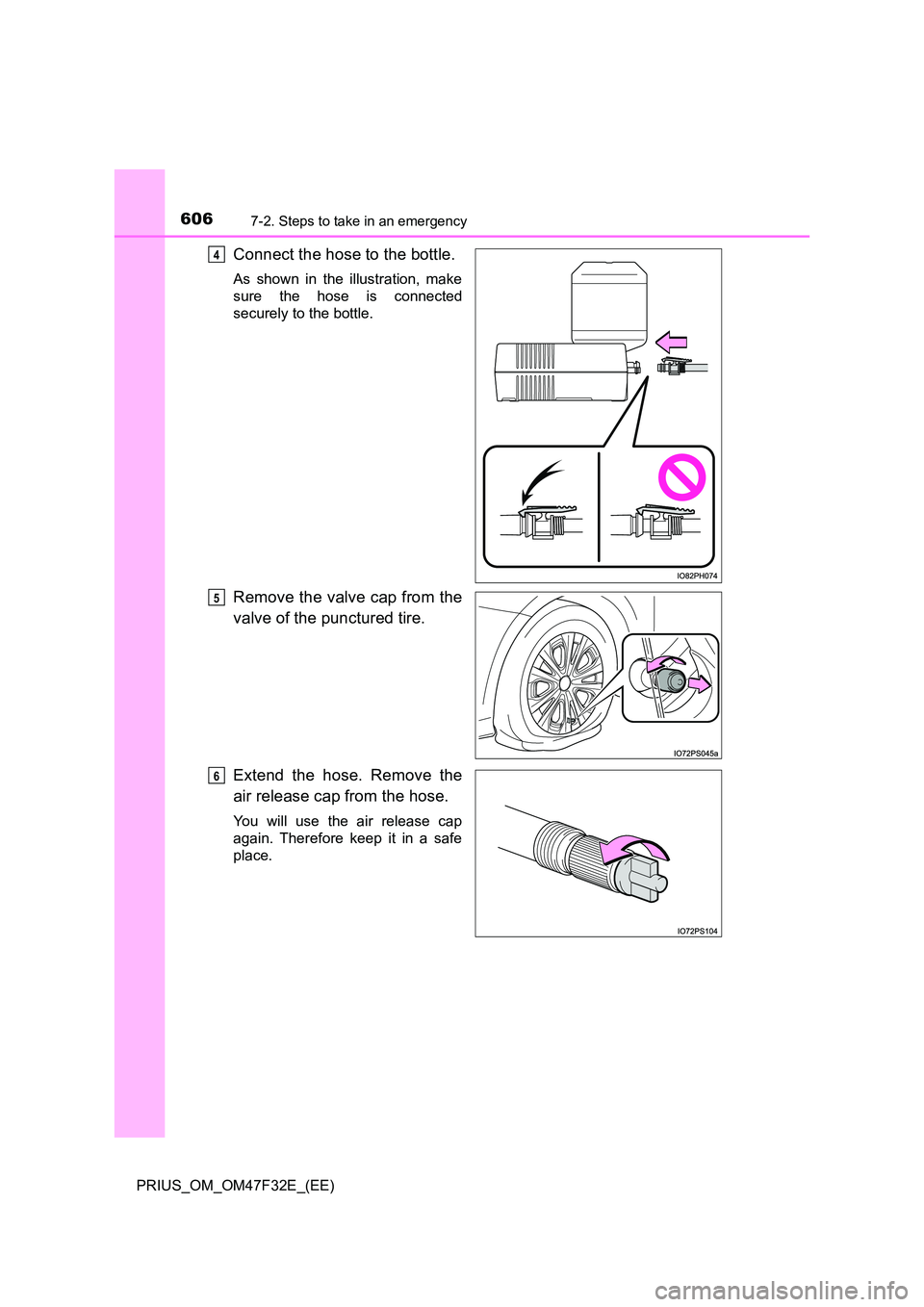

6067-2. Steps to take in an emergency
PRIUS_OM_OM47F32E_(EE)
Connect the hose to the bottle.
As shown in the illustration, make
sure the hose is connected
securely to the bottle.
Remove the valve cap from the
valve of the punctured tire.
Extend the hose. Remove the
air release cap from the hose.
You will use the air release cap
again. Therefore keep it in a safe
place.
4
5
6
