(5-Door)
ItemWeight
FWD AWD
Manual transmission Automatic transmis-
sion
GVWR (Gross Vehicle Weight
Rating) 1,830 kg (4,034 lbs) 1,856 kg (4,092 lbs) 1,927 kg (4,248 lbs)
GAWR (Gross Axle
Weight Rating) Front 1,003 kg (2,211 lbs) 1,029 kg (2,269 lbs) 1,053 kg (2,321 lbs)
Rear 842 kg (1,856 lbs) 839 kg (1,850 lbs) 874 kg (1,927 lbs)
SKYACTIV-G 2.5T
(4-Door)
Item
Weight
GVWR (Gross Vehicle Weight
Rating) 1,950 kg (4,299 lbs)
GAWR (Gross Axle
Weight Rating) Front
1,066 kg (2,350 lbs)
Rear 889 kg (1,960 lbs)
(5-Door)
Item Weight
GVWR (Gross Vehicle Weight
Rating) 1,951 kg (4,301 lbs)
GAWR (Gross Axle
Weight Rating) Front
1,085 kg (2,392 lbs)
Rear 871 kg (1,920 lbs)
Mexico
SKYACTIV-G 2.0
Item Weight
GVW (Gross Vehicle Weight) 1,881 kg (4,147 lbs)
SKYACTIV-G 2.5
(4-Door)
ItemWeight
Manual transmission Automatic transmission
GVW (Gross Vehicle Weight) 1,861 kg (4,103 lbs) 1,870 kg (4,123 lbs)
Specifications
Specifications
9-8
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

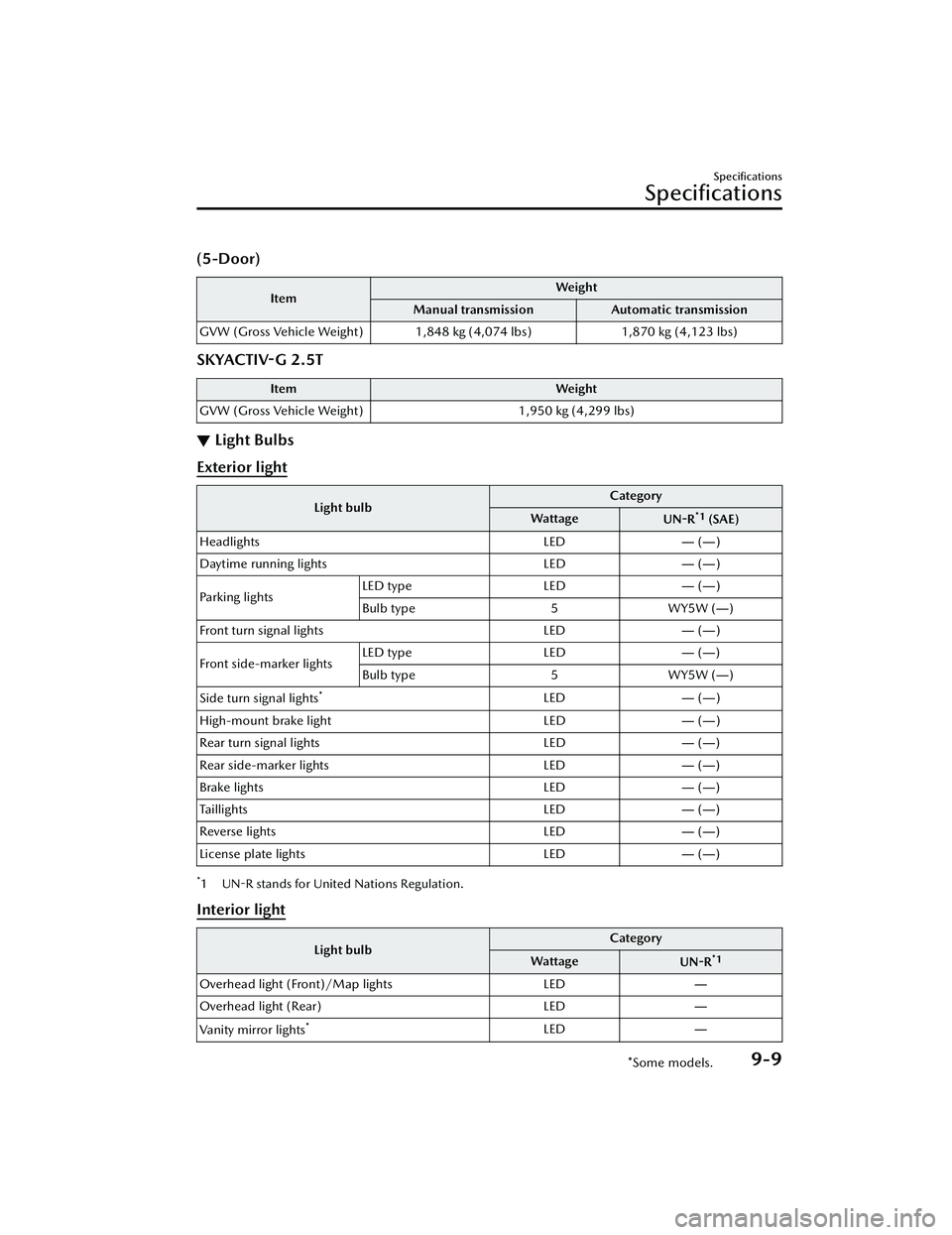

(5-Door)
ItemWeight
Manual transmission Automatic transmission
GVW (Gross Vehicle Weight) 1,848 kg (4,074 lbs) 1,870 kg (4,123 lbs)
SKYACTIV-G 2.5T
Item Weight
GVW (Gross Vehicle Weight) 1,950 kg (4,299 lbs)
▼Light Bulbs
Exterior light
Light bulb Category
Watta ge UN-R*1 (SAE)
Headlights LED ― (― )
Daytime running lights LED― (― )
Parking lights LED type
LED― (― )
Bulb type 5WY5W (―)
Front turn signal lights LED― (― )
Front side-marker lights LED type
LED― (― )
Bulb type 5WY5W (―)
Side turn signal lights
*LED ― (― )
High-mount brake light LED― (― )
Rear turn signal lights LED― (― )
Rear side-marker lights LED― (― )
Brake lights LED― (― )
Taillights LED― (― )
Reverse lights LED― (― )
License plate lights LED― (― )
*1 UN-R stands for United Nations Regulation.
Interior light
Light bulb Category
Watta ge UN-R*1
Overhead light (Front)/Map lights LED―
Overhead light (Rear) LED―
Vanity mirror lights
*LED ―
Specifications
Specifications
*Some models.9-9
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

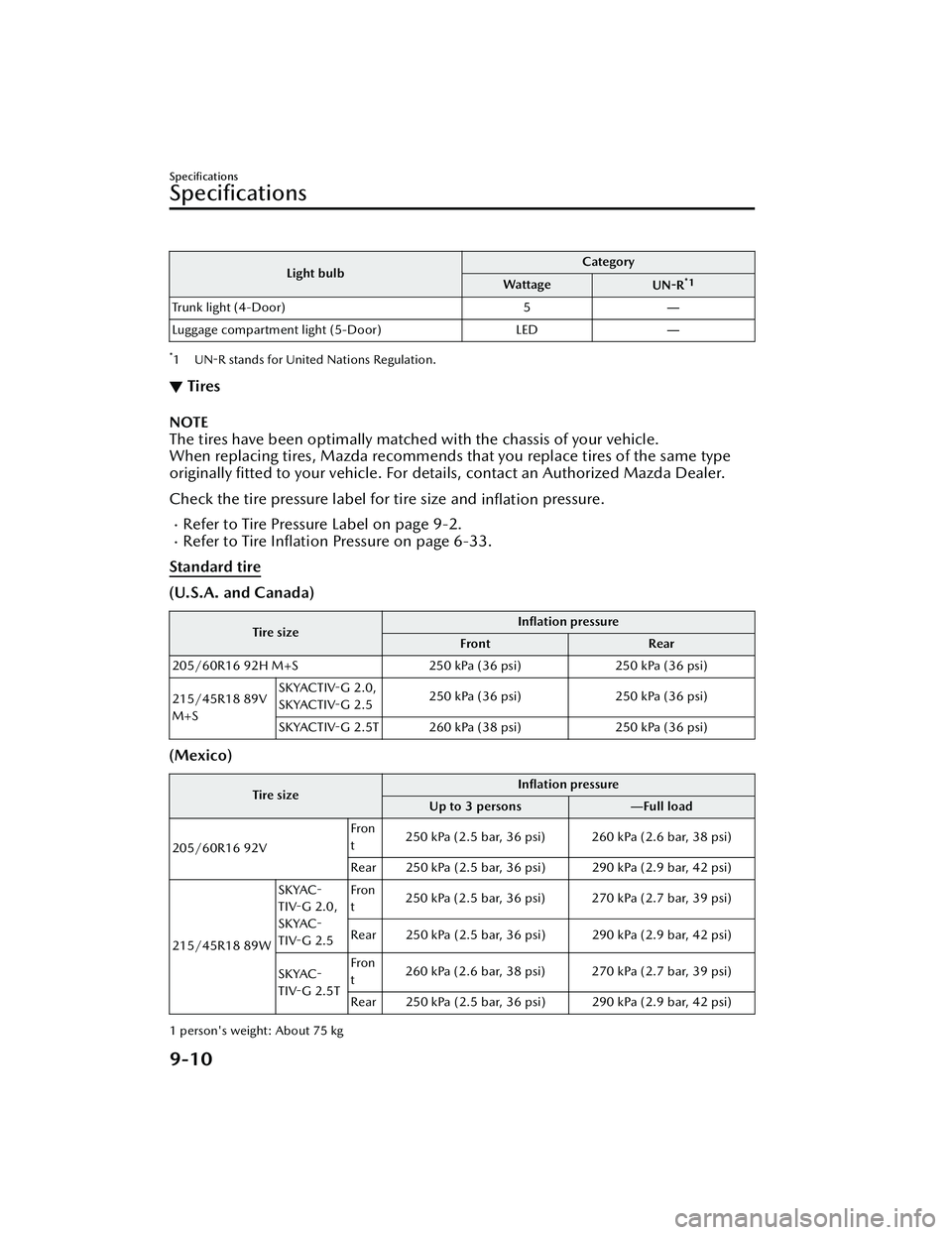

Light bulbCategory
Wattage UN-R*1
Trunk light (4-Door) 5―
Luggage compartment light (5-Door) LED―
*1 UN-R stands for United Nations Regulation.
▼Tires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type
originally fitted to your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and
inflation pressure.
Refer to Tire Pressure Label on page 9-2.Refer to Tire Inflation Pressure on page 6-33.
Standard tire
(U.S.A. and Canada)
Tire size Inflation pressure
Front Rear
205/60R16 92H M+S 250 kPa (36 psi) 250 kPa (36 psi)
215/45R18 89V
M+S SKYACTIV-G 2.0,
SKYACTIV-G
2.5 250 kPa (36 psi) 250 kPa (36 psi)
SKYACTIV-G 2.5T 260 kPa (38 psi) 250 kPa (36 psi)
(Mexico)
Tire size Inflation pressure
Up to 3 persons ―Full load
205/60R16 92V Fron
t
250 kPa (2.5 bar, 36 psi) 260 kPa (2.6 bar, 38 psi)
Rear 250 kPa (2.5 bar, 36 psi) 290 kPa (2.9 bar, 42 psi)
215/45R18 89W SKYAC-
TIV-G 2.0,
SKYAC-
TIV-G 2.5
Fron
t
250 kPa (2.5 bar, 36 psi) 270 kPa (2.7 bar, 39 psi)
Rear 250 kPa (2.5 bar, 36 psi) 290 kPa (2.9 bar, 42 psi)
SKYAC-
TIV-G 2.5T Fron
t
260 kPa (2.6 bar, 38 psi) 270 kPa (2.7 bar, 39 psi)
Rear 250 kPa (2.5 bar, 36 psi) 290 kPa (2.9 bar, 42 psi)
1 person's weight: About 75 kg
Specifications
Specifications
9-10
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

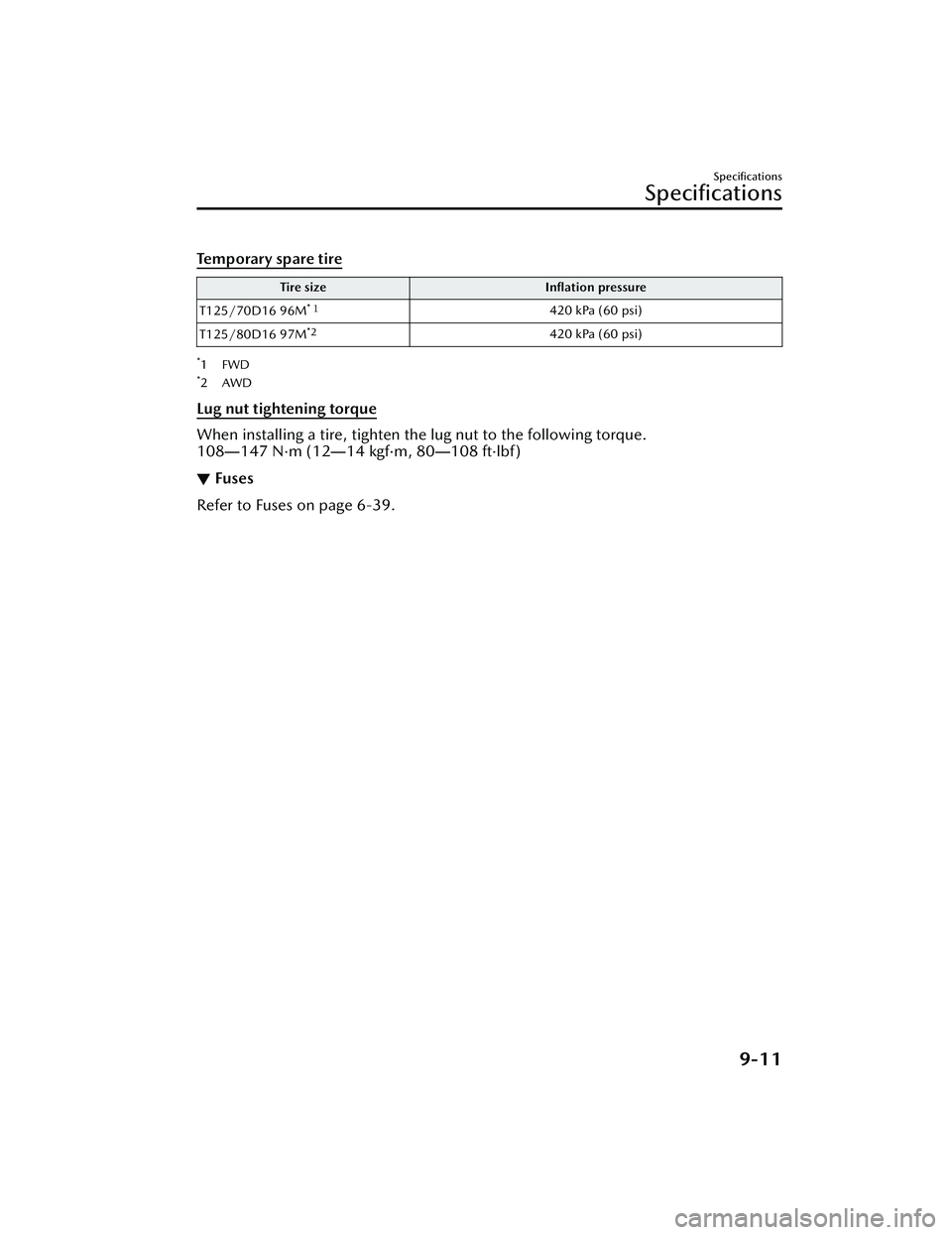

Temporary spare tire
Tire sizeInflation pressure
T125/70D16 96M
* １420 kPa (60 psi)
T125/80D16 97M
*2420 kPa (60 psi)
*1FWD*2AWD
Lug nut tightening torque
When installing a tire, tighten the lug nut to the following torque.
108―147 N·m (12―14 kgf·m, 80 ―108 ft·lbf)
▼Fuses
Refer to Fuses on page 6-39.
Specifications
Specifications
9-11
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

MEMO
9-12
Mazda3_8LC2-EA-22G_Edition1_new2022-5-20 11:26:10

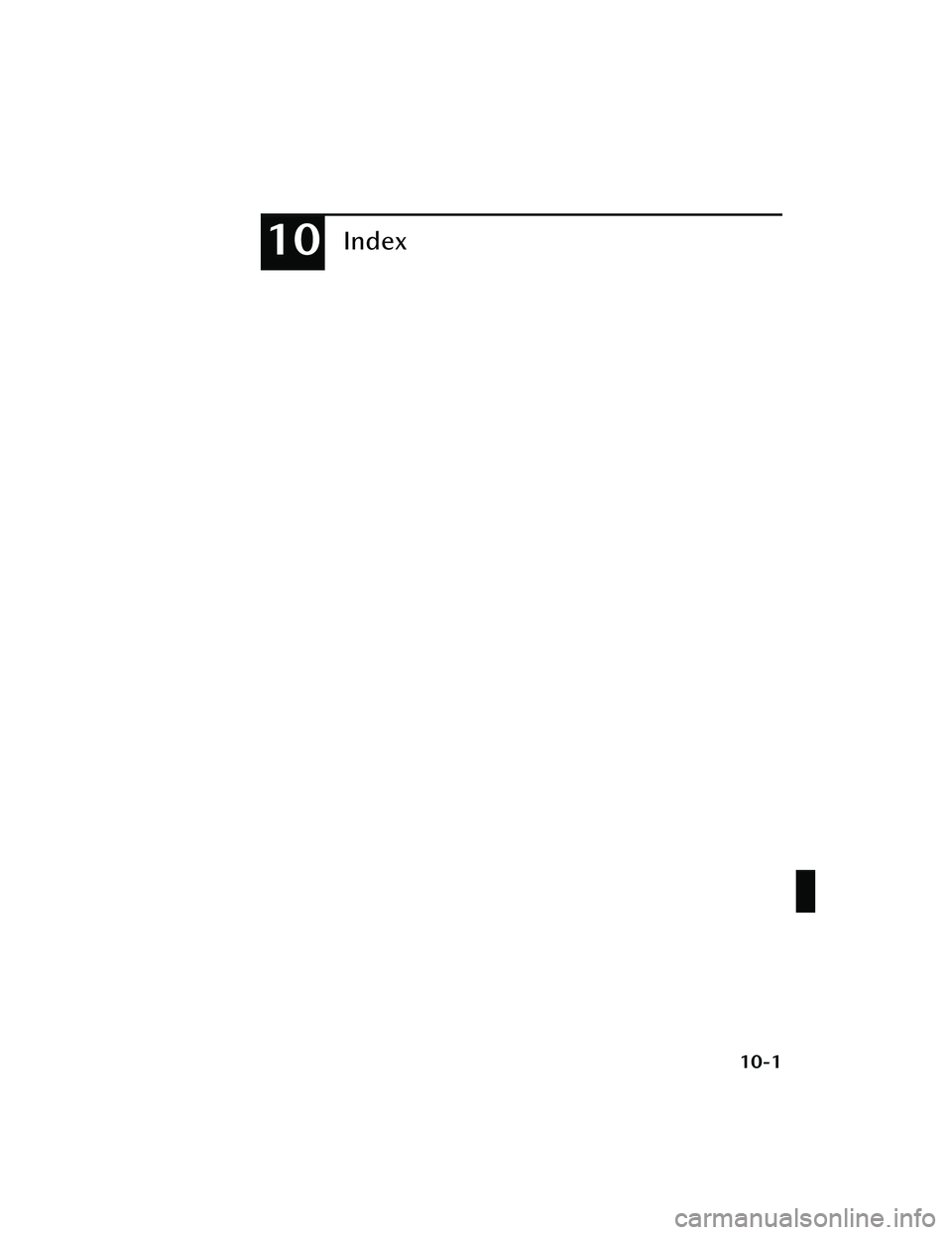

10Index
10-1
Mazda3_8LC2-EA-22G_Edition1_new2022-5-20 11:26:10

Index
A
Accessory Socket....................... 5-42
Active Driving Display................4-36
Adaptive Front Lighting System
(AFS)...................................... 4-101
Add-On Non-Genuine Parts and
Accessories............................... 8-17
Advanced KeyAdvanced keyless entry
system................................... 3-9
Operational range................ 3-10
Advanced Keyless Entry System..... 3-9
Antilock Brake System (ABS).......4-88
Assist Grips............................... 5-45
AUTOHOLD.............................. 4-82
AUTOHOLD Warning Beep........ 7-46
Automatic Transmission Active Adaptive Shift (AAS)... 4-44
Automatic transmission
controls................................4-41
Direct mode.........................4-51
Driving tips.......................... 4-52
Manual shift mode............... 4-45
Shift-lock system...................4-42
Transmission ranges.............. 4-43
B
Battery...................................... 6-28Maintenance........................ 6-30
Replacement........................ 6-30
Specifications......................... 9-4
Battery Runs Out....................... 7-17
Jump-starting....................... 7-17
Blind Spot Monitoring (BSM)....4-107 Canceling operation of Blind Spot
Monitoring (BSM)...............4-111
Blind Spot Monitoring (BSM) Warning
Beep.........................................7-47
Body Lubrication....................... 6-22
Bottle Holder............................ 5-45
Brakes Brake assist.......................... 4-81
Brake override system........... 4-81
Electric Parking Brake (EPB)....4-77
Foot brake............................4-76
Pad wear indicator................4-80
Parking brake....................... 4-77
Warning light........................4-80
Brake Override System............... 4-81
Brake Override Warning Beep.....7-46
Brake System Warning Beep....... 7-46
Break-In Period......................... 3-46
C
Capacities...................................9-5
Cell Phones.............................. 8-18
Center Console......................... 5-47
Child Restraint Categories of child-restraint
systems................................ 2-36
Child-restraint precautions.... 2-31
Child-restraint system
installation........................... 2-36
Child-restraint system suitability
for various seat positions
table.................................... 2-38
Installing child-restraint
systems................................ 2-41
ISOFIX child-restraint systems
(Mexico).............................. 2-49
LATCH child-restraint systems
(Except Mexico)................... 2-49
Climate Control System Fully automatic type..............5-10
Manual type...........................5-5
Operating tips........................ 5-2
Vent operation....................... 5-3
Collision warning...................... 7-48
Coming Home Light.................. 4-61
10-2
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

Index
Cruise Control........................ 4-224Cruise control switch.......... 4-224
Cruise standby indication (white)/
cruise set indication (green) ..........
......................................... 4-224
Cup Holder.............................. 5-43
Customer Assistance (Canada)..... 8-6
Customer Assistance (Mexico)..... 8-9
Customer Assistance (Puerto
Rico).......................................... 8-8
Customer Assistance (U.S.A.)....... 8-2
Cylinder Deactivation................ 4-17
D
Daytime Running Lights............. 4-62
Defogger.................................. 4-69 Mirror.................................. 4-70
Rear window........................ 4-69
Dimensions.................................9-6
Display..................................... 4-18
Distance & Speed Alert (DSA).. 4-118 Indication on display...........4-119
Door Locks............................... 3-11
Door-ajar Warning Beep............ 7-48
Driver Attention Alert (DAA).... 4-119
Driver Monitoring Camera....... 4-222
Driver Monitoring (DM)...........4-121
Drive Selection..........................4-92
Driving In Flooded Area............. 3-51
Driving on Uneven Road............ 3-52
Driving Position Memory........... 2-11
Driving Tips...............................3-46 Automatic transmission......... 4-52
Break-in period.................... 3-46
Driving in flooded area......... 3-51
Driving on uneven road.........3-52
Floor mat............................. 3-48
Hazardous driving.................3-47
Overloading......................... 3-51
Rocking the vehicle...............3-48
Saving fuel and protection of the
environment.........................3-46
Turbocharged vehicles (SKYACTIV-
G 2.5T)................................ 3-52
Winter driving...................... 3-49
Dynamic Stability Control
(DSC)....................................... 4-90 DSC OFF indicator light........ 4-91
DSC OFF switch................... 4-91
TCS/DSC indicator light........4-90
E
Electric Parking Brake (EPB)........ 4-77
Electric Parking Brake (EPB) Warning
Beep.........................................7-46
Emergency StartingPush-starting........................ 7-20
Starting a flooded engine...... 7-20
Emergency Towing Tiedown hooks..................... 7-24
Towing description............... 7-23
Emission Control System............ 3-27
Engine Coolant............................... 6-19
Engine compartment
overview.............................. 6-14
Exhaust gas.......................... 3-27
Hood release....................... 6-12
Oil....................................... 6-16
Starting.................................. 4-5
Essential Information................... 6-2
Event Data Recorder.................. 8-19
Excessive Speed Warning........... 7-48
Exterior Care............................. 6-47 Aluminum wheel
maintenance........................ 6-52
Bright-metal maintenance..... 6-51
Maintaining the finish........... 6-48
Plastic part maintenance....... 6-52
10-3
