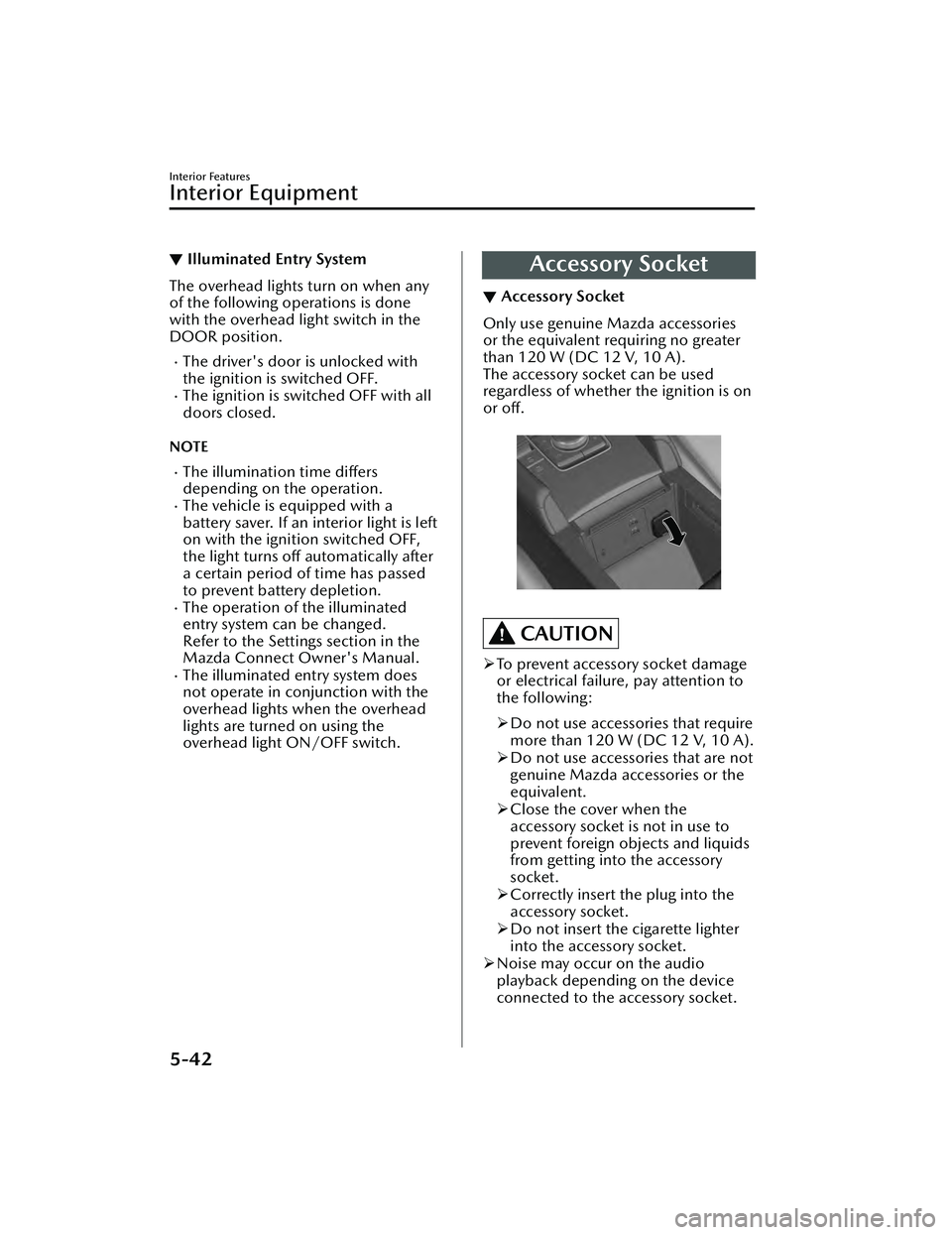

▼Illuminated Entry System
The overhead lights turn on when any
of the following operations is done
with the overhead light switch in the
DOOR position.
The driver's door is unlocked with
the ignition is switched OFF.
The ignition is switched OFF with all
doors closed.
NOTE
The illumination time differs
depending on the operation.
The vehicle is equipped with a
battery saver. If an interior light is left
on with the ignition switched OFF,
the light turns off automatically after
a certain period of time has passed
to prevent battery depletion.
The operation of the illuminated
entry system can be changed.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
The illuminated entry system does
not operate in conjunction with the
overhead lights when the overhead
lights are turned on using the
overhead light ON/OFF switch.
Accessory Socket
▼ Accessory Socket
Only use genuine Mazda accessories
or the equivalent requiring no greater
than 120 W (DC 12 V, 10 A).
The accessory socket can be used
regardless of whether the ignition is on
or off.


CAUTION

To prevent accessory socket damage
or electrical failure, pay attention to
the following:
 Do not use accessories that require
more than 120 W (DC 12 V, 10 A).
 Do not use accessories that are not
genuine Mazda accessories or the
equivalent.
 Close the cover when the
accessory socket is not in use to
prevent foreign objects and liquids
from getting into the accessory
socket.
 Correctly insert the plug into the
accessory socket.
 Do not insert the cigarette lighter
into the accessory socket.
 Noise may occur on the audio
playback depending on the device
connected to the accessory socket.
Interior Features
Interior Equipment
5-42
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

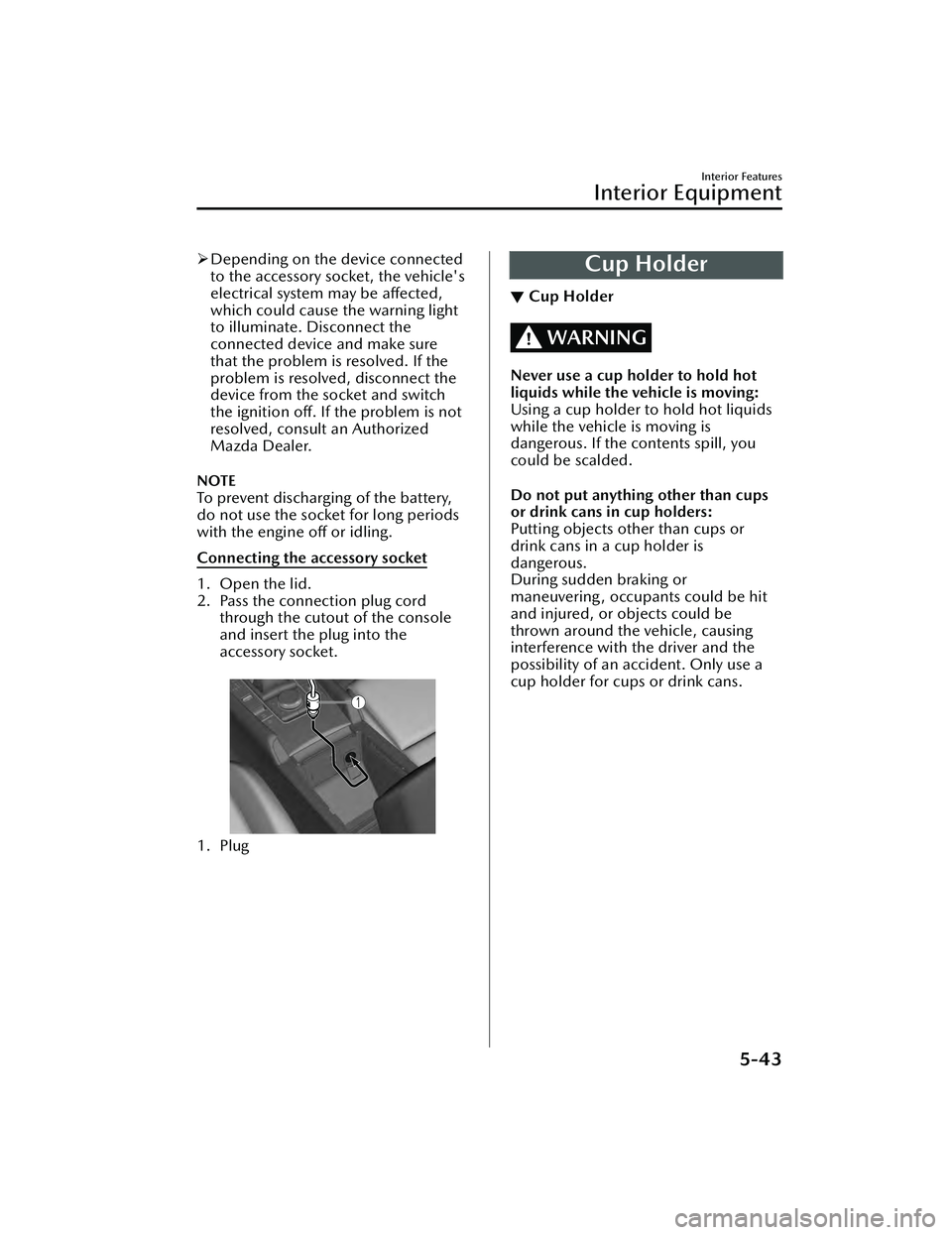

Depending on the device connected
to the accessory socket, the vehicle's
electrical system may be affected,
which could cause the warning light
to illuminate. Disconnect the
connected device and make sure
that the problem is resolved. If the
problem is resolved, disconnect the
device from the socket and switch
the ignition off. If the problem is not
resolved, consult an Authorized
Mazda Dealer.
NOTE
To prevent discharging of the battery,
do not use the socket for long periods
with the engine off or idling.
Connecting the accessory socket
1. Open the lid.
2. Pass the connection plug cord
through the cutout of the console
and insert the plug into the
accessory socket.

1. Plug
Cup Holder
▼ Cup Holder
WARNING
Never use a cup holder to hold hot
liquids while the ve
hicle is moving:
Using a cup holder to hold hot liquids
while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded.
Do not put anything other than cups
or drink cans in cup holders:
Putting objects other than cups or
drink cans in a cup holder is
dangerous.
During sudden braking or
maneuvering , occupants could be hit
and injured, or objects could be
thrown around the vehicle, causing
interference with the driver and the
possibility of an accident. Only use a
cup holder for cups or drink cans.
Interior Features
Interior Equipment
5-43
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

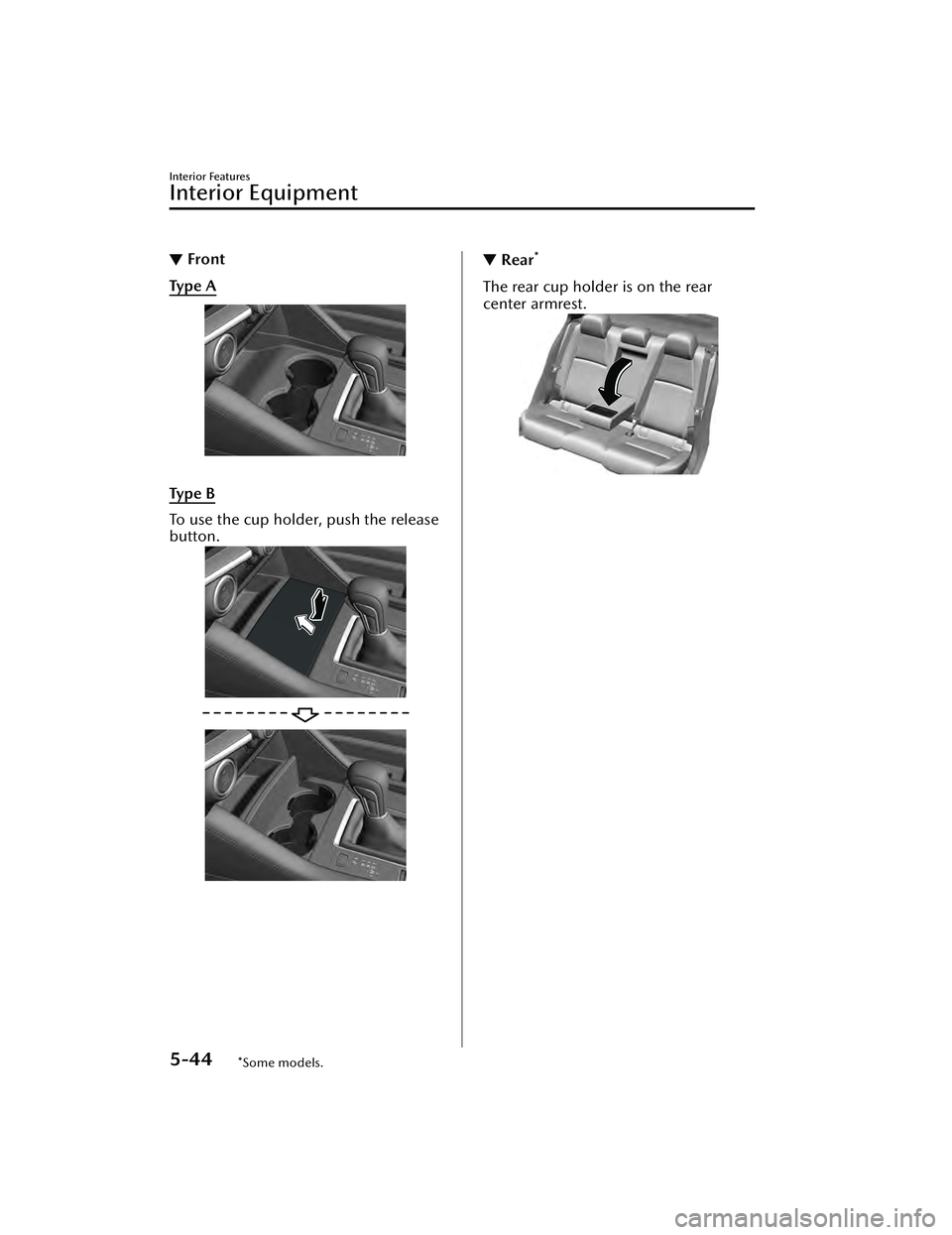

▼Front
Ty p e A

Ty p e B
To use the cup holder, push the release
button.
▼
Rear*
The rear cup holder is on the rear
center armrest.
Interior Features
Interior Equipment
5-44*Some models.
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

Bottle Holder
▼Bottle Holder
Bottle holders are on the inside of the
doors.
1. Bottle holder

CAUTION
Do not use the bottle holders for
containers without caps. The contents
may spill when opening/closing the
door or while driving the vehicle.
Assist Grips
▼Assist Grips
WARNING
Never hang heavy or sharp objects on
the assist grips and coat hooks:
Hanging heavy or sharp-ended objects
such as a coat hanger from the assist
grips or coat hooks is dangerous as
they can fly off and hit an occupant in
the cabin if a curtain air bag was to
deploy, which could result in serious
injury or death.
Do not use the assist grips when
getting in and out of the vehicle or
getting out of a seat:
An assist grip could break under a
heavy load resulting in injury.
Use the assist grips to support your
body while seated in the vehicle and
while the vehicle is moving.
Interior Features
Interior Equipment
5-45
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

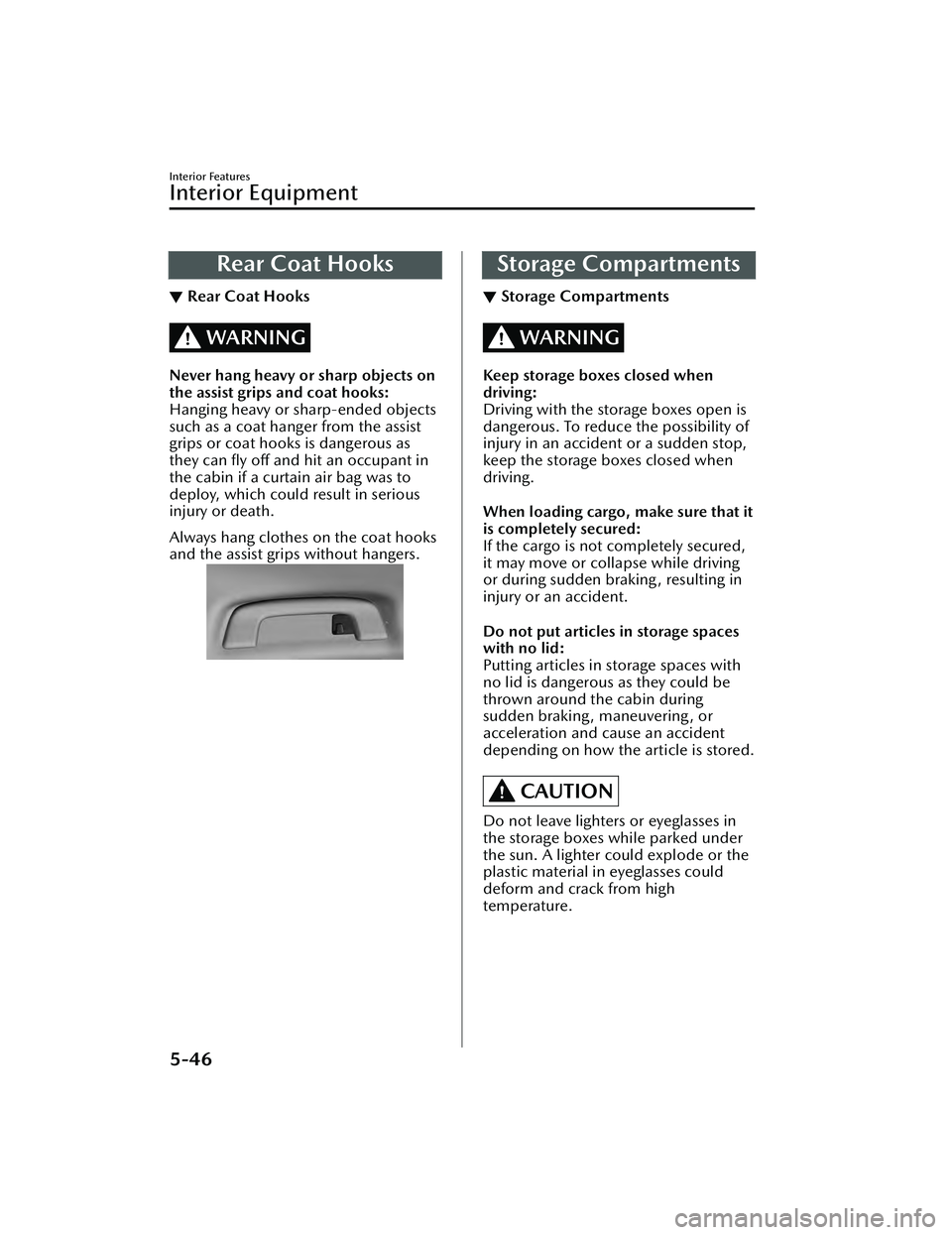

Rear Coat Hooks
▼Rear Coat Hooks
WARNING
Never hang heavy or sharp objects on
the assist grips and coat hooks:
Hanging heavy or sharp-ended objects
such as a coat hanger from the assist
grips or coat hooks is dangerous as
they can fly off and hit an occupant in
the cabin if a curtain air bag was to
deploy, which could result in serious
injury or death.
Always hang clothes
on the coat hooks
and the assist grips without hangers.
Storage Compartments
▼ Storage Compartments
WARNING
Keep storage boxes closed when
driving:
Driving with the storage boxes open is
dangerous. To reduce the possibility of
injury in an accident or a sudden stop,
keep the storage boxes closed when
driving.
When loading cargo, make sure that it
is completely secured:
If the cargo is not completely secured,
it may move or collapse while driving
or during sudden braking , resulting in
injury or an accident.
Do not put articles in storage spaces
with no lid:
Putting articles in storage spaces with
no lid is dangerous as they could be
thrown around the cabin during
sudden braking, maneuvering , or
acceleration and cause an accident
depending on how the article is stored.
CAUTION
Do not leave lighters or eyeglasses in
the storage boxes while parked under
the sun. A lighter could explode or the
plastic material in eyeglasses could
deform and crack from high
temperature.
Interior Features
Interior Equipment
5-46
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

▼Overhead Console*
This console box is designed to store
eyeglasses or other accessories.
Push and release to open.
▼Storage Pocket
To use, open the lid.
▼Glove Compartment
To open the glove compartment, pull
the knob toward you.
To close the glove compartment, firmly
press in the center of the glove
compartment lid.
▼
Center Console
Sliding
The console lid can be slid rearward in
2 steps.
Slide the console lid rearward while
pulling the knob.

Opening/closing
The console lid can be opened at the
1st or 2nd step of the slide positions.
Pull the console lid up while pulling
the knob.
CAUTION
Do not put your hands or fingers
around the moving part of the console
lid when operating it. Otherwise, your
hands or fingers could be injured.
Interior Features
Interior Equipment
*Some models.5-47
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

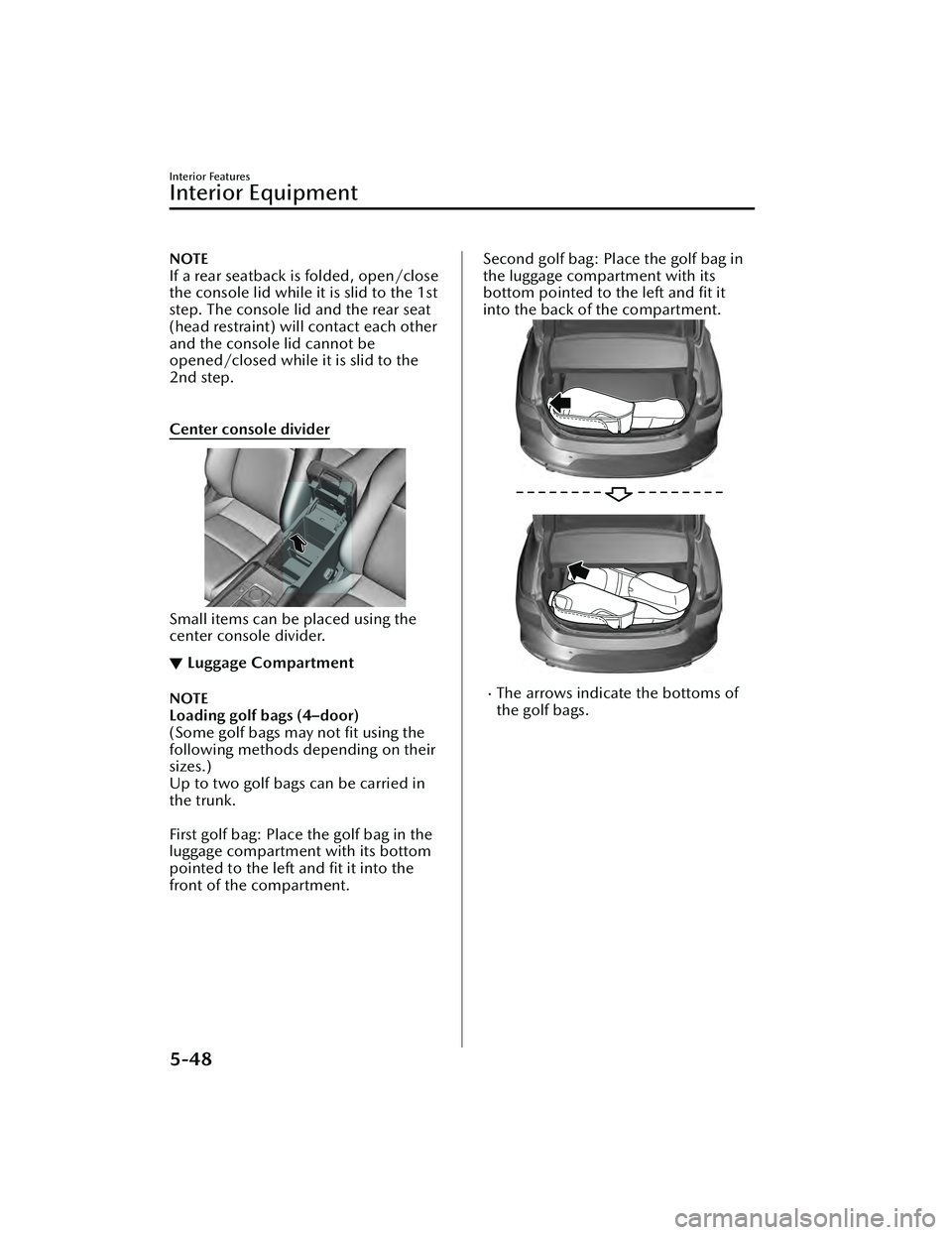

NOTE
If a rear seatback is folded, open/close
the console lid while it is slid to the 1st
step. The console lid and the rear seat
(head restraint) will contact each other
and the console lid cannot be
opened/closed while it is slid to the
2nd step.

Center console divider
Small items can be placed using the
center console divider.
▼Luggage Compartment
NOTE
Loading golf bags (4–door)
(Some golf bags may not
fit using the
following methods depending on their
sizes.)
Up to two golf bags can be carried in
the trunk.

First golf bag: Place the golf bag in the
luggage compartment with its bottom
pointed to the left and fit it into the
front of the compartment.
Second golf bag: Place the golf bag in
the luggage compartment with its
bottom pointed to the left and fit it
into the back of the compartment.
The arrows indicate the bottoms of
the golf bags.
Interior Features
Interior Equipment
5-48
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

6Maintenance and Care
How to keep your Mazda in top condition.
Essential Information................. 6-2 Introduction.......................... 6-2
Scheduled Maintenance............ 6-4 Scheduled Maintenance......... 6-4
Owner Maintenance............... 6-11 Owner Maintenance
Precautions......................... 6-11
Hood.................................. 6-12
Engine Compartment
Overview............................ 6-14
Engine Oil........................... 6-16
Engine Coolant.................... 6-19
Brake/Clutch Fluid............... 6-20
Washer Fluid....................... 6-21
Body Lubrication.................. 6-22
Wiper Blades....................... 6-23
Battery................................ 6-28
Key Battery Replacement...... 6-30
Tires.................................... 6-32
Light Bulbs...........................6-36
Fuses.................................. 6-39
Appearance Care.................... 6-47 Exterior Care....................... 6-47
Interior Care........................ 6-53
