2023 MAZDA MAZDA Owners Manual

You pull the door handle just after
touching the sensing area of the
touch sensor.
The system may operate if the outer
side door handle of a front door is
splashed with water by a car wash or
rain while the transmitter is in the
operation range.
If the system does not operate even
though you touch the sensing area of
the touch sensor correctly, release
the touch sensor once, and then
touch the sensing area of the touch
sensor again after waiting about 3
seconds.
Locking
When locking, touch the sensing area
of the door lock touch sensor with all
of the following conditions met.
The ignition is switched OFF.All the doors are closed.You are carrying the transmitter.
The following locations are locked by
touching the sensing area of the door
lock touch sensor.
All doorsFuel-filler lidLiftgate
When locking, the hazard warning
lights and sound operate one time.
Unlocking
When unlocking, touch the sensing
area of the door release touch sensor
with all of the following conditions
met.
The ignition is switched OFF.The driver’s door is locked.Three seconds or longer have passed
since the doors were locked.
You are carrying the transmitter.
(Unlocking from the driver's door)
The following locations are unlocked
by touching the sensing area of the
door release touch sensor of the
driver's door.
Driver’s doorFuel-filler lid
NOTE
The location to be unlocked can be
changed.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
When unlocking , the hazard warning
lights and sound operate two times.

(Unlocking from the front passenger’s
door)
The following locations are unlocked
by touching the sensing area of the
door release touch sensor of the front
passenger's door.
All doorsFuel-filler lidLiftgate
When unlocking , the hazard warning
lights and sound operate two times.
NOTE
Confirm that all the doors and
liftgate/trunk lid are securely locked.
For the liftgate/trunk lid, move it
without pressing the electric liftgate/
trunk lid opener to verify that the
liftgate/trunk lid has not been left
ajar.
Before Driving
Doors and Locks
3-14
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

A beep sound is heard for
confirmation when the doors,
fuel-filler lid, and liftgate are locked/
unlocked using the touch sensor. If
you prefer, the beep sound can be
turned off.
The volume of the beep sound can
also be changed. Refer to the
Settings section in the Mazda
Connect Owner's Manual.
(With theft-deterrent system)
The hazard warning lights flash when
the theft-deterrent system is armed
or turned off.
Refer to Theft-Deterrent System on
page 3-44.
The setting can be changed so that
the doors, fuel-filler lid, and liftgate
are locked automatically without
touching the sensing area of the
touch sensor.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
(Walk-away auto lock function)
A beep sound is heard when all
doors and the liftgate/trunk lid are
closed while the transmitter is being
carried. All the doors, fuel-filler lid,
and liftgate are locked automatically
when the transmitter is out of the
operational range. Also, the hazard
warning lights flash once. (Even if the
driver is in the operational range, all
the doors, fuel-filler lid, and liftgate
are locked automatically after about
30 seconds.) If you are out of the
operational range before the doors
and the liftgate/trunk lid are
completely closed or another
transmitter is left in the vehicle, the
walk-away auto lock function will
not work. Always make sure that all
doors and the liftgate/trunk lid are
closed and locked before leaving the
vehicle. The walk-away auto lock
function does not close the power
windows.
(Auto re-lock function)
After unlocking with the touch
sensor, all the doors , fuel-filler lid,
and liftgate will automatically lock if
any of the following operations are
not performed within about 60
seconds.
Opening a door or the liftgate/
trunk lid.
Switching the ignition to any
position other than off.
If your vehicle has a theft-deterrent
system, the hazard warning lights will flash for
confirmation.
The time required for the doors to
lock automatically can be changed.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
Before Driving
Doors and Locks
3-15
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

▼Locking, Unlocking with
Tra n s m i t te r
The following locations can be locked/
unlocked by operating the keyless
entry system transmitter. Refer to
Keyless Entry System (page 3-4).
All doorsFuel-filler
lidLiftgate
▼Locking, Unlocking with
Door-Lock Switch
Door-lock switch on driver’s and front
passenger's door
The following locations are locked/
unlocked by pressing the door-lock
switch.
All doorsFuel-filler lidLiftgate
Driver's door
1. Unlock
2. Lock
Front passenger's door
1. Unlock
2. Lock
NOTE
To prevent the transmitter from being
left in the vehicle, make sure that you
carry the transmitter before locking.
After locking by pressing the
door-lock switch and when the
liftgate/trunk lid is closed last with
the transmitter left in the vehicle,
only the liftgate/trunk lid is
unlocked.
Locking from the outside using the
door-lock switch
Doors can be locked from the outside
of the vehicle without using the
transmitter.
When locking from the outside using
the door-lock switch, press the lock
side of the door-lock switch with all of
the following conditions met and then
close all the doors.
The ignition is switched OFF.Any door is open.
Before Driving
Doors and Locks
3-16
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

NOTE
To prevent the transmitter from being
left in the vehicle, make sure that the
driver carries the transmitter when
locking the doors with any door
open.
After locking by pressing the
door-lock switch and when all the
doors are closed with the transmitter
left in the vehicle, all the doors,
liftgate, and fuel-filler lid are
unlocked.

Door-lock switch on liftgate (With the
advanced keyless function)
All doors, fuel-filler lid, and the liftgate
can be locked by pressing the
door-lock switch.

When locking using the door-lock
switch, press the door-lock switch with
all of the following conditions met and
then close the liftgate.
You are carrying the transmitter.The ignition is switched OFF.All the doors are closed.
(With theft-deterrent system)
When locking, a beep sound operates
1 time.
When the liftgate closes, the hazard
warning lights operate 1 time.

(Without theft-deterrent system)
When locking, the hazard warning
lights and a beep sound operate 1
time.
NOTE
To prevent the transmitter from being
left in the vehicle, make sure that you
carry the transmitter before locking.
After locking by pressing the
door-lock switch and when the
liftgate is closed with the transmitter
left in the vehicle, the liftgate is
unlocked.
▼ Auto Lock/Unlock Function
WARNING
Do not pull the inner handle on a
front door:
Pulling the inner handle on a front
door while the vehicle is moving is
dangerous. Passengers can fall out of
the vehicle if the door opens
accidentally, which could result in
death or serious injury.
When the vehicle speed exceeds 20
km/h (12 mph), all the doors,
fuel-filler lid, and liftgate lock
automatically.
When the ignition is switched off, all
the doors, fuel-filler lid, and liftgate
unlock automatically.
The auto lock/unlock function settings
can be changed.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
Before Driving
Doors and Locks
3-17
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

▼Locking, Unlocking with
Door-Lock Knob
Operation from inside
To lock any door from the inside, press
the door-lock knob.
To unlock, pull it outward.
This does not operate the other door
locks.

1. Unlocked: Red indicator
2. Lock
3. Unlock

Operation from outside
To lock any door using its door-lock
knob from the outside, press the
door-lock knob to the lock position
and close the door (holding the door
handle in the open position is not
required).
This does not operate the other door
locks.

NOTE
When locking the door this way:
Be careful not to leave the key inside
the vehicle. Make sure that you are
carrying the key before closing the
doors.
The doors cannot be locked using
the driver's door lock knob if any
door or liftgate is open when the
ignition is switched to ACC or ON.
Before Driving
Doors and Locks
3-18
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

All the doors, fuel-filler lid , and
liftgate are unlocked when the lock
knob on all the doors is pressed
down to the lock side and all the
doors are closed with the transmitter
left in the vehicle.▼Rear Door Child Safety Locks
Rear doors that have been locked
using the child safety lock switched to
the lock side cannot be opened from
inside the vehicle.
For child safety, switch the child safety
lock on both rear doors to the lock
side.
When opening a rear door with the
child safety lock switched to the lock
side, pull the outer door handle with
the lock knob inside the vehicle
switched to the unlock side.
1. Auxiliary key (page 3-2)
2. Lock
3. Unlock
Before Driving
Doors and Locks
3-19
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

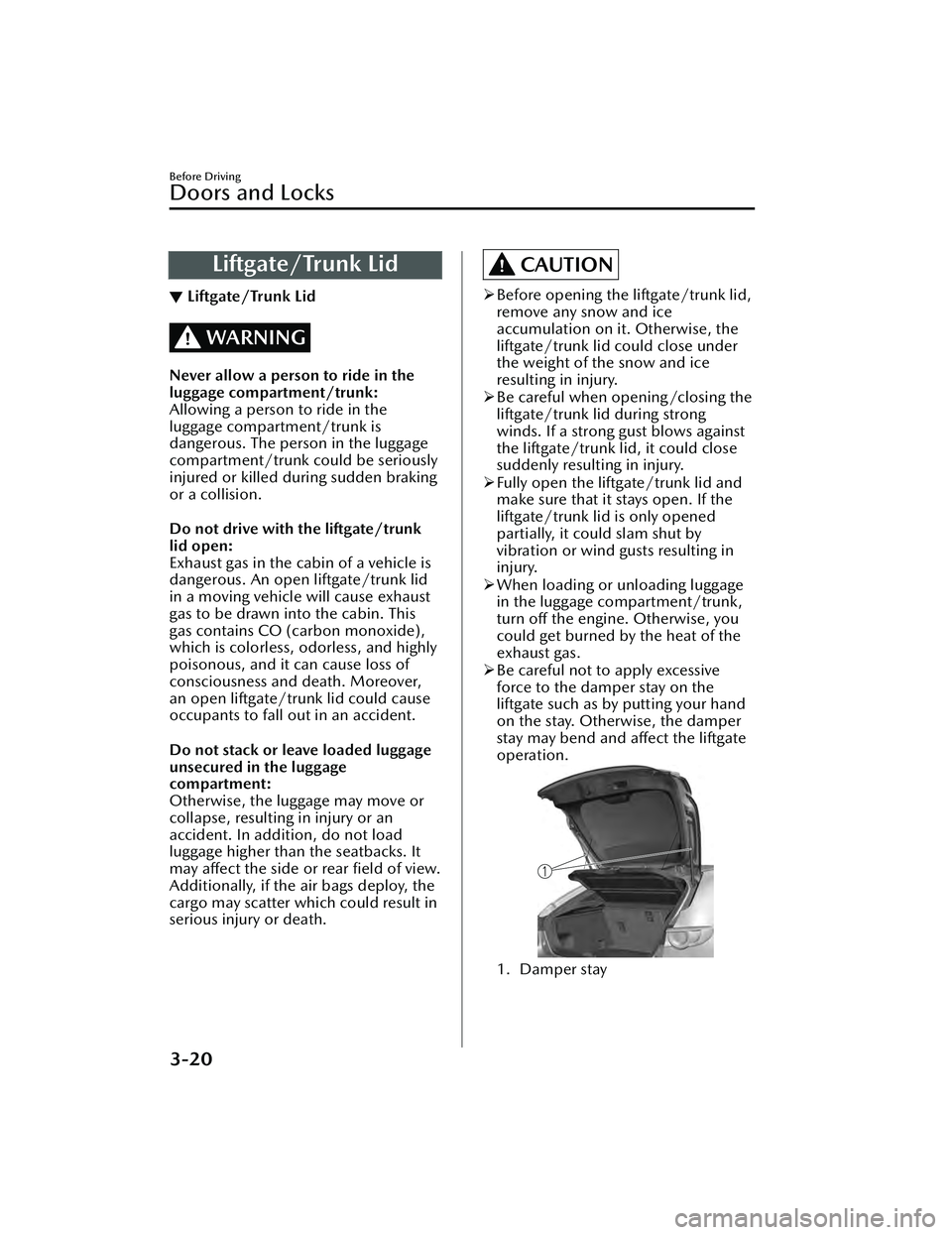

Liftgate/Trunk Lid
▼Liftgate/Trunk Lid
WARNING
Never allow a person to ride in the
luggage compartment/trunk:
Allowing a person to ride in the
luggage compartment/trunk is
dangerous. The person in the luggage
compartment/trunk could be seriously
injured or killed during sudden braking
or a collision.
Do not drive with the liftgate/trunk
lid open:
Exhaust gas in the cabin of a vehicle is
dangerous. An open liftgate/trunk lid
in a moving vehicle will cause exhaust
gas to be drawn into the cabin. This
gas contains CO (carbon monoxide),
which is colorless,
odorless, and highly
poisonous, and it can cause loss of
consciousness and death. Moreover,
an open liftgate/trunk lid could cause
occupants to fall out in an accident.
Do not stack or leave loaded luggage
unsecured in the luggage
compartment:
Otherwise, the luggage may move or
collapse, resulting in injury or an
accident. In addition, do not load
luggage higher than the seatbacks. It
may affect the side or rear
field of view.
Additionally, if the air bags deploy, the
cargo may scatter which could result in
serious injury or death.
CAUTION
 Before opening the liftgate/trunk lid,
remove any snow and ice
accumulation on it. Otherwise, the
liftgate/trunk lid could close under
the weight of the snow and ice
resulting in injury.
 Be careful when opening/closing the
liftgate/trunk lid during strong
winds. If a strong gust blows against
the liftgate/trunk lid, it could close
suddenly resulting in injury.
 Fully open the liftgate/trunk lid and
make sure that it stays open. If the
liftgate/trunk lid is only opened
partially, it could slam shut by
vibration or wind gusts resulting in
injury.
 When loading or unloading luggage
in the luggage compartment/trunk,
turn
off the engine. Otherwise, you
could get burned by the heat of the
exhaust gas.
 Be careful not to apply excessive
force to the damper stay on the
liftgate such as by putting your hand
on the stay. Otherwise, the damper
stay may bend and
affect the liftgate
operation.
1. Damper stay
Before Driving
Doors and Locks
3-20
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

Do not modify or replace the liftgate
damper stay. Consult an Authorized
Mazda Dealer if a liftgate damper
stay is deformed or damaged for
reasons such as a collision or if there
is some other problem.
▼ Opening and Closing the Liftgate/
Trunk Lid
Opening the liftgate (5–door)
Using the electric liftgate opener
Unlock the doors and liftgate, then
press the electric liftgate opener on the
liftgate and raise the liftgate when the
latch releases.
NOTE
(With the advanced keyless function)
A locked liftgate can also be opened
while the key is being carried.
When opening the liftgate with the
doors and the liftgate locked, it may
require a few seconds for the liftgate
latch to release after the electric
liftgate opener is pressed.
The liftgate can be closed when the
doors are locked with the key left in
the vehicle. However, to prevent
locking the key in the vehicle, the
liftgate can be opened by pressing
the electric liftgate opener. If the
liftgate cannot be opened despite
doing this procedure, first push the
liftgate completely closed, then press
the electric liftgate opener to fully
open the liftgate.
When the liftgate latch is released by
pressing the electric liftgate opener,
the liftgate raises slightly. If the
liftgate is not operated for a certain
period of time, the liftgate cannot be
raised.
To o p e n
Press the electric liftgate opener
again.
To c l o s e
To close the liftgate from its slightly
raised position, open it first by
pressing the electric liftgate opener,
then close it after waiting at least 1
second.
If the vehicle battery is dead or there
is a malfunction in the electrical
system and the liftgate cannot be
unlocked, the liftgate can be opened
by performing the emergency
procedure.
Refer to When Liftgate/Trunk Lid
Cannot be Opened on page 7-49.
Before Driving
Doors and Locks
3-21
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10
