Maintenance ItemNumber of times, maintenance was performed.
12345678
Bolts and nuts on chassis and body TT TT
Exhaust system and heat shields III I
Emergency flat tire repair kit (if equipped)
*5Inspect annually.
Cabin air filter Replace every 40,000 km or 24 months.
Function of all lights IIIIIIII
Chart symbols:
I: Inspect: Inspect and clean, repair, adjust,
fill up, or replace if necessary.
R: Replace
T: Tighten
Remarks:
*1 Reset the engine oil data whenever replacing the engine oil regardless of the message/wrench indicator light display.
*2Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than
FL-22
may cause serious damage to the engine and cooling system.
*3 According to state/provincial and federal regulati ons, failure to perform maintenance on these items
will not void your emissions warranties. However, Mazda recommends that all maintenance services
be performed at the recommended time or mileage/kilometer period to ensure long-term reliability.
*4 Inspect a spare tire if equipped.*5 Check the tire repair fluid expiration date every year when performing the periodic maintenance. Replace the tire repair fluid bottle with new one before the expiration date.
Mexico Residents (Severe Driving Scheduled Maintenance):
Number of months or kilometers , whichever comes first.
Months 3 6 9 1215182124
× 1000 km 5 10 15 20 25 30 35 40
Engine oil & filter
*1RRRRRRRR
Maintenance Interval (other than engine oil
& filter replacement)
*21st 2nd 3rd 4th
Chart symbols:
R: Replace
Remarks:
*1 Reset the engine oil data whenever replacing the engine oil regardless of the message/wrench indicator light display.
*2 Follow Maintenance Interval listed in Normal Driving Scheduled Maintenance.
Maintenance and Care
Scheduled Maintenance
6-10
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

Owner MaintenancePrecautions
▼Owner Maintenance Precautions
The owner or a qualified service
technician should make these vehicle
inspections at the indicated intervals to
ensure safe and dependable
operation.

Bring any problem to the attention of
an Authorized Mazda Dealer or
qualified service technician as soon as
possible.
When Refueling
Brake and clutch fluid level (page
6-20)
Engine coolant level (page 6-19)Engine oil level (page 6-18)Washer fluid level (page 6-21)
At Least Monthly
Tire inflation pressures (page 6-33)
At Least Twice a Year (For Example,
Every Spring and Fall)
You can do the following scheduled
maintenance items if you have some
mechanical ability and a few basic
tools and if you closely follow the
directions in this manual.
Engine coolant (page 6-19)Engine oil (page 6-18)

Improper or incomplete service may
result in problems. This section gives
instructions only for items that are easy
to perform.

As explained in the Introduction (page
6-2), several procedures can be done
only by a qualified service technician
with special tools.

Improper owner maintenance during
the warranty period may affect
warranty coverage. Refer to
Introduction (page 6-2) for owner's
responsibility in protecting your
investment. For details, read the
separate Mazda Warranty statement
provided with the vehicle. If you are
unsure about any servicing or
maintenance procedure, have it done
by an Authorized Mazda Dealer.

There are strict environmental laws
regarding the disposal of waste oil and
fluids. Please dispose of your waste
properly and with due regard to the
environment.

We recommend that you entrust the oil
and fluid changes of your vehicle to an
Authorized Mazda Dealer.
WARNING
Do not perform maintenance work if
you lack sufficient knowledge and
experience or the proper tools and
equipment to do the work. Have
maintenance work done by a
qualified technician:
Performing maintenance work on a
vehicle is dangerous if not done
properly. You can be seriously injured
while performing some maintenance
procedures.
Maintenance and Care
Owner Maintenance
6-11
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

If you must run the engine while
working under the hood, make
certain that you remove all jewelry
(especially rings, bracelets, watches,
and necklaces) and all neckties,
scarves, and similar loose clothing
before getting near the engine or
cooling fan which may turn on
unexpectedly:
Working under the hood with the
engine running is dangerous. It
becomes even more dangerous when
you wear jewelry, loose clothing or
have long hair or a long beard.
Either can become entangled in
moving parts and result in injury.
Pull over to a safe location, then
switch the ignition off and make sure
the fan is not running before
attempting to work near the cooling
fan:
Working near the cooling fan when it is
running is dangerous. The fan could
continue running indefinitely even if
the engine has stopped and the engine
compartment temperature is high. You
could be hit by the fan and seriously
injured.
Do not leave items in the engine
compartment:
After you have finished checking or
doing servicing in the engine
compartment, do not forget and leave
items such as tools or rags in the
engine compartment.
Tools or other items left in the engine
compartment could cause engine
damage or a fire leading to an
unexpected accident.
Hood
▼ Hood
WARNING
Always check that the hood is closed
and securely locked:
A hood that is not closed and securely
locked is dangerous as it could fly open
while the vehicle is moving and block
the driver's vision which could result in
a serious accident.
▼
Opening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood.

2. Insert your hand into the hoodopening, slide the latch lever in the
direction of the arrow as shown in
the illustration, and lift up the
hood.


Maintenance and Care
Owner Maintenance
6-12
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

3. Grasp the support rod in thepadded area and secure it in the
support rod hole indicated by the
arrow to hold the hood open.

1. Pad
2. Support rod
▼Closing the Hood
1. Check under the hood area to
make certain all filler caps are in
place and all loose items (e.g.
tools, oil containers, etc.) have
been removed.
2. Lift the hood, grasp the paddedarea on the support rod, and secure
the support rod in the clip. Verify
that the support rod is secured in
the clip before closing the hood.

1. Clip

3. Lower the hood slowly to a height of about 20 cm (7.9 in) above its
closed position and then let it drop.
CAUTION
When closing the hood, do not push it
excessively such as by applying your
weight. Otherwise, the hood could be
deformed.
Maintenance and Care
Owner Maintenance
6-13
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

Engine Compartment Overview
▼Engine Compartment Overview
SKYACTIV-G 2.0 and SKYACTIV-G 2.5
1. Engine coolant reservoir
2. Engine oil dipstick
3. Brake/Clutch fluid reservoir
4. Battery
5. Fuse block
6. Cooling system cap
7. Engine oil-filler cap
8. Windshield washer fluid reservoir
Maintenance and Care
Owner Maintenance
6-14
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

SKYACTIV-G 2.5T
1. Engine coolant reservoir
2. Engine oil dipstick
3. Brake fluid reservoir
4. Battery
5. Fuse block
6. Cooling system cap
7. Engine oil-filler cap
8. Windshield washer fluid reservoir
Maintenance and Care
Owner Maintenance
6-15
Mazda3_8LC2-EA-22G_Edition1_new2022-5-20 11:26:10

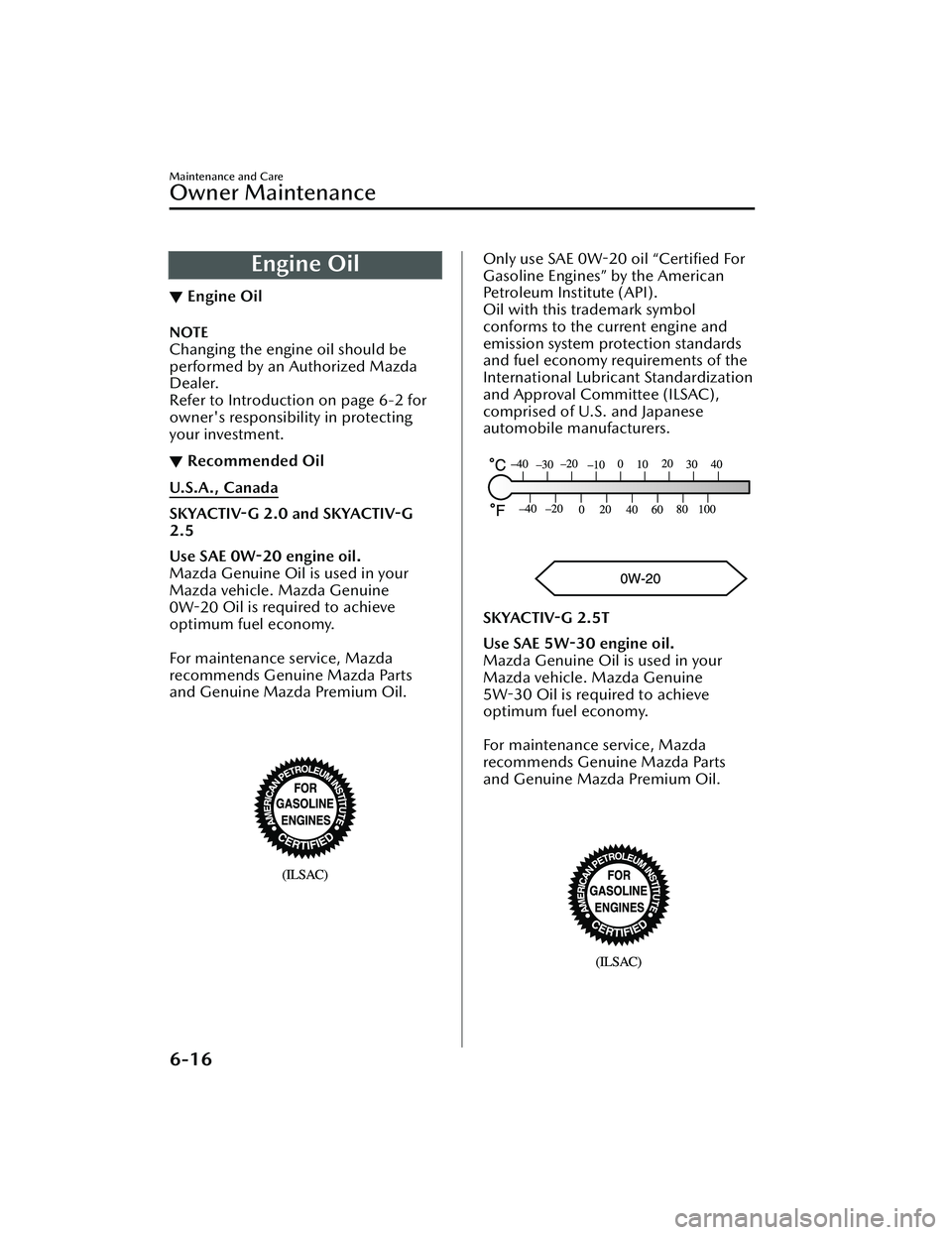

Engine Oil
▼Engine Oil
NOTE
Changing the engine oil should be
performed by an Authorized Mazda
Dealer.
Refer to Introduction on page 6-2 for
owner's responsibility in protecting
your investment.
▼Recommended Oil
U.S.A., Canada
SKYACTIV-G 2.0 and SKYACTIV-G
2.5
Use SAE 0W-20 engine oil.
Mazda Genuine Oil is used in your
Mazda vehicle. Mazda Genuine
0W-20
Oil is required to achieve
optimum fuel economy.

For maintenance service, Mazda
recommends Genuine Mazda Parts
and Genuine Mazda Premium Oil.

Only use SAE 0W-20 oil “Certified For
Gasoline Engines” by the American
Petroleum Institute (API).
Oil with this trademark symbol
conforms to the current engine and
emission system protection standards
and fuel economy requirements of the
International Lubricant Standardization
and Approval Committee (ILSAC),
comprised of U.S. and Japanese
automobile manufacturers.

SKYACTIV-G 2.5T
Use SAE 5W-30 engine oil.
Mazda Genuine Oil is used in your
Mazda vehicle. Mazda Genuine
5W-30 Oil is required to achieve
optimum fuel economy.

For maintenance service, Mazda
recommends Genuine Mazda Parts
and Genuine Mazda Premium Oil.

Maintenance and Care
Owner Maintenance
6-16
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

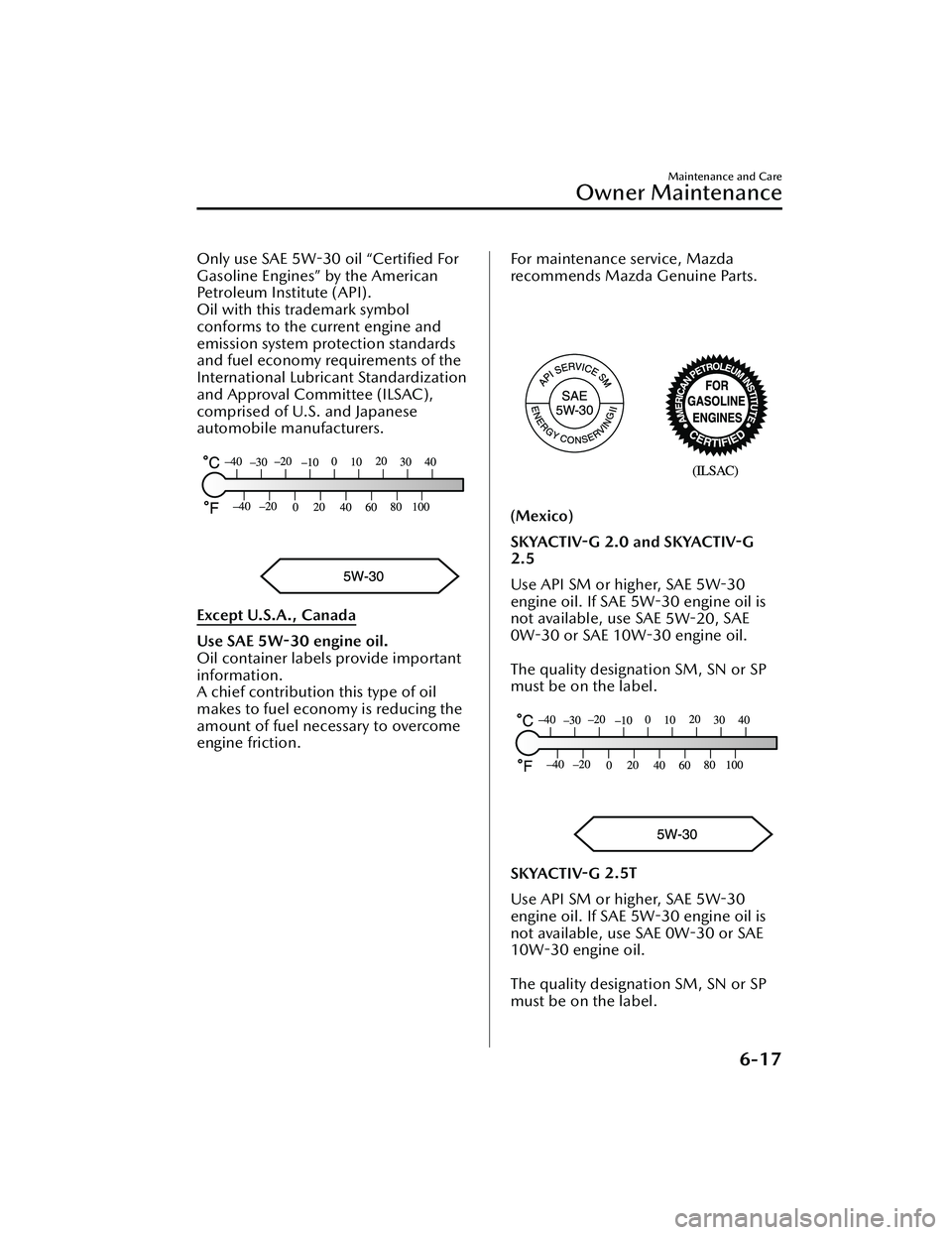

Only use SAE 5W-30 oil “Certified For
Gasoline Engines” by the American
Petroleum Institute (API).
Oil with this trademark symbol
conforms to the current engine and
emission system protection standards
and fuel economy requirements of the
International Lubricant Standardization
and Approval Committee (ILSAC),
comprised of U.S. and Japanese
automobile manufacturers.

Except U.S.A., Canada
Use SAE 5W-30 engine oil.
Oil container labels provide important
information.
A chief contribution this type of oil
makes to fuel economy is reducing the
amount of fuel necessary to overcome
engine friction.

For maintenance service, Mazda
recommends Mazda Genuine Parts.

(Mexico)
SKYACTIV-G 2.0 and SKYACTIV-G
2.5
Use API SM or higher, SAE 5W-30
engine oil. If SAE 5W-30 engine oil is
not available, use SAE 5W-20, SAE
0W-30 or SAE
10W-30 engine oil.

The quality designation SM, SN or SP
must be on the label.

SKYACTIV-G 2.5T
Use API SM or higher, SAE 5W-30
engine oil. If SAE 5W-30 engine oil is
not available, use SAE 0W-30 or SAE
10W-30 engine oil.

The quality designation SM, SN or SP
must be on the label.

Maintenance and Care
Owner Maintenance
6-17
