Remote power window operation is
activated under the following
conditions.
All the doors and liftgate are closed.The ignition is switched OFF.
NOTE
The power windows cannot be
opened from the outside of the vehicle
if the power window initialization has
not been completed.
Opening
The windows can be opened for
ventilating the cabin before getting in
the vehicle.
Press the unlock button on the key
quickly and briefly 3 times and then
immediately afterwards, press and
hold the unlock button to open the
windows.
To stop the windows from opening,
release the button. If the operation is
performed from the beginning again,
the windows open.
Moonroof*
▼Moonroof
The moonroof can be opened or
closed when operating the overhead
tilt/slide switch at the front seats.
WARNING
Do not let passengers stand up or
extend part of the body through the
open moonroof while the vehicle is
moving:
Extending the head, arms, or other
parts of the body through the
moonroof is dangerous. The head or
arms could hit something while the
vehicle is moving. This could cause
serious injury or death.
Never allow children to play with the
tilt/slide switch:
The tilt/slide switch would allow
children to operate the moonroof
unintentionally, which could result in
serious injury if a child's hands, head
or neck becomes caught by the
moonroof.
Make sure the opening is clear before
closing the moonroof:
A closing moonroof is dangerous. The
hands, head, or even neck of a person,
especially a child, could be caught in it
as it closes, causing serious injury or
even death.
Before Driving
Windows
3-38*Some models.
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

Make sure nothing blocks the
moonroof just before it reaches the
fully closed position:
Blocking the moonroof just before it
reaches the closed position is
dangerous.
In this case, the jam-safe function
cannot prevent the moonroof from
closing. If fingers are caught, serious
injuries could occur.
CAUTION
Do not sit on or put heavy items on
the area where the moonroof opens
and closes. Otherwise, the
moonroof could be damaged.
 Do not open or close the moonroof
forcefully during freezing
temperatures or snowfall. Otherwise,
the moonroof could be damaged.
 The sunshade does not tilt. To avoid
damaging the sunshade, do not push
it up.
 Do not close the sunshade while the
moonroof is opening. Trying to force
the sunshade closed could damage
it.
▼ Tilt/Slide Operation
The moonroof can be opened or
closed electrically only when the
ignition is switched ON.
Before leaving the vehicle or washing
your Mazda, make sure the
moonroof is completely closed so
that water does not get inside the
cabin area.
After washing your Mazda or after it
rains, wipe the water off the
moonroof before operating it to
avoid water penetration which could
cause rust and water damage to your
headliner.
1. Tilt/Slide switch
Tilt Operation
The rear of the moonroof can be tilted
open to provide more ventilation.

To fully tilt automatically, momentarily
press the tilt/slide switch.
To fully close automatically,
momentarily press the tilt/slide switch
in the forward direction.
To stop tilting partway, press the tilt/
slide switch.
Before Driving
Windows
3-39
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

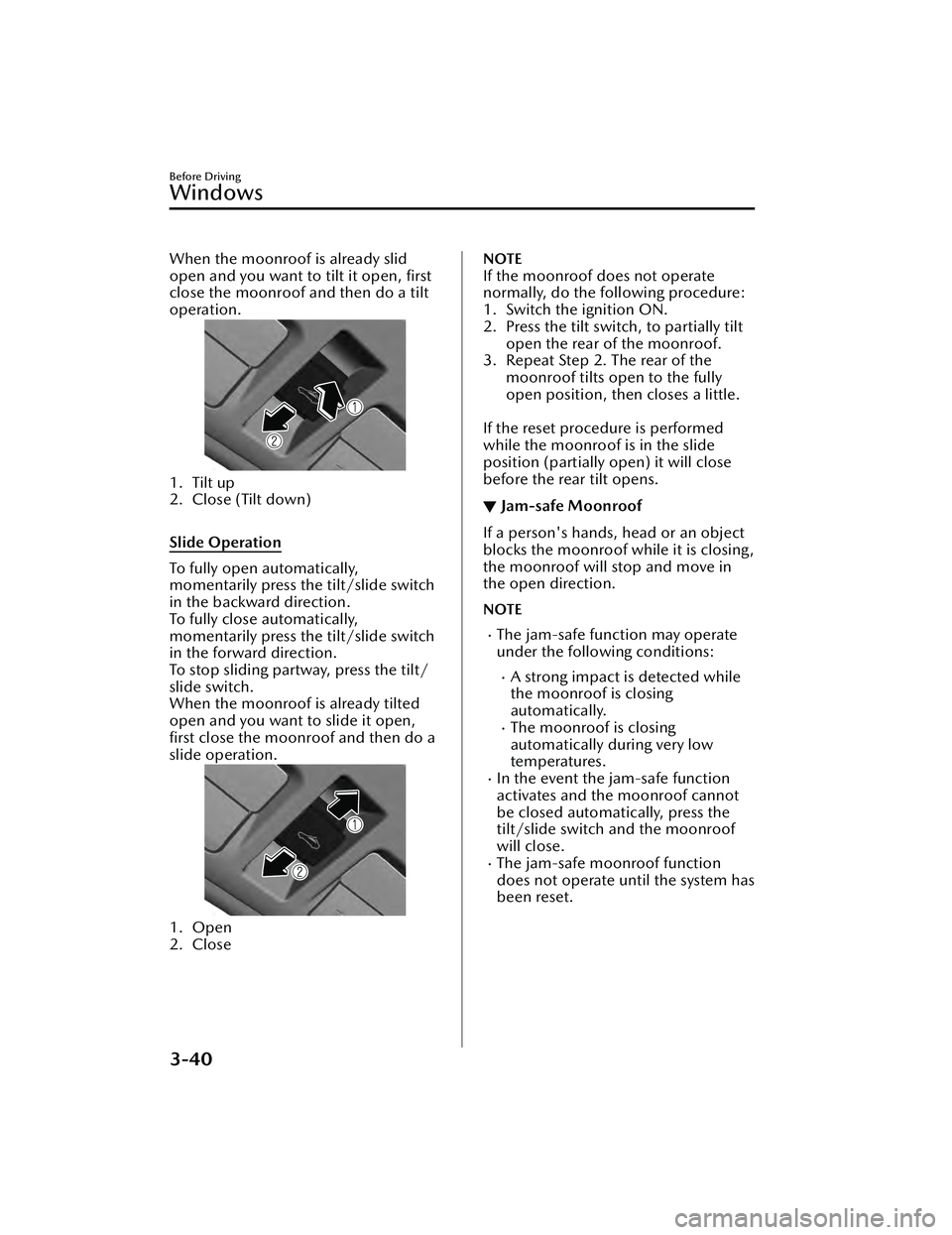

When the moonroof is already slid
open and you want to tilt it open, first
close the moonroof and then do a tilt
operation.
1. Tilt up
2. Close (Tilt down)

Slide Operation
To fully open automatically,
momentarily press the tilt/slide switch
in the backward direction.
To fully close automatically,
momentarily press the tilt/slide switch
in the forward direction.
To stop sliding partway, press the tilt/
slide switch.
When the moonroof is already tilted
open and you want to slide it open,
first close the moonroof and then do a
slide operation.
1. Open
2. Close
NOTE
If the moonroof does not operate
normally, do the following procedure:
1. Switch the ignition ON.
2. Press the tilt switch, to partially tiltopen the rear of the moonroof.
3. Repeat Step 2. The rear of the moonroof tilts open to the fully
open position, then closes a little.

If the reset procedure is performed
while the moonroof is in the slide
position (partially open) it will close
before the rear tilt opens.
▼ Jam-safe Moonroof
If a person's hands, head or an object
blocks the moonroof while it is closing,
the moonroof will stop and move in
the open direction.
NOTE
The jam-safe function may operate
under the following conditions:
A strong impact is detected while
the moonroof is closing
automatically.
The moonroof is closing
automatically during very low
temperatures.
In the event the jam-safe function
activates and the moonroof cannot
be closed automatically, press the
tilt/slide switch and the moonroof
will close.
The jam-safe moonroof function
does not operate until the system has
been reset.
Before Driving
Windows
3-40
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

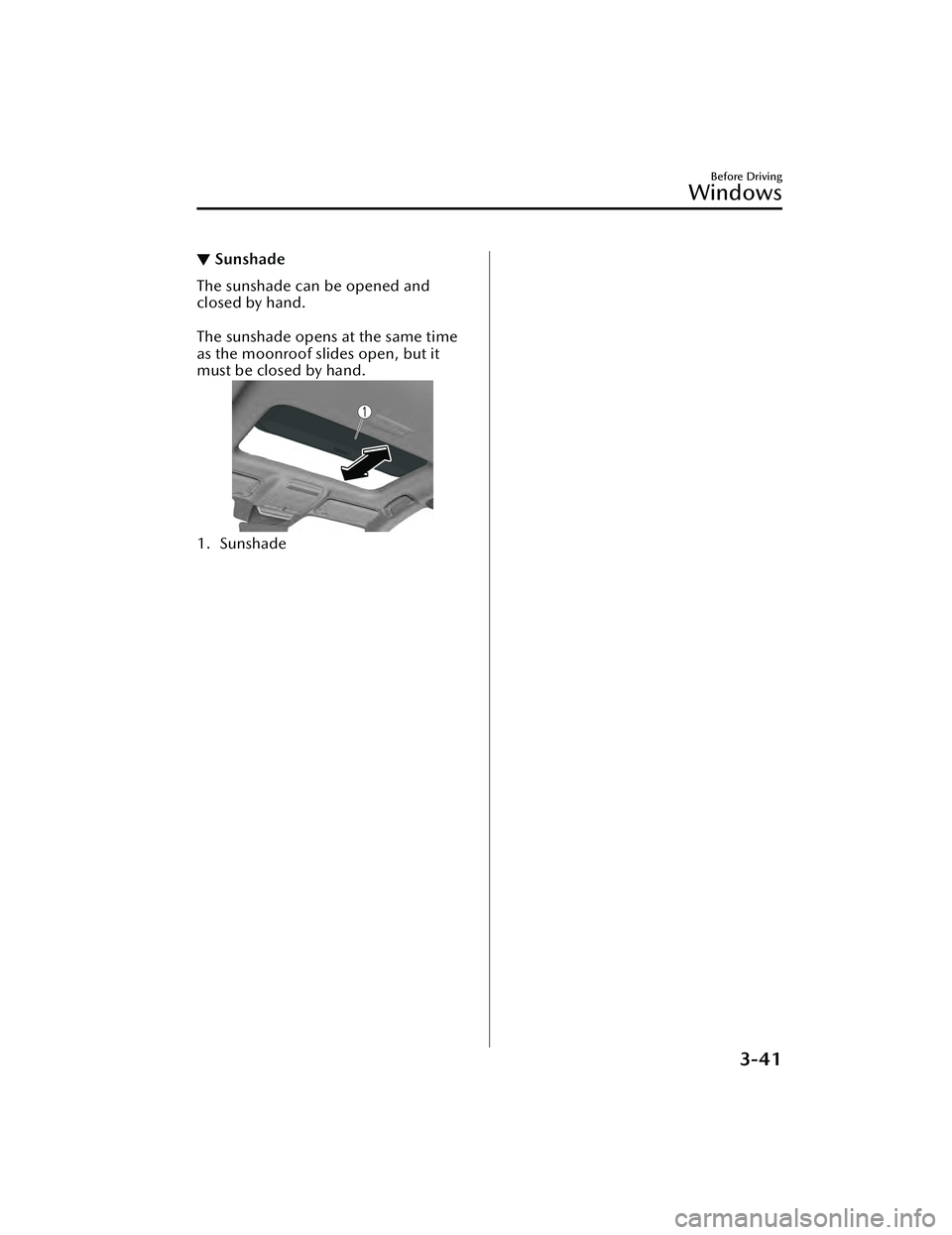

▼Sunshade
The sunshade can be opened and
closed by hand.

The sunshade opens at the same time
as the moonroof slides open, but it
must be closed by hand.
1. Sunshade
Before Driving
Windows
3-41
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

Modification and
Add-On Equipment
▼ Modification
and Add-On
Equipment
Mazda cannot guarantee the
immobilizer and the theft-deterrent
system's operation if the system has
been modified or if any add-on
equipment has been installed.
CAUTION
To avoid damage to the vehicle, do not
modify the system or install any add-on
equipment to the immobilizer and the
theft-deterrent systems or the vehicle.
Immobilizer System
▼ Immobilizer System
The immobilizer system allows the
engine to start only with a key the
system recognizes.

If someone attempts to start the
engine with an unrecognized key, the
engine will not start, thereby helping to
prevent vehicle theft.
If you have a problem with the
immobilizer system or the key, consult
an Authorized Mazda Dealer.
CAUTION

Radio equipment like this is
governed by laws in the United
States.
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to operate
the equipment.
 To avoid damage to the key, do not:
 Drop the key.
 Get the key wet.
 Expose the key to any kind of
magnetic field.
 Expose the key to high
temperatures on places such as the
dashboard, under direct sunlight.
 If the engine does not start with the
correct key, and the security indicator
light keeps illuminating or flashing ,
the system may have a malfunction.
Consult an Authorized Mazda
Dealer.
Before Driving
Security System
3-42
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

NOTE
The keys carry a unique electronic
code. For this reason, and to assure
your safety, obtaining a replacement
key requires security validation, this
will add some delays in supplying a
replacement key. They are only
available through an Authorized
Mazda Dealer.
Always keep a spare key in case one
is lost. If a key is lost, consult an
Authorized Mazda Dealer as soon as
possible.
If you lose a key, an Authorized
Mazda Dealer will reset the
electronic codes of your remaining
keys and immobilizer system. Bring
all the remaining keys to an
Authorized Mazda Dealer to reset.
Starting the vehicle with a key that
has not been reset is not possible.
▼Operation
NOTE
The engine may not start and security
indicator light may illuminate or flash
if the key is placed in an area where
it is difficult for the system to detect
the signal, such as on the dashboard
or in the glove compartment. Move
the key to a location within the signal
range, switch the ignition
off, and
then restart the engine.
Signals from a TV or radio station, or
from a transceiver or mobile
telephone could interfere with your
immobilizer system. If you are using
the proper key and the engine fails to
start, check the security indicator
light.
Arming
The system is armed when the ignition
is switched from ON to off.
The security indicator light in the
instrument cluster flashes every 2
seconds until the system is disarmed.

Disarming
The system is disarmed when the
ignition is switched ON with the
correct programmed key. The security
indicator light illu minates for about 3
seconds and then turns off.
If the engine does not start with the
correct key, and the security indicator
light remains illuminated or flashing,
try the following:
Make sure the key is within the
operational range for signal
transmission. Switch the ignition off,
and then restart the engine. If the
engine does not start after 3 or more
tries, contact an Authorized Mazda
Dealer.
Before Driving
Security System
3-43
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

Theft-Deterrent System*
▼Theft-Deterrent System
If the theft-deterrent system detects an
inappropriate entry into the vehicle,
which could result in the vehicle or its
contents being stolen, the alarm alerts
the surrounding area of an abnormality
by sounding the horn and flashing the
hazard warning lights.

The system will not function unless it's
properly armed. So when you leave the
vehicle, follow the arming procedure
correctly.
▼Operation
System triggering conditions
The horn sounds intermittently and the
hazard warning lights flash for about
30 seconds when the system is
triggered by any one of the following:
Unlocking a door with the auxiliary
key, door lock switch, or an inside
door-lock knob.
Forcing open a door, the hood or the
liftgate/trunk lid.
Opening the hood by operating the
hood release handle.
Switching the ignition ON without
using the push button start.
If the system is triggered again, the
lights and horn will activate until the
driver's door or the liftgate/trunk lid is
unlocked with the transmitter.
(With the advanced keyless function)
The lights and horn can also be
deactivated by touching the sensing
area of the door release touch sensor.
NOTE
If the battery goes dead while the
theft-deterrent system is armed, the
horn will activate and the hazard
warning lights will flash when the
battery is charged or replaced.
▼ How to Arm the System
1. Close the windows and the
moonroof* securely.
2. Switch the ignition OFF.
3. Make sure the hood, the doors, and the liftgate/trunk lid are
closed.
4. Press the lock button on the transmitter.
The hazard warning lights will flash
once.
The following method will also arm
the theft-deterrent system:
Press the door-lock switch “
”
while any door is open and then
close all of the doors.
(With the advanced keyless
function)
Touch the sensing area of the door
lock touch sensor.

The security indicator light in the
instrument cluster flashes twice per
second for 20 seconds.
5. After 20 seconds, the system is fully armed.
NOTE
The theft-deterrent system can also
be armed by activating the auto
relock function with all the doors,
the liftgate/trunk lid and the hood
closed.
Refer to Transmitter on page 3-5.
Before Driving
Security System
3-44*Some models.
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

The system will disarm if one of the
following operations takes place
within 20 seconds after pressing the
lock button:
Unlocking any door.Opening any door.Opening the hood.Switching the ignition ON.
To rearm the system, do the arming
procedure again.
When the doors are locked by
pressing the lock button on the
transmitter while the theft-deterrent
system is armed, the hazard warning
lights will flash once to indicate that
the system is armed.
▼ To Tu r n
Off an Armed System
An armed system can be turned off
using any one of the following
methods:
Pressing the unlock button on the
transmitter.
Starting the engine with the push
button start.
(With the advanced keyless
function)
Touching the sensing area of the
door release touch sensor.
The hazard warning lights will flash
twice.
NOTE
When the doors are unlocked by
pressing the unlock button on the
transmitter while the theft-deterrent
system is turned off, the hazard
warning lights will flash twice to
indicate that the system is turned off.
▼ To S t o p t h e A l a r m
A triggered alarm can be turned off
using any one of the following
methods:
Pressing the unlock button or the
trunk button (4–door) on the
transmitter.
Starting the engine with the push
button start.
(With the advanced keyless
function)
Touching the sensing area of the
door release touch sensor.
Pressing the electric liftgate/trunk
lid opener while the key is being
carried.
The hazard warning lights will flash
twice.
Before Driving
Security System
3-45
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10
