▼Setting the System
The MRCC with Stop & Go function syst
em operates when all of the following
conditions are met.
Vehicle speed is 0 km/h (0 mph) to 145 km/h (90 mph)The MRCC with Stop & Go function is turned on.The brake pedal is not depressed.The parking brake is released (Electric Parking Brake (EPB) indicator light is turned
off).
There is no problem with the DSC.All the doors are closed.The driver's seat belt is fastened.The selector lever is in the drive (D) position or manual (M) position (manual
mode).
NOTE
In the following cases, the MRCC with Stop & Go function system is canceled
when the vehicle is traveling at 30 km/h (20 mph) or less and “Mazda Radar
Cruise Control Disabled Under 30 km/h” is displayed in the multi-information
display.
The Forward Sensing Camera (FSC) cannot detect target objects (There is
problem with the Forward Sensing Came ra (FSC) or windshield is dirty).
There is a problem with the stop hold control function.There is a problem with the Electric Parking Brake (EPB).It may not be possible to set the MRCC wi th Stop & Go function system directly
after starting the engine, while the DSC operation is being checked.
Turning on the system
1. CANCEL switch
2. RES switch
3. MRCC switch

When Driving
i-ACTIVSENSE
4-144
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

When the MRCC switch is pressed once, the MRCC with Stop & Go function system
turns on, and the MRCC with Stop & Go function standby indication (white) turns
on and the vehicle speed and the distance between the vehicles while in headway
control can be set.
In addition, the MRCC with Stop & Go function system display indication is
displayed on the multi-information display and the active driving display at the same
time.
NOTE
If the ignition is switched off while the MRCC with Stop & Go function system is
operating, the system will be operable when the ignition is switched ON the next
time.
How to set the speed
Adjust the vehicle speed to the desired setting using the accelerator pedal and press
the RES switch up (SET+) or down (SET-) to start headway control.
The set speed is indicated on the display. At the same time, the MRCC standby
indication (white) changes to the MRCC set indication (green).
Tra ve l s t a t u sIndication on multi-information
display Indication on active driving dis-
play (vehicles with active driving
display)
During travel at constant speed
During travel under headway
control
When Driving
i-ACTIVSENSE
4-145
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

NOTE
If a vehicle ahead is detected while traveling at a constant speed, the
vehicle-ahead indication is displayed and headway control is performed.
Additionally, when a vehicle ahead is no longer detected, the vehicle-ahead
indication turns off and the system switches back to travel at constant speed.
The lowest possible speed which can be set on the MRCC with Stop & Go
function system is 30 km/h (19 mph).
Headway control is not possible if the vehicle ahead is driving faster than your
vehicle's set speed. Adjust the system to the desired vehicle speed using the
accelerator pedal.
How to set the distance-between-vehicles during headway control
The distance-between-vehicles can be set to 4 levels; Long, medium, short, and
extremely short distance.
The distance-between-vehicles is set to a shorter distance by pressing the CANCEL
switch down. The distance-between-vehicles is set to a longer distance by pressing
the CANCEL switch up.
Distance-between-vehicles guideline
(at 80 km/h (50 mph) vehicle speed) Indication on multi-information
display Indication on active driving dis-
play (vehicles with active driving
display)
*1
Long (about 50 m (164 ft))
Medium (about 40 m (131 ft))
Short (about 30 m (98 ft))
When Driving
i-ACTIVSENSE
4-146
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

Distance-between-vehiclesguideline
(at 80 km/h (50 mph) vehicle speed) Indication on multi-information
display Indication on active driving dis-
play (vehicles with active driving
display)
*1
Extremely short (about 25 m (82
ft))
*1 Displays a pop-up image in the active driving display only when the driver operates the switch.
NOTE
The distance-between-vehicles differs depending on the vehicle speed, and the
slower the vehicle speed, the shorter the distance.
When the ignition is switched to ACC or OFF and then the engine is started again,
the system automatically sets the distance-between-vehicles to the previous
setting.
Changing the Set Vehicle Speed
(To accelerate/decelerate using the RES switch)
When the RES switch is pressed up (SET+), the vehicle accelerates and when the RES
switch is pressed down (SET-), it decelerates.
Press and release immediately: 1 km/h (1 mph)Press and hold: 10 km/h (5 mph)
(To increase speed using accelerator pedal)
Depress the accelerator pedal and press the RES switch up (SET+) or down (SET-) at
the desired speed. If the switch is not op erated, the system returns to the set speed
after you release your foot from the accelerator pedal.
NOTE
The warnings and brake control do not operate while the accelerator pedal is
depressed.
The setting speed can be changed by operating the RES switch up (SET+) or down
(SET-) during stop hold control.
When Driving
i-ACTIVSENSE
4-147
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

Canceling the system
When the following operations are performed, the MRCC with Stop & Go function
system is canceled, and the MRCC with Stop & Go function set indication (green)
switches to the MRCC with Stop & Go function standby indication (white) at the
same time.
The CANCEL switch is pressed.The brake pedal is depressed.The selector lever is in the P (Park), N (Neutral), or R (Reverse) position.

Under the following conditions, the MR CC with Stop & Go function cancel
indication is displayed in the multi-information display and a single beep sound is
heard.
The DSC has operated.The Smart Brake Support (SBS) has operated.When traveling on a downslope for a long period of time.There is a problem with the system.The parking brake is automatically applied during stop hold control.The front radar sensor cannot detect target objects (during rain, fog, snow or other
inclement weather conditions, or when the radiator grille is dirty).
The parking brake is applied.Any of the doors is opened.The driver's seat belt is unfastened.The operation frequency of the braking by the MRCC with Stop & Go function
control is high.
Resuming control
If the MRCC with Stop & Go function syst em is canceled, you can resume control at
the previously set speed by pressing the RES switch and after all of the operation
conditions have been met.
NOTE
If the set speed is not indicated in the di splay, the control does not resume even if
the RES switch is pressed.
Turning off the system
When the MRCC switch is pressed while the MRCC is operating, the MRCC turns
off.
When Driving
i-ACTIVSENSE
4-148
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

▼Stop Hold Control
While in headway control using the
MRCC with Stop & Go function
system, your vehicle will stop when a
vehicle ahead stops. When the vehicle
is stopped and the stop hold control
operates, the MRCC with Stop & Go
function indicator light turns on.
NOTE
If the MRCC with Stop & Go
function system is canceled during
stop hold control, the vehicle is held
in its stopped position.
The parking brake is automatically
applied and the vehicle is held in its
stopped position when 10 minutes
have elapsed since the stop hold
control operated. At this time, the
MRCC with Stop & Go function
system is canceled.
The brake lights turn on during stop
hold control.
To resume driving
After the vehicle ahead starts moving
while your vehicle is stopped under
stop hold control, press the RES switch
or depress the accelerator pedal to
cancel the stop hold control and
resume driving.
NOTE
When you resume driving by pressing
the RES switch, your vehicle does not
start moving until the distance
between your vehicle and the vehicle
ahead lengthens to the specified
distance or farther.
If the MRCC with Stop & Go
function is temporarily canceled
during stop hold control, you cannot
resume driving by pressing the RES
switch when there are no vehicles in
front of your vehicle. Depress the
accelerator pedal and resume driving
the vehicle.
If the vehicle ahead starts moving
within 3 seconds after your vehicle is
stopped by the stop hold control,
headway control will resume even if
you do not resume driving your
vehicle, such as by depressing the
accelerator pedal.
Resume driving information
If you do not resume driving within a
few seconds after the vehicle ahead
starts moving, the multi-information
display vehicle-ahead indication
flashes to urge the driver to resume
driving. If you do not resume driving
after the indicator light flashes, a
sound is activated to urge you to
resume driving.
When Driving
i-ACTIVSENSE
4-149
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

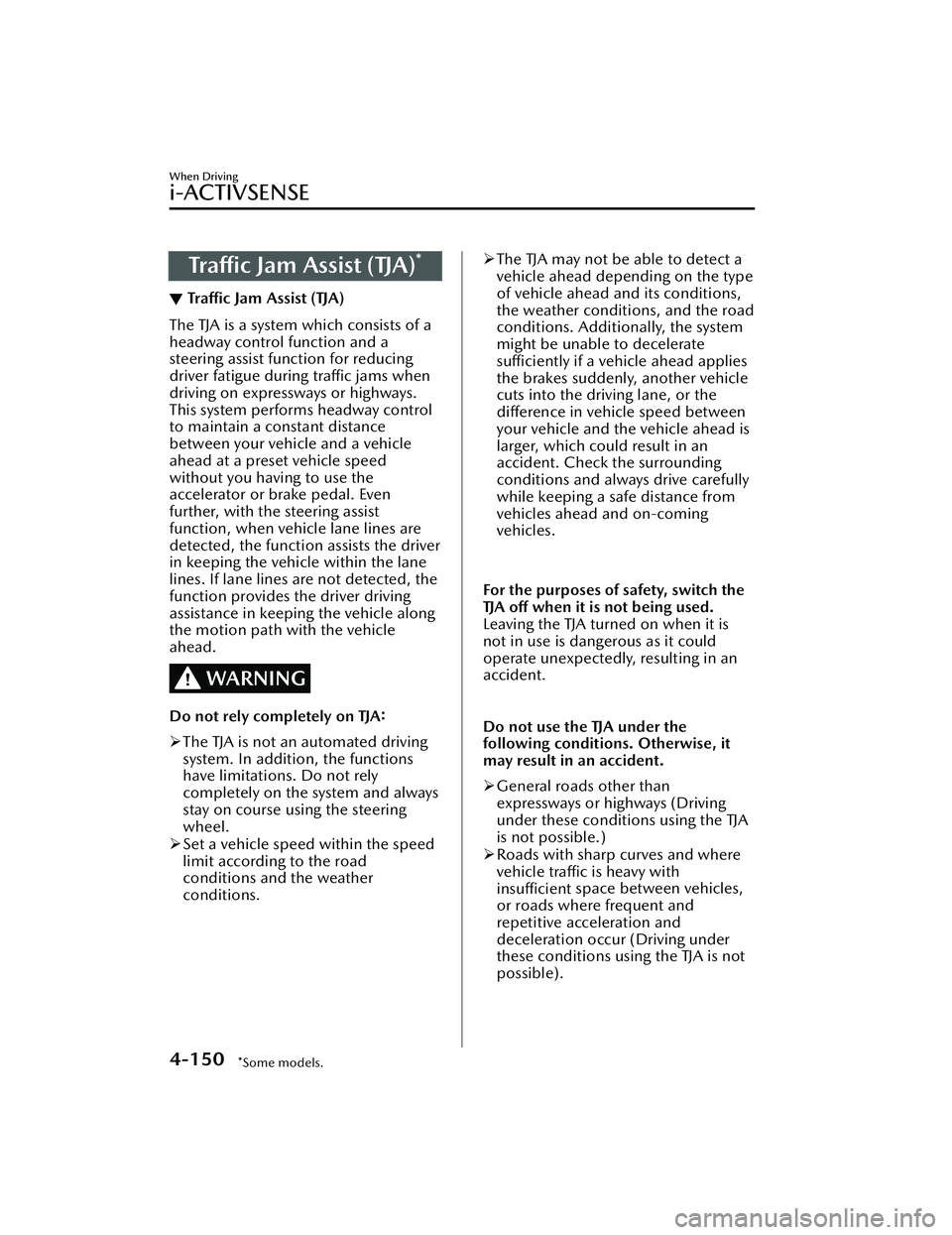

Traffic Jam Assist (TJA)*
▼Tra ffi c
Jam Assist (TJA)
The TJA is a system which consists of a
headway control function and a
steering assist function for reducing
driver fatigue during traffic jams when
driving on expressways or highways.
This system performs headway control
to maintain a constant distance
between your vehicle and a vehicle
ahead at a preset vehicle speed
without you having to use the
accelerator or brake pedal. Even
further, with the steering assist
function, when vehicle lane lines are
detected, the function assists the driver
in keeping the vehicle within the lane
lines. If lane lines are not detected, the
function provides the driver driving
assistance in keeping the vehicle along
the motion path with the vehicle
ahead.
WARNING
Do not rely completely on
TJ A :
 The TJA is not an automated driving
system. In addition, the functions
have limitations. Do not rely
completely on the system and always
stay on course using the steering
wheel.
 Set a vehicle speed within the speed
limit according to the road
conditions and the weather
conditions.
The TJA may not be able to detect a
vehicle ahead depending on the type
of vehicle ahead and its conditions,
the weather conditions, and the road
conditions. Additionally, the system
might be unable to decelerate
sufficiently if a vehicle ahead applies
the brakes suddenly, another vehicle
cuts into the driving lane, or the difference in vehicle speed between
your vehicle and the vehicle ahead is
larger, which could result in an
accident. Check the surrounding
conditions and always drive carefully
while keeping a safe distance from
vehicles ahead and on-coming
vehicles.

For the purposes of safety, switch the
TJA off when it is not being used.
Leaving the TJA turned on when it is
not in use is dangerous as it could
operate unexpectedly, resulting in an
accident.

Do not use the TJA under the
following conditions. Otherwise, it
may result in an accident.
 General roads other than
expressways or highways (Driving
under these conditions using the TJA
is not possible.)
 Roads with sharp curves and where
vehicle traffic is heavy with
insufficient space between vehicles,
or roads where frequent and
repetitive acceleration and
deceleration occur (Driving under
these conditions using the TJA is not
possible).
When Driving
i-ACTIVSENSE
4-150*Some models.
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

When entering and exiting
interchanges, service areas, and
parking areas of expressways (If you
exit an expressway while headway
control is in use, the vehicle ahead
will no longer be tracked and your
vehicle may accelerate to the set
speed).
 Slippery roads such as icy or
snow-covered roads (Tires could spin
causing you to lose vehicle control,
or the stop hold control may not
operate.)
 Long, descending slopes (to
maintain distance between vehicles,
the system automatically and
continuously applies the brakes
which could result in the loss of
brake power.)
 Two-wheeled vehicles such as
motorcycles or bicycles are ahead.
 (Automatic transmission vehicle)
Slopes with a steep gradient (The
vehicle ahead may not be detected
correctly, your vehicle may slip while
stopped by the stop hold control, or
it may accelerate suddenly after it
starts moving.)
 Driving under bad weather
conditions (rain, fog, and snow).
 Tires of a different specified size are
used, such as a temporary spare tire.
 Tires with
insufficient tread are used.
 The tire pressures are not adjusted to
the specified pressure.
 The vehicle is being used to tow a
camper or boat trailer.
 Tire chains are used.
 The vehicle is driven on roads with
lane lines other than white (yellow)
lines, such as an expressway.

Do not get out of the vehicle while
the stop hold control is operating.
(Automatic transmission vehicle)Getting out of the vehicle while the
stop hold control is operating is
dangerous as the vehicle may move
unexpectedly and result in an accident.
Before getting out of the vehicle,
switch the TJA off, apply the parking
brake, and then shift the selector lever
to the P position.

CAUTION
Turn the system off when the vehicle is
running on a chassis roller.
Heed the following cautions so that
the TJA can operate normally.
 Turn the system off when the vehicle
is running on a chassis roller.
 Do not modify the vehicle's
suspensions.
 Always use wheels of the specified
size for the front and rear wheels.
Consult an Authorized Mazda Dealer
for tire replacement.

NOTE
The headway control does not detect
the following as physical objects.
Vehicles approaching in the
opposite direction
Pe de st r ia nsStationary objects (stopped
vehicles, obstructions)
If a vehicle ahead is traveling at an
extremely low speed, the system may
not detect it correctly.
If there is a structure on the road or
an object (such as a monorail) at a
low height off the ground in front of
the vehicle, the system may operate.
Therefore, do not use the TJA.
Do not use the TJA under conditions
in which close proximity warnings
are frequently activated.
When Driving
i-ACTIVSENSE
4-151
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10
