2023 MAZDA MAZDA Owners Manual

Windshield Wipers andWasher
▼Windshield Wipers and Washer
The ignition must be switched ON to
use the wipers.
WARNING
Use only windshield washer fluid or
plain water in the reservoir:
Using radiator antifreeze as washer
fluid is dangerous. If sprayed on the
windshield, it will
dirty the windshield,
affect your visibility, and could result in
an accident.
Only use windshield washer fluid
mixed with anti-freeze protection in
freezing weather conditions:
Using windshield washer fluid without
anti-freeze protection in freezing
weather conditions is dangerous as it
could freeze on the windshield and
block your vision which could cause an
accident. In addition, make sure the
windshield is sufficiently warmed using
the defroster before spraying the
washer fluid.
CAUTION
 When the wipers are not used during
freezing temperatures or for a long
time, the wiper rubber may adhere
to the glass. If the wipers are
operated while adhered to the glass,
it could damage the wiper rubber
and motor.
 If the wipers are operated while the
glass is dry, the glass could be
scratched and the wiper rubber
damaged. When the glass is dry,
spray washer fluid before operating
the wipers.
If the amount of washer fluid spray is
insufficient, do not use the washer
switch. If the washer switch
continues to be operated with no
washer fluid being sprayed, it could
lead to pump damage.
NOTE
If the windshield wipers are operated
under cold weather conditions or
during snowfall, they could stop due to
accumulated snow on the windshield.
If the windshield wipers stop due to
accumulated snow on the windshield,
park the vehicle in a safe place, turn
the wiper switch off, and then remove
the accumulated snow. If the wiper
switch is turned to another position
other than OFF, the wipers will
operate. If the wipers do not operate
even though the wiper switch is turned
to a position other than OFF, consult
an Authorized Mazda Dealer as soon
as possible.
▼ Windshield Wipers
Turn the wipers on by pressing the
lever up or down.
With intermittent wiper

When Driving
Switches and Controls
4-64
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

Switch Posi-tion Wiper operation
MIST Operation while pulling up lev-
er
OFF Stop
INT Intermittent LO Low speedHI High speed
Variable-speed intermittent wipers
Set the lever to the intermittent
position and choose the interval timing
by rotating the switch.
Rotate the switch upward (FAST
direction) to shorten the interval time
of the wiper operation, and rotate the
switch downward (SLOW direction) to
lengthen it.

1. Switch
With auto-wiper control

1. Indicator light
Switch Posi- tion Wiper operation
MIST Operation while pulling up lev-
er
OFF Stop
AUTO
*1Auto control
LO Low speed HI High speed
*1 When the wiper lever is switched to the AUTO position, the indicator light turns on.
Auto-wiper control*
When the wiper lever is in the AUTO
position, the rain sensor senses the
amount of rainfall on the windshield
and turns the wipers on or off
automatically (off ―intermittent―low
speed ―high speed).

The sensitivity of the rain sensor can be
adjusted by turning the switch on the
wiper lever.
From the center position (normal),
rotate the switch upward (+ direction)
for higher sensitivity (faster response)
or rotate it downward (- direction) for
less sensitivity (slower response).

1. Switch
2. Higher sensitivity
3. Center position
4. Less sensitivity
When Driving
Switches and Controls
*Some models.4-65
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

CAUTION
Do not shade the rain sensor by
adhering a sticker or a label on the
windshield. Otherwise the rain
sensor will not operate correctly.
When the ignition is switched ON
and the wiper lever is in the AUTO
position, the windshield wipers may
operate automatically in the
following cases:
 The area of the windshield above
the rain sensor is touched or wiped
with a cloth.
 The windshield or the rain sensor
area in the cabin is hit.
When the ignition is switched ON
and the wiper lever is in the AUTO
position, do not touch the
windshield or the windshield wipers
Otherwise, the windshield wipers
will operate automatically which
could catch your fingers or damage
the windshield wipers.
When removing ice or snow, or
cleaning the windshield, always
make sure the wiper lever is in the
OFF position.
NOTE
Switching the auto-wiper lever from
the OFF to the AUTO position while
driving activates the windshield
wipers once, after which they
operate according to the rainfall
amount.
The auto-wiper control may not
operate when the rain sensor
temperature is about －10 °C (14 °F)
or lower, or about 85 °C (185 °F) or
higher.
If the windshield is coated with
water repellent, the rain sensor may
not be able to sense the amount of
rainfall correctly and the auto-wiper
control may not operate properly.
If dirt or foreign matter (such as ice
or matter containing salt water)
adheres to the windshield above the
rain sensor, or if the windshield is
iced, it could cause the wipers to
move automatically. However, if the
wipers cannot remove this ice, dirt or
foreign matter, the auto-wiper
control will stop operation. In this
case, set the wiper lever to the low
speed position or high speed
position for manual operation, or
remove the ice, dirt or foreign matter
by hand to restore the auto-wiper
operation.
If the auto-wiper lever is left in the
AUTO position, the wipers could
operate automatically from the effect
of strong light sources,
electromagnetic waves, or infrared
light because the rain sensor uses an
optical sensor. It is recommended
that the auto-wiper lever be
switched to the OFF position other
than when driving the vehicle under
rainy conditions.
When Driving
Switches and Controls
4-66
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

If the headlight switch and the
windshield wiper switch are in
AUTO, and the wipers are operated
at low or high speed by the auto
wiper control for several seconds,
bad weather conditions are
determined and the headlights may
be turned on.
The auto-wiper control functions can
be turned off.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
▼Windshield Washer
Pull the wiper lever toward you to
spray washer fluid and operate the
windshield wipers
several times. The
washer fluid is sprayed only while the
windshield wipers move out of their
stowed positions to the point where
they start reversing back.

1. OFF
2. Washer
NOTE
If the windshield washer is turned on
when the windshield wipers are not
operating, the windshield wipers
operate a few times.
If you pull the wiper lever while the
windshield wipers are reversing back
to their stowed positions, the next
time the washer fluid is sprayed is
during the next cycle.
If the washer does not work, inspect
the fluid level (page 6-21). If the fluid
level is normal, consult an Authorized
Mazda Dealer.
When Driving
Switches and Controls
4-67
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

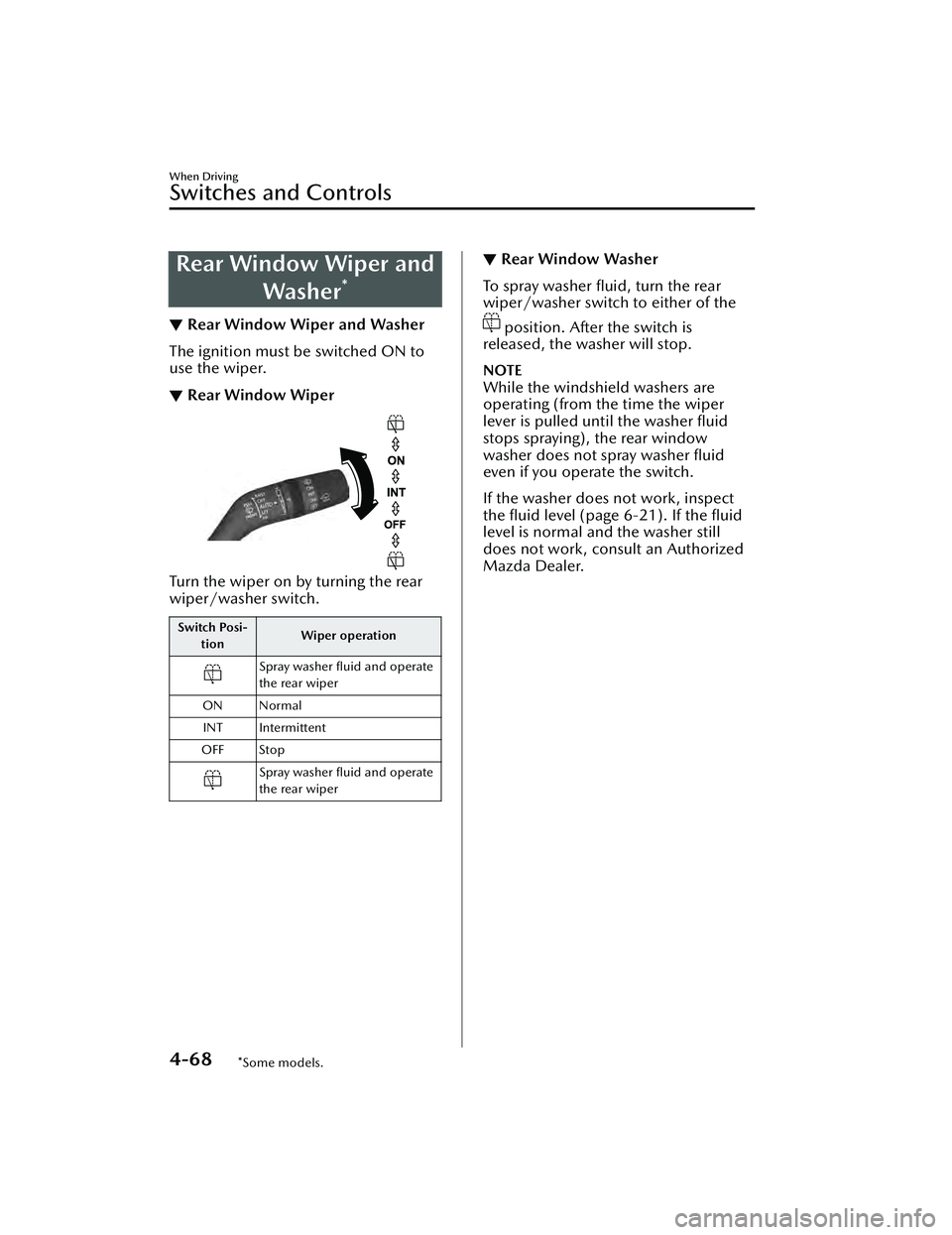

Rear Window Wiper andWasher
*
▼Rear Window Wiper and Washer
The ignition must be switched ON to
use the wiper.
▼Rear Window Wiper
Turn the wiper on by turning the rear
wiper/washer switch.
Switch Posi-
tion Wiper operation
Spray washer fluid and operate
the rear wiper
ON Normal INT Intermittent
OFF Stop
Spray washer fluid and operate
the rear wiper
▼ Rear Window Washer
To spray washer fluid, turn the rear
wiper/washer switch to either of the
position. After the switch is
released, the washer will stop.
NOTE
While the windshield washers are
operating (from the time the wiper
lever is pulled until the washer fluid
stops spraying), the rear window
washer does not spray washer fluid
even if you operate the switch.
If the washer does not work, inspect
the fluid level (page 6-21). If the fluid
level is normal and the washer still
does not work, consult an Authorized
Mazda Dealer.
When Driving
Switches and Controls
4-68*Some models.
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

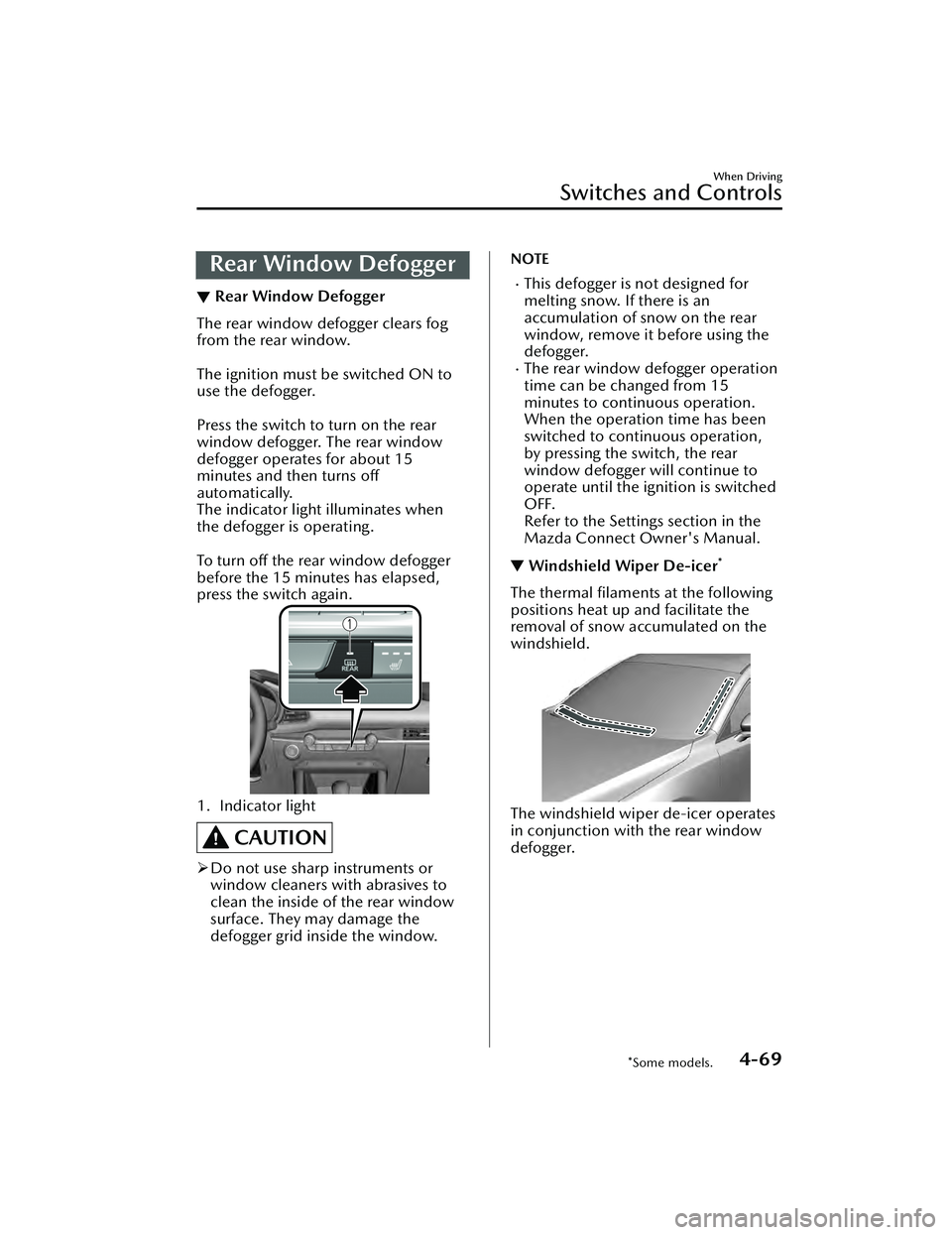

Rear Window Defogger
▼Rear Window Defogger
The rear window defogger clears fog
from the rear window.

The ignition must be switched ON to
use the defogger.

Press the switch to turn on the rear
window defogger. The rear window
defogger operates for about 15
minutes and then turns
off
automatically.
The indicator light illuminates when
the defogger is operating.

To t u r n off the rear window defogger
before the 15 minutes has elapsed,
press the switch again.
1. Indicator light
CAUTION
 Do not use sharp instruments or
window cleaners with abrasives to
clean the inside of the rear window
surface. They may damage the
defogger grid inside the window.
NOTE
This defogger is not designed for
melting snow. If there is an
accumulation of snow on the rear
window, remove it before using the
defogger.
The rear window defogger operation
time can be changed from 15
minutes to continuous operation.
When the operation time has been
switched to continuous operation,
by pressing the switch, the rear
window defogger will continue to
operate until the ignition is switched
OFF.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
▼ Windshield Wiper De-icer*
The thermal filaments at the following
positions heat up and facilitate the
removal of snow accumulated on the
windshield.
The windshield wiper de-icer operates
in conjunction with the rear window
defogger.
When Driving
Switches and Controls
*Some models.4-69
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

To turn on the windshield wiper
de-icer, switch the ignition ON and
press the rear window defogger switch
(page 4-69).
1. Indicator light
▼Mirror Defogger*
The mirror defoggers defrost the
outside mirrors.

The mirror defoggers operate in
conjunction with the rear window
defogger.
To turn on the mirror defoggers, switch
the ignition ON and press the rear
window defogger switch (page 4-69).
1. Indicator light
Horn
▼ Horn
To sound the horn, press the
mark on the steering wheel.
When Driving
Switches and Controls
4-70*Some models.
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

Hazard Warning Flasher
▼Hazard Warning Flasher
The hazard warning lights should
always be used when you stop on or
near a roadway in an emergency.

The hazard warning lights warn other
drivers that your vehicle is a traffic
hazard and that they must take
extreme caution when near it.

Depress the hazard warning flasher
and all the turn signals will
flash. The
hazard warning indicator lights in the
instrument cluster flash simultaneously.
NOTE
The turn signals do not work when
the hazard warning lights are on.
Check local regulations about the
use of hazard warning lights while
the vehicle is being towed to verify
that it is not in violation of the law.
HomeLink Wireless
Control System
*
▼ HomeLink Wireless Control
System
NOTE
HomeLink and HomeLink house are
registered trademarks of Gentex
Corporation.
The HomeLink system replaces up to 3
hand-held transmitters with a single
built-in component in the
auto-dimming mirror. Pressing the
HomeLink button on the
auto-dimming mirror activates garage
doors, gates and other devices
surrounding your home.

1. Indicator light
2. HomeLink button
WARNING
Do not use the HomeLink system with
any garage door opener that lacks the
safety stop and reverse feature:
Using the HomeLink system with any
garage door opener that lacks the
safety stop and reverse feature as
required by federal safety standards is
dangerous. (This includes garage doors
manufactured before April 1, 1982.)
When Driving
Switches and Controls
*Some models.4-71
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10
