▼Second Gear Fixed Mode
When the selector lever is moved back
+ while the vehicle speed is about 10
km/h (6.2 mph) or less, the
transmission is set in the second gear
fixed mode. The gear is fixed in second
while in this mode for easier
acceleration from a stop and driving on
slippery roads such as snow-covered
roads.
If the selector lever is moved back + or
forward – while in the second gear
fixed mode, the mode will be
canceled.
When Driving
Automatic Transmission
4-48
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

▼Shift Gear (Shifting) Speed Limit
For each gear position while in the manual
mode, the speed limit is set as follows:
When the selector lever is operated within the range of the speed limit, the gear is
shifted.

1. 1st
2. 2nd
3. 3rd
4. 4th
5. 5th
6. 6th
Shift up
The gear does not shift up while the vehicle speed is lower than the speed limit.
Shift down
The gear does not shift down while the vehicle speed exceeds the speed limit.
If the vehicle speed exceeds the speed limi t and the gear does not shift down, the
gear position indication flashes 2 times to notify the driver that the gear cannot be
shifted.
Kickdown
When the accelerator pedal is depressed fully while driving, the gear shifts down.
However, the transmission does not kickdown while the DSC is turned off.
NOTE
The gear also shifts down using kickdown while in the second gear fixed mode.
Auto-shift down
The gear shifts down automatically depending on the vehicle speed during
deceleration.
NOTE
If the vehicle comes to a stop while in the second gear fixed mode, the gear remains
in second.
When Driving
Automatic Transmission
4-49
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

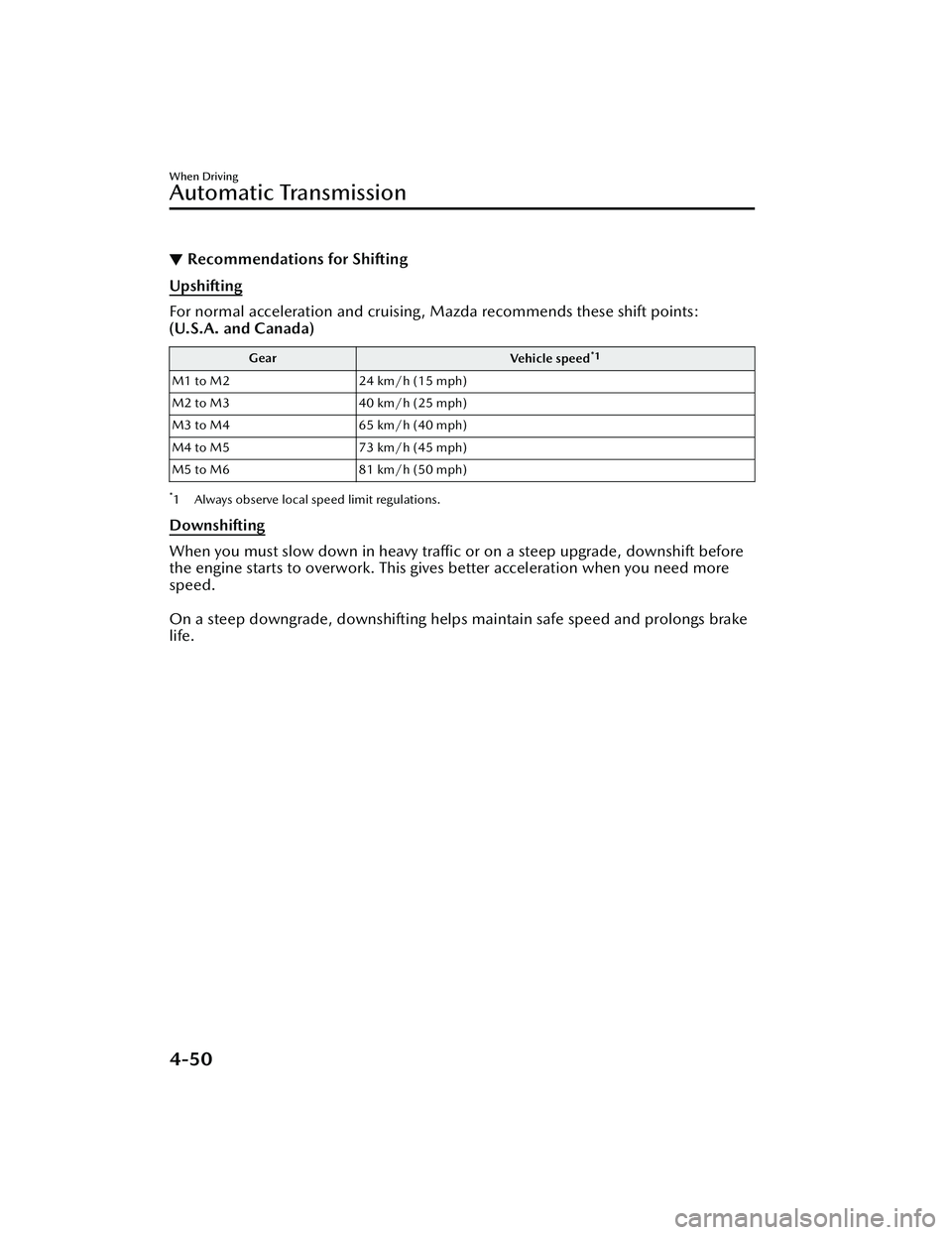

▼Recommendations for Shifting
Upshifting
For normal acceleration and cruising, Mazda recommends these shift points:
(U.S.A. and Canada)
Gear
Vehicle speed*1
M1 to M224 km/h (15 mph)
M2 to M3 40 km/h (25 mph)
M3 to M4 65 km/h (40 mph)
M4 to M5 73 km/h (45 mph)
M5 to M6 81 km/h (50 mph)
*1 Always observe local speed limit regulations.
Downshifting
When you must slow down in heavy traffic or on a steep upgrade, downshift before
the engine starts to overwork. This give s better acceleration when you need more
speed.

On a steep downgrade, downshifting helps maintain safe speed and prolongs brake
life.
When Driving
Automatic Transmission
4-50
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

Direct Mode*
▼Direct Mode
Direct mode can be used for
temporarily switching gears by
operating the steering shift switch
while the vehicle is being driven with
the selector lever in the D position.
While in direct mode, the D and M
indication illuminate and the gear
position in use is illuminated.
1. Direct mode indication
2. Gear position indication

Direct mode is canceled (released)
under the following conditions.
The UP switch (+/OFF) is pulled
rearward for a certain amount of
time or longer.
The vehicle is driven for a certain
amount of time or longer (time
differs
depending on the driving
conditions while operating).
The vehicle is stopped or moving at a
slow speed.

NOTE
Shifting up and down while in direct
mode may not be possible depending
on the vehicle speed. In addition,
because direct mode is canceled
(released) depending on the rate of
acceleration or if the accelerator is fully
depressed, use of the manual shift
mode is recommended if you need to
drive the vehicle in a particular gear for
long periods.
When Driving
Automatic Transmission
*Some models.4-51
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

Driving Tips
▼Driving Tips
WARNING
Do not let the vehicle move in a
direction opposite to the direction
selected by the selector lever:
Do not let the vehicle move backward
with the selector lever in a forward
position, or do not let the vehicle
move forward with the selector lever in
the reverse position. Otherwise, the
engine may stop, causing the loss of
the power brake and power steering
functions, and make it difficult to
control the vehicle which could result
in an accident.
Pa s s i n g
For extra power when passing another
vehicle or climbing steep grades,
depress the accelerator fully. The
transmission will shift to a lower gear,
depending on vehicle speed.
NOTE
The accelerator pedal may initially
feel heavy as it is being depressed,
then feel lighter as it is depressed
further. This change in pedal force
aids the engine control system in
determining how much the
accelerator pedal has been
depressed for performing kickdown,
and functions to control whether or
not kickdown should be performed.
The manual shift mode does not
switch to automatic shift mode while
the DSC is turned off when the
selector lever is in the M position.
Shift the selector lever.
Climbing steep grades from a stop
To climb a steep grade from a stopped
position:
1. Depress the brake pedal.
2. Shift to D or M1, depending on the
load weight and grade steepness.
3. Release the brake pedal while
gradually accelerating.
Descending steep grades
When descending a steep grade, shift
to lower gears, depending on load
weight and grade steepness. Descend
slowly, using the brakes only
occasionally to prevent them from
overheating.
When Driving
Automatic Transmission
4-52
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

M Hybrid*
▼M Hybrid
M Hybrid uses the Integrated Starter-Generator (ISG) with excellent power
generation efficiency to generate electricity from the kinetic energy generated when
the vehicle decelerates. The system uses th
e electrical power stored in the M Hybrid
battery, which is a large-capacity battery to improve driveability and fuel economy by
reducing engine load and providing motor assist. In addition, the ISG provides quiet
engine restarting after the engine is st opped by the i-stop function (idling stop).
1. ISG
2.
DC-DC Converter
3. M Hybrid battery
CAUTION
 The following parts are extremely hot an d have high-current electricity flowing
through them, therefore do not touch them.
 ISG
 DC-DC Converter
 M Hybrid battery
 If the driver's door is opened under the following conditions, the vehicle
determines that the driver is trying to leave the driver's seat, a warning sound
notifying the driver of possible danger is activated, and the warning indication is
displayed.
When Driving
M Hybrid
*Some models.4-53
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

The engine is running.
 The selector lever is in a position other than P or N.
 If there is a problem with M Hybrid, a warning indication is displayed.
 M Hybrid operation status is displayed on the system operation status display of
the fuel efficiency monitor.
Refer to the Information section in the Mazda Connect Owner's Manual.
▼Unique M Hybrid Handling
M Hybrid vehicles have a unique
sound and vibration which differ from
normal vehicles. The following may
o cc u r, h o we v e r, t h i s i s u n i q u e t o M
Hybrid and it does not indicate a
problem.
Characteristic Occurrence status/loca-
tion
Operation sound of
deceleration regen-
eration An operational sound
can be heard from the
engine compartment
during deceleration.
Relay operation
sound of M Hybrid
battery An operational sound
can be heard from the
vehicle underfloor when
the engine is started and
stopped.
Operation sound of
brake system Sound can be heard from
the front of the vehicle
under the following con-
ditions:
The driver's door is
opened.
The ignition is switch-
ed ON.
The brake pedal is op-
erated.
The brake system op-
erates automatically.
Several minutes have
passed since the en-
gine was stopped.
Characteristic
Occurrence status/loca-
tion
Operational feed-
back through brake
pedal Operational feedback
through brake pedal
might be felt under the
following conditions.
The ignition is switch-
ed ON.
The brake pedal is op-
erated.
▼
M Hybrid battery
M Hybrid is equipped with a special
battery.
WARNING
Heed the following cautions to
prevent burns and electrical shock:

Never remove and disassemble the
brackets and connectors securing the
terminal part, wiring harness, and
the M Hybrid battery.
 Never touch the M Hybrid battery
because it becomes extremely hot
under direct sunlight or after driving.
 Because the M Hybrid battery is
especially dangerous when wet,
never touch it.
NOTE
The M Hybrid battery has a certain
battery life. Battery life
differs
depending on how the vehicle is used
and the driving conditions.
When Driving
M Hybrid
4-54
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

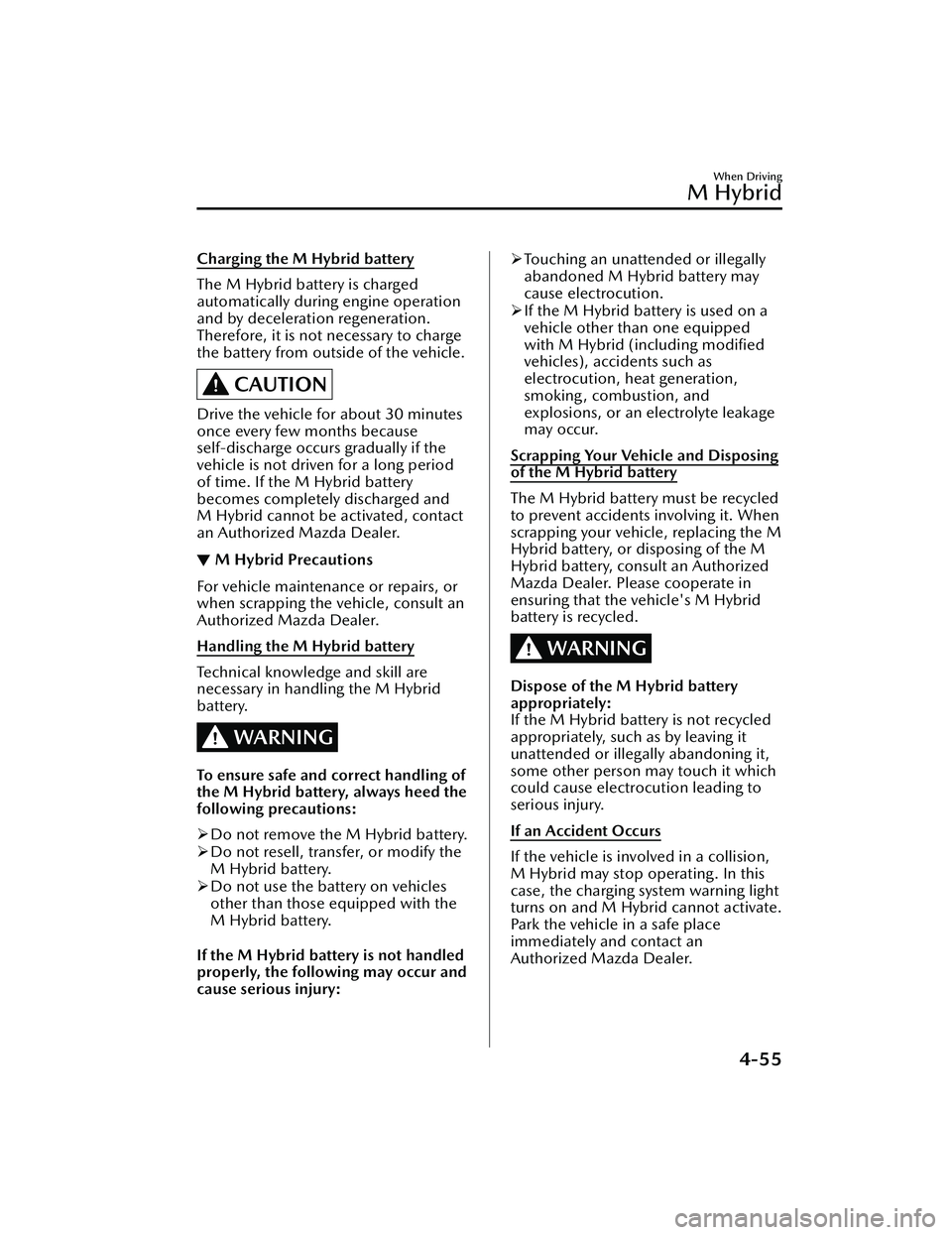

Charging the M Hybrid battery
The M Hybrid battery is charged
automatically during engine operation
and by deceleration regeneration.
Therefore, it is not necessary to charge
the battery from outside of the vehicle.
CAUTION
Drive the vehicle for about 30 minutes
once every few months because
self-discharge occurs gradually if the
vehicle is not driven for a long period
of time. If the M Hybrid battery
becomes completely discharged and
M Hybrid cannot be activated, contact
an Authorized Mazda Dealer.
▼M Hybrid Precautions
For vehicle maintenance or repairs, or
when scrapping the vehicle, consult an
Authorized Mazda Dealer.
Handling the M Hybrid battery
Technical knowledge and skill are
necessary in handling the M Hybrid
battery.
WARNING
To ensure safe and correct handling of
the M Hybrid battery, always heed the
following precautions:

Do not remove the M Hybrid battery.
 Do not resell, transfer, or modify the
M Hybrid battery.
 Do not use the battery on vehicles
other than those equipped with the
M Hybrid battery.
If the M Hybrid battery is not handled
properly, the following may occur and
cause serious injury:
 Touching an unattended or illegally
abandoned M Hybrid battery may
cause electrocution.
 If the M Hybrid battery is used on a
vehicle other than one equipped
with M Hybrid (including modified
vehicles), accidents such as
electrocution, heat generation,
smoking , combustion, and
explosions, or an electrolyte leakage
may occur.
Scrapping Your Vehicle and Disposing
of the M Hybrid battery
The M Hybrid battery must be recycled
to prevent accidents involving it. When
scrapping your vehicle, replacing the M
Hybrid battery, or disposing of the M
Hybrid battery, consult an Authorized
Mazda Dealer. Please cooperate in
ensuring that the vehicle's M Hybrid
battery is recycled.
WARNING
Dispose of the M Hybrid battery
appropriately:
If the M Hybrid battery is not recycled
appropriately, such as by leaving it
unattended or illegally abandoning it,
some other person may touch it which
could cause electrocution leading to
serious injury.
If an Accident Occurs
If the vehicle is involved in a collision,
M Hybrid may stop operating. In this
case, the charging sy stem warning light
turns on and M Hybrid cannot activate.
Park the vehicle in a safe place
immediately and contact an
Authorized Mazda Dealer.
When Driving
M Hybrid
4-55
