Parking in an Emergency
▼Parking in an Emergency
The hazard warning lights should
always be used when you stop on or
near a roadway in an emergency.

The hazard warning lights warn other
drivers that your vehicle is a traffic
hazard and that they must take
extreme caution when near it.

Depress the hazard warning flasher
and all the turn signals will
flash. The
hazard warning indicator lights in the
instrument cluster flash simultaneously.
NOTE
The turn signals do not work when
the hazard warning lights are on.
Check local regulations about the
use of hazard warning lights while
the vehicle is being towed to verify
that it is not in violation of the law.
If Trouble Arises
Parking in an Emergency
7-2
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

Spare Tire and ToolStorage
▼Spare Tire and Tool Storage
Spare tire and tools are stored in the
locations illustrated in the diagram.
4–Door
1. Tiedown eyelet*
2. Spare tire hold-down bolt
3. Jack lever
4. Flat tire hold-down bolt
*
5. Jack
6. Lug wrench
7. Spare tire
5–Door
Ty p e A
1. Tiedown eyelet*
2. Flat tire hold-down bolt*
3. Jack lever
4. Jack
5. Spare tire hold-down bolt
6. Spare tire
7. Lug wrench

Ty p e B
1. Tiedown eyelet*
2. Spare tire hold-down bolt
3. Flat tire hold-down bolt
4. Jack lever
5. Jack
6. Spare tire
7. Lug wrench
▼Jack
To r e m o v e t h e j a c k
4–Door
1. Remove the trunk mat.

If Trouble Arises
Flat Tire
*Some models.7-3
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

2. Remove the cover.
3. Turn the wing bolt and jack screwcounterclockwise.

1. Wing bolt
2. jack screw

5–Door
1. Remove the luggage mat.
2. Remove the jack.

To s e c u r e t h e j a c k
4–Door
1. Insert the wing bolt into the jackwith the jack screw pointing to the
front and turn the wing bolt
clockwise to temporarily tighten it.
2. Turn the jack screw clockwise.
1. Wing bolt
2. jack screw

3. Turn the wing bolt completely to secure the jack.
NOTE
If the jack is not completely secured, it
could rattle while driving. Make sure
the jack screw is sufficiently tightened.
If Trouble Arises
Flat Tire
7-4
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

5–Door
Perform the removal procedure in
reverse.
Maintenance
Always keep the jack clean.Make sure the moving parts are kept
free from dirt or rust.
Make sure the screw thread is
adequately lubricated.
▼Spare Tire
Your Mazda has a temporary spare tire.
The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spare tires should
NEVER be used for long drives or
extended periods.
WARNING
Do not install the temporary spare tire
on the front wheels (driving wheels):
Driving with the temporary spare tire
on one of the front driving wheels is
dangerous. Handling will be affected.
You could lose control of the vehicle,
especially on ice or snow bound roads,
and have an accident. Move a regular
tire to the front wheel and install the
temporary spare tire to the rear.
CAUTION

When using the temporary spare tire,
driving stability may decrease
compared to when using only the
conventional tire. Drive carefully.
 To avoid damage to the temporary
spare tire or to the vehicle, observe
the following precautions:
 Do not exceed 80 km/h (50 mph).
 Avoid driving over obstacles. Also,
do not drive through an automatic
car wash. This tire's diameter is
smaller than a conventional tire, so
the ground clearance is reduced.
 Do not use a tire chain on this tire
because it will not
fit properly.
 Do not use your temporary spare
tire on any other vehicle, it has
been designed only for your
Mazda.
 Use only one temporary spare tire
on your vehicle at the same time.
To remove the spare tire
4–Door
1. Remove the trunk mat.
If Trouble Arises
Flat Tire
7-5
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

2. Turn the spare tire hold-down boltcounterclockwise and remove the
spare tire.

1. Spare tire hold-down bolt
NOTE
If the spare tire hold-down bolt
cannot be loosened, hold the edge
of the tire and turn it
counterclockwise until the spare
tire hold-down bolt rotates.
5–Door
1. Remove the luggage mat.
2.(Vehicles with sub-woofer)
Uncouple the sub-woofer
connector.

NOTE
Extra strength may be required to
uncouple the connector. Be sure to
squeeze the tab firmly.
3. (Vehicles with sub-woofer)
Turn the spare tire hold-down bolt
counterclockwise and remove the
sub-woofer and the spare tire.

If Trouble Arises
Flat Tire
7-6
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

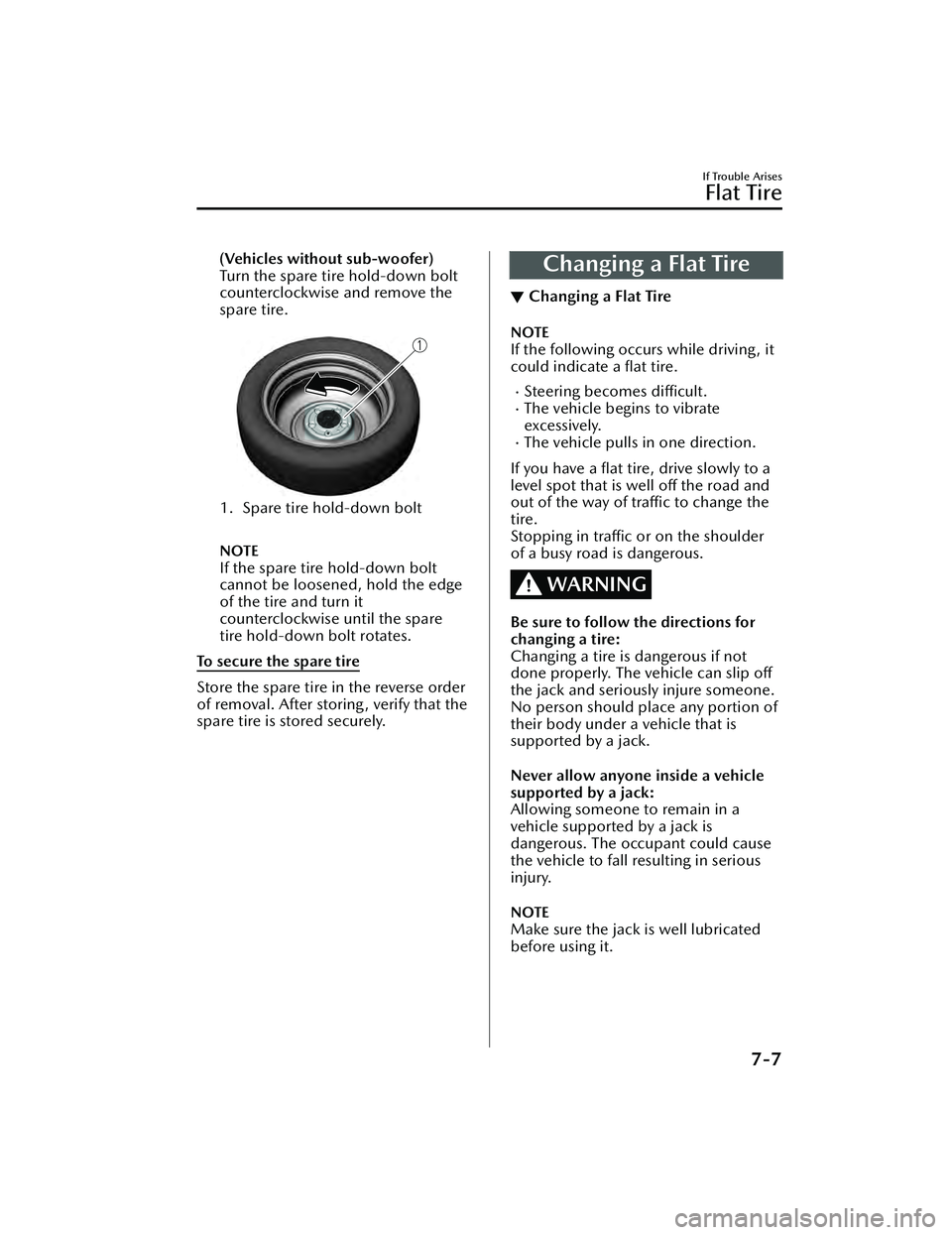

(Vehicles without sub-woofer)
Turn the spare tire hold-down bolt
counterclockwise and remove the
spare tire.

1. Spare tire hold-down bolt
NOTE
If the spare tire hold-down bolt
cannot be loosened, hold the edge
of the tire and turn it
counterclockwise until the spare
tire hold-down bolt rotates.
To secure the spare tire
Store the spare tire in the reverse order
of removal. After storing , verify that the
spare tire is stored securely.
Changing a Flat Tire
▼ Changing a Flat Tire
NOTE
If the following occurs while driving , it
could indicate a flat tire.
Steering becomes
difficult.The vehicle begins to vibrate
excessively.
The vehicle pulls in one direction.
If you have a flat tire, drive slowly to a
level spot that is well off the road and
out of the way of traffic to change the
tire.
Stopping in traffic or on the shoulder
of a busy road is dangerous.
WARNING
Be sure to follow the directions for
changing a tire:
Changing a tire is dangerous if not
done properly. The vehicle can slip off
the jack and seriously injure someone.
No person should place any portion of
their body under a vehicle that is
supported by a jack.
Never allow anyone inside a vehicle
supported by a jack:
Allowing someone to remain in a
vehicle supported by a jack is
dangerous. The occupant could cause
the vehicle to fall resulting in serious
injury.
NOTE
Make sure the jack is well lubricated
before using it.
If Trouble Arises
Flat Tire
7-7
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

1. Park on a hard, level surface off theright-of-way and firmly set the
parking brake.
2. Put a vehicle with an automatic transmission in Park (P), a manual
transmission in Reverse (R) or 1,
and turn off the engine.
3. Turn on the hazard warning flasher.
4. Have passengers get out of the vehicle and away from the vehicle
and traffic.
5. Remove any luggage, the jack, tools, and spare tire (page 7-3).
6. Block the wheel diagonally opposite the flat tire. When
blocking a wheel, place a tire block
both in front and behind the tire.
NOTE
When blocking a tire, use rocks or
wood blocks of sufficient size if
possible to hold the tire in place.
▼Removing a Flat Tire
WARNING
When jacking-up a vehicle, always
shift the shift lever to 1st or R position
(manual transmission vehicle) or shift
the selector lever to P position
(automatic transmission vehicle),
apply the parking brake, and place
wheel blocks in the position
diagonally opposed to the jack:
Changing a
flat tire without using
wheel blocks is dangerous because the
vehicle may move and fall off the jack
even with the shift lever in 1st or R
position, or the selector lever is in P
position, which could result in an
accident.
1. If your vehicle is equipped with a wheel cover, pry off the wheel
cover with the beveled end of the
jack lever.

NOTE
Force the end of the jack lever
firmly between wheel and cover, or
removal will be difficult.
If Trouble Arises
Flat Tire
7-8
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

CAUTION
Align the notch on the wheel cover
with the valve stem when installing
it.

1. Notch
2. Tire valve

Damage could occur during
installation if the wheel cover is not
properly aligned.
2. Loosen the lug nuts by turning themcounterclockwise one turn each,
but do not remove any lug nuts
until the tire has been raised off the
ground.

NOTE
If your Mazda is equipped with the
optional antitheft wheel lug nuts, a
special key must be used to unlock
the locking lug nut for each wheel.
For details, refer to the Locking Lug
Nuts on page 7-11.
3. Place the jack on the ground.
4. Turn the jack screw in the direction shown in the figure and adjust the
jack head so that it is close to the
jack-up position.

1. Jack head

If Trouble Arises
Flat Tire
7-9
