2023 HYUNDAI VENUE Owners Manual

Convenience Features5-74
WARNING
Avoid eye injury. DO NOT overstretch
the luggage net. ALWAYS keep your
face and body out of the luggage net’s
recoil path. DO NOT use the luggage net
when the strap has visible signs of wear
or damage.
Use the luggage net to keep only light
items from shifting in the luggage
compartment.
Cargo Area Cover
OQX059084L
Use the cover to hide items stored in
the cargo area. The cargo area cover
will lift when the liftgate is opened.
Disconnect the strap (1) from the holder
if you want to return the cover to the
original position. To remove the cargo
area cover completely, pull the cover
backward and out from the rail. To secure
a wider space, pull the cargo area cover
backward slightly and push down it.
NOTICE
Since the cargo area cover may be
damaged or deformed, do not put
luggage on it when it is being used.
WARNING

[ Do not place objects on the cargo
area cover while driving. Such
objects may be thrown about inside
the vehicle and possibly injure
vehicle occupants during an accident
or when braking.

[ Never allow anyone to ride in the
luggage compartment. It is designed
for luggage only.

[ Maintain balance of the vehicle and
locate the weight as far forward as
possible.
OQX059153

[Fully insert the hinges (A) on both
sides of the cargo area cover into
position (B). If not fully inserted, the
cargo area cover can be damaged.

05
5-75

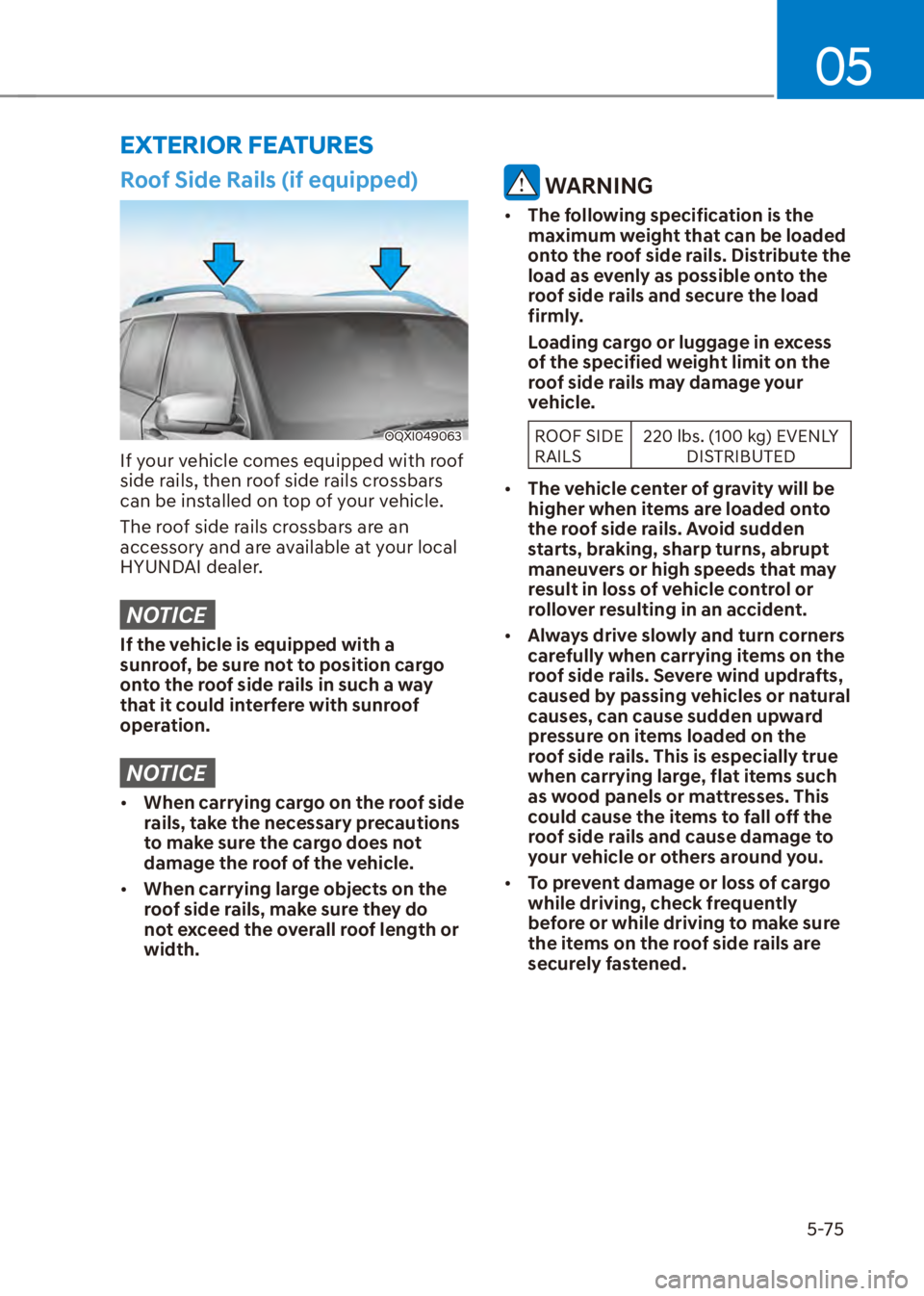

EXTERIOR FEATURES
Roof Side Rails (if equipped)
OQXI049063
If your vehicle comes equipped with roof
side rails, then roof side rails crossbars
can be installed on top of your vehicle.
The roof side rails crossbars are an
accessory and are available at your local
HYUNDAI dealer.
NOTICE
If the vehicle is equipped with a
sunroof, be sure not to position cargo
onto the roof side rails in such a way
that it could interfere with sunroof
operation.
NOTICE

[When carrying cargo on the roof side
rails, take the necessary precautions
to make sure the cargo does not
damage the roof of the vehicle.

[ When carrying large objects on the
roof side rails, make sure they do
not exceed the overall roof length or
width.
WARNING

[The following specification is the
maximum weight that can be loaded
onto the roof side rails. Distribute the
load as evenly as possible onto the
roof side rails and secure the load
firmly.
Loading cargo or luggage in excess
of the specified weight limit on the
roof side rails may damage your
vehicle.
ROOF SIDE
RAILS 220 lbs. (100 kg) EVENLY
DISTRIBUTED

[The vehicle center of gravity will be
higher when items are loaded onto
the roof side rails. Avoid sudden
starts, braking, sharp turns, abrupt
maneuvers or high speeds that may
result in loss of vehicle control or
rollover resulting in an accident.

[ Always drive slowly and turn corners
carefully when carrying items on the
roof side rails. Severe wind updrafts,
caused by passing vehicles or natural
causes, can cause sudden upward
pressure on items loaded on the
roof side rails. This is especially true
when carrying large, flat items such
as wood panels or mattresses. This
could cause the items to fall off the
roof side rails and cause damage to
your vehicle or others around you.

[ To prevent damage or loss of cargo
while driving, check frequently
before or while driving to make sure
the items on the roof side rails are
securely fastened.

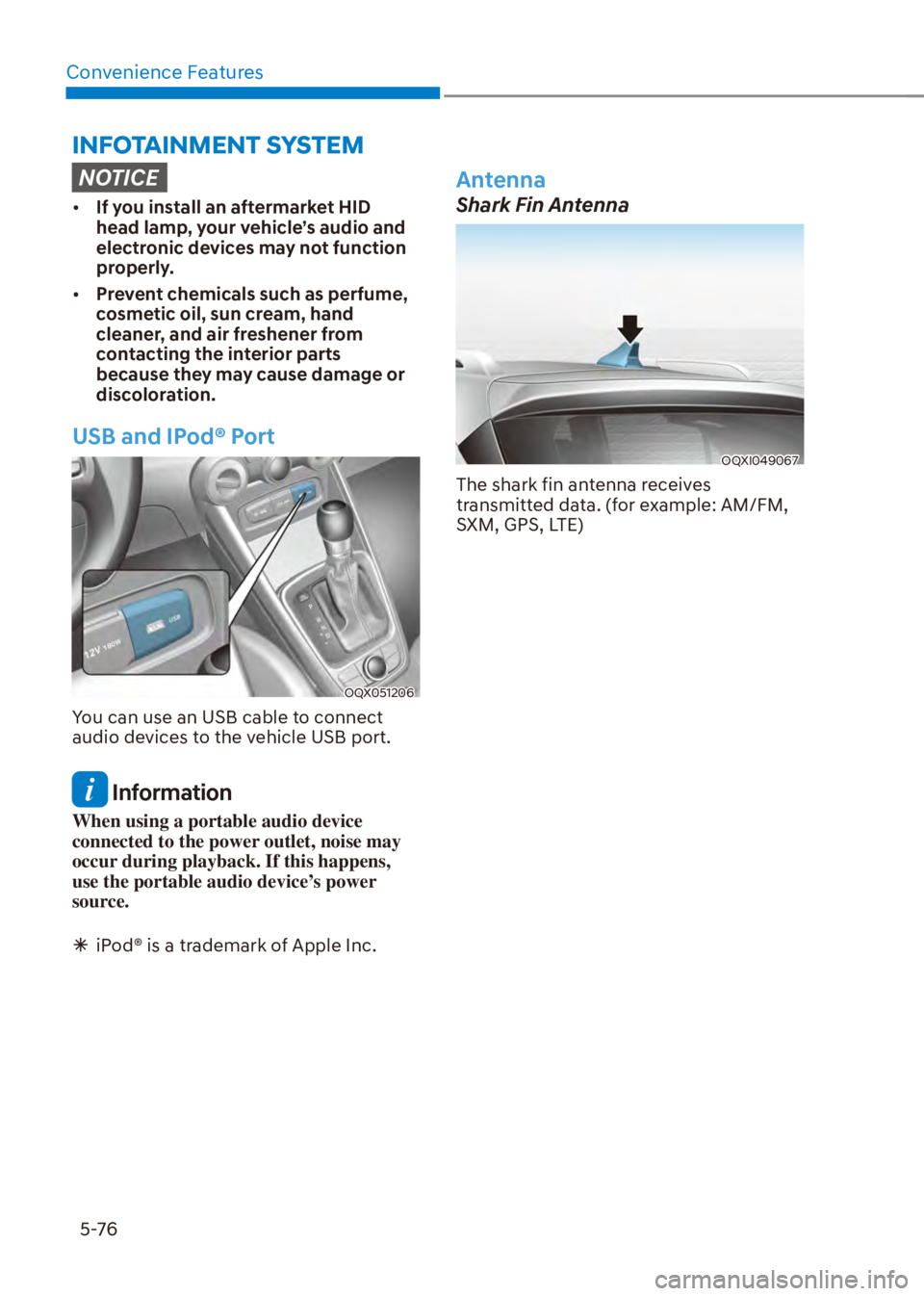

Convenience Features5-76
,1)27$,10(176<67(0
NOTICE

[ If you install an aftermarket HID
head lamp, your vehicle’s audio and
electronic devices may not function
properly.

[ Prevent chemicals such as perfume,
cosmetic oil, sun cream, hand
cleaner, and air freshener from
contacting the interior parts
because they may cause damage or
discoloration.
USB and IPod® Port
OQX051206
You can use an USB cable to connect
audio devices to the vehicle USB port.
Information
When using a portable audio device
connected to the power outlet, noise may
occur during playback. If this happens,
use the portable audio device’s power
source.

à iPod® is a trademark of Apple Inc.
Antenna
Shark Fin Antenna
OQXI049067
The shark fin antenna receives
transmitted data. (for example: AM/FM,
SXM, GPS, LTE)

05
5-77
Steering Wheel Audio Control
„Type A
OQXI049068L
„Type B
OQXI049069L
„Type C
OQX059012N
NOTICE
Do not operate multiple audio remote
control buttons simultaneously.
VOLUME (VOL + / -) (1)

[Press the VOLUME switch up to
increase volume.

[ Press the VOLUME switch down to
decrease volume.
SEEK/PRESET ( / ) (2)
If the SEEK/PRESET switch is pressed up
or down and held for 0.8 second or more,
it will function in the following modes:

[RADIO mode
It will function as the AUTO SEEK
select butt

on. It will SEEK until you
release the button.

[ MEDIA mode
It will function as the FF/RW button.
If the SEEK/PRESET s
witch is pressed up
or down, it will function in the following
modes:

[ RADIO mode
It will function as the PRESET STATION
UP/DOWN butt

on.

[ MEDIA mode
It will function as the TRACK UP/
DOWN butt

on.
MODE () (3)
Press the MODE button to toggle
through Radio, SXM, or AUX modes.
MUTE () (4)

[Press the MUTE button to mute the
sound.

[ Press the MUTE button again to
activate the sound.
Information
Detailed information for audio control
buttons are described in a separately
supplied manual with the vehicle.

Convenience Features5-78
Bluetooth® Wireless Technology
Hands-Free
OQXI049071
With the Bluetooth® Wireless Technology
in the vehicle, you can use the phone
wireless.
(1) Call / Answer button
(2) Call end button
Detailed information for the Bluetooth®
Wireless Technology hands-free is
described in the Vehicle Infotainment
User’s Manual.
Audio (Display Audio) / Video /
Navigation System (AVN)
(if equipped)
Detailed information for the AVN system
is described in the Vehicle Infotainment
User’s Manual.

6
6. While Driving
Before Driving ........................................................................\
........................... 6-5Before Entering the Vehicle ........................................................................\
.................6-5
Before Starting ........................................................................\
.....................................6-5
Ignition Switch ........................................................................\
.......................... 6-6Key Ignition Switch ........................................................................\
.............................. 6-6
Engine Start/Stop Button ........................................................................\
................... 6-9
Manual Transmission ........................................................................\
............... 6-12Manual Transmission Operation ........................................................................\
........ 6-12
Good Driving Practices ........................................................................\
...................... 6-14
Intelligent Variable Transmission (IVT) ........................................................... 6-15Intelligent Variable Transmission (IVT) Operation .................................................... 6-15
Good Driving Practices ........................................................................\
...................... 6-19
Brake System ........................................................................\
........................... 6-20Power Brakes ........................................................................\
..................................... 6-20
Disc Brakes Wear Indicator......................................................................\
................. 6-20
Rear Drum Brakes .....................................................................\
................................ 6-20
Parking Brake ........................................................................\
...................................... 6-21
Anti-lock Brake System (ABS) ........................................................................\
............ 6-22
Electronic Stability Control (ESC) ........................................................................\
.....6-24
Vehicle Stability Management (VSM) .......................................................................6-26
Hill-Start Assist Control (HAC) ........................................................................\
........... 6-27
Good Braking Practices ................................................................\
............................. 6-27
Drive Mode Integrated Control System ......................................................... 6-28LCD Display Message ........................................................................\
........................ 6-30
Blind-Spot Collision Warning (BCW) .............................................................. 6-31System Description ........................................................................\
............................ 6-31
System Setting........................................................................\
.................................... 6-32
Warning and System Control ........................................................................\
.............6-33
Detecting Sensor ........................................................................\
................................6-34
Limitations of the System ........................................................................\
................. 6-36

6

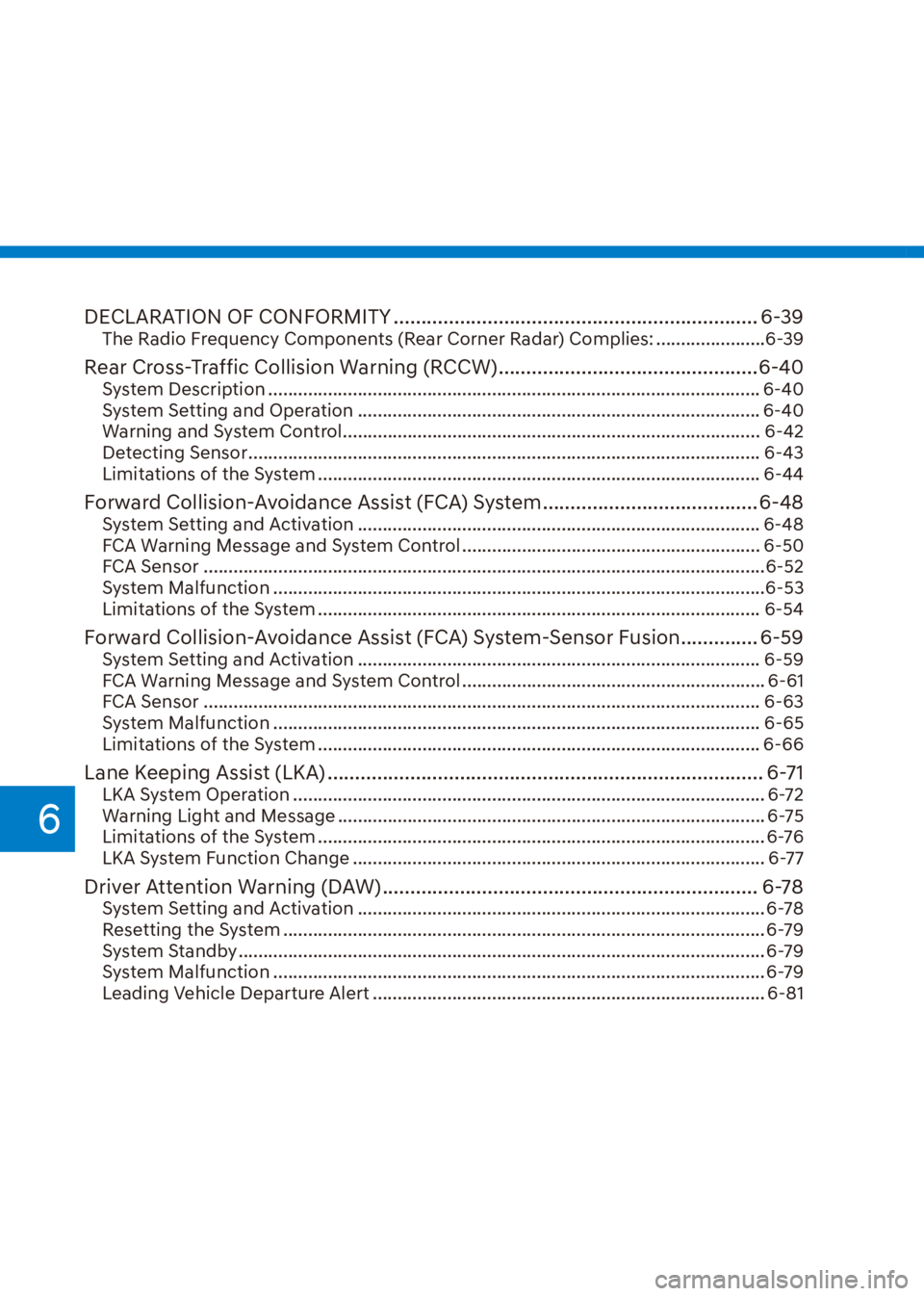

DECLARATION OF CONFORMITY .................................................................. 6-39The Radio Frequency Components (Rear Corner Radar) Complies: ......................6-39
Rear Cross-Traffic Collision Warning (RCCW) ...............................................6-40System Description ........................................................................\
........................... 6-40
System Setting and Operation ........................................................................\
......... 6-40
Warning and System Control ........................................................................\
............ 6-42
Detecting Sensor ........................................................................\
............................... 6-43
Limitations of the System ........................................................................\
................. 6-44
Forward Collision-Avoidance Assist (FCA) System .......................................6-48System Setting and Activation ........................................................................\
......... 6-48
FCA Warning Message and System Control ............................................................ 6-50
FCA Sensor ........................................................................\
.........................................6-52
System Malfunction ........................................................................\
...........................6-53
Limitations of the System ........................................................................\
................. 6-54
Forward Collision-Avoidance Assist (FCA) System-Sensor Fusion .............. 6-59System Setting and Activation ........................................................................\
......... 6-59
FCA Warning Message and System Control ............................................................. 6-61
FCA Sensor ........................................................................\
........................................ 6-63
System Malfunction ........................................................................\
.......................... 6-65
Limitations of the System ........................................................................\
................. 6-66
Lane Keeping Assist (LKA) ........................................................................\
....... 6-71LKA System Operation ........................................................................\
....................... 6-72
Warning Light and Message ........................................................................\
.............. 6-75
Limitations of the System ........................................................................\
.................. 6-76
LKA System Function Change ........................................................................\
........... 6-77
Driver Attention Warning (DAW) .................................................................... 6-78System Setting and Activation ........................................................................\
.......... 6-78
Resetting the System ........................................................................\
......................... 6-79
System Standby ........................................................................\
.................................. 6-79
System Malfunction ........................................................................\
........................... 6-79
Leading Vehicle Departure Alert ........................................................................\
....... 6-81

6

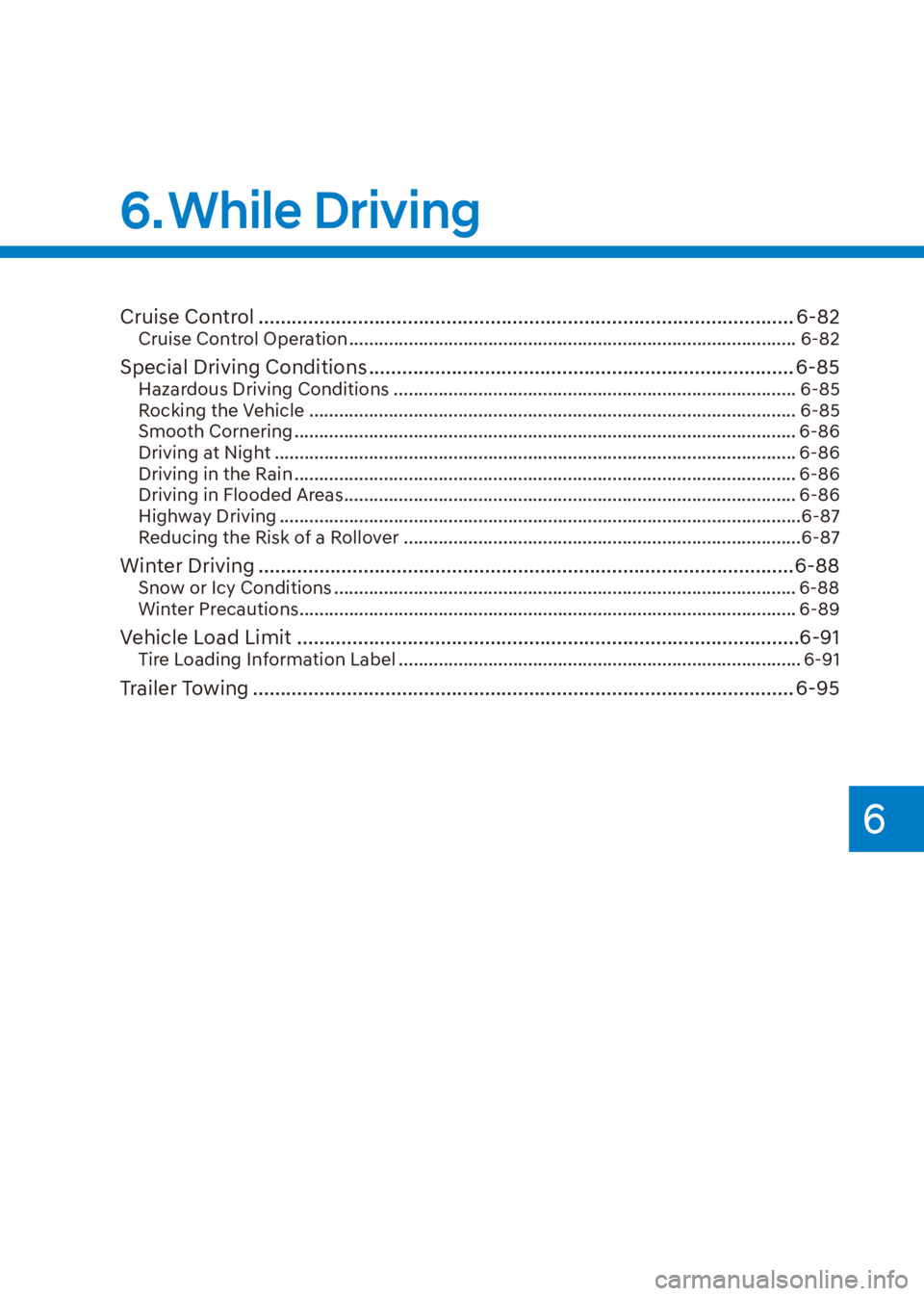

Cruise Control ........................................................................\
......................... 6-82Cruise Control Operation ........................................................................\
.................. 6-82
Special Driving Conditions ........................................................................\
..... 6-85Hazardous Driving Conditions ................................................\
................................. 6-85
Rocking the Vehicle .................................................................\
................................. 6-85
Smooth Cornering ........................................................................\
............................. 6-86
Driving at Night ........................................................................\
................................. 6-86
Driving in the Rain ........................................................................\
............................. 6-86
Driving in Flooded Areas ........................................................................\
................... 6-86
Highway Driving ........................................................................\
.................................6-87
Reducing the Risk of a Rollover .....................................................................\
...........6-87
Winter Driving ........................................................................\
.........................6-88Snow or Icy Conditions ........................................................................\
..................... 6-88
Winter Precautions ........................................................................\
............................ 6-89
Vehicle Load Limit ........................................................................\
...................6-91Tire Loading Information Label ........................................................................\
......... 6-91
Trailer Towing ........................................................................\
.......................... 6-95
6. While Driving
