2023 HYUNDAI VENUE Owners Manual

2-4
Vehicle Information
The actual shape may differ from the illustration.OQX019003N
1. Door lock/unlock button ....................... 5-13
2. Outside rearview mirror control
switch ..................................................... 5-21
3. Central door lock switch ....................... 5-14
4. Power window switches .......................5-22
5. Power window lock switch ...................5-25
6. Instrument panel illumination control switch ...................................................... 4-5 7. Lane Keeping Assist system
On/Off Button ........................................ 6-71
8. ESC OFF button .................................... 6-24
9. Hood release lever ................................. 5-31
10. Steering wheel tilt/telescopic lever ..... 5-18
11. Steering wheel ....................................... 5-17
12. Seat .......................................................... 3-3
13. Instrument panel fuse ..........................8-40
14. Fuel filler door ....................................... 5-34
INTERIOR OVERVIEW

2-5
02
The actual shape may differ from the illustration.OQX010011N
1. Instrument cluster .................................. 4-4
2. Horn ........................................................ 5-19
3. Key ignition switch ................................. 6-6Engine Start/Stop button ....................... 6-9
4. Infotainment system .............................5-76
5. Hazard warning flasher switch ............... 7-2
6. Manual climate control system ........... 5-48 Automatic climate control system ...... 5-56
7. Passenger’s front air bag ..................... 3-33
8. Glove box .............................................. 5-69 9. Manual transmission shift lever ............ 6-12
Intelligent variable transmission
shift lever................................................ 6-15
10. Seat warmer ........................................... 3-12
11. Drive mode selection knob .................. 6-28
12. Power outlet .......................................... 5-70
13. USB charger ........................................... 5-71
14. Driver’s front air bag ............................. 3-33
15. Light control .......................................... 5-36 Turn signals ............................................ 5-41
16. Wiper/Washer ....................................... 5-45
INSTRUMENT PANEL OVERVIEW

2-6
Vehicle Information
The actual engine room in the vehicle may differ from the illustration.OQX089001L
ENGINE COMPARTMENT
1. Engine coolant reservoir .......................8-16
2. Brake/clutch fluid reservoir ..................8-19
3. Engine air filter ...................................... 8-21
4. Engine oil dipstick ................................. 8-15
5. Engine oil filler cap ................................ 8-15
6. Windshield washer fluid reservoir ....... 8-20
7. Engine room junction block ..................8-41
8. Battery ................................................... 8-25
9. Radiator cap ........................................... 8-17

02
2-7

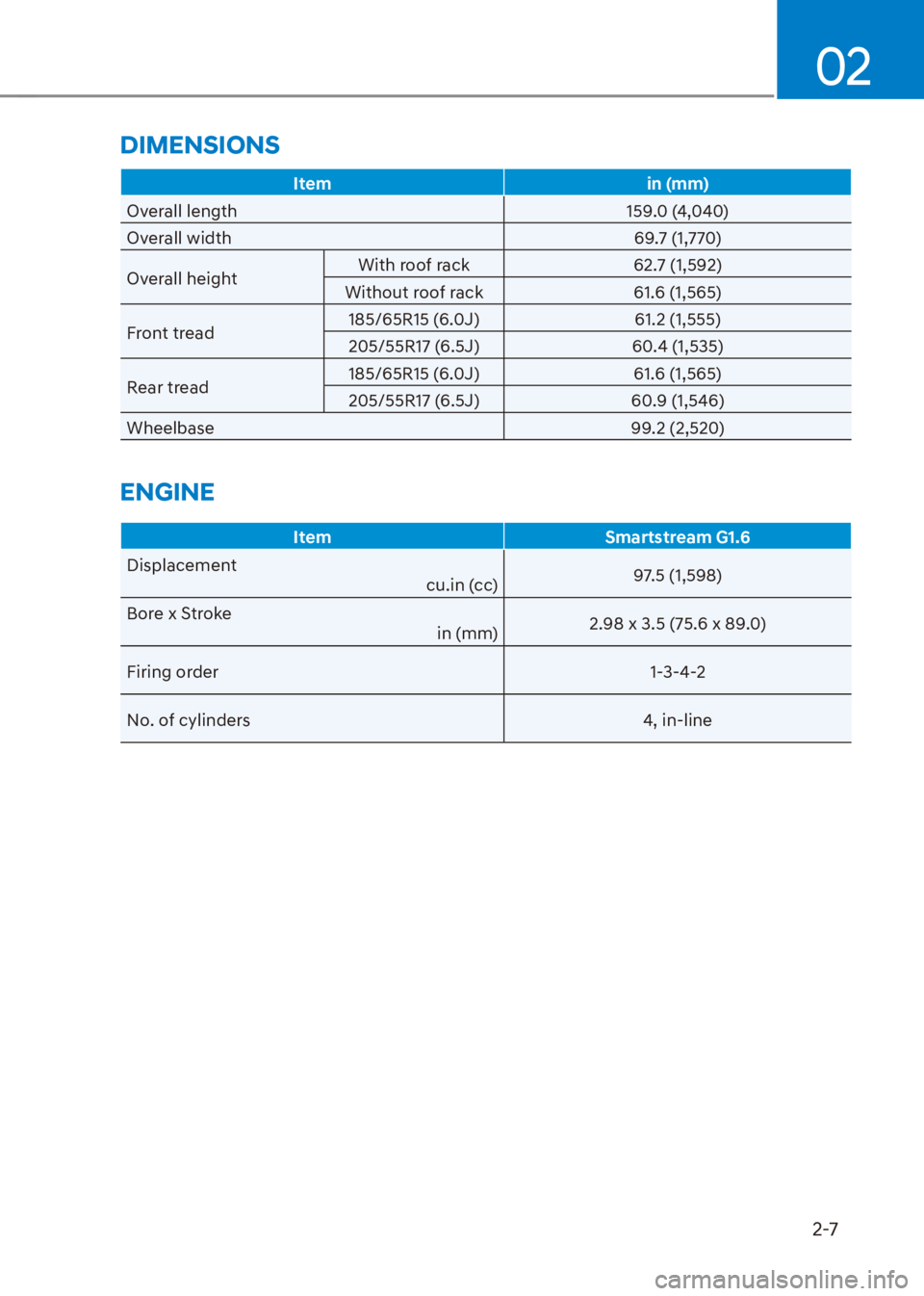

DIMENSIONS
Itemin (mm)
Overall length 159.0 (4,040)
O
verall width 69.7 (1,770)
Overall height With roof rack
62.7 (1,592)
Without roof rack 61.6 (1,565)
Front tread 185/65R15 (6.0J)
61.2 (1,555)
205/55R17 (6.5J) 60.4 (1,535)
Rear tread 185/65R15 (6.0J)
61.6 (1,565)
205/55R17 (6.5J) 60.9 (1,546)
Wheelbase 99.2 (2,520)
ENGINE
ItemSmartstream G1.6
Displacement cu.in (
cc)97.5 (1,598)
Bore x Stroke in (mm)2.98 x 3.5 (75.6 x 89.0)
Firing order 1-3-4-2
No. of cylinders 4, in-line

Vehicle Information2-8
BULB WATTAGE
Light bulb Bulb type Wattage
Front T
ype A
Headlamp (High/Low) HB3
65
Parking lamp W5W5
Type B Headlamp
HB365
Daytime running lamp (DRL)/parking lamp LED
LED
Cornering lamp H755
Type C Headlamp (High/low) LED
LED
Daytime running lamp (DRL)/parking lamp LED
LED
Cornering lamp H755
Turn signal lamp 2357NA 28/8
Side marker W5W5
Side repeater lamp WY5W5
Side repeater lamp (Outside mirror) LEDLED
Rear Type A
Stop/tail lamp P21/5W 21/5
Turn signal lamp 27W 7
Side marker --
Type B Stop/tail lamp
LEDLED
Tail lamp LEDLED
Side marker LEDLED
Turn signal lamp PY21W 21
License plate lamp W5W5
Back up lamp W16W16
High mounted stop lamp W16W16
Interior Map lamp
Type A
W10W10
Type B FESTOON 8
Room lamp FESTOON 8
Vanity mirror lamp FESTOON 5
Luggage compartment lamp FESTOON 8

02
2-9
TIRES AND WHEELS
Item Tire SizeWheel
Size Inflation pressure kPa (psi)
Wheel lug
nut torque kgf·m
(lbf·ft, N·m)
Normal load
*1Maximum load
Front Rear Front Rear
Full size tire 185/65 R15
6.0Jx15 250 (36) 250 (36) 250 (36) 250 (36)
11~13
(79~94,
107~127)
205/55 R17 6.5Jx17 230 (33) 230 (33) 230 (33) 230 (33)
Compact
spare tire
(if equipped) T125/80 D15 4Tx15 420 (60) 420 (60) 420 (60) 420 (60)
T125/80 D16 4Tx16 420 (60) 420 (60) 420 (60) 420 (60)
*1 : Normal load: Up to 3 persons
NOTICE

[ It is permissible to add 3 psi to the standard tire pressure specification if colder
temperatures are expected soon.
Tires typically loose 1psi (7kPa) for every 12°F temperature drop. If extreme
temperature variations are expected, recheck your tire pressure as necessary to
keep them properly inflated.

[ An air pressure generally decreases, as you drive up to a high-altitude area above
sea level. Thus, if you plan to drive a high-altitude area, check the tire pressures
in advance. If necessary, inflate them to a proper level. (Air inflation per altitude:
+2.4 psi/1 mile)
CAUTION

[When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.

[ When replacing tires, ALWAYS use the same size, type, construction and tread
pattern supplied with the vehicle for all tires.

Vehicle Information2-10

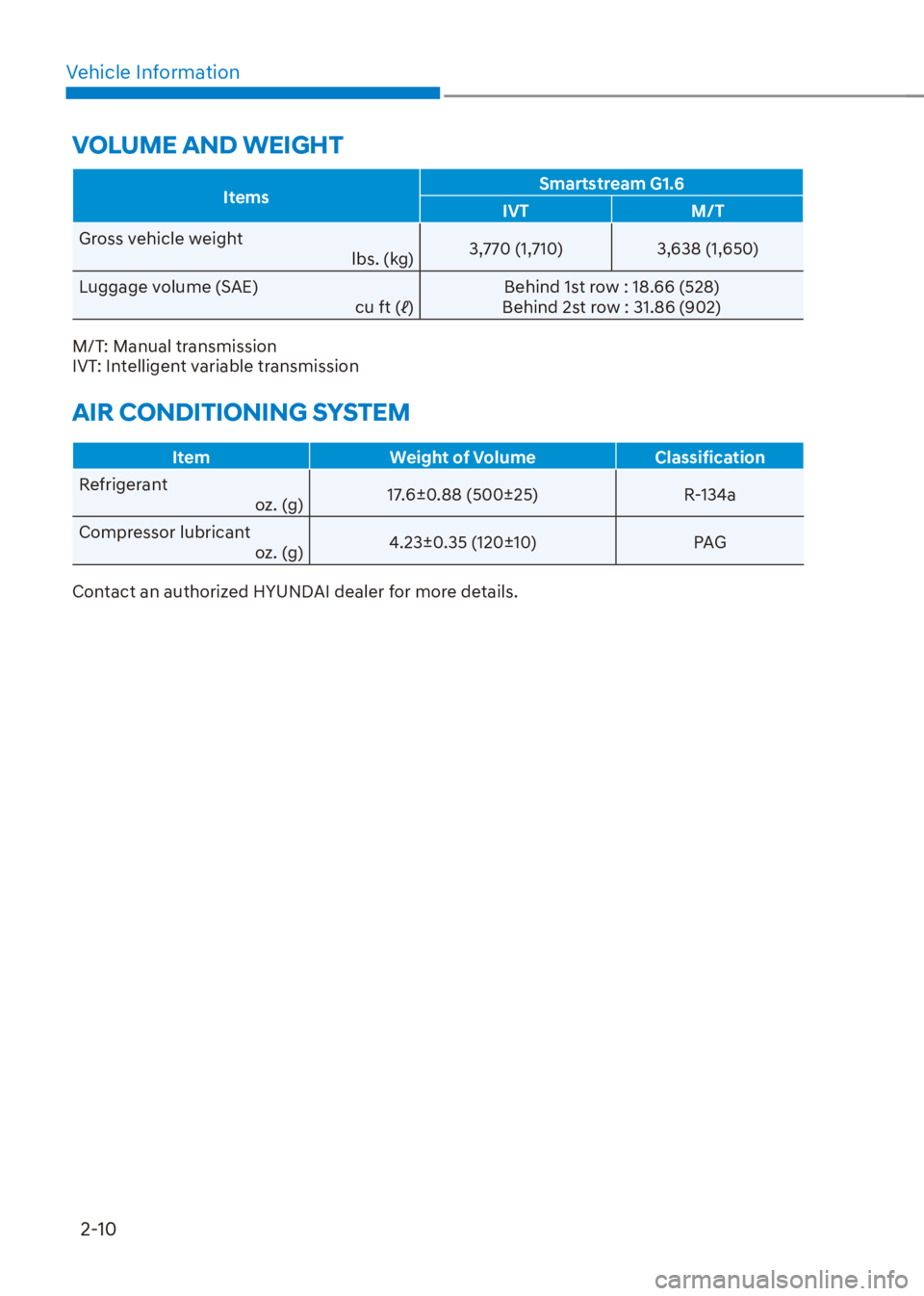

VOLUME AND WEIGHT
Items Smartstream G1.6
IVT M/T
Gross vehicle weight lbs. (k
g)3,770 (1,710)
3,638 (1,650)
Luggage volume (SAE) cu ft (
b)Behind 1st row : 18.66 (528)
Behind 2st row : 31.86 (902)
M/T: Manual transmission
IVT: Intelligent variable transmission
AIR CONDITIONING SYSTEM
Item Weight of Volume Classification
Refrigerant o
z. (g)17.6±0.88 (500±25)
R-134a
Compressor lubricant oz. (g)4.23±0.35 (120±10)
PAG
Contact an authorized HYUNDAI dealer for more details.

02
2-11
RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only
lubricants of the proper quality. The correct lubricants also help promote engine
efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolumeClassification
Engine oil
*1 *2
(drain and refill)
Smartstream G1.6 4.02 US qt. (3.8
b) API SN PLUS/SP or ILSAC GF-6
Manual transmission fluid 1.59 ~ 1.69 US qt.
(1.5 ~ 1.6
b) HK SYN MTF 70W (SK)
SPIRAX S6 GHME 70W MTF
(H.K.SHELL)
GS MTF HD 70W (GS CALTEX)
API GL-4, SAE 70W, TGO-9
Intelligent variable transmission
fluid 6.34 US qt. (6.7
b) CVTF (SP-CVT1)
*3
CoolantM/T 5.94 US qt. (5.62
b)
Mixture of antifreeze and water
(Phosphate-based Ethylene glycol
coolant for aluminum radiator)
IVT 6.32 US qt. (5.78
b)
Brake/clutch fluid 0.74 ~ 0.85 US qt.
(0.7 ~ 0.8
b) SAE J1704 DOT-4 LV, FMVSS 116
DOT-4, ISO4925 CLASS-6
Fuel 11.89 US gal. (45
b)Refer to “Fuel requirements” in
chapter 1.
M/T: Manual transmission
IVT: Intelligent variable transmission
*1 : Refer to the recommended SAE viscosity numbers on page 12.
*2 : Requires grade engine oil.
If a lower grade engine oil (mineral oil including Semi-synthetic) is used, then the engine
oil and engine oil filter must be replaced as indicated severe maintenance condition.
*3 : Use only specified genuine Intelligent variable transmission fluid. The use of non-
specified fluid (even marked as compatible with genuine) could result in shift quality
deterioration and vibrations, eventually, the transmission failure.
