2023 HYUNDAI VENUE Owners Manual

While Driving6-28
OQX060079N
The drive mode may be selected
according to the driver's preference or
road condition.
The system resets to be in the NORMAL
mode, when the engine is restarted.
Information
If there is a problem with the instrument
cluster, the drive mode will be in
NORMAL mode and may not change to
SPORT mode.
The mode changes, as below, whenever
the DRIVE MODE button is pressed. NORMAL SNOW
SPOR
T
OQX049037NOQX049038N
OQX049039N
NORMAL Mode
In NORMAL mode the engine and
transmission control logic work
together to provide regular daily driving
performance with some fuel efficiency.

[When NORMAL mode is selected, it
is not displayed on the instrument
cluster.
'5,9(02'(,17(*5$7('&21752/6<67(0

06
6-29
SPORT Mode
SPORT mode manages
the driving dynamics by
automatically adjusting
the steering effort, and the
engine and transmission
control logic for enhanced
driving performance.

[ When SPORT mode is selected by
pressing the DRIVE MODE button, the
SPORT indicator will illuminate.

[ Whenever the engine is restarted,
the Drive Mode will revert back to
NORMAL mode. If SPORT mode is
desired, re-select SPORT mode from
the DRIVE MODE button.

[ When SPORT mode is activated:
- The engine rpm will tend to remain a little higher for a brief time even
after releasing the accelerator. This
is a typical when the SPORT mode is
activated.
- Upshifts are delayed when accelerating
Information
In SPORT mode, the fuel efficiency may
decrease.
SNOW Mode
SNOW mode offers special
traction tuning for snow
optimizing available traction
in adverse conditions. Snow
mode adjusts left and right
wheel slip control, engine
torque and shift patterns
according to available
traction levels.
WARNING
Snow mode is designed base on 2WD (2
Wheel Drive), Do not drive in condition
that exceed the vehicles intended
design.
Invalid mode selection can lead to loss
of traction and skidding, particularly
on slippery roads, this can cause you to
lose control of the vehicle, which can
lead to accidents and serious injuries.

While Driving6-30
LCD Display Message
Transmission Hot! Park with Engine
On
OJS058137L
OJS058138L

[ Under certain conditions, such as
harsh driving conditions (mud or sand
road), the transmission temperatures
will increase excessively. Finally the
transmission could be overheated.

[ If the vehicle continues to be driven
and the transmission temperatures
reach the maximum temperature
limit, the "Transmission hot! Park with
engine On" warning will be displayed.
When this occurs the transmission is
disabled until the transmission cools
to normal temperatures.

[ The warning will display a time to wait
for the transmission to cool.

[ If this occurs, pull over to a safe
location, stop the vehicle with the
engine running, apply the brakes and
shift the vehicle to P (Park), and allow
the transmission to cool.

[ When the message "Transmission
cooled down. Resume driving"
appears you can continue to drive
your vehicle.

[ When possible, drive the vehicle
smoothly.

06
6-31
System Description
Blind-Spot Collision Warning
Blind-Spot Collision Warning (BCW)
system uses radar sensors in the rear
bumper to monitor and warn the driver
of an approaching vehicle in the driver's
blind spot area.
1. Blind-Spot Area
OQX059143N
The blind spot detection range varies
relative to vehicle speed.
Note that if your vehicle is traveling
much faster than the vehicles around
you, the warning will not occur.
2. Closing at high speed
OQX059060L
Blind-Spot Collision Warning system
will alert you when it detects a vehicle is
approaching in an adjacent lane at a high
rate of speed. If the driver activates the
turn signal when the system detects an
oncoming vehicle, the system sounds an
audible alert.
WARNING

[Always be aware of road conditions
while driving and be alert for
unexpected situations even though
Blind-Spot Collision Warning system
is operating.

[ Blind-Spot Collision Warning system
is supplemental systems to assist
you. Do not entirely rely on the
systems. Always pay attention, while
driving, for your safety.

[ Blind-Spot Collision Warning system
is not a substitute for proper and safe
driving. Always drive safely and use
caution when changing lanes.
Blind-Spot Collision Warning
system may not detect every object
alongside the vehicle.
%/,1'

While Driving6-32

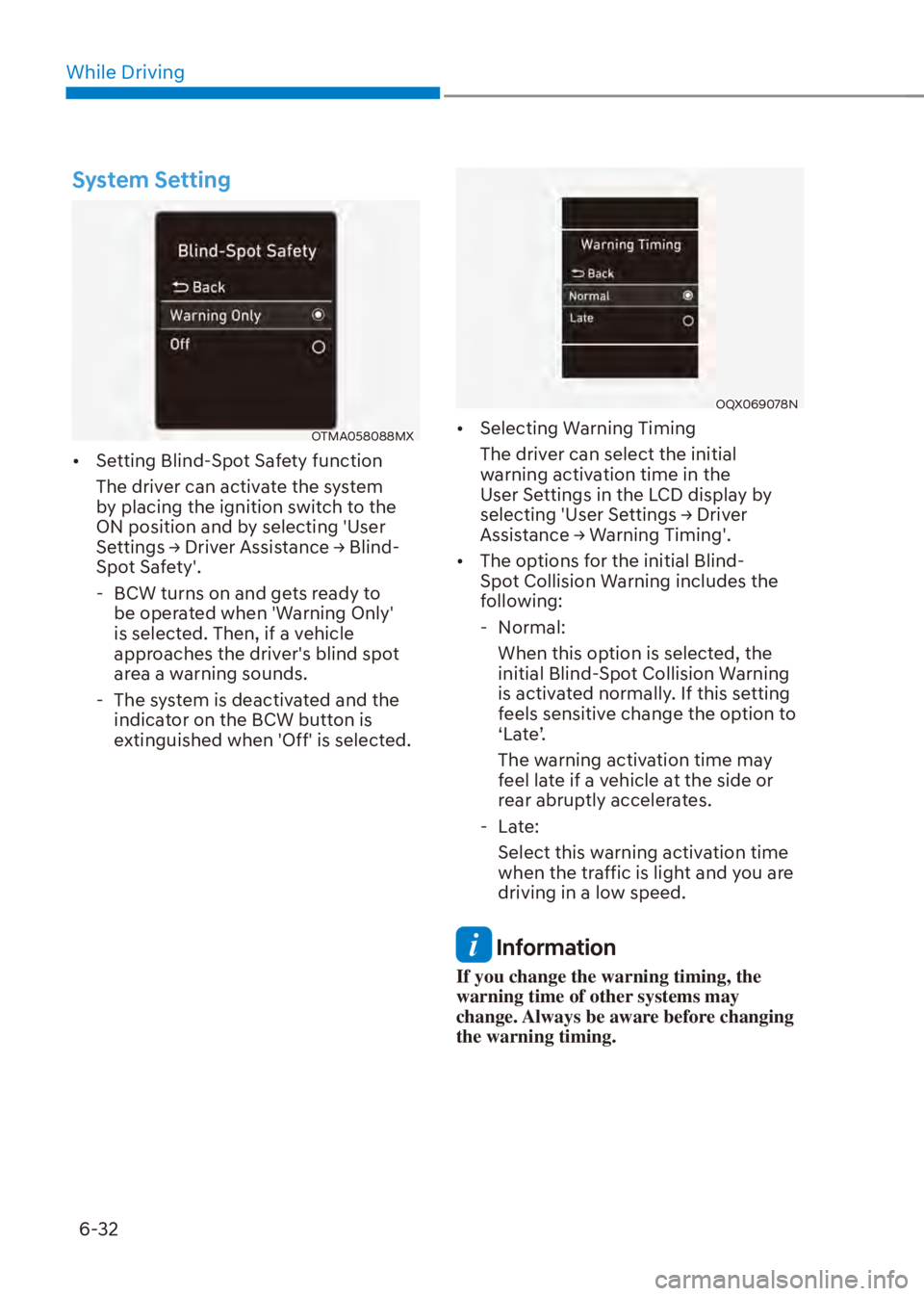

System Setting
OTMA058088MX

[ Setting Blind-Spot Safety function
The driver can activate the system
by placing the ignition switch to the
ON position and by selecting 'User
6HWWLQJV

06
6-33
Warning and System Control
Blind-Spot Collision Warning System
„Left side
OQX069036L
„Right side
OQX069008L
First stage alert
If a vehicle is detected within the
boundary o
f the system, a yellow
warning light will illuminate on the outer
side view mirror.
If the detected vehicle is no longer within
the blind spot area, the warning will turn
off according to the driving conditions of
the vehicle.
„Left side
OQX069035L
„Right side
OQX069009L[A] : Warning sound
Second stage alert
A warning chime to alert the driver will
activ
ate when:
1. A vehicle has been detected in the blind spot area by the radar system
AND.
2. The turn signal is applied (same side as where the vehicle is being
detected).
When this alert is activated, the warning
light on the outer side view mirror. Will
also blink. And a warning chime will
sound.
If you turn off the turn signal indicator,
the second stage alert will be
deactivated.
If the detected vehicle is no longer within
the blind spot area, the warning will turn
off according to the driving conditions of
the vehicle.

While Driving6-34
WARNING

[ The warning light on the outer side
view mirror will illuminate whenever
a vehicle is detected at the rear side
by the system.
To avoid accidents, do not focus only
on the warning light and neglect to
see the surroundings of the vehicle.

[ Drive safely even though the vehicle
is equipped with Blind-Spot Collision
Warning system. Do not solely
rely on the system but check your
surroundings before changing lanes
or backing the vehicle up.

[ The system may not alert the driver
in some situations due to system
limitations so always check your
surroundings while driving.
CAUTION

[Always pay attention to road and
traffic conditions while driving,
whether or not the warning light
on the outside rearview mirror
illuminates or there is a warning
alarm.

[ Playing the vehicle audio system at
high volume may prevent occupants
from hearing Blind-Spot Collision
Warning system warning sounds.

[ If any other warning sound such as
seat belt warning chime is already
generated, Blind-Spot Collision
Warning system warning may not
sound.
Detecting Sensor
OQX069011L
The rear corner radars are located inside
the rear bumper for detecting the side and
rear areas. Always keep the rear bumper
clean for proper operation of the system.
NOTICE

[The system may not work properly
when the bumper has been
damaged, or if the rear bumper has
been replaced or repaired.

[ The sensing range differs somewhat
according to the width of the road.
When the road is narrow, the system
may detect other vehicles in the next
lane.

[ The system may turn off if interfered
by electromagnetic waves.

[ Always keep the sensors clean.

[ NEVER disassemble the sensor
component or apply any impact on
the sensor component.

[ Be careful not to apply unnecessary
force on the radar sensor or sensor
cover. If the sensor is forcibly moved
out of proper alignment, the system
may not operate correctly. In this
case, a warning message may not be
displayed. Have the vehicle inspected
by an authorized HYUNDAI dealer.

[ Do not apply foreign objects such as
a bumper sticker or a bumper guard
near the radar sensor or apply paint
to the sensor area. Doing so may
adversely affect the performance of
the sensor.

06
6-35
Warning Message
OIK057092L
Blind-Spot Collision Warning system
disabled. Radar blocked
This warning message may appear when: -
One or both of the sensors on the rear
bumper is blocked by dirt or snow or a
foreign object.
- Driving in rural areas where the sensor does not detect another vehicle for an
extended period of time.

- When there is inclement weather such
as heavy snow or rain.
If any of these conditions occur, the light
on the BCW switch and the system will
turn off automatically.
When BCW canceled warning message
is displayed in the cluster, check to make
sure that the rear bumper is free from
any dirt or snow in the areas where the
sensor is located. Remove any dirt, snow,
or foreign material that could interfere
with the radar sensors.
After any dirt or debris is removed, the
system should operate normally after
about 10 minutes of driving the vehicle.
If the system still does not operate
normally have your vehicle inspected by
an authorized HYUNDAI dealer.
OAD058169L
Check Blind-Spot Collision Warning
system
If there is a problem with BCW system,
a w
arning message will appear and the
light on the switch will turn off. The
system will turn off automatically. Have
your vehicle inspected by an authorized
HYUNDAI dealer.
