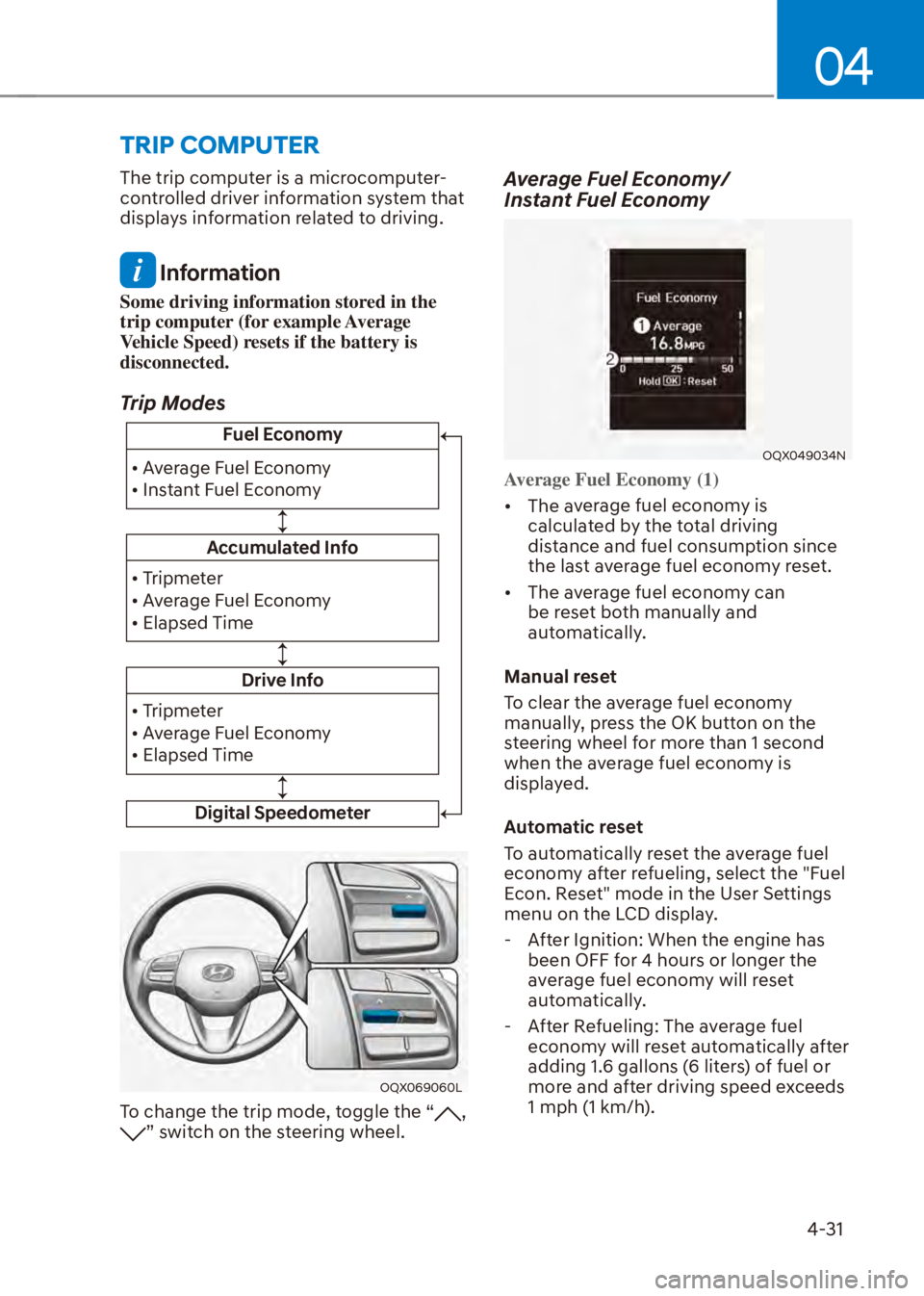

The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving.
Information
Some driving information stored in the
trip computer (for example Average
Vehicle Speed) resets if the battery is
disconnected.
Trip Modes

[Average Fuel Economy

[Instant Fuel EconomyFuel Economy
Accumulated Info
Drive Info
Digital Speedometer

[Tripmeter

[Average Fuel Economy

[Elapsed Time

[Tripmeter

[Average Fuel Economy

[Elapsed Time
OQX069060L
To change the trip mode, toggle the “, ” switch on the steering wheel.
Average Fuel Economy/
Instant Fuel Economy
OQX049034N
Average Fuel Economy (1)

[
The a
verage fuel economy is
calculated by the total driving
distance and fuel consumption since
the last average fuel econ omy reset.

[ The average fuel economy can
be reset both manually and
automatically.
Manual reset
To clear the average fuel economy
manually, press the OK button on the
steering wheel for more than 1 second
when the average fuel economy is
displayed.
Automatic reset
To automatically reset the average fuel
economy after refueling, select the "Fuel
Econ. Reset" mode in the User Settings
menu on the LCD display.
- After Ignition: When the engine has
been OFF for 4 hours or longer the
average fuel economy will reset
automatically.
- After Refueling: The average fuel economy will reset automatically after
adding 1.6 gallons (6 liters) of fuel or
more and after driving speed exceeds
1 mph (1 km/h).
TRIP COMPUTER

05
5-17
STEERING WHEEL
Electric Power Steering (EPS)
The system assists you with steering the
vehicle. If the vehicle is turned off or
if the power steering system becomes
inoperative, you may still steer the
vehicle, but it will require increased
steering effort.
Also, the steering effort becomes heavier
as the vehicle’s speed increases and
becomes lighter as the vehicle’s speed
decreases for better control of the
steering wheel.
Should you notice any change in the
effort required to steer during normal
vehicle operation, have the system
checked by an authorized HYUNDAI
dealer.
CAUTION

[If the Electric Power Steering System
does not operate normally, the
warning light (
) will illuminate
on the instrument cluster. You may
steer the vehicle, but it will require
increased steering efforts. Take your
vehicle to an authorized HYUNDAI
dealer and have the system checked
as soon as possible.

[ When an abnormality is detected
in the electric power steering
system, to prevent a an accident, the
steering assist function may become
inoperative. At this time, the warning
light turns on or blinks on the cluster.
The steering wheel may become
difficult to control or operate. Have
your vehicle checked immediately,
after moving the vehicle to a safe
area.
Information
The following symptoms may occur during
normal vehicle operation:

[The steering effort may be high
immediately after placing the ignition
switch in the ON position.
This happens as the system performs
the EPS system diagnostics. When the
diagnostics are completed, the steering
wheel effort will return to its normal
condition.

[ When the battery voltage is low, you
might have to put more steering effort.
However, it is a temporary condition so
that it will return to normal condition
after charging the battery.

[ A click noise may be heard from the
EPS relay after the ignition switch is in
the ON or LOCK/OFF position.

[ Motor noise may be heard when the
vehicle is at a stop or at a low driving
speed.

[ When you operate the steering wheel
in low temperatures, abnormal noise
may occur. If the temperature rises, the
noise will disappear. This is a normal
condition.

[ When an error is detected from the
EPS, the steering effort assist function
may become inoperative in order to
prevent fatal accidents. Instrument
cluster warning lights may be on or the
steering effort may be high. If these
symptoms occur, drive the vehicle to
a safe area as soon as it is safe to do
so. Have the system checked by an
authorized HYUNDAI dealer as soon
as possible.

While Driving6-14

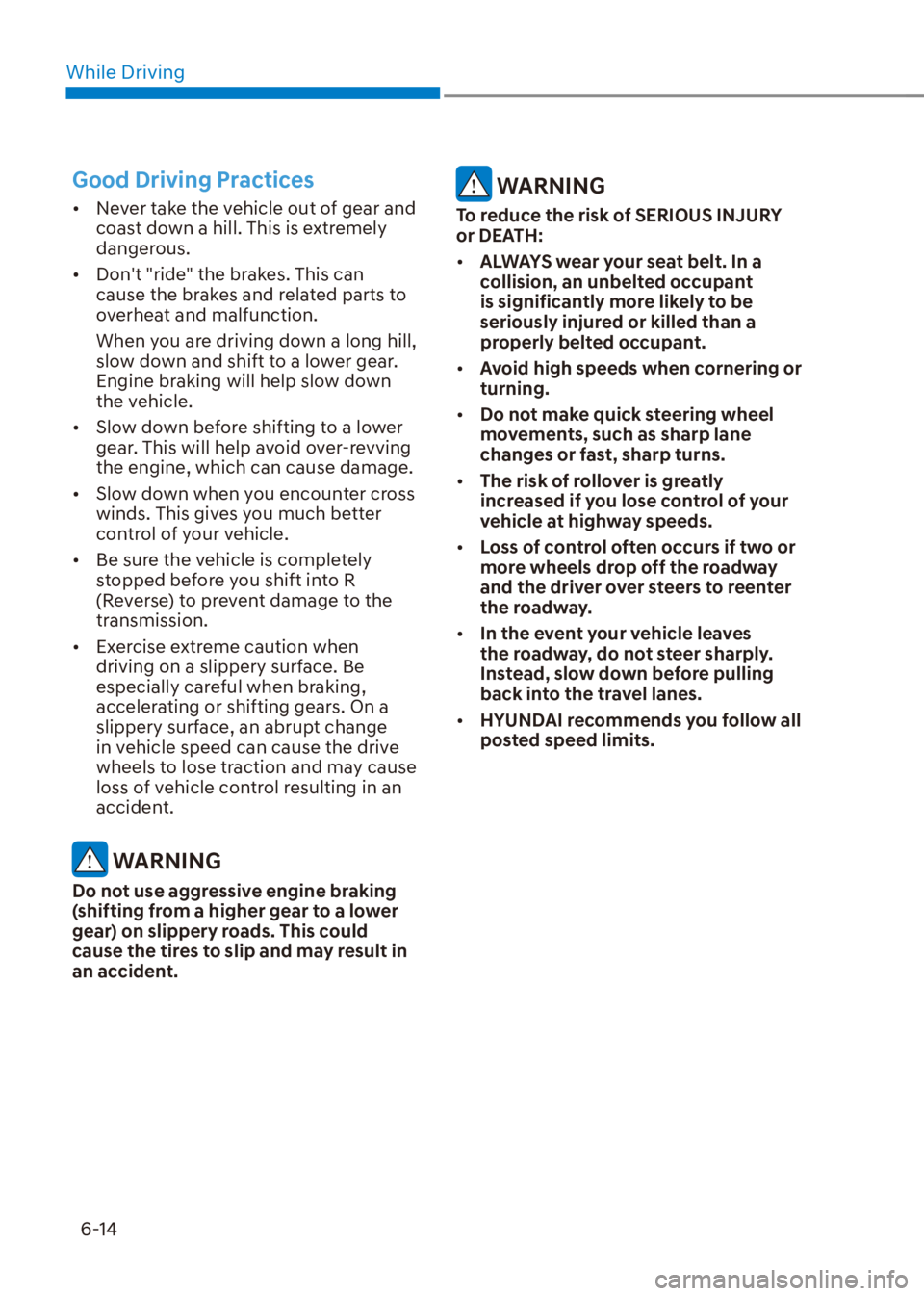

Good Driving Practices

[ Never take the vehicle out of gear and
coast down a hill. This is extremely
dangerous.

[ Don't "ride" the brakes. This can
cause the brakes and related parts to
overheat and malfunction.
When you are driving down a long hill,
slow down and shift to a lower gear.
Engine braking will help slow down
the vehicle.

[ Slow down before shifting to a lower
gear. This will help avoid over-revving
the engine, which can cause damage.

[ Slow down when you encounter cross
winds. This gives you much better
control of your vehicle.

[ Be sure the vehicle is completely
stopped before you shift into R
(Reverse) to prevent damage to the
transmission.

[ Exercise extreme caution when
driving on a slippery surface. Be
especially careful when braking,
accelerating or shifting gears. On a
slippery surface, an abrupt change
in vehicle speed can cause the drive
wheels to lose traction and may cause
loss of vehicle control resulting in an
accident.
WARNING
Do not use aggressive engine braking
(shifting from a higher gear to a lower
gear) on slippery roads. This could
cause the tires to slip and may result in
an accident.
WARNING
To reduce the risk of SERIOUS INJURY
or DEATH:

[ALWAYS wear your seat belt. In a
collision, an unbelted occupant
is significantly more likely to be
seriously injured or killed than a
properly belted occupant.

[ Avoid high speeds when cornering or
turning.

[ Do not make quick steering wheel
movements, such as sharp lane
changes or fast, sharp turns.

[ The risk of rollover is greatly
increased if you lose control of your
vehicle at highway speeds.

[ Loss of control often occurs if two or
more wheels drop off the roadway
and the driver over steers to reenter
the roadway.

[ In the event your vehicle leaves
the roadway, do not steer sharply.
Instead, slow down before pulling
back into the t ravel lanes.

[ HYUNDAI recommends you follow all
posted speed limits.

06
6-19

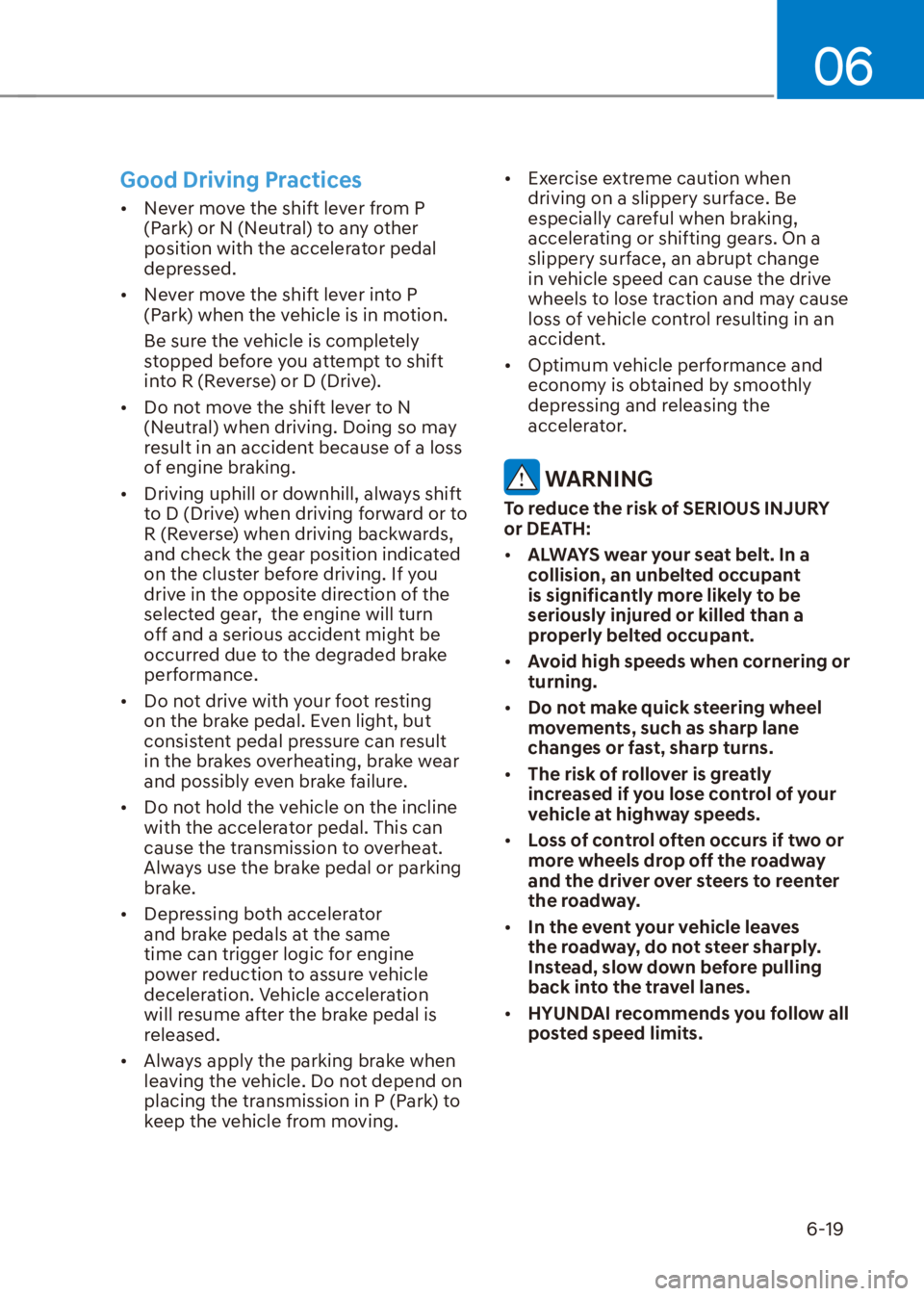

Good Driving Practices

[Never move the shift lever from P
(Park) or N (Neutral) to any other
position with the accelerator pedal
depressed.

[ Never move the shift lever into P
(Park) when the vehicle is in motion.
Be sure the vehicle is completely
stopped before you attempt to shift
into R (Reverse) or D (Drive).

[ Do not move the shift lever to N
(Neutral) when driving. Doing so may
result in an accident because of a loss
of engine braking.

[ Driving uphill or downhill, always shift
to D (Drive) when driving forward or to
R (Reverse) when driving backwards,
and check the gear position indicated
on the cluster before driving. If you
drive in the opposite direction of the
selected gear, the engine will turn
off and a serious accident might be
occurred due to the degraded brake
performance.

[ Do not drive with your foot resting
on the brake pedal. Even light, but
consistent pedal pressure can result
in the brakes overheating, brake wear
and possibly even brake failure.

[ Do not hold the vehicle on the incline
with the accelerator pedal. This can
cause the transmission to overheat.
Always use the brake pedal or parking
brake.

[ Depressing both accelerator
and brake pedals at the same
time can trigger logic for engine
power reduction to assure vehicle
deceleration. Vehicle acceleration
will resume after the brake pedal is
released.

[ Always apply the parking brake when
leaving the vehicle. Do not depend on
placing the transmission in P (Park) to
keep the vehicle from moving.
[
Exercise extreme caution when
driving on a slippery surface. Be
especially careful when braking,
accelerating or shifting gears. On a
slippery surface, an abrupt change
in vehicle speed can cause the drive
wheels to lose traction and may cause
loss of vehicle control resulting in an
accident.

[ Optimum vehicle performance and
economy is obtained by smoothly
depressing and releasing the
accelerator.
WARNING
To reduce the risk of SERIOUS INJURY
or DEATH:

[ALWAYS wear your seat belt. In a
collision, an unbelted occupant
is significantly more likely to be
seriously injured or killed than a
properly belted occupant.

[ Avoid high speeds when cornering or
turning.

[ Do not make quick steering wheel
movements, such as sharp lane
changes or fast, sharp turns.

[ The risk of rollover is greatly
increased if you lose control of your
vehicle at highway speeds.

[ Loss of control often occurs if two or
more wheels drop off the roadway
and the driver over steers to reenter
the roadway.

[ In the event your vehicle leaves
the roadway, do not steer sharply.
Instead, slow down before pulling
back into the t ravel lanes.

[ HYUNDAI recommends you follow all
posted speed limits.

06
6-23

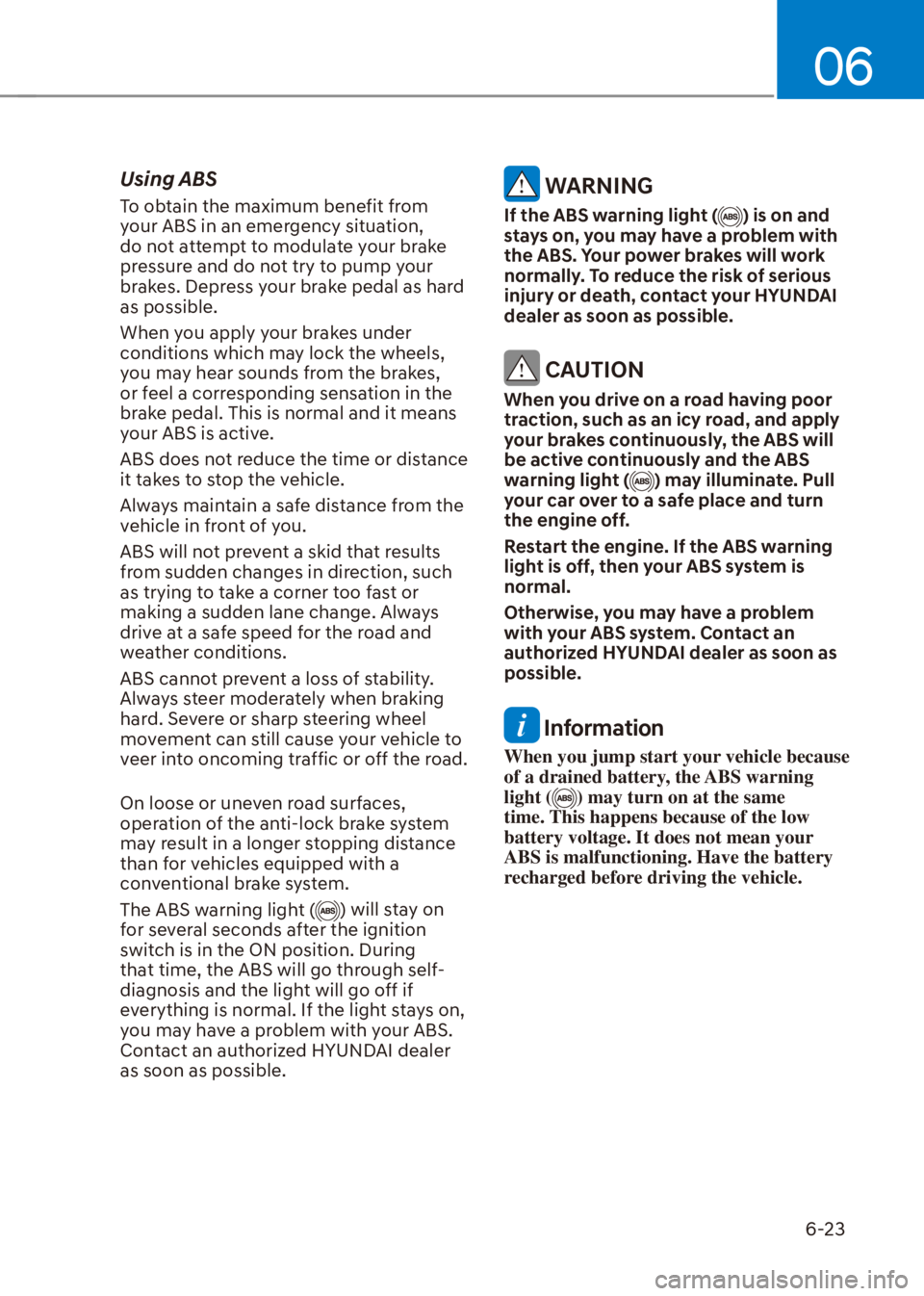

Using ABS
To obtain the maximum benefit from
your ABS in an emergency situation,
do not attempt to modulate your brake
pressure and do not try to pump your
brakes. Depress your brake pedal as hard
as possible.
When you apply your brakes under
conditions which may lock the wheels,
you may hear sounds from the brakes,
or feel a corresponding sensation in the
brake pedal. This is normal and it means
your ABS is active.
ABS does not reduce the time or distance
it takes to stop the vehicle.
Always maintain a safe distance from the
vehicle in front of you.
ABS will not prevent a skid that results
from sudden changes in direction, such
as trying to take a corner too fast or
making a sudden lane change. Always
drive at a safe speed for the road and
weather conditions.
ABS cannot prevent a loss of stability.
Always steer moderately when braking
hard. Severe or sharp steering wheel
movement can still cause your vehicle to
veer into oncoming traffic or off the road.
On loose or uneven road surfaces,
operation of the anti-lock brake system
may result in a longer stopping distance
than for vehicles equipped with a
conventional brake system.
The ABS warning light (
) will stay on
for several seconds after the ignition
switch is in the ON position. During
that time, the ABS will go through self-
diagnosis and the light will go off if
everything is normal. If the light stays on,
you may have a problem with your ABS.
Contact an authorized HYUNDAI dealer
as soon as possible.
WARNING
If the ABS warning light () is on and
stays on, you may have a problem with
the ABS. Your power brakes will work
normally. To reduce the risk of serious
injury or death, contact your HYUNDAI
dealer as soon as possible.
CAUTION
When you drive on a road having poor
traction, such as an icy road, and apply
your brakes continuously, the ABS will
be active continuously and the ABS
warning light (
) may illuminate. Pull
your car over to a safe place and turn
the engine off.
Restart the engine. If the ABS warning
light is off, then your ABS system is
normal.
Otherwise, you may have a problem
with your ABS system. Contact an
authorized HYUNDAI dealer as soon as
possible.
Information
When you jump start your vehicle because
of a drained battery, the ABS warning
light (
) may turn on at the same
time. This happens because of the low
battery voltage. It does not mean your
ABS is malfunctioning. Have the battery
recharged before driving the vehicle.

While Driving6-72

[ Do not remove or damage the related
parts of LKA system.

[ You may not hear a warning sound
of LKA system because of excessive
audio sound.

[ Do not place objects on the
dashboard that reflects light such as
mirrors, white paper, etc. The system
may malfunction if the sunlight is
reflected.

[ Always have your hands on the
steering wheel while LKA system is
activated. If you continue to drive
with your hands off the steering
wheel after the "Keep hands on
steering wheel" warning message
appears, the system will turn off
automatically.

[ The steering wheel is not
continuously controlled so if the
vehicle speed is at a higher speed
when leaving a lane the vehicle
may not be able to be controlled by
the system. The driver must always
follow the speed limit when using
the system.

[ If you attach objects to the steering
wheel, the system may not assist
steering or the hands off alarm may
not work properly. When you tow a
trailer, make sure that you turn off
LKA system.LKA System Operation
OQX069024L
To activate/deactivate LKA system:
With the ignition switch in the ON
position, press LKA system button
located on the instrument panel on the
left hand side of the steering wheel.
The indicator in the cluster display will
initially illuminate white. This indicates
LKA system is in the READY but NOT
ENABLED state.
The color of indicator will
change depending on the
condition of LKA system.
- White: Sensor does not detect lane lines or vehicle speed is under 40
MPH (64 km/h).
- Green: Sensor detects lane lines and the system is able to control vehicle
steering.

06
6-73
LKA System Operation
OQX069025L

[To see LKA system screen on the LCD
display in the cluster, select Drive
Assist mode (
). For more details,
refer to "LCD Display Modes" in
chapter 4.

[ When both lane lines are detected
and all the conditions to activate LKA
system are satisfied, a green steering
wheel indicator will illuminate and
LKA system indicator light will change
from white to green. This indicates
that LKA system is in the ENABLED
state and the steering wheel will be
able to be controlled.
WARNING
Lane Keeping Assist system is a system
to help prevent the driver from leaving
the lane. However, the driver should
not solely rely on the system but always
check the road conditions when driving.
„Lane marker undetected
OQX069025L
„Lane marker detected
OQX069081L

[If the system detects a lane line, the
color changes from gray to white.

[ If the system detects the left lane line,
the left lane line color will change
from gray to white.

[ If the system detects the right lane
line, the right lane line color will
change from gray to white.

[ Both lane lines must be detected for
the system to fully activate.

While Driving6-76
LKA system will not be in the ENABLED
state and the steering wheel will not be
assisted when:

[ The turn signal is turned on be
fore
changing a lane. If you change
lanes without the turn signal on, the
steering wheel might be controlled.

[ The vehicle is not driven in the middle
of the lane when the system is turned
on or right after changing a lane.

[ ESC (Electronic Stability Control) is
activated.

[ The vehicle is driven on a sharp curve.

[ Vehicle speed is below 40 MPH (60
km/h) and over 110 MPH (180 km/h).

[ The vehicle makes sharp lane
changes.

[ The vehicle brakes suddenly.

[ Only one lane line is detected.

[ The lane is very wide or narrow.

[ There are more than two lane lines on
the road. (e.g. construction area)

[ The vehicle is driven on a steep
incline.
Limitations of the System
LKA system may operate prematurely
even if the vehicle does not depart
from the intended lane, OR, LKA system
may not warn you if the vehicle leaves
the intended lane under the following
circumstances:
When the lane and road conditions are
poor

[It is difficult to distinguish the lane
marking from the road surface or the
lane marking is faded or not clearly
marked.

[ There are markings on the road
surface that look like a lane line that
is inadvertently being detected by the
camera.

[ The lane line is merged or divided.
(e.g. tollgate)

[ The lane number increases or
decreases or the lane marker are
crossing complicatedly.

[ There are more than two lane lines on
the road in front of you.

[ The lane line is very thick or thin.

[ The lanes ahead are not visible due
to rain, snow, water on the road,
damaged or stained road surface, or
other factors.

[ The shadow is on the lane marker by a
median strip, trees, etc.

[ The lanes are incomplete or the area is
in a construction zone.

[ There are crosswalk signs or other
symbols on the road.

[ The lane line in a tunnel is stained with
oil, etc.
