2023 HYUNDAI VENUE battery

01
1-7
Detergent Fuel Additives
HYUNDAI recommends that you use
good quality gasolines treated with
detergent additives such as TOP TIER
Detergent Gasoline, which help prevent
deposit formation in the engine. These
gasolines will help the engine run
cleaner and enhance performance of
the Emission Control System. For more
information on TOP TIER Detergent
Gasoline, please go to the website (www.
toptiergas.com).
For customers who do not use TOP Tier
Detergent Gasoline regularly, and have
problems starting or the engine does
not run smoothly, detergent-based
fuel additives that you can purchase
separately may be added to the gasoline.
If TOP TIER Detergent Gasoline is
not available, one bottle of additive
added to the fuel tank according to the
maintenance schedule is recommended
(refer to the Maintenance Schedule in
chapter 8).
Additives are available from your
authorized HYUNDAI dealer along with
information on how to use them. Do not
mix other additives.
Operation in foreign countries
If you are going to drive your vehicle in
another country, be sure to:

[Observe all regulations regarding
registration and insurance.

[ Determine that acceptable fuel is
available.
[
This vehicle should not be modified.
Modification of your vehicle could
affect its performance, safety or
durability and may even violate
governmental safety and emissions
regulations.
In addition, damage or performance
problems resulting from any
modification may not be covered
under warranty.

[ If you use unauthorized electronic
devices, it may cause the vehicle to
operate abnormally, wire damage,
battery discharge and fire. For your
safety, do not use unauthorized
electronic devices.
9(+,&/(%5($.
Ø,1
PROCESS
By following a few simple precautions for
the first 600 miles (1,000 km) you may
add to the performance, economy and
life of your vehicle.

[Do not race the engine.

[ While driving, keep your engine speed
(rpm, or revolutions per minute)
between 2,000 rpm and 4,000 rpm.

[ Do not maintain a single speed for
long periods of time, either fast or
slow. Varying engine speed is needed
to properly break-in the engine.

[ Avoid hard stops, except in
emergencies, to allow the brakes to
seat properly.
VEHICLE MODIFICATIONS

Foreword1-8

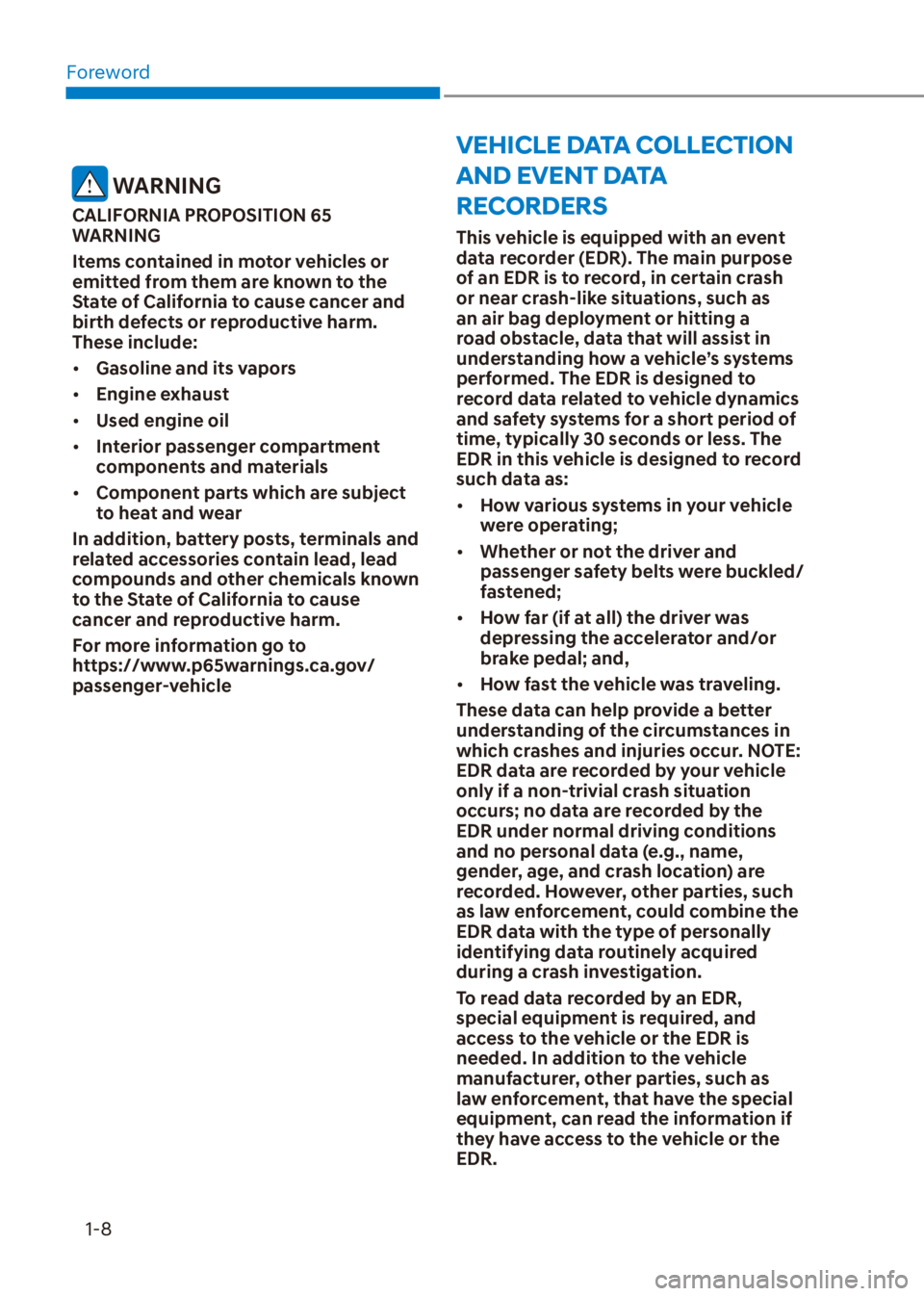

VEHICLE DATA COLLECTION
AND EVENT DATA
RECORDERS
This vehicle is equipped with an event
data recorder (EDR). The main purpose
of an EDR is to record, in certain crash
or near crash-like situations, such as
an air bag deployment or hitting a
road obstacle, data that will assist in
understanding how a vehicle’s systems
performed. The EDR is designed to
record data related to vehicle dynamics
and safety systems for a short period of
time, typically 30 seconds or less. The
EDR in this vehicle is designed to record
such data as:

[ How various systems in your vehicle
were operating;

[ Whether or not the driver and
passenger safety belts were buckled/
fastened;

[ How far (if at all) the driver was
depressing the accelerator and/or
brake pedal; and,

[ How fast the vehicle was traveling.
These data can help provide a better
understanding of the circumstances in
which crashes and injuries occur. NOTE:
EDR data are recorded by your vehicle
only if a non-trivial crash situation
occurs; no data are recorded by the
EDR under normal driving conditions
and no personal data (e.g., name,
gender, age, and crash location) are
recorded. However, other parties, such
as law enforcement, could combine the
EDR data with the type of personally
identifying data routinely acquired
during a crash investigation.
To read data recorded by an EDR,
special equipment is required, and
access to the vehicle or the EDR is
needed. In addition to the vehicle
manufacturer, other parties, such as
law enforcement, that have the special
equipment, can read the information if
they have access to the vehicle or the
EDR.
WARNING
CALIFORNIA PROPOSITION 65
WARNING
Items contained in motor vehicles or
emitted from them are known to the
State of California to cause cancer and
birth defects or reproductive harm.
These include:

[ Gasoline and its vapors

[ Engine exhaust

[ Used engine oil

[ Interior passenger compartment
components and materials

[ Component parts which are subject
to heat and wear
In addition, battery posts, terminals and
related accessories contain lead, lead
compounds and other chemicals known
to the State of California to cause
cancer and reproductive harm.
For more information go to
https://www.p65warnings.ca.gov/
passenger-vehicle

2-6
Vehicle Information

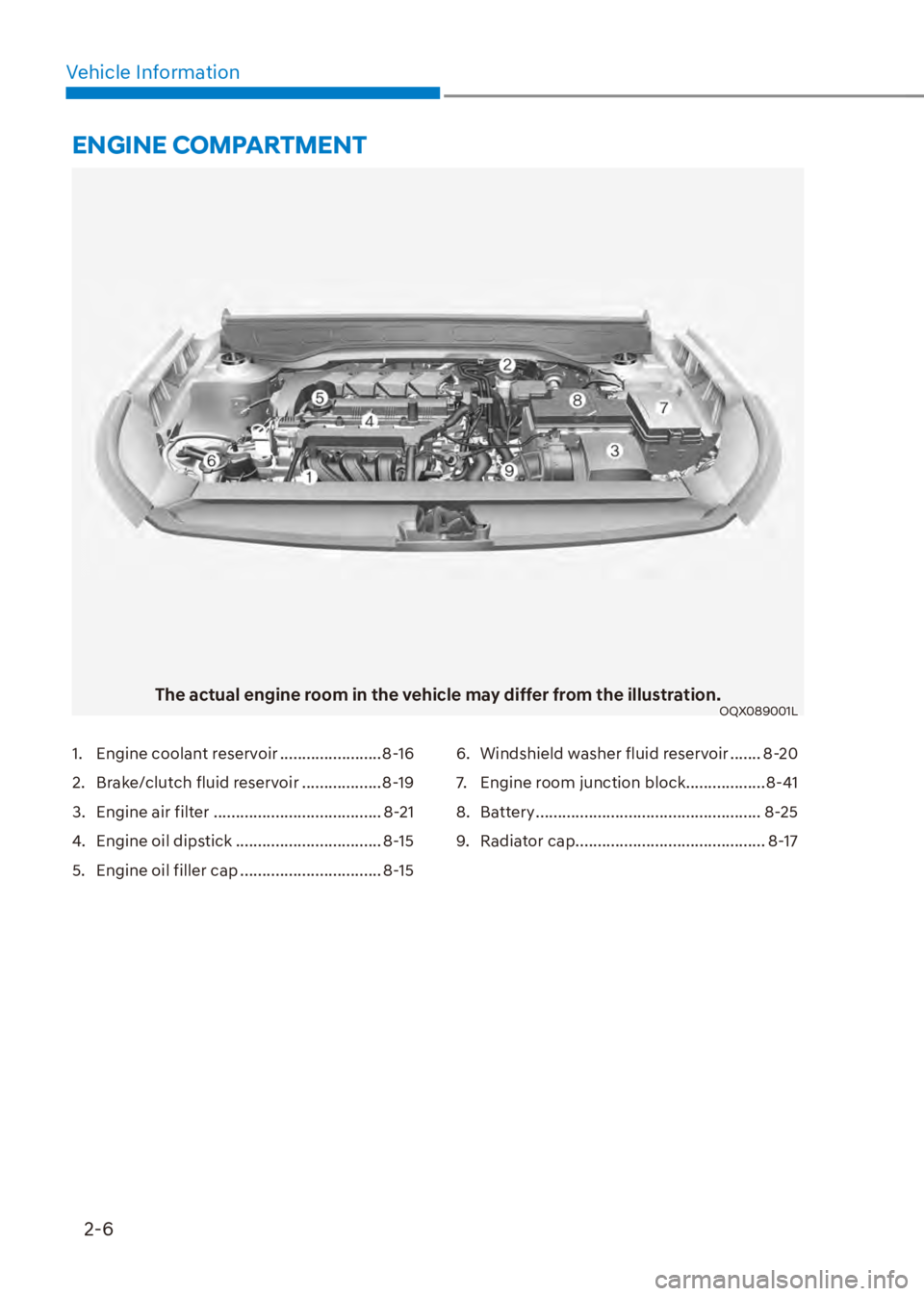

The actual engine room in the vehicle may differ from the illustration.OQX089001L
ENGINE COMPARTMENT
1. Engine coolant reservoir .......................8-16
2. Brake/clutch fluid reservoir ..................8-19
3. Engine air filter ...................................... 8-21
4. Engine oil dipstick ................................. 8-15
5. Engine oil filler cap ................................ 8-15
6. Windshield washer fluid reservoir ....... 8-20
7. Engine room junction block ..................8-41
8. Battery ................................................... 8-25
9. Radiator cap ........................................... 8-17

4
LCD Display Messages ........................................................................\
........................4-17Shift to P or N to Start Engine(for Smart Key System and Intelligent Variable
Transmission (IVT)) ........................................................................\
...........................4-17
Shift to P (for Smart Key System) ........................................................................\
.....4-17
Low Key Battery (for Smart Key System) .................................................................4-17
Press Brake Pedal to Start Engine (for Smart Key System) ....................................4-17
Key Not in Vehicle (for Smart Key System) ..............................................................4-17
Key Not Detected (for Smart Key System) ..............................................................4-17
Press START Button Again (for Smart Key System) ................................................4-17
Battery Discharging Due to External Electrical Devices ........................................4-17
Press Clutch Pedal to Start Engine (for Smart Key System and Manual
Transmission) .....................................................................\
...................................... 4-18
Press START Button with Key (for Smart Key System) ........................................... 4-18
Check BRAKE SWITCH Fuse (for Smart Key System) ............................................ 4-18
Door, Hood, Liftgate Open Indicator ...................................................................... 4-18
Sunroof Open ........................................................................\
................................... 4-18

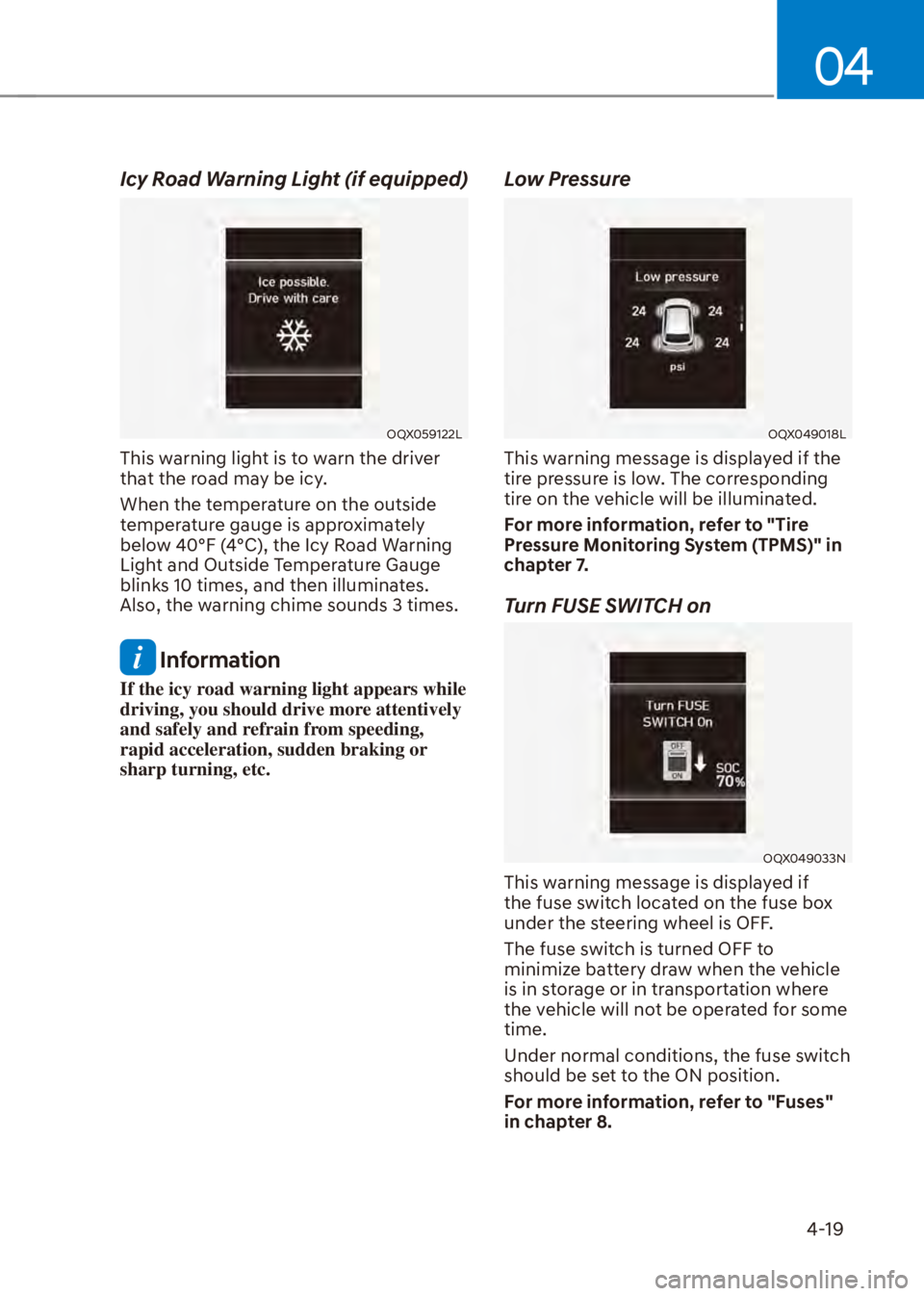

Icy Road Warning Light ........................................................................\
................... 4-19
Low Pressure ........................................................................\
.................................... 4-19
Turn FUSE SWITCH on ........................................................................\
..................... 4-19
Lights Mode........................................................................\
......................................4-20
Wiper ..................................................................\
......................................................4 -20
Low Fuel ........................................................................\
...........................................4-20
Engine Overheated ........................................................................\
..........................4-20
Check Headlight ........................................................................\
..............................4-20
Check High Beam Assist (HBA) System ..................................................................4-21
Check Blind-Spot Collision Warning (BCW) System ..............................................4-21
Check Forward Collision-Avoidance Assist System ...............................................4-21
Check Driver Attention Warning System .................................................................4-21
Check Lane Keeping Assist System ........................................................................\
.4-21

Instrument Cluster4-8

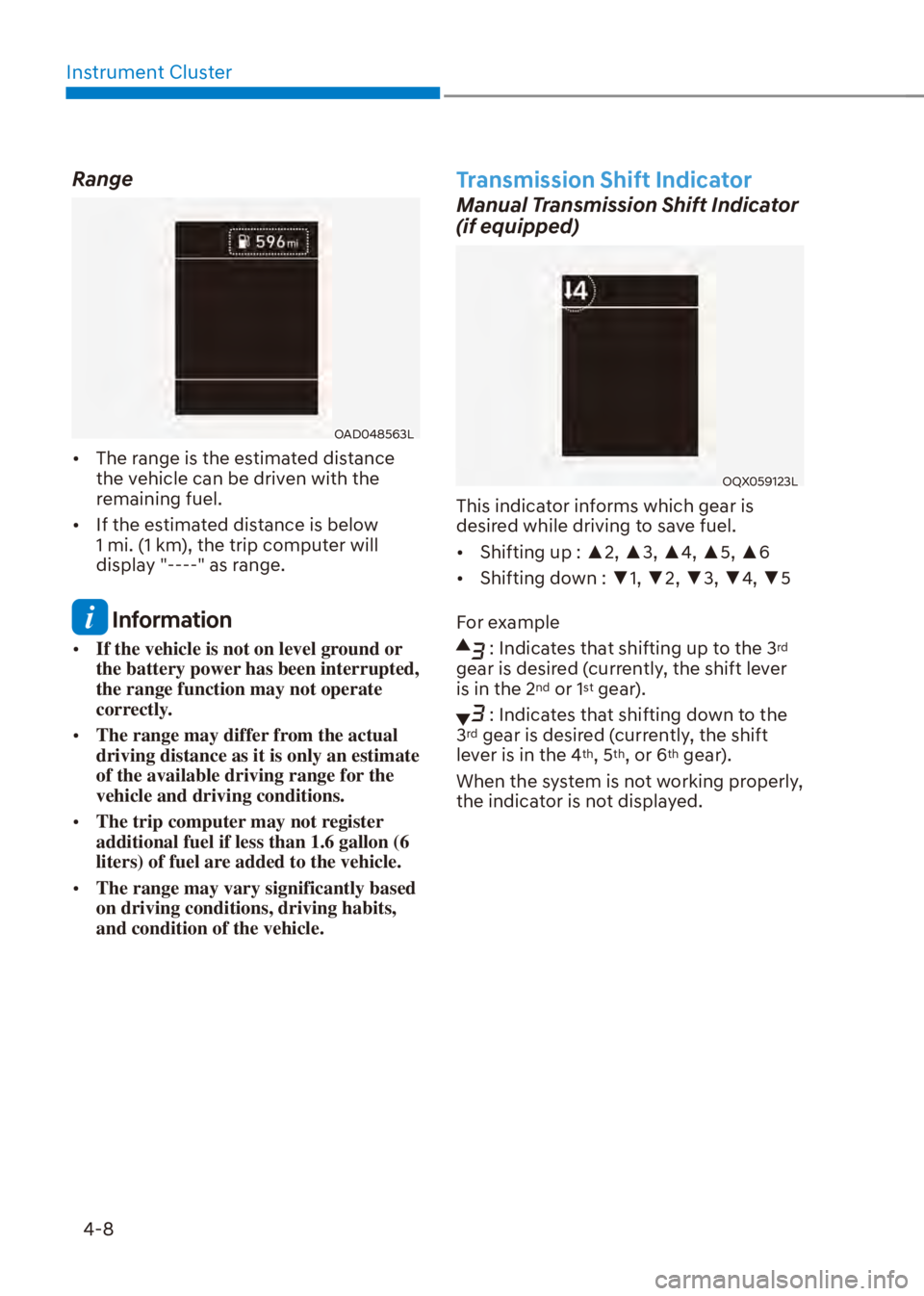

Range
OAD048563L

[ The range is the estimated distance
the vehicle can be driven with the
remaining fuel.

[ If the estimated distance is below
1 mi. (1 km), the trip computer will
display "----" as range.
Information

[If the vehicle is not on level ground or
the battery power has been interrupted,
the range function may not operate
correctly.

[ The range may differ from the actual
driving distance as it is only an estimate
of the available driving range for the
vehicle and driving conditions.

[ The trip computer may not register
additional fuel if less than 1.6 gallon (6
liters) of fuel are added to the vehicle.

[ The range may vary significantly based
on driving conditions, driving habits,
and condition of the vehicle.
Transmission Shift Indicator
Manual Transmission Shift Indicator
(if equipped)
OQX059123L
This indicator informs which gear is
desired while driving to save fuel.

[Shifting up :
x2,
x3,
x4,
x5,
x6

[ Shifting down :
z1,
z2,
z3,
z4,
z5
For example
: Indicates that shifting up to the 3rd
gear is desired (currently, the shift lever
is in the 2
nd or 1st gear).
: Indicates that shifting down to the
3rd gear is desired (currently, the shift
lever is in the 4th, 5th, or 6th gear).
When the system is not working properly,
the indicator is not displayed.

Instrument Cluster4-12
Malfunction Indicator Lamp
(MIL)
This warning light illuminates:

[ When y
ou place the ignition switch to
the ON position.

- The malfunction indicator light
illuminates for about 3 seconds and
then goes off.

[ Whenever there is a malfunction with
either the emission control system or
the engine or the vehicle powertrain.
If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer.
NOTICE
Driving with the Malfunction Indicator
Lamp (MIL) on may cause damage to
the emission control system which
could affect drivability and/or fuel
economy.
NOTICE
If the Malfunction Indicator Lamp
(MIL) illuminates, potential catalytic
converter damage is possible which
could result in loss of engine power.
In this case, have the vehicle inspected
by an authorized HYUNDAI dealer as
soon as possible.
Charging System Warning
Light
When this warning light illuminates while
the engine is running, the battery is not
being charged. Immediately turn OFF
all electrical accessories. Try not to use
electrically operated controls, such as
the power windows. Keep the engine
running.
Have the vehicle inspected by an
authorized HYUNDAI dealer as soon as
possible.
Engine Oil Pressure Warning
Light
This warning light illuminates:
When the engine oil pressure is low.
If the engine oil pressure is low:
1. Drive carefully to the nearest safe
loca
tion and stop your vehicle.
2. Turn the engine off and check the engine oil level (For more
information, refer to "Engine Oil" in
chapter 8). If the level is low, add oil
as required.
If the warning light remains on after
adding oil or if oil is not available, have
the vehicle inspected by an authorized
HYUNDAI dealer as soon as possible.

04
4-17

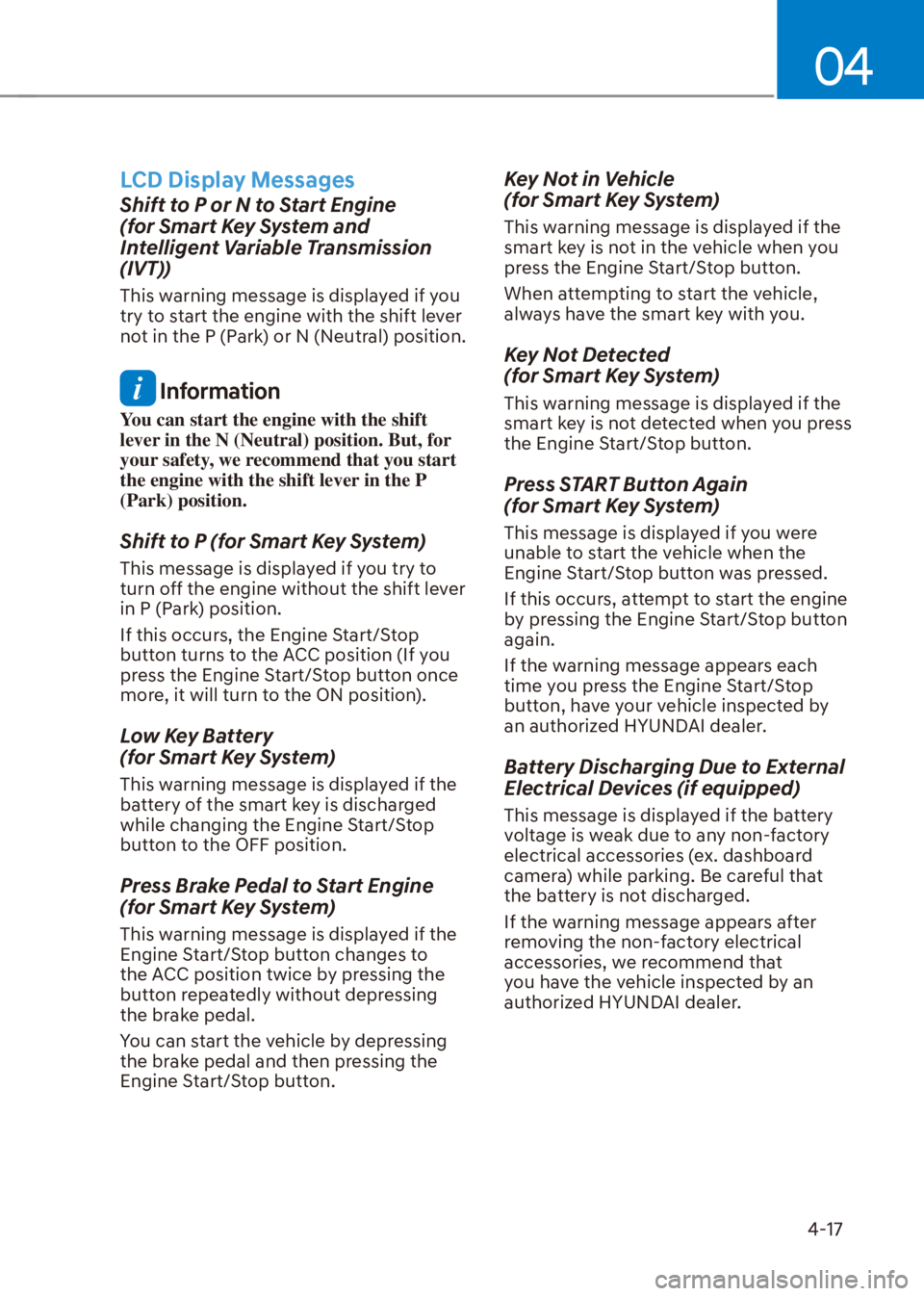

LCD Display Messages
Shift to P or N to Start Engine
(for Smart Key System and
Intelligent Variable Transmission
(IVT))
This warning message is displayed if you
try to start the engine with the shift lever
not in the P (Park) or N (Neutral) position.
Information
You can start the engine with the shift
lever in the N (Neutral) position. But, for
your safety, we recommend that you start
the engine with the shift lever in the P
(Park) position.
Shift to P (for Smart Key System)
This message is displayed if you try to
turn off the engine without the shift lever
in P (Park) position.
If this occurs, the Engine Start/Stop
button turns to the ACC position (If you
press the Engine Start/Stop button once
more, it will turn to the ON position).
Low Key Battery
(for Smart Key System)
This warning message is displayed if the
battery of the smart key is discharged
while changing the Engine Start/Stop
button to the OFF position.
Press Brake Pedal to Start Engine
(for Smart Key System)
This warning message is displayed if the
Engine Start/Stop button changes to
the ACC position twice by pressing the
button repeatedly without depressing
the brake pedal.
You can start the vehicle by depressing
the brake pedal and then pressing the
Engine Start/Stop button.
Key Not in Vehicle
(for Smart Key System)
This warning message is displayed if the
smart key is not in the vehicle when you
press the Engine Start/Stop button.
When attempting to start the vehicle,
always have the smart key with you.
Key Not Detected
(for Smart Key System)
This warning message is displayed if the
smart key is not detected when you press
the Engine Start/Stop button.
Press START Button Again
(for Smart Key System)
This message is displayed if you were
unable to start the vehicle when the
Engine Start/Stop button was pressed.
If this occurs, attempt to start the engine
by pressing the Engine Start/Stop button
again.
If the warning message appears each
time you press the Engine Start/Stop
button, have your vehicle inspected by
an authorized HYUNDAI dealer.
Battery Discharging Due to External
Electrical Devices (if equipped)
This message is displayed if the battery
voltage is weak due to any non-factory
electrical accessories (ex. dashboard
camera) while parking. Be careful that
the battery is not discharged.
If the warning message appears after
removing the non-factory electrical
accessories, we recommend that
you have the vehicle inspected by an
authorized HYUNDAI dealer.

04
4-19
Icy Road Warning Light (if equipped)
OQX059122L
This warning light is to warn the driver
that the road may be icy.
When the temperature on the outside
temperature gauge is approximately
below 40°F (4°C), the Icy Road Warning
Light and Outside Temperature Gauge
blinks 10 times, and then illuminates.
Also, the warning chime sounds 3 times.
Information
If the icy road warning light appears while
driving, you should drive more attentively
and safely and refrain from speeding,
rapid acceleration, sudden braking or
sharp turning, etc.
Low Pressure
OQX049018L
This warning message is displayed if the
tire pressure is low. The corresponding
tire on the vehicle will be illuminated.
For more information, refer to "Tire
Pressure Monitoring System (TPMS)" in
chapter 7.
Turn FUSE SWITCH on
OQX049033N
This warning message is displayed if
the fuse switch located on the fuse box
under the steering wheel is OFF.
The fuse switch is turned OFF to
minimize battery draw when the vehicle
is in storage or in transportation where
the vehicle will not be operated for some
time.
Under normal conditions, the fuse switch
should be set to the ON position.
For more information, refer to "Fuses"
in chapter 8.
