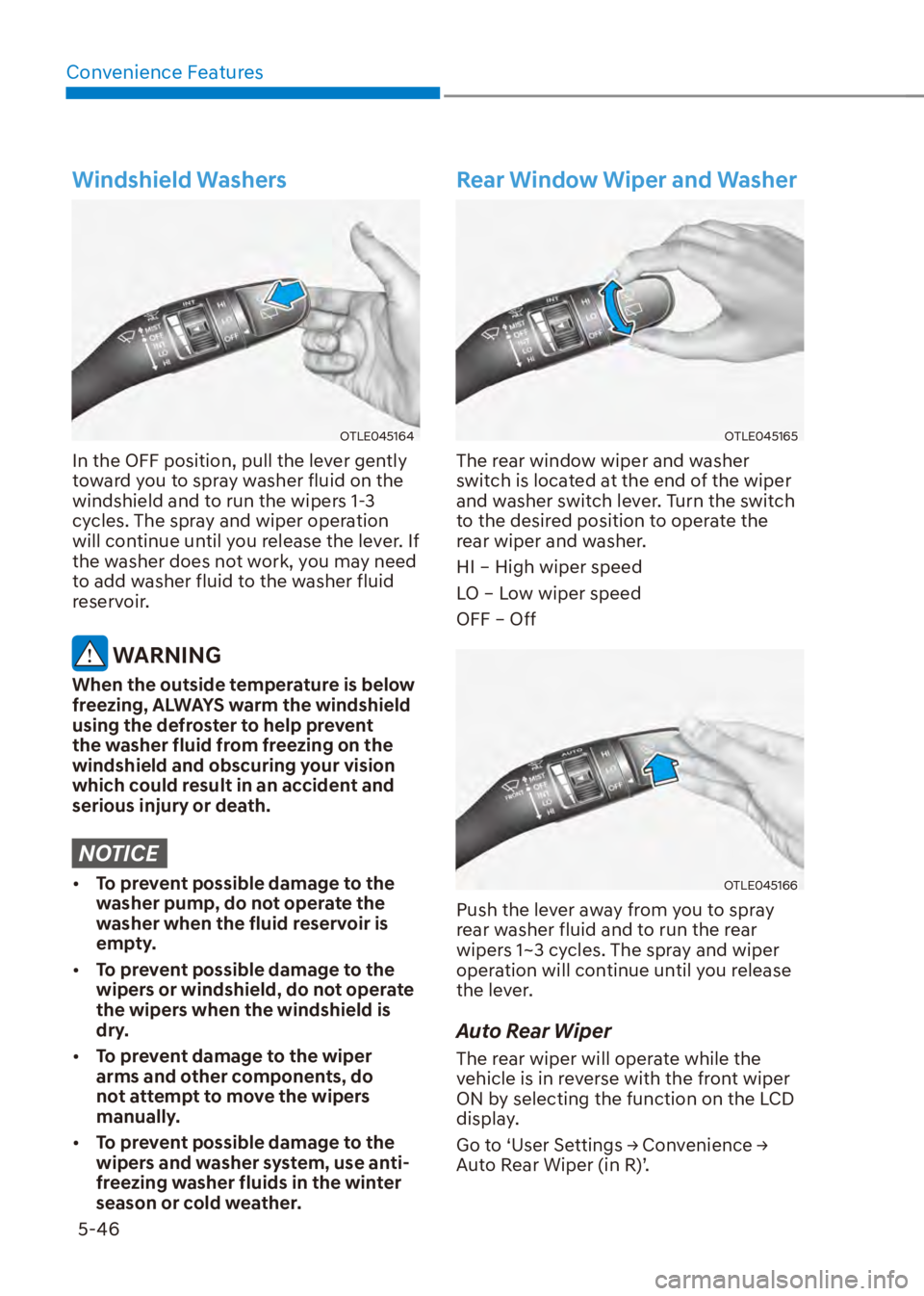

Convenience Features5-46
Windshield Washers
OTLE045164
In the OFF position, pull the lever gently
toward you to spray washer fluid on the
windshield and to run the wipers 1-3
cycles. The spray and wiper operation
will continue until you release the lever. If
the washer does not work, you may need
to add washer fluid to the washer fluid
reservoir.
WARNING
When the outside temperature is below
freezing, ALWAYS warm the windshield
using the defroster to help prevent
the washer fluid from freezing on the
windshield and obscuring your vision
which could result in an accident and
serious injury or death.
NOTICE

[ To prevent possible damage to the
washer pump, do not operate the
washer when the fluid reservoir is
empty.

[ To prevent possible damage to the
wipers or windshield, do not operate
the wipers when the windshield is
dry.

[ To prevent damage to the wiper
arms and other components, do
not attempt to move the wipers
manually.

[ To prevent possible damage to the
wipers and washer system, use anti-
freezing washer fluids in the winter
season or cold weather.
Rear Window Wiper and Washer
OTLE045165
The rear window wiper and washer
switch is located at the end of the wiper
and washer switch lever. Turn the switch
to the desired position to operate the
rear wiper and washer.
HI – High wiper speed
LO – Low wiper speed
OFF – Off
OTLE045166
Push the lever away from you to spray
rear washer fluid and to run the rear
wipers 1~3 cycles. The spray and wiper
operation will continue until you release
the lever.
Auto Rear Wiper
The rear wiper will operate while the
vehicle is in reverse with the front wiper
ON by selecting the function on the LCD
display.
*RWR
S8VHU6HWWLQJV

8
Engine Compartment ........................................................................\
............... 8-3
Maintenance Services ........................................................................\
.............. 8-4
Owner’s Responsibility ........................................................................\
....................... 8-4
Owner Maintenance Precautions ........................................................................\
....... 8-4
Owner Maintenance ........................................................................\
................. 8-5Owner Maintenance Schedule ........................................................................\
............8-5
Scheduled Maintenance Services ....................................................................8-7Normal Maintenance Schedule ........................................................................\
.......... 8-8
Maintenance Under Severe Usage Conditions ......................................................... 8-11
Severe Driving Conditions ........................................................................\
.................. 8-11
Explanation of Scheduled Maintenance Items .............................................. 8-12
Engine Oil ........................................................................\
................................. 8-15
Checking the Engine Oil Level ........................................................................\
........... 8-15
Checking the Engine Oil and Filter ........................................................................\
... 8-15
Engine Coolant ........................................................................\
.........................8-16
Checking the Engine Coolant Level ........................................................................\
.. 8-16
Changing Engine Coolant ........................................................................\
.................. 8-18
Brake/Clutch Fluid ........................................................................\
...................8-19
Checking the Brake/Clutch Fluid Level .................................................................... 8-19
Washer Fluid ........................................................................\
............................ 8-20Checking the Washer Fluid Level ........................................................................\
..... 8-20
Parking Brake ........................................................................\
.......................... 8-20
Checking the Parking Brake ........................................................................\
............. 8-20
Air Cleaner ........................................................................\
................................ 8-21Filter Replacement ........................................................................\
............................. 8-21
Climate Control Air Filter ........................................................................\
........ 8-22Filter Inspection........................................................................\
.................................. 8-22
Wiper Blades ........................................................................\
........................... 8-23Blade Inspection ........................................................................\
................................ 8-23
Blade Replacement ........................................................................\
............................ 8-23
Battery ....................................................................\
......................................... 8-25For Best Battery Service ........................................................................\
....................8-26
Battery Recharging ........................................................................\
............................8-26
Reset Features ........................................................................\
....................................8-26

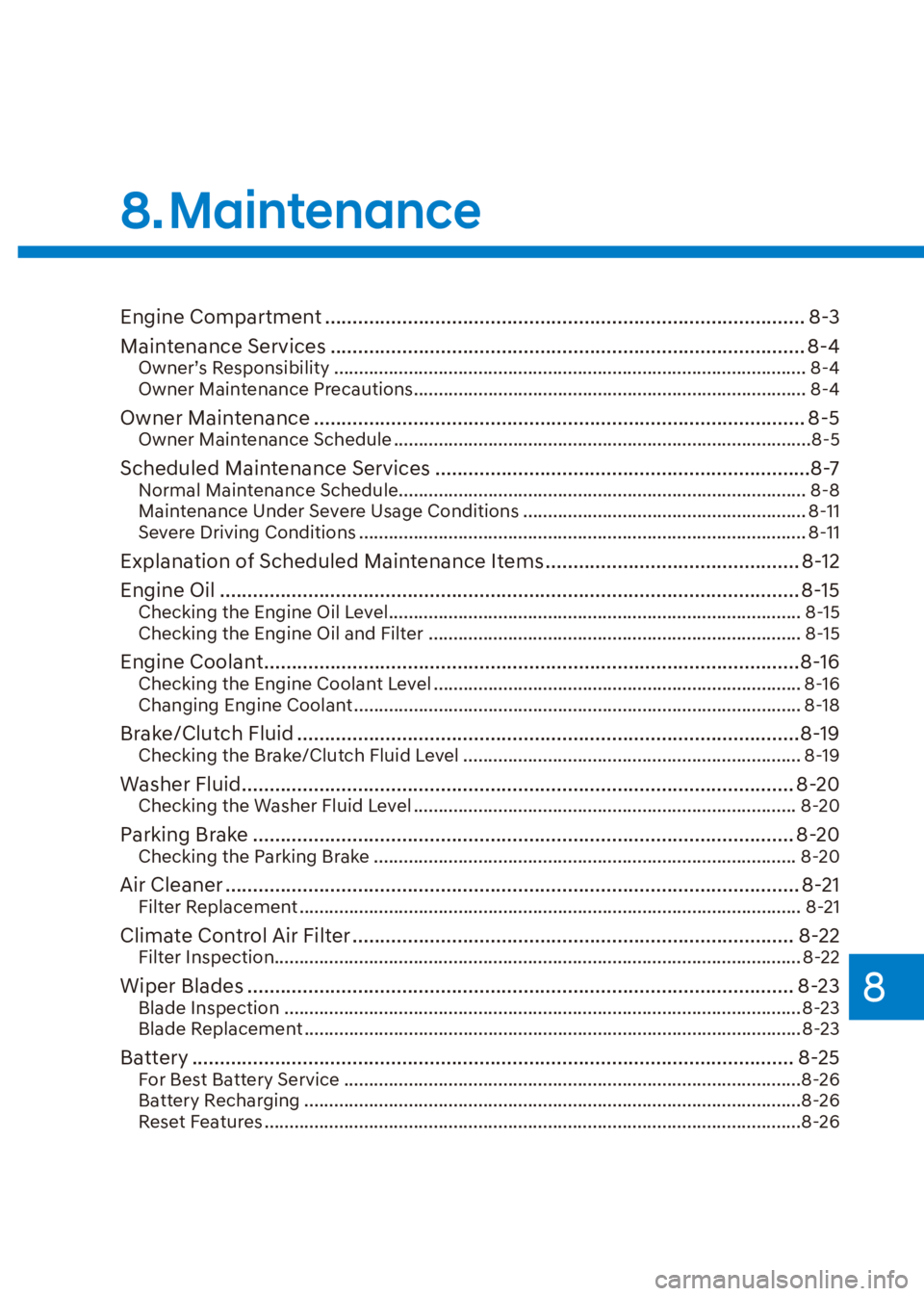

8. Maintenance

Maintenance8-6
While Operating Your Vehicle:

[ Note any changes in the sound of the
exhaust or any smell of exhaust fumes
in the vehicle.

[ Check for vibrations in the steering
wheel. Notice if there is any increased
steering effort or looseness in the
steering wheel, or change in its
straight-ahead position.

[ Notice if your vehicle constantly turns
slightly or “pulls” to one side when
traveling on smooth, level road.

[ When stopping, listen and check for
unusual sounds, pulling to one side,
increased brake pedal travel or “hard-
to-push” brake pedal.

[ If any slipping or changes in the
operation of your transmission occurs,
check the transmission fluid level.

[ Check the intelligent variable
transmission P (Park) function.

[ Check the parking brake.

[ Check for fluid leaks under your
vehicle (water dripping from the air
conditioning system during or after
use is normal).
At Least Monthly:

[Check coolant level in the engine
coolant reservoir.

[ Check the operation of all exterior
lights, including the brake lights, turn
signals and hazard warning flashers.

[ Check the inflation pressures of all
tires including the spare for tires that
are worn, show uneven wear, or are
damaged.

[ Check for loose wheel lug nuts.
At Least Twice a Year:
(i.e., Every Spring And Autumn)

[Check radiator, heater and air
conditioning hoses for leaks or
damage.

[ Check windshield washer spray and
wiper operation. Clean wiper blades
with a clean cloth dampened with
washer a fluid.

[ Check headlamp alignment.

[ Check muffler, exhaust pipes, shields
and clamps.

[ Check the seat belts for wear and
function.
At Least Once a Year:

[Clean body and door drain holes.

[ Lubricate door hinges and hood
hinges.

[ Lubricate door and hood locks and
latches.

[ Lubricate door rubber weather strips.

[ Lubricate door checker.

[ Check the air conditioning system.

[ Inspect and lubricate automatic
transmission linkage and controls.

[ Clean the battery and terminals.

[ Check the brake fluid level.

08

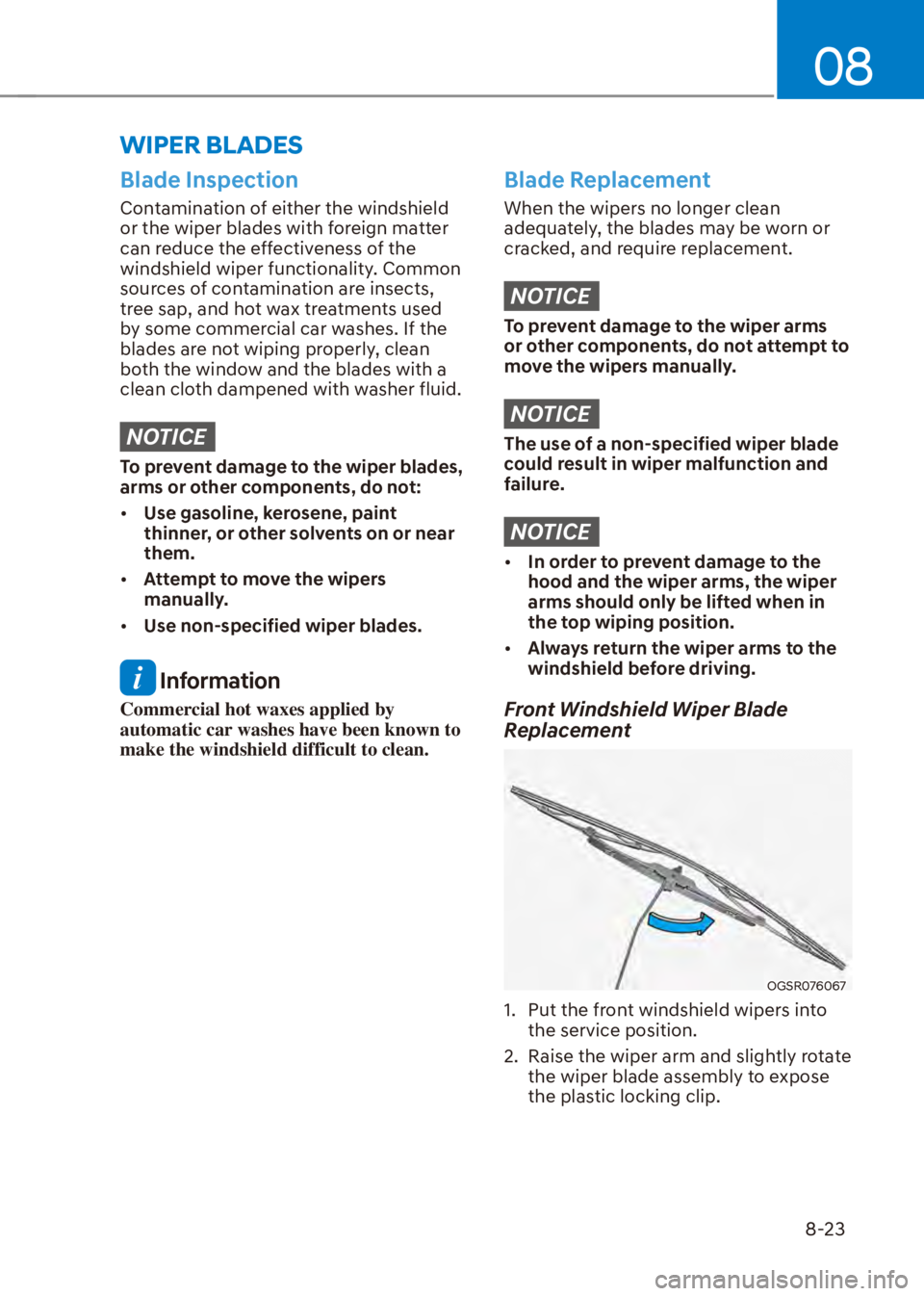

8-23
WIPER BLADES
Blade Inspection
Contamination of either the windshield
or the wiper blades with foreign matter
can reduce the effectiveness of the
windshield wiper functionality. Common
sources of contamination are insects,
tree sap, and hot wax treatments used
by some commercial car washes. If the
blades are not wiping properly, clean
both the window and the blades with a
clean cloth dampened with washer fluid.
NOTICE
To prevent damage to the wiper blades,
arms or other components, do not:

[Use gasoline, kerosene, paint
thinner, or other solvents on or near
them.

[ Attempt to move the wipers
manually.

[ Use non-specified wiper blades.
Information
Commercial hot waxes applied by
automatic car washes have been known to
make the windshield difficult to clean.
Blade Replacement
When the wipers no longer clean
adequately, the blades may be worn or
cracked, and require replacement.
NOTICE
To prevent damage to the wiper arms
or other components, do not attempt to
move the wipers manually.
NOTICE
The use of a non-specified wiper blade
could result in wiper malfunction and
failure.
NOTICE

[In order to prevent damage to the
hood and the wiper arms, the wiper
arms should only be lifted when in
the top wiping position.

[ Always return the wiper arms to the
windshield before driving.
Front Windshield Wiper Blade
Replacement
OGSR076067
1. Put the front windshield wipers into
the service position.
2. Raise the wiper arm and slightly rotate the wiper blade assembly to expose
the plastic locking clip.

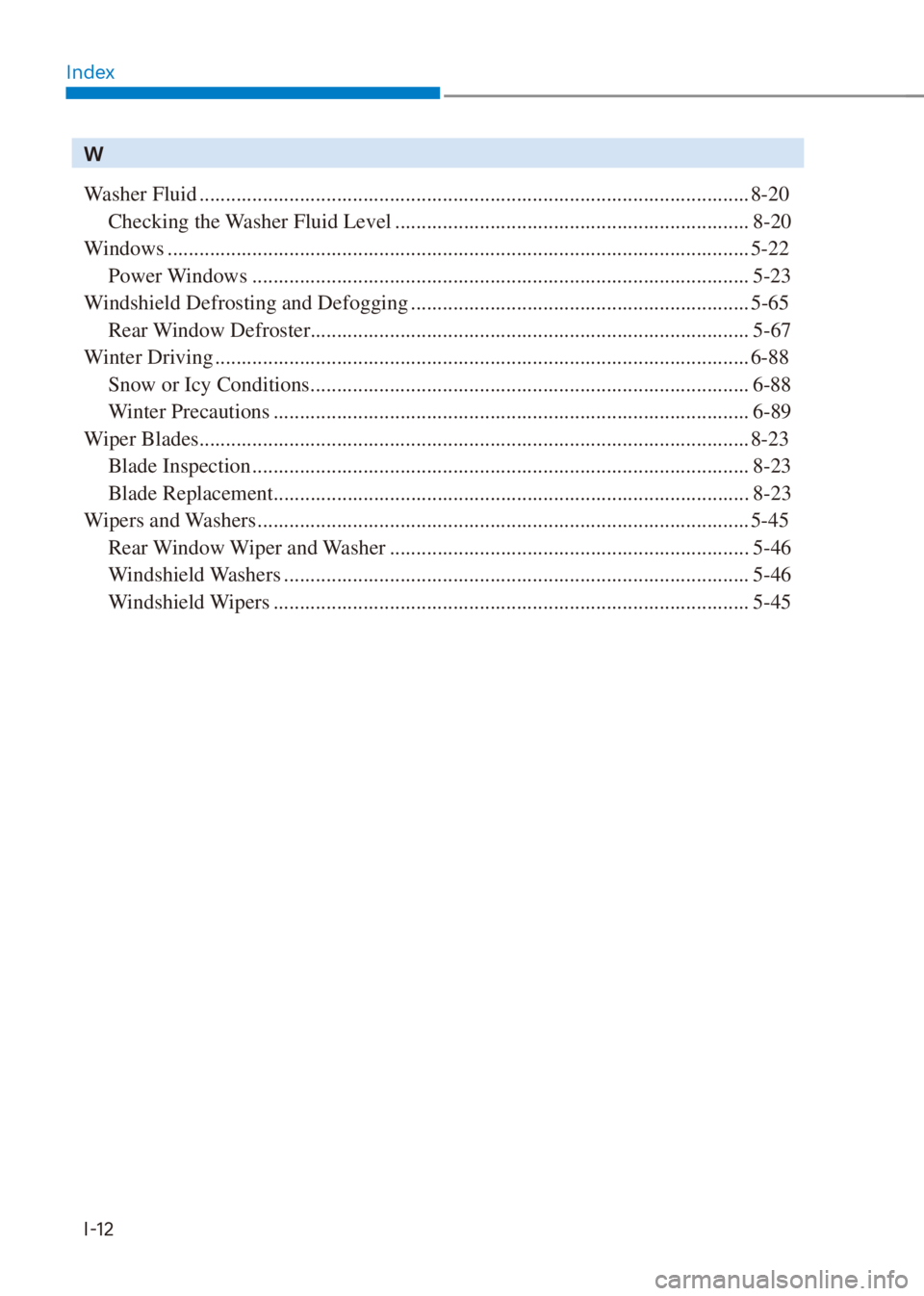

IndexI-12
