Maintenance8-26

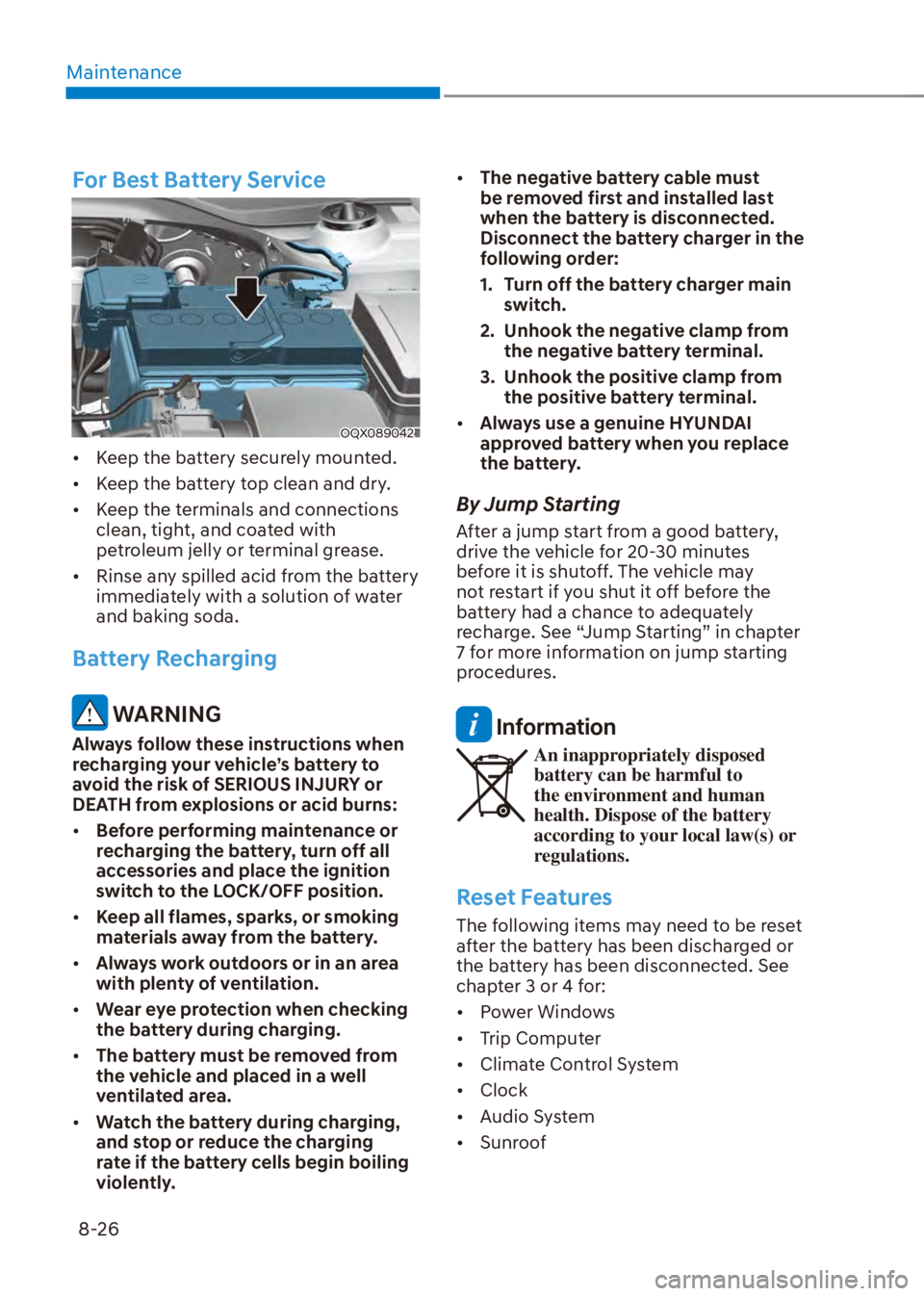

For Best Battery Service
OQX089042
[ Keep the battery securely mounted.
[ Keep the battery top clean and dry.
[ Keep the terminals and connections
clean, tight, and coated with
petroleum jelly or terminal grease.
[ Rinse any spilled acid from the battery
immediately with a solution of water
and baking soda.
Battery Recharging
WARNING
Always follow these instructions when
recharging your vehicle’s battery to
avoid the risk of SERIOUS INJURY or
DEATH from explosions or acid burns:
[ Before performing maintenance or
recharging the battery, turn off all
accessories and place the ignition
switch to the LOCK/OFF position.
[ Keep all flames, sparks, or smoking
materials away from the battery.
[ Always work outdoors or in an area
with plenty of ventilation.
[ Wear eye protection when checking
the battery during charging.
[ The battery must be removed from
the vehicle and placed in a well
ventilated area.
[ Watch the battery during charging,
and stop or reduce the charging
rate if the battery cells begin boiling
violently. [
The negative battery cable must
be removed first and installed last
when the battery is disconnected.
Disconnect the battery charger in the
following order:
1. Turn off the battery charger main
switch.
2. Unhook the negative clamp from the negative battery terminal.
3. Unhook the positive clamp from the positive battery terminal.
[ Always use a genuine HYUNDAI
approved battery when you replace
the battery.
By Jump Starting
After a jump start from a good battery,
drive the vehicle for 20-30 minutes
before it is shutoff. The vehicle may
not restart if you shut it off before the
battery had a chance to adequately
recharge. See “Jump Starting” in chapter
7 for more information on jump starting
procedures.
Information
An inappropriately disposed
battery can be harmful to
the environment and human
health. Dispose of the battery
according to your local law(s) or
regulations.
Reset Features
The following items may need to be reset
after the battery has been discharged or
the battery has been disconnected. See
chapter 3 or 4 for:
[ Power Windows
[ Trip Computer
[ Climate Control System
[ Clock
[ Audio System
[ Sunroof
Maintenance8-40

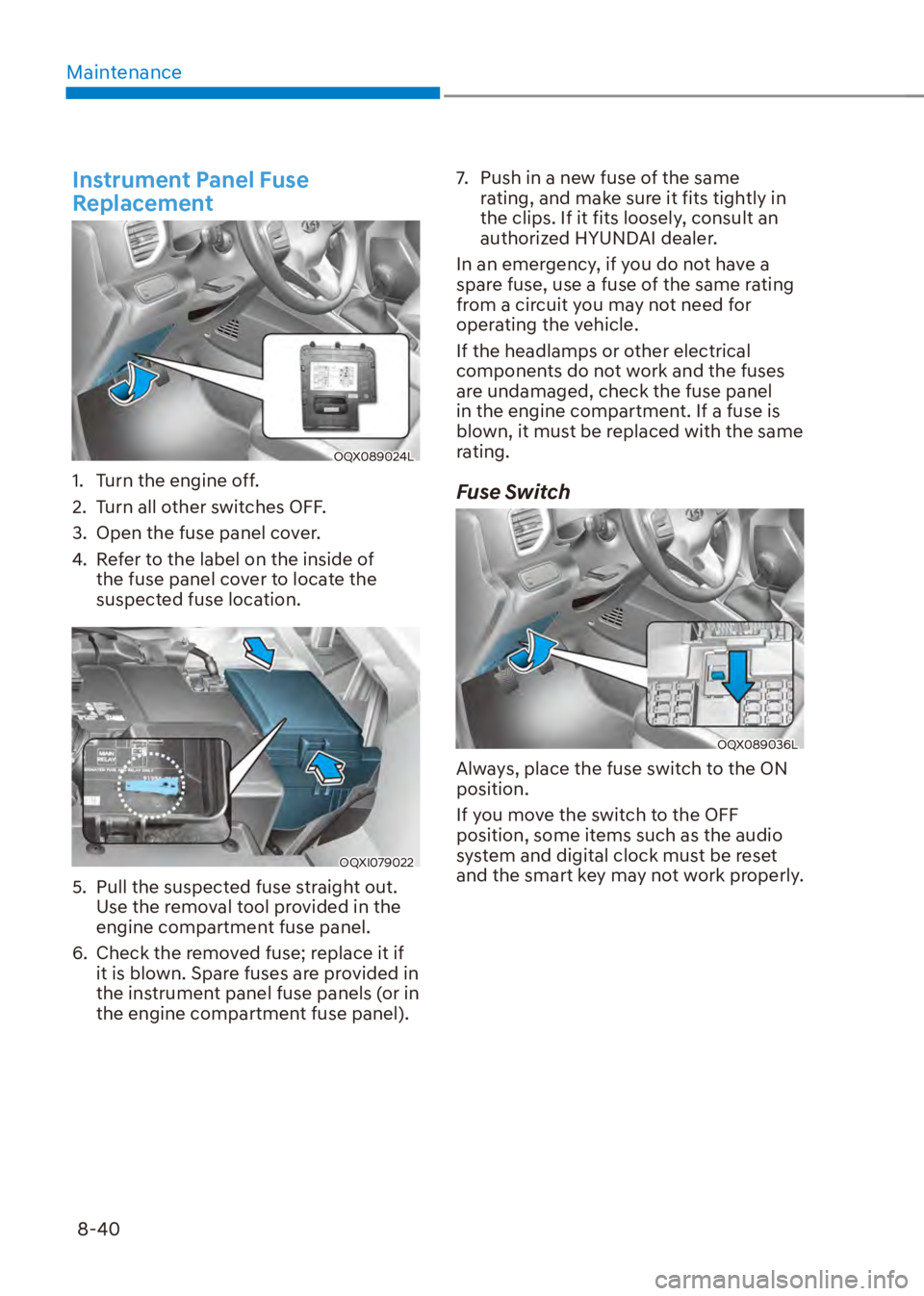

Instrument Panel Fuse
Replacement
OQX089024L
1. Turn the engine off.
2. Turn all other switches OFF.
3. Open the fuse panel cover.
4. Refer to the label on the inside of the fuse panel cover to locate the
suspected fuse location.
OQXI079022
5. Pull the suspected fuse straight out. Use the removal tool provided in the
engine compartment fuse panel.
6. Check the removed fuse; replace it if it is blown. Spare fuses are provided in
the instrument panel fuse panels (or in
the engine compartment fuse panel). 7. Push in a new fuse of the same
rating, and make sure it fits tightly in
the clips. If it fits loosely, consult an
authorized HYUNDAI dealer.
In an emergency, if you do not have a
spare fuse, use a fuse of the same rating
from a circuit you may not need for
operating the vehicle.
If the headlamps or other electrical
components do not work and the fuses
are undamaged, check the fuse panel
in the engine compartment. If a fuse is
blown, it must be replaced with the same
rating.
Fuse Switch
OQX089036L
Always, place the fuse switch to the ON
position.
If you move the switch to the OFF
position, some items such as the audio
system and digital clock must be reset
and the smart key may not work properly.
