2023 HYUNDAI VENUE oil level

4
Instrument Cluster ........................................................................\
.................... 4-4Instrument Cluster Control ........................................................................\
..................4-5Adjusting Instrument Cluster Illumination ...............................................................4-5
Gauges and Meters ........................................................................\
..............................4-5 Speedometer .....................................................................\
........................................4-5
Tachometer .....................................................................\
.......................................... 4-6
Engine Coolant Temperature Gauge ....................................................................... 4-6
Fuel Gauge ........................................................................\
........................................ 4-6
Outside Temperature Gauge ........................................................................\
............. 4-7
Odometer .....................................................................\
.............................................. 4-7
Range ..................................................................\
....................................................... 4-8
Transmission Shift Indicator ........................................................................\
............... 4-8 Manual Transmission Shift Indicator ....................................................................... 4-8
Intelligent Variable Transmission (IVT) .................................................................... 4-9
Warning and Indicator Lights ........................................................................\
............. 4-9 Air Bag Warning Light ........................................................................\
....................... 4-9
Seat Belt Warning Light ........................................................................\
.................... 4-9
Parking Brake & Brake Fluid Warning Light ............................................................ 4-10
Anti-lock Brake System (ABS) Warning Light .......................................................... 4-11
Electronic Brake Force Distribution (EBD) System Warning Light ........................ 4-11
Electric Power Steering (EPS) Warning Light .......................................................... 4-11
Malfunction Indicator Lamp (MIL) ........................................................................\
.. 4-12
Charging System Warning Light ........................................................................\
..... 4-12
Engine Oil Pressure Warning Light ........................................................................\
. 4-12
Low Fuel Level Warning Light ........................................................................\
......... 4-13
Master Warning Light ........................................................................\
...................... 4-13
Low Tire Pressure Warning Light ........................................................................\
.... 4-13
Electronic Stability Control (ESC) Indicator Light ................................................. 4-14
Electronic Stability Control (ESC) OFF Indicator Light .......................................... 4-14
Immobilizer Indicator Light (without Smart Key) .................................................. 4-14
Immobilizer Indicator Light (with Smart Key) ........................................................ 4-15
Turn Signal Indicator Light ........................................................................\
.............. 4-15
Headlamp Warning Light ........................................................................\
................ 4-15
High Beam Indicator Light ........................................................................\
.............. 4-16
Light ON Indicator Light ........................................................................\
.................. 4-16
High Beam Assist (HBA) Indicator Light ................................................................. 4-16
Forward Collision-Avoidance Assist Warning Light ............................................... 4-16
Lane Keep Assist Indicator Light................................................................\
............. 4-16
4. Instrument Cluster

Instrument Cluster4-12
Malfunction Indicator Lamp
(MIL)
This warning light illuminates:

[ When y
ou place the ignition switch to
the ON position.

- The malfunction indicator light
illuminates for about 3 seconds and
then goes off.

[ Whenever there is a malfunction with
either the emission control system or
the engine or the vehicle powertrain.
If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer.
NOTICE
Driving with the Malfunction Indicator
Lamp (MIL) on may cause damage to
the emission control system which
could affect drivability and/or fuel
economy.
NOTICE
If the Malfunction Indicator Lamp
(MIL) illuminates, potential catalytic
converter damage is possible which
could result in loss of engine power.
In this case, have the vehicle inspected
by an authorized HYUNDAI dealer as
soon as possible.
Charging System Warning
Light
When this warning light illuminates while
the engine is running, the battery is not
being charged. Immediately turn OFF
all electrical accessories. Try not to use
electrically operated controls, such as
the power windows. Keep the engine
running.
Have the vehicle inspected by an
authorized HYUNDAI dealer as soon as
possible.
Engine Oil Pressure Warning
Light
This warning light illuminates:
When the engine oil pressure is low.
If the engine oil pressure is low:
1. Drive carefully to the nearest safe
loca
tion and stop your vehicle.

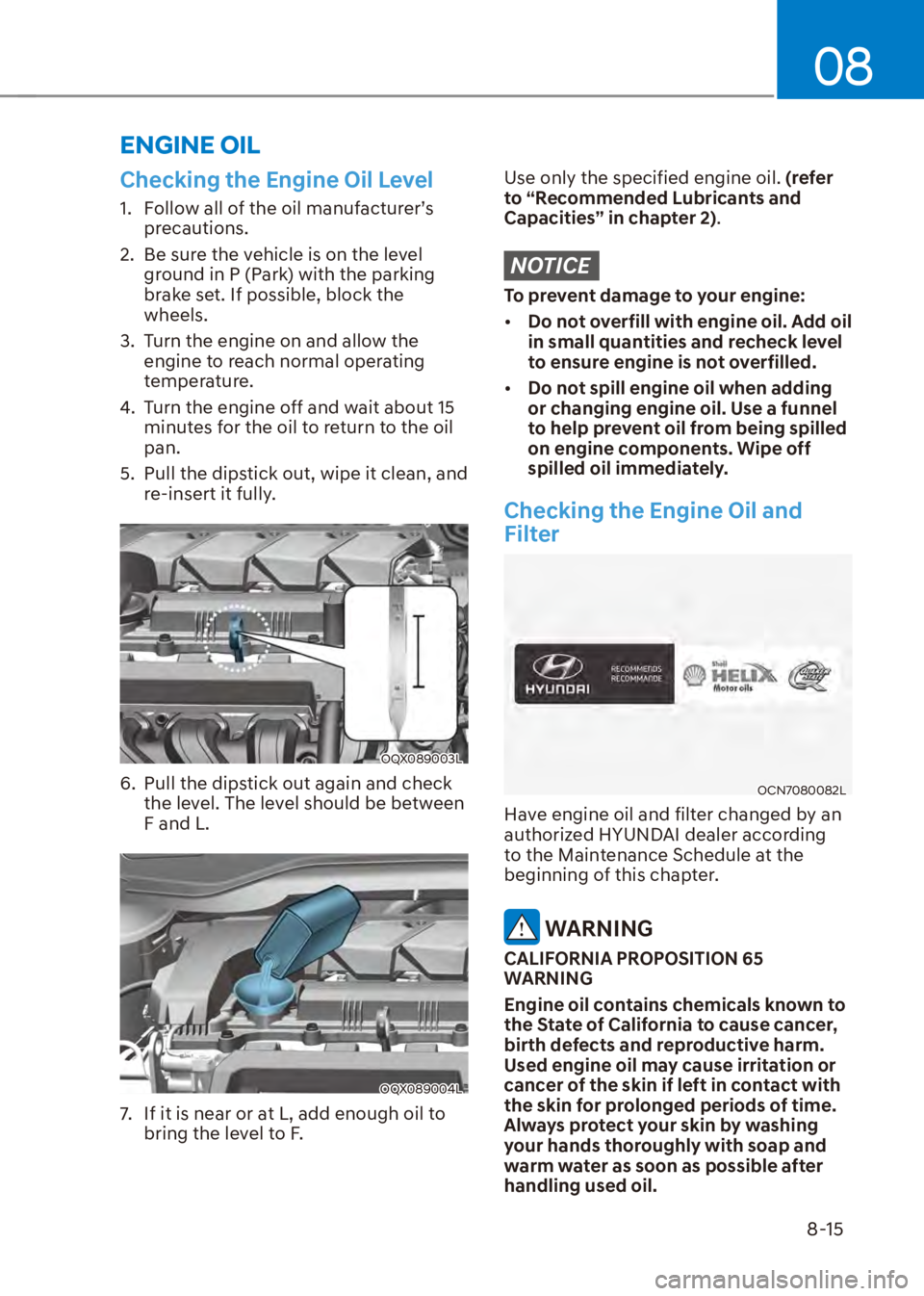

2. Turn the engine off and check the engine oil level (For more
information, refer to "Engine Oil" in
chapter 8). If the level is low, add oil
as required.
If the warning light remains on after
adding oil or if oil is not available, have
the vehicle inspected by an authorized
HYUNDAI dealer as soon as possible.

04
4-13
NOTICE

[If the engine is not turned OFF
immediately after the Engine
Oil Pressure Warning Light is
illuminated, severe damage could
occur.

[ If the warning light stays on while the
engine is running, it indicates that
there may be serious engine damage
or malfunction. In this case:
1. Stop the vehicle as soon as it is safe to do so.
2. Turn off the engine and check the oil level. If the oil level is low, fill
the engine oil to the proper level.
3. Start the engine again. If the warning light stays on after the
engine has started, turn the
engine off immediately. In this
case, have the vehicle inspected
by an authorized HYUNDAI dealer.
Low Fuel Level Warning Light
This warning light illuminates:
When the fuel tank is nearly empty. Add
fuel as soon as possible.
NOTICE
Driving with the Low Fuel Level warning
light on or with the fuel level below "E"
can cause the engine to misfire and
damage the catalytic converter.
Master Warning Light
This indicator light illuminates:
When there is a malfunction in operation
in an
y of the following systems:
- Exterior lamp (if equipped)
- Blind-Spot Collision Warning (BCW) (if equipped)
- Tire Pressure Monitoring System (TPMS)
To identify the details of the warning,
look at the LCD display.
Low Tire Pressure Warning
Light (if equipped)
This warning light illuminates:

[ When y
ou place the ignition in the ON
position.
- It illuminates for approximately 3 seconds and then goes off.

[ When one or more of your tires are
significantly underinflated. (The
location of the underinflated tires is
displayed on the LCD display.)
For more information, refer to "Tire
Pressure Monitoring System (TPMS)" in
chapter 7.

06
6-87
Highway Driving
Tires
Adjust the tire inflation, as specified.
Under-inflation may overheat or damage
the tires.
Do not install worn-out or damaged tires,
which may reduce traction or adversely
affect vehicle handling. This could lead
to sudden tire failure that may cause
loss of vehicle control resulting in an
accident.
Information
Never over-inflate your tires above the
maximum inflation pressure, as specified
on your tires.
Fuel, Engine Coolant and Engine Oil
Driving at higher speeds on the highway
consumes more fuel and is less efficient
than driving at a slower, more moderate
speed. Maintain a moderate speed in
order to conserve fuel when driving on
the highway.
Be sure to check both the engine coolant
level and the engine oil before driving.
Drive Belt
A loose or damaged drive belt may
overheat the engine.
Reducing the Risk of a Rollover
Your multi-purpose passenger vehicle is
defined as a Sports Utility Vehicle (SUV).
SUV's have higher ground clearance
and a narrower track to make them
capable of performing in a wide variety
of off-road applications. The specific
design characteristics give them a higher
center of gravity than ordinary vehicles
making them more likely to roll over if
you make abrupt turns. Utility vehicles
have a significantly higher rollover rate
than other types of vehicles. Due to this
risk, driver and passengers are strongly
recommended to buckle their seat belts.
In a rollover crash, an unbelted person
is significantly more likely to die than a
person wearing a seat belt.
There are steps that a driver can make
to reduce the risk of a rollover. If at all
possible, avoid sharp turns or abrupt
maneuvers, do not load your vehicle
with heavy cargo on the roof, and never
modify your vehicle in any way.
WARNING
Utility vehicles have a significantly
higher rollover rate than other types of
vehicles. To prevent rollovers or loss of
control:

[Take corners at slower speeds than
you would with a passenger vehicle.

[ Avoid sharp turns and abrupt
maneuvers.

[ Do not modify your vehicle in any
way that you would raise the center
of gravity.

[ Keep tires properly inflated.

[ Do not carry heavy cargo on the roof.

While Driving6-90
Change to "winter Weight" Oil if
Necessary
In some climates it is recommended that
a lower viscosity "winter weight" oil be
used during cold weather. See chapter 8
for recommendations. If you aren't sure
what weight oil you should use, consult
an authorized HYUNDAI dealer.
Check Battery and Cables
Winter puts additional burdens on the
battery system. Visually inspect the
battery and cables as described in
chapter 8. The level of charge in your
battery can be checked by an authorized
HYUNDAI dealer or a service station.
Check Spark Plugs and Ignition
System
Inspect your spark plugs as described in
chapter 8 and replace them if necessary.
Also check all ignition wiring and
components to be sure they are not
cracked, worn or damaged in any way.
Use Approved Window Washer Anti-
freeze in System
To keep the water in the window washer
system from freezing, add an approved
window washer anti-freeze solution in
accordance with instructions on the
container. Window washer anti-freeze is
available from an authorized HYUNDAI
dealer and most auto parts outlets. Do
not use engine coolant or other types
of antifreeze as these may damage the
paint finish.
Do Not Let Your Parking Brake
Freeze
Under some conditions your parking
brake can freeze in the engaged position.
This is most likely to happen when
there is an accumulation of snow or
ice around or near the rear brakes or
if the brakes are wet. If there is a risk
the parking brake may freeze, apply
it only temporarily while you put the
gear selector lever in P and block the
rear wheels so the car cannot roll. Then
release the parking brake.
Do Not Let Ice and Snow Accumulate
Underneath
Under some conditions, snow and ice
can build up under the fenders and
interfere with the steering. When driving
in severe winter conditions where this
may happen, you should periodically
check underneath the car to be sure the
movement of the front wheels and the
steering components is not obstructed.
Don't Place Foreign Objects
or Materials in the Engine
Compartment
Placement of foreign object or materials
which prevent cooling of the engine, in
the engine compartment, may cause a
failure or combustion. The manufacturer
is not responsible for the damage caused
by such placement.
To Keep Locks from Freezing
To keep the locks from freezing, squirt
an approved de-icer fluid or glycerine
into the key opening. If a lock is covered
with ice, squirt it with an approved de-
icing fluid to remove the ice. If the lock
is frozen internally, you may be able to
thaw it out by using a heated key. Handle
the heated key with care to avoid injury.

8
Engine Compartment ........................................................................\
............... 8-3
Maintenance Services ........................................................................\
.............. 8-4
Owner’s Responsibility ........................................................................\
....................... 8-4
Owner Maintenance Precautions ........................................................................\
....... 8-4
Owner Maintenance ........................................................................\
................. 8-5Owner Maintenance Schedule ........................................................................\
............8-5
Scheduled Maintenance Services ....................................................................8-7Normal Maintenance Schedule ........................................................................\
.......... 8-8
Maintenance Under Severe Usage Conditions ......................................................... 8-11
Severe Driving Conditions ........................................................................\
.................. 8-11
Explanation of Scheduled Maintenance Items .............................................. 8-12
Engine Oil ........................................................................\
................................. 8-15
Checking the Engine Oil Level ........................................................................\
........... 8-15
Checking the Engine Oil and Filter ........................................................................\
... 8-15
Engine Coolant ........................................................................\
.........................8-16
Checking the Engine Coolant Level ........................................................................\
.. 8-16
Changing Engine Coolant ........................................................................\
.................. 8-18
Brake/Clutch Fluid ........................................................................\
...................8-19
Checking the Brake/Clutch Fluid Level .................................................................... 8-19
Washer Fluid ........................................................................\
............................ 8-20Checking the Washer Fluid Level ........................................................................\
..... 8-20
Parking Brake ........................................................................\
.......................... 8-20
Checking the Parking Brake ........................................................................\
............. 8-20
Air Cleaner ........................................................................\
................................ 8-21Filter Replacement ........................................................................\
............................. 8-21
Climate Control Air Filter ........................................................................\
........ 8-22Filter Inspection........................................................................\
.................................. 8-22
Wiper Blades ........................................................................\
........................... 8-23Blade Inspection ........................................................................\
................................ 8-23
Blade Replacement ........................................................................\
............................ 8-23
Battery ....................................................................\
......................................... 8-25For Best Battery Service ........................................................................\
....................8-26
Battery Recharging ........................................................................\
............................8-26
Reset Features ........................................................................\
....................................8-26
8. Maintenance

08
8-5
WARNING
Performing maintenance work on a
vehicle can be dangerous. If you lack
sufficient knowledge and experience or
the proper tools and equipment to do
the work, have it done by an authorized
HYUNDAI dealer.
ALWAYS follow these precautions for
performing maintenance work:

[Park your vehicle on level ground,
move the shift lever into the P (Park,
for intelligent variable transmission
vehicle) position, place the ignition
switch in the LOCK/OFF position.

[ Block the tires (front and back) to
prevent the vehicle from moving.
Remove loose clothing or jewelry
that can become entangled in
moving parts.

[ If you must run the engine during
maintenance, do so out doors or in
an area with plenty of ventilation.

[ Keep flames, sparks, or smoking
materials away from the battery and
fuel-related parts. The following lists are vehicle checks and
inspections that should be performed
by the owner or an authorized HYUNDAI
dealer at the frequencies indicated to
help ensure safe, dependable operation
of your vehicle.
Any adverse conditions should be
brought to the attention of your dealer as
soon as possible.
These Owner Maintenance vehicle
checks are generally not covered by
warranties and you may be charged for
labor, parts and lubricants used.
Owner Maintenance Schedule
When You Stop for Fuel:

[
Check the engine oil level.

[ Check the coolant level in the engine
coolant reservoir.

[ Check the windshield washer fluid
level.

[ Check the for low or under-inflated
tires.
WARNING
Be careful when checking your engine
coolant level when the engine is hot.
This may result in coolant being blown
out of the opening and cause serious
burns and other injuries.
OWNER MAINTENANCE

08
8-15
Checking the Engine Oil Level
1. Follow all of the oil manufacturer’s precautions.
2. Be sure the vehicle is on the level ground in P (Park) with the parking
brake set. If possible, block the
wheels.
3. Turn the engine on and allow the engine to reach normal operating
temperature.
4. Turn the engine off and wait about 15 minutes for the oil to return to the oil
pan.
5. Pull the dipstick out, wipe it clean, and re-insert it fully.
OQX089003L
6. Pull the dipstick out again and check the level. The level should be between
F and L.
OQX089004L
7. If it is near or at L, add enough oil to bring the level to F.
Use only the specified engine oil. (refer
to “Recommended Lubricants and
Capacities” in chapter 2).
NOTICE
To prevent damage to your engine:

[Do not overfill with engine oil. Add oil
in small quantities and recheck level
to ensure engine is not overfilled.

[ Do not spill engine oil when adding
or changing engine oil. Use a funnel
to help prevent oil from being spilled
on engine components. Wipe off
spilled oil immediately.
Checking the Engine Oil and
Filter
OCN7080082L
Have engine oil and filter changed by an
authorized HYUNDAI dealer according
to the Maintenance Schedule at the
beginning of this chapter.
WARNING
CALIFORNIA PROPOSITION 65
WARNING
Engine oil contains chemicals known to
the State of California to cause cancer,
birth defects and reproductive harm.
Used engine oil may cause irritation or
cancer of the skin if left in contact with
the skin for prolonged periods of time.
Always protect your skin by washing
your hands thoroughly with soap and
warm water as soon as possible after
handling used oil.
ENGINE OIL
