04
4-25
Master Warning Mode
OQX059124L
This warning light informs the driver the
following situations. - Forward Collision-Avoidance Assist system malfunction (if equipped)
- Forward Collision-Avoidance Assist radar blocked (if equipped)
- Blind-Spot Collision Warning system malfunction (if equipped)
- Blind-Spot Collision Warning radar blocked (if equipped)
- Lamp malfunction (if equipped)
- High Beam Assist malfunction (if equipped)
- Tire Pressure Monitoring System (TPMS) malfunction (if equipped)
The Master Warning Light illuminates
if one or more of the above warning
situations occur. At this time, a Master
Warning icon (
) will appear beside
the User Settings icon (), on the LCD
display.
If the warning situation is solved, the
master warning light will be turned
off and the Master Warning icon will
disappear.
User Settings Mode
OQX059096L
In this mode, you can change the
settings of the instrument cluster, doors,
lamps, etc.
1. Driver assistance
2. Door
3. Lights
4. Convenience
5. Service interval
6. Other
7. Language
8. Reset
The information provided may differ
depending on which functions are
applicable to your vehicle.

Instrument Cluster4-30
6. Other
Items Explanation
Fuel Economy Reset
[
Off: The a
verage fuel economy will not reset automatically
whenever refueling.

[ After ignition: When the engine has been OFF for 4 hours or longer
the average fuel economy will reset automatically.

[ After refueling: The average fuel economy will reset automatically
after adding 1.6 gallons (6 liters) of fuel or more and after driving
speed exceeds 1 mph (1 km/h).
For more information, refer to “Trip Computer” in this chapter.
Speed Unit
(if equipped) To select the speed unit. (km/h / MPH)
Fuel Economy Unit To select the fuel economy unit. (US gallon / UK gallon)
Temperature Unit To select the temperature unit. (°C / °F)
Tire Pressure Unit To select the tire pressure unit. (psi / kPa / bar)
7. Language
Items Explanation
Language T
o select language.
8. Reset
Items Explanation
Reset Y
ou can reset the menus in the User Settings mode. All menus in the
User Settings mode are reset to factory settings, except language
and service interval.

à The information provided may differ depending on which functions are applicable
to your vehicle.

08
8-29

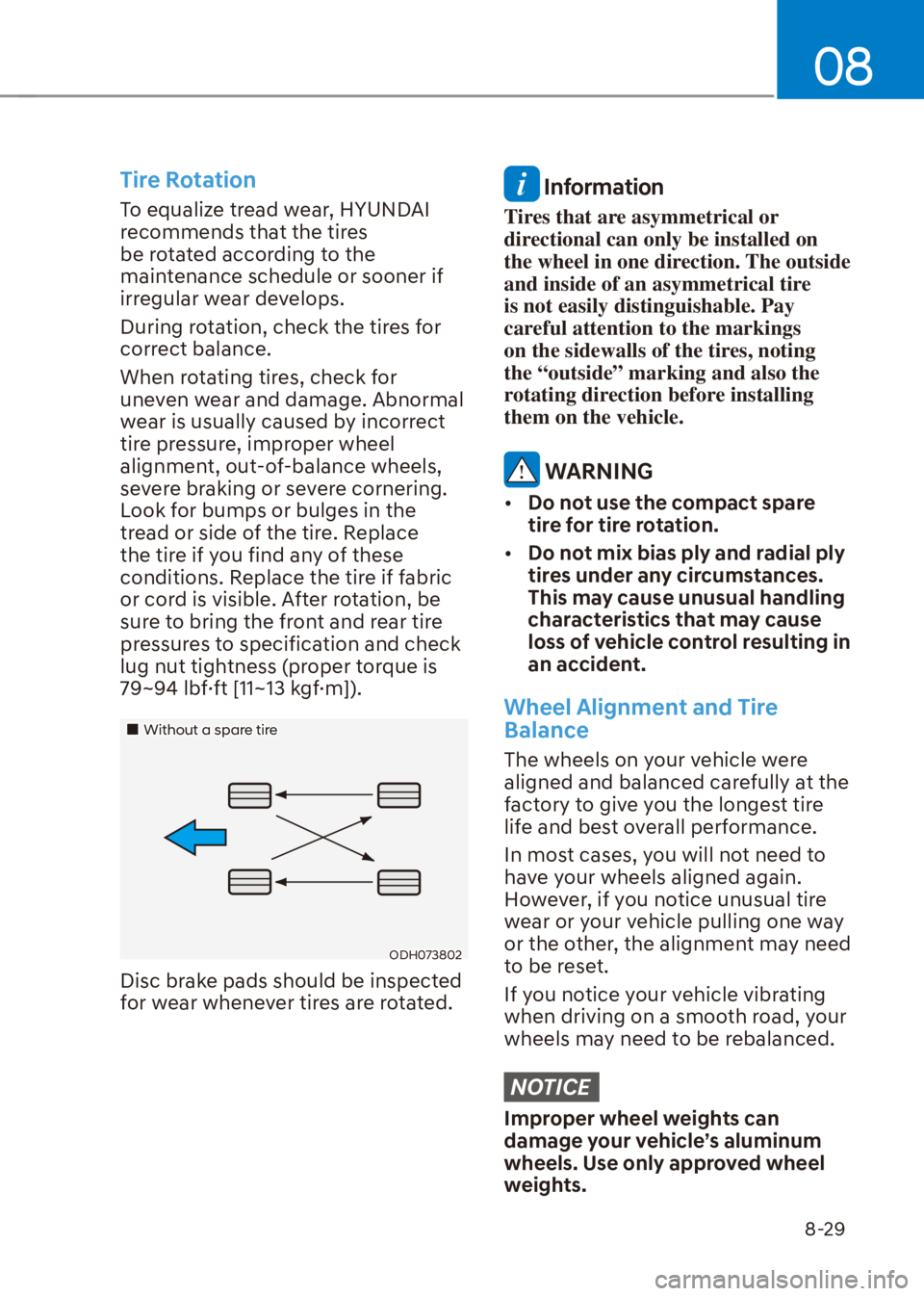

Tire Rotation
To equalize tread wear, HYUNDAI
recommends that the tires
be rotated according to the
maintenance schedule or sooner if
irregular wear develops.
During rotation, check the tires for
correct balance.
When rotating tires, check for
uneven wear and damage. Abnormal
wear is usually caused by incorrect
tire pressure, improper wheel
alignment, out-of-balance wheels,
severe braking or severe cornering.
Look for bumps or bulges in the
tread or side of the tire. Replace
the tire if you find any of these
conditions. Replace the tire if fabric
or cord is visible. After rotation, be
sure to bring the front and rear tire
pressures to specification and check
lug nut tightness (proper torque is
79~94 lbf·ft [11~13 kgf·m]).
„Without a spare tire
ODH073802
Disc brake pads should be inspected
for wear whenever tires are rotated.
Information
Tires that are asymmetrical or
directional can only be installed on
the wheel in one direction. The outside
and inside of an asymmetrical tire
is not easily distinguishable. Pay
careful attention to the markings
on the sidewalls of the tires, noting
the “outside” marking and also the
rotating direction before installing
them on the vehicle.
WARNING

[Do not use the compact spare
tire for tire rotation.

[ Do not mix bias ply and radial ply
tires under any circumstances.
This may cause unusual handling
characteristics that may cause
loss of vehicle control resulting in
an accident.
Wheel Alignment and Tire
Balance
The wheels on your vehicle were
aligned and balanced carefully at the
factory to give you the longest tire
life and best overall performance.
In most cases, you will not need to
have your wheels aligned again.
However, if you notice unusual tire
wear or your vehicle pulling one way
or the other, the alignment may need
to be reset.
If you notice your vehicle vibrating
when driving on a smooth road, your
wheels may need to be rebalanced.
NOTICE
Improper wheel weights can
damage your vehicle’s aluminum
wheels. Use only approved wheel
weights.
