2023 HYUNDAI VENUE Owners Manual

Convenience Features5-26
681522)

05
5-27

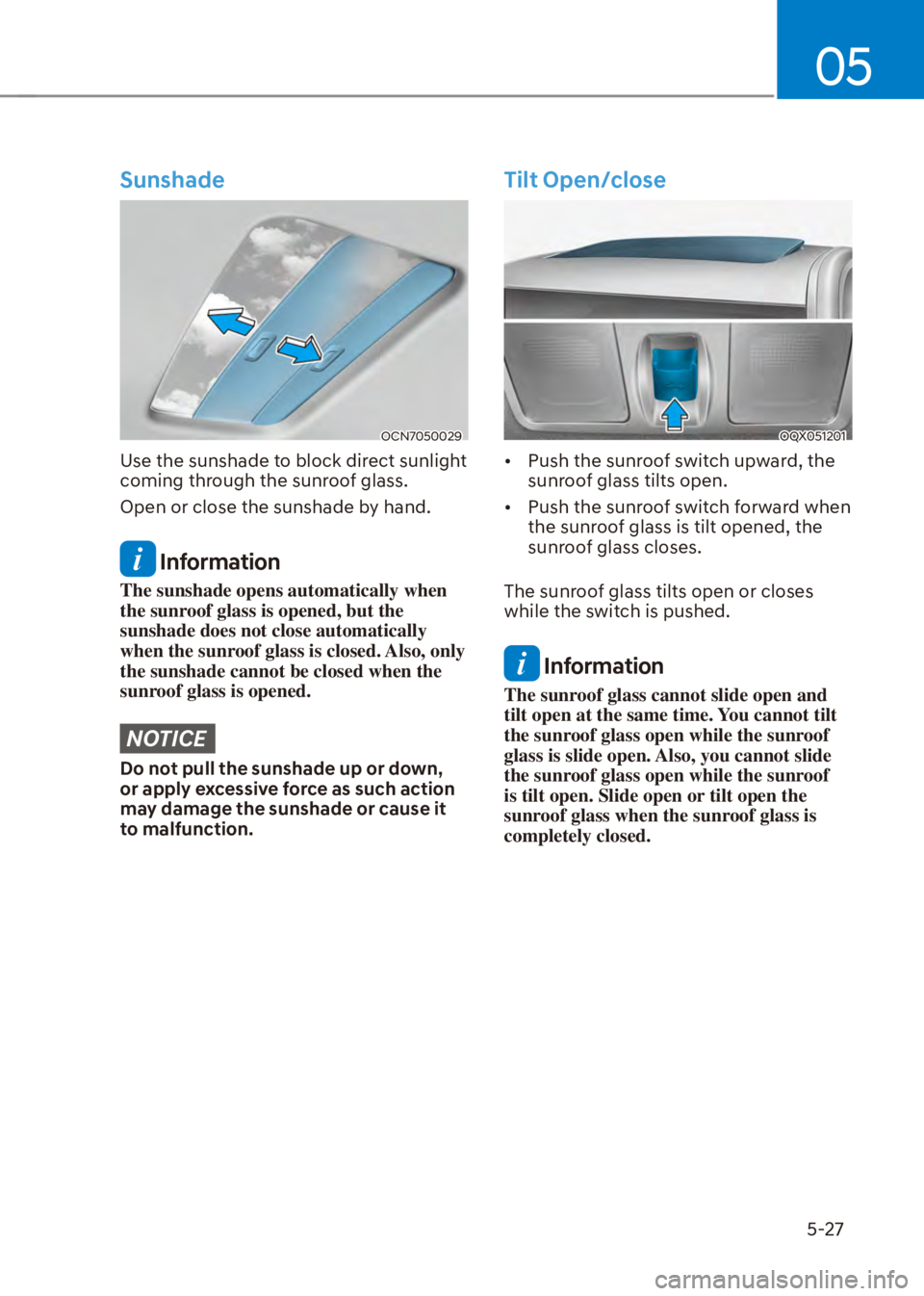

Sunshade
OCN7050029
Use the sunshade to block direct sunlight
coming through the sunroof glass.
Open or close the sunshade by hand.
Information
The sunshade opens automatically when
the sunroof glass is opened, but the
sunshade does not close automatically
when the sunroof glass is closed. Also, only
the sunshade cannot be closed when the
sunroof glass is opened.
NOTICE
Do not pull the sunshade up or down,
or apply excessive force as such action
may damage the sunshade or cause it
to malfunction.
Tilt Open/close
OQX051201

[Push the sunroof switch upward, the
sunroof glass tilts open.

[ Push the sunroof switch forward when
the sunroof glass is tilt opened, the
sunroof glass closes.
The sunroof glass tilts open or closes
while the switch is pushed.
Information
The sunroof glass cannot slide open and
tilt open at the same time. You cannot tilt
the sunroof glass open while the sunroof
glass is slide open. Also, you cannot slide
the sunroof glass open while the sunroof
is tilt open. Slide open or tilt open the
sunroof glass when the sunroof glass is
completely closed.

Convenience Features5-28

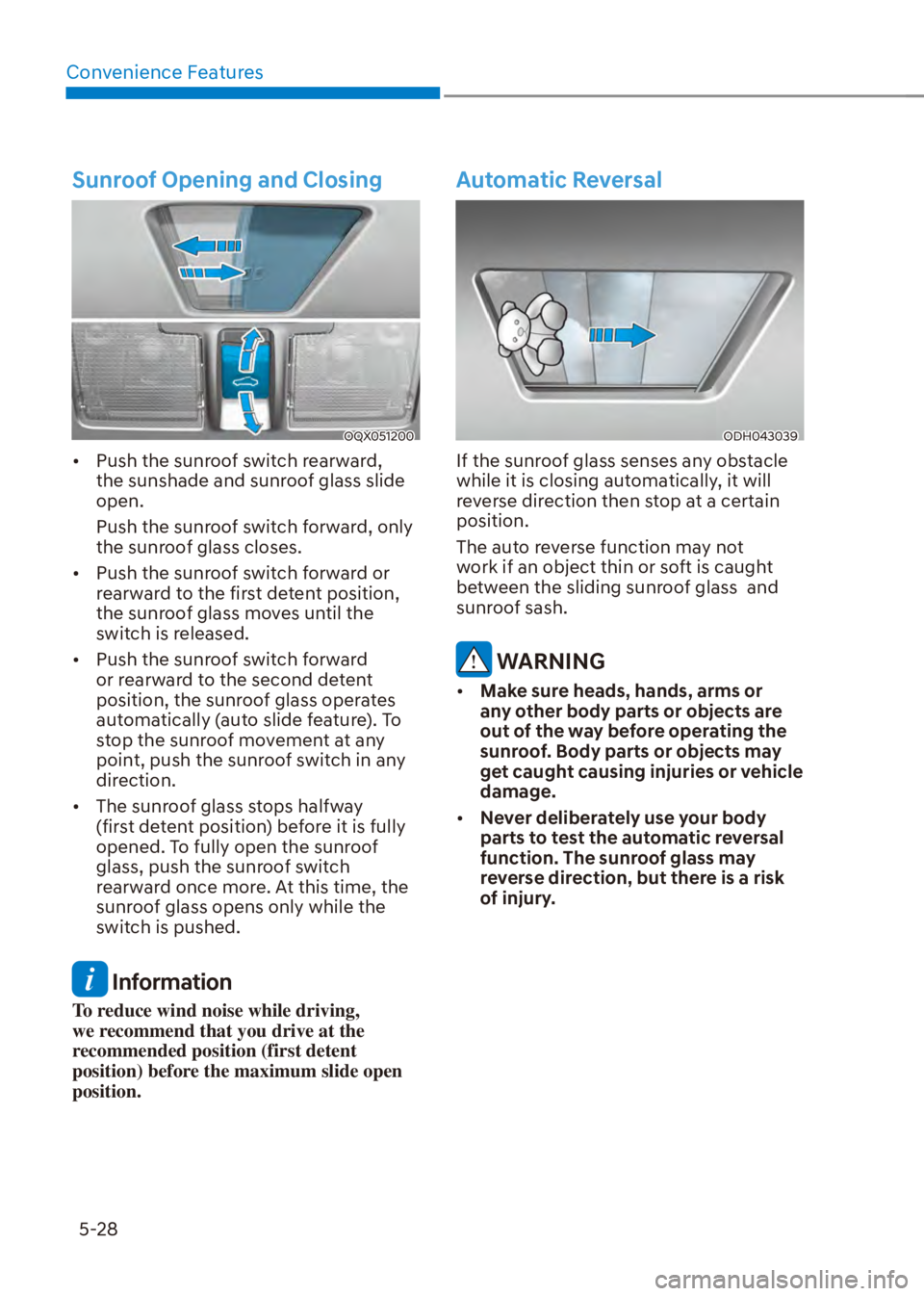

Sunroof Opening and Closing
OQX051200

[ Push the sunroof switch rearward,
the sunshade and sunroof glass slide
open.
Push the sunroof switch forward, only
the sunroof glass closes.

[ Push the sunroof switch forward or
rearward to the first detent position,
the sunroof glass moves until the
switch is released.

[ Push the sunroof switch forward
or rearward to the second detent
position, the sunroof glass operates
automatically (auto slide feature). To
stop the sunroof movement at any
point, push the sunroof switch in any
direction.

[ The sunroof glass stops halfway
(first detent position) before it is fully
opened. To fully open the sunroof
glass, push the sunroof switch
rearward once more. At this time, the
sunroof glass opens only while the
switch is pushed.
Information
To reduce wind noise while driving,
we recommend that you drive at the
recommended position (first detent
position) before the maximum slide open
position.
Automatic Reversal
ODH043039
If the sunroof glass senses any obstacle
while it is closing automatically, it will
reverse direction then stop at a certain
position.
The auto reverse function may not
work if an object thin or soft is caught
between the sliding sunroof glass and
sunroof sash.
WARNING

[Make sure heads, hands, arms or
any other body parts or objects are
out of the way before operating the
sunroof. Body parts or objects may
get caught causing injuries or vehicle
damage.

[ Never deliberately use your body
parts to test the automatic reversal
function. The sunroof glass may
reverse direction, but there is a risk
of injury.

05
5-29

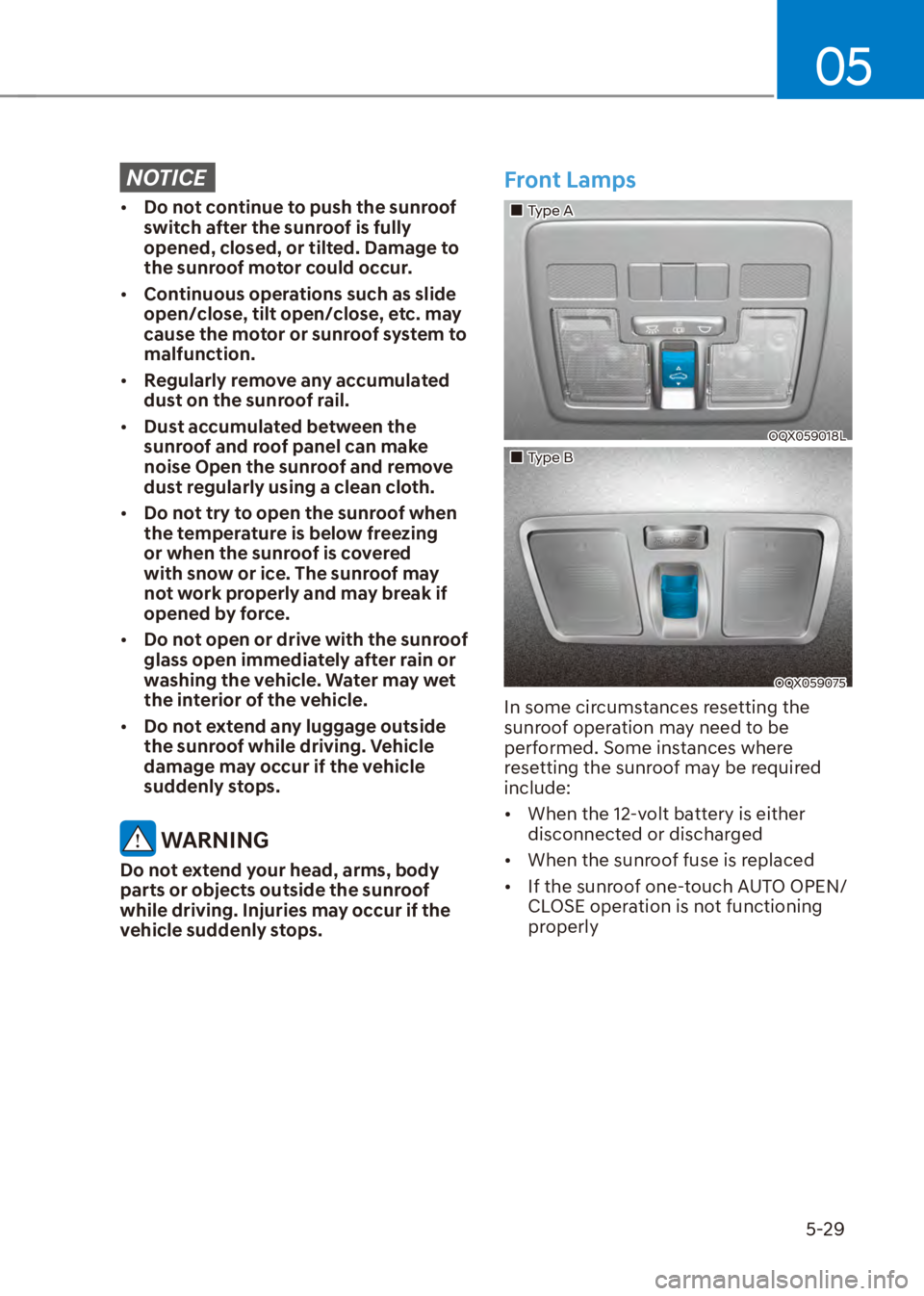

NOTICE

[Do not continue to push the sunroof
switch after the sunroof is fully
opened, closed, or tilted. Damage to
the sunroof motor could occur.

[ Continuous operations such as slide
open/close, tilt open/close, etc. may
cause the motor or sunroof system to
malfunction.

[ Regularly remove any accumulated
dust on the sunroof rail.

[ Dust accumulated between the
sunroof and roof panel can make
noise Open the sunroof and remove
dust regularly using a clean cloth.

[ Do not try to open the sunroof when
the temperature is below freezing
or when the sunroof is covered
with snow or ice. The sunroof may
not work properly and may break if
opened by force.

[ Do not open or drive with the sunroof
glass open immediately after rain or
washing the vehicle. Water may wet
the interior of the vehicle.

[ Do not extend any luggage outside
the sunroof while driving. Vehicle
damage may occur if the vehicle
suddenly stops.
WARNING
Do not extend your head, arms, body
parts or objects outside the sunroof
while driving. Injuries may occur if the
vehicle suddenly stops.
Front Lamps
„Type A
OQX059018L
„Type B
OQX059075
In some circumstances resetting the
sunroof operation may need to be
performed. Some instances where
resetting the sunroof may be required
include:

[When the 12-volt battery is either
disconnected or discharged

[ When the sunroof fuse is replaced

[ If the sunroof one-touch AUTO OPEN/
CLOSE operation is not functioning
properly

Convenience Features5-30
Sunroof resetting procedure:
1. It is recommended to perform the reset procedure with the vehicle
engine running. Start the vehicle in P
(Park).
2. Make sure the sunroof glass is in the fully closed position. If the sunroof
glass is open, push the switch forward
until the sunroof glass is fully closed.
3. Release the switch when the sunroof glass is fully closed.
4. Push the switch forward until the sunroof glass moves slightly. Then
release the switch.
5. Once again push and hold the sunroof switch forward until the sunroof glass
slides open and close. Do not release
the switch until the operation is
completed.
If you release the switch during
operation, start the procedure again
from step 2.
Information
If the sunroof is not reset when the vehicle
battery is disconnected or discharged, or
the sunroof fuse is blown, the sunroof may
not operate normally.
Sunroof Open Warning
OQX049015L
If the driver turns off the engine when
the sunroof is not fully closed, the
warning chime will sound for several
seconds and the sunroof open warning
will appear on the cluster LCD display.
Close the sunroof securely when leaving
your vehicle.
CAUTION
Make sure the sunroof is closed fully
when leaving your vehicle. If the
sunroof is left open, rain or snow may
wet the interior of the vehicle. Also,
leaving the sunroof open when the
vehicle is unattended may invite theft.

05
5-31

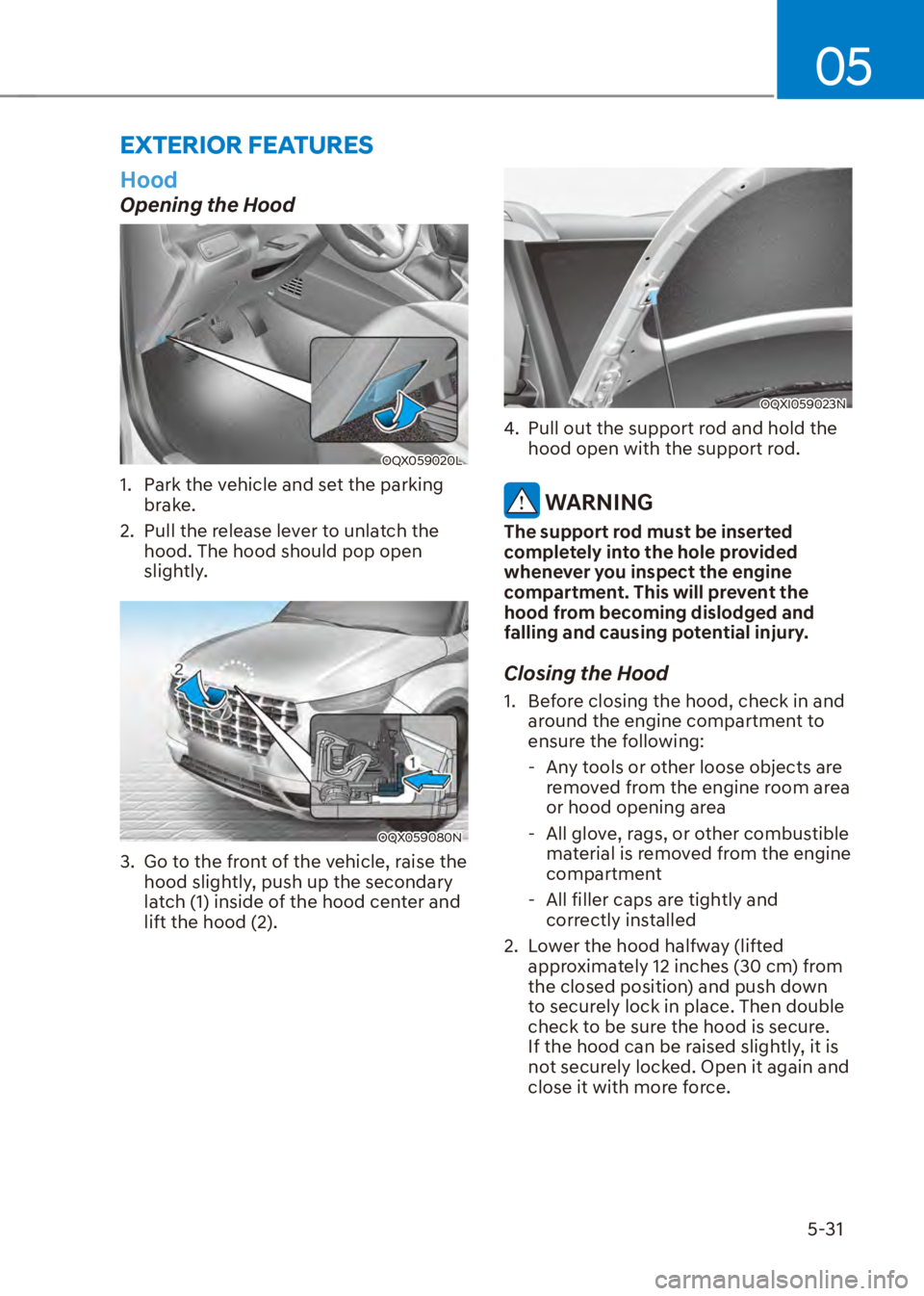

EXTERIOR FEATURES
Hood
Opening the Hood
OQX059020L
1. Park the vehicle and set the parking brake.
2. Pull the release lever to unlatch the hood. The hood should pop open
slightly.
OQX059080N
3. Go to the front of the vehicle, raise the hood slightly, push up the secondary
latch (1) inside of the hood center and
lift the hood (2).
OQXI059023N
4. Pull out the support rod and hold the hood open with the support rod.
WARNING
The support rod must be inserted
completely into the hole provided
whenever you inspect the engine
compartment. This will prevent the
hood from becoming dislodged and
falling and causing potential injury.
Closing the Hood
1. Before closing the hood, check in and around the engine compartment to
ensure the following:
- Any tools or other loose objects are removed from the engine room area
or hood opening area
- All glove, rags, or other combustible material is removed from the engine
compartment

- All filler caps are tightly and
correctly installed
2. Lower the hood halfway (lifted approximately 12 inches (30 cm) from
the closed position) and push down
to securely lock in place. Then double
check to be sure the hood is secure.
If the hood can be raised slightly, it is
not securely locked. Open it again and
close it with more force.

Convenience Features5-32
WARNING

[ Before closing the hood, ensure
all obstructions are removed from
around the hood opening.

[ Always double check to be sure that
the hood is firmly latched before
driving away. Check there is no
hood open warning light or message
displayed on the instrument cluster.
Driving with the hood opened may
cause a total loss of visibility, which
might result in an accident.

[ Do not move the vehicle with the
hood in the raised position, as vision
is obstructed, which might result in
an accident, and the hood could fall
or be damaged.
Liftgate
Opening the Liftgate
OQXI049009
Before attempting to open the liftgate,
make sure the vehicle is in PARK (P). To
open the liftgate, perform the following.
1. Unlock the vehicle using either the
remote key fob (Key Start vehicles),
the Smart Key (Push Button Start
vehicles), or the Unlock button on the
driver side armrest.
2. From outside the vehicle, press the liftgate handle
Closing the Liftgate
OQX059148N
Lower the liftgate lid and press down
until it locks. To be sure the liftgate lid is
securely fastened, always check by trying
to pull it up again without pressing the
liftgate handle button.
Information
In cold and wet climates, door lock and
door mechanisms may not work properly
due to freezing conditions.
WARNING
The liftgate swings upward. Make sure
no objects or people are near the rear of
the vehicle when opening the liftgate.
NOTICE
Make certain that you close the liftgate
before driving your vehicle. Possible
damage may occur to the liftgate struts
and mounting hinges if the liftgate is
not closed prior to driving.

05
5-33

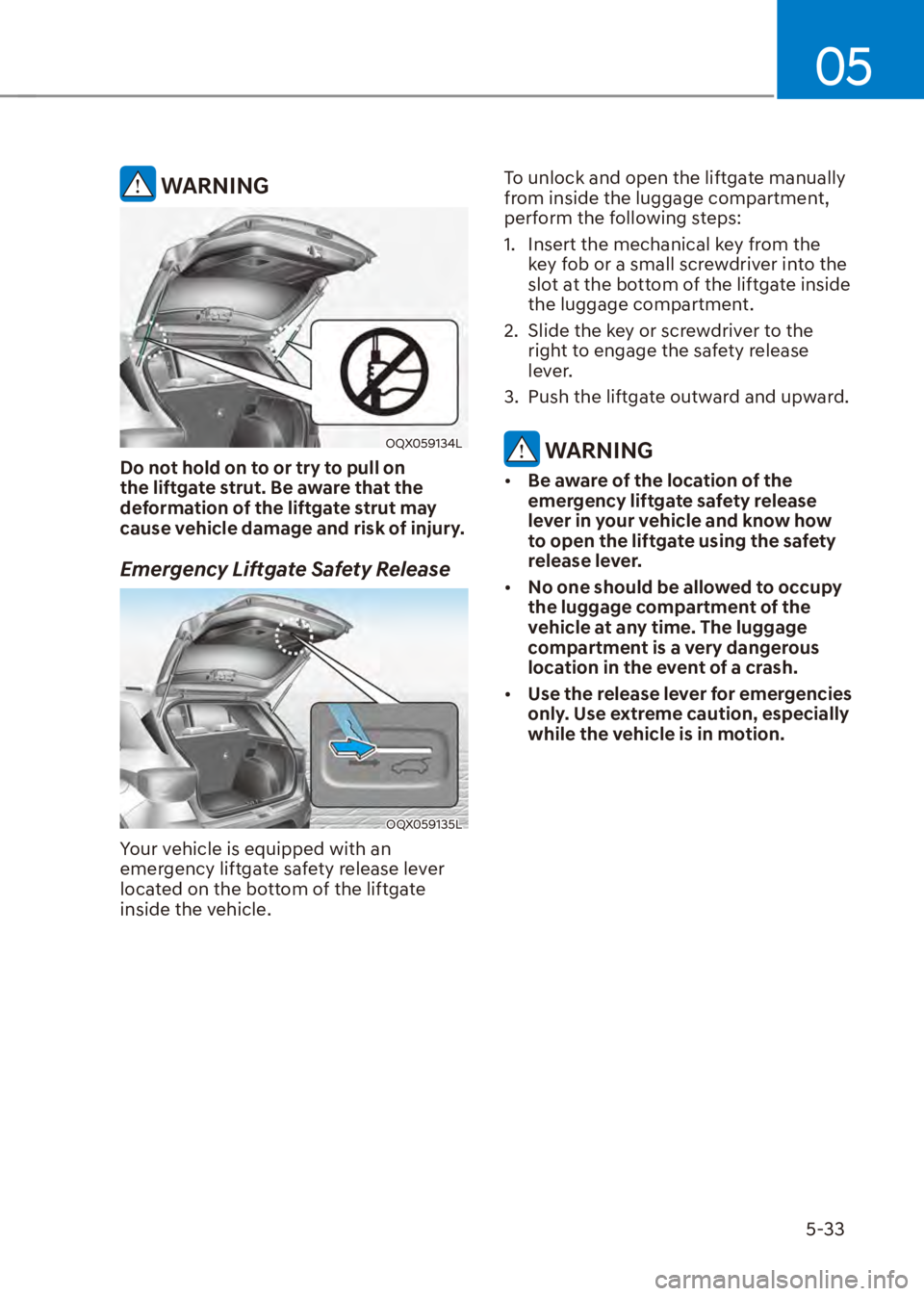

WARNING
OQX059134L
Do not hold on to or try to pull on
the liftgate strut. Be aware that the
deformation of the liftgate strut may
cause vehicle damage and risk of injury.
Emergency Liftgate Safety Release
OQX059135L
Your vehicle is equipped with an
emergency liftgate safety release lever
located on the bottom of the liftgate
inside the vehicle.To unlock and open the liftgate manually
from inside the luggage compartment,
perform the following steps:
1. Insert the mechanical key from the
key fob or a small screwdriver into the
slot at the bottom of the liftgate inside
the luggage compartment.
2. Slide the key or screwdriver to the right to engage the safety release
lever.
3. Push the liftgate outward and upward.
WARNING

[ Be aware of the location of the
emergency liftgate safety release
lever in your vehicle and know how
to open the liftgate using the safety
release lever.

[ No one should be allowed to occupy
the luggage compartment of the
vehicle at any time. The luggage
compartment is a very dangerous
location in the event of a crash.

[ Use the release lever for emergencies
only. Use extreme caution, especially
while the vehicle is in motion.
