2023 HYUNDAI VENUE Owners Manual

Convenience Features5-34
Fuel Filler Door
Opening the Fuel Filler Door
OQX059021L
The fuel filler door is opened from inside
the vehicle using the fuel filler door
release lever.
1. Turn the engine off. Locate the fuel filler door release lever on the floor on
the left side of the driver seat.
2. Pull up on the release lever.
OQXI049021
3. Pull the fuel filler door (1) outward to access the fuel tank cap.
4. To remove the fuel tank cap (2), turn it counterclockwise. You may hear a
hissing noise as the pressure inside
the tank equalizes.
5. Place the cap on the fuel filler door.
Information
If the fuel filler door does not open
because ice has formed around it, tap
lightly or push on the door to break the
ice and release the door. Do not pry on the
door. If necessary, spray around the door
with an approved deicer fluid (do not use
radiator antifreeze) or move the vehicle to
a warm place and allow the ice to melt.
Closing the Fuel Filler Door
1. To install the fuel tank cap, turn it clockwise until it “clicks” one time.
2. Close the fuel filler door until it is latched securely.
WARNING
Gasoline is highly flammable and
explosive. Failure to follow these
guidelines may result in SERIOUS
INJURY or DEATH:

[Read and follow all warnings posted
at the gas station.

[ Before refueling, note the location of
the Emergency Gasoline Shut-Off, if
available, at the gas station.

[ Before touching the fuel nozzle, you
should eliminate the potential build-
up of static electricity by touching
a metal part of the vehicle, a safe
distance away from the fuel filler
neck, nozzle, or other gas source,
with your bare hand.

[ Do not use cellular phones while
refueling. Electric current and/or
electronic interference from cellular
phones can potentially ignite fuel
vapors and cause a fire.

05
5-35

[Do not get back into a vehicle
once you have begun refueling.
You can generate a buildup of
static electricity by touching,
rubbing or sliding against any item
or fabric capable of producing
static electricity. Static electricity
discharge can ignite fuel vapors
causing a fire. If you must re-enter
the vehicle, you should once again
eliminate potentially dangerous
static electricity discharge by
touching a metal part of the vehicle,
away from the fuel filler neck, nozzle
or other gasoline source, with your
bare hand.

[ When using an approved portable
fuel container, be sure to place the
container on the ground prior to
refueling. Static electricity discharge
from the container can ignite fuel
vapors causing a fire.
Once refueling has begun, contact
between your bare hand and the
vehicle should be maintained until
the filling is complete.

[ Use only approved portable plastic
fuel containers designed to carry and
store gasoline.

[ When refueling, always move the
shift lever to the P (Park) position (for
Intelligent variable transmission),
set the parking brake, and place
the ignition switch to the LOCK/
OFF position. Sparks produced by
electrical components related to the
engine can ignite fuel vapors causing
a fire.

[ Do not use matches or a lighter and
do not smoke or leave a lit cigarette
in your vehicle while at a gas station,
especially during refueling.
[Do not over-fill or top-off your
vehicle tank, which can cause
gasoline spillage.

[ If a fire breaks out during refueling,
leave the vicinity of the vehicle, and
immediately contact the manager
of the gas station and then contact
the local fire department. Follow any
safety instructions they provide.

[ If pressurized fuel sprays out, it can
cover your clothes or skin and thus
subject you to the risk of fire and
burns. Always remove the fuel cap
carefully and slowly. If the cap is
venting fuel or if you hear a hissing
sound, wait until the condition stops
before completely removing the cap.

[ Always check that the fuel cap is
installed securely to prevent fuel
spillage in the event of an accident.
Information
Make sure to refuel your vehicle according
to the “Fuel Requirements” suggested in
the Introduction chapter.
NOTICE

[Do not spill fuel on the exterior
surfaces of the vehicle. Any type of
fuel spilled on painted surfaces may
damage the paint.

[ If the fuel filler cap requires
replacement, use only a genuine
HYUNDAI cap or the equivalent
specified for your vehicle. An
incorrect fuel filler cap can result
in a serious malfunction of the fuel
system or emission control system.

Convenience Features5-36

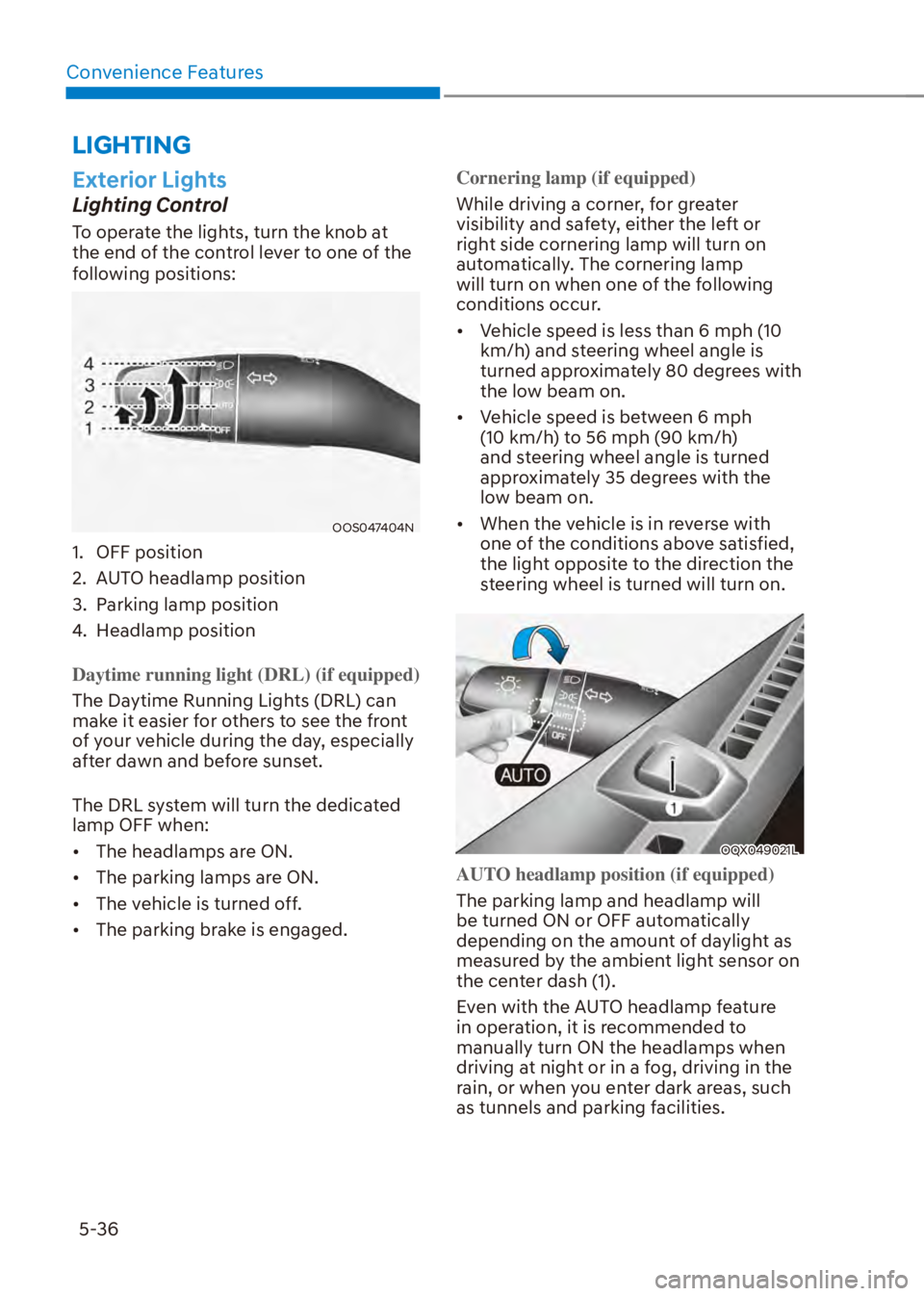

LIGHTING
Exterior Lights
Lighting Control
To operate the lights, turn the knob at
the end of the control lever to one of the
following positions:
OOS047404N
1. OFF position
2. AUTO headlamp position
3. Parking lamp position
4. Headlamp position
Daytime running light (DRL) (if equipped)
The Daytime Running Lights (DRL) can
mak
e it easier for others to see the front
of your vehicle during the day, especially
after dawn and before sunset.
The DRL system will turn the dedicated
lamp OFF when:

[ The headlamps are ON.

[ The parking lamps are ON.

[ The vehicle is turned off.

[ The parking brake is engaged. Cornering lamp (if equipped)
While driving a corner, for greater
visibility and sa

fety, either the left or
right side cornering lamp will turn on
automatically. The cornering lamp
will turn on when one of the following
conditions occur.

[ Vehicle speed is less than 6 mph (10
km/h) and steering wheel angle is
turned approximately 80 degrees with
the low beam on.

[ Vehicle speed is between 6 mph
(10 km/h) to 56 mph (90 km/h)
and steering wheel angle is turned
approximately 35 degrees with the
low beam on.

[ When the vehicle is in reverse with
one of the conditions above satisfied,
the light opposite to the direction the
steering wheel is turned will turn on.
OQX049021L
AUTO headlamp position (if equipped)
The parking lamp and headlamp will
be turned ON or OFF aut

omatically
depending on the amount of daylight as
measured by the ambient light sensor on
the center dash (1).
Even with the AUTO headlamp feature
in operation, it is recommended to
manually turn ON the headlamps when
driving at night or in a fog, driving in the
rain, or when you enter dark areas, such
as tunnels and parking facilities.

05
5-37

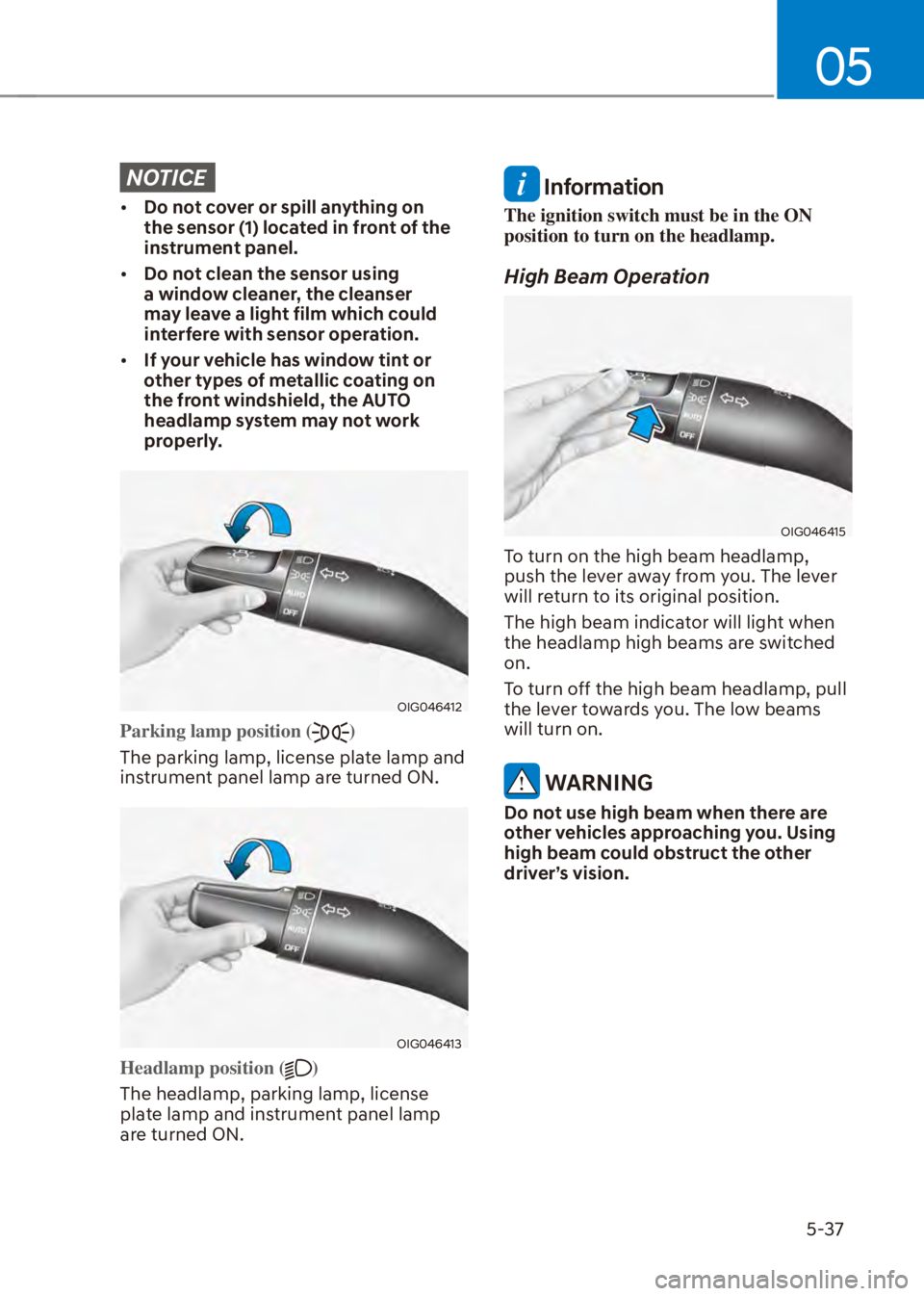

NOTICE

[Do not cover or spill anything on
the sensor (1) located in front of the
instrument panel.

[ Do not clean the sensor using
a window cleaner, the cleanser
may leave a light film which could
interfere with sensor operation.

[ If your vehicle has window tint or
other types of metallic coating on
the front windshield, the AUTO
headlamp system may not work
properly.
OIG046412
Parking lamp position ()
The parking lamp, license plate lamp and
ins
trument panel lamp are turned ON.
OIG046413
Headlamp position ()
The headlamp, parking lamp, license
pla
te lamp and instrument panel lamp
are turned ON.
Information
The ignition switch must be in the ON
position to turn on the headlamp.
High Beam Operation
OIG046415
To turn on the high beam headlamp,
push the lever away from you. The lever
will return to its original position.
The high beam indicator will light when
the headlamp high beams are switched
on.
To turn off the high beam headlamp, pull
the lever towards you. The low beams
will turn on.
WARNING
Do not use high beam when there are
other vehicles approaching you. Using
high beam could obstruct the other
driver’s vision.

Convenience Features5-38
OIG046414

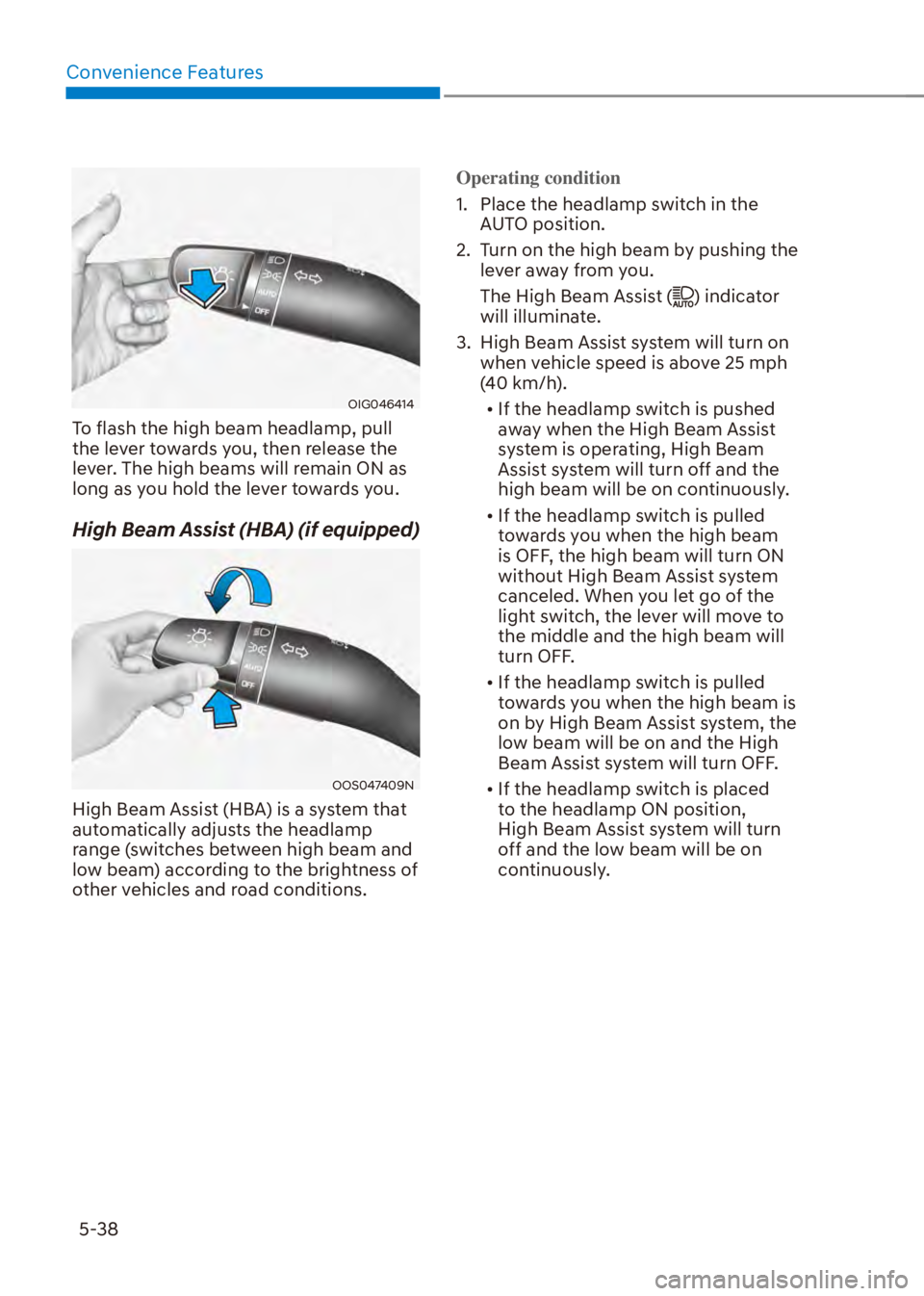

To flash the high beam headlamp, pull
the lever towards you, then release the
lever. The high beams will remain ON as
long as you hold the lever towards you.
High Beam Assist (HBA) (if equipped)
OOS047409N
High Beam Assist (HBA) is a system that
automatically adjusts the headlamp
range (switches between high beam and
low beam) according to the brightness of
other vehicles and road conditions. Operating condition
1. Place the headlamp switch in the
A
UTO position.
2. Turn on the high beam by pushing the lever away from you.
The High Beam Assist (
) indicator
will illuminate.
3. High Beam Assist system will turn on when vehicle speed is above 25 mph
(40 km/h).

[ If the headlamp switch is pushed
away when the High Beam Assist
system is operating, High Beam
Assist system will turn off and the
high beam will be on continuously.

[ If the headlamp switch is pulled
towards you when the high beam
is OFF, the high beam will turn ON
without High Beam Assist system
canceled. When you let go of the
light switch, the lever will move to
the middle and the high beam will
turn OFF.

[ If the headlamp switch is pulled
towards you when the high beam is
on by High Beam Assist system, the
low beam will be on and the High
Beam Assist system will turn OFF.

[ If the headlamp switch is placed
to the headlamp ON position,
High Beam Assist system will turn
off and the low beam will be on
continuously.

05
5-39

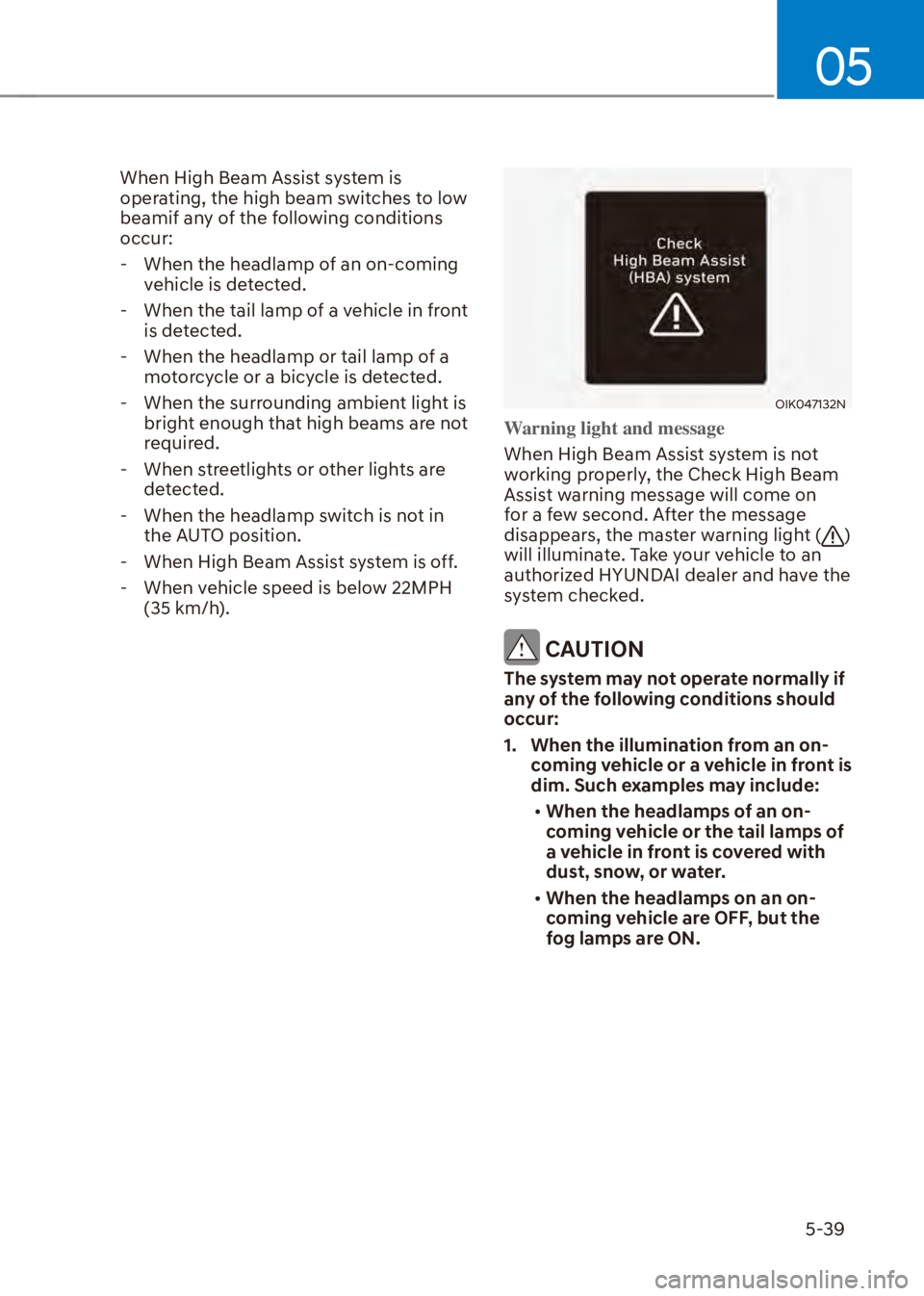

When High Beam Assist system is
operating, the high beam switches to low
beamif any of the following conditions
occur: - When the headlamp of an on-coming vehicle is detected.

- When the tail lamp of a vehicle in front
is detected.
- When the headlamp or tail lamp of a motorcycle or a bicycle is detected.

- When the surrounding ambient light is
bright enough that high beams are not
required.

- When streetlights or other lights are
detected.
- When the headlamp switch is not in the AUTO position.
- When High Beam Assist system is off.
- When vehicle speed is below 22MPH (35 km/h).
OIK047132N
Warning light and message
When High Beam Assist system is not
w
orking properly, the Check High Beam
Assist warning message will come on
for a few second. After the message
disappears, the master warning light (
)
will illuminate. Take your vehicle to an
authorized HYUNDAI dealer and have the
system checked.
CAUTION
The system may not operate normally if
any of the following conditions should
occur:
1. When the illumination from an on- coming vehicle or a vehicle in front is
dim. Such examples may include:

[ When the headlamps of an on-
coming vehicle or the tail lamps of
a vehicle in front is covered with
dust, snow, or water.

[ When the headlamps on an on-
coming vehicle are OFF, but the
fog lamps are ON.

Convenience Features5-40

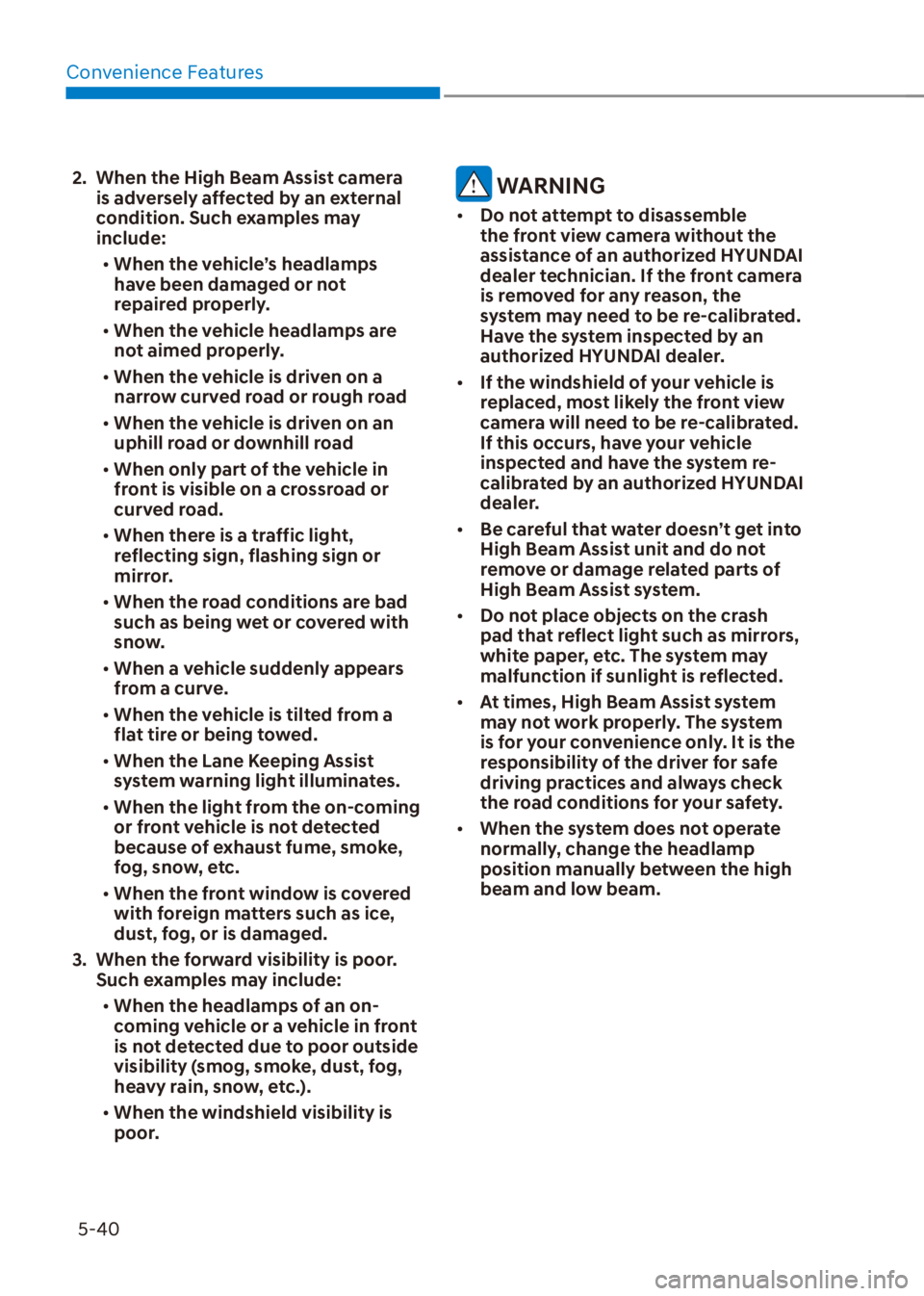

2. When the High Beam Assist camera is adversely affected by an external
condition. Such examples may
include:

[ When the vehicle’s headlamps
have been damaged or not
repaired properly.

[ When the vehicle headlamps are
not aimed properly.

[ When the vehicle is driven on a
narrow curved road or rough road

[ When the vehicle is driven on an
uphill road or downhill road

[ When only part of the vehicle in
front is visible on a crossroad or
curved road.

[ When there is a traffic light,
reflecting sign, flashing sign or
mirror.

[ When the road conditions are bad
such as being wet or covered with
snow.

[ When a vehicle suddenly appears
from a curve.

[ When the vehicle is tilted from a
flat tire or being towed.

[ When the Lane Keeping Assist
system warning light illuminates.

[ When the light from the on-coming
or front vehicle is not detected
because of exhaust fume, smoke,
fog, snow, etc.

[ When the front window is covered
with foreign matters such as ice,
dust, fog, or is damaged.
3. When the forward visibility is poor. Such examples may include:

[ When the headlamps of an on-
coming vehicle or a vehicle in front
is not detected due to poor outside
visibility (smog, smoke, dust, fog,
heavy rain, snow, etc.).

[ When the windshield visibility is
poor. WARNING

[ Do not attempt to disassemble
the front view camera without the
assistance of an authorized HYUNDAI
dealer technician. If the front camera
is removed for any reason, the
system may need to be re-calibrated.
Have the system inspected by an
authorized HYUNDAI dealer.

[ If the windshield of your vehicle is
replaced, most likely the front view
camera will need to be re-calibrated.
If this occurs, have your vehicle
inspected and have the system re-
calibrated by an authorized HYUNDAI
dealer.

[ Be careful that water doesn’t get into
High Beam Assist unit and do not
remove or damage related parts of
High Beam Assist system.

[ Do not place objects on the crash
pad that reflect light such as mirrors,
white paper, etc. The system may
malfunction if sunlight is reflected.

[ At times, High Beam Assist system
may not work properly. The system
is for your convenience only. It is the
responsibility of the driver for safe
driving practices and always check
the road conditions for your safety.

[ When the system does not operate
normally, change the headlamp
position manually between the high
beam and low beam.

05
5-41
Turn Signals And Lane Change
Signals
OIG046417
To signal a turn, push down on the lever
for a left turn or up for a right turn in
position (A).
If an indicator stays on and does not flash
or if it flashes abnormally, one of the turn
signal bulbs may be burned out and will
require replacement.
Onetouch turn signal function
To activate the One Touch Turn Signal
function, push the turn signal le
ver up or
down to position (B) and then release it.
The lane change signals will blink 3, 5 or
7 times.
You can activate or deactivate the One
Touch Turn Signal function or choose
the number of blinks (3, 5, or 7) from the
User Settings mode in the LCD display.
For more information, refer to the “LCD
Display” section in this chapter.
Battery Saver Function
The purpose of this feature is to prevent
the battery from being discharged.
The system automatically turns off the
parking lamp when the driver turns the
vehicle off and opens the driver-side
door.
With this feature, the parking lamps will
turn off automatically if the driver parks
on the side of road at night.
However, the position lamps stay ON
even when the driver-side door is opened
if the headlamp switch is turned to the
position lamp OFF or AUTO position after
the engine is turned off.
If necessary, to keep the lamps on
turn the position lamps OFF and ON
again using the headlamp switch on
the steering column after the engine is
turned off.
Headlamp Delay Function
If the key is removed from the ignition
switch or placed in the ACC position
or the LOCK/OFF position with the
headlamps ON, the headlamps (and/
or parking lamps) remain on for about
5 minutes. However, if the driver’s door
is opened and closed, the headlamps
are turned off after 15 seconds. Also,
with the engine off if the driver’s door is
opened and closed, the headlamps (and/
or parking lamps) are turned off after 15
seconds.
The headlamps (and/or parking lamps)
can be turned off by pressing the lock
button on the remote key or smart key
twice or turning the headlamp switch to
the OFF or AUTO position.
You can activate or deactivate the
Headlamp Delay function from the User
Settings Mode in the LCD display.
For more information, refer to the “LCD
Display” section in this chapter.
