4
Instrument Cluster ........................................................................\
.................... 4-4Instrument Cluster Control ........................................................................\
..................4-5Adjusting Instrument Cluster Illumination ...............................................................4-5
Gauges and Meters ........................................................................\
..............................4-5 Speedometer .....................................................................\
........................................4-5
Tachometer .....................................................................\
.......................................... 4-6
Engine Coolant Temperature Gauge ....................................................................... 4-6
Fuel Gauge ........................................................................\
........................................ 4-6
Outside Temperature Gauge ........................................................................\
............. 4-7
Odometer .....................................................................\
.............................................. 4-7
Range ..................................................................\
....................................................... 4-8
Transmission Shift Indicator ........................................................................\
............... 4-8 Manual Transmission Shift Indicator ....................................................................... 4-8
Intelligent Variable Transmission (IVT) .................................................................... 4-9
Warning and Indicator Lights ........................................................................\
............. 4-9 Air Bag Warning Light ........................................................................\
....................... 4-9
Seat Belt Warning Light ........................................................................\
.................... 4-9
Parking Brake & Brake Fluid Warning Light ............................................................ 4-10
Anti-lock Brake System (ABS) Warning Light .......................................................... 4-11
Electronic Brake Force Distribution (EBD) System Warning Light ........................ 4-11
Electric Power Steering (EPS) Warning Light .......................................................... 4-11
Malfunction Indicator Lamp (MIL) ........................................................................\
.. 4-12
Charging System Warning Light ........................................................................\
..... 4-12
Engine Oil Pressure Warning Light ........................................................................\
. 4-12
Low Fuel Level Warning Light ........................................................................\
......... 4-13
Master Warning Light ........................................................................\
...................... 4-13
Low Tire Pressure Warning Light ........................................................................\
.... 4-13
Electronic Stability Control (ESC) Indicator Light ................................................. 4-14
Electronic Stability Control (ESC) OFF Indicator Light .......................................... 4-14
Immobilizer Indicator Light (without Smart Key) .................................................. 4-14
Immobilizer Indicator Light (with Smart Key) ........................................................ 4-15
Turn Signal Indicator Light ........................................................................\
.............. 4-15
Headlamp Warning Light ........................................................................\
................ 4-15
High Beam Indicator Light ........................................................................\
.............. 4-16
Light ON Indicator Light ........................................................................\
.................. 4-16
High Beam Assist (HBA) Indicator Light ................................................................. 4-16
Forward Collision-Avoidance Assist Warning Light ............................................... 4-16
Lane Keep Assist Indicator Light................................................................\
............. 4-16

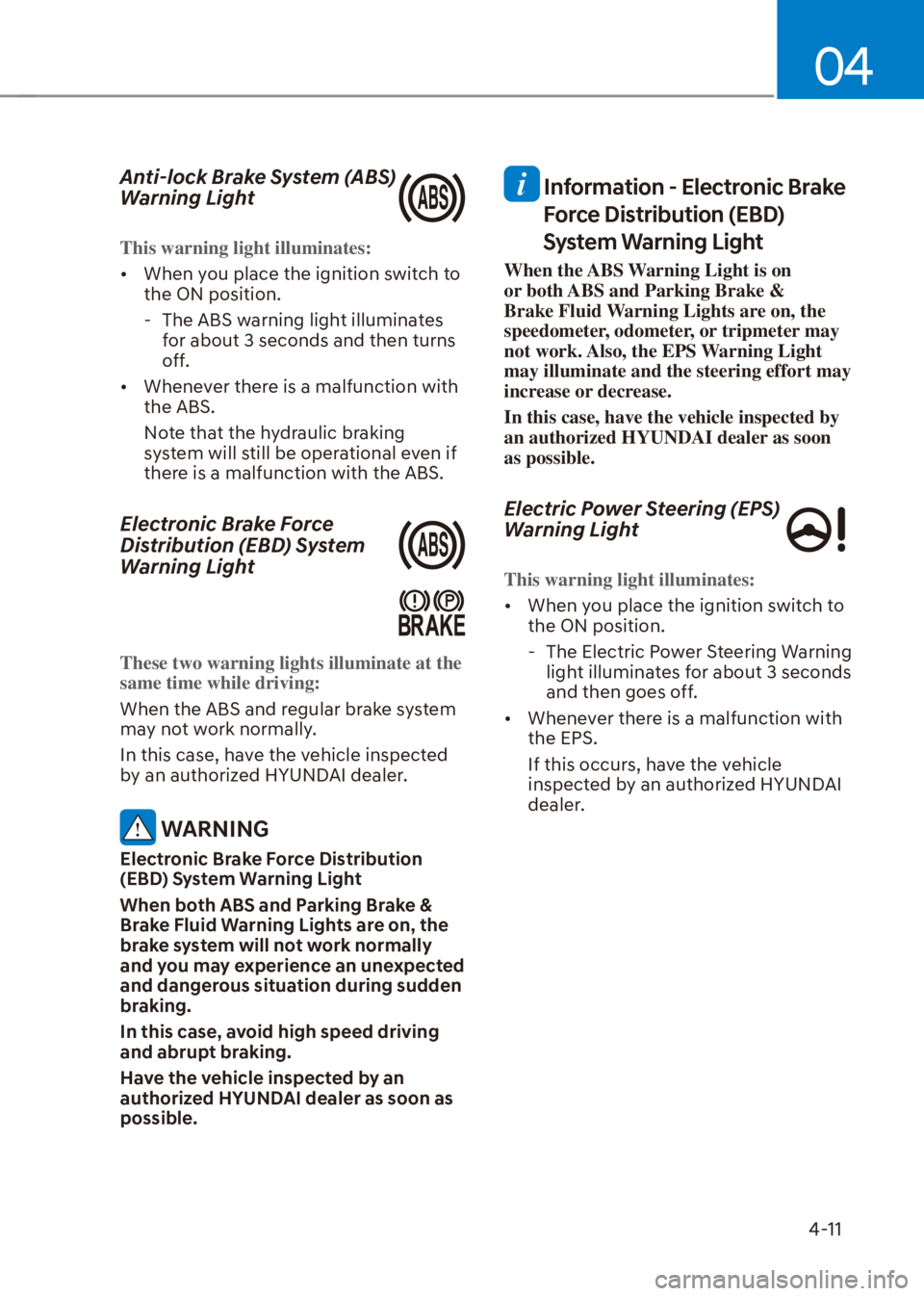

4. Instrument Cluster

04
4-11
Anti-lock Brake System (ABS)
Warning Light
This warning light illuminates:

[When y
ou place the ignition switch to
the ON position.

- The ABS warning light illuminates
for about 3 seconds and then turns
off.

[ Whenever there is a malfunction with
the ABS.
Note that the hydraulic braking
system will still be operational even if
there is a malfunction with the ABS.
Electronic Brake Force
Distribution (EBD) System
Warning Light
These two warning lights illuminate at the
same time while driving:
When the ABS and regular brake system
ma

y not work normally.
In this case, have the vehicle inspected
by an authorized HYUNDAI dealer.
WARNING
Electronic Brake Force Distribution
(EBD) System Warning Light
When both ABS and Parking Brake &
Brake Fluid Warning Lights are on, the
brake system will not work normally
and you may experience an unexpected
and dangerous situation during sudden
braking.
In this case, avoid high speed driving
and abrupt braking.
Have the vehicle inspected by an
authorized HYUNDAI dealer as soon as
possible.
Information - Electronic Brake Force Distribution (EBD)
System Warning Light
When the ABS Warning Light is on
or both ABS and Parking Brake &
Brake Fluid Warning Lights are on, the
speedometer, odometer, or tripmeter may
not work. Also, the EPS Warning Light
may illuminate and the steering effort may
increase or decrease.
In this case, have the vehicle inspected by
an authorized HYUNDAI dealer as soon
as possible.
Electric Power Steering (EPS)
Warning Light
This warning light illuminates:

[ When y
ou place the ignition switch to
the ON position.

- The Electric Power Steering Warning
light illuminates for about 3 seconds
and then goes off.

[ Whenever there is a malfunction with
the EPS.
If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer.
