5
5-97
When the Auto Defogging System
operates, the indicator will illuminate.
If a high amount of humidity is detected in
the vehicle, the Auto Defogging System
will be enabled. The following steps will
be performed automatically:
Step 1)
Air conditioning will turn ON.
Step 2)
Air intake control will change to Fresh
mode.
Step 3)
Mode will change to defrost to direct
airflow to the windshield.
Step 4)
Fan speed will be set to MAX.
If the air conditioning is off or
recirculation mode is manually selected
while Auto Defogging System is ON, the
Auto Defogging System indicator will
blink 3 times to signal that the manual
operation has been canceled.
Turning the Auto Defogging System
ON or OFF
Climate control system
Touch the front windshield defroster icon
for 3 seconds when the Start/Stop button
is in the ON position. When the Auto
Defogging System is turned off, the ADS
OFF symbol will blink 3 times and ADS
OFF will be displayed on the climate
control information system.
When the Auto Defogging System is
turned on, the ADS OFF symbol will blink
6 times without a signal.
Infotainment system
Auto Defogging System can be turned on
and off by selecting Setup > Vehicle > Climate
> Defog /Defrost Options > Auto
Defog from the infotainment system.
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.
Information • When the air conditioning is turned on by
Auto Defogging System, if you try to turn
off the air conditioning, the indicator will
blink 3 times and the air conditioning will
not be turned off.
• To maintain the effectiveness and efficiency of the Auto Defogging System,
do not select Recirculation mode while the
system is operating.
• When Auto Defogging System is operating, fan speed adjustment, temperature
adjustment, and air intake control selection
are all disabled.
NOTICE ' R Q R W U H P R Y H W K H V H Q V R U F R Y H U O R F D W H G
R Q W K H X S S H U H Q G R I W K H Z L Q G V K L H O G J O D V V
' D P D J H W R V \ V W H P S D U W V F R X O G R F F X U D Q G
P D \ Q R W E H F R Y H U H G E \ \ R X U Y H K L F O H
Z D U U D Q W \
if equipped
Auto Dehumidify
To increase cabin air quality and reduce
windshield misting, recirculation mode
switches off automatically after about 5
minutes, depending on the outside
temperature, and the air intake will
change to fresh mode.
Hyundai_CE_en_US.book Page 97
Page 277 of 582
5
5-99
one-touch automatic window function
for all seats. To use this feature, it must
be enabled from the Settings menu in
the infotainment system. Select Setup
> Vehicle > Climate > Recirculate air >
Others .
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.
Automatic Controls Linked to
Climate Control Settings (for
driver’s seat)
The temperature of the driver’s seat
warmer, air ventilated seat and heated
steering wheel is automatically controlled
depending on the inside and outside
temperature of the vehicle when the
vehicle is running.
To use these features, it must be enabled
from the Settings menu in the
infotainment system.
Select Setup > Vehicle > Seat >
Warmer/Ventilation Features > Link to
Climate Settings for Auto-Adjustment >
Driver Seat Warmer/Ventilation .
For more information on Auto Comfort
Control, refer to the "Seat Warmers" and
"Air Ventilation Seats" section in chapter 3
and "Heated Steering Wheel" section in this chapter.
Smart Ventilation
The smart ventilation system maintains
pleasant/fresh air condition inside the
passenger compartment by
automatically detecting/controlling the
temperature and humidity, when you
drive the vehicle with the climate control
system in the OFF position. When the smart ventilation system starts to
operate, the message
'SMART
VENTILATION ON' appears for 5 seconds.
• The smart ventilation system stops operating, when the BLOWER DOWN
OFF button of the climate control
system is selected.
• The smart ventilation system stops operating, when any button of the
climate control system is selected for
operation.
• The smart ventilation system may not operate, when the vehicle is driven at
low speed.
Hyundai_CE_en_US.book Page 99
Page 279 of 582
5
5-101

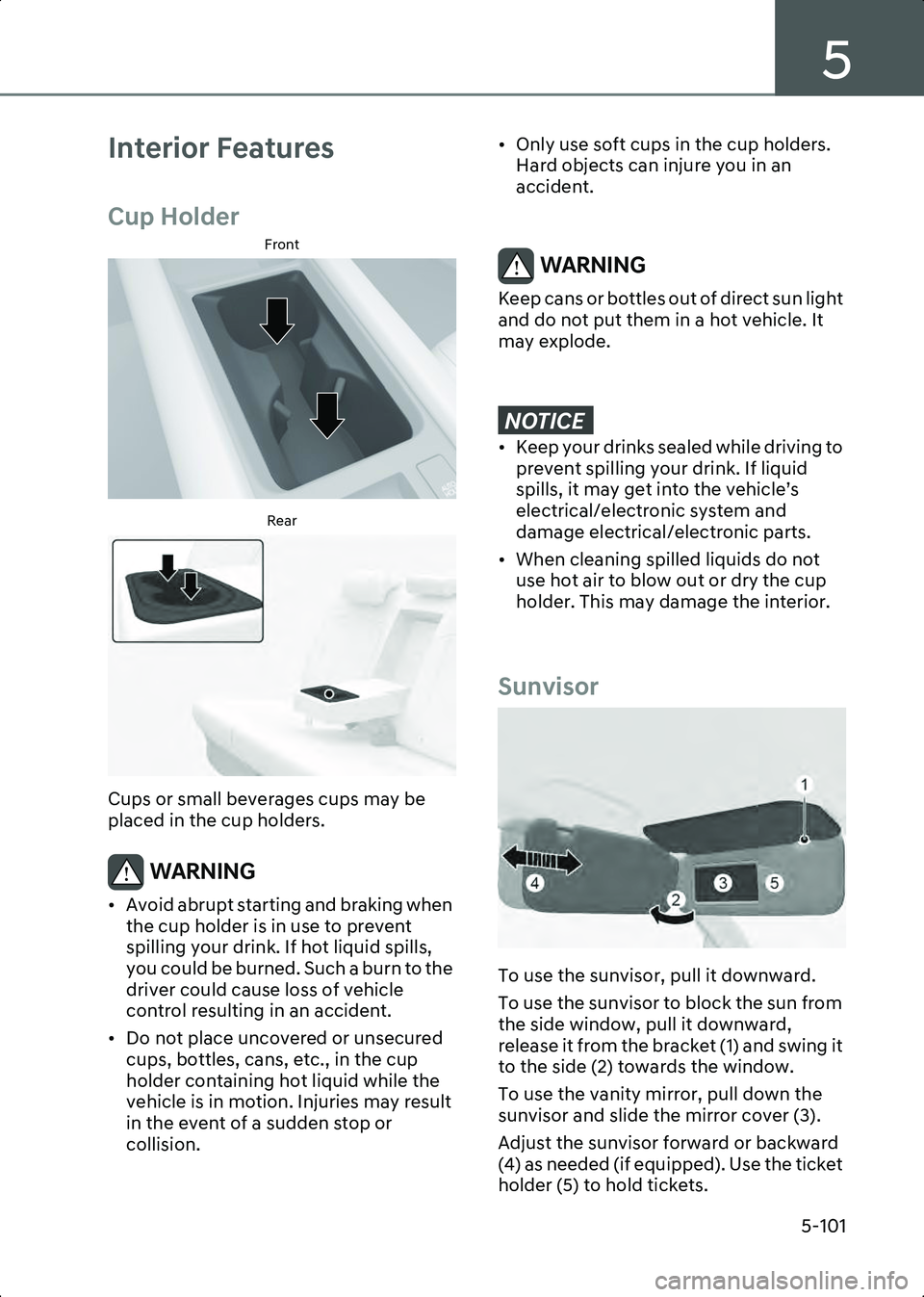

Interior Features
Cup Holder
Front
B5023101Rear
B5023102
Cups or small beverages cups may be
placed in the cup holders.
WARNING • Avoid abrupt starting and braking when the cup holder is in use to prevent
spilling your drink. If hot liquid spills,
you could be burned. Such a burn to the
driver could cause loss of vehicle
control resulting in an accident.
• Do not place uncovered or unsecured cups, bottles, cans, etc., in the cup
holder containing hot liquid while the
vehicle is in motion. Injuries may result
in the event of a sudden stop or
collision. • Only use soft cups in the cup holders.
Hard objects can injure you in an
accident.
WARNING Keep cans or bottles out of direct sun light
and do not put them in a hot vehicle. It
may explode.
NOTICE [ . H H S \ R X U G U L Q N V V H D O H G Z K L O H G U L Y L Q J W R S U H Y H Q W V S L O O L Q J \ R X U G U L Q N , I O L T X L G
V S L O O V L W P D \ J H W L Q W R W K H Y H K L F O HT V
H O H F W U L F D O H O H F W U R Q L F V \ V W H P D Q G
G D P D J H H O H F W U L F D O H O H F W U R Q L F S D U W V
[ : K H Q F O H D Q L Q J V S L O O H G O L T X L G V G R Q R W X V H K R W D L U W R E O R Z R X W R U G U \ W K H F X S
K R O G H U 7 K L V P D \ G D P D J H W K H L Q W H U L R U
Sunvisor
B5023401
To use the sunvisor, pull it downward.
To use the sunvisor to block the sun from
the side window, pull it downward,
release it from the bracket (1) and swing it
to the side (2) towards the window.
To use the vanity mirror, pull down the
sunvisor and slide the mirror cover (3).
Adjust the sunvisor forward or backward
(4) as needed (if equipped). Use the ticket
holder (5) to hold tickets.
Hyundai_CE_en_US.book Page 101
Page 281 of 582
5
5-103
electronic systems or devices used in
your vehicle.
• Push the plug in as far as it will go. If good contact is not made, the plug may
overheat and the fuse may open.
• Plug in battery equipped electrical/electronic devices with
reverse current protection. The current
from the battery may flow into the
vehicle’s electrical/electronic system
and cause system malfunction.
if equipped
USB Charger
Front
B5023701Rear
B5023702
The USB charger is designed to recharge
batteries of small size electrical devices
using a USB cable.
The electrical devices can be recharged
when the Start/Stop button is in the ON or
START position. The battery charging state may be
monitored on the electrical device.
Disconnect the USB cable from the USB
port after use.
• A smartphone or a tablet PC may get
warmer during the recharging process.
It does not indicate any malfunction
with the charging system.
• A smartphone or a tablet PC, which adopts a different recharging method,
may not be properly recharged. In this
case, use an exclusive charger of your
device.
• The charging terminal is only to recharge a device. Do not use the
charging terminal either to turn ON an
audio or to play media In the
infotainment system.
NOTICE [ 8 V H W K H 8 6 % F K D U J H U Z K H Q W K H Y H K L F O H R Q L Q G L F D W R U R Q \f 8 V L Q J W K H 8 6 %
F K D U J H U I R U S U R O R Q J H G S H U L R G V R I W L P H
Z L W K W K H Y H K L F O H R I I F R X O G F D X V H W K H
E D W W H U \ W R G L V F K D U J H
[ 7 R S U H Y H Q W G D P D J H W R W K H 8 6 % F K D U J H U ' R Q R W L Q V H U W I R U H L J Q R E M H F W V R U V S L O O O L T X L G L Q W R W K H R X W O H W 7 K H 8 6 %
F K D U J L Q J W H U P L Q D O P D \ E H G D P D J H G
' R Q R W X V H G H Y L F H V Z L W K F X U U H Q W F R Q V X P S W L R Q H [ F H H G L Q J P $
$ \f
Hyundai_CE_en_US.book Page 103
Page 282 of 582
![HYUNDAI IONIQ 6 2023 Owners Manual Convenience Features
5-104
Wireless Smartphone
if equipped
Charging System
B5023901[A] Indicator light
[B] Charging pad
On certain models, the vehicle comes
equipped with a wireless smartphone
char](/manual-img/35/58885/w960_58885-281.png "HYUNDAI IONIQ 6 2023 Owners Manual Convenience Features
5-104
Wireless Smartphone
if equipped
Charging System
B5023901[A] Indicator light
[B] Charging pad
On certain models, the vehicle comes
equipped with a wireless smartphone
char")

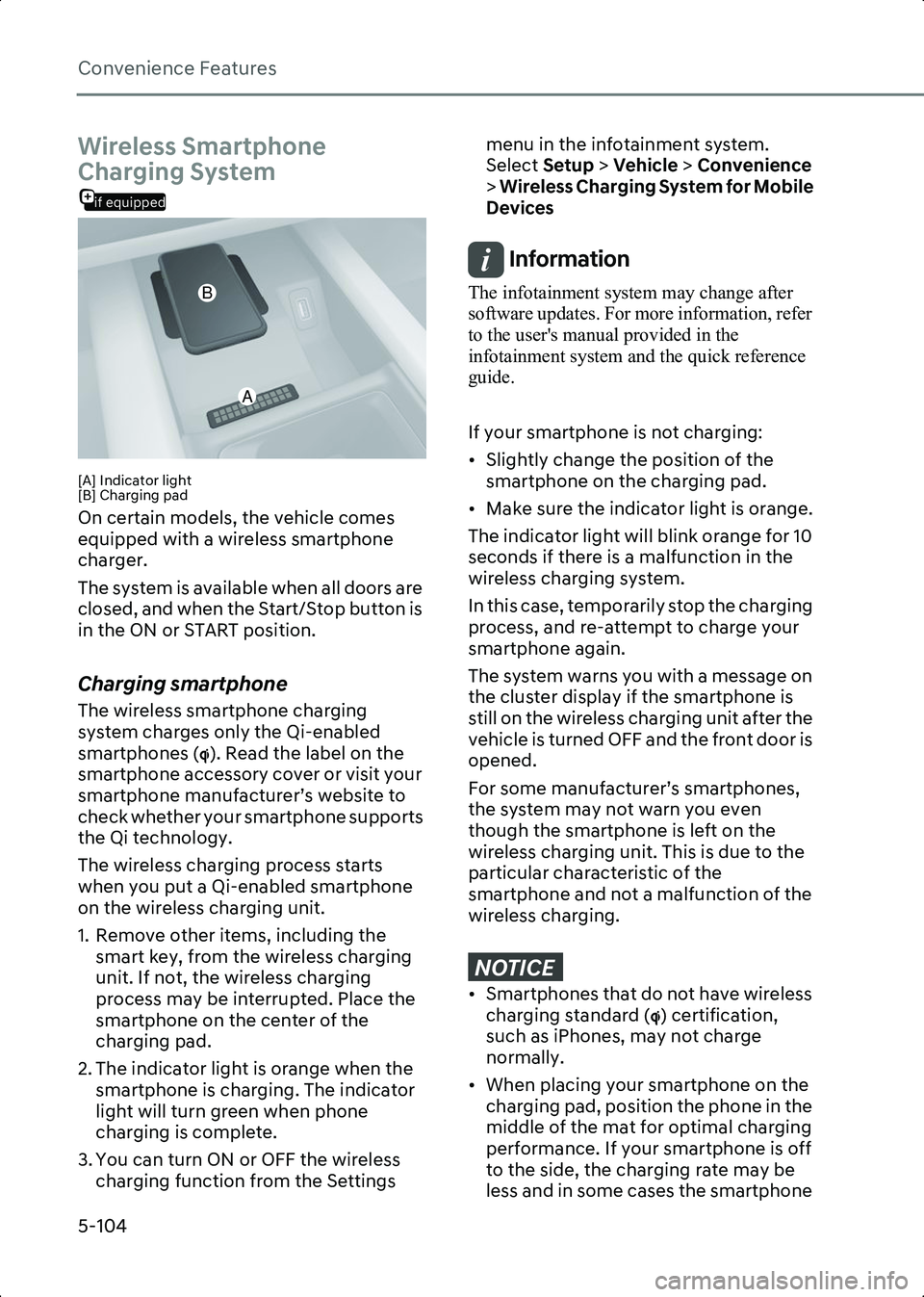

Convenience Features
5-104
Wireless Smartphone
if equipped
Charging System
B5023901[A] Indicator light
[B] Charging pad
On certain models, the vehicle comes
equipped with a wireless smartphone
charger.
The system is available when all doors are
closed, and when the Start/Stop button is
in the ON or START position.
Charging smartphone
The wireless smartphone charging
system charges only the Qi-enabled
smartphones ( ). Read the label on the
smartphone accessory cover or visit your
smartphone manufacturer’s website to
check whether your smartphone supports
the Qi technology.
The wireless charging process starts
when you put a Qi-enabled smartphone
on the wireless charging unit.
1. Remove other items, including the smart key, from the wireless charging
unit. If not, the wireless charging
process may be interrupted. Place the
smartphone on the center of the
charging pad.
2. The indicator light is orange when the smartphone is charging. The indicator
light will turn green when phone
charging is complete.
3. You can turn ON or OFF the wireless charging function from the Settings menu in the infotainment system.
Select
Setup > Vehicle > Convenience
> Wireless Charging System for Mobile
Devices
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.
If your smartphone is not charging:
• Slightly change the position of the smartphone on the charging pad.
• Make sure the indicator light is orange.
The indicator light will blink orange for 10
seconds if there is a malfunction in the
wireless charging system.
In this case, temporarily stop the charging
process, and re-attempt to charge your
smartphone again.
The system warns you with a message on
the cluster display if the smartphone is
still on the wireless charging unit after the
vehicle is turned OFF and the front door is
opened.
For some manufacturer’s smartphones,
the system may not warn you even
though the smartphone is left on the
wireless charging unit. This is due to the
particular characteristic of the
smartphone and not a malfunction of the
wireless charging.
NOTICE [ 6 P D U W S K R Q H V W K D W G R Q R W K D Y H Z L U H O H V V F K D U J L Q J V W D Q G D U G \f F H U W L I L F D W L R Q
V X F K D V L 3 K R Q H V P D \ Q R W F K D U J H
Q R U P D O O \
[ : K H Q S O D F L Q J \ R X U V P D U W S K R Q H R Q W K H F K D U J L Q J S D G S R V L W L R Q W K H S K R Q H L Q W K H
P L G G O H R I W K H P D W I R U R S W L P D O F K D U J L Q J
S H U I R U P D Q F H , I \ R X U V P D U W S K R Q H L V R I I
W R W K H V L G H W K H F K D U J L Q J U D W H P D \ E H
O H V V D Q G L Q V R P H F D V H V W K H V P D U W S K R Q H
B
A
Hyundai_CE_en_US.book Page 104
Page 283 of 582
5
5-105

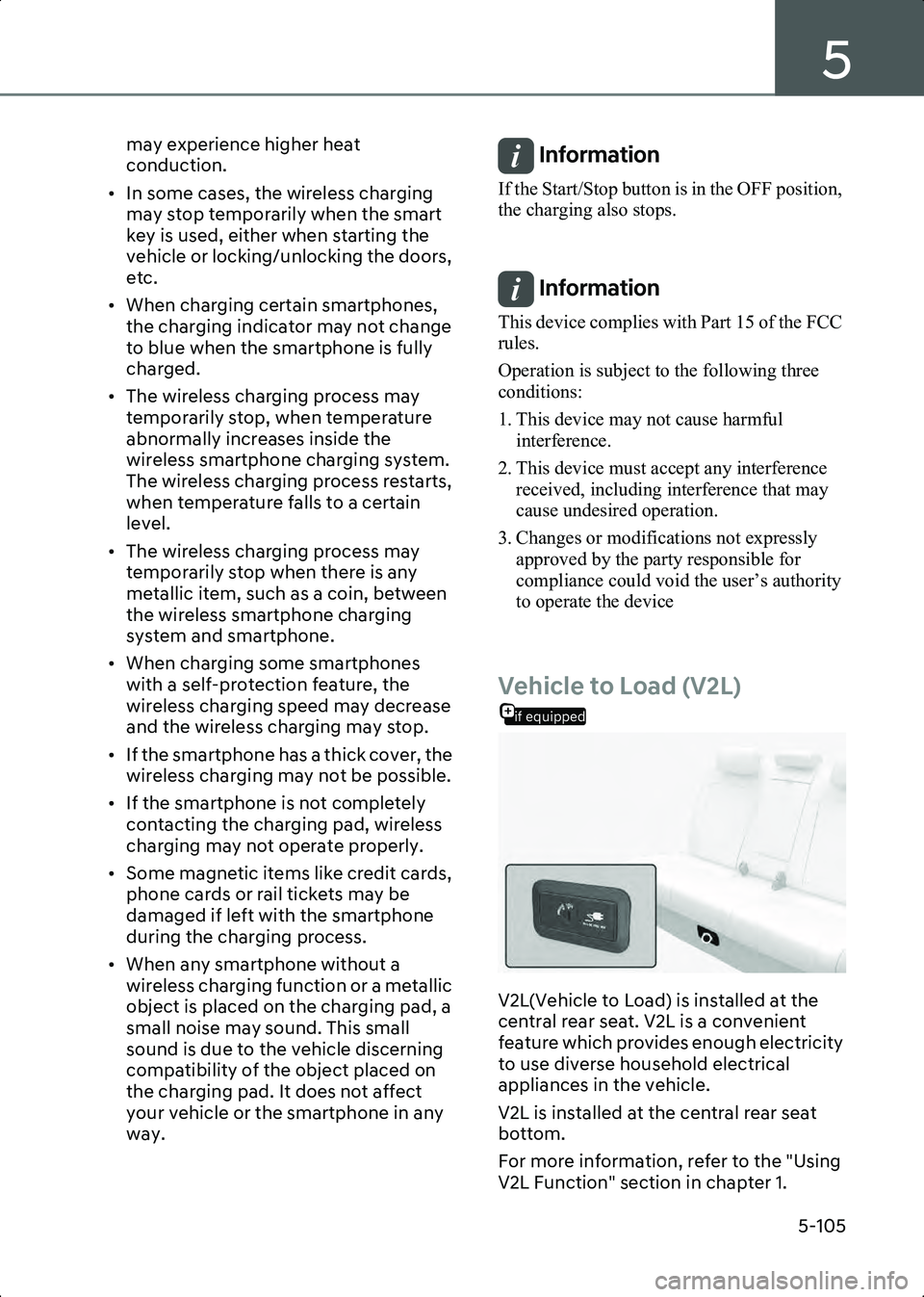

may experience higher heat
conduction.
• In some cases, the wireless charging may stop temporarily when the smart
key is used, either when starting the
vehicle or locking/unlocking the doors,
etc.
• When charging certain smartphones, the charging indicator may not change
to blue when the smartphone is fully
charged.
• The wireless charging process may temporarily stop, when temperature
abnormally increases inside the
wireless smartphone charging system.
The wireless charging process restarts,
when temperature falls to a certain
level.
• The wireless charging process may temporarily stop when there is any
metallic item, such as a coin, between
the wireless smartphone charging
system and smartphone.
• When charging some smartphones with a self-protection feature, the
wireless charging speed may decrease
and the wireless charging may stop.
• If the smartphone has a thick cover, the wireless charging may not be possible.
• If the smartphone is not completely contacting the charging pad, wireless
charging may not operate properly.
• Some magnetic items like credit cards, phone cards or rail tickets may be
damaged if left with the smartphone
during the charging process.
• When any smartphone without a wireless charging function or a metallic
object is placed on the charging pad, a
small noise may sound. This small
sound is due to the vehicle discerning
compatibility of the object placed on
the charging pad. It does not affect
your vehicle or the smartphone in any
way.
Information If the Start/Stop button is in the OFF position,
the charging also stops.
Information This device complies with Part 15 of the FCC
rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may
cause undesired operation.
3. Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority
to operate the device
if equipped
Vehicle to Load (V2L)
B5024001
V2L(Vehicle to Load) is installed at the
central rear seat. V2L is a convenient
feature which provides enough electricity
to use diverse household electrical
appliances in the vehicle.
V2L is installed at the central rear seat
bottom.
For more information, refer to the "Using
V2L Function" section in chapter 1.
Hyundai_CE_en_US.book Page 105
Page 289 of 582
6
6. Driving Your Vehicle
Before Driving .................................................................................................................. 6-3Before Entering the Vehicle ........................................................................................ 6-3Before Starting ............................................................................................................. 6-3
Start/Stop Button ............................................................................................................ 6-4 Start/Stop Button Positions ........................................................................................ 6-5Starting the Vehicle .....................................................................................................6-6
Turning Off the Vehicle................................................................................................ 6-7
Remote Start ................................................................................................................ 6-7
SHIFT BY WIRE.................................................................................................................6-8 Shift By Wire Operation ...............................................................................................6-8
Cluster Display Messages Information......................................................................6-12
Good Driving Practices .............................................................................................. 6-13
Regenerative Braking System (Paddle Shifter) ........................................................... 6-14 Using Regenerative Braking System ........................................................................ 6-14
Regenerative Braking System Limitations ............................................................... 6-15
One Pedal Driving ...................................................................................................... 6-15
Using i-PEDAL ............................................................................................................ 6-16
Smart Regeneration System .......................................................................................... 6-17 Smart Regeneration System On/Off..........................................................................6-17
Smart Regeneration System Operating Condition .................................................. 6-18
Smart Regeneration Level Settings .......................................................................... 6-18
Pausing Smart Regeneration System ....................................................................... 6-19
Front Sensors ............................................................................................................. 6-19
System Check Message............................................................................................. 6-19
Smart Regeneration System Precautions ................................................................ 6-19
Braking System .............................................................................................................. 6-22 Power-Assist Brakes .................................................................................................. 6-22
Disc Brakes Wear Indicator ....................................................................................... 6-23
Electronic Parking Brake (EPB) ................................................................................. 6-24
Auto Hold.................................................................................................................... 6-27
Brake Disc Cleaning ...................................................................................................6-29
Anti-Lock Brake System (ABS) ..................................................................................6-30
Electronic Stability Control (ESC) ............................................................................. 6-31
Vehicle Stability Management (VSM) ....................................................................... 6-33
Hill-Start Assist Control (HAC) ..................................................................................6-34
Brake Assistant System (BAS) ...................................................................................6-34
Hyundai_CE_en_US.book Page 1
Page 292 of 582

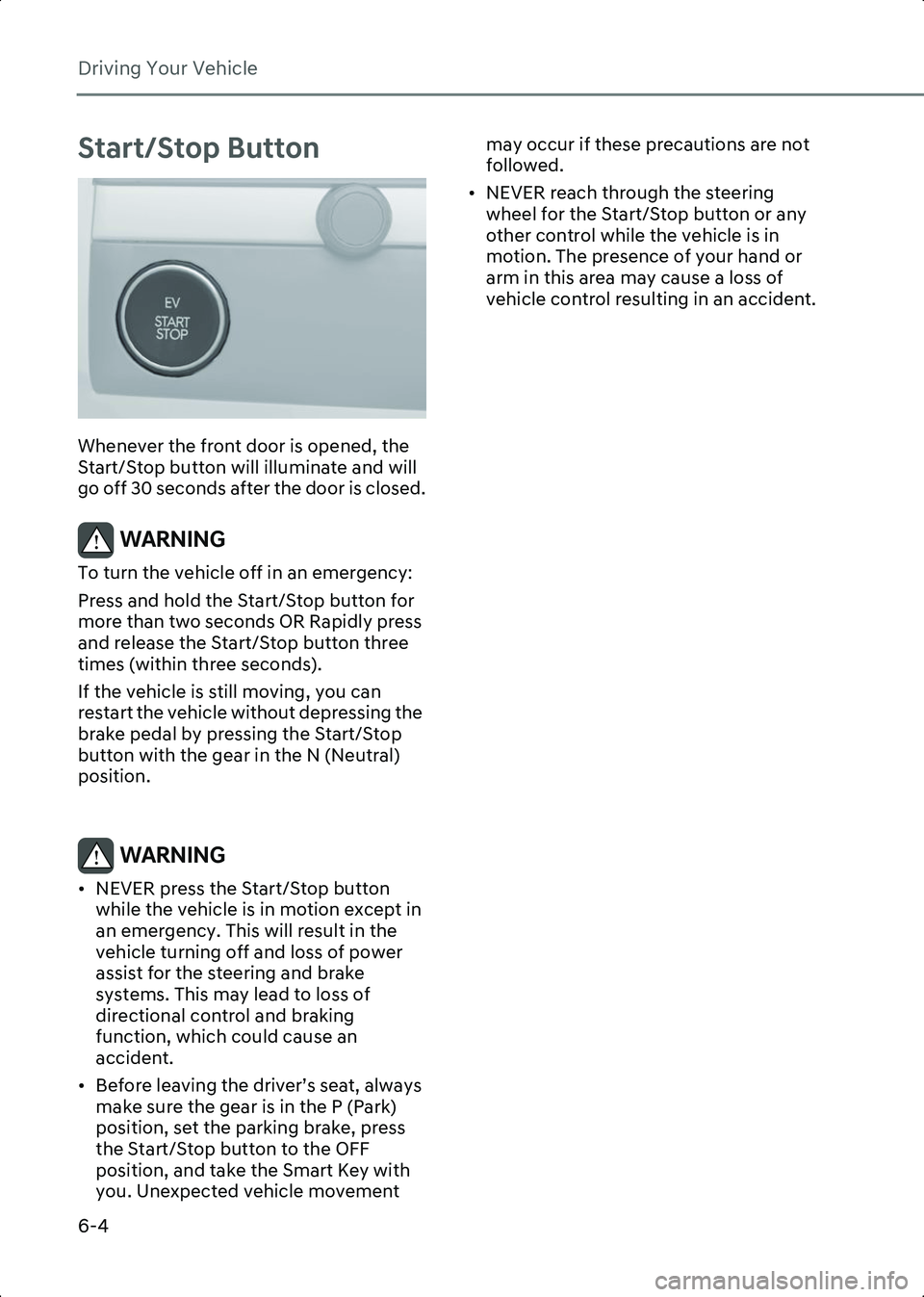

Driving Your Vehicle
6-4
Start/Stop Button
B6000301
Whenever the front door is opened, the
Start/Stop button will illuminate and will
go off 30 seconds after the door is closed.
WARNING To turn the vehicle off in an emergency:
Press and hold the Start/Stop button for
more than two seconds OR Rapidly press
and release the Start/Stop button three
times (within three seconds).
If the vehicle is still moving, you can
restart the vehicle without depressing the
brake pedal by pressing the Start/Stop
button with the gear in the N (Neutral)
position.
WARNING • NEVER press the Start/Stop button while the vehicle is in motion except in
an emergency. This will result in the
vehicle turning off and loss of power
assist for the steering and brake
systems. This may lead to loss of
directional control and braking
function, which could cause an
accident.
• Before leaving the driver’s seat, always make sure the gear is in the P (Park)
position, set the parking brake, press
the Start/Stop button to the OFF
position, and take the Smart Key with
you. Unexpected vehicle movement may occur if these precautions are not
followed.
• NEVER reach through the steering wheel for the Start/Stop button or any
other control while the vehicle is in
motion. The presence of your hand or
arm in this area may cause a loss of
vehicle control resulting in an accident.
Hyundai_CE_en_US.book Page 4
