Maintenance
9-18
Keep batteries out of reach of children.
Batteries contain sulfuric acid that is
highly corrosive. Do not allow acid to
contact your eyes, skin, or clothing.
If acid gets into your eyes, flush your eyes
with clean water for at least 15 minutes
and get immediate medical attention. If
acid gets on your skin, thoroughly wash
the area. If you feel pain or a burning
sensation, get medical attention
immediately.
• Lift a battery with a battery carrier or with your hands on opposite corners.
When lifting a plastic-cased battery,
excessive pressure on the case may
cause battery acid to leak.
• Do not attempt to jump start your vehicle if your battery is frozen.
• NEVER attempt to recharge the battery when the vehicle’s battery cables are
connected to the battery.
• The electrical ignition switch works with high voltage. NEVER touch these
components with the Start/Stop button
in the ON or START position.
WARNING CALIFORNIA PROPOSITION 65 WARNING
Battery posts, terminals, and related
accessories contain lead and lead
compounds, chemicals known to the State of California to cause cancer, birth
defects and reproductive harm. Batteries
also contain other chemicals known to
the State of California to cause cancer.
Wash hands after handling.
NOTICE 7 R S U H Y H Q W E D W W H U \ G D P D J H
[ : K H Q \ R X G R Q R W X V H W K H Y H K L F O H I R U D
O R Q J W L P H L Q D O R Z W H P S H U D W X U H D U H D
G L V F R Q Q H F W W K H E D W W H U \ D Q G N H H S L W
L Q G R R U V
[ $ O Z D \ V I X O O \ F K D U J H W K H E D W W H U \ W R S U H Y H Q W E D W W H U \ F D V H G D P D J H L Q O R Z
W H P S H U D W X U H D U H D V
[ 3 U H Y H Q W O L T X L G I U R P Z H W W L Q J W K H E D W W H U \ W H U P L Q D O V
[ ' R Q R W W L O W W K H E D W W H U \
[ 1 H Y H U F R Q Q H F W X Q D X W K R U L ] H G G H Y L F H V W R W K H E D W W H U \
For Best Battery Service
B9004101
• Keep the battery securely mounted.
• Keep the battery top clean and dry.
• Keep the terminals and connections clean, tight, and coated with petroleum
jelly or terminal grease.
• Rinse any spilled electrolyte from the battery immediately with a solution of
water and baking soda.
Hyundai_CE_en_US.book Page 18
Page 535 of 582
9
9-19
• If the vehicle is not going to be used for an extended time, disconnect the
battery cables.
Battery Capacity Label
OLMB073072
Information The actual battery label in the vehicle may
differ from the illustration.
1. CMF60L-DIN(12 v): The HYUNDAI model name of battery
2. 60Ah (20 HR): The nominal capacity (in Ampere hours)
3. 550 A: The cold-test current in amperes by SAE / EN
4. RC 92 min: The nominal reserve capacity (in minutes)
Battery Recharging
By battery charger
Your vehicle has a maintenance-free,
calcium-based battery.
• If the battery becomes discharged over a short time (because, for example, the
headlights or interior lights were left on
while the vehicle was not in use),
recharge it by slow charging (trickle) for
10 hours.
• If the battery gradually discharges because of high electrical load while the vehicle is being used, recharge it at
20-30 A for two hours.
WARNING Always follow these instructions when
recharging your vehicle’s battery to avoid
the risk of SERIOUS INJURY or DEATH
from explosions or acid burns:
• Before performing maintenance or
recharging the battery, turn off all
accessories and stop the vehicle.
• Keep all flames, sparks, or smoking materials away from the battery.
• Always work outdoors or in an area with plenty of ventilation.
• Wear eye protection when checking the battery during charging.
• The battery must be removed from the vehicle and placed in a well ventilated
area.
• Watch the battery during charging, and stop or reduce the charging rate if the
battery cells begin boiling violently.
• Remove the negative battery cable first and install it last when the battery is
disconnected. Disconnect the battery
charger in the following order:
1. Turn off the battery charger main switch.
2. Unhook the negative clamp from the negative battery terminal.
3. Unhook the positive clamp from the positive battery terminal.
By jump starting
After a jump start from a good battery,
drive the vehicle for 20-30 minutes
before it is shutoff. The vehicle may not
restart if you shut it off before the battery
had a chance to adequately recharge. For
more information, refer to the
“JumpStarting” section in chapter 8 for
more information on jump starting
procedures.
Hyundai_CE_en_US.book Page 19
Page 559 of 582
9
9-43
Light Bulbs
Consult an authorized HYUNDAI dealer to
replace most vehicle light bulbs. It is
difficult to replace vehicle light bulbs
because other parts of the vehicle must
be removed before you can get to the
bulb. This is especially true for removing
the headlight assembly to get to the
bulb(s).
Removing/installing the headlight
assembly can result in damage to the
vehicle.
WARNING • Prior to replacing a light bulb, depress the brake pedal, shift to P (Park), apply
the parking brake, press the Start/Stop
button to the OFF position, and take the
key with you when leaving the vehicle
to avoid sudden movement of the
vehicle and to prevent possible electric
shock.
• Be aware the bulbs may be hot and may burn your fingers.
NOTICE % H V X U H W R U H S O D F H W K H E X U Q H G R X W E X O E
Z L W K R Q H R I W K H V D P H Z D W W D J H W R S U H Y H Q W
G D P D J H W R W K H I X V H R U H O H F W U L F D O Z L U L Q J
V \ V W H P
NOTICE 7 R S U H Y H Q W G D P D J H G R Q R W F O H D Q W K H
K H D G O L J K W O H Q V Z L W K F K H P L F D O V R O Y H Q W V R U
V W U R Q J G H W H U J H Q W V
Information Headlight desiccant
This vehicle is equipped with desiccant to
reduce fogging inside the headlight due to
moisture. The desiccant is consumable and its performance may change based on the used
period or environment. If fogging inside the
headlight due to moisture continues for a long
time, contact an authorized HYUNDAI
dealer.
Information The headlight and tail light lenses could
appear to have condensation inside if the
vehicle is washed after driving or if the
vehicle is driven in wet weather. This
condition is caused by a higher temperature
inside the light and a cooler outside
temperature. Moisture that condenses in the
light is removed after driving with the light
on. If the moisture is not removed, contact an
authorized HYUNDAI dealer.
Information • A normally functioning light may flicker
momentarily to stabilize the vehicle’s
electrical control system. However, if the
light goes out after flickering momentarily,
or continues to flicker, have the system
inspected by an authorized HYUNDAI
dealer.
• The parking light may not turn on when the parking light switch is turned on, but the
parking light and headlight switch may turn
on when the headlight switch is turned on.
This may be caused by network failure or
vehicle electrical control system
malfunction. If this occurs, contact an
authorized HYUNDAI dealer.
Information Adjust the headlight aim after an accident or
the headlight is replaced.
Hyundai_CE_en_US.book Page 43
Page 574 of 582
Index
I-4
If the Electric Vehicle Is Submerged ........................................................................................1-66
If the Electric Vehicle Needs Towing ....................................................................................... 1-67
Other Precautions for Electric Vehicle Accidents ................................................................... 1-68
Turning Off the High Voltage Battery ...................................................................................... 1-65
D
Declaration of Conformity ...................................................................................................... 7-150Front Corner Radar/Rear Corner Radar .................................................................................. 7-151
Front Radar .............................................................................................................................. 7-150
Dimensions .................................................................................................................................. 2-9
Door Locks ................................................................................................................................. 5-20
Automatic Door Lock and Unlock Features .............................................................................5-25
Child-Protector Rear Door Locks ............................................................................................ 5-26
Operating Door Lock/Unlock from Inside the Vehicle ............................................................5-25
Operating Door Locks from Outside the Vehicle (Electric type) ............................................5-22
Operating Door Locks from Outside the Vehicle (Manual type) ............................................5-22
Operating Door Unlocks from Outside the Vehicle (Electric type) ........................................ 5-21
Operating Door Unlocks from Outside the Vehicle (Manual type) ....................................... 5-20
Drive Mode Integrated Control System (2WD) ...................................................................... 6-39
Drive Mode ................................................................................................................................ 6-39
Drive mode Integrated Control System (AWD) ...................................................................... 6-41
Drive Mode ................................................................................................................................. 6-41
Drive Modes Characteristic ..................................................................................................... 6-43
Driver Assistance System ............................................................................................................ 7-1
Driver Assistance System Notice ...............................................................................................7-4
Driver Attention Warning (DAW) ..............................................................................................7-54
Driver Attention Warning Malfunction and Limitations .........................................................7-56
Driver Attention Warning Operation ........................................................................................7-55
Driver Attention Warning Settings ...........................................................................................7-55
Driving Your Electric Vehicle .................................................................................................... 1-53
Checking Electric Vehicle Driving Information ....................................................................... 1-54
Starting and Stopping the Vehicle ........................................................................................... 1-53
Driving Your Vehicle .................................................................................................................... 6-1
E
Electric Charging Door ............................................................................................................. 5-62
Electric Vehicle Specifications ................................................................................................. 2-10
Emergency Situations .................................................................................................................. 8-1
Explanation of Scheduled Maintenance Items ........................................................................9-11
Air Conditioning Refrigerant ......................................................................................................9-11 Brake Discs, Pads, Calipers and Rotors ....................................................................................9-11
Brake Fluid ..................................................................................................................................9-11
Brake Hoses and Lines ...............................................................................................................9-11
Coolant ........................................................................................................................................9-11Cooling System ...........................................................................................................................9-11
Drive Shafts and Boots ...............................................................................................................9-11
Gear Fluid ....................................................................................................................................9-11
Steering Gear Box, Linkage & Boots/Lower Arm Ball Joint .....................................................9-11Suspension Mounting Bolts .......................................................................................................9-11
Hyundai_CE_en_US.book Page 4

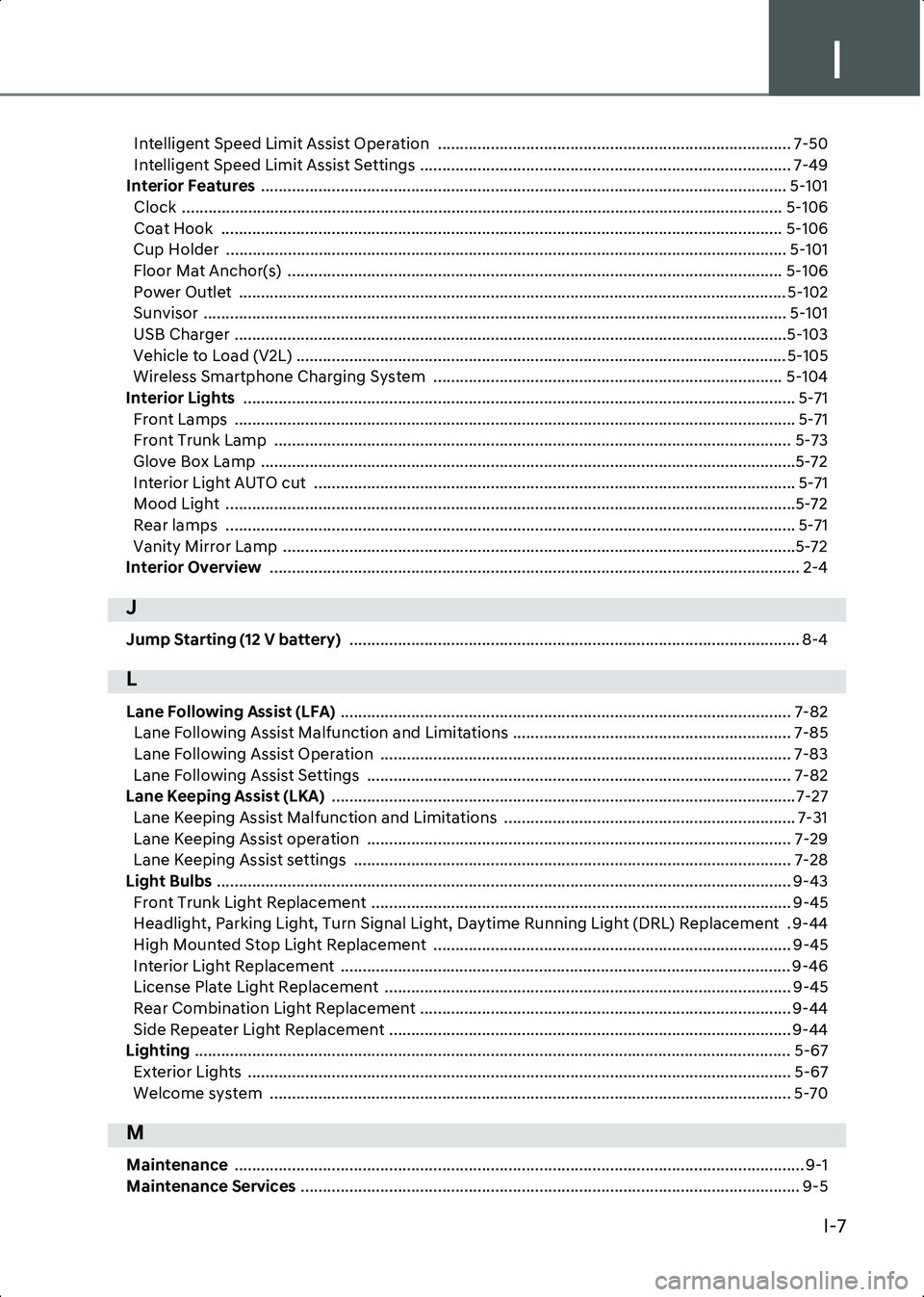

Page 577 of 582
I
I-7
Intelligent Speed Limit Assist Operation ................................................................................ 7-50
Intelligent Speed Limit Assist Settings .................................................................................... 7-49
Interior Features ....................................................................................................................... 5-101
Clock ........................................................................................................................................ 5-106
Coat Hook ............................................................................................................................... 5-106
Cup Holder ............................................................................................................................... 5-101
Floor Mat Anchor(s) ................................................................................................................ 5-106
Power Outlet ............................................................................................................................ 5-102
Sunvisor .................................................................................................................................... 5-101
USB Charger .............................................................................................................................5-103
Vehicle to Load (V2L) ...............................................................................................................5-105
Wireless Smartphone Charging System ............................................................................... 5-104
Interior Lights ............................................................................................................................. 5-71
Front Lamps ............................................................................................................................... 5-71
Front Trunk Lamp ..................................................................................................................... 5-73
Glove Box Lamp .........................................................................................................................5-72
Interior Light AUTO cut ............................................................................................................. 5-71
Mood Light .................................................................................................................................5-72
Rear lamps ................................................................................................................................. 5-71
Vanity Mirror Lamp ....................................................................................................................5-72
Interior Overview ........................................................................................................................ 2-4
J
Jump Starting (12 V battery) ...................................................................................................... 8-4
L
Lane Following Assist (LFA) ...................................................................................................... 7-82
Lane Following Assist Malfunction and Limitations ............................................................... 7-85
Lane Following Assist Operation ............................................................................................. 7-83
Lane Following Assist Settings ................................................................................................ 7-82
Lane Keeping Assist (LKA) ......................................................................................................... 7-27
Lane Keeping Assist Malfunction and Limitations .................................................................. 7-31
Lane Keeping Assist operation ................................................................................................ 7-29
Lane Keeping Assist settings ................................................................................................... 7-28
Light Bulbs .................................................................................................................................. 9-43
Front Trunk Light Replacement ............................................................................................... 9-45
Headlight, Parking Light, Turn Signal Light, Daytime Running Light (DRL) Replacement . 9-44
High Mounted Stop Light Replacement ................................................................................. 9-45
Interior Light Replacement ...................................................................................................... 9-46
License Plate Light Replacement ............................................................................................ 9-45
Rear Combination Light Replacement .................................................................................... 9-44
Side Repeater Light Replacement ........................................................................................... 9-44
Lighting ....................................................................................................................................... 5-67
Exterior Lights ........................................................................................................................... 5-67
Welcome system ...................................................................................................................... 5-70
M
Maintenance ................................................................................................................................. 9-1
Maintenance Services ................................................................................................................. 9-5
Hyundai_CE_en_US.book Page 7
Page 580 of 582
Index
I-10
Deactivating smart trunk .......................................................................................................... 5-61
Detecting area ........................................................................................................................... 5-61
Using Smart Trunk .................................................................................................................... 5-60
Special Driving Conditions ....................................................................................................... 6-45
Driving at Night ........................................................................................................................ 6-46
Driving in Flooded Areas .......................................................................................................... 6-47
Driving in the Rain .................................................................................................................... 6-46
Hazardous Driving Conditions ................................................................................................. 6-45
Highway Driving ....................................................................................................................... 6-47
Hydroplaning ............................................................................................................................ 6-47
Rocking the Vehicle .................................................................................................................. 6-46
Smooth Cornering .................................................................................................................... 6-46
Start/Stop Button ........................................................................................................................ 6-4
Remote Start ................................................................................................................................6-7 Start/Stop Button Positions ....................................................................................................... 6-5
Starting the Vehicle .................................................................................................................... 6-6
Turning Off the Vehicle ...............................................................................................................6-7
Steering Wheel ...........................................................................................................................5-32
Heated Steering Wheel ............................................................................................................ 5-34
Horn ........................................................................................................................................... 5-33
Motor Driven Power Steering (MDPS) .....................................................................................5-32
Tilt/Telescopic Steering ........................................................................................................... 5-33
Steering Wheel Control Overview .............................................................................................. 2-7
Storage Compartment .............................................................................................................5-100
Center Console Storage ..........................................................................................................5-100
Glove Box .................................................................................................................................5-100
Surround View Monitor (SVM) ................................................................................................. 7-98
Surround View Monitor Malfunction and Limitations .......................................................... 7-102
Surround View Monitor Operation ......................................................................................... 7-100
Surround View Monitor Settings ............................................................................................. 7-99
T
Theft-Alarm System ...................................................................................................................5-27
Tire Pressure Monitoring System (TPMS) ..................................................................................8-7
Changing a Tire with TPMS .......................................................................................................8-10
Check Tire Pressure .....................................................................................................................8-7
Low Tire Pressure Position and Tire Pressure Telltale ............................................................. 8-9
Low Tire Pressure Warning Light ............................................................................................... 8-9
Tire Pressure Monitoring System .............................................................................................. 8-8
Tire Specification and Pressure Label ..................................................................................... 2-16
Tires and Wheels .............................................................................................................. 2-12, 9-20
All Season Tires ......................................................................................................................... 9-30
Check Tire Inflation Pressure ................................................................................................... 9-22
Low Aspect Ratio Tires .............................................................................................................. 9-31
Radial-Ply Tires ......................................................................................................................... 9-30
Recommended Cold Tire Inflation Pressures .......................................................................... 9-21
Snow Tires ................................................................................................................................. 9-30
Summer Tires ............................................................................................................................ 9-30
Tire Care ..................................................................................................................................... 9-21
Tire Maintenance ...................................................................................................................... 9-24
Hyundai_CE_en_US.book Page 10
