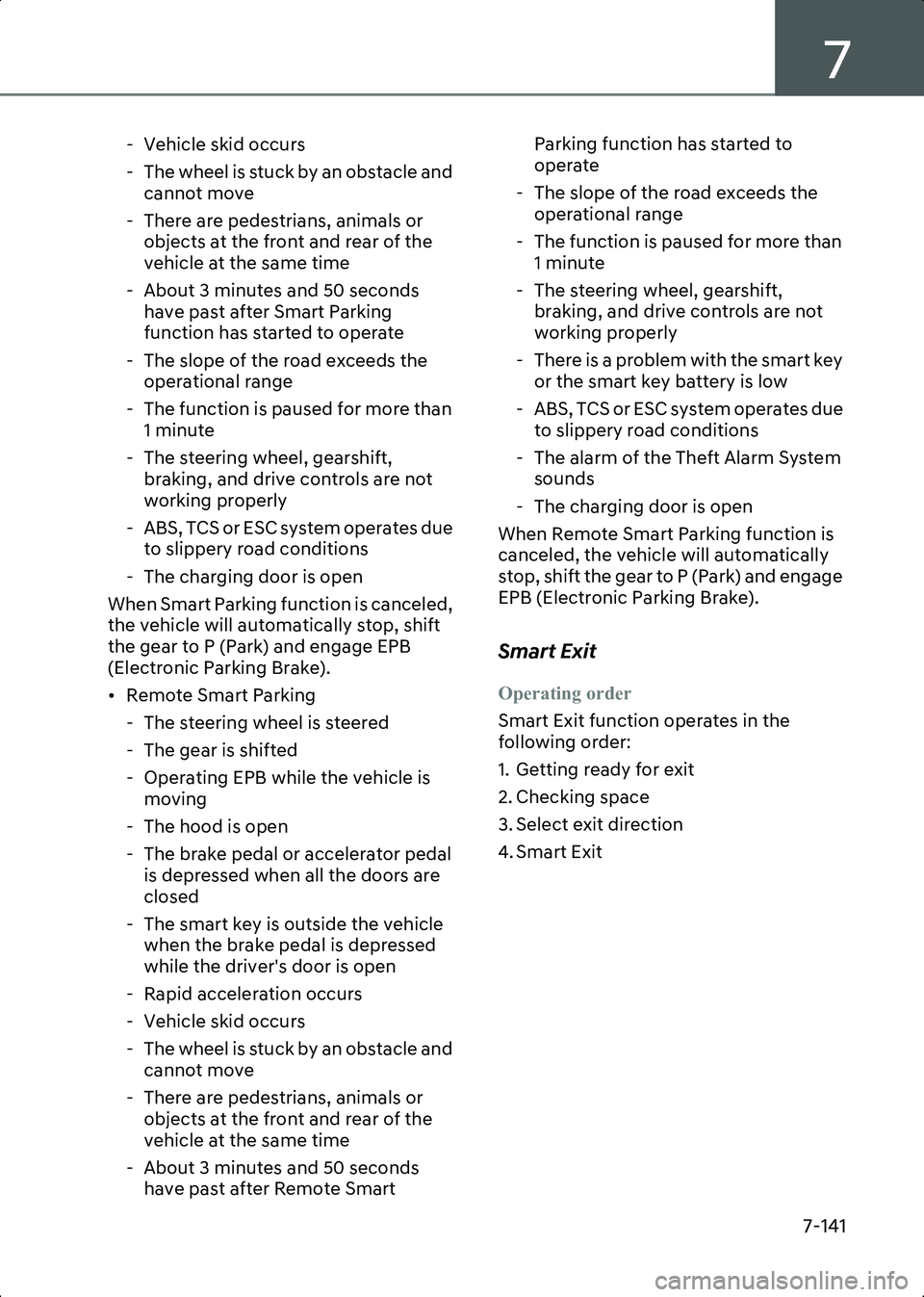

7
7-141
- Vehicle skid occurs
- The wheel is stuck by an obstacle and cannot move
- There are pedestrians, animals or objects at the front and rear of the
vehicle at the same time
- About 3 minutes and 50 seconds have past after Smart Parking
function has started to operate
- The slope of the road exceeds the operational range
- The function is paused for more than 1 minute
- The steering wheel, gearshift, braking, and drive controls are not
working properly
- ABS, TCS or ESC system operates due to slippery road conditions
- The charging door is open
When Smart Parking function is canceled,
the vehicle will automatically stop, shift
the gear to P (Park) and engage EPB
(Electronic Parking Brake).
• Remote Smart Parking - The steering wheel is steered
- The gear is shifted
- Operating EPB while the vehicle is moving
- The hood is open
- The brake pedal or accelerator pedal is depressed when all the doors are
closed
- The smart key is outside the vehicle when the brake pedal is depressed
while the driver's door is open
- Rapid acceleration occurs
- Vehicle skid occurs
- The wheel is stuck by an obstacle and cannot move
- There are pedestrians, animals or objects at the front and rear of the
vehicle at the same time
- About 3 minutes and 50 seconds have past after Remote Smart Parking function has started to
operate
- The slope of the road exceeds the operational range
- The function is paused for more than 1 minute
- The steering wheel, gearshift, braking, and drive controls are not
working properly
- There is a problem with the smart key or the smart key battery is low
- ABS, TCS or ESC system operates due to slippery road conditions
- The alarm of the Theft Alarm System sounds
- The charging door is open
When Remote Smart Parking function is
canceled, the vehicle will automatically
stop, shift the gear to P (Park) and engage
EPB (Electronic Parking Brake).
Smart Exit
Operating order
Smart Exit function operates in the
following order:
1. Getting ready for exit
2. Checking space
3. Select exit direction
4. Smart Exit
Hyundai_CE_en_US.book Page 141

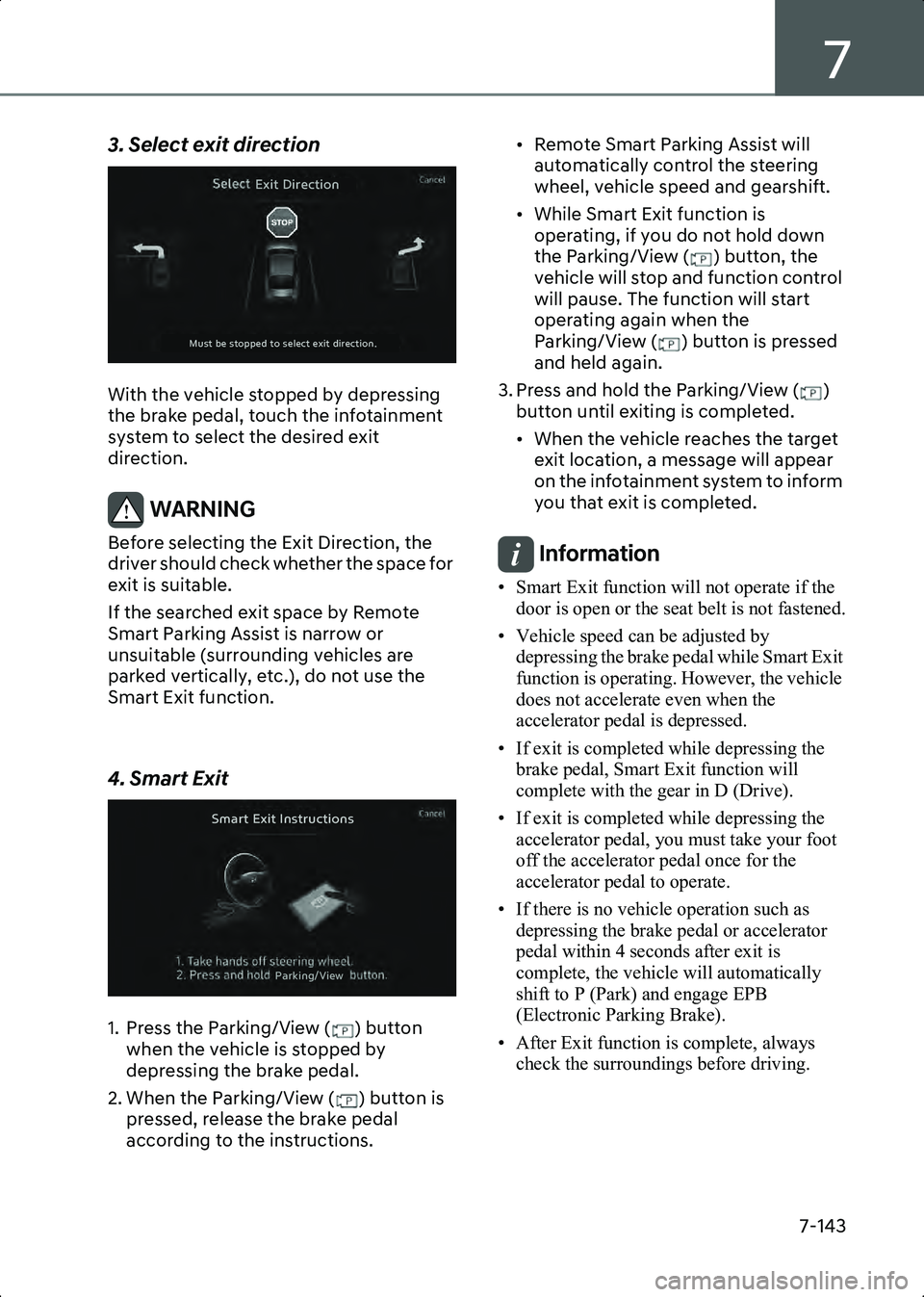

7
7-143
3. Select exit direction
B7009403
With the vehicle stopped by depressing
the brake pedal, touch the infotainment
system to select the desired exit
direction.
WARNING Before selecting the Exit Direction, the
driver should check whether the space for
exit is suitable.
If the searched exit space by Remote
Smart Parking Assist is narrow or
unsuitable (surrounding vehicles are
parked vertically, etc.), do not use the
Smart Exit function.

4. Smart Exit
B7009404
1. Press the Parking/View ( ) button when the vehicle is stopped by
depressing the brake pedal.
2. When the Parking/View ( ) button is pressed, release the brake pedal
according to the instructions. • Remote Smart Parking Assist will
automatically control the steering
wheel, vehicle speed and gearshift.
• While Smart Exit function is operating, if you do not hold down
the Parking/View ( ) button, the
vehicle will stop and function control
will pause. The function will start
operating again when the
Parking/View ( ) button is pressed
and held again.
3. Press and hold the Parking/View ( ) button until exiting is completed.
• When the vehicle reaches the target exit location, a message will appear
on the infotainment system to inform
you that exit is completed.
Information • Smart Exit function will not operate if the door is open or the seat belt is not fastened.
• Vehicle speed can be adjusted by depressing the brake pedal while Smart Exit
function is operating. However, the vehicle
does not accelerate even when the
accelerator pedal is depressed.
• If exit is completed while depressing the brake pedal, Smart Exit function will
complete with the gear in D (Drive).
• If exit is completed while depressing the accelerator pedal, you must take your foot
off the accelerator pedal once for the
accelerator pedal to operate.
• If there is no vehicle operation such as depressing the brake pedal or accelerator
pedal within 4 seconds after exit is
complete, the vehicle will automatically
shift to P (Park) and engage EPB
(Electronic Parking Brake).
• After Exit function is complete, always check the surroundings before driving.

)\MX(MVIGXMSR
1YWXFIWXSTTIHXSWIPIGXI\MXHMVIGXMSR
7QEVX)\MX-RWXVYGXMSRW
4EVOMRK:MI[
Hyundai_CE_en_US.book Page 143

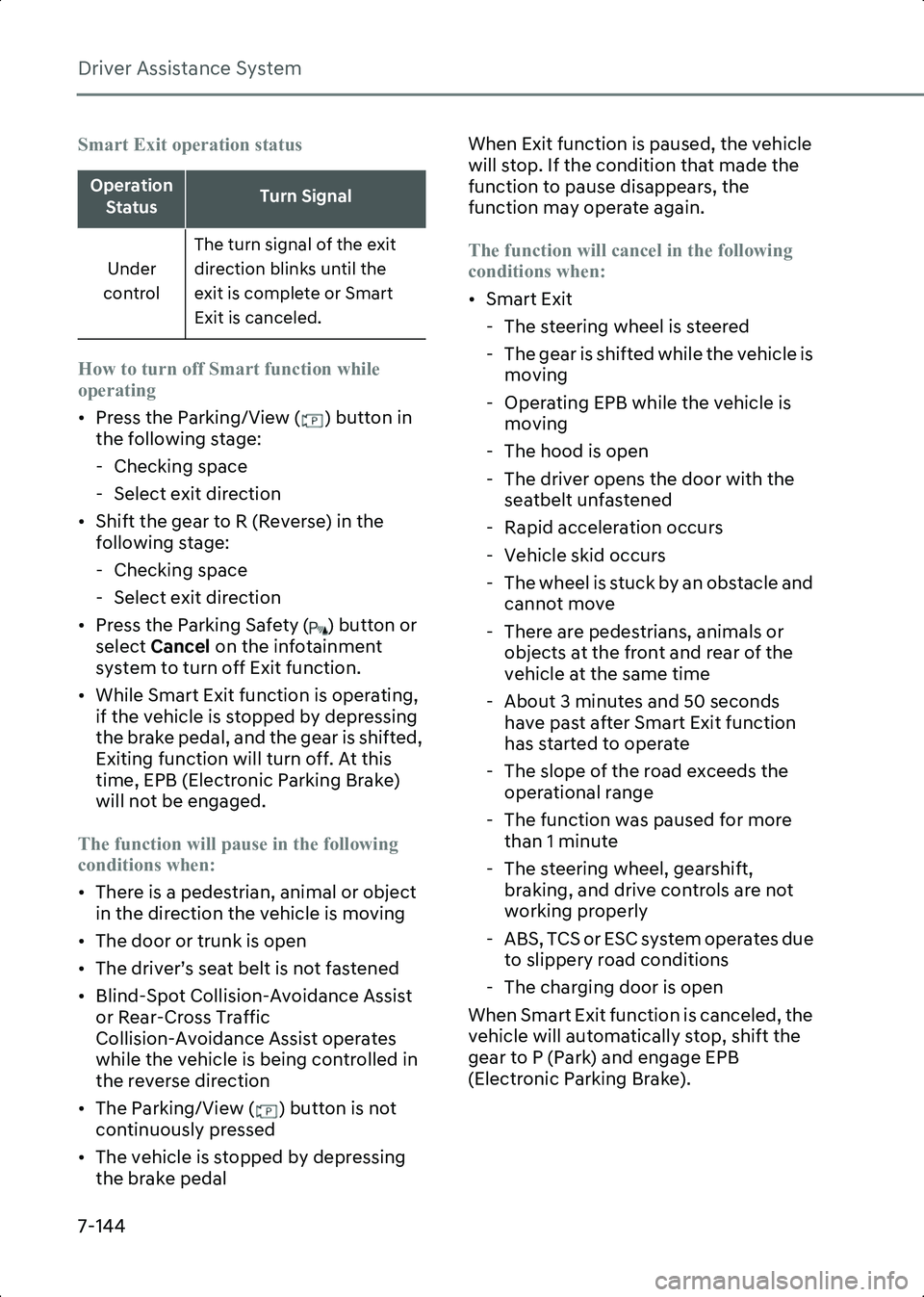

Driver Assistance System
7-144
Smart Exit operation status
How to turn off Smart function while
operating
• Press the Parking/View ( ) button in the following stage:
- Checking space
- Select exit direction
• Shift the gear to R (Reverse) in the following stage:
- Checking space
- Select exit direction
• Press the Parking Safety ( ) button or select Cancel on the infotainment
system to turn off Exit function.
• While Smart Exit function is operating, if the vehicle is stopped by depressing
the brake pedal, and the gear is shifted,
Exiting function will turn off. At this
time, EPB (Electronic Parking Brake)
will not be engaged.
The function will pause in the following
conditions when:
• There is a pedestrian, animal or object in the direction the vehicle is moving
• The door or trunk is open
• The driver’s seat belt is not fastened
• Blind-Spot Collision-Avoidance Assist or Rear-Cross Traffic
Collision-Avoidance Assist operates
while the vehicle is being controlled in
the reverse direction
• The Parking/View ( ) button is not continuously pressed
• The vehicle is stopped by depressing the brake pedal When Exit function is paused, the vehicle
will stop. If the condition that made the
function to pause disappears, the
function may operate again.
The function will cancel in the following
conditions when:
• Smart Exit
- The steering wheel is steered
- The gear is shifted while the vehicle is moving
- Operating EPB while the vehicle is moving
- The hood is open
- The driver opens the door with the seatbelt unfastened
- Rapid acceleration occurs
- Vehicle skid occurs
- The wheel is stuck by an obstacle and cannot move
- There are pedestrians, animals or objects at the front and rear of the
vehicle at the same time
- About 3 minutes and 50 seconds have past after Smart Exit function
has started to operate
- The slope of the road exceeds the operational range
- The function was paused for more than 1 minute
- The steering wheel, gearshift, braking, and drive controls are not
working properly
- ABS, TCS or ESC system operates due to slippery road conditions
- The charging door is open
When Smart Exit function is canceled, the
vehicle will automatically stop, shift the
gear to P (Park) and engage EPB
(Electronic Parking Brake).
Operation StatusTurn Signal
Under
control The turn signal of the exit
direction blinks until the
exit is complete or Smart
Exit is canceled.
Hyundai_CE_en_US.book Page 144

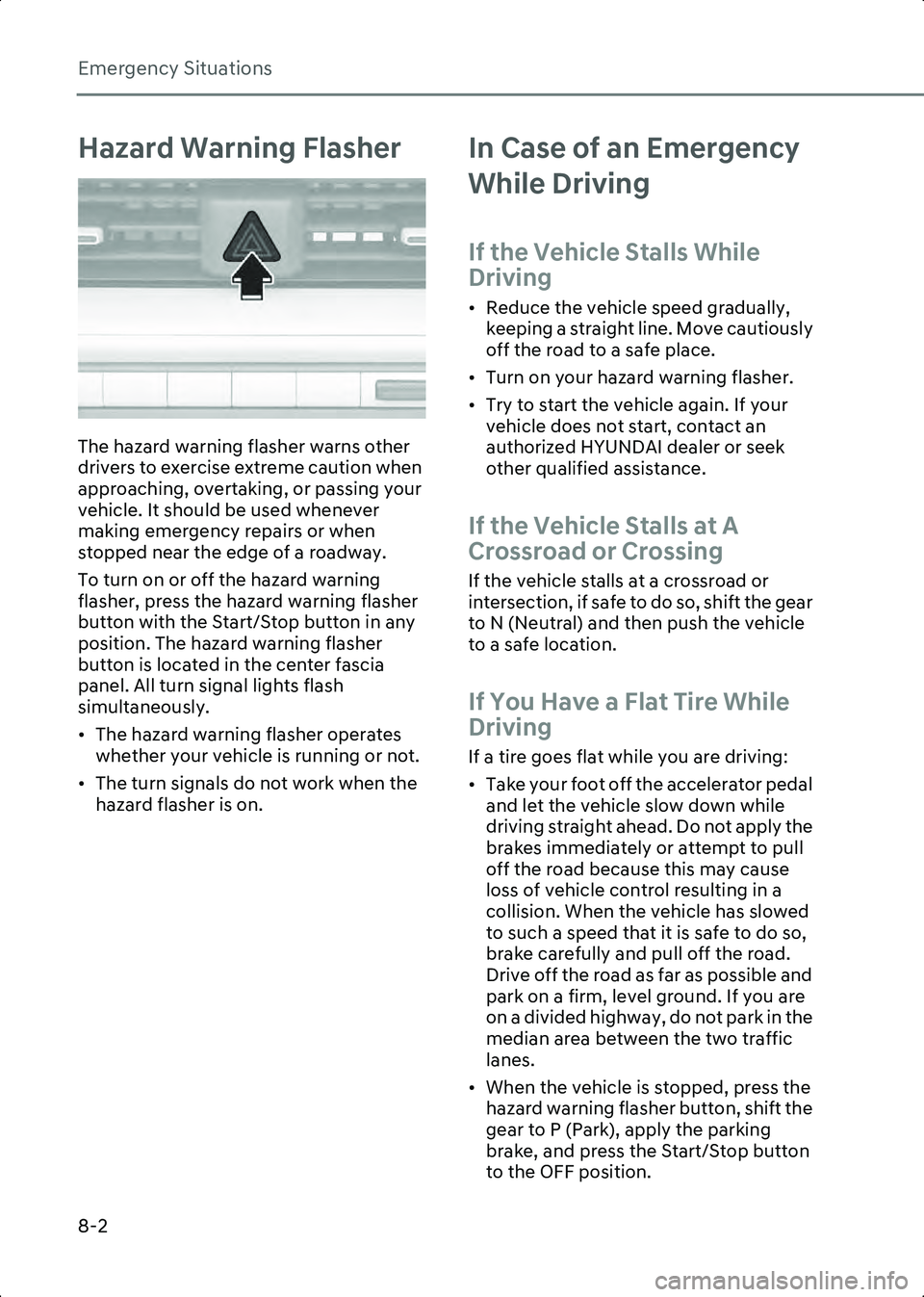

Emergency Situations
8-2
Hazard Warning Flasher
B8000201
The hazard warning flasher warns other
drivers to exercise extreme caution when
approaching, overtaking, or passing your
vehicle. It should be used whenever
making emergency repairs or when
stopped near the edge of a roadway.
To turn on or off the hazard warning
flasher, press the hazard warning flasher
button with the Start/Stop button in any
position. The hazard warning flasher
button is located in the center fascia
panel. All turn signal lights flash
simultaneously.
• The hazard warning flasher operates whether your vehicle is running or not.
• The turn signals do not work when the hazard flasher is on.
In Case of an Emergency
While Driving
If the Vehicle Stalls While
Driving
• Reduce the vehicle speed gradually, keeping a straight line. Move cautiously
off the road to a safe place.
• Turn on your hazard warning flasher.
• Try to start the vehicle again. If your vehicle does not start, contact an
authorized HYUNDAI dealer or seek
other qualified assistance.
If the Vehicle Stalls at A
Crossroad or Crossing
If the vehicle stalls at a crossroad or
intersection, if safe to do so, shift the gear
to N (Neutral) and then push the vehicle
to a safe location.
If You Have a Flat Tire While
Driving
If a tire goes flat while you are driving:
• Take your foot off the accelerator pedal and let the vehicle slow down while
driving straight ahead. Do not apply the
brakes immediately or attempt to pull
off the road because this may cause
loss of vehicle control resulting in a
collision. When the vehicle has slowed
to such a speed that it is safe to do so,
brake carefully and pull off the road.
Drive off the road as far as possible and
park on a firm, level ground. If you are
on a divided highway, do not park in the
median area between the two traffic
lanes.
• When the vehicle is stopped, press the hazard warning flasher button, shift the
gear to P (Park), apply the parking
brake, and press the Start/Stop button
to the OFF position.
Hyundai_CE_en_US.book Page 2

8
8-5
• The electrical ignition system works with high voltage.
NEVER touch these components with
the vehicle running or when the
Start/Stop button is in the ON position.
• The electrical ignition system works with high voltage. NEVER touch these
components Start/Stop button in the
ON or START position.
• Do not allow the (+) and (-) jumper cables to touch. It may cause sparks.
• The battery may rupture or explode when you jump start with a low or
frozen battery.
• Do not directly connect the (-) to the jump cable. Connect the (-) to the one
of the metallic parts located far from
the jump cable in the vehicle. The direct
(-) connection to the jump cable may
cause an explosion.

Jump starting procedure
Information When you jump start your vehicle, use the
jumper terminal in the motor compartment.

1. Position the vehicles close enough that the jumper cables will reach. Do not
allow the vehicle body parts to contact.
2. Avoid fans or any moving parts in the motor compartment at all times, even
when the vehicles are turned off.
3. Turn off all electrical devices such as radios, lights, air conditioning, etc. Put
the vehicles in P (Park) and apply the
parking brake. Turn both vehicles OFF.
4. Open the hood.
5. Remove the battery cover located inside of the front trunk.
6. Remove the motor compartment fuse box cover.
CAUTION Before jump starting, make sure to
correctly identify the positive (+) and
negative (-) terminals to avoid reverse
polarity connections.

B8001501
7. Connect the jumper cables in the exact sequence shown in the illustration. First
connect one jumper cable to the red,
positive (+) jumper terminal of your
vehicle (1).
8. Connect the other end of the jumper cable to the red, positive (+)
battery/jumper terminal of the
assisting vehicle (2).
9. Connect the second jumper cable to the black, negative (-) battery/jumper
terminal of the assisting vehicle (3).
10.Connect the other end of the second jumper cable to the black, negative (-)
chassis ground of your vehicle (4).
Do not allow the jumper cables to
contact anything except the correct
battery or jumper terminals or the
correct ground. Do not lean over the
battery when making connections.
WARNING Do not connect the jumper cable to the
negative (-) jumper terminal of the
discharged battery. A spark could
cause the battery to explode and lead
to a personal injury or vehicle damage.

1
4
2
3














Hyundai_CE_en_US.book Page 5

8
8-7
Tire Pressure Monitoring
System (TPMS)
B8001801
B8001802
(1) Low Tire Pressure Telltale/TPMS Malfunction Indicator
(2) Low Tire Pressure Position Telltale and Tire Pressure Telltale (Shown on the
cluster display)
Check Tire Pressure
B8002001
• You can check the tire pressure in the Utility view on the instrument cluster.
For more information, refer to the
“View Modes” section in chapter 4.
• Tire pressure is displayed after a few minutes of driving after initial vehicle
start up.
• If tire pressure is not displayed when the vehicle is stopped, "Drive to
display" message appears. After
driving, check the tire pressure.
• The displayed tire pressure values may differ from those measured with a tire
pressure gauge.
• You can change the tire pressure unit from the Settings menu in the
infotainment system.
Select Setup > General > Unit > Tire Air
Pressure Unit > psi /kPa /bar .
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.

1
2
-PX
UJSF
QSFTTVSF
-PX
-PX -PX
-PX
5JSF
1SFTTVSF
Hyundai_CE_en_US.book Page 7

Emergency Situations
8-8
Tire Pressure Monitoring
System
WARNING Over-inflation or under-inflation can
reduce tire life, adversely affect vehicle
handling, and lead to sudden tire failure
that may cause loss of vehicle control
resulting in an accident.

Each tire, including the spare (if
provided), should be checked monthly
when cold and inflated to the inflation
pressure recommended by the vehicle
manufacturer on the vehicle placard or
tire inflation pressure label. (If your
vehicle has tires of a different size than
the size indicated on the vehicle placard
or tire inflation pressure label, you should
determine the proper tire inflation
pressure for those tires.)
As an added safety feature, your vehicle
has been equipped with a tire pressure
monitoring system (TPMS) that
illuminates a low tire pressure telltale
when one or more of your tires is
significantly under-inflated. Accordingly,
when the low tire pressure telltale
illuminates, you should stop and check
your tires as soon as possible, and inflate
them to the proper pressure. Driving on a
significantly under-inflated tire causes
the tire to overheat and can lead to tire
failure.
Under-inflation also reduces fuel
efficiency and tire tread life, and may
affect the vehicle’s handling and stopping
ability.
Please note that the TPMS is not a
substitute for proper tire maintenance,
and it is the driver’s responsibility to
maintain correct tire pressure, even if
under-inflation has not reached the level
to trigger illumination of the TPMS low
tire pressure telltale.
Your vehicle has also been equipped with
a TPMS malfunction indicator to indicate when the system is not operating
properly. The TPMS malfunction indicator
is combined with the low tire pressure
telltale. When the system detects a
malfunction, the telltale will flash for
about one minute and then remain
continuously illuminated. This sequence
will continue upon subsequent vehicle
start-ups as long as the malfunction
exists.
When the malfunction indicator is
illuminated, the system may not be able
to detect or signal low tire pressure as
intended. TPMS malfunctions may occur
for a variety of reasons, including the
installation of replacement or alternate
tires or wheels on the vehicle that prevent
the TPMS from functioning properly.
Always check the TPMS malfunction
telltale after replacing one or more tires or
wheels on your vehicle to ensure that the
replacement or alternate tires and wheels
allow the TPMS to continue to function
properly.
NOTICE,IDQ\RIWKHEHORZKDSSHQVKDYHWKH
V\VWHPLQVSHFWHGE\DQDXWKRUL]HG
+<81'$,GHDOHU
 7KH/RZ7LUH3UHVVXUH7HOOWDOH7306
0DOIXQFWLRQ,QGLFDWRUGRHVQRW
LOOXPLQDWHIRUVHFRQGVZKHQWKH
6WDUW6WRSEXWWRQLVSUHVVHGWRWKH21
SRVLWLRQRUZKHQWKHYHKLFOHLVUXQQLQJ
 7KH73060DOIXQFWLRQ,QGLFDWRU UHPDLQVLOOXPLQDWHGDIWHUEOLQNLQJIRU
DERXWPLQXWH
 7KH/RZ7LUH3UHVVXUH3RVLWLRQ7HOOWDOH UHPDLQVLOOXPLQDWHG

Hyundai_CE_en_US.book Page 8

Maintenance
9-6
Owner Maintenance
WARNING Performing maintenance work on a
vehicle can be dangerous. If you lack
sufficient knowledge and experience or
the proper tools and equipment to do the
work, we recommend that it is done by an
authorized HYUNDAI dealer. ALWAYS
follow these precautions for performing
maintenance work:
• Park your vehicle on level ground. Shift the vehicle to P (Park), apply the
parking brake, and press the Start/Stop
button to the OFF position.
• Block the tires (front and back) to prevent the vehicle from moving.
Remove loose clothing or jewelry that
can become entangled in moving parts.
• Keep flames, sparks, or smoking materials away from the battery and
motor related parts.

WARNING Make sure to turn the Start/Stop button to
the OFF position to shut down the vehicle
before performing maintenance work on
the vehicle.

The following lists are vehicle checks and
inspections that should be performed by
the owner or an authorized HYUNDAI
dealer at the frequencies indicated to
help ensure safe, dependable operation
of your vehicle.
Any adverse conditions should be
brought to the attention of your dealer as
soon as possible.
These Owner Maintenance vehicle
checks are generally not covered by
warranties and you may be charged for
labor, parts and lubricants used. The electric control system in the vehicle
may cause malfunction or other negative
impact on the artificial heart and the
artificial internal organs. Be sure to
inquire the impact of the electric control
system on the artificial organs from the
medical product corporation.
Owner Maintenance Schedule
When you stop for charging:
• Check the coolant level in the coolant
reservoir.
• Check the windshield washer fluid level.
• Check for low or under-inflated tires.
WARNING Be careful when checking your coolant
level if the motor compartment is hot.
This may result in coolant being blown
out of the opening and cause serious
burns and other injuries.

While operating your vehicle:
• Check for vibrations in the steering wheel. Notice if there is any increased
steering effort or looseness in the
steering wheel, or change in its
straight-ahead position.
• Notice if your vehicle constantly turns slightly or “pulls” to one side when
traveling on smooth, level road.
• When stopping, listen and check for unusual sounds, pulling to one side,
increased brake pedal travel or
“hard-to-push” brake pedal.
• If any slipping or changes in the operation of your gear shift occurs,
check the shift gear fluid level.
• Check the shift gear P (Park) function.
• Check the parking brake.
Hyundai_CE_en_US.book Page 6
