Convenience Features
5-38
1) Programming Preparation
ONE1051262N
1. When programming a garage door opener, it is advised to park the vehicle
outside of the garage.
2. It is recommended that a new battery be placed in the hand-held transmitter
of the device being programmed to
HomeLink for quicker training and
accurate transmission of the
radio-frequency signal.
3. Press the Start/Stop button to the ACC (Accessory) position for programming
of HomeLink.
2) Programming a New HomeLink®
ONE1051263N
1. Press and release the HomeLink button (1), (2) or (3), you would like to program.
The HomeLink indicator light (7) will
flash orange slowly (if not, perform the
steps of “Erasing HomeLink Buttons”
section, and start over).
ONE1051264N
2. Position the garage door opener remote 1-3 in. (2-8 cm) away from the
HomeLink buttons.
3. While the HomeLink indicator light (7) is flashing orange, press and hold the
hand-held remote button. Continue
pressing the hand-held remote button
until the HomeLink indicator light (7)
light changes from orange to green.
You may now release the hand-held
remote button.
4. Wait until your garage door comes to a complete stop, regardless of position,
before proceeding to the next steps.
5. Press and release the HomeLink button you are programming and observe the
indicator light.
• If the indicator light remains solid green, your device should operate
when the HomeLink button is
pressed. At this point, if your device
operates, programming is complete.
• If the indicator light rapidly flashes green, firmly press, hold for two
seconds and release the HomeLink
button up to three times in a row
slowly to complete the programming
process. Do not press the HomeLink
button rapidly. At this point if your
device operates, programming is
complete. If the device does not
operate, continue with step 6.
6. At the garage door opener motor, (security gate motor, etc.) locate the
'Learn', 'Smart', 'Set' or 'Program'
button. This can usually be found where
Hyundai_CE_en_US.book Page 38
Page 217 of 582
5
5-39
the hanging antenna wire is attached to
the motor-head unit (see the device’s
manual to identify this button). The
name and color of the button may vary
by manufacturer.
• A ladder and/or second person may simplify the following steps.
7. Firmly press and release the 'Learn', 'Smart', 'Set' or 'Program' button. You
now have up to 30 seconds in which to
complete the next step.
8. Return to the vehicle and firmly press, hold for two seconds and release, the
HomeLink button up to three times in a
row slowly. Do not press the HomeLink
button rapidly. As soon as you see the
garage door start to move, stop
pressing any buttons until a few
seconds after the garage door has
come to a complete stop, regardless of
position. At this point, programming is
complete and your device should
operate when the HomeLink button is
pressed and released.
3) Two-Way Communication
Programming (For select garage door
openers)
If your garage door opener has the ‘myQ’
logo on its side, your opener likely has
Two-Way Communication capability.
HomeLink has the capability to establish
Two-Way Communication with your
garage door opener. HomeLink can
receive and display “closing” or
“opening” status messages from
compatible garage door openers. At any
time, Home-Link can also recall and
display the last recorded status
communicated by the garage door
opener to indicate your garage door
being “closed” or “opened”.
To check if your garage door opener is
compatible with this feature, refer to
www.homelink.com/compatible/Two-w
ay-Communication. If your garage door
opener has this functionality, AND the
Two-Way Communication indicators (4),
(6) in the mirror appear while the garage door is opening/closing, then no further
steps are needed. Two-Way
Communication Programming is already
complete. However, if your garage door
opener has this functionality, AND the
Two-Way Communication indicators (4),
(6) in the mirror DO NOT appear while the
garage door is opening/closing, use the
following instructions to enable this
functionality.
1. In your vehicle, press and hold the
programmed HomeLink button for 2
seconds, then release. Confirm that the
garage door is moving. AFTER it stops,
you will have one minute to complete
the following steps:
• A ladder and/or second person may simplify the following steps.
2. On your garage door opener in your garage, locate the 'Learn' button
(usually near where the hanging
antenna wire is attached to the garage
door opener). If there is difficulty
locating this button, reference the
device’s owner’s manual.
3. Press and release the 'Learn' button.
4. A light on your garage door opener may flash, and your Two-Way
Communication indicators (4), (6) in
your vehicle may flash, confirming
completion of the process.
5. Return to the vehicle and firmly press and release the programmed
HomeLink button to activate your
garage door. The Two-Way
Communication indicators (4), (6) flash
in orange when the door is moving. Do
not make any additional button presses
until AFTER the garage door has come
to a complete stop.
6. Your Two-Way Communication programming is now complete.
Hyundai_CE_en_US.book Page 39
Page 221 of 582
5
5-43
Side View Mirrors
B5007001
Your vehicle is equipped with both
left-hand and right-hand side view
mirrors. The mirrors can be adjusted
remotely with mirror adjustment control
switch. Adjust the side view mirrors to
your desired position before driving. The
side view mirrors can be folded manually
to help prevent damage when going
through an automatic car wash or when
passing through a narrow street.
Make sure to adjust the side view mirrors
to your desired position before you begin
driving.
WARNING The right side view mirror is convex.
Objects seen in the mirror are closer than
they appear.
Use the side view mirror or turn your head
and look to determine the actual distance
of other vehicles prior to changing lanes.
WARNING Do not adjust or fold the side view mirrors
while driving. This may cause loss of
vehicle control resulting in a collision.
NOTICE [ ' R Q R W V F U D S H L F H R I I W K H P L U U R U I D F H 7 K L V P D \ G D P D J H W K H V X U I D F H R I W K H
J O D V V
[ , I W K H P L U U R U L V M D P P H G Z L W K L F H G R Q R W D G M X V W W K H P L U U R U E \ I R U F H 8 V H D Q
D S S U R Y H G G H L F H U Q R W U D G L D W R U
D Q W L I U H H ] H \f V S U D \ R U D V S R Q J H R U V R I W
F O R W K Z L W K Y H U \ Z D U P Z D W H U R U P R Y H
W K H Y H K L F O H W R D Z D U P S O D F H D Q G D O O R Z
W K H L F H W R P H O W
[ ' R Q R W F O H D Q W K H P L U U R U Z L W K K D U V K D E U D V L Y H V I X H O R U R W K H U S H W U R O H X P
E D V H G F O H D Q L Q J S U R G X F W V
Adjusting the side view mirrors
B5007002
Adjusting the side view mirrors:
1. When the Start/Stop button is in the ACC, ON or START position, move
either the L (Left side) or R (Right side)
button (1) to select the side view mirror
you would like to adjust.
2. Use the mirror adjustment control switch (2) to position the selected
mirror up, down, left or right.
3. After adjustment, move the lever (1) to the middle to prevent unintended
adjustment.
NOTICE [ 7 K H P L U U R U V V W R S P R Y L Q J Z K H Q W K H \ U H D F K W K H P D [ L P X P D G M X V W L Q J D Q J O H V
E X W W K H P R W R U F R Q W L Q X H V W R R S H U D W H
1
2
Hyundai_CE_en_US.book Page 43
Page 223 of 582
5
5-45
if equipped
Reverse Parking Aid
B5007004
When the gear is shifted to the R
(Reverse) position, the side view lever(s)
will rotate downwards to aid with driving
in reverse.
The state of the side view mirror lever (1)
determines whether or not the mirrors
will move:
How it works
• Left/Right: When either the L (Left) or R (Right) lever is selected, both side view
mirrors will move.
• Neutral: When neither switch is selected, the side view mirrors will not
move.
The side view mirrors will automatically
revert to their original positions if any of
the following occur:
• The Start/Stop button is pressed to either the OFF position or the ACC
position.
• The gear is shifted to any position except R (Reverse).
• The side view mirror adjustment button is not selected.
Reverse parking aid user settings
mode
You may change the angle of the side
view mirror if it is difficult to see the rear
view with the basic downward mirror
angle provided when reversing. When the vehicle is first delivered, the set
downward angle of the left and right side
view mirror are different to ensure driver
visibility.
1. Make sure the vehicle is stopped.
2. Depress the brake pedal and shift the
gear to R (Reverse). When L (Left) or R
(Right) lever is selected, both side view
mirror angle will move downward to the
basic set position.
3. Move either L or R lever to select the side view mirror you would like to
adjust. Then press “ , , , ” switch
to adjust the side view mirror to the
desired angle.
4. After adjusting the angle to save the adjusted side view mirror angle, shift
the gear to another position other than
R (Reverse), or change the L and R
levers to the neutral position (L and R
levers are not selected).
5. Set the other side view mirror following the above procedure 1 to 4.
Resetting reverse parking aid user settings
mode
To change the side view mirror angle back
to the basic angle, shift the gear to R
(Reverse), and adjust the mirror angle
higher than when the gear is in P (Park), N
(Neutral) and D (Drive).
NOTICE : K H Q F K D Q J L Q J W K H D Q J O H R I E R W K V L G H
Y L H Z P L U U R U V L W L V U H F R P P H Q G H G W R
F K D Q J H W K H D Q J O H R Q H V L G H D W D W L P H
I R O O R Z L Q J W K H S U R F H G X U H W R
Hyundai_CE_en_US.book Page 45
Page 225 of 582
5
5-47
Power Windows
The Start/Stop button must be in the ON
position to be able to raise or lower the
windows. The front door window power
window switch is located on the center
console along with the power window
lock button which can block the
operation of rear passenger windows. The
power window switch for the rear door
windows are on the rear doors. The power
windows will operate for about 3 minutes
after the Start/Stop button is in the ACC
or OFF position. However, if the front
doors are opened, the power windows
will not operate even within the 3 minute
period.
Window opening and closing
B5008201
To open:
Press the window switch down to the first
detent position (5). Release the switch
when you want the window to stop.
To close:
Pull the window switch up to the first
detent position (5). Release the window
switch when you want the window to
stop.
Auto up/down window
Pressing the power window switch
momentarily to the second detent
position (6) completely lowers or lifts the
window even when the switch is released.
To stop the window at the desired
position while the window is in operation, pull up or press down and release the
switch.
WARNING • Do not leave the vehicle turned on (
indicator on) and the key in your vehicle
with unsupervised children.
Unattended children could operate the
window, which could result in serious
injury.
• Do not extend your head, arms, body parts or objects outside the window
while driving.
Resetting the power windows
If the power windows do not operate
normally, the automatic power window
system must be reset as follows:
1. Press the Start/Stop button to the ON position.
2. Close the window and continue pulling up on the power window switch for at
least one second.
If the power windows do not operate
properly after resetting, have the system
inspected by an authorized HYUNDAI
dealer.
WARNING The automatic reverse feature doesn’t
activate while resetting the power
window system.
6
5
5
6
Hyundai_CE_en_US.book Page 47
Page 228 of 582
Convenience Features
5-50
if equipped
Wide Sunroof
If your vehicle is equipped with a sunroof,
you can slide or tilt your sunroof with the
sunroof switch located on the overhead
console.
B5027301
The sunroof can only be operated when
the Start/Stop button is in the ON or
START position.
The sunroof can be operated for about 3
minutes after the Start/Stop button is in
the ACC or OFF position. However, if the
front door is open, the sunroof cannot be
operated even within the 3 minute period.
WARNING • Adjust the sunroof or sunshade when your vehicle stops. This could result in
loss of control and an accident that may
cause injury, or property damage.
• Do not leave the vehicle running and the key in your vehicle with
unsupervised children. Unattended
children could operate the sunroof,
which could result in serious injury.
• Do not sit on the top of the vehicle. It may cause injury or vehicle damage.
NOTICE ' R Q R W R S H U D W H W K H V X Q U R R I Z K H Q U R R I
E D U V D U H L Q V W D O O H G R Q W K H Y H K L F O H R U Z K H Q
W K H U H L V O X J J D J H R Q W K H U R R I
Power sunshade
B5027401
Use the power sunshade to block direct
sunlight coming through the sunroof
glass.
• Push the sunroof switch rearward to the first detent position, the power
sunshade automatically slides open.
• Push the sunroof switch forward to the first detent position, the power
sunshade automatically closes.
However, if the sunroof glass is open,
the glass will close first.
To stop the power sunshade at any point,
push the sunroof switch in any direction.
NOTICE ' R Q R W S X O O R U S X V K W K H S R Z H U V X Q V K D G H
E \ K D Q G D V V X F K D F W L R Q P D \ G D P D J H W K H
S R Z H U V X Q V K D G H R U F D X V H L W W R
P D O I X Q F W L R Q
Information Wrinkles formed on the power sunshade are
normal due to material characteristic.
Hyundai_CE_en_US.book Page 50
Page 230 of 582

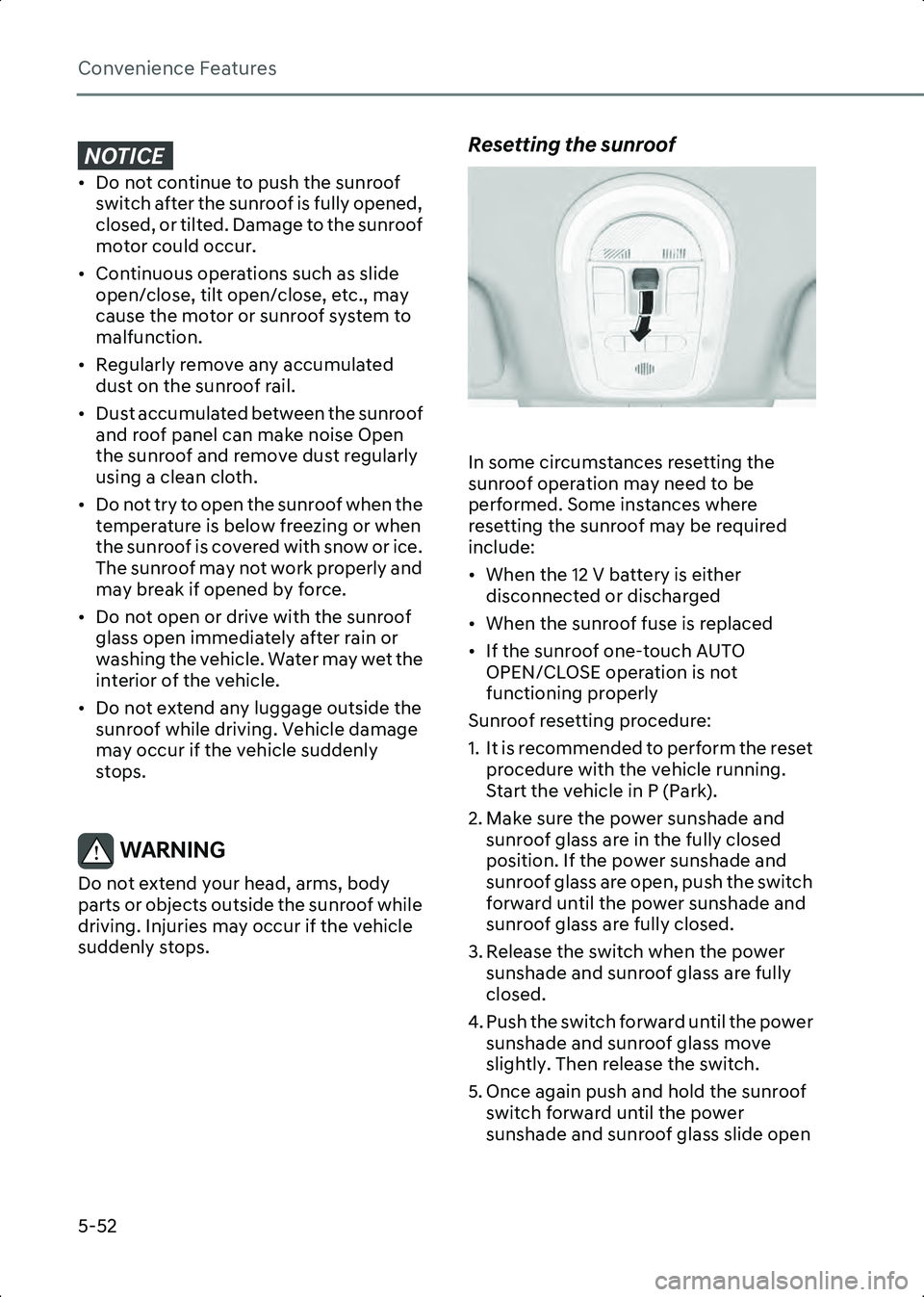

Convenience Features
5-52
NOTICE [ ' R Q R W F R Q W L Q X H W R S X V K W K H V X Q U R R I V Z L W F K D I W H U W K H V X Q U R R I L V I X O O \ R S H Q H G
F O R V H G R U W L O W H G ' D P D J H W R W K H V X Q U R R I
P R W R U F R X O G R F F X U
[ & R Q W L Q X R X V R S H U D W L R Q V V X F K D V V O L G H R S H Q F O R V H W L O W R S H Q F O R V H H W F P D \
F D X V H W K H P R W R U R U V X Q U R R I V \ V W H P W R
P D O I X Q F W L R Q
[ 5 H J X O D U O \ U H P R Y H D Q \ D F F X P X O D W H G G X V W R Q W K H V X Q U R R I U D L O
[ ' X V W D F F X P X O D W H G E H W Z H H Q W K H V X Q U R R I D Q G U R R I S D Q H O F D Q P D N H Q R L V H 2 S H Q
W K H V X Q U R R I D Q G U H P R Y H G X V W U H J X O D U O \
X V L Q J D F O H D Q F O R W K
[ ' R Q R W W U \ W R R S H Q W K H V X Q U R R I Z K H Q W K H W H P S H U D W X U H L V E H O R Z I U H H ] L Q J R U Z K H Q
W K H V X Q U R R I L V F R Y H U H G Z L W K V Q R Z R U L F H
7 K H V X Q U R R I P D \ Q R W Z R U N S U R S H U O \ D Q G
P D \ E U H D N L I R S H Q H G E \ I R U F H
[ ' R Q R W R S H Q R U G U L Y H Z L W K W K H V X Q U R R I J O D V V R S H Q L P P H G L D W H O \ D I W H U U D L Q R U
Z D V K L Q J W K H Y H K L F O H : D W H U P D \ Z H W W K H
L Q W H U L R U R I W K H Y H K L F O H
[ ' R Q R W H [ W H Q G D Q \ O X J J D J H R X W V L G H W K H V X Q U R R I Z K L O H G U L Y L Q J 9 H K L F O H G D P D J H
P D \ R F F X U L I W K H Y H K L F O H V X G G H Q O \
V W R S V
WARNING Do not extend your head, arms, body
parts or objects outside the sunroof while
driving. Injuries may occur if the vehicle
suddenly stops.
Resetting the sunroof
B5027801
In some circumstances resetting the
sunroof operation may need to be
performed. Some instances where
resetting the sunroof may be required
include:
• When the 12 V battery is either disconnected or discharged
• When the sunroof fuse is replaced
• If the sunroof one-touch AUTO OPEN/CLOSE operation is not
functioning properly
Sunroof resetting procedure:
1. It is recommended to perform the reset procedure with the vehicle running.
Start the vehicle in P (Park).
2. Make sure the power sunshade and sunroof glass are in the fully closed
position. If the power sunshade and
sunroof glass are open, push the switch
forward until the power sunshade and
sunroof glass are fully closed.
3. Release the switch when the power sunshade and sunroof glass are fully
closed.
4. Push the switch forward until the power sunshade and sunroof glass move
slightly. Then release the switch.
5. Once again push and hold the sunroof switch forward until the power
sunshade and sunroof glass slide open
Hyundai_CE_en_US.book Page 52
Page 244 of 582
Convenience Features
5-66
After the update is complete, you will
receive a notification on your phone or
the vehicle screen that the software
update is complete.
Information The screen turns off automatically after 3
minutes to save the battery. If the screen turns
off automatically, you can check the update
progress by pressing the Start/Stop button.
Information • After the update starts, you can exit the vehicle.
• The OTA software update feature is only available for HYUNDAI Connected
Services users.
• The update details may vary depending on the installed software version.
• Check the notice for the OTA software update on the HYUNDAI brand web.
• If the update fails, the update recovery will automatically proceed. If you want to retry
the software update, even after a successful
recovery, contact an authorized HYUNDAI
Call Center.
• If the update or recovery fails, contact an authorized HYUNDAI Call Center.
• After the update is complete, it may provide new functions or improvements. For more
information, see the “Over-The-Air
Software Update” page on the HYUNDAI
web or scan the QR code on the screen.
NOTICE [ 2 E V H U Y H W K H I R O O R Z L Q J U H V W U L F W L R Q V G X U L Q J W K H X S G D W H
< R X F D Q Q R W X V H W K H Y H K L F O H G X U L Q J W K H X S G D W H % H V X U H W R K D Y H H Q R X J K W L P H
I R U W K H X S G D W H D Q G V D I H O \ S D U N W K H
Y H K L F O H E H I R U H V W D U W L Q J W K H X S G D W H
S U R F H V V < R X F D Q Q R W X V H U H P R W H I H D W X U H V
L Q F O X G L Q J U H P R W H V W D U W
7 K H 5 H D U 2 F F X S D Q W $ O H U W I H D W X U H P D \ Q R W Z R U N & K H F N L I W K H U H D U H D Q \
R F F X S D Q W L Q W K H U H D U V H D W
[ 7 K H X S G D W H Z L O O E H D X W R P D W L F D O O \ F D Q F H O H G L I D Q \ Y H K L F O H F R Q G L W L R Q V
U H T X L U H G I R U W K H X S G D W H D U H F K D Q J H G
E H I R U H V W D U W L Q J W K H X S G D W H
[ 2 Q F H W K H X S G D W H K D V V W D U W H G \ R X F D Q Q R W F D Q F H O W K H X S G D W H
[ < R X F D Q Q R W X V H W K H 2 Y H U 7 K H $ L U V R I W Z D U H X S G D W H I H D W X U H L I \ R X P R G L I \
R U U H S O D F H D Q \ Y H K L F O H V R I W Z D U H
[ ' R Q R W R S H Q W K H K R R G R U U H S O D F H W K H E D W W H U \ L Q W K H Y H K L F O H G X U L Q J W K H
X S G D W H 7 K H X S G D W H P D \ I D L O
[ , I D G L D J Q R V W L F W R R O R I D Q \ N L Q G L V F R Q Q H F W H G W R W K H Y H K L F O H 2 % '
2 Q E R D U G ' L D J Q R V W L F \f W H U P L Q D O W K H
Y H K L F O H F D Q Q R W E H X S G D W H G 7 K H Y H K L F O H
F D Q E H X S G D W H G E \ U H P R Y L Q J W K H
G L D J Q R V W L F W R R O F R Q Q H F W H G W R W K H 2 % '
W H U P L Q D O D Q G W K H Q U H V W D U W L Q J W K H
Y H K L F O H
[ , I W K H X S G D W H L V Q R W F R P S O H W H V X F F H V V I X O O \ F R Q W D F W + < 8 1 ' $ ,
[ 9 H K L F O H U H F H S W L R Q P X V W E H L G H Q W L I L H G D V 9 H U L ] R Q W R V D I H O \ L Q V W D O O D Q \
G R Z Q O R D G H G V R I W Z D U H
[ 9 H K L F O H V L J Q D O V W U H Q J W K P X V W E H V W U R Q J D E R Y H G % P \f W R V D I H O \ L Q V W D O O D Q \
G R Z Q O R D G H G V R I W Z D U H
Hyundai_CE_en_US.book Page 66
