2023 GENESIS G80 Owners Manual

5-39
05
Recalling Memory Positions
1. Shift to P (Park) while the Start/Stop
button is in the ON position.
2. Press the desired memory button (1
or 2). The system will beep once, and
then the driver’s seat position, side
view mirror position, steering wheel
position, instrument panel illumination
intensity and head-up display height/
brightness will automatically adjust to
the stored positions.
3. ‘Settings 1(or 2) applied’ will appear on
the cluster LCD display.
Information

[If you press the SET button or the
corresponding button which the
setting is being recalled, the setting will
temporarily deactivate. If you press the
other buttons, the setting of the pressed
button will activate.
For example, if you press the SET
button or number 1 button with the
number 1 setting in operation, the
setting will temporarily deactivate. If
you press the number 2 button, the
number 2 setting will activate.

[If you adjust the seat, side view mirror,
steering wheel, instrument panel
illumination or head-up display while
recalling the stored positions, the pre-
set settings will become ineffective.
Resetting the System
Take the following procedures to reset
integrated memory system, when it does
not operate properly.
Resetting integrated memory
system
1. Stop the vehicle and open the driver’s
door with the Start/Stop button in the
ON position and the vehicle shifted to
P (Park).
2. Adjust the driver’s seat and seatback
to the foremost position.
3. Press the SET button and push
forward the driver’s seat movement
switch over 2 seconds simultaneously.
While resetting integrated memory
system
1. Resetting starts with a notification
sound.
2. The driver’s seat and seatback is
adjusted to the rearward position with
the notification sound.
3. The driver’s seat and seatback is
re-adjusted to the default position
(central position) with the notification
sound.
However, in the following cases, the
resetting procedure and the notification
sound may stop.

[The memory button is pressed.

[The seat control switch is operated.

[The driving speed exceeds
2 mph (3 km/h).

[The driver’s door is closed.

5-40
Convenience Features
NOTICE

[While integrated memory system
is being reset, if the resetting
and notification sound stops
incompletely, restart the resetting
procedure again.

[Make sure that there is no objects
around the driver’s seat in advance
of resetting the integrated memory
system.
Seat Easy Access
Seat easy access will move the driver’s
seat and steering wheel automatically as
follows:

[Exiting the vehicle:
The driver’s seat, steering wheel and
seat bolster will move as follows when
the Start/Stop button is in the OFF
position with the gear in P (Park) and
the driver’s door open.
-Driver seat: Moves rearward
depending on the distance selected
from the Settings menu in the
infotainment system.
-Steering wheel: Moves upward
-Seat bolster (if equipped): Adjusted
to the default position.
However, the driver’s seat may not
move rearward if there is not enough
space between the driver’s seat and
the rear seats.
Also, on a regular basis, the steering
wheel will also move forward to adjust
its location by itself.
[Entering the vehicle:
The driver’s seat, steering wheel and
seat bolster will move as follows when
the Start/Stop button is pressed to the
ACC, ON or START position or while
carrying the smart key, the driver’s
door is closed with the Start/Stop
button in the OFF position.
-Driver seat: Moves back to its
original position.
-Steering wheel: Moves back to its
original position.
-Seat bolster (if equipped): Adjusted
to the default position.

[You can set the Seat Easy Access
function from the Settings menu
in the infotainment system screen.
Select:
-Driver seat
6HWXS

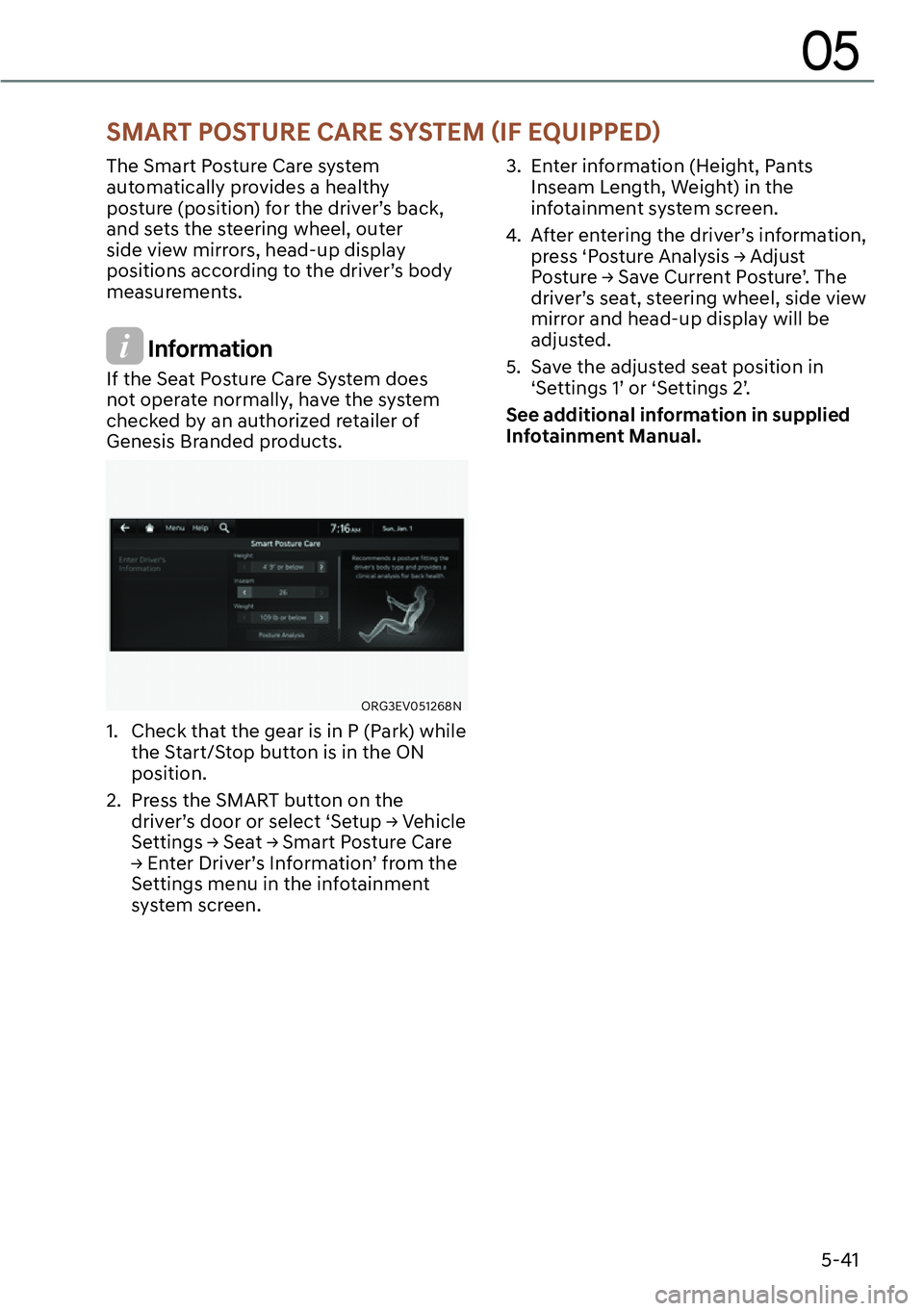

5-41
05
60$57326785(&$5(6<67(0

5-42
Convenience Features
STEERING WHEEL
Motor Driven Power Steering
(MDPS)
The system assists you with steering the
vehicle. If the vehicle is turned off or
if the power steering system becomes
inoperative, you may still steer the
vehicle, but it will require increased
steering effort.
Should you notice any change in the
effort required to steer during normal
vehicle operation, have the system
checked by an authorized retailer of
Genesis Branded products.
CAUTION
If Motor Driven Power Steering does not
operate normally, the warning light
and the message ‘Check Motor Driven
Power Steering’ will illuminate on the
instrument cluster. You may steer the
vehicle, but it will require increased
steering efforts. Take the vehicle to an
authorized retailer of Genesis Branded
products and have the system checked
as soon as possible.
Information
The following symptoms may occur during
normal vehicle operation:

[The steering effort may be high
LPPHGLDWHO\DIWHUSUHVVLQJWKH6WDUW
Stop button to the ON position.
This happens as the system performs
WKH0'36V\VWHPGLDJQRVWLFV:KHQ
the diagnostics are completed, the
steering wheel effort will return to its
normal condition.

[:KHQWKHEDWWHU\YROWDJHLVORZ\RX
might have to put more steering effort.
However, it is a temporary condition so
that it will return to normal condition
after charging the battery.

[A click noise may be heard from the
0'36UHOD\DIWHUWKH6WDUW6WRSEXWWRQ
is in the ON or OFF position.

[0RWRUQRLVHPD\EHKHDUGZKHQWKH
vehicle is at a stop or at a low driving
speed.

[:KHQ\RXRSHUDWHWKHVWHHULQJZKHHO
in low temperatures, abnormal noise
may occur. If the temperature rises, the
noise will disappear. This is a normal
condition.

[:KHQDQHUURULVGHWHFWHGIURP0'36
the steering effort assist function will
not be activated in order to prevent
fatal accidents. Instrument cluster
warning lights may be on or the
steering effort may be high. If these
symptoms occur, drive the vehicle to
a safe area as soon as it is safe to do
so. Have the system checked by an
authorized retailer of Genesis Branded
products as soon as possible.

5-43
05
Tilt/Telescopic Steering
When adjusting the steering wheel to a
comfortable position, adjust the steering
wheel so that it points toward your chest,
not toward your face. Make sure you can
see the instrument cluster warning lights
and gauges. After adjusting, push the
steering wheel both up and down to be
certain it is locked in position.
Always adjust the position of the steering
wheel before driving.
WARNING
NEVER adjust the steering wheel while
driving. This may cause loss of vehicle
control resulting in an accident.
NOTICE
While adjusting the steering wheel
height, please do not push or pull it
hard since the fixture can be damaged.
Power adjustment
ORG3EV051020N
To change the steering wheel angle and
height:

[Push the switch (1) up and down to
adjust the angle (2).

[Push the switch forward or rearward
to adjust the height (3).
NOTICE
Do not adjust the steering wheel
longer than necessary when the
vehicle is turned off. This may result in
unnecessary battery drain.

5-44
Convenience Features
Resetting steering wheel power adjustment
If adjustment is no longer possible within
the operable range while adjusting the
steering wheel position (angle or height),
reset as follows.
1. From the position the steering wheel
has stopped, push the control switch
(1) for 10 seconds in the direction you
were adjusting the steering wheel.
The steering wheel will move in the
direction the control switch is pushed.
2. Continue pushing the switch (1) for
at least 2 seconds after the steering
wheel has stopped. Resetting will be
complete after the operational range
is recognized.
If the adjustment is still not possible
after resetting the steering wheel
power adjustment, have the system
inspected by authorized retailer of
Genesis Branded products.
Horn
ORG3EV051022L
To sound the horn, press the area
indicated by the horn symbol on your
steering wheel (see illustration). The
horn will operate only when this area is
pressed.
NOTICE
Do not strike the horn severely to
operate it, or hit it with your fist. Do not
press on the horn with a sharp-pointed
object.

5-45
05
Heated Steering Wheel
(if equipped)
ORG3EV051232L
While the vehicle is running, touch the
heated steering wheel icon to warm the
steering wheel.

[Manual temperature control
Each time you touch the icon, the
temperature setting of the steering
wheel changes as follows:
OFF
Ÿ HIGH ( )
Ÿ LOW ( )

[Automatic temperature control
The heated steering wheel starts to
automatically control the steering
wheel temperature after being
manually turned ON.
-When HIGH (
) is manually
selected:
The heated steering wheel
automatically changes to the LOW
position after 30 minutes. You can
turn off the heated steering wheel
by touching the icon to the OFF
position.
-When LOW (
) is manually
selected:
The heated steering wheel will not
be controlled manually.
If you touch the heated steering wheel
icon, the heated steering wheel will
have to be controlled manually.

[Auto. Controls That Use Climate
Control Settings (for driver’s seat)
The heated steering wheel
automatically controls the steering
wheel temperature depending on
the ambient temperature when the
vehicle is running.
To use this function, it must be
enabled from the Settings menu in the
infotainment system screen.
Select:
-6HWXS

5-46
Convenience Features
MIRRORS
Inside Rearview Mirror
Before driving your vehicle, check to
see that your inside rearview mirror is
properly positioned. Adjust the rearview
mirror so that the view through the rear
window is properly centered.
WARNING
Make sure your line of sight is not
obstructed. Do not place objects in the
rear seat, cargo area, or behind the rear
head restraints which could interfere
with your vision through the rear
window.
WARNING
To prevent serious injury during an
accident or deployment of the air bag,
do not modify the rearview mirror and
do not install a wide mirror.
WARNING
NEVER adjust the mirror while driving.
This may cause loss of vehicle control
resulting in an accident.
NOTICE
When cleaning the mirror, use a paper
towel or similar material dampened
with glass cleaner. Do not spray glass
cleaner directly on the mirror as this
may cause the liquid cleaner to enter
the mirror housing.
Electric Chromic Mirror (ECM)
(if equipped)
ORG3EV051023[A] : Indicator
Some vehicles come equipped with an
electrochromic mirror that helps control
glare while driving at night or under low
light driving conditions.
When the vehicle is running, the glare is
automatically controlled by the sensor
mounted in the rearview mirror. The
sensor detects the light level around the
vehicle, and automatically adjusts to
control the headlamp glare from vehicles
behind you.
Whenever the the gear is shifted to R
(Reverse), the mirror will automatically
go to the brightest setting in order to
improve the driver’s view behind the
vehicle.
