2023 GENESIS G80 Owners Manual

1-52
Foreword / Starting Your Electric Vehicle
Distance to Empty
ORG3EVQ011043E
The distance to empty is displayed
differently according to the selected
drive mode in the Drive Mode Integrated
Control System.
For more information, refer to “Drive
Mode Integrated Control System” in
chapter 6.
When destination is not set

[On average, a vehicle can drive about
282 miles (454 km).

[Under certain circumstances where
the air conditioner/heater is ON,
the distance to empty is impacted,
resulting in a possible distance range
from 161 miles (300 km). When using
the heater during cold weather
or driving at high speed, the high
voltage battery consumes a lot more
electricity. This may reduce the
distance to empty significantly.

[After ‘0 km’ has been displayed,
the vehicle can drive an additional
2~5 miles (3~8 km) depending on
driving speed, heater/air conditioner,
weather, driving style, and other
factors.
[Distance to empty that is displayed
on the instrument cluster after
completing a recharge may vary
significantly depending on previous
operating patterns.
When previous driving patterns
include high speed driving, resulting
in the high voltage battery using more
electricity than usual, the estimated
distance to empty is reduced. When
the high voltage battery uses little
electricity in ECO mode, the estimated
distance to empty increases.

[Distance to empty may depend on
many factors such as the charge
amount of the high voltage battery,
weather, temperature, durability of
the battery, geographical features,
and driving style. When the ambient
temperature is low such as in winter,
the actual driving distance may
reduce due to degradation of the
battery.

[Natural degradation may occur with
the high voltage battery depending
on the number of years the vehicle is
used. This may reduce the distance to
empty.
When destination is set
When the destination is set, the distance
to empty may change. The distance
to empty is recalculated using the
information of the destination. However,
the distance to empty may vary
significantly based on traffic conditions,
driving habits, and condition of the
vehicle.

1-53
01
Tips for Improving Distance to
Empty

[If you operate the air conditioner /
heater too much, the driving battery
uses too much electricity. This
may reduce the distance to empty.
Therefore, it is recommended that
you set the cabin temperature to
72°F (22°C) AUTO. This setting has
been certified by various assessment
tests to maintain optimal energy
consumption rates while keeping the
temperature fresh.
Turn OFF the heater and air
conditioner if you do not need them.

[When the heater or air conditioning
system is on, the energy consumption
is reduced if recirculation mode is
selected instead of selecting the fresh
mode. The fresh mode requires large
amount of energy consumption as
the outside air has to be re-heated or
cooled.

[When using the heater or air
conditioning system use the DRIVER
ONLY or scheduled air conditioner/
heater function.

[Depress and hold the accelerator
pedal to maintain speed and drive
economically.

[Gradually depress and release the
accelerator pedal when accelerating
or decelerating.

[Always maintain specified tire
pressures.

[Do not use unnecessary electrical
components while driving.

[Do not load unnecessary items in the
vehicle.

[Do not mount parts that may increase
air resistance.
ECO Driving
ORG3EVQ011114E
In order to check the ECO driving history,
VHOHFW
S(9

1-54
Foreword / Starting Your Electric Vehicle
Electricity Use
ORG3EVQ011116AU
In order to check the current energy
consumption for each system of the
YHKLFOHVHOHFW
S(9

1-55
01
State Of Charge (SOC) Gauge for
High Voltage Battery
„8-inch
ORG3EVQ011047N
„12.3-inch 3D
ORG3EVQ011004N

[The SOC gauge shows the charging
status of the high voltage battery.

[The ‘L’ on the indicator indicates that
there is not enough energy in the high
voltage battery. ‘H’ indicates that the
driving battery is fully charged.

[When driving on highways or
motorways, make sure to check
in advance if the driving battery is
charged enough.
„Type A
ORG3EVQ011046N
„Type B
ORG3EVQ011005N
When the remaining battery is lower than
12 % on the SOC gauge, the warning light
(
) turns ON to alert you of the battery
level.
When the warning light (
) turns ON,
the vehicle can drive an additional 13 ~
26 miles (25 ~ 50 km) depending on the
driving speed, heater/air conditioner,
weather, driving style, and other factors.
Charging is required.
NOTICE
When the high voltage battery level is
low, the power down indicator light
(
) illuminates and the vehicle power
is limited.
Charge the battery immediately since
your vehicle may not be driven, or may
roll back on a slope with the indicator
light ON.

1-56
Foreword / Starting Your Electric Vehicle
Warning and Indicator Lights
(related to electric vehicle)
Ready Indicator
This indicator illuminates:
When the vehicle is ready to be driven.
-ON : Normal driving is possible.
-OFF : Normal driving is not possible,
or a problem has occurred.
-Blinking : Emergency driving.
When the ready indicator goes OFF
or blinks, there is a problem with the
system. In this case, have your vehicle
inspected by an authorized retailer of
Genesis Branded products.
Service Warning Light
This warning light illuminates:

[When the Start/Stop button is in the
ON position.
-It illuminates for approximately 3
seconds and then goes off.

[When there is a problem with related
parts of the electric vehicle control
system, such as sensors, etc.
When the warning light illuminates while
driving, or does not go OFF after starting
the vehicle, have your vehicle inspected
by an authorized retailer of Genesis
Branded products.
Power Down Indicator Light
This indicator light illuminates:
When the power is limited for the safety
of the high-powered parts of an electric
vehicle. The power is limited for the
following reasons. (Unless both Service
Warning Light and Power Down Indicator
Light illuminate at the same time, it is not
a failure.)
-The high voltage battery level is too
low or voltage is decreasing
-The temperature of the high voltage
battery is too high or too low
-The temperature of the motor is high
NOTICE

[Do not accelerate or start the vehicle
suddenly when the power down
indicator light is ON.

[When the power is limited for the
safety of the high-powered parts of
an electric vehicle, the power down
indicator light illuminates. Your
vehicle may not be driven, or may roll
back on a slope with the indicator
light ON due to the limitation of
vehicle power.

1-57
01
Charging Connector
Indicator Light
This warning light indicates the
connection status of the charging
connector. When the charging connector
is connected to the vehicle, the green
light illuminates for approximately 1
minute.
High Voltage Battery Level
Warning Light
This warning light illuminates:

[When the high voltage battery level
is low.

[When the warning light turns ON,
charge the battery immediately.
Regenerative Brake Warning
Light
This warning light illuminates:
When the regenerative brake does not
operate and the brake does not perform
well. This causes the Brake Warning
light (red) and Regenerative Brake
Warning Light (yellow) to illuminate
simultaneously.
In this case, drive safely and have your
vehicle inspected by an authorized
retailer of Genesis Branded products.
The operation of the brake pedal may
be more difficult than normal and the
braking distance can increase.
LCD Display Messages
Shift to P to charge
ORG3EVQ011117N
This message is displayed if you connect
the charging cable without the gear in
the P (Park) position.
Shift to P (Park) before connecting the
charging cable.
Remaining Time
„AC charge„DC charge
ORG3EVQ011054LORG3EVQ011055L
This message is displayed to notify the
remaining time to charge the battery to
the selected target battery charge level.

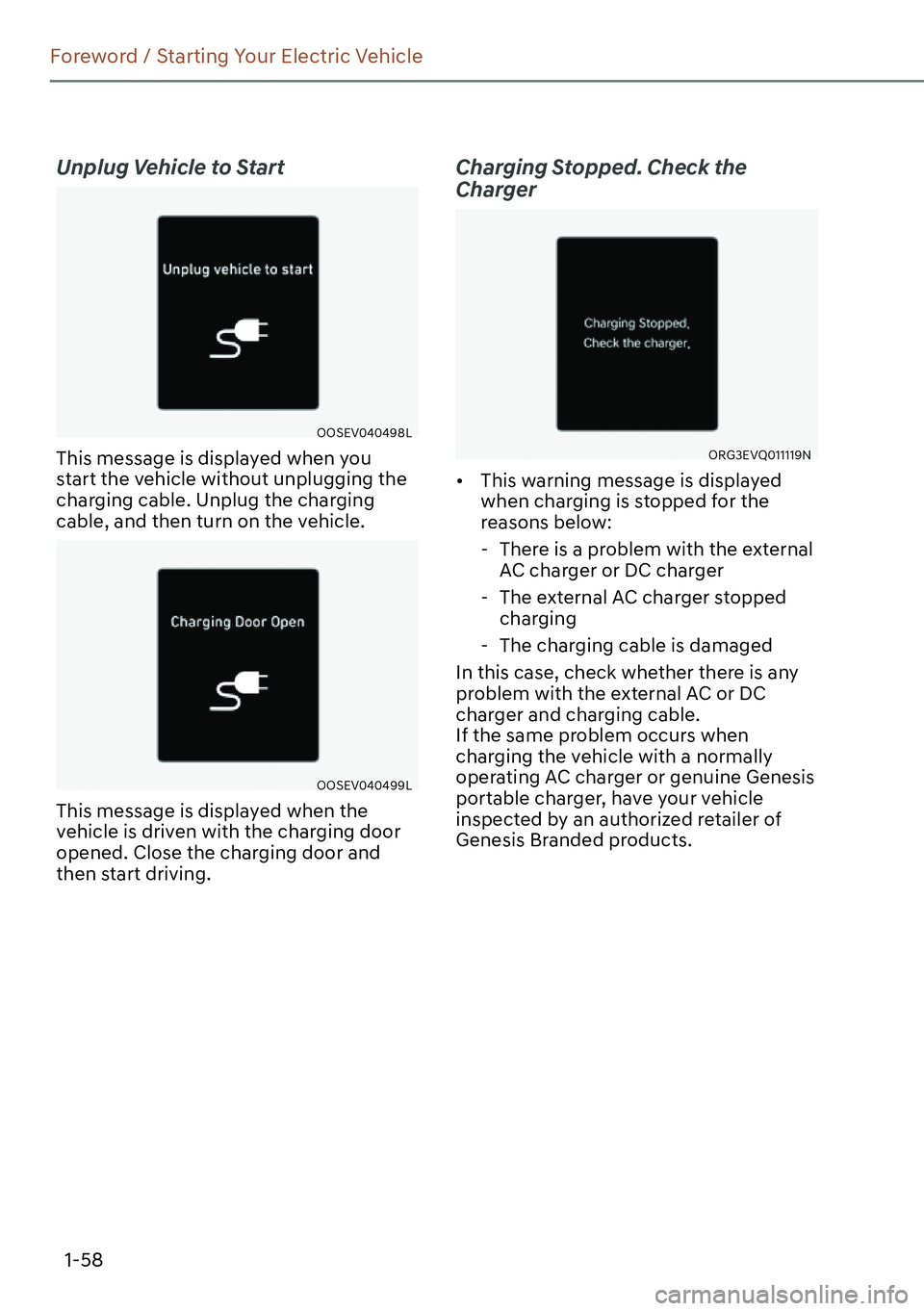

1-58
Foreword / Starting Your Electric Vehicle
Unplug Vehicle to Start
OOSEV040498L
This message is displayed when you
start the vehicle without unplugging the
charging cable. Unplug the charging
cable, and then turn on the vehicle.
OOSEV040499L
This message is displayed when the
vehicle is driven with the charging door
opened. Close the charging door and
then start driving.
Charging Stopped. Check the
Charger
ORG3EVQ011119N

[This warning message is displayed
when charging is stopped for the
reasons below:
-There is a problem with the external
AC charger or DC charger
-The external AC charger stopped
charging
-The charging cable is damaged
In this case, check whether there is any
problem with the external AC or DC
charger and charging cable.
If the same problem occurs when
charging the vehicle with a normally
operating AC charger or genuine Genesis
portable charger, have your vehicle
inspected by an authorized retailer of
Genesis Branded products.

1-59
01
Charging Stopped. Check the Cable
Connection
OOSEV040502L
This warning message is displayed
when charging is stopped because the
charging connector is not correctly
connected to the charging inlet
In this case, separate the charging
connector and re-connect it and check
whether there is any problem (external
damage, foreign substances, etc.) with
the charging connector and charging
inlet.
If the same problem occurs when
charging the vehicle with a replaced
charging cable or genuine Genesis
portable charger, have your vehicle
inspected by an authorized retailer of
Genesis Branded products.
Check Regenerative Brakes
OOSEV040503E
This warning message is displayed when
the regenerative brake system does
not work properly. In this case, have
the vehicle inspected by an authorized
retailer of Genesis Branded products.
Low EV Battery
ORG3EVQ011001L
When the high voltage battery level
reaches below approximately 12%, this
warning message is displayed.
The warning light on the instrument
cluster (
) will turn ON simultaneously.
Charge the high voltage battery
immediately.
Charge Immediately. Power Limited
ORG3EVQ011122L
When the high voltage battery level
reaches below approximately 6%, this
warning message is displayed.
The warning light on the instrument
cluster (
) and the power down
indicator light () will turn on
simultaneously.
The vehicle’s power will be reduced to
minimize the energy consumption of the
high voltage battery. Charge the high
voltage battery immediately.
