2023 GENESIS G80 Owners Manual

4-31
04
„Type A
ORG3EV041052N
„Type B
ORG3EV041027N
Driving Assist, Turn by Turn, Utility view
modes are displayed in the center (A) of
the instrument cluster.
Driving Assist view
ORG3EV041028
The status of Lane Keeping Assist, Smart
Cruise Control, Lane Following Assist,
Highway Driving Assist, etc., is displayed
when Driving Assist view is selected.
For more details, refer to each function
information section in chapter 7.
Turn By Turn (TBT) view
OIK040085L
Turn-by-turn navigation, distance/time
to destination information is displayed
when Turn by Turn view is selected.

4-32
Instrument Cluster
Utility view
In the Utility view, using the , (UP,
DOWN) switch, you may change through
items in the following order.
„8-inch
ORG3EV041057N
„12.3-inch 3D
ORG3EV041030N
Drive info
This display shows the trip distance, the
average energy consumption, and the
total driving time.
The information is combined for each
ignition cycle.
To manually reset the information, press
and hold the OK button when viewing
the Drive Info. The trip distance, the
average energy consumption, and total
driving time will reset simultaneously.
The driving information will continue to
be counted while the vehicle is in the
ready (
) mode (for example, when
the vehicle is in traffic or stopped at a
stop light.).
Information
The vehicle must be driven for a minimum
of 0.19 miles (300 meters) since the last
ignition key cycle before the accumulated
driving information is recalculated.
„8-inch
ORG3EV041058N
„12.3-inch 3D
ORG3EV041032N
After Recharging
Trip distance, total driving time and
average energy consumption after
the vehicle has been recharged are
displayed. To reset manually, press
the OK button on the steering wheel
for more than 1 second when ‘After
recharging’ is displayed.

4-33
04
„8-inch
ORG3EV041059N
„12.3-inch 3D
ORG3EV041034N
Accumulated info
This display shows the accumulated
trip distance (1), the average energy
consumption (2), and the total driving
time (3).
The information is accumulated starting
from the last reset.
To manually reset the information,
press and hold the OK button when
viewing the Accumulated driving info.
The trip distance, the average energy
consumption, and total driving time will
reset simultaneously.
The accumulated driving information
will continue to be counted while the
vehicle is in the ready (
) mode (for
example, when the vehicle is in traffic or
stopped at a stop light).
Information
The vehicle must be driven for a minimum
of 0.19 miles (300 meters) since the last
ignition key cycle before the accumulated
driving information is recalculated.
ORG3EV071234N
Attention level
The driver’s attention level is shown
based on the driver’s driving pattern.
For more details, refer to "Driver
Attention Warning (DAW)“ section in
chapter 7.
OJK040045L
Speed limit warning (if equipped)
The driver can monitor the information
provided from Intelligent Speed Limit
Assist.
For more details, refer to "Intelligent
Speed Limit Assist (ISLA)" section in
chapter 7.

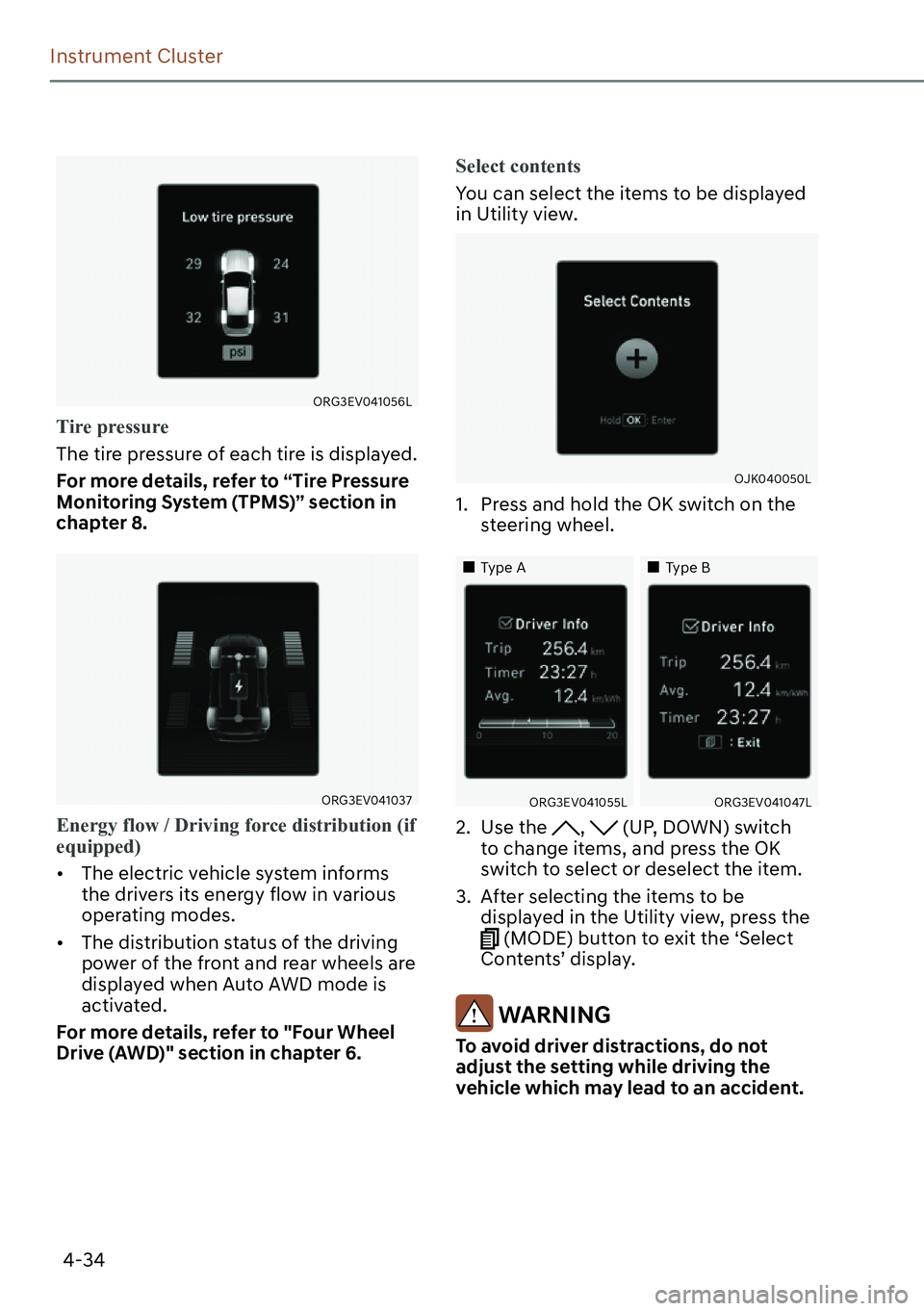

4-34
Instrument Cluster
ORG3EV041056L
Tire pressure
The tire pressure of each tire is displayed.
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.
ORG3EV041037
Energy flow / Driving force distribution (if
equipped)

[The electric vehicle system informs
the drivers its energy flow in various
operating modes.

[The distribution status of the driving
power of the front and rear wheels are
displayed when Auto AWD mode is
activated.
For more details, refer to "Four Wheel
Drive (AWD)" section in chapter 6.
Select contents
You can select the items to be displayed
in Utility view.
OJK040050L
1. Press and hold the OK switch on the
steering wheel.
„Type A„Type B
ORG3EV041055LORG3EV041047L
2. Use the , (UP, DOWN) switch
to change items, and press the OK
switch to select or deselect the item.
3. After selecting the items to be
displayed in the Utility view, press the
(MODE) button to exit the ‘Select
Contents’ display.
WARNING
To avoid driver distractions, do not
adjust the setting while driving the
vehicle which may lead to an accident.

4-35
04
Additional information display
„8-inch
ORG3EV041057N
„12.3-inch 3D
ORG3EV041030N
Drive info
Drive information is displayed for 4
seconds after the vehicle is turned off.
ORG3EV041039N
Driving assist information
The current operation conditions of
Manual Speed Limit Assist, Cruise
Control, Smart Cruise Control, Lane
Following Assist, Highway Driving Assist,
etc., is displayed.
Option Menu
Press the OK switch to enter Option
menu.
WARNING
To avoid driver distractions, do not
adjust the setting while driving which
may lead to an accident.
Information
The information provided may differ
depending on which functions are
applicable to your vehicle.
Menu Explanation
Service
messagesTo check vehicle
warning messages.
3D cluster (for
12.3-inch 3D
cluster)To activate or
deactivate 3D effect.
Head-up display To activate or
deactivate head-up
display.
Driver Assistance
settingsTo directly display
“Driver Assistance”
menu on the
infotainment system
screen
Speed unitTo set speed unit
between km/h and
MPH.

4-36
Instrument Cluster
Service messages
ORG3EV041040L
When Service Messages menu is
selected, press the OK switch on the
steering wheel to check vehicle warning
messages.
3D cluster (for 12.3-inch 3D cluster)
ORG3EV041041L
When 3D Cluster menu is selected, press
the OK switch on the steering wheel. You
may select or deselect 3D cluster effect
by pressing the OK switch.
Head-up display (if equipped)
ORG3EV041042L
When Head-Up Display menu is selected,
press the OK switch on the steering
wheel. You may select or deselect head-
up display by pressing the OK switch.
Driver Assistance settings
ORG3EV041043L
When Driver Assistance Settings menu
is selected, press the OK switch on the
steering wheel. The ‘Driver Assistance’
menu will be displayed on the
infotainment system screen.

4-37
04
Speed unit (if equipped)
ORG3EV041068L
When the Speed Unit menu is selected,
press the OK switch on the steering
wheel. You can change the speed unit
setting between km/h and MPH for the
cluster.
3D Instrument Cluster (for 12.3-
inch 3D Cluster)
3D cluster setting
To use the 3D cluster, press the Start/
Stop button to the ON position, and
WKHQVHOHFW
6HWXS

4-38
Instrument Cluster
Information

[When your face gets too close or far to
the instrument cluster, or the camera
on the instrument cluster is blocked by
the steering wheel or other objects, the
3D cluster changes to 2D automatically.
However if the object blocking the
camera is removed, the cluster changes
back to 3D automatically.

[If outside temperature is below 39°F
(4°C), it may change to 2D about 1 to
10 minutes.

[Two red lights may appear on the
camera in the following conditions
when:
-The outside brightness is dim or
driving at night
-The vehicle drives inside a building,
such as a basement parking lot
-The camera case of the instrument
cluster is partially damaged
CAUTION

[It may sometimes be difficult to
read information on the 3D cluster
in the following situations. You must
change the cluster to 2D for safe
driving.
-The driver is wearing sunglasses,
special glasses, infrared cutoff
glasses, refracting glasses or thick
glasses
-The driver has heavy eye makeup
(eyeliner, mascara, color makeup,
false eyelash) or eye piercing
-The driver’s view is blocked by his/
her hair, etc. -The driver is winking or wearing an
eye patch on one eye
-The driver’s face is covered
partially by a mask, muffler, hood,
etc.
-The driver’s view is blocked by
incoming light from outside of the
vehicle
-Light from outside, sunlight or
infrared LED light of the camera
is reflected on the glasses or
sunglasses
-The driver turns or lowers his/her
head so that the face or an eye is
hidden from the camera
-The driver shakes his/her head
up and down, or adverse road
conditions cause excessive vehicle
vibrations while driving
-The driver is too tall or short
-More than two people are
looking at the instrument cluster
simultaneously from the driver’s
seat
-The driver’s eyesight of both eyes
are severely different
-The driver has a severe headache

[Do not look toward the camera
within 8 in. (20 cm) for longer than a
minute.

[If you use the 3D cluster while your
vehicle is stopped, it can cause eye
strains or dizziness.

[We recommend people who are
pregnant, elderly or has motion
sickness, avoid using the cluster in
3D.
