2023 GENESIS G80 Owners Manual

5-103
05
Defrost (A, D)
Most of the air flow is directed to the
windshield.
Face-level (B, D, E)
Air flow is directed toward the upper
body and face. Additionally, each outlet
can be controlled to direct the air
discharged from the outlet.
Floor-level (A, C, F)
Most of the air flow is directed to the
floor, with a small amount of the air
being directed to the windshield and side
window defrosters.
Face-level (E)
Air flow is directed toward the upper
body and face.
Floor-level (F)
Most of the air flow is directed to the
floor.
Front windshield defroster
ORG3EV051111
Defrost-level (A, D)
Press the button, and the indicator light
on the button will illuminate and the
windshield defroster indicator will appear
on the climate control information
screen.
Most of the air flow is directed to the
windshield with a small amount of air
directed to the side window defrosters.
When Defogging logic is enabled, Fresh
mode is selected and air conditioning
is selected according to outside
temperature.
Press the button again, the indicator light
will turn off and the previous settings will
be selected.

5-104
Convenience Features
Instrument panel vents
„Front seat
ORG3EV051110
„Rear seat
ORG3050108
The instrument panel vent air flow can be
directed up/down or left/right using the
vent adjustment lever.
The air flow can also be CLOSED using
the vent adjustment lever.
Move the lever to
position to close,
and to position to open.
Temperature control
„Front seat
‡Front seat control‡Rear seat control
ORG3EV051112NORG3EV051113N
„Rear seat
ORG3EV051115
Turn the knob to the right to increase the
temperature. Turn the knob to the left to
decrease temperature.
Also, touch the
or icon to select
the temperature for second row seats
from the front row.
The Set Temperature can be increased or
decreased by increments of 1 °F (0.5 °C)
for each incremental location. When set
to the lowest temperature setting, the air
conditioning will operate continuously.

5-105
05

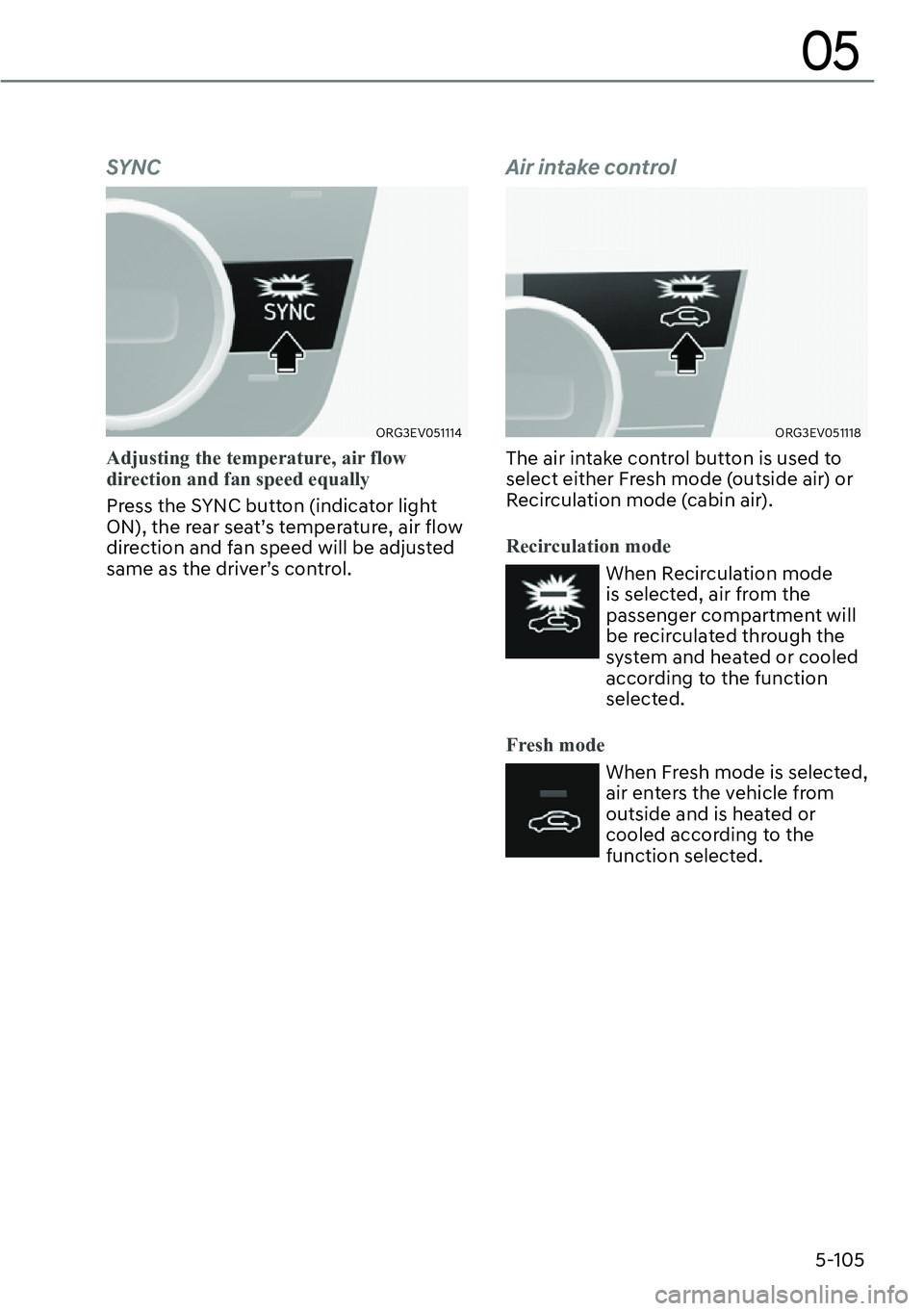

SYNC
ORG3EV051114
Adjusting the temperature, air flow
direction and fan speed equally
Press the SYNC button (indicator light
ON), the rear seat’s temperature, air flow
direction and fan speed will be adjusted
same as the driver’s control.
Air intake control
ORG3EV051118
The air intake control button is used to
select either Fresh mode (outside air) or
Recirculation mode (cabin air).
Recirculation mode
When Recirculation mode
is selected, air from the
passenger compartment will
be recirculated through the
system and heated or cooled
according to the function
selected.
Fresh mode
When Fresh mode is selected,
air enters the vehicle from
outside and is heated or
cooled according to the
function selected.

5-106
Convenience Features
Information
Operating the system primarily in Fresh
mode is recommended. Use Recirculation
mode temporarily only when needed.
Prolonged operation of the heater in
Recirculation mode and without the air
conditioning ON can cause fogging of the
windshield. In addition, prolonged use of
the air conditioning ON in Recirculation
mode may result in excessively dry,
dehumidified air in the cabin and may
promote formation of musty vent odor due
to stagnant air.
WARNING

[Continued use of the climate control
system operation in Recirculation
mode for a prolonged period of
time may cause drowsiness to the
occupants in the cabin. This may lead
to loss of vehicle control which may
lead to an accident.

[Continued use of the climate control
system operation in Recirculation
mode with the air conditioning OFF
may allow humidity to increase
inside the cabin. This may cause
condensation to accumulate on the
windshield and obscure visibility.

[Do not sleep in your vehicle or
remain parked in your vehicle with
the windows up and either the
heater or the air conditioning ON for
prolonged periods of time. Doing so
may increase the levels of carbon
dioxide in the cabin which may lead
to serious injury or death.
Fan speed control
„Front seat
ORG3EV051129L
„Rear seat
ORG3EV051116
The fan speed can be set to the desired
speed touching the or icon.
More air is delivered with higher fan
speeds.
Pressing the OFF icon or button turns off
the fan.
Information
To help improve microphone voice
input sound quality, fan speed may
automatically slow down for a couple
of minutes when you activate voice
recognition or hands free.
NOTICE
Operating the fan when the Start/Stop
button is in the ON position could cause
the battery to discharge. Operate the
fan when the vehicle is running.
.

5-107
05
Air conditioning
ORG3EV051130L
Touch the A/C icon to manually turn the
air conditioning on (indicator light will
illuminate) and off.
Driver only
ORG3EV051102L
If you press the DRIVER ONLY button
() and the indicator light
illuminates in the infotainment climate
control screen, cold air mostly blows
in the driver’s seat. However, some
of the cold air may come out of other
seating position ducts to keep indoor air
pleasant.
If you use the button with no passenger
in the front passenger seat, energy
consumption will be reduced.
DRIVER ONLY button will be turned off
under the following conditions:
1) Defrost on
2) DRIVER ONLY button re-push
HEAT button
ORG3EV051103L
When you touch AUTO button, the heater
works automatically according to the
set temperature. You can select the
temperature to the 81qF (27qC) in AUTO
mode.
But if you want to choose the heater
separately, touch CLIMATE icon in
the climate control panel. The climate
information screen will appear on the
infotainment screen. Touch the HEAT
icon in the infotainment screen to
turn the heater on (indicator light will
illuminate).
Touch the button again to turn the heater
off.
The air conditioner and heater uses
energy from the battery. If you use the
heater or air conditioner for too long,
distance to empty can be reduced due to
too much power consumption.
Turn off the heater and air conditioner if
you do not need them.
Information
If the vehicle is turned off after the heating
and cooling operation, a sound may occur
temporarily as the air climate system
mode is changed.

5-108
Convenience Features
Scheduled climate
ORG3EV051104L
Set target temperature.
This function is linked to the departure
time.
For more details, refer to “EV mode” in
chapter 1.
OFF mode
„Front seat
‡Front seat control‡Rear seat control
ORG3EV051121ORG3EV051122N
„Rear seat
ORG3EV051123
Touch the OFF icon or press the OFF
button to turn the climate control system
off. You can still operate the air intake
button as long as the Start/Stop button is
in the ON position.

5-109
05
System Operation
Cooling / Ventilation
1. Select the Face Level () mode in the
infotainment screen.
2. Set the air intake control to fresh or
recirculation mode.
3. Set the temperature to the desired
position.
4. Set the fan speed to the desired
speed.
Heating
1. Select the Floor Level () mode in
the infotainment screen.
2. Set the air intake control to fresh or
recirculation mode.
3. Set the temperature to the desired
position.
4. Set the fan speed to the desired
speed.
5. If desired, turn the air conditioning ON
with the temperature set high in order
to dehumidify the air before it enters
into the cabin.
If the windshield fogs up, select the Front
Defrost (
) mode.
Operation Tips

[To keep dust or unpleasant fumes
from entering the vehicle through the
ventilation system, temporarily set the
air intake control to the recirculation
mode. Return the control to the
Recirculation mode to the Fresh mode
when the unpleasant air outside has
diminished. This will help keep the
driver alert and comfortable.

[To help prevent the inside of the
windshield from fogging, set the air
intake control to fresh mode and the
fan speed to the desired position, turn
on the air conditioning system, and
adjust the temperature control to the
desired temperature.
Air conditioning
Your Genesis Branded Vehicle air
conditioning system is filled with
R-1234yf refrigerant.
1. Start the vehicle.
2. Press the air conditioning button.
3. Set the mode to the Face Level

mode.
4. Set the air intake control to
Recirculation mode temporarily to
allow the cabin to cool quickly. When
the desired temperature in the cabin
is reached, change the air intake
control back to Fresh mode.
5. Adjust the fan speed control and
temperature control to maintain
maximum comfort.
When maximum cooling is desired, set
the temperature to the lowest position,
then set the fan speed control to the
highest setting.

5-110
Convenience Features
Air conditioning system operation tips

[If the vehicle has been parked in
direct sunlight during hot weather,
open the windows for a short time
to let the hot air inside the vehicle
escape.

[After sufficient cooling has been
achieved, switch back from
recirculation mode to fresh mode.

[To help reduce moisture inside of
the windows on rainy or humid
days, decrease the humidity inside
the vehicle by operating the air
conditioning system with the windows
and solar roof closed.

[Use the air conditioning system
every month only for a few minutes
to ensure maximum system
performance.

[If you operate air conditioner
excessively, the difference between
the temperature of the outside air and
that of the windshield could cause
the outer surface of the windshield to
fog up, causing loss of visibility. In this
case, set the mode selection to the

position and fan speed control to the
lowest speed.
System Maintenance
Cabin air filter
OHI048581L[A] : Outside air, [B] : Recirculated air
[C] : Cabin air filter, [D] : Blower
[E] : Evaporator core, [F] : PTC & Inner condenser
The cabin air filter is installed behind the
front trunk. It filters the dust or other
pollutants that enter the vehicle through
the heating and air conditioning system.
Have the cabin air filter replaced by an
authorized retailer of Genesis Branded
products according to the maintenance
schedule. If the vehicle is being driven in
severe conditions such as dusty or rough
roads, more frequent cabin air filter
inspections and changes are required.
If the air flow rate suddenly decreases,
have the system inspected at an
authorized retailer of Genesis Branded
products.
