2023 GENESIS G80 Owners Manual

3-18
Seats and Safety System
Front seat head restraints
ORG3EV031088N
The driver’s and front passenger’s seats
are equipped with adjustable head
restraints for the passengers safety and
comfort.
ORG3EV031013
Adjusting the height up and down
To raise the head restraint:
1. Pull it up to the desired position (1).
To lower the head restraint:
1. Push and hold the release button (2)
on the head restraint support.
2. Lower the head restraint to the
desired position (3).
ORG3EV031014
Forward and rearward adjustment
The head restraint can be adjusted
forward to 3 different positions by pulling
the head restraint forward to the desired
detent. To adjust the head restraint to
it’s furthest rearwards position, pull it
fully forward to the farthest position and
release it.
NOTICE
ORG3EV031015
If you recline the seatback towards the
front with the head restraint and seat
cushion raised, the head restraint may
come in contact with the sunvisor or
other parts of the vehicle.

3-19
03
ORG3EV031016
Removal/Reinstall To remove the head restraint:
1. Recline the seatback (2) with the
seatback angle switch (1).
2. Raise the head restraint as far as it can
go.
3. Press the head restraint release button
(3) while pulling the head restraint up
(4).
WARNING
NEVER allow anyone to travel in a seat
with the head restraint removed.
ORG3EV031017
To reinstall the head restraint :
1. Recline the seatback.
2. Put the head restraint poles (2) into
the holes while pressing the release
button (1).
3. Adjust the head restraint to the
appropriate height.
4. Recline the seatback (4) with the
seatback angle switch (3).
WARNING
Always make sure the head restraint
locks into position after reinstalling and
adjusting it properly.

3-20
Seats and Safety System
Rear seat head restraints
ORG3EV031089N
The rear seats are equipped with head
restraints in all the seating positions for
the passenger’s safety and comfort.
ORG3EV031022
Adjusting the height up and down
To raise the head restraint:
1. Pull it up to the desired position (1).
To lower the head restraint:
1. Push and hold the release button (2)
on the head restraint support.
2. Lower the head restraint to the
desired position (3).
Seat Warmers
Seat warmers are provided to warm the
seats during cold weather.
During mild weather or under conditions
where the operation of the seat warmer
is not needed, keep the seat warmers
OFF.
WARNING
The seat warmers can cause a SERIOUS
BURN, even at low temperatures and
especially if used for long periods of
time.
Passengers must be able to feel if the
seat is becoming too warm so they can
turn it off, if needed.
Seat warmers consume large amounts
of electricity. Please avoid using seat
warmers while the vehicle is off in order
to prevent battery discharge.
People who cannot detect temperature
change or pain to the skin should
use extreme caution, especially the
following types of passengers:

[Infants, children, elderly or disabled
persons, or hospital outpatients.

[People with sensitive skin or who
burn easily.

[Fatigued individuals.

[Intoxicated individuals.

[People taking medication that can
cause drowsiness or sleepiness.

3-21
03
WARNING
NEVER place anything on the seat
that insulates against heat when the
seat warmer is in operation, such as a
blanket or seat cushion. This may cause
the seat warmer to overheat, causing a
burn or damage to the seat.
NOTICE
To prevent damage to the seat warmers
and seats:

[Never use a solvent such as paint
thinner, benzene, alcohol or gasoline
to clean the seats.

[Do not place heavy or sharp objects
on seats equipped with seat
warmers.

[Do not change the seat cover. It may
damage the seat warmer.
Front seat warmers
ORG3EV031104N

[While the vehicle is running, touch
either of the seat warmer icons
to warm the driver’s seat or front
passenger’s seat.

[Manual temperature control
Each time you touch the icon, the
temperature setting of the seat is
changed as follows :
2))

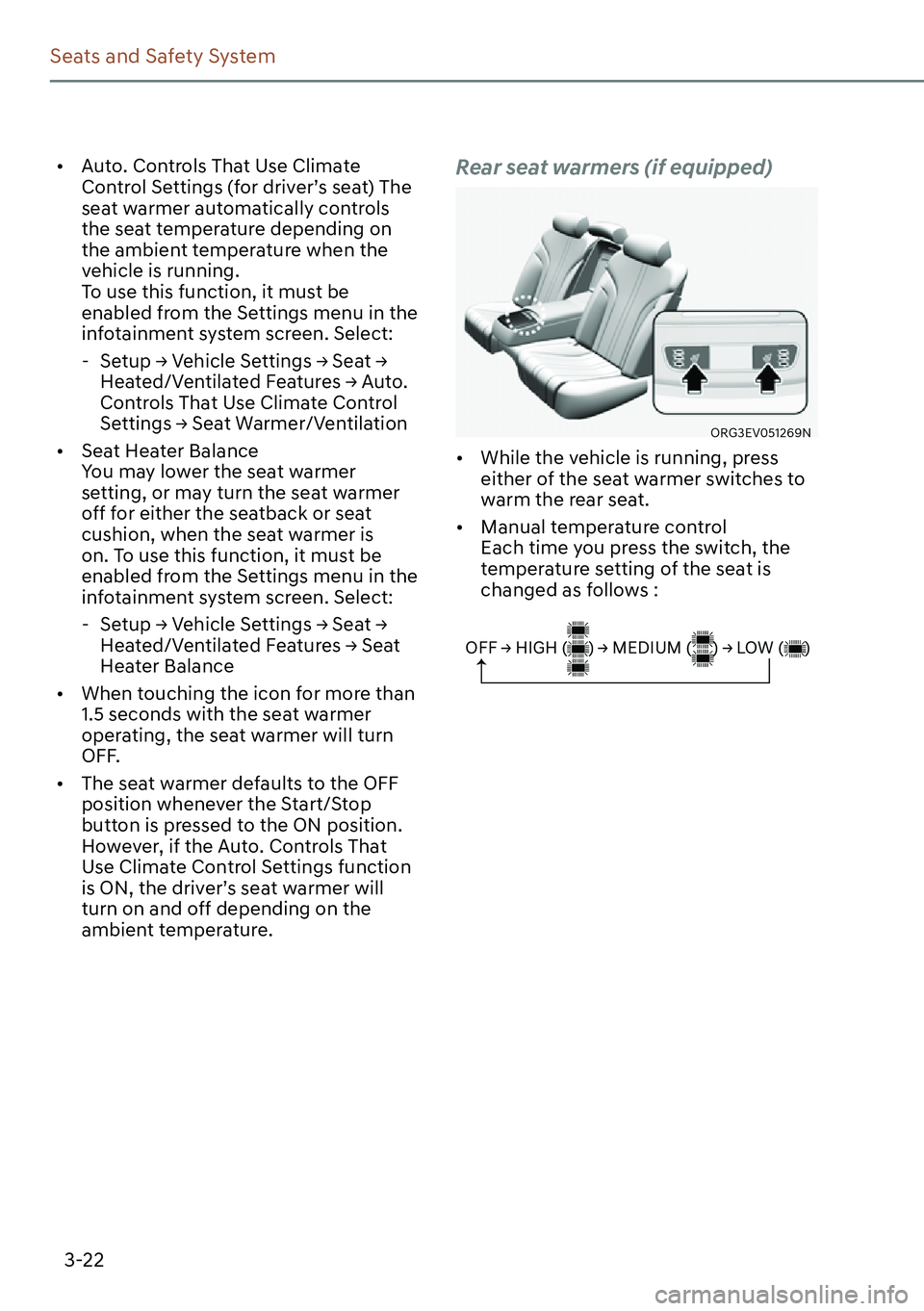

3-22
Seats and Safety System

[Auto. Controls That Use Climate
Control Settings (for driver’s seat) The
seat warmer automatically controls
the seat temperature depending on
the ambient temperature when the
vehicle is running.
To use this function, it must be
enabled from the Settings menu in the
infotainment system screen. Select:
-6HWXS

3-23
03
Air Ventilation Seats
The air ventilation seats are provided
to cool the front seats by blowing air
through small vent holes on the surface
of the seat cushions and seatbacks.
When the operation of the air ventilation
seat is not needed, keep the air
ventilation seats OFF.
NOTICE
To prevent damage to the air ventilation
seats:

[Never use a solvent such as paint
thinner, benzene, alcohol or gasoline
to clean the seats.

[Avoid spilling liquids on the surface
of the front seats and seatbacks; this
may cause the air vent holes to block
and not work properly.

[Do not place materials such as plastic
bags or newspapers under the seats.
They may block the air intake causing
malfunction of the air vent.

[Do not change the seat covers. It may
damage the air ventilation seat.

[If the air vents do not operate, restart
the vehicle. If there is no change,
have the vehicle to be inspected by
an authorized retailer of Genesis
Branded products .
Front air ventilation seats
(if equipped)
ORG3EV031105N

[While the vehicle is running, touch
either of the air ventilation seat icons
to cool the driver’s seat or the front
passenger’s seat.

[Each time you touch the icon, the
airflow changes as follows:
2))

3-24
Seats and Safety System

[Auto. Controls That Use Climate
Control Settings (for driver’s seat)
The air ventilation seat automatically
controls the seat temperature
depending on the ambient
temperature when the vehicle is
running.
To use this function, it must be
enabled from the Settings menu in the
infotainment system screen. Select:
-6HWXS

3-25
03
SEAT BELTS
This section describes how to use the
seat belts properly. It also describes
some of the things not to do when using
seat belts.
Seat Belt Safety Precautions
Always fasten your seat belt and make
sure all passengers have fastened their
seat belts before starting any trip. Air
bags are designed to supplement the
seat belt as an additional safety device,
and are not a replacement. Most states
require all occupants of a vehicle to wear
seat belts.
WARNING
Seat belts must be used by ALL
passengers whenever the vehicle is
moving. Take the following precautions
when adjusting and wearing seat belts:

[Children under the age of 13 should
be properly restrained in the rear
seats.

ôNEVER allow children to ride in the
front passenger seat, unless the air
bag is deactivated. If a child is seated
in the front passenger seat, move the
seat as far back as possible. And the
child must always be restrained in
the seat properly.

[NEVER allow an infant or child to be
carried on an occupant’s lap.

[NEVER ride with the seatback
reclined when the vehicle is moving.

[Do not allow children to share a seat
or seat belt.

[Do not wear the shoulder belt under
your arm or behind your back.
[NEVER wear a seat belt over fragile
objects. If there is a sudden stop or
impact, the seat belt can damage it.

[Do not use the seat belt if it is
twisted. A twisted seat belt will not
protect you properly in an accident.

[Do not use a seat belt if the webbing
or hardware is damaged.

[Do not latch the seat belt into the
buckles of other seats.

[NEVER unfasten the seat belt
while driving. This may cause loss
of vehicle control resulting in an
accident.

[Make sure there is nothing in the
buckle interfering with the seat
belt latch mechanism, because any
materials in the buckle can cause the
seat belt not to be fastened securely.

[No modifications or additions
should be made by the user which
will either prohibit the seat belt
adjusting devices from operating to
remove slack, or prohibit the seat
belt assembly from being adjusted to
remove slack.
WARNING
Damaged seat belts and seat belt
assemblies will not operate properly.
Always replace:

[Frayed, contaminated, or damaged
webbing.

[Damaged hardware.

[The entire seat belt assembly after it
has been worn in an accident, even
if damage to webbing or assembly is
not apparent.
