2023 GENESIS G80 Owners Manual

5-95
05
WARNING
When the outside temperature is below
freezing, ALWAYS warm the windshield
using the defroster to help prevent
the washer fluid from freezing on the
windshield and obscuring your vision
which could result in an accident and
serious injury or death.
NOTICE

[To prevent possible damage to the
washer pump, do not operate the
washer when the fluid reservoir is
empty.

[To prevent possible damage to the
wipers or windshield, do not operate
the wipers when the windshield is
dry.

[To prevent damage to the wiper
arms and other components, do
not attempt to move the wipers
manually.

[To prevent possible damage to the
wipers and washer system, use anti-
freezing washer fluids in the winter
season or cold weather.

5-96
Convenience Features
Information
Use a clean soft microfiber cloth to gently wipe any finger prints off the touch screen.
„Front seat
‡Front seat control
‡EV Mode
The actual shape may differ from the illustration.ORG3EV051127N/ORG3EV051133L
AUTOMATIC CLIMATE CONTROL SYSTEM
1. Driver’s temperature control
2. Passenger’s temperature control
3. Fan speed control
4. Driver’s mode selection
5. Passenger’s mode selection
6. AUTO (automatic control)
7. OFF (system off)
8. Front windshield defroster
9. Air intake control 10. SYNC
11. Rear window defroster
12. A/C (air conditioning)
13. Rear temperature control
14. EV Mode
EV Mode
1. Driver’s seat climate control
2. Heat button
3. Pre-schedule heating

5-97
05

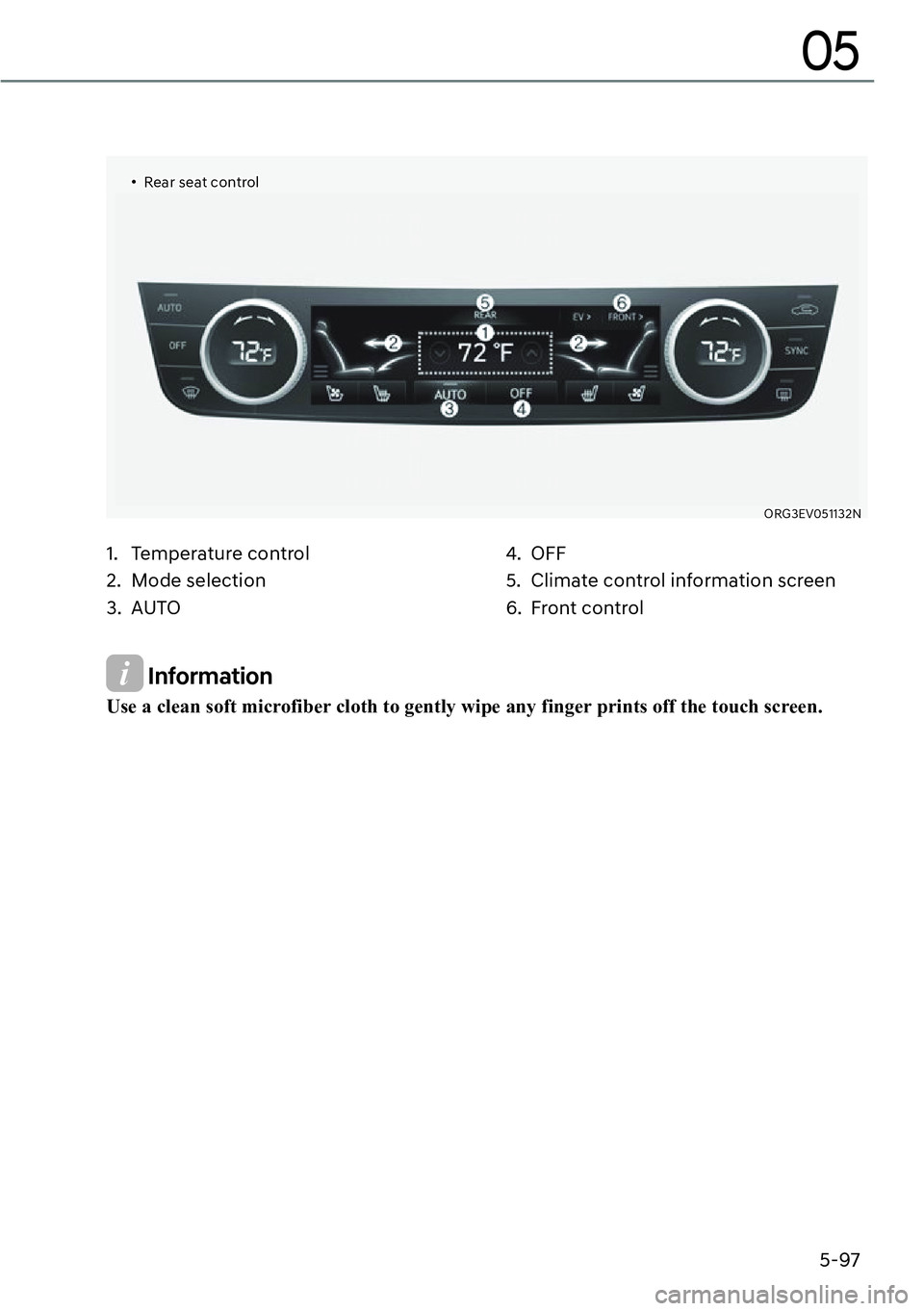

‡Rear seat control
ORG3EV051132N
1. Temperature control
2. Mode selection
3. AUTO4. OFF
5. Climate control information screen
6. Front control
Information
Use a clean soft microfiber cloth to gently wipe any finger prints off the touch screen.

5-98
Convenience Features
„Rear seat
ORG3050102N
1. Fan speed control
2. Temperature control
3. OFF (system off)4. AUTO (automatic control)
5. Mode selection
Information
7HPSHUDWXUH0RGHVHOHFWLRQDLUIORZGLUHFWLRQFDQEHFRQWUROOHGLQGLYLGXDOO\IURPWKH
rear seat.
+RZHYHULI

5-99
05
Automatic Temperature Control
Mode
The Automatic Climate Control System
is controlled by setting the desired
temperature.
1. Press the AUTO button.
The mode selection, fan speed,
air intake and air-conditioning will
be controlled automatically by the
temperature setting you select.
OJX1059246
2. When the climate control system is
being automatically controlled, fan
speed can be selected (Low/Medium/
High).
-HIGH: Use when quick heating or
cooling is preferred with higher fan
speed capability.
-MEDIUM: Use when medium fan
speed is preferred for cooling or
heating with moderate fan speed
capability.
-LOW: Use when low fan speed is
preferred for cooling or heating with
lower fan speed capability.3. Turn the temperature control knob
to the desired temperature. If the
temperature is set to the lowest
setting, the air conditioning system
will operate continuously. After the
interior has cooled sufficiently, adjust
the knob to a higher temperature set
point whenever possible.
To turn the automatic operation off,
select any function of the following:
-Mode selection button
-Front windshield defroster button
(Press the button one more time
to deselect the front windshield
defroster function. The ‘AUTO’
sign will illuminate on the climate
information screen once again.)
-Fan speed control icon or knob
-A/C (air conditioning) icon
The selected function will be controlled
manually while other functions operate
automatically.
For your convenience and to improve the
efficiency of the climate control, use the
AUTO button and set the temperature to
72 °F (22 °C).
To change the temperature unit from °C
to °F or °F to °C:
Press the AUTO button for 3 seconds
while pressing the OFF button.

5-100
Convenience Features
Information
ORG3EV051068
Never place anything near the ambient
OLJKWVRODUVHQVRUWRHQVXUHEHWWHUFRQWURO
of the heating and cooling system.
Manual Temperature Control
Mode
The heating and cooling system can be
controlled manually by pushing buttons
other than the AUTO button. In this case,
the system works sequentially according
to the order of buttons selected.
When pressing any button except the
AUTO button while using automatic
operation, the functions not selected will
be controlled automatically.1. Start the vehicle.
2. Set the mode to the desired position.
To improve the effectiveness of
heating and cooling, select the mode
according to the following:
-Heating:
-Cooling:
3. Set the temperature control to the
desired position.
4. Set the air intake control to Fresh or
Recirculation mode.
5. Set the fan speed control to the
desired speed.
6. If air conditioning is desired, turn the
air conditioning system on.
7. Press the AUTO button to revert
back to full automatic control of the
system.
The climate control system settings
will be maintained, even when the
vehicle is turned OFF. However, the
climate control system settings will be
initialized when the battery has been
discharged, or when the cables have
been disconnected.
In this case, adjust the climate control
system settings again.

5-101
05
Mode selection
„Front seat
‡Front seat control
‡Rear seat control
ORG3EV051128L/ORG3EV051107N
Front seat mode selection

[Touch the arrows on the climate
control information screen to select
air flow direction.

[Press the SYNC button and when
the indicator light on the button
turns off, the air flow direction of the
driver’s seat, passenger seat, and rear
seat can be controlled individually.
However, passengers and rear seats
cannot select
.

[Touch REAR (1) to control the second
row seat mode selection from the
front seats.

[You may select 2~3 modes at the
same time.
ORG3EV051105
Rear seat mode selection

[Press the button to select the
direction of the air flow to the desired
position.

[You may select 2 modes at the same
time

5-102
Convenience Features
ORG3EV051109N
Air flow direction
The mode selection Icon or button controls the direction of the air flow through the
ventilation system.
