5-65
05
Solar roof generating level
The amount of electricity generated
from the solar roof varies according to
the amount of sunlight the solar roof is
exposed to.
Generation
levelEnvironmental condition
LowA cloudy and sun-deprived
day
Morning and night when
sunlight is weak
InoperableDark outdoors due to a
cloudy day
Night-time without
sunlight
Generation
amount levelOperation condition
Slight
decrease in
electricity
generatedSolar roof is contaminated
with dust
Decrease in
electricity
generated Solar roof is partially
covered by a shadow
from trees, traffic lights,
buildings etc.
Solar roof temperature
rises excessively
InoperableVehicle is parked indoors
or located in a tunnel
Solar roof is cover with
snow
Solar roof is hidden by
a directly approaching
object
WARNING
High voltage electricity may flow in
the inner wire or controller when the
vehicle is exposed to sunlight even
though the vehicle is turned off. Check
whether the solar roof operation lamp
installed on the upper part of the
dashboard is off before touching the
inner wire or controller.
Solar Roof Malfunction
ODN8HQ019031N
When the solar roof controller is not
working properly, the ‘Check solar
charging system’ warning message will
appear on the cluster. Take your vehicle
to an authorized retailer of Genesis
Branded products and have the system
checked.
NOTICE
[ Do not place heavy objects or apply
impact on the solar roof. The solar
roof may not work properly.
[ If roof bars are installed, the shadow
of the roof bars may prevent the
solar roof from working properly and
reduce the life of related parts.
Information
The color and the distance between solar
cells may vary due to the characteristics of
the solar cell.
7-18

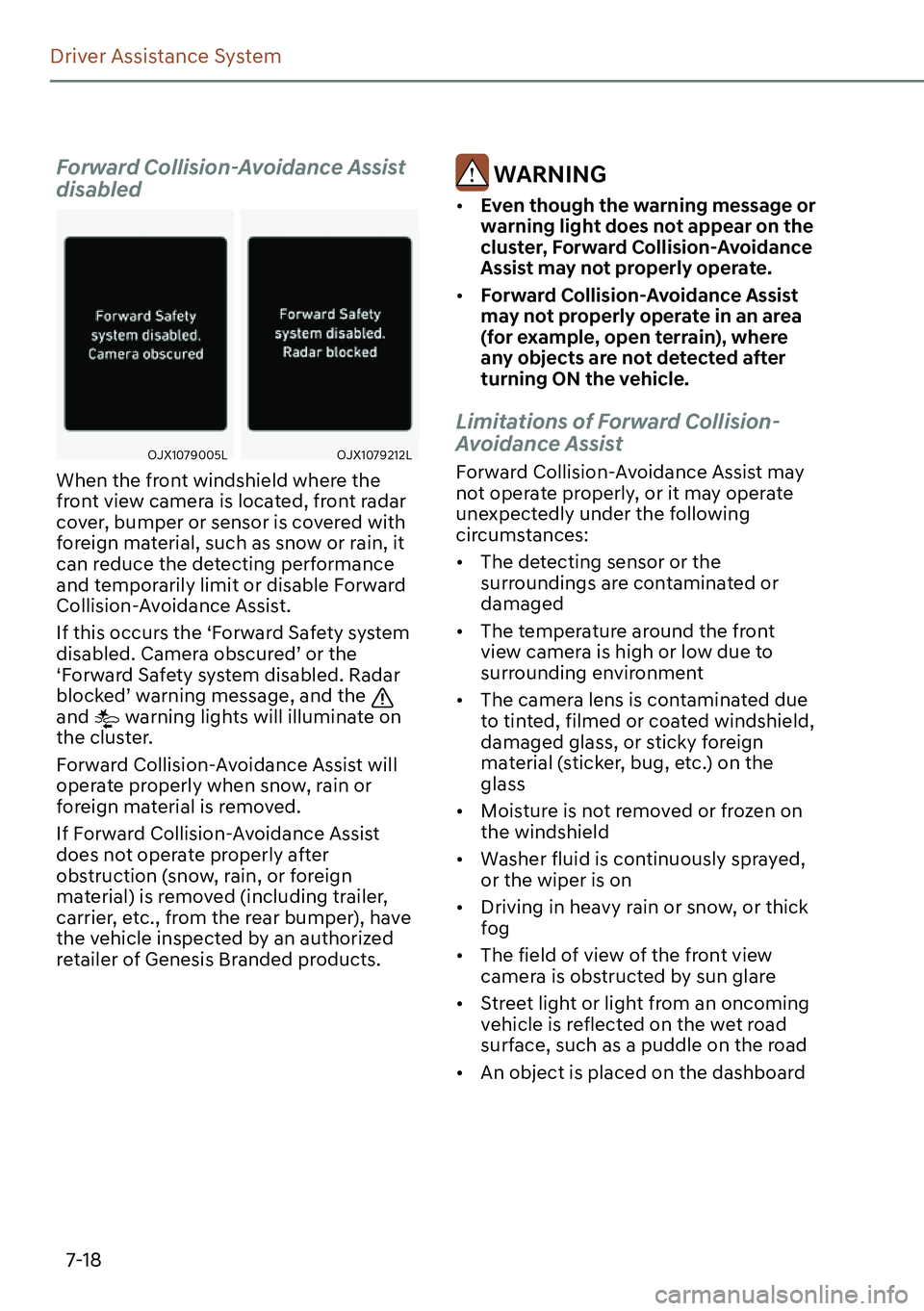

Driver Assistance System
Forward Collision-Avoidance Assist
disabled
OJX1079005LOJX1079212L
When the front windshield where the
front view camera is located, front radar
cover, bumper or sensor is covered with
foreign material, such as snow or rain, it
can reduce the detecting performance
and temporarily limit or disable Forward
Collision-Avoidance Assist.
If this occurs the ‘Forward Safety system
disabled. Camera obscured’ or the
‘Forward Safety system disabled. Radar
blocked’ warning message, and the
and warning lights will illuminate on
the cluster.
Forward Collision-Avoidance Assist will
operate properly when snow, rain or
foreign material is removed.
If Forward Collision-Avoidance Assist
does not operate properly after
obstruction (snow, rain, or foreign
material) is removed (including trailer,
carrier, etc., from the rear bumper), have
the vehicle inspected by an authorized
retailer of Genesis Branded products.
WARNING
[ ( Y H Q W K R X J K W K H Z D U Q L Q J P H V V D J H R U
warning light does not appear on the
F O X V W H U ) R U Z D U G & R O O L V L R Q $ Y R L G D Q F H
$ V V L V W P D \ Q R W S U R S H U O \ R S H U D W H
[ ) R U Z D U G & R O O L V L R Q $ Y R L G D Q F H $ V V L V W
P D \ Q R W S U R S H U O \ R S H U D W H L Q D Q D U H D
I R U H [ D P S O H R S H Q W H U U D L Q Z K H U H
D Q \ R E M H F W V D U H Q R W G H W H F W H G D I W H U
W X U Q L Q J 2 1 W K H Y H K L F O H
Limitations of Forward Collision-
Avoidance Assist
Forward Collision-Avoidance Assist may
not operate properly, or it may operate
unexpectedly under the following
circumstances:
[ The detecting sensor or the
surroundings are contaminated or
damaged
[ The temperature around the front
view camera is high or low due to
surrounding environment
[ The camera lens is contaminated due
to tinted, filmed or coated windshield,
damaged glass, or sticky foreign
material (sticker, bug, etc.) on the
glass
[ Moisture is not removed or frozen on
the windshield
[ Washer fluid is continuously sprayed,
or the wiper is on
[ Driving in heavy rain or snow, or thick
fog
[ The field of view of the front view
camera is obstructed by sun glare
[ Street light or light from an oncoming
vehicle is reflected on the wet road
surface, such as a puddle on the road
[ An object is placed on the dashboard
