7-3. Do-it-yourself maintenance
Maintenance and care
3 Remove the fuse with the pull-
out tool.
Only type A fuse can be
removed using the pullout tool.
4 Check if the fuse is blown.
Replace the blown fuse with a new fuse of an appropriate amperage rating. The
amperage rating can be found on the
fuse box lid.
Type A
Normal fuse
Blown fuse
Type B
Normal fuse
Blown fuse
Ty p e C
Normal fuse
Blown fuse
Ty p e D
Normal fuse
Blown fuse
Ty p e E
Normal fuse

4967-3. Do-it-yourself maintenance
Blown fuse
■After a fuse is replaced
●When installing the lid, make sure that
the tab is installed securely.
●If the lights do not turn on even after
the fuse has been replaced, a bulb
may need replacement. ( P.497)
●If the replaced fuse blows again, have
the vehicle inspected by any author- ized Toyota retailer or Toyota author-
ized repairer, or any reliable repairer.
■If there is an overload in a circuit
The fuses are designed to blow, protect- ing the wiring harness from damage.
■When replacing light bulbs
Toyota recommends that you use genu-
ine Toyota products designed for this vehicle.
Because certain bulbs are connected to
circuits designed to prevent overload, non-genuine parts or parts not designed
for this vehicle may be unusable.
WA R N I N G
■To prevent system breakdowns
and vehicle fire
Observe the following precautions.
Failure to do so may cause damage
to the vehicle, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than that indi-
cated, or use any other object in
place of a fuse.
●Always use a genuine Toyota fuse
or equivalent. Never replace a fuse with a wire,
even as a temporary fix.
●Do not modify the fuses or fuse
boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload
determined and repaired by any authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer as soon as possible.

497
7
7-3. Do-it-yourself maintenance
Maintenance and care
Check the wattage of the light bulb
to be replaced. ( P.575)
 P. 5 8 0
Hatchback
License plate lights
Wagon
License plate lights
■Bulbs that need to be replaced
by any authorized Toyota
retailer or Toyota authorized
repairer, or any reliable
repairer
 Headlights
 Front position lights
 Daytime running lights
 Turn signal lights
 Front fog lights (if equipped)
 Tail lights
 Stop lights
 Back-up light
 Rear fog light
 High mounted stoplight
■LED light bulbs
The lights other than the license plate
lights consist of a number of LEDs. If any of the LEDs burn out, take your
vehicle to any authorized Toyota retailer
or Toyota authorized repairer, or any reli- able repairer to have the light replaced.
■Condensation build-up on the
inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction. Contact any
Light bulbs
You may replace the following
bulbs by yourself. The diffi-
culty level of replacement var-
ies depending on the bulb. As
there is a danger that compo-
nents may be damaged, we
recommend that replacement
is carried out by any author-
ized Toyota reta iler or Toyota
authorized repairer, or any reli-
able repairer.
Preparing for light bulb
replacement
Canceling the power back
door system (if equipped)
Bulb locations

4987-3. Do-it-yourself maintenance
authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer for more information in the fol-
lowing situations:
●Large drops of water have built up on
the inside of the lens.
●Water has built up inside the head-
light.
■When replacing light bulbs
 P.496
■License plate lights
Hatchback
1 Remove the light unit.
Insert a flathead screwdriver or similar
into the hole next to the light and remove it as shown in the illustration.
To prevent damaging the vehicle, wrap
the flathead screwdriver with a tape.
2 Turn the bulb base
counterclockwise and remove it.
3 Remove the light bulb.
4 When installing, reverse the
steps listed.
Wagon
1 Remove the cover.
Insert a flathead screwdriver,
etc. into the slot on the right side
and disengage the claw.
Insert a flathead screwdriver,
etc. into the slot on the left side
Replacing light bulbs

499
7
7-3. Do-it-yourself maintenance
Maintenance and care
and disengage the claw, then
remove the cover.
To prevent damaging the vehicle, wrap
the tip of the screwdriver with tape.
2 Insert a small flathead screw-
driver, etc. into either the right or
left hole of the lens.
Lens
3 Remove the lens.
Push the screwdriver sideways in the
direction of the arrow shown in the illus- tration, disengage the hook, and then
remove the lens.
Hook
4 Remove the light bulb.
5 Install a new light bulb.
6 Install the lens.
1 Fit the lens into either the right

5007-3. Do-it-yourself maintenance
or left hooks .
2 Push the lens into place.
7 After installation, confirm that
the lens is properly installed by
gently pulling it.
8 Reinstall the cover.

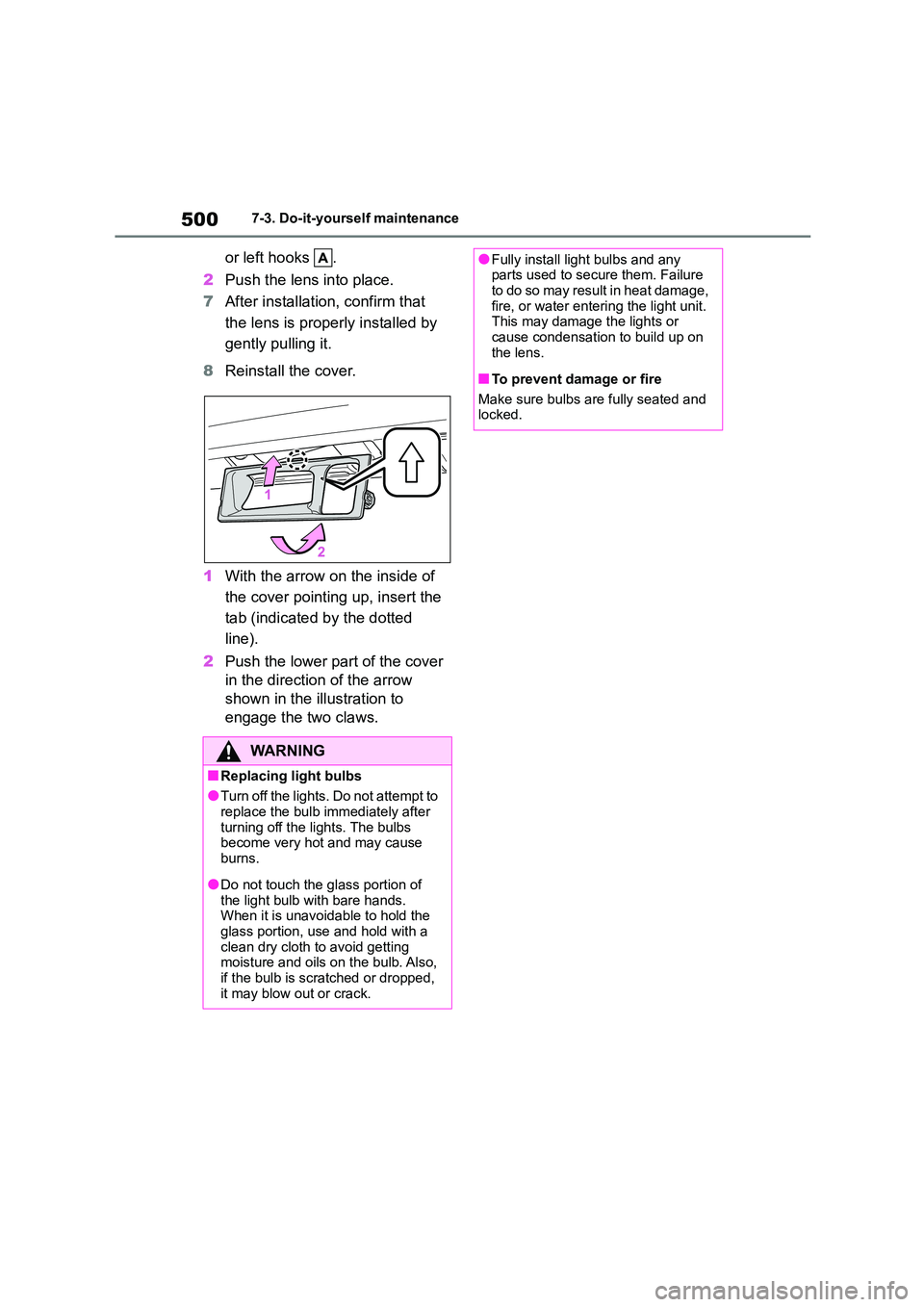

1 With the arrow on the inside of
the cover pointing up, insert the
tab (indicated by the dotted
line).
2 Push the lower part of the cover
in the direction of the arrow
shown in the illustration to
engage the two claws.
WA R N I N G
■Replacing light bulbs
●Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights. The bulbs
become very hot and may cause
burns.
●Do not touch the glass portion of
the light bulb with bare hands. When it is unavoidable to hold the
glass portion, use and hold with a
clean dry cloth to avoid getting moisture and oils on the bulb. Also,
if the bulb is scratched or dropped,
it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failure
to do so may result in heat damage,
fire, or water entering the light unit. This may damage the lights or
cause condensation to build up on
the lens.
■To prevent damage or fire
Make sure bulbs are fully seated and locked.

8
501
When trouble arises
8
When trouble arises
.8-1. Essential information
Emergency flashers .......... 502
If your vehicle has to be
stopped in an emergency
....................................... 502
If the vehicle is submerged or
water on the road is rising
....................................... 504
8-2. Steps to take in an emer-
gency
If your vehicle needs to be
towed .............................. 505
If you think something is wrong
....................................... 509
Fuel pump shut off system
....................................... 510
If a warning light turns on or a
warning buzzer sounds... 511
If a warning message is dis-
played ............................. 520
If you have a flat tire (vehicles
with an emergency tire punc-
ture repair kit) ................. 522
If you have a flat tire (vehicles
with a spare tire) ............. 539
If the engine will not start .. 552
If you lose your keys ......... 554
If the electronic key does not
operate properly ............. 554
If the vehicle battery is dis-
charged .......................... 556
If your vehicle overheats ... 560
If the vehicle becomes stuck
....................................... 563

5028-1. Essential information
8-1.Essential information
Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch once
again.
■Emergency flashers
●If the emergency flashers are used for
a long time while the engine is not
operating, the battery may discharge.
●If any of the SRS airbags deploy
(inflate) or in the event of a strong rear impact, the emergency flashers will
turn on automatically.
The emergency flashers will turn off automatically after operating for
approximately 20 minutes. To manu-
ally turn the emergency flashers off,
press the switch twice. (The emergency flashers may not turn
on automatically depending on the
force of the impact and conditions of the collision.)
1 Steadily step on the brake pedal
with both feet and firmly depress
it.
Do not pump the brake pedal repeat-
edly as this will increase the effort required to slow the vehicle.
2 Shift the shift lever to N.
If the shift lever is shifted to N
3 After slowing down, stop the
vehicle in a safe place by the
road.
4 Stop the engine.
If the shift lever cannot be shifted
to N
3 Keep depressing the brake
pedal with both feet to reduce
vehicle speed as much as possi-
ble.
4 Vehicles without a smart entry &
start system: Stop the engine by
Emergency flashers
The emergency flashers are
used to warn other drivers
when the vehicle has to be
stopped on the road due to a
breakdown, etc.
Operating instructions
If your vehicle has to be
stopped in an emer-
gency
Only in an emergency, such as
if it becomes impossible to
stop the vehicle in the normal
way, stop the vehicle using the
following procedure:
Stopping the vehicle
