2022 TOYOTA COROLLA HATCHBACK Owners Manual (in English)

447
6
6-3. Using the storage features
Interior features
■Storing the luggage cover (vehicles with a dual level deck board)
When the dual level deck board is in the
upper position, the luggage cover can be stored under the deck board.
■Using the luggage cover
Pull out the luggage cover and
engage it to the anchors.
■Removing the luggage cover
Front
Push the left and right buttons of
the luggage cover unit.
Rear
Pull the left or right side bracket
down to disengage it. Then disen-
gage the other 3 brackets.Luggage cover (wagon) (if
equipped)
WA R N I N G
■When installing the luggage
cover
Make sure that the luggage cover is securely installed. Failure to do so
may result in seri ous injury in the
event of sudden braking or a collision.
■Caution for the luggage cover
●Do not place anything on the lug- gage cover to avoid death or seri-
ous injury.
●Do not allow children to climb on
the luggage cover. Climbing on the
luggage cover could result in dam- age to the luggage cover, possibly
causing death or serious injury to
the child.

4486-3. Using the storage features
■Using the partition net
Front position
1 Fold the rear seatbacks down.
( P.142)
2 Install the partition net unit to the
anchors on the right seatback.
When the anchors are engaged,
slide the partition net unit left-
ward.
3 Open the anchor covers on both
sides.
4 Pull out the net, push in the left
and right hooks and engage
them to the anchors.
If the net is pulled out slowly, it may lock
partway. To pull it out fully, allow the net
to roll back slightly then pull it out again.
Rear position
1 Install the partition net unit
behind the rear seats to the
anchors on the side deck.
When the partition net unit is secured, the lock release buttons are pushed in
and the red marking on the button's
sidewall is not visible.
2 Open the anchor covers on both
sides.
Partition net (if equipped)

449
6
6-3. Using the storage features
Interior features
3 Pull out the net, push in the left
and right hooks and engage
them to the anchors.
■Removing the partition net
Front position
Slide the partition net unit rightward
to disengage the anchors and lift it.
After removing the partition net unit,
return the rear seat backs to their origi-
nal position.
Rear position
Push the left and right lock release
buttons and lift up the partition net
unit.
■Locking of the partition net partway when pulled out
The partition net is designed to lock
partway, at the length suited for use in the rear position, when pulled out slowly.
(Quickly pulling out the partition net will
allow it to be pulled out to its full length.)
To release the lock: allow the net to roll
back slightly then pull it out again.
WA R N I N G
■When installing the partition net
Make sure that the partition net unit is
securely installed. Failure to do so may result in seri ous injury in the
event of sudden braking or a collision.
■When using the partition net
Make sure that the hooks are
engaged in the correct position on the anchors. Failure to do so may result
in serious injury in the event of sud-
den braking or a collision.

4506-3. Using the storage features
WA R N I N G
■Storage precaution
As the partition net is not designed to
protect passengers and driver from all type of luggage stored in the luggage
compartment if thrown, make sure
that the luggage is securely fixed even if the partition net is used.

451
6
6-4. Other interior features
Interior features
6-4.Other interior features
The USB charging port are used to
supply 2.1 A of electricity at 5 V to
external devices.
The USB charging port are for
charging only. They are not
designed for data transfer or other
purposes.
Depending on the external device,
it may not charge properly. Refer to
the manual included with the device
before using a USB charging port.
■Using the USB charging port
Open the console box lid.
■The USB charging port can be used
when
The engine switch is in ACC or ON.
■Situations in which the USB charg- ing port may not operate correctly
●If a device which consumes more than
2.1 A at 5 V is connected
●If a device designed to communicate
with a personal computer, such as a USB memory device, is connected
●If the connected external device is turned off (depending on device)
●If the temperature inside the vehicle is
high, such as afte r the vehicle has been parked in the sun
■About connected external device
Depending on the connected external
device, charging may occasionally be suspended and then start again. This is
not a malfunction.
The power outlet can be used for
12 V accessories that run on less
than 10 A.
Front
Open the console box lid and open
Other interior features
USB charging port (if
equipped)
NOTICE
■To prevent damage to the USB
charging port
●Do not insert foreign objects into
the port.
●Do not spill water or other liquids
into the port.
●Do not apply excessive force to or
impact the USB charging port.
●Do not disassemble or modify the
USB charging port.
■To prevent damage to external
devices
●Do not leave external devices in the vehicle. The temperature inside the
vehicle may become high, resulting
in damage to an external device.
●Do not push down on or apply
unnecessary force to an external device or the cable of an external
device while it is connected.
■To prevent battery discharge
Do not use the USB charging port for
a long period of time with the engine stopped.
Power outlet

4526-4. Other interior features
the lid.
Luggage compartment (wagon)
Open the cover.
2ZR-FXE engine:
M20A-FXS engine:
■The power outlet can be used when
The engine switch is in ACC or ON.
■When turning the engine switch off
Disconnect electrical devices with
charging functions, such as mobile bat- tery packs.
If such devices are left connected, the
engine switch may not be turned off nor-
mally.
A portable device, such as a
smartphone or mobile battery, can
be charged by just placing it on the
charging area, provided the device
is compatible with the Qi wireless
charging standard created by the
Wireless Power Consortium.
The wireless charger cannot be
used with a portable device that is
larger than the charging area. Addi-
tionally, depending on the portable
device, the wireless charger may
not operate properly. Refer to the
operation manual of the portable
device.
■The “Qi” symbol
The “Qi” symbol is a trademark of
the Wireless Power Consortium.
NOTICE
■To prevent the fu se from being blown
Do not use an accessory that uses
more than 12 V 10 A.
■To avoid damaging the power
outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter
the power outlet may cause a short circuit.
■To prevent the battery from being discharged
Do not use the power outlet longer
than necessary when the engine is not running.
Wireless charger (if
equipped)

453
6
6-4. Other interior features
Interior features

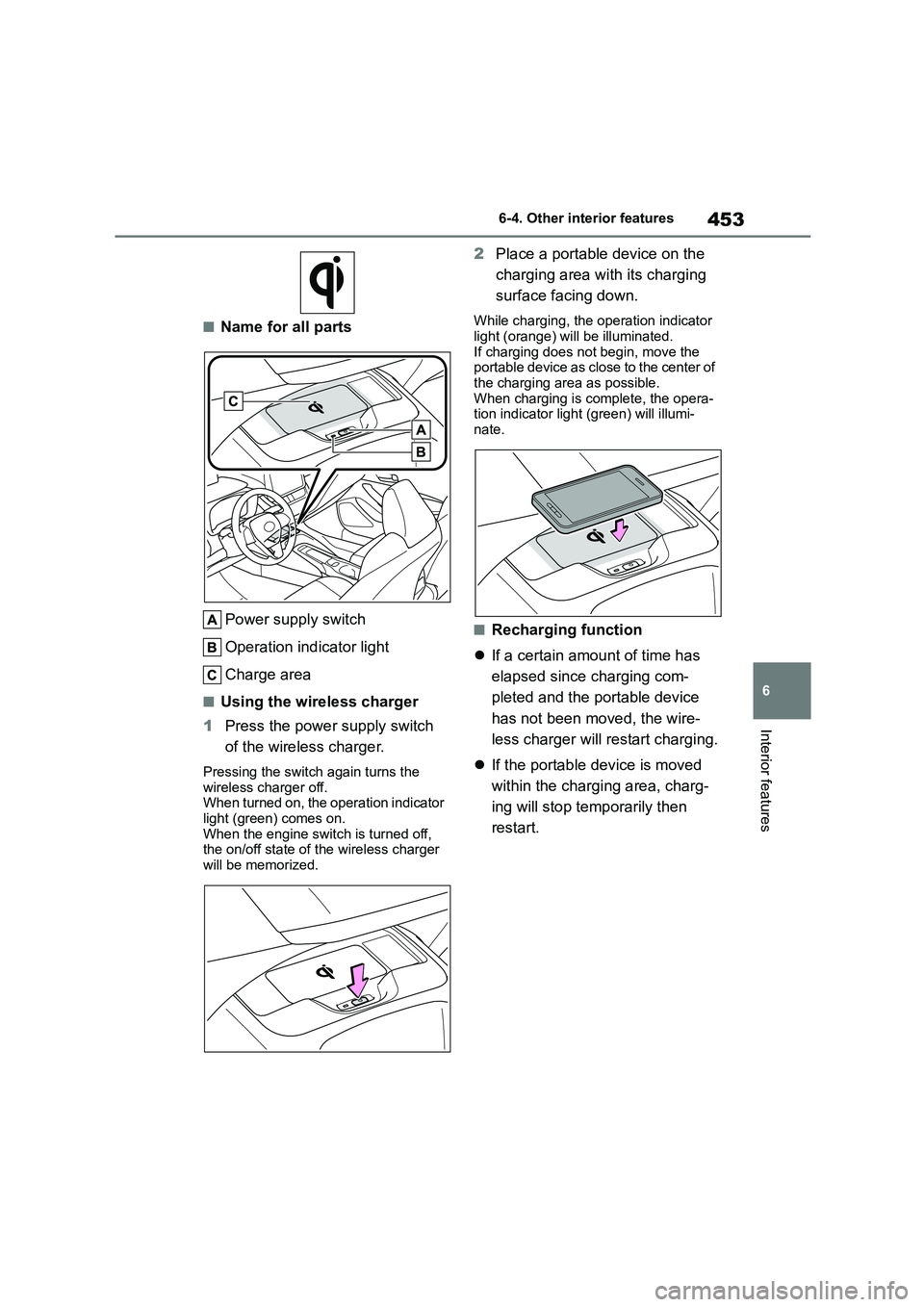

■Name for all parts
Power supply switch
Operation indicator light
Charge area
■Using the wireless charger
1 Press the power supply switch
of the wireless charger.
Pressing the switch again turns the
wireless charger off. When turned on, the operation indicator
light (green) comes on.
When the engine switch is turned off, the on/off state of the wireless charger
will be memorized.
2 Place a portable device on the
charging area with its charging
surface facing down.
While charging, the operation indicator
light (orange) will be illuminated. If charging does not begin, move the
portable device as close to the center of
the charging area as possible. When charging is complete, the opera-
tion indicator light (green) will illumi-
nate.
■Recharging function
 If a certain amount of time has
elapsed since charging com-
pleted and the portable device
has not been moved, the wire-
less charger will restart charging.
 If the portable device is moved
within the charging area, charg-
ing will stop temporarily then
restart.

4546-4. Other interior features

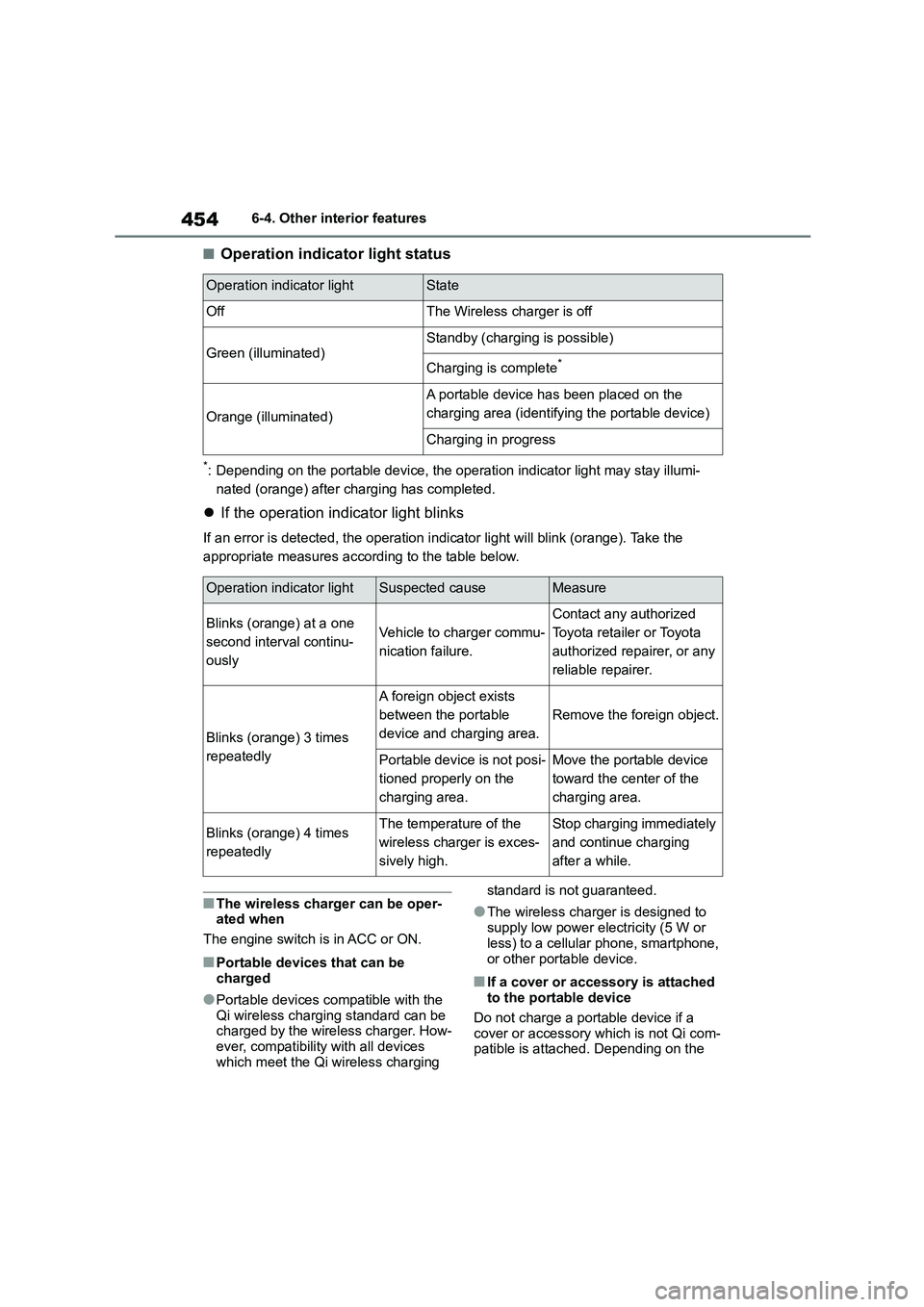

■Operation indicator light status
*: Depending on the portable device, the operation indicator light may stay illumi-
nated (orange) after charging has completed.
 If the operation indicator light blinks
If an error is detected, the operation indicator light will blink (orange). Take the
appropriate measures according to the table below.
■The wireless charger can be oper-
ated when
The engine switch is in ACC or ON.
■Portable devices that can be
charged
●Portable devices compatible with the
Qi wireless charging standard can be
charged by the wireless charger. How- ever, compatibility with all devices
which meet the Qi wireless charging
standard is not guaranteed.
●The wireless charger is designed to
supply low power electricity (5 W or
less) to a cellular phone, smartphone,
or other portable device.
■If a cover or accessory is attached to the portable device
Do not charge a portable device if a
cover or accessory which is not Qi com- patible is attached. Depending on the
Operation indicator lightState
OffThe Wireless charger is off
Green (illuminated)Standby (charging is possible)
Charging is complete*
Orange (illuminated)
A portable device has been placed on the
charging area (identifying the portable device)
Charging in progress
Operation indicator lightSuspected causeMeasure
Blinks (orange) at a one
second interval continu-
ously
Vehicle to charger commu-
nication failure.
Contact any authorized
Toyota retailer or Toyota
authorized repairer, or any
reliable repairer.
Blinks (orange) 3 times
repeatedly
A foreign object exists
between the portable
device and charging area.
Remove the foreign object.
Portable device is not posi-
tioned properly on the
charging area.
Move the portable device
toward the center of the
charging area.
Blinks (orange) 4 times
repeatedly
The temperature of the
wireless charger is exces-
sively high.
Stop charging immediately
and continue charging
after a while.
