2022 TOYOTA AYGO X Owners Manual (in English)

191
4
Owner's Manual_Europe_M99V08_en
4-5. Using the driving support systems
Driving
●Motorcycles traveling in the same lane
●When water or snow thrown up by the surrounding vehicles hinders the
detecting of the sensor
●When your vehicle is pointing
upwards (caused by a heavy load in the luggage compartment, etc.)
●Preceding vehicle has an extremely high ground clearance
■Conditions under which the vehi-cle-to-vehicle distance control mode may not function correctly
In the case of the following conditions, operate the brake pedal (or accelerator pedal, depending on the situation) as
necessary.
As the sensor may not be able to cor- rectly detect vehicles ahead, the system
may not operate properly.
●When the road curves or when the
lanes are narrow
●When steering wheel operation or
your position in the lane is unstable
●When the vehicle ahead of you decel-
erates suddenly
●When driving on a road surrounded by
a structure, such as in a tunnel or on a bridge
●While the vehicle speed is decreasing to the set speed after the vehicle accelerates by depressing the accel-
erator pedal

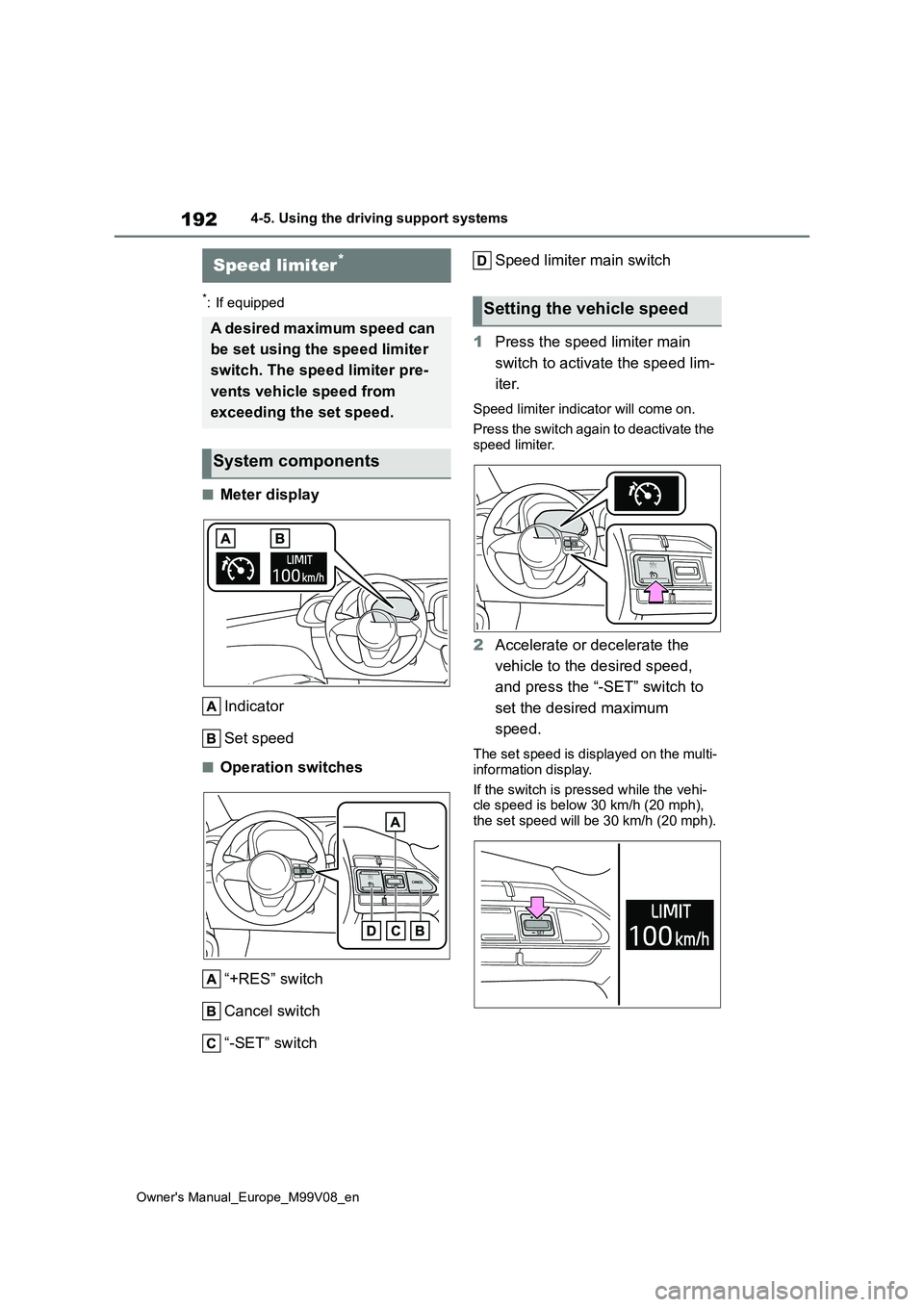

192
Owner's Manual_Europe_M99V08_en
4-5. Using the driving support systems
*: If equipped
■Meter display
Indicator
Set speed
■Operation switches
“+RES” switch
Cancel switch
“-SET” switch
Speed limiter main switch
1 Press the speed limiter main
switch to activate the speed lim-
iter.
Speed limiter indicator will come on.
Press the switch again to deactivate the speed limiter.
2 Accelerate or decelerate the
vehicle to the desired speed,
and press the “-SET” switch to
set the desired maximum
speed.
The set speed is displayed on the multi-
information display.
If the switch is pressed while the vehi- cle speed is below 30 km/h (20 mph),
the set speed will be 30 km/h (20 mph).
Speed limiter*
A desired maximum speed can
be set using the speed limiter
switch. The speed limiter pre-
vents vehicle speed from
exceeding the set speed.
System components
Setting the vehicle speed

193
4
Owner's Manual_Europe_M99V08_en
4-5. Using the driving support systems
Driving
To change the set speed, press the
“+RES” or “-SET” switch until the
desired set speed is obtained.
1 Increases the speed
2 Decreases the speed
Fine adjustment: Press the switch in
the desired direction.
Large adjustment: Press and hold
switch.
The set speed will be increased or
decreased as follows:
Fine adjustment: By 1 km/h (0.6 mph)*1
or 1 mph (1.6 km/h)*2 each time the
switch is pressed
Large adjustment: Increases or
decreases in 5 km/h (3.1 mph)*1 or 5
mph (8 km/h)*2 increments for as long
as the switch is held
*1: When the set speed is shown in
“km/h”
*2: When the set speed is shown in
“MPH”
1 Pressing the cancel switch can-
cels the speed limiter.
2 Pressing the “+RES” switch
resumes the speed limiter.
■Exceeding the set speed
In the following situations, the vehicle
speed exceeds the set speed and dis- play characters will flash:
●When fully depressing the accelerator pedal
●When driving down a slope
■Automatic speed limiter cancel-ation
The speed limiter is automatically can-
celed in any of the following situations:
●Cruise control is activated.
●When the VSC or TRC system is turned off by pressing the VSC off
switch.
■If the warning message for the speed limiter is shown on the multi-information display
Stop the engine and then restart the engine. After restarting the engine, set the speed limiter. If the speed limiter
cannot be set, there may be a malfunc- tion in the speed limiter. Have the vehi-cle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
Adjusting the set speedCanceling and resuming the
constant speed control

194
Owner's Manual_Europe_M99V08_en
4-5. Using the driving support systems
*: If equipped
The RSA system recognizes spe-
cific road signs using the front cam-
era to provide information to the
driver via the display.
If the system judges that the vehicle
is being driven over the speed limit,
performing prohibited actions, etc.,
according to the recognized road
signs, it notifies the driver through a
visual notification and notification
buzzer.
When the front camera recognizes
WARNING
■To avoid operating the speed lim- iter by mistake
Switch the speed limiter off using the speed limiter main switch when not in use.
■Situations unsuitable for speed limiter
Do not use speed limiter in any of the following situations.Doing so may result in loss of control
and could cause an accident resulting in death or serious injury.
●On slippery roads, such as those covered with rain, ice or snow
●On steep hills
●When your vehicle is towing a
trailer or during emergency towing
RSA (Road Sign Assist)*
Summary of function
WARNING
■Before using the RSA
Do not rely solely upon the RSA sys-
tem. RSA is a system which supports the driver by providing information, but it is not a replacement for a
driver’s own vision and awareness. Drive safely by always paying careful attention to the traffic rules.
Indication on the multi-infor-
mation display

195
4
Owner's Manual_Europe_M99V08_en
4-5. Using the driving support systems
Driving
a sign, the sign will be displayed on
the multi-information display.
 When the driving support system
information is selected, a maxi-
mum of 2 signs can be dis-
played. ( P. 8 3 )
 When a tab other than the driving
support system information is
selected, the following types of
road signs will be displayed.
( P. 8 3 )
• Speed limit begins/ends sign
• Speed limit related information sign
(Motorway, Expressway, Urban area,
Residential area)
• End of prohibition sign
• Speed limit with supplemental sign
(Ramp way only)
If signs other than speed limit signs are
recognized, they will be displayed in an
overlapping stack under the current
speed limit sign.
The following types of road signs,
including electronic signs and blink-
ing signs, are displayed.
A non-official (not meeting the Vienna
Convention) or a recently introduced
traffic sign may not be displayed.
 Speed limit road signs*
*: No speed limit information is dis-
played when speed limit sign is not
available.
 Speed limit related information*
Supported types of road
signs
Speed limit begins/Maxi-
mum speed zone begins
Speed limit ends/Maximum
speed zone ends
Motorway entrance
Motorway exit
Expressway entrance
Expressway exit
Urban area beginning
Urban area ending

196
Owner's Manual_Europe_M99V08_en
4-5. Using the driving support systems
*: No speed limit information is dis-
played when speed limit related sign
information is not available.
 No-overtaking road signs
 Other road signs
 Speed limit with supplemental
mark*1
*1: Displayed simultaneously with speed
limit
*2: Contents not recognized.
*3: Displayed when system detects driv-
ing on ramp way.
In the following situations, the RSA
system will notify the driver.
 When the vehicle speed exceeds
the speed notification threshold
of the speed limit sign displayed,
the sign display will be empha-
sized and a buzzer will sound.
 If it is detected that your vehicle
is overtaking when a no overtak-
ing sign is displayed on the multi-
information display, the dis-
played sign will flash and a
buzzer will sound.
Depending on the situation, traffic
environment (traffic direction,
speed unit) may be detected incor-
rectly and a notification function
may not operate properly.
■Setting procedure
1 Press / of the meter control
switches and select .
Urban area beginning
Urban area ending
Residential area beginning
Residential area ending
No overtaking begins
No overtaking ends
End of prohibition
Stop
Wet
Rain
Ice
Supplemental mark
exists*2
Exit ramp on right*3
Exit ramp on left*3
Time
Notification function

197
4
Owner's Manual_Europe_M99V08_en
4-5. Using the driving support systems
Driving
2Press / of the meter control
switches and select , then
press .
■Automatic turn-off of RSA sign dis-
play
One or more signs automatically turn off in the following situations.
●No sign has been recognized for a certain distance.
●The road changes due to a left or right turn, etc.
■Conditions in which the function
may not operate or detect correctly
In the following situations, RSA does not operate normally and may not recognize
signs, display the incorrect sign, etc. However, this does not indicate a mal-function.
●The front camera is misaligned due to a strong impact being applied to the
sensor, etc.
●Dirt, snow, stickers, etc., are on the
windshield near the front camera.
●In inclement weather such as heavy
rain, fog, snow or sand storms.
●Light from an oncoming vehicle, the
sun, etc., enters the front camera.
●The sign is dirty, faded, tilted or bent.
●The contrast of electronic sign is low.
●All or part of the sign is hidden by the leaves of a tree, a pole, etc.
●The sign is only visible to the front camera for a short amount of time.
●The driving scene (turning, lane change, etc.) is judged incorrectly.
●If a sign not appropriate for the cur-rently traveled lane, but the sign exists
directly after a freeway branches, or in an adjacent lane just before merging.
●S t ic ke r s a r e a t t ac he d t o t h e r e ar o f t he preceding vehicle.
●A sign resembling a system compati-ble sign is recognized.
●Side road speed signs may be
detected and displayed (if positioned in sight of the front camera) while the vehicle is traveling on the main road.
●Roundabout exit road speed signs may be detected and displayed (if
positioned in sight of the front camera) while traveling on a roundabout.
●The front of the vehicle is raised or lowered due to the carried load.
●The surrounding brightness is not suf-ficient or changes suddenly.
●When a sign intended for trucks, etc., is recognized.
●The vehicle is driven in a country with a different direction of traffic.
■Speed limit sign display
If the engine switch was last turned off
while a speed limit sign was displayed on the multi-information display, the same sign displays again when the
engine switch is turned to ON.
■If “RSA Malfunction Visit Your Dealer” is shown
The system may be malfunctioning.
Have the vehicle inspected by any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
■Customization
Some functions can be customized. (Customizable features: P.358)

198
Owner's Manual_Europe_M99V08_en
4-5. Using the driving support systems
■Stopping the engine
Vehicles with Multidrive
While driving with the D shift posi-
tion selected, depress the brake
pedal and stop the vehicle. The
engine will stop automatically.
When the engine stops, the Stop &
Start indicator will illuminate.
Vehicles with manual transmis-
sion
1 Fully depress the clutch pedal
and depress the brake pedal to
stop the vehicle.
2 Move the shift lever to N and
release the clutch pedal. The
engine will stop automatically.
When the engine is stopped by the Stop
& Start system, the Stop & Start indica- tor will illuminate.
■Restarting the engine
Vehicles with Multidrive
Release the brake pedal. The
engine will start automatically.
When the engine starts, the Stop &
Start indicator will turn off.
Vehicles with manual transmis-
sion
With the shift lever in N, depress
the clutch pedal. The engine will
Stop & Start system
Multidrive: The Stop & Start
system stops and starts the
engine according to brake
pedal or shift lever operation
when the vehicle is stopped,
such as at a stoplight, inter-
section, etc., in order to
improve fuel economy and
reduce noise pollution caused
by the engine idling.
Manual transmission: The
Stop & Start system stops and
starts the engine according to
clutch pedal or shift lever
operation when the vehicle is
stopped, such as at a stop-
light, intersection, etc., in
order to improve fuel economy
and reduce noise pollution
caused by the engine idling.
Stop & Start system opera-
tion
