2022 TOYOTA AYGO X Owners Manual (in English)

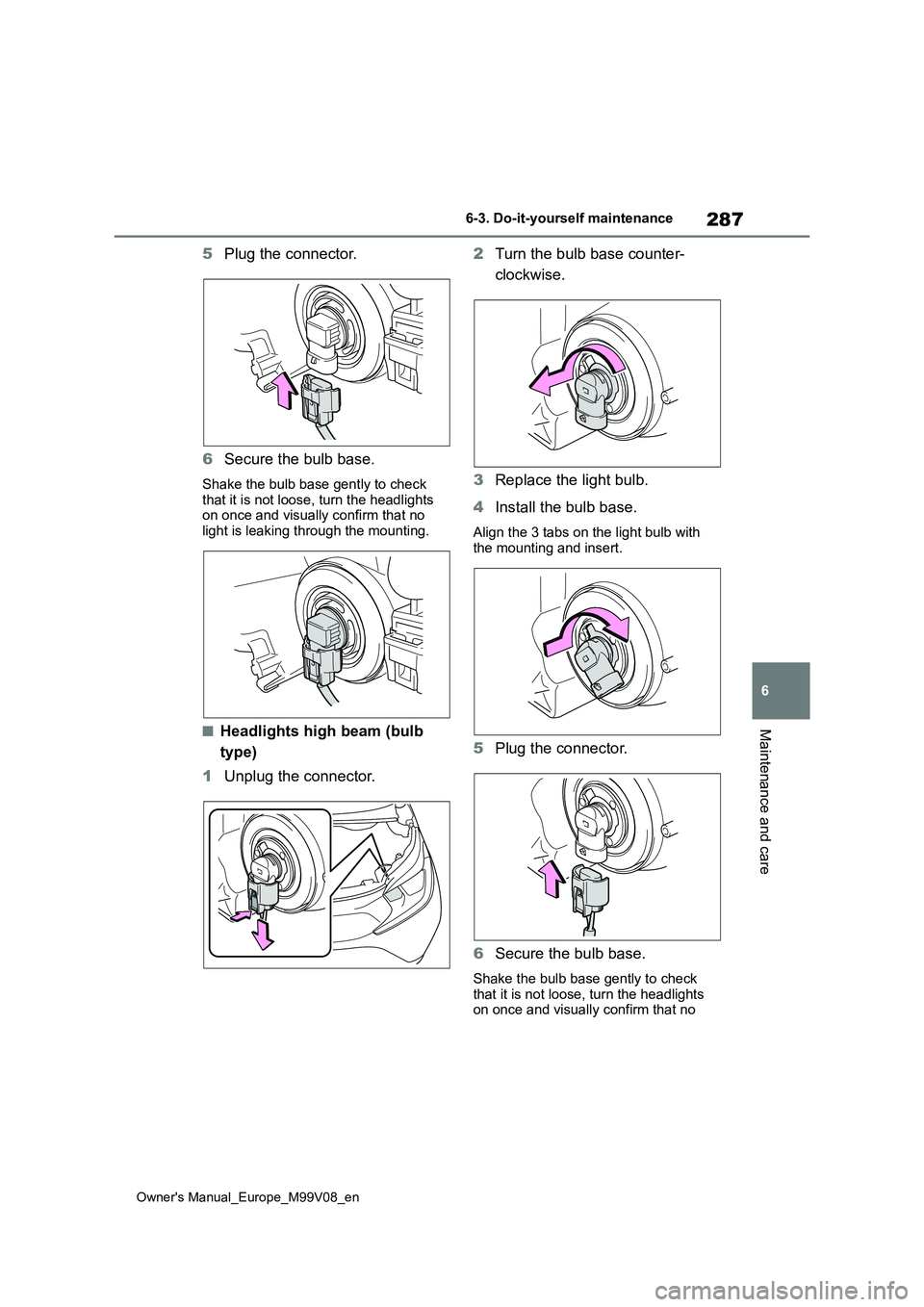

287
6
Owner's Manual_Europe_M99V08_en
6-3. Do-it-yourself maintenance
Maintenance and care
5Plug the connector.
6 Secure the bulb base.
Shake the bulb base gently to check that it is not loose, turn the headlights on once and visually confirm that no
light is leaking through the mounting.
■Headlights high beam (bulb
type)
1 Unplug the connector.
2 Turn the bulb base counter-
clockwise.
3 Replace the light bulb.
4 Install the bulb base.
Align the 3 tabs on the light bulb with the mounting and insert.
5 Plug the connector.
6 Secure the bulb base.
Shake the bulb base gently to check
that it is not loose, turn the headlights on once and visually confirm that no

288
Owner's Manual_Europe_M99V08_en
6-3. Do-it-yourself maintenance
light is leaking through the mounting.
■Front position lights (bulb
type)
1 Turn the bulb base counter-
clockwise.
2 Remove light bulb.
3 When installing, reverse the
steps listed.
■Front turn signal lights (bulb
type)
1 Turn the bulb base counter-
clockwise.
2 Remove the light bulb.
3 When installing, reverse the
steps listed.
■Front fog lights (bulb type)
1 To allow enough working space,
turn the steering wheel.

289
6
Owner's Manual_Europe_M99V08_en
6-3. Do-it-yourself maintenance
Maintenance and care
2Remove the screws and clips.
3 Partly remove the fender liner.
4 Unplug the connector.
5 Turn the bulb base counter-
clockwise.
6 Set a new light bulb.
Align the 3 tabs on the light bulb with the mounting, and insert. Turn it clock-
wise to set.
7 Set the connector.
Shake the bulb base gently to check that it is not loose, turn the front fog
lights on once and visually confirm that no light is leaking through the mount-ing.
8 Reinstall the fender liner.
Make sure to return the fender liner to

290
Owner's Manual_Europe_M99V08_en
6-3. Do-it-yourself maintenance
the correct position on the bumper
before reinstalling the screws and clips.
9 Reinstall the screws and clips.
■Rear turn signal lights, Back-
up light and Rear fog light
1 Open the back door.
2 Remove the 2 bolts and pull the
lamp assembly toward the rear
of the vehicle to remove it.
3 Turn the bulb base counter-
clockwise.
Rear turn signal lights
Back-up light
Rear fog light

291
6
Owner's Manual_Europe_M99V08_en
6-3. Do-it-yourself maintenance
Maintenance and care
4Remove the light bulb.
Rear turn signal lights
Back-up light
Rear fog light
5 When installing the light bulb,
install by conducting 3 and 4
with the directions reversed.
6 Install the lamp assembly.
Align the guide and pins on the lamp assembly with the mounting when
installing it.
7 Install the 2 bolts.

292
Owner's Manual_Europe_M99V08_en
6-3. Do-it-yourself maintenance
■License plate light
1 Remove the light unit.
1 Insert a flathead screwdriver or
similar into the hole.
2 Tilt the screwdriver in the direc-
tion of the arrow shown in the
illustration so as to unlock posi-
tion.
3 Remove the light unit as shown
in the illustration.
To prevent damage to the vehicle, wrap
the tip of the screwdriver with tape.
2 Turn the bulb base counter-
clockwise and remove it.
3 Remove the light bulb.
4 Install a new light bulb.
5 Install the bulbbase.
Turn clockwise and secure the bulb-

293
6
Owner's Manual_Europe_M99V08_en
6-3. Do-it-yourself maintenance
Maintenance and care
base.
6Install the light unit.
WARNING
■Replacing light bulbs
●Tur n o ff t h e li g ht s. D o n o t at t e mp t t o replace the bulb immediately after
turning off the lights. The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands.
When it is unavoidable to hold the glass portion, use and hold with a clean dry cloth to avoid getting
moisture and oils on the bulb. Also, if the bulb is scratched or dropped, it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failure
to do so may result in heat damage, fire, or water entering the light unit. This may damage the lights or
cause condensation to build up on the lens.
●Do not attempt to repair or disas-semble light bulbs, connectors, electric circuits or component parts.
Doing so may result in death or serious injury due to electric shock.
■To prevent damage or fire
●Make sure bulbs are fully seated and locked.
●Check the wattage of the bulb before installing to prevent heat
damage.
