2022 TOYOTA AYGO X Owners Manual (in English)

87
2
Owner's Manual_Europe_M99V08_en
2-1. Instrument cluster
Vehicle status information and indicators
equipped)
Select to enable/disable the Eco Driv-
ing Indicator Light.

• Fuel economy display
Select to change the average fuel con-
sumption display between after
start/after reset/after refuel. ( P.84)
 (if equipped)
Select to display/not display the audio
system linked display.

Select to change the displayed content
of the following:
• Drive information type
Select to change the drive information
type display between after start/after
reset.
• Drive information items
Select to set the first and second items
of the drive information display to any of
the following: average vehicle
speed/distance/elapsed time.
 Pop-up display
Select to enable/disable pop-up dis-
plays for each relevant system.
 Multi-information display off
Select to turn the multi-information dis-
play off.
To turn the multi-information display on
again, press any of the following meter
control switches
//// /.
 Default setting
Select to reset the meter display set-
tings to the default setting.
■Vehicle functions and settings
that can be changed
 P. 3 5 4
■Suspension of the settings display
●Some settings cannot be changed
while driving. When changing set- tings, park the vehicle in a safe place.
●If a warning message is displayed, operation of the settings display will be suspended.
 Stop & Start system operation
time (after start)/status notifica-
tion
Displays the current amount of time the
engine has been stopped by the opera-
tion of the Stop & Start system.
Also shows the status of the Stop &
Start system with a pop-up display.
WARNING
■Cautions during setting up the display
If the engine is running when chang-
ing the display settings, ensure that the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO) may collect and enter the vehi-
cle. This may lead to death or a seri- ous health hazard.
NOTICE
■During setting up the display
To prevent battery discharge, ensure
that the engine is running while set- ting up the display features.
Stop & Start system infor-
mation

88
Owner's Manual_Europe_M99V08_en
2-1. Instrument cluster
( P.201)
Stop & Start system settings
The length of time of the Stop & Start
system will operate when the “A/C”
switch of the air conditioning system is
on can be set to 2 different levels in
of the multi-information display.
( P.201)
*: If equipped
■Trip information
1 Press the “MENU” button.
2 Select “Info” on the “Menu”
screen.
If a screen other than “Trip information” is displayed, select “Trip information”.
Fuel consumption in the past 15
minutes
Current fuel consumption
Resetting the consumption data
Average vehicle speed since the
engine was started.
Elapsed time since the engine
was started.
Fuel consumption infor-
mation*
Fuel consumption information
can be displayed on the multi-
media system screen.
Consumption (vehicles with
7-inch/8-inch display multi-
media system)

89
2
Owner's Manual_Europe_M99V08_en
2-1. Instrument cluster
Vehicle status information and indicators
Cruising range
Average fuel consumption for the
past 15 minutes is divided by color
into past averages and averages
attained since the engine switch
was last turned to ON. Use the dis-
played average fuel consumption
as a reference.
The image is an example only, and may
vary slightly from actual conditions.
■History
1 Press the “MENU” button.
2 Select “Info” on the “Menu”
screen.
If a screen other than “History” is dis-
played, select “History”.
Best recorded fuel consumption
Latest fuel consumption
Previous fuel consumption
record
Updating the latest fuel con-
sumption data
Resetting the history data
The average fuel consumption his-
tory is divided by color into past
averages and the average fuel con-
sumption since the last updated.
Use the displayed average fuel
consumption as a reference.
The image is an example only, and may
vary slightly from actual conditions.
■Updating the history data
Update the latest fuel consumption by selecting “Clip” to measure the current
fuel consumption again.
■Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
■Cruising range
Displays the estimated maximum dis- tance that can be driven with the quan-tity of fuel remaining.
This distance is computed based on your average fuel consumption.As a result, the actual distance that can
be driven may differ from that displayed.
■Drive information
1 Press the “HOME” button.
2 Select “Vehicle” on the “Home”
screen.
If a screen other than “Drive informa-
tion” is displayed, select “Drive info”.
Consumption (vehicles with
9-inch display multimedia
system)

90

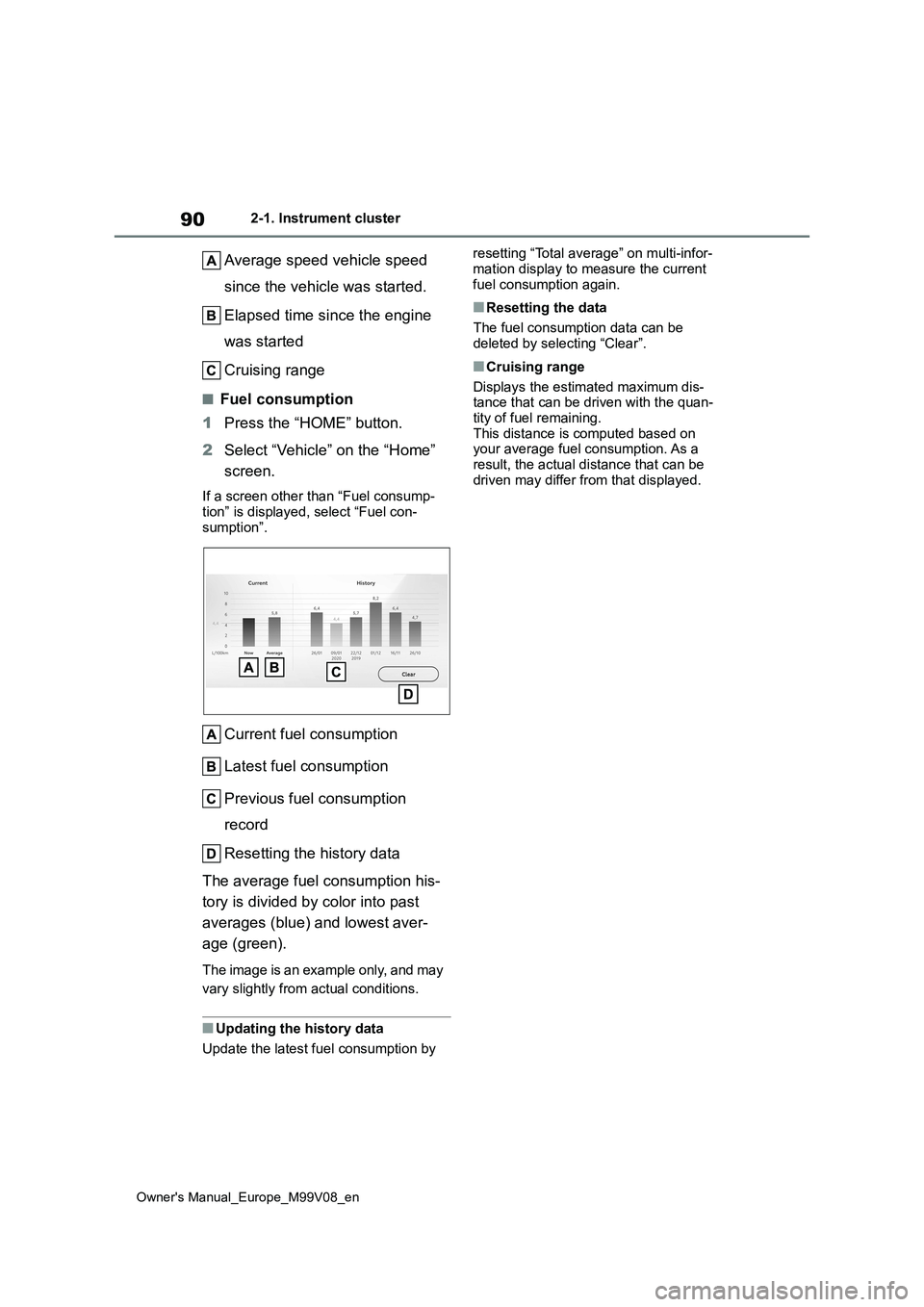

Owner's Manual_Europe_M99V08_en
2-1. Instrument cluster
Average speed vehicle speed
since the vehicle was started.
Elapsed time since the engine
was started
Cruising range
■Fuel consumption
1 Press the “HOME” button.
2 Select “Vehicle” on the “Home”
screen.
If a screen other than “Fuel consump-
tion” is displayed, select “Fuel con- sumption”.
Current fuel consumption
Latest fuel consumption
Previous fuel consumption
record
Resetting the history data
The average fuel consumption his-
tory is divided by color into past
averages (blue) and lowest aver-
age (green).
The image is an example only, and may
vary slightly from actual conditions.
■Updating the history data
Update the latest fuel consumption by
resetting “Total average” on multi-infor-
mation display to measure the current fuel consumption again.
■Resetting the data
The fuel consumption data can be
deleted by selecting “Clear”.
■Cruising range
Displays the estimated maximum dis- tance that can be driven with the quan-
tity of fuel remaining. This distance is computed based on your average fuel consumption. As a
result, the actual distance that can be driven may differ from that displayed.

3
91
Owner's Manual_Europe_M99V08_en
3
Before driving
Before driving
3-1. Key information
Keys.................................... 92
3-2. Opening, closing and locking
the doors
Side doors .......................... 96
Back door ........................... 99
Smart entry & start system 102
3-3. Adjusting the seats
Front seats........................ 106
Rear seats ........................ 107
Head restraints ................. 108
3-4. Adjusting the steering wheel
and mirrors
Steering wheel .................. 110
Inside rear view mirror ...... 111
Outside rear view mirrors . 112
3-5. Opening, closing the win-
dows and canvas top
Power windows................. 114
Rear side windows ........... 115
Canvas top ....................... 116

92
Owner's Manual_Europe_M99V08_en
3-1. Key information
3-1.Key info rmation
The following keys are provided
with the vehicle.
Vehicles without smart entry &
start system (type A)
Key (with wireless remote con-
trol function)
Operating the wireless remote control
function (→P.94)
Key (without wireless remote
control function)
Key number plate
Vehicles without smart entry &
start system (type B)
Key (with wireless remote con-
trol function)
Operating the wireless remote control
function (→P.94)
Key number plate
Vehicles with smart entry & start
system
Electronic keys
• Operating the smart entry & start sys-
tem ( P.102)
• Operating the wireless remote control
function ( P. 9 4 )
Mechanical keys
Key number plate
■When riding in an aircraft
When bringing a key with wireless remote control function onto an aircraft,
make sure you do not press any buttons on the key while inside the aircraft cabin. If you are carrying the key in your bag,
etc., ensure that the buttons are not likely to be pressed accidentally. Press-ing a button may cause the key to emit
radio waves that could interfere with the operation of the aircraft.
■Key battery depletion (vehicles without smart entry & start system)
●The standard battery life is 1 to 2 years.
●The battery will become depleted even if the key is not used. The follow-
ing symptoms indicate that the key battery may be depleted. Replace the
Keys
The keys

93
3
Owner's Manual_Europe_M99V08_en
3-1. Key information
Before driving
battery when necessary. (P.275)
• The wireless remote control does not operate.• The detection area becomes smaller.
■Key battery depletion (vehicles
with smart entry & start system)
●The standard battery life is 1 to 2
years.
●If the battery becomes low, an alarm
will sound in the cabin and a message will be shown on the multi-information display when the engine is stopped.
●To reduce key battery depletion when the electronic key is to not be used for
long periods of time, set the electronic key to the battery-saving mode. ( P.103)
●As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indicate that the electronic key battery
may be depleted. Replace the battery when necessary. ( P.275) • The smart entry & start system or the
wireless remote control does not oper- ate.• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
●To avoid serious deterioration, do not leave the electronic key within 1 m (3 ft.) of the following electrical appli-
ances that produce a magnetic field: •TVs• Personal computers
• Cellular phones, cordless phones and battery chargers• Recharging cellular phones or cord-
less phones • Table lamps• Induction cookers
●If the electronic key is near the vehicle for longer than necessary, even if the
smart entry & start system is not oper- ated, the key battery may become depleted faster than normal.
■Replacing the battery
 P. 2 7 5
■If “A New Key has been Registered
Contact Your Dealer for Details” is shown on the multi-information display (vehicles with smart entry &
start system)
This message will be displayed each time the driver’s door is opened when
the doors are unlocked from the outside for approximately 10 days after a new electronic key has been registered.
If this message is displayed but you have not had a new electronic key regis-tered, ask any authorized Toyota retailer
or Toyota authorized repairer, or any reli- able repairer to check if an unknown electronic key (other than those in your
possession) has been registered.
■If a wrong key is used (on some models)
The key cylinder rotates freely, isolated
from the internal mechanism.
NOTICE
■To prevent key damage
●Do not drop the keys, subject them
to strong shocks or bend them.
●Do not expose the keys to high
temperatures for long periods of time.
●Do not get the keys wet or wash them in an ultrasonic washer etc.
●Vehicles with smart entry & start system: Do not attach metallic or magnetic materials to the keys or
place the keys close to such materi- als.
●Do not disassemble the keys.
●Do not attach a sticker or anything
else to the surface of the key.

94
Owner's Manual_Europe_M99V08_en
3-1. Key information
The keys are equipped with the fol-
lowing wireless remote control:
Vehicles without smart entry &
start system
Locks the doors ( P. 9 6 )
Unlocks the doors ( P.96)
Vehicles with smart entry & start
system
Locks the doors ( P. 9 6 )
Unlocks the doors ( P.96)
■Conditions affecting the operation
of the wireless remote control (vehicles without smart entry & start system)
The wireless remote control function may not operate normally in the follow-ing situations:
●When the wireless key battery is depleted
●Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that gen- erates strong radio waves or electrical
NOTICE
●Vehicles with smart entry & start system: Do not place the keys near
objects that produce magnetic fields, such as TVs, audio systems and induction cookers, or medical
electrical equipment, such as low- frequency therapy equipment.
■Carrying the electronic key on your person (vehicles with smart entry & start system)
Carry the electronic key 10 cm (3.9 in.) or more away from electric appli-ances that are turned on. Radio
waves emitted from electric appli- ances within 10 cm (3.9 in.) of the electronic key may interfere with the
key, causing the key to not function properly.
■In case of a smart entry & start system malfunction or other key-related problems (vehicles with
smart entry & start system)
 P. 3 3 4
■When an electronic key is lost (vehicles with smart entry & start system)
 P. 3 3 3
Wireless remote control
