2022 TOYOTA AYGO X Owners Manual (in English)

95
3
Owner's Manual_Europe_M99V08_en
3-1. Key information
Before driving
noise
●When carrying a portable radio, cellu- lar phone or other wireless communi-
cation devices
●When the wireless key is in contact
with, or is covered by a metallic object
●When another wireless key (that emits
radio waves) is being used nearby
●If window tint with a metallic content or
metallic objects are attached to the rear window
■Conditions affecting the operation of the smart entry & start system or
wireless remote control (vehicles with smart entry & start system)
 P. 1 0 3
1Releasing
To release the key, press the button
2Folding
To stow the key, press the button then
fold the key.
To take out the mechanical key,
slide the release lever and take
the key out.
The mechanical key can only be
inserted in one direction, as the key
only has grooves on one side. If the
key cannot be inserted in a lock cyl-
inder, turn it over and re-attempt to
insert it.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the entry
function does not operate properly,
you will need the mechanical key.
( P.334)
■If you lose your mechanical keys
 P. 3 3 3
■Certification for the wireless remote control
 P. 3 9 5
Using the key (vehicles with-
out smart entry & start sys-
tem)
Using the mechanical key
(vehicles with smart entry &
start system)

96
Owner's Manual_Europe_M99V08_en
3-2. Opening, closing and locking the doors
3-2.Opening, closing and lo cking th e d oors
■Using the entry function (vehi-
cles with smart entry & start
system equipped with entry
function)
Carry the electronic key to enable
this function.
Press the button to lock/unlock the
doors.
Press the button to be certain.
Check that the door is securely locked.
■Wireless remote control
Vehicles without smart entry &
start system
1 Locks all the doors
Check that the door is securely locked.
2Unlocks all the doors
Vehicles with smart entry & start
system
1 Locks all the doors
Check that the door is securely locked.
2Unlocks all the doors
■Key
Turning the key operates the doors
as follows:
Vehicles without smart entry &
start system
1 Locks all the doors
2 Unlocks all the doors
Vehicles with smart entry & start
system
The doors can also be locked and
unlocked with the mechanical key.
( P.334)
Side doors
Unlocking and locking the
doors from the outside

97
3
Owner's Manual_Europe_M99V08_en
3-2. Opening, closing and locking the doors
Before driving
■Operation signals
Vehicles without smart entry & start
system
The emergency flashers flash to indicate
that the doors have been
locked/unlocked using the wireless
remote control. (Locked: Once;
Unlocked: Twice)
Vehicles with smart entry & start sys- tem
The emergency flashers flash to indicate
that the doors have been
locked/unlocked using the entry function
or wireless remote control. (Locked:
Once; Unlocked: Twice)
■Security feature
Vehicles without smart entry & start system
If a door is not opened within approxi-
mately 30 seconds after the vehicle is unlocked using the wireless remote con-trol, the security feature automatically
locks the vehicle again.
Vehicles with smart entry & start sys- tem
If a door is not opened within approxi- mately 30 seconds after the vehicle is unlocked using the entry function or
wireless remote control, the security fea- ture automatically locks the vehicle
again.
■Door lock buzzer (vehicles with smart entry & start system)
If an attempt to lock the doors using the
entry function or wireless remote control is made when a door is not fully closed, a buzzer will sound continuously for 5
seconds. Fully close the door to stop the buzzer, and lock the doors again.
■Conditions affecting the operation
of the smart entry & start system or wireless remote control
Vehicles without smart entry & start
system
 P. 9 4
Vehicles with smart entry & start sys-
tem
 P. 1 0 3
■If the smart entry & start system or the wireless remote control does
not operate properly
Vehicles without smart entry & start system
Replace the key battery with a new one
if it is depleted. ( P.275)
Vehicles with smart entry & start sys- tem
Use the mechanical key to lock and
unlock the doors. ( P.334)
Replace the key battery with a new one
if it is depleted. ( P.275)
■If the battery is discharged (vehi- cles with smart entry & start sys-
tem)
The doors cannot be locked and unlocked using the entry function or
wireless remote control. Lock or unlock the doors using the mechanical key. ( P.334)
■Rear seat reminder function
●In order to remind you not to forget luggage, etc., in the rear seat, when
the engine switch is turned to OFF after any of the following conditions are met, a buzzer will sound and a
message will be displayed on the multi-information display for approxi-mately 6 seconds.
• The engine is started within 10 min- utes after opening and closing a rear door.
• A rear door has been opened and closed after the engine was started.
However, if a rear door is opened and
then closed within approximately 2 sec-

98
Owner's Manual_Europe_M99V08_en
3-2. Opening, closing and locking the doors
onds, the rear seat reminder function
may not operate.
●The rear seat reminder function deter- mines that luggage, etc., has been placed in a rear seat based on open-
ing and closing of a rear door. There- fore, depending on the situation, the rear seat reminder function may not
operate and you may still forget lug- gage, etc., in the rear seat, or it may operate unnecessarily.
●The rear seat reminder function can be enabled/disabled. ( P.354)
■Customization
Some functions can be customized. ( P.354)
■Inside lock buttons
1 Driver’s side: Locks all the doors
Passenger’s side: Locks the
door
2 Driver’s side: Unlocks all the
doors
Passenger’s side: Unlocks the
door
The front doors can be opened by pull-
ing the inside handle even if the lock
buttons are in the lock position.
■Locking the front doors from the outside without a key
1 Move the inside lock button to the
lock position.
2 Close the door while pulling the door handle.
WARNING
■To prevent an accident
Observe the following precautions while driving the vehicle.Failure to do so may result in a door
opening and an occupant being thrown out of the vehicle, resulting in death or serious injury.
●Ensure that all doors are properly closed and locked.
●Do not pull the inside door handle while driving.
Be especially careful of the front doors, as the doors may be opened even if the inside lock buttons are in
the locked position.
●Set the rear door child-protector
locks when children are seated in the rear seats.
■When opening or closing a door
Check the surroundings of the vehicle such as whether the vehicle is on an
incline, whether there is enough space for a door to open and whether a strong wind is blowing. When open-
ing or closing the door, hold the door handle tightly to prepare for any unpredictable movement.
Unlocking and locking the
doors from the inside

99
3
Owner's Manual_Europe_M99V08_en
3-2. Opening, closing and locking the doors
Before driving
Vehicles without smart entry & start
system
The door cannot be locked if the key is in the engine switch.
Vehicles with smart entry & start sys-tem
The door cannot be locked if the engine
switch is in ACC or ON, or the electronic key is left inside the vehicle.
The key may not be detected correctly
and the door may be locked.
■Open door warning buzzer
If a door or the back door is not fully closed, a buzzer will sound when the
vehicle speed reaches 5 km/h (3 mph).
The open door(s) or back door is indi- cated on the multi-information display.
The door cannot be opened from
inside the vehicle when lock is set.
1 Unlock
2 Lock
These locks can be set to prevent chil-
dren from opening the rear doors. Push
down on each rear door switch to lock
both rear doors.
Rear door child-protector
lock
Back door
The back door can be
locked/unlocked and
opened/closed by the follow-
ing procedures.
WARNING
Observe the following precautions. Failure to do so may result in death or
serious injury.
■Caution while driving
●Keep the back door closed while driving. If the back door is left open, it may hit near-by objects while driv-
ing or luggage may be unexpect- edly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a serious health hazard. Make sure
to close the back door before driv- ing.
●Before driving the vehicle, make sure that the back door is fully closed. If the back door is not fully
closed, it may open unexpectedly while driving, causing an accident.
●Never let anyone sit in the luggage compartment. In the event of sud-den braking or a collision, they are
susceptible to death or serious injury.
■When children are in the vehicle
●Do not allow children to play in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could have heat exhaustion or other
injuries.

100
Owner's Manual_Europe_M99V08_en
3-2. Opening, closing and locking the doors
■Using the entry function (vehi-
cles with smart entry & start
system equipped with entry
function)
WARNING
●Do not allow a child to open or close the back door.
Doing so may cause the back door to move unexpectedly, or cause the child’s hands, head, or neck to be
caught by the closing back door.
■Operating the back door
Observe the following precautions. Failure to do so may cause parts of the body to be caught, resulting in
death or serious injury.
●Remove any heavy loads, such as
snow and ice, from the back door before opening it. Failure to do so may cause the back door to sud-
denly shut again after it is opened.
●When opening or closing the back
door, thoroughly check to make sure the surrounding area is safe.
●If anyone is in the vicinity, make sure they are safe and let them know that the back door is about to
open or close.
●Use caution when opening or clos-
ing the back door in windy weather as it may move abruptly in strong wind.
●The back door may suddenly shut if it is not opened fully. It is more diffi-
cult to open or close the back door on an incline than on a level sur-face, so beware of the back door
unexpectedly opening or closing by itself. Make sure that the back door is fully open and secure before
using the luggage compartment.
●When closing the back door, take extra care to prevent your fingers, etc., from being caught.
●Do not pull on the back door damper stay ( P.101) to close the
back door, and do not hang on the back door damper stay. Doing so may cause hands to be caught or
the back door damper stay to break, causing an accident.
●If a bicycle carrier or similar heavy object is attached to the back door, it may suddenly shut again after
being opened, causing someone’s hands, head or neck to be caught and injured. When installing an
accessory part to the back door, using a genuine Toyota part is rec-ommended.
Unlocking and locking the
back door from the outside

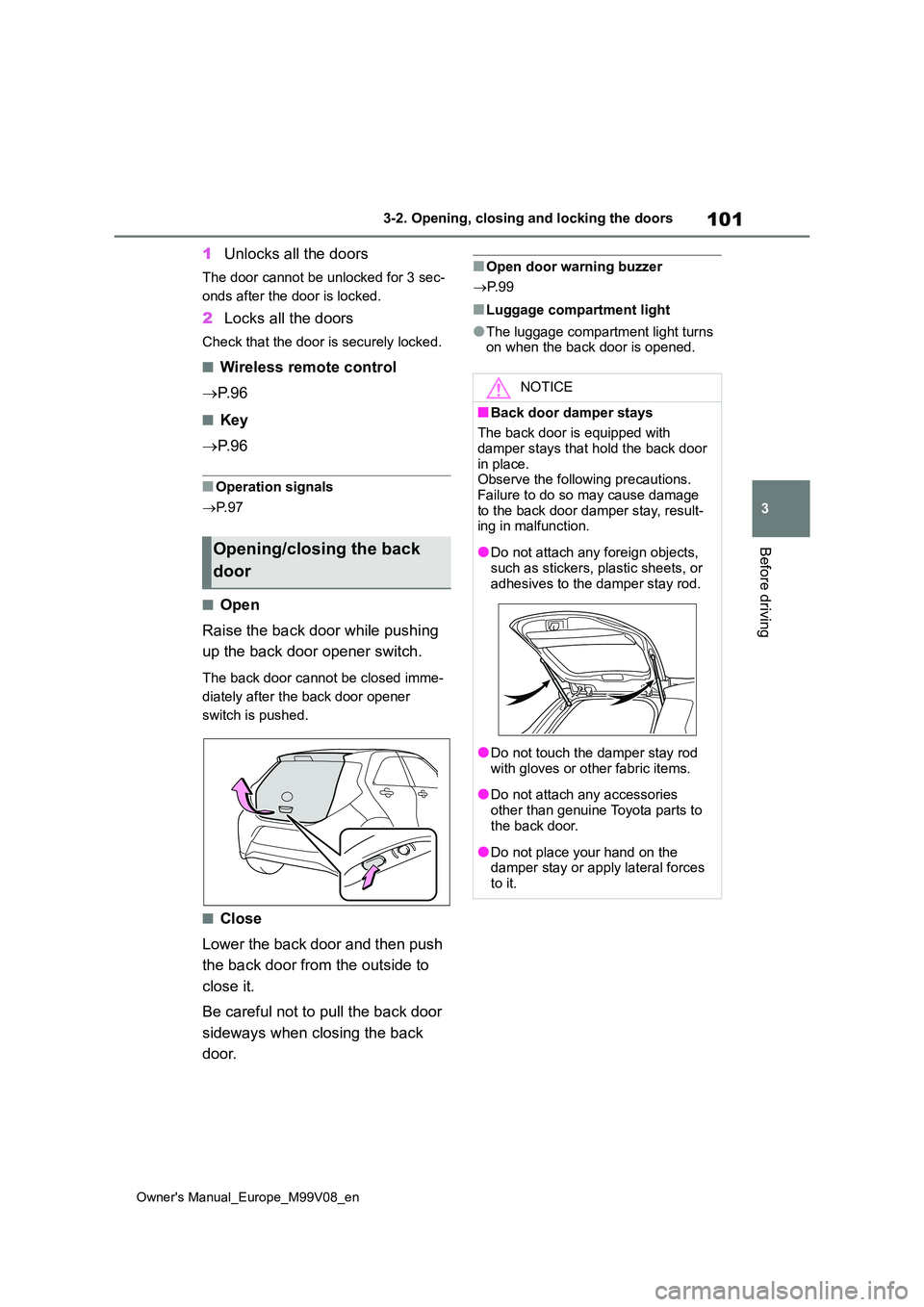

101
3
Owner's Manual_Europe_M99V08_en
3-2. Opening, closing and locking the doors
Before driving
1Unlocks all the doors
The door cannot be unlocked for 3 sec-
onds after the door is locked.
2 Locks all the doors
Check that the door is securely locked.
■Wireless remote control
 P. 9 6
■Key
 P. 9 6
■Operation signals
 P. 9 7
■Open
Raise the back door while pushing
up the back door opener switch.
The back door cannot be closed imme-
diately after the back door opener
switch is pushed.
■Close
Lower the back door and then push
the back door from the outside to
close it.
Be careful not to pull the back door
sideways when closing the back
door.
■Open door warning buzzer
 P. 9 9
■Luggage compartment light
●The luggage compartment light turns on when the back door is opened.
Opening/closing the back
door
NOTICE
■Back door damper stays
The back door is equipped with
damper stays that hold the back door in place.Observe the following precautions.
Failure to do so may cause damage to the back door damper stay, result-ing in malfunction.
●Do not attach any foreign objects, such as stickers, plastic sheets, or
adhesives to the damper stay rod.
●Do not touch the damper stay rod
with gloves or other fabric items.
●Do not attach any accessories
other than genuine Toyota parts to the back door.
●Do not place your hand on the damper stay or apply lateral forces to it.

102
Owner's Manual_Europe_M99V08_en
3-2. Opening, closing and locking the doors
*: If equipped
■Antenna location
Antennas outside the cabin
Antennas inside the cabin
Antenna outside the luggage com-
partment
■Effective range (areas within which
the electronic key is detected)
When locking or unlocking the doors
The system can be operated when the
electronic key is within about 0.7 m (2.3
ft.) of an outside front door handle and
back door. (Only the doors detecting the
key can be operated.)
When starting the engine or chang-
ing engine switch modes
The system can be operated when the
electronic key is inside the vehicle.
■Alarms and warning messages
A combination of exterior and interior
buzzers as well as warning messages shown on the multi-information display are used to prevent theft of the vehicle
and accidents resulting from erroneous operation. Take appropriate measures based on the displayed message.
( P. 3 1 1 )
When only an alarm sounds, circum-
stances and correction procedures are as follows.
●Exterior buzzer sounds once for 5 seconds
Smart entr y & start sys-
tem*
The following operations can
be performed simply by carry-
ing the electronic key on your
person, for example in your
pocket. The driver should
always carry the electronic
key.
 Locks and unlocks the doors
( P. 9 6 )
Locks and unlocks the back
door ( P.100)
Starts the engine (P.130)
SituationCorrection
procedure
An attempt was made
to lock the vehicle while
a door was open.
Close all of
the doors and
lock the doors
again.
