2022 MERCEDES-BENZ CLS COUPE Owners Manual

&

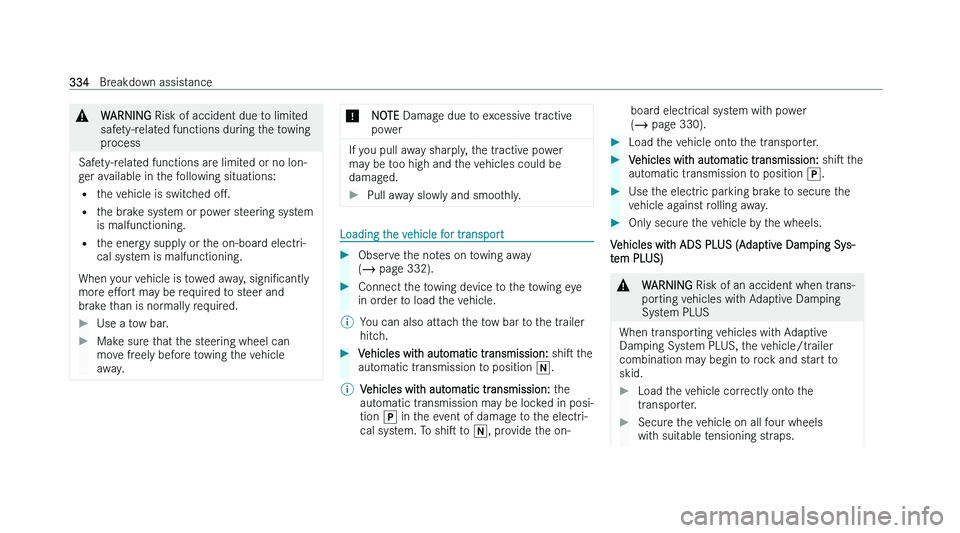

WARNING Risk of accident due t o limited
safety-related functions during the towing
process
Safety-related functions are limited or no lon-
g
er available in the following situations:
= the vehicle is switched oM.
= the brake system or power steering system
is malfunctioning.
= the energy supply or the on-board electri-
cal system is malfunctioning.
When your vehicle is towed away, signiNcantly
more eMort may be required to steer and
brake than is normally required.
Use a tow bar.
Make sure that the steering wheel can
mo

ve freely before towing the vehicle
away. *
NOTE Damag
e due to excessive tractive
power If you pull away sharply, the tractive power
ma

y be too high and the vehicles could be
damaged.
Pull away slowly and smoothly. Loading the vehicle for transport

Observe the notes on towing away
( pag
e 332).
Connect the towing device to the towing eye
in or

der to load the vehicle.
% You can also attach the tow bar to the trailer
hitc
h.
Vehicles with automatic transmission: shis t
he
automatic transmission to position i.
% Vehicles with automatic transmission: t
he
automatic transmission may be locked in posi-
tion j in the event of damage to the electri-
cal system. To shis to i, provide the on- board electrical system with power
(
 pag

e 330).
Load the vehicle onto the transporter.
Vehicles with automatic transmission: shis t
he
automatic transmission to position j.
Use the electric parking brake to secure the
v

ehicle against rolling away.
Only secure the vehicle by the wheels.
Vehicles with ADS PLUS (Adaptive Damping Sys-
t
em PLUS) &
WARNING Risk of an accident when tr
ans-
porting vehicles with Adaptive Damping
System PLUS
When transporting vehicles with Adaptive
Dam
ping System PLUS, the vehicle/trailer
combination may begin to rock and start to
skid.
Load the vehicle correctly onto the
tr
ansporter.
Secure the vehicle on all four wheels
wit

h suitable tensioning straps. 334
Breakdown assistance

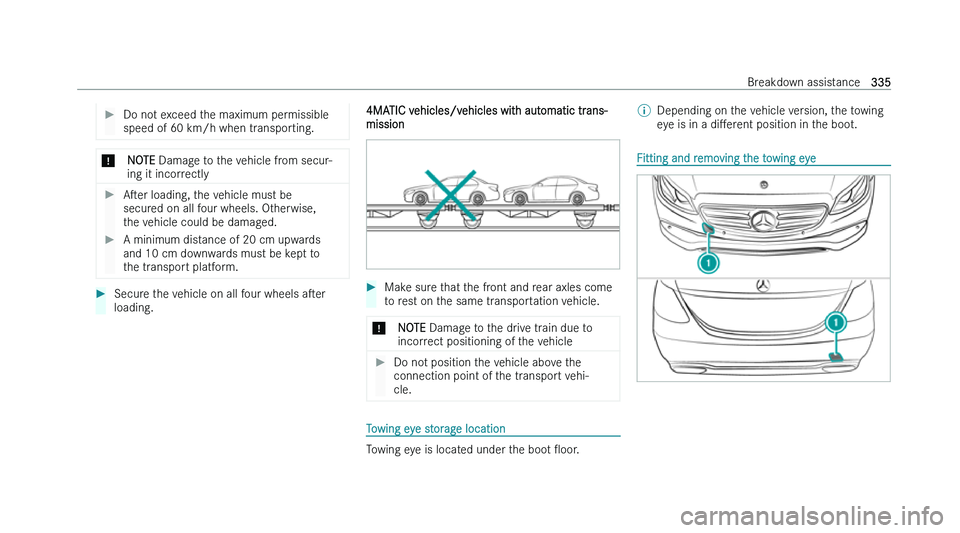

Do not exceed the maximum permissible
speed of 60 km/h
when transporting. *
NOTE Damag
e to the vehicle from secur-
ing it incorrectly
Aser loading, t
he vehicle must be
secured on all four wheels. Otherwise,
the vehicle could be damaged.
A minimum distance of 20 cm upwards
and 10 cm
downwards must be kept to
the transport platform.
Secure the vehicle on all four wheels aser
loading. 4MATIC vehicles/vehicles with automatic trans-
mission
Make sure that the front and rear axles come
t
o rest on the same transportation vehicle.
* NOTE Damag
e to the drive train due to
incorrect positioning of the vehicle
Do not position the vehicle above the
connection point of t

he transport vehi-
cle. Towing eye storage location
Towing eye is located under the boot
Ooor
.%
Depending on the vehicle version, the towing
e
ye is in a diMerent position in the boot. Fitting and removing the towing eye Breakdown assistance
335

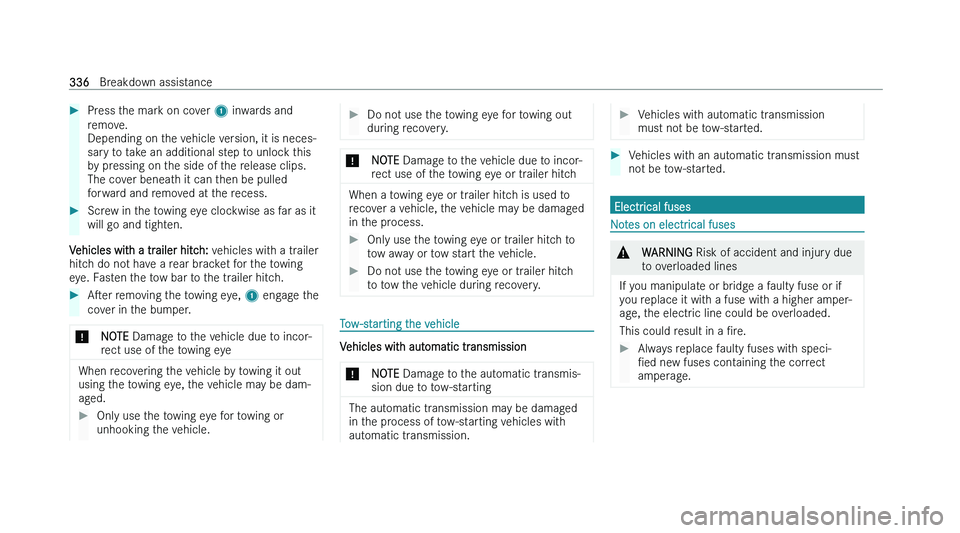

Press the mark on cover 1 in wards and
remove.
Depending on the vehicle version, it is neces-
sary to take an additional step to unlock this
by pressing on the side of the release clips.
The cover beneath it can then be pulled
forward and removed at the recess.
Screw in the towing eye clockwise as far as it
will go and tight

en.
Vehicles with a trailer hitch: v
ehicles with a trailer
hitch do not have a rear bracket for the towing
eye. Fasten the tow bar to the trailer hitch.
Aser r
emoving the towing eye, 1 engage the
cover in the bumper.
* NOTE Damag
e to the vehicle due to incor-
rect use of the towing eye When recovering the vehicle by towing it out
using t

he towing eye, the vehicle may be dam-
aged.
Only use the towing eye for towing or
unhooking t
he vehicle.
Do not use the towing eye for towing out
dur
ing recovery. *
NOTE Damag
e to the vehicle due to incor-
rect use of the towing eye or trailer hitch When a towing eye or trailer hitch is used to
r
ecover a vehicle, the vehicle may be damaged
in the process.
Only use the towing eye or trailer hitch to
t

ow away or tow start the vehicle.
Do not use the towing eye or trailer hitch
t

o tow the vehicle during recovery. Tow-starting the vehicle
Vehicles with automatic transmission
* NOTE Damag
e to the automatic transmis-
sion due to tow-starting The automatic transmission may be damaged
in t
he process of tow-starting vehicles with
automatic transmission.
Vehicles with automatic transmission
mus

t not be tow-started.
Vehicles with an automatic transmission must
no

t be tow-started. Electrical fuses
Notes on electrical fuses
&
WARNING Risk of accident and injur
y due
to overloaded lines
If you manipulate or bridge a faulty fuse or if
y
ou replace it with a fuse with a higher amper-
age, the electric line could be overloaded.
This could result in a Nre.
Always replace faulty fuses with speci-
Ned ne

w fuses containing the correct
amperage. 336
Breakdown assistance

*

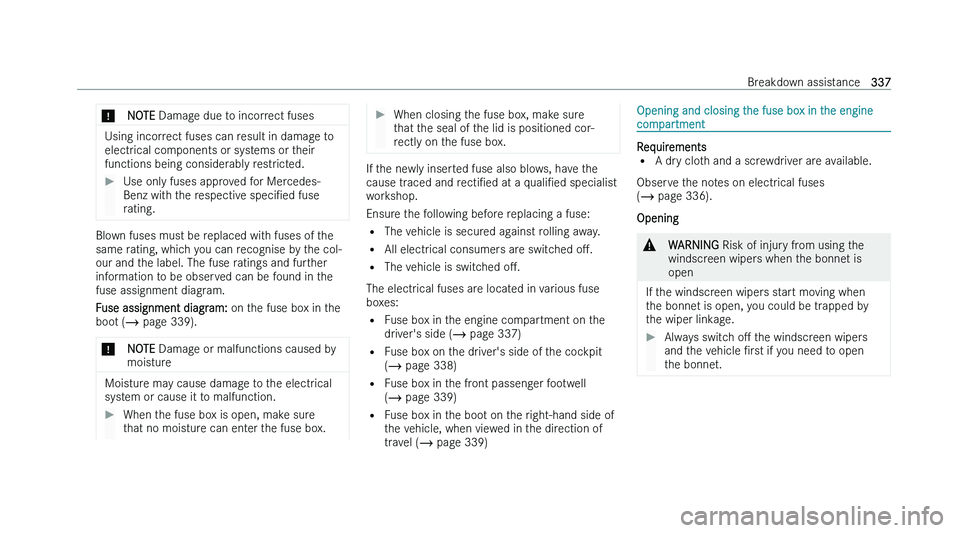

NOTE Damag e due to incorrect fuses Using incorrect fuses can result in damage to
electr
ical components or systems or their
functions being considerably restricted.
Use only fuses approved for Mercedes-
Benz wit

h the respective speciNed fuse
rating. Blown fuses must be replaced with fuses of the
same r

ating, which you can recognise by the col-
our and the label. The fuse ratings and further
information to be observed can be found in the
fuse assignment diagram.
Fuse assignment diagram: on the fuse box in the
boot (  page 339).
* NOTE Damag
e or malfunctions caused by
moisture Moisture may cause damage to the electrical
sy
stem or cause it to malfunction.
When the fuse box is open, make sure
t

hat no moisture can enter the fuse box.
When closing the fuse box, make sure
t

hat the seal of the lid is positioned cor-
rectly on the fuse box. If the newly inserted fuse also blows, have the
cause tr
aced and rectiNed at a qualiNed specialist
workshop.
Ensure the following before replacing a fuse:
= The vehicle is secured against rolling away.
= All electrical consumers are switched oM.
= The vehicle is switched oM.
The electrical fuses are located in various fuse
boxes: = Fuse box in the engine compartment on the
driver's side ( page 337)
= Fuse box on the driver's side of the cockpit
( page 338)
= Fuse box in the front passenger footwell
(  page 339)
= Fuse box in the boot on the right-hand side of
the vehicle, when viewed in the direction of
travel ( page 339) Opening and closing the fuse box in the engine
com

partment Requirements
=
A dr

y cloth and a screwdriver are available.
Observe the notes on electrical fuses
(  page 336).
Opening &
WARNING Risk of injur
y from using the
windscreen wipers when the bonnet is
open
If the windscreen wipers start moving when
t
he bonnet is open, you could be trapped by
the wiper linkage.
Always switch oM t
he windscreen wipers
and the vehicle Nrst if you need to open
the bonnet. Breakdown assistance
337


Open the bonnet ( pag e 306).
Turn clips 2 on co
ver 1 a quarter-turn to
anti-clockwise.
Pull cover 1 up.
Remove any existing moisture from the fuse
bo

x using a dry cloth.
Loosen screws 4 and r
emove fuse box lid 3
from the top.
Closing
Check whether the seal is positioned correctly
in lid 3.
Insert lid 3 int
o the bracket at the rear of the
fuse box.
Fold down lid 3 of t
he fuse box and tighten
screws 4.
Insert cover 1 on bo
th sides.
Turn clips 2 on co
ver 1 a quarter-turn
clockwise.
Close the bonnet. Opening and closing the fuse box in the cockpit
=
Obser
ve the notes on electrical fuses
( page 336).
The fuse box is on the driver's side on the side of
the cockpit under a cover.
Mercedes-Benz recommends you have the
fuse bo
x opened at a Mercedes-Benz Service
Centre. 338
Breakdown assistance

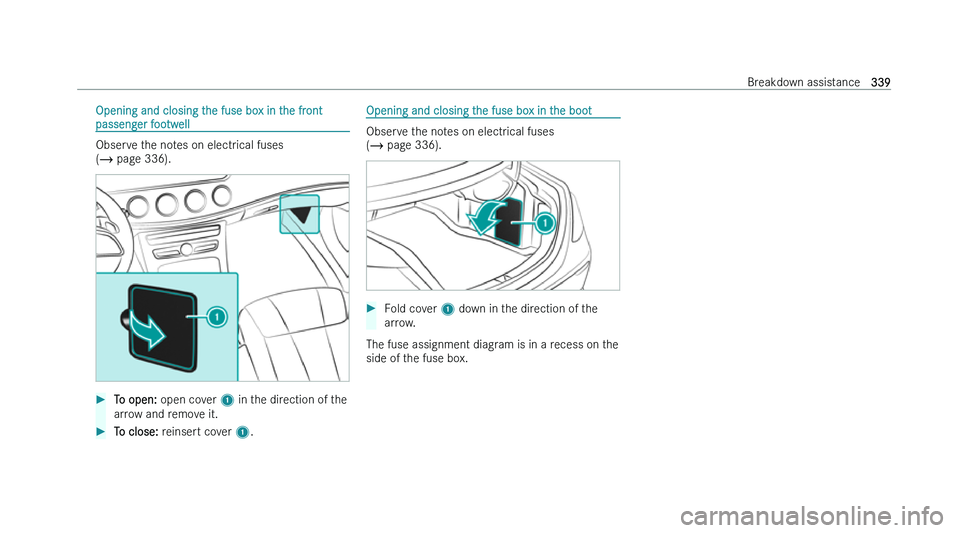

Opening and closing the fuse box in the front
passeng
er footwell Observe the notes on electrical fuses
(
 pag

e 336).
To open: open co
ver 1 in the direction of the
arrow and remove it.
To close: r
einsert cover 1. Opening and closing the fuse box in the boot
Observe the notes on electrical fuses
(
 pag

e 336).
Fold cover 1 do
wn in the direction of the
arrow.
The fuse assignment diagram is in a recess on the
side of t
he fuse box. Breakdown assistance
339

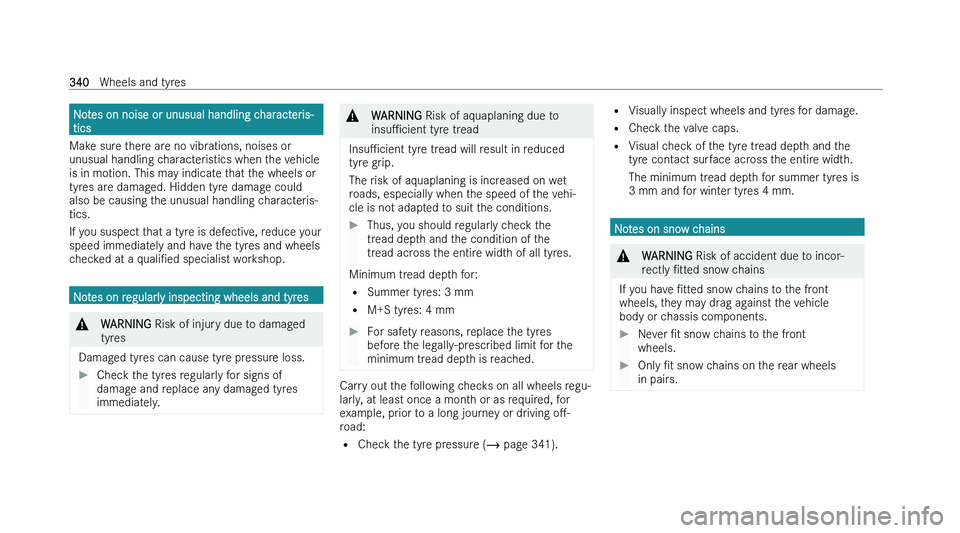

Notes on noise or unusual handling characteris-
tics
Mak
e sure there are no vibrations, noises or
unusual handling characteristics when the vehicle
is in motion. This may indicate that the wheels or
tyres are damaged. Hidden tyre damage could
also be causing the unusual handling characteris-
tics.
If you suspect that a tyre is defective, reduce your
speed immediately and have the tyres and wheels
checked at a qualiNed specialist workshop. Notes on regularly inspecting wheels and tyres
&
WARNING Risk of injur
y due to damaged
tyres
Damaged tyres can cause tyre pressure loss.
Check the tyres regularly for signs of
damag
e and replace any damaged tyres
immediately. &
WARNING Risk of aq
uaplaning due to
insuPcient tyre tread
*nsuPcient tyr
e tread will result in reduced
tyre grip.
The risk of aquaplaning is increased on wet
roads, especially when the speed of the vehi-
cle is not adapted to suit the conditions.
Thus, you should regularly check the
tr

ead depth and the condition of the
tread across the entire width of all tyres.
Minimum tread depth for:
= Summer tyr

es: 3 mm
= M+S tyres: 4 mm
For safety reasons, replace the tyres
bef
ore the legally-prescribed limit for the
minimum tread depth is reached. Carry out the following checks on all wheels regu-
lar
ly, at least once a month or as required, for
example, prior to a long journey or driving oM-
road:
= Check the tyre pressure (  page 341).=
V
isually inspect wheels and tyres for damage.
= Check the valve caps.
= Visual check of the tyre tread depth and the
tyre contact surface across the entire width.
The minimum tread depth for summer tyres is
3 mm and for winter tyres 4 mm. Notes on snow chains
&
WARNING Risk of accident due t
o incor-
rectly Ntted snow chains
If you have Ntt
ed snow chains to the front
wheels, they may drag against the vehicle
body or chassis components.
Never Nt sno
w chains to the front
wheels.
Only Nt sno
w chains on the rear wheels
in pairs. 340
Wheels and tyres

*

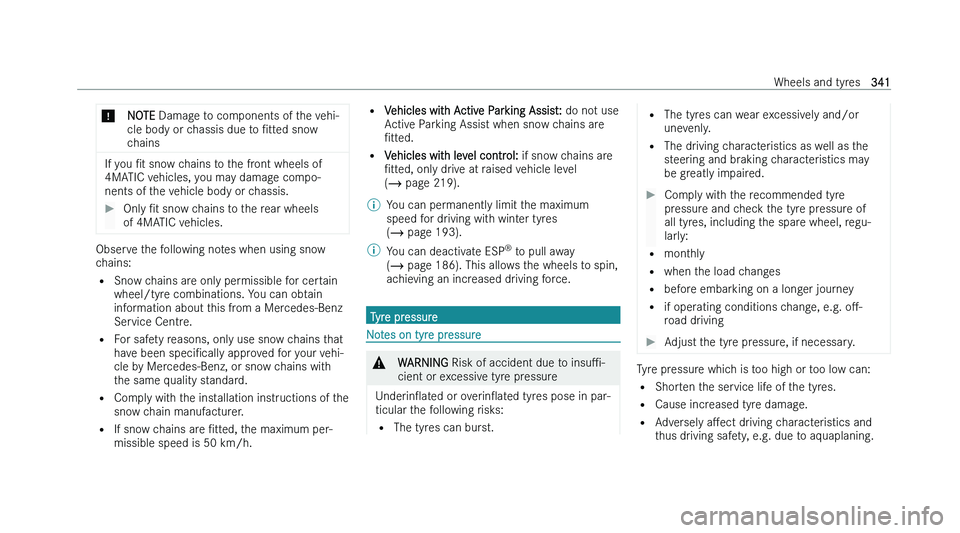

NOTE Damag e to components of the vehi-
cle body or chassis due to Ntted snow
chains If you
Nt sno
w chains to the front wheels of
4MATIC vehicles, you may damage compo-
nents of the vehicle body or chassis.
Only Nt sno
w chains to the rear wheels
of 4MATIC vehicles. Observe the following notes when using snow
c

hains:
= Snow chains are only permissible for certain
wheel/tyre combinations. You can obtain
information about this from a Mercedes-Benz
Service Centre.
= For safety reasons, only use snow chains that
have been speciNcally approved for your vehi-
cle by Mercedes-Benz, or snow chains with
the same quality standard.
= Comply with the installation instructions of the
snow chain manufacturer.
= If snow chains are Ntted, the maximum per-
missible speed is 50 km/h. =
V
ehicles with Active Parking Assist: do not use
Active Parking Assist when snow chains are
Ntted.
= Vehicles with level control: if snow chains are
Ntted, only drive at raised vehicle level
( page 219).
% You can permanently limit the maximum
speed f

or driving with winter tyres
(  page 193).
% You can deactivate ESP n
t
o pull away
( page 186). This allows the wheels to spin,
achieving an increased driving force. Tyre pressure
Notes on tyre pressure
&
WARNING Risk of accident due t
o insuP-
cient or excessive tyre pressure
UnderinOated or o
verinOated tyres pose in par-
ticular the following risks:
= The tyres can burst. =
The tyr
es can wear excessively and/or
unevenly.
= The driving characteristics as well as the
steering and braking characteristics may
be greatly impaired.
Comply with the recommended tyre
pr

essure and check the tyre pressure of
all tyres, including the spare wheel, regu-
larly:
= mont
hly
= when the load changes
= before embarking on a longer journey
= if operating conditions change, e.g. oM-
road driving
Adjust the tyre pressure, if necessary. Tyre pressure which is too high or too low can:
= Shor

ten the service life of the tyres.
= Cause increased tyre damage.
= Adversely aMect driving characteristics and
thus driving safety, e.g. due to aquaplaning. Wheels and tyres
341
