Guide line at a distance of approximately
0.3 m fr
om the ball head of the trailer hitch
3 Ball head of the trailer hitch
Vehicles with Parking Assist PARKTRONIC
The f
ollowing camera views are available in the
multimedia system: Normal view
1 Yellow warning display: obstacles at a dis-
t

ance between approximately 0.7 m and
1.0 m
2 Orange warning display: obstacles at a dis-
t

ance between approximately 0.4 m and
0.7 m 3
Guide lines at a distance of approximately
0.5 m, 1.0 m
, 1.5 m and 3.0 m from the rear
area
4 Yellow lanes marking the course the tyres will
t

ake with the current steering angle (dynamic)
5 Driven surface depending on the current
s

teering angle (dynamic)
6 Guide line at a distance of approximately
0.3 m fr

om the rear area
The colour of warning display 1/2 c
hanges
dynamically and is based on the distance to the
detected obstacle:
= Blue: no obstacles detected at a distance less
than 1.0 m detected.
= Yellow: obstacles at a distance between
approximately 0.7 m and 1.0 m
= Orange: obstacles at a distance between
approximately 0.4 m and 0.7 m
= Red: obstacles at a very short distance of
approximately 0.4 m or less %
Vehicles with Active Parking Assist: when
A
ctive Parking Assist is active, lane markings
4 are displayed in green. Wide-angle view
1 Display of Parking Assist PARKTRONIC 222
Driving and parking

Trailer view (vehicles with a trailer hitch)
1 Yellow guide line, locating aid
2 Red guide line at a distance of approximately
0.3 m fr om the ball head of the trailer hitch
3 Ball head of the trailer hitch
System malfunction
If t
he reversing camera is not operational, the
System inoperative message appears in the
media display.
System limits
The reversing camera will not function or will only
partially function in the following situations:
= The boot lid is open. =
The w
eather conditions are poor, e.g. heavy
rain, snow, fog, storm or spray.
= The light conditions are poor, e.g. at night.
= Cameras, or vehicle components in which the
cameras are Ntted, are damaged, dirty or cov-
ered. Observe the information on vehicle sen-
sors and cameras ( page 182).
% Do not use the reversing camera in these
types of situations. Y

ou could otherwise injure
others or collide with objects when parking
the vehicle.
% The contrast of the display may be impaired
b

y direct sunlight or by other light sources,
e.g. when driving out of a garage. In this case,
pay particular attention.
% Have the display repaired or replaced if,
f
orexample, pixel errors considerably restrict
its use. 360° Camera

qF
unction of the 360° Camera
The 360° Camera is a system that consists of
four cameras which cover the immediate sur-roundings of the vehicle. The system assists you
when y

ou are parking or at exits with reduced visi-
bility, forexample.
The views of the 360° Camera are always availa-
ble when driving forwards up to a speed of
approx. 16 km/h and when reversing.
The 360° Camera is only an aid and may show a
distorted view of obstacles, show them incorrectly
or not show them at all. It is not a substitute for
your attention to the surroundings. The responsi-
bility for safe manoeuvring and parking remains
with you. Make sure that there are no persons,
animals or objects etc., in the manoeuvring area
while manoeuvring and parking.
The system evaluates images from the following
cameras:
= Reversing camera
= Front camera
= Two side cameras in the outside mirrors Driving and parking
223

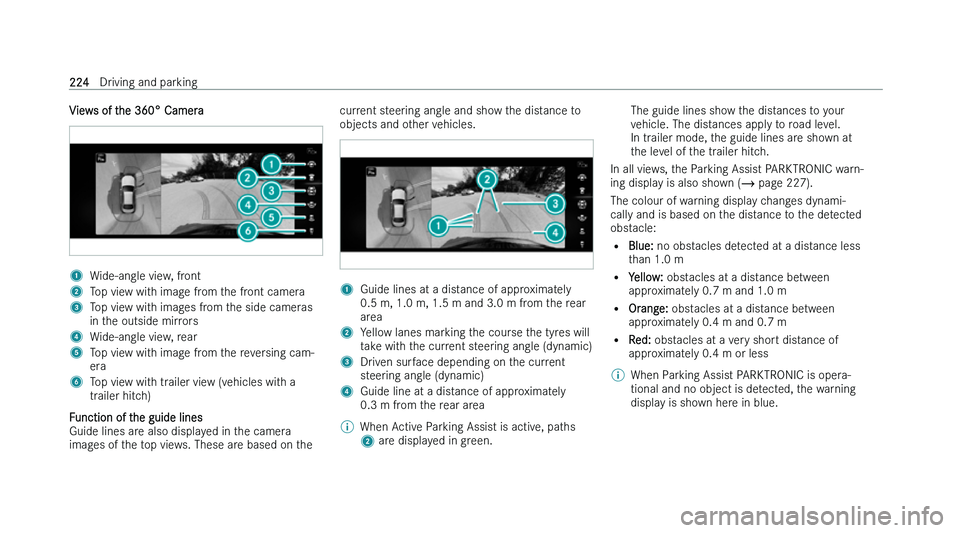

Views of the 360° Camera
1
Wide-angle view, front
2 Top view with image from the front camera
3 Top view with images from the side cameras
in t
he outside mirrors
4 Wide-angle view, rear
5 Top view with image from the reversing cam-
er

a
6 Top view with trailer view (vehicles with a
tr

ailer hitch)
Function of the guide lines
Guide lines ar
e also displayed in the camera
images of the top views. These are based on the current steering angle and show the distance to
objects and o

ther vehicles. 1
Guide lines at a distance of approximately
0.5 m, 1.0 m
, 1.5 m and 3.0 m from the rear
area
2 Yellow lanes marking the course the tyres will
t

ake with the current steering angle (dynamic)
3 Driven surface depending on the current
s

teering angle (dynamic)
4 Guide line at a distance of approximately
0.3 m fr

om the rear area
% When Active Parking Assist is active, paths
2 ar
e displayed in green. The guide lines show the distances to your
v

ehicle. The distances apply to road level.
In trailer mode, the guide lines are shown at
the level of the trailer hitch.
In all views, the Parking Assist PARKTRONIC warn-
ing displa
y is also shown (  page 227).
The colour of warning display changes dynami-
cally and is based on the distance to the detected
obstacle: = Blue: no obstacles detected at a distance less
than 1.0 m
= Yellow: obstacles at a distance between
approximately 0.7 m and 1.0 m
= Orange: obstacles at a distance between
approximately 0.4 m and 0.7 m
= Red: obstacles at a very short distance of
approximately 0.4 m or less
% When Parking Assist PARKTRONIC is opera-
tional and no object is de

tected, the warning
display is shown here in blue. 224
Driving and parking

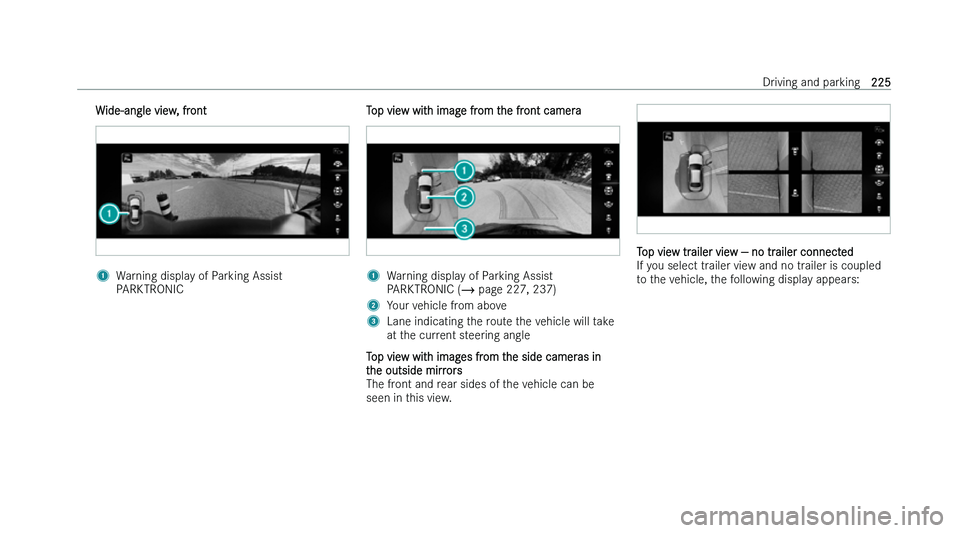

Wide-angle view, front
1
Warning display of Parking Assist
P
ARKTRONIC Top view with image from the front camera 1
Warning display of Parking Assist
P
ARKTRONIC (  page 227, 237)
2 Your vehicle from above
3 Lane indicating the route the vehicle will take
at t

he current steering angle
Top view with images from the side cameras in
t
he outside mirrors
The front and rear sides of the vehicle can be
seen in this view. Top view trailer view !

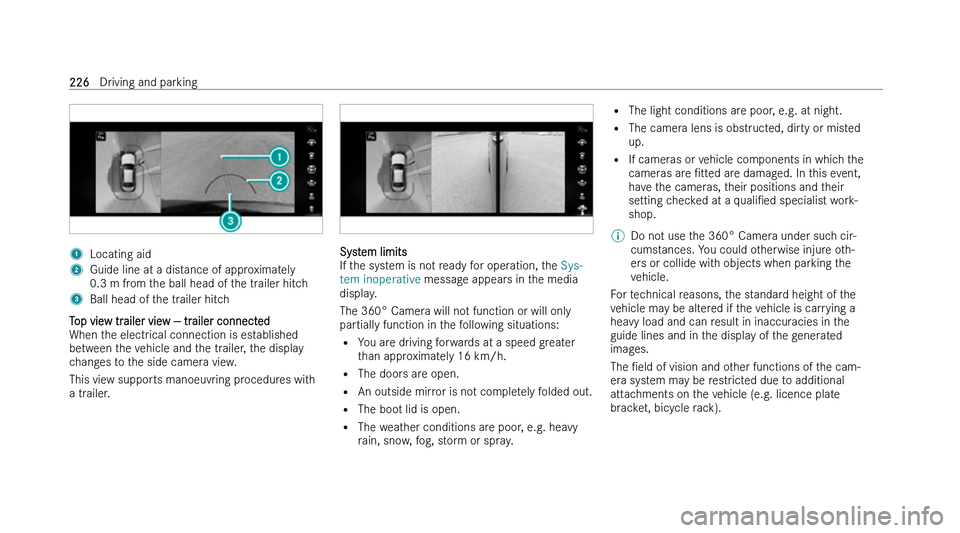

1
Locating aid
2 Guide line at a distance of approximately
0.3 m fr
om the ball head of the trailer hitch
3 Ball head of the trailer hitch
Top view trailer view !

%
The contrast of the display may be impaired
b
y abrupt, direct sunlight or by other light
sources, e.g. when driving out of a garage. In
this case, pay particular attention.
% Have the display repaired or replaced if,
f
orexample, pixel errors considerably restrict
its use.
See the notes on cleaning the 360° Camera
(  pag

e 315).

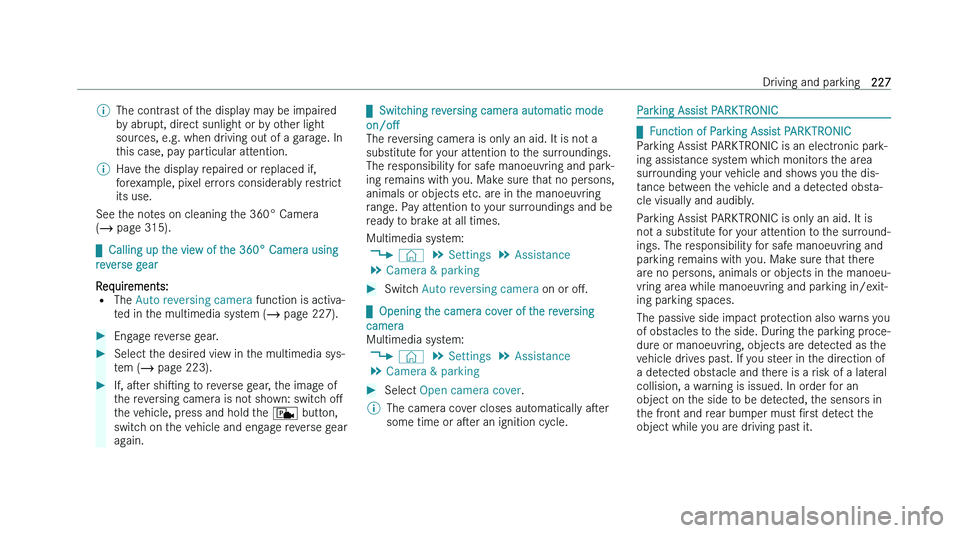

qCalling up the view of the 360° Camera using
reverse gear
Requirements: = The Auto reversing camera function is activa-
ted in the multimedia system ( page 227).
Engage reverse gear.
Select the desired view in the multimedia sys-
t
em ( page 223).
If, aser shising t
o reverse gear, the image of
the reversing camera is not shown: switch oM
the vehicle, press and hold the E button,
switch on the vehicle and engage reverse gear
again.
qSwitc
hing reversing camera automatic mode
on/oM
The reversing camera is only an aid. It is not a
substitute for your attention to the surroundings.
The responsibility for safe manoeuvring and park-
ing remains with you. Make sure that no persons,
animals or objects etc. are in the manoeuvring
range. Pay attention to your surroundings and be
ready to brake at all times.
Multimedia system:
4 © 5
Settings 5
Assistance
5 Camera & parking
Switch Auto reversing camera on or oM.

qOpening t
he camera cover of the reversing
camera
Multimedia system: 4 © 5
Settings 5
Assistance
5 Camera & parking
Select Open camera cover.
% The camera cover closes automatically aser
some time or aser an ignition cy

cle. Parking Assist PARKTRONIC

qF
unction of Parking Assist PARKTRONIC
Parking Assist PARKTRONIC is an electronic park-
ing assistance system which monitors the area
surrounding your vehicle and shows you the dis-
tance between the vehicle and a detected obsta-
cle visually and audibly.
Parking Assist PARKTRONIC is only an aid. It is
not a substitute for your attention to the surround-
ings. The responsibility for safe manoeuvring and
parking remains with you. Make sure that there
are no persons, animals or objects in the manoeu-
vring area while manoeuvring and parking in/exit-
ing parking spaces.
The passive side impact protection also warns you
of obstacles to the side. During the parking proce-
dure or manoeuvring, objects are detected as the
vehicle drives past. If you steer in the direction of
a detected obstacle and there is a risk of a lateral
collision, a warning is issued. In order for an
object on the side to be detected, the sensors in
the front and rear bumper must Nrst detect the
object while you are driving past it. Driving and parking
227

In order for front or rear obstacles to the side to
be displa yed, the vehicle must Nrst travel a dis-
tance of at least half a vehicle length. Once the
vehicle has travelled one vehicle length, obstacles
on all sides can be shown.

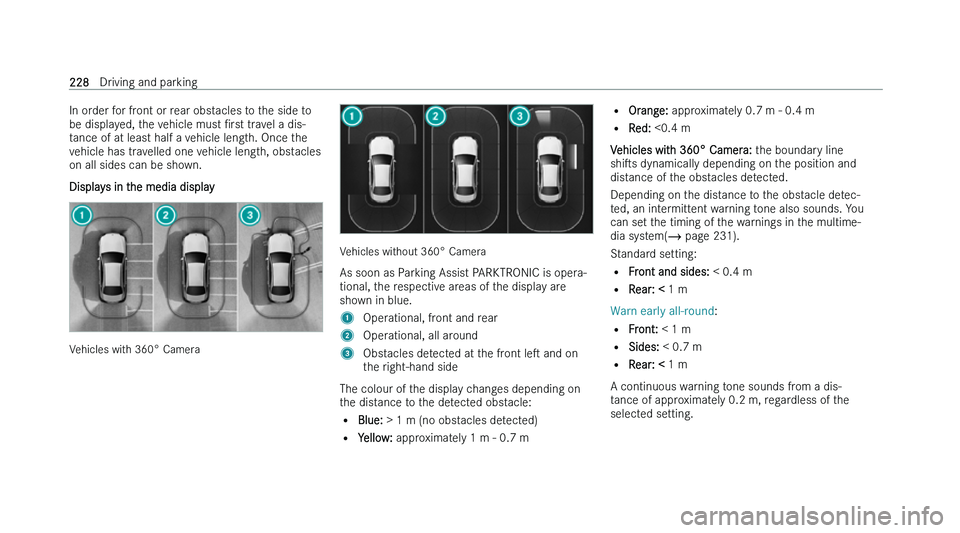

Displays in the media display Vehicles with 360° Camera Vehicles without 360° Camera
As soon as P
arking Assist PARKTRONIC is opera-
tional, the respective areas of the display are
shown in blue.
1 Operational, front and rear
2 Operational, all around
3 Obstacles detected at the front les and on
t
he right-hand side
The colour of the display changes depending on
t
he distance to the detected obstacle:
= Blue: > 1 m (no obstacles detected)
= Yellow: approximately 1 m - 0.7 m =
Or
ange: approximately 0.7 m - 0.4 m
= Red: <0.4 m
Vehicles with 360° Camera: the boundary line
shiss dynamically depending on the position and
distance of the obstacles detected.
Depending on the distance to the obstacle detec-
ted, an intermittent warning tone also sounds. You
can set the timing of the warnings in the multime-
dia system(  page 231).
Standard setting: = Front and sides: < 0.4 m
= Rear: < 1 m
Warn early all-round :
= Front: < 1 m
= Sides: < 0.7 m
= Rear: < 1 m
A continuous warning tone sounds from a dis-
tance of approximately 0.2 m, regardless of the
selected setting. 228
Driving and parking

Vehicles with 360° Camera
Vehicles without 360° Camera If an obstacle in the vehicle path is detected and
t
he Camera & parking menu is not open in the
media display, pop-up window 1appears:
= vehicles without Active Parking Assist: at
speeds below 12 km/h
= vehicles with Active Parking Assist: at speeds
below 18 km/h Optionally, obstacles detected by Parking Assist
P

ARKTRONIC from a distance of approximately
1.0 m in front 2 and 0.7 m on the side 3 can
also be displayed in the head-up display. System limits
P

arking Assist PARKTRONIC does not necessarily
take into account the following obstacles:
= Obstacles below the detection range, e.g. per-
sons, animals or objects.
= Obstacles above the detection range, e.g.
overhanging loads, overhangs or loading
ramps of lorries.
= Pedestrians or animals approaching the vehi-
cle from the side.
= Objects placed next to the vehicle
Obstacles on the sides are not shown in the fol-
lowing situations, for example: = You park the vehicle and switch it oM.
= You open the doors.
Aser an engine start, obstacles must be detected
again by driving past them before a warning can
be issued.
Observe the information on vehicle sensors and
cameras; the system otherwise cannot function
properly ( page 182). Driving and parking
229
