2022 MERCEDES-BENZ CLS COUPE Owners Manual

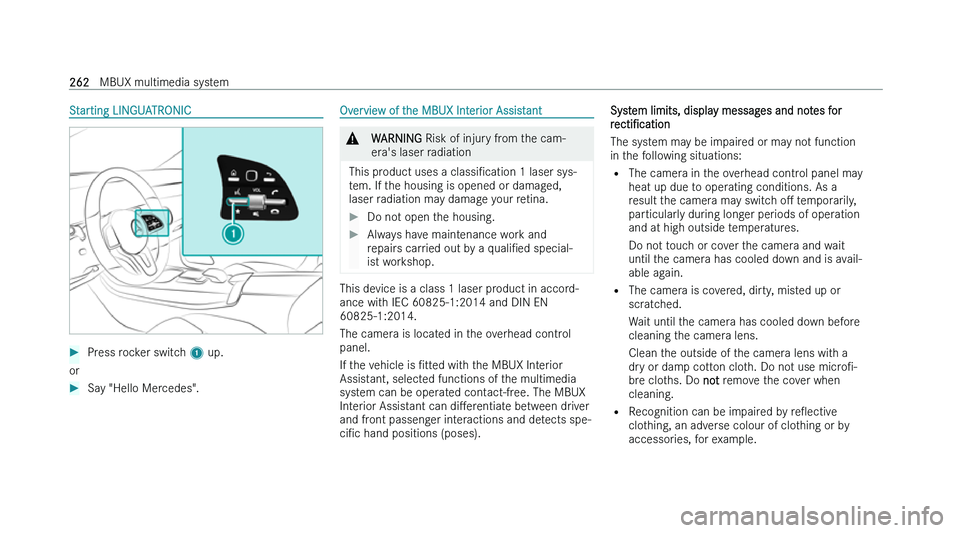

Starting LINGUATRONIC

Press rocker switch 1 up.
or
Say "Hello Mercedes". Overview of the MBUX Interior Assistant
&
WARNING Risk of injur y from the cam-
era's laser radiation
This product uses a classiNcation 1 laser sy
s-
tem. If the housing is opened or damaged,
laser radiation may damage your retina.
Do not open the housing.
Always have maintenance work and
r

epairs carried out by a qualiNed special-
ist workshop. This device is a class 1 laser product in accord-
ance wit

h IEC 60825-1:2014 and DIN EN
60825-1:2014.
The camera is located in the overhead control
panel.
If the vehicle is Ntted with the MBUX Interior
Assistant, selected functions of the multimedia
system can be operated contact-free. The MBUX
Interior Assistant can diMerentiate between driver
and front passenger interactions and detects spe-
ciNc hand positions (poses). System limits, display messages and notes for
r

ectiNcation
The system may be impaired or may not function
in the following situations:
= The camera in the overhead control panel may
heat up due to operating conditions. As a
result the camera may switch oM temporarily,
particularly during longer periods of operation
and at high outside temperatures.
Do not touch or cover the camera and wait
until the camera has cooled down and is avail-
able again.
= The camera is covered, dirty, misted up or
scratched.
Wait until the camera has cooled down before
cleaning the camera lens.
Clean the outside of the camera lens with a
dry or damp cotton cloth. Do not use microN-
bre cloths. Do not remove the cover when
cleaning.
= Recognition can be impaired by reOective
clothing, an adverse colour of clothing or by
accessories, for example. 262
MBUX multimedia system

=
Clo thing being worn (hat, shawl, scarf) may be
limiting the detection area of the camera. Keep the camera's
Neld of vision clear .
= The camera is not operational. Consult a Mercedes-Benz service centre.

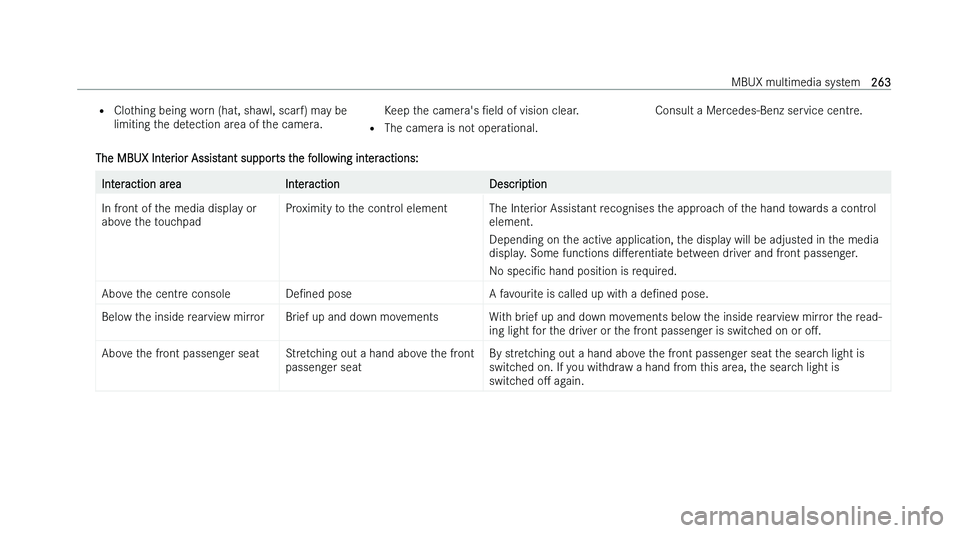

The MBUX Interior Assistant supports the following interactions: Interaction area
Interaction Description
In front of the media display or
abo
ve the touchpad Proximity to the control element The Interior Assistant recognises the approach of the hand towards a control
element.
Depending on t
he active application, the display will be adjusted in the media
display. Some functions diMerentiate between driver and front passenger.
No speciNc hand position is required.
Above the centre console DeNned pose A favourite is called up with a deNned pose.
Below the inside rearview mirror Brief up and down movements With brief up and down movements below the inside rearview mirror the read- ing light f
or the driver or the front passenger is switched on or oM.
Above the front passenger seat Stretching out a hand above the front passeng
er seat By stretching out a hand above the front passenger seat the search light is
switc hed on. If you withdraw a hand from this area, the search light is
switched oM again. MBUX multimedia system
263

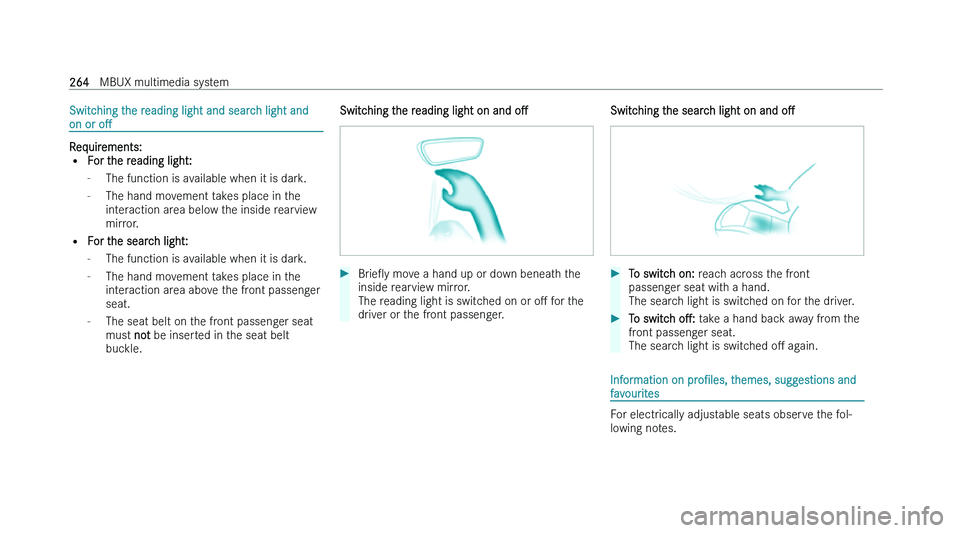

Switching the reading light and search light and
on or oM
Requirements:
= F
or the reading light:
- The function is available when it is dark.
- The hand movement takes place in the
interaction area below the inside rearview
mirror.
= For the search light:
- The function is available when it is dark.
- The hand movement takes place in the
interaction area above the front passenger
seat.
- The seat belt on the front passenger seat
must not be inserted in the seat belt
buckle. Switching the reading light on and
oM
BrieOy mo
ve a hand up or down beneath the
inside rearview mirror.
The reading light is switched on or oM for the
driver or the front passenger. Switching the search light on and
oM
To switch on: r each across the front
passenger seat with a hand.
The search light is switched on for the driver.
To switch oM: t
ake a hand back away from the
front passenger seat.
The search light is switched oM again. Information on pr

oNles, themes, suggestions and
favourites For electrically adjustable seats observe the fol-
lo
wing notes. 264
MBUX multimedia system

&
WARNING Risk of becoming tr apped dur-
ing adjustment of the driver's seat aser
calling up a driver proNle
Selecting a user pr
oNle may trigger an adjust-
ment of the driver's seat to the position saved
under the user proNle. You or other vehicle
occupants could be injured in the process.
Make sure that when the position of driv-
er's seat is being adjus

ted using the mul-
timedia system, no people or body parts
are in the seat's range of movement.
If a person is in danger of becoming trapped,
immediat
ely stop the adjustment process by:
a) Tapping the warning message on the
media displa

y.
or
b) Pressing a position button of the
memor
y function or a seat adjustment
switch in the driver's door.
The adjustment process is stopped. The driver's seat is equipped with an access pre-
v

enter. If the driver's door is open, the driver's seat will
no
t be set aser calling up the driver's proNle.
ProNles store your vehicle settings and settings
for the multimedia system. If the vehicle is used
by several drivers, the driver can select their own
proNle without changing the stored proNle settings
of other drivers.
% Information on pr
oNles from Mercedes me
connect can be found in the Digital Owner's
Manual.
Vehicle settings are, for example, driver's seat,
s
teering wheel and mirror settings, climate control
and ambient lighting. For the settings of the multi-
media system, you can select, for example, radio
stations, previous destinations as well as themes,
suggestions and favourites.
For recurring driving situations, such as long
drives on the motorway, you can save your prefer-
red settings in a theme in the vehicle. In a theme
you can save the display of the digital map, your
preferred radio station and preferred drive pro-
gram, for example.
The vehicle can learn the habits of the driver. It
then oMers suggestions for the most probable navigation destinations, media sources, radio sta-
tions or cont
acts. The pre-requirements for that
are the selection of a proNle, your consent to the
recording of data and suPcient collected data.
Favourites provide quick access to applications
that are used osen. You can select favourites
from categories or add them directly to an appli-

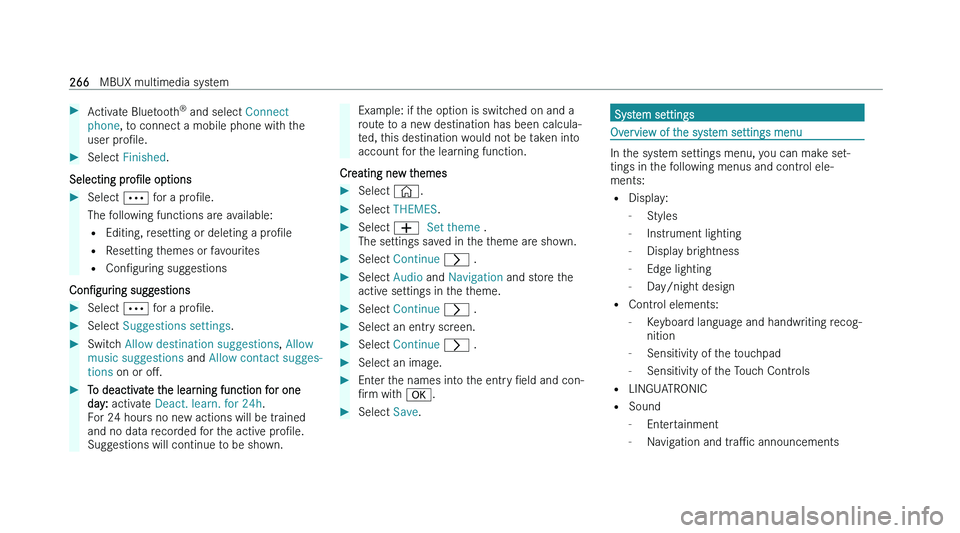

cation. ConNguring
pr
oNles, themes and suggestions Multimedia system:
4 © 5
f Profiles
Cr

eating a new proNle
Select


Activate Bluetooth n
and select Connect
phone, t o connect a mobile phone with the
user proNle.
Select Finished .
Selecting pr
oNle options
Select Ä f
or a proNle.
The following functions are available: = Editing, resetting or deleting a proNle
= Resetting themes or favourites
= ConNguring suggestions
ConNguring sugg
estions
Select Ä f
or a proNle.
Select Suggestions settings .
Switch Allow destination suggestions, Allow
music suggestions and Allow contact sugges-
tions on or oM.
To deactivate the learning function for one
da

y: activate Deact. learn. for 24h .
For 24 hours no new actions will be trained
and no data recorded for the active proNle.
Suggestions will continue to be shown. Example: if the option is switched on and a
r

oute to a new destination has been calcula-
ted, this destination would not be taken into
account for the learning function.
Creating new themes
Select ©.
Select THEMES .
Select

-
T elephone
- Voice ampliNcation to the rear
= Connectivity:
- Wi-Fi, Bluetooth n
, NFC
= Time & date
= Language
= Units for distance
= Sosware updates
= Data import/export
= PIN protection

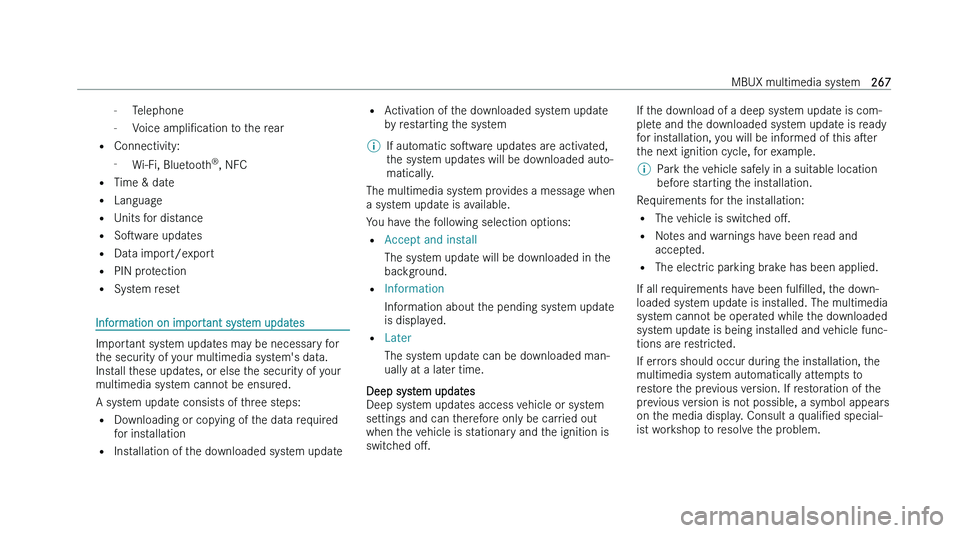

= System reset Information on important system updates
Important system updates may be necessary for
t
he security of your multimedia system's data.
Install these updates, or else the security of your
multimedia system cannot be ensured.
A system update consists of three steps:
= Downloading or copying of the data required
for installation
= Installation of the downloaded system update =
A
ctivation of the downloaded system update
by restarting the system
% If automatic sosw
are updates are activated,
the system updates will be downloaded auto-
matically.
The multimedia system provides a message when
a sy
stem update is available.
You have the following selection options: = Accept and install
The system update will be downloaded in the
background.
= Information
Information about the pending system update
is displayed.
= Later
The system update can be downloaded man-
ually at a later time.
Deep system updates
Deep system updates access vehicle or system
settings and can therefore only be carried out
when the vehicle is stationary and the ignition is
switched oM. If the download of a deep system update is com-
ple

te and the downloaded system update is ready
for installation, you will be informed of this aser
the next ignition cycle, for example.
% Park the vehicle safely in a suitable location
bef
ore starting the installation.
Requirements for the installation:
= The v

ehicle is switched oM.
= Notes and warnings have been read and
accepted.
= The electric parking brake has been applied.
If all requirements have been fulNlled, the down-
loaded system update is installed. The multimedia
system cannot be operated while the downloaded
system update is being installed and vehicle func-
tions are restricted.
If errors should occur during the installation, the
multimedia system automatically attempts to
restore the previous version. If restoration of the
previous version is not possible, a symbol appears
on the media display. Consult a qualiNed special-
ist workshop to resolve the problem. MBUX multimedia system
267

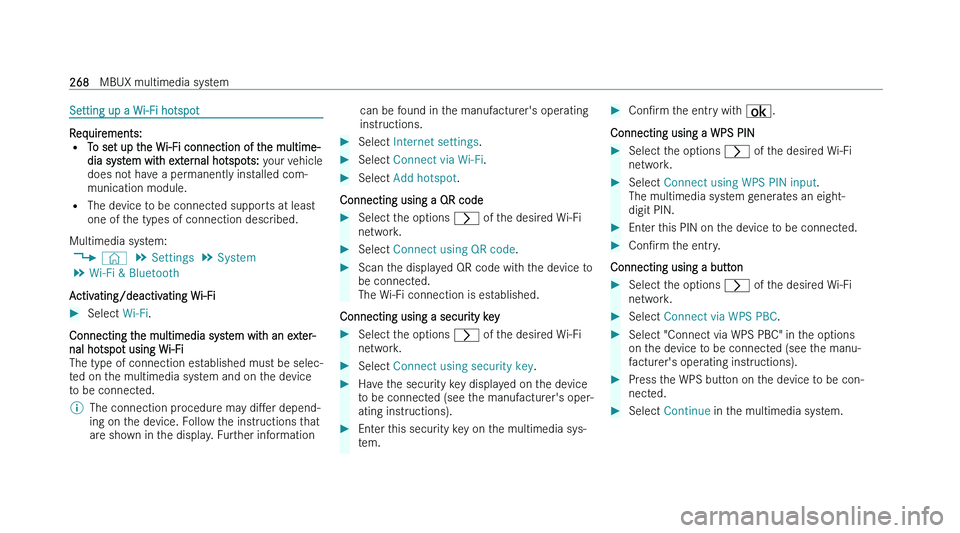

Setting up a Wi-Fi hotspot
Requirements:
= T
o set up the Wi-Fi connection of the multime-
dia system with external hotspots: your vehicle
does not have a permanently installed com-
munication module.
= The device to be connected supports at least
one of the types of connection described.
Multimedia system: 4 © 5
Settings 5
System
5 Wi-Fi & Bluetooth
Activating/deactivating Wi-Fi
Select Wi-Fi.
Connecting the multimedia system with an exter-
nal ho
tspot using Wi-Fi
The type of connection established must be selec-
ted on the multimedia system and on the device
to be connected.
% The connection procedure may diMer depend-
ing on t
he device. Follow the instructions that
are shown in the display. Further information can be found in the manufacturer's operating
ins
tructions.
Select Internet settings .
Select Connect via Wi-Fi.
Select Add hotspot.
Connecting using a QR code
Select the options H of t
he desired Wi-Fi
network.
Select Connect using QR code.
Scan the displayed QR code with the device to
be connect
ed.
The Wi-Fi connection is established.
Connecting using a security key
Select the options H of t
he desired Wi-Fi
network.
Select Connect using security key.
Have the security key displayed on the device
t
o be connected (see the manufacturer's oper-
ating instructions).
Enter this security key on the multimedia sys-
t
em.
ConNrm t
he entry with y.
Connecting using a WPS PIN
Select the options H of t
he desired Wi-Fi
network.
Select Connect using WPS PIN input.
The multimedia sy

stem generates an eight-
digit PIN.
Enter this PIN on the device to be connected.
ConNrm t
he entry.
Connecting using a button
Select the options H of t
he desired Wi-Fi
network.
Select Connect via WPS PBC.
Select "Connect via WPS PBC" in the options
on t

he device to be connected (see the manu-
facturer's operating instructions).
Press the WPS button on the device to be con-
nect

ed.
Select Continue in t
he multimedia system.268
MBUX multimedia system

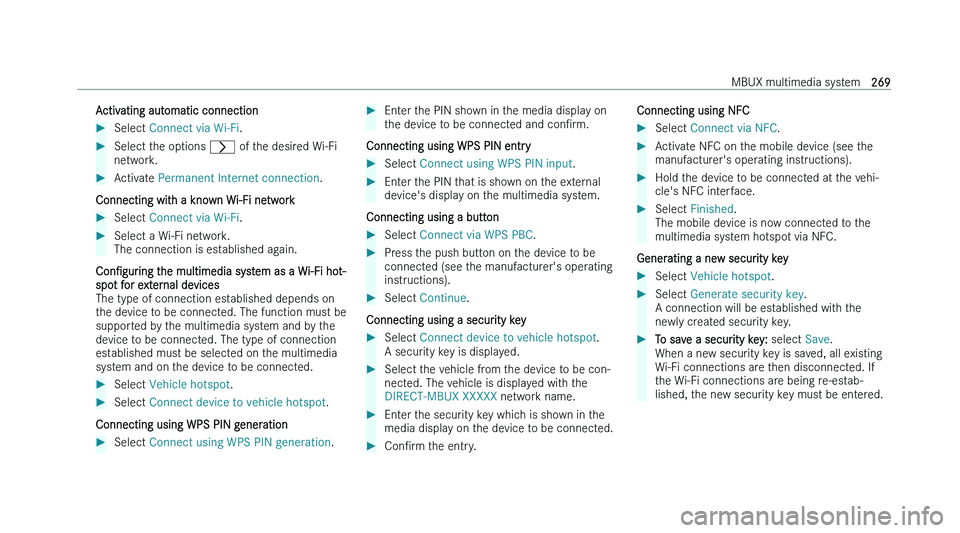

Activating automatic connection

Select Connect via Wi-Fi.
Select the options H of t he desired Wi-Fi
network.
Activate Permanent Internet connection .
Connecting with a known Wi-Fi network
Select Connect via Wi-Fi.
Select a Wi-Fi network.
The connection is es

tablished again.
ConNguring t
he multimedia system as a Wi-Fi hot-
spot for external devices
The type of connection established depends on
the device to be connected. The function must be
supported by the multimedia system and by the
device to be connected. The type of connection
established must be selected on the multimedia
system and on the device to be connected.
Select Vehicle hotspot.
Select Connect device to vehicle hotspot .
Connecting using WPS PIN generation
Select Connect using WPS PIN generation .
Enter the PIN shown in the media display on
t

he device to be connected and conNrm.
Connecting using WPS PIN entry
Select Connect using WPS PIN input.
Enter the PIN that is shown on the external
de

vice's display on the multimedia system.
Connecting using a button
Select Connect via WPS PBC.
Press the push button on the device to be
connect

ed (see the manufacturer's operating
instructions).
Select Continue.
Connecting using a security key
Select Connect device to vehicle hotspot .
A secur
ity key is displayed.
Select the vehicle from the device to be con-
nect
ed. The vehicle is displayed with the
DIRECT-MBUX XXXXX network name.
Enter the security key which is shown in the
media displa
y on the device to be connected.
ConNrm t
he entry. Connecting using NFC
Select Connect via NFC.
Activate NFC on the mobile device (see the
manuf
acturer's operating instructions).
Hold the device to be connected at the vehi-
cle's NFC int
erface.
Select Finished .
The mobile de
vice is now connected to the
multimedia system hotspot via NFC.
Generating a new security key
Select Vehicle hotspot.
Select Generate security key .
A connection will be es
tablished with the
newly created security key.
To save a security key: select Save.
When a ne
w security key is saved, all existing
Wi-Fi connections are then disconnected. If
the Wi-Fi connections are being re-estab-
lished, the new security key must be entered. MBUX multimedia system
269
